Telwin Spare Parts for Welding Machine MAXIMA 270
€0.12
VAT included
Telwin Spare Parts for Welding Machine MAXIMA 270
TELWIN authorized service center and original spare parts Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Welding Machine MAXIMA 270 816126.
Telwin Spare Parts for Welding Machine MAXIMA 270
€0.12
VAT included
Telwin Spare Parts for Welding Machine MAXIMA 270
TELWIN authorized service center and original spare parts Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Welding Machine MAXIMA 270 816126.
settings
75 Spare parts
description
2 exploded views
verified_user
Original Product
Manufacturer warranty included
support_agent
Technical Support
Our team helps you choose
Secure and guaranteed payments
75 spare parts

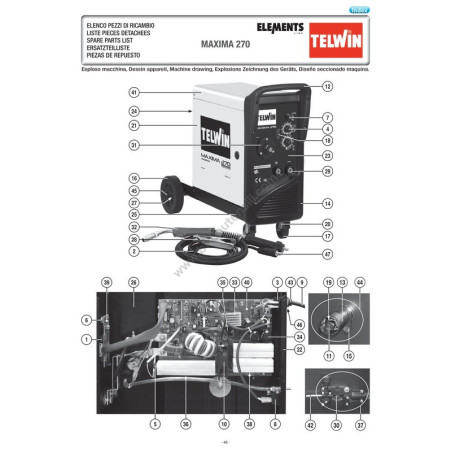

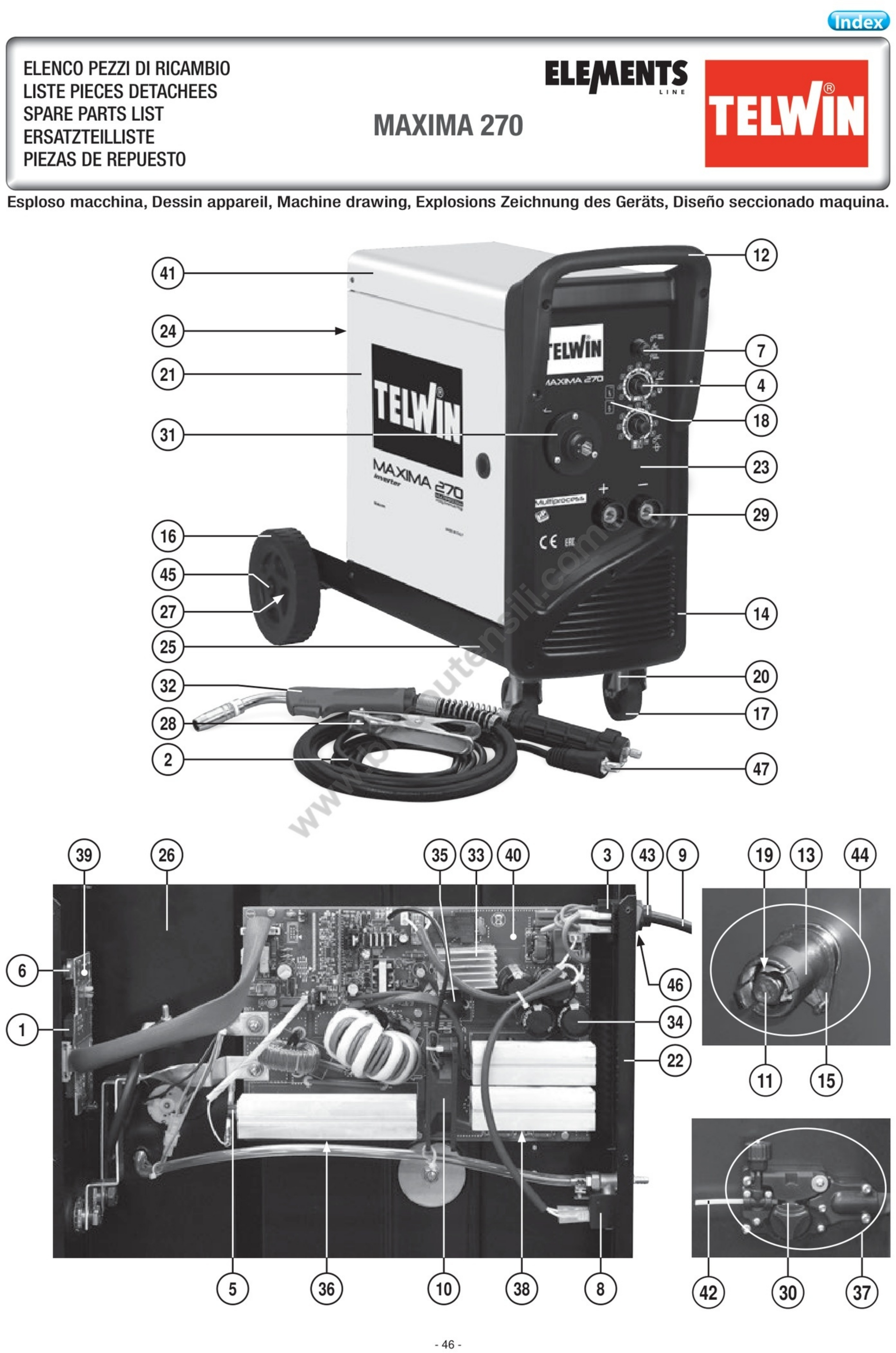

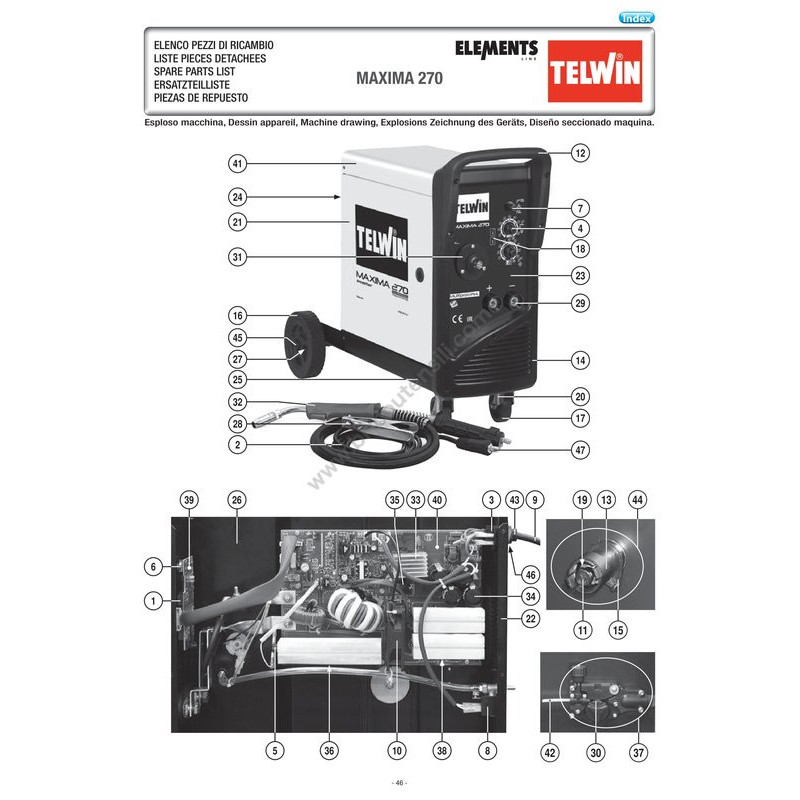

Page 1
zoom_in View exploded
local_shipping Usually Ships in 10 BUSYNESS DAYS
Page 2
zoom_in View exploded
local_shipping Usually Ships in 10 BUSYNESS DAYS
Shipping and delivery information will be available shortly.
Telwin Spare Parts for Welding Machine MAXIMA 270
Telwin genuine spare parts for replacing or repairing Welding Machine MAXIMA 270 – 816126.
In the following table, find the model and its corresponding spare part code.
| Telwin MAXIMA 270 | ||
| # | Part Num. | Description |
| 1 | 111662 | Potentiometer |
| 2 | 124887 | Cable |
| 3 | 121248 | Switch |
| 4 | 121394 | Knob |
| 5 | 121748 | Thermostat |
| 6 | 121775 | Switch |
| 7 | 121751 | Knob |
| 8 | 121800 | Electrovalve |
| 9 | 132345 | Mains cable 3g04.00 2.00 M |
| 10 | 152293 | Fan |
| 11 | 312137 | Reel handwheel |
| 12 | 312408 | Handle |
| 13 | 321210 | Reel spacer |
| 14 | 321296 | Frame |
| 15 | 322081 | Reel |
| 16 | 322201 | Fixed wheel |
| 17 | 322245 | Wheel |
| 18 | 121797 | Led guide |
| 19 | 452057 | Reel spring |
| 20 | 484688 | Swivel support + brake |
| 21 | 617545 | Door |
| 22 | 642768 | Back panel |
| 23 | 642767 | Front panel |
| 24 | 645673 | Bottle-holder bracket |
| 25 | 982031 | Bottom kit |
| 26 | 645843 | Diaphragm |
| 27 | 681065 | Wheels axle |
| 28 | 712231 | Toledo 300 work clamp 300a |
| 29 | 712036 | Dinse socket dx 50 |
| 30 | 722019 | Feed roll d. 0,6-0,8 Mm fe |
| 31 | 723051 | Torch connection |
| 32 | 742183 | Mt25 mig torch 3 m |
| 33 | 981581 | Single phase bridge kit |
| 34 | 982183 | Condenser kit snap-in |
| 35 | 982126 | Mosfet flyback kit |
| 36 | 981583 | Diode kit |
| 37 | 981831 | Motor kit |
| 38 | 981582 | Kit igbt + diodes |
| 39 | 982184 | Front panel card kit |
| 40 | 982185 | Complete control pcb kit |
| 41 | 982186 | Cover kit |
| 42 | 990097 | Gas hose kit |
| 43 | 990046 | Kit cable bushing + ring nut |
| 44 | 990264 | Reel kit |
| 45 | 322102 | Wheel locking ring |
| 46 | 122353 | Switch cover |
| 47 | 712040 | Dinse plug dx 50 |

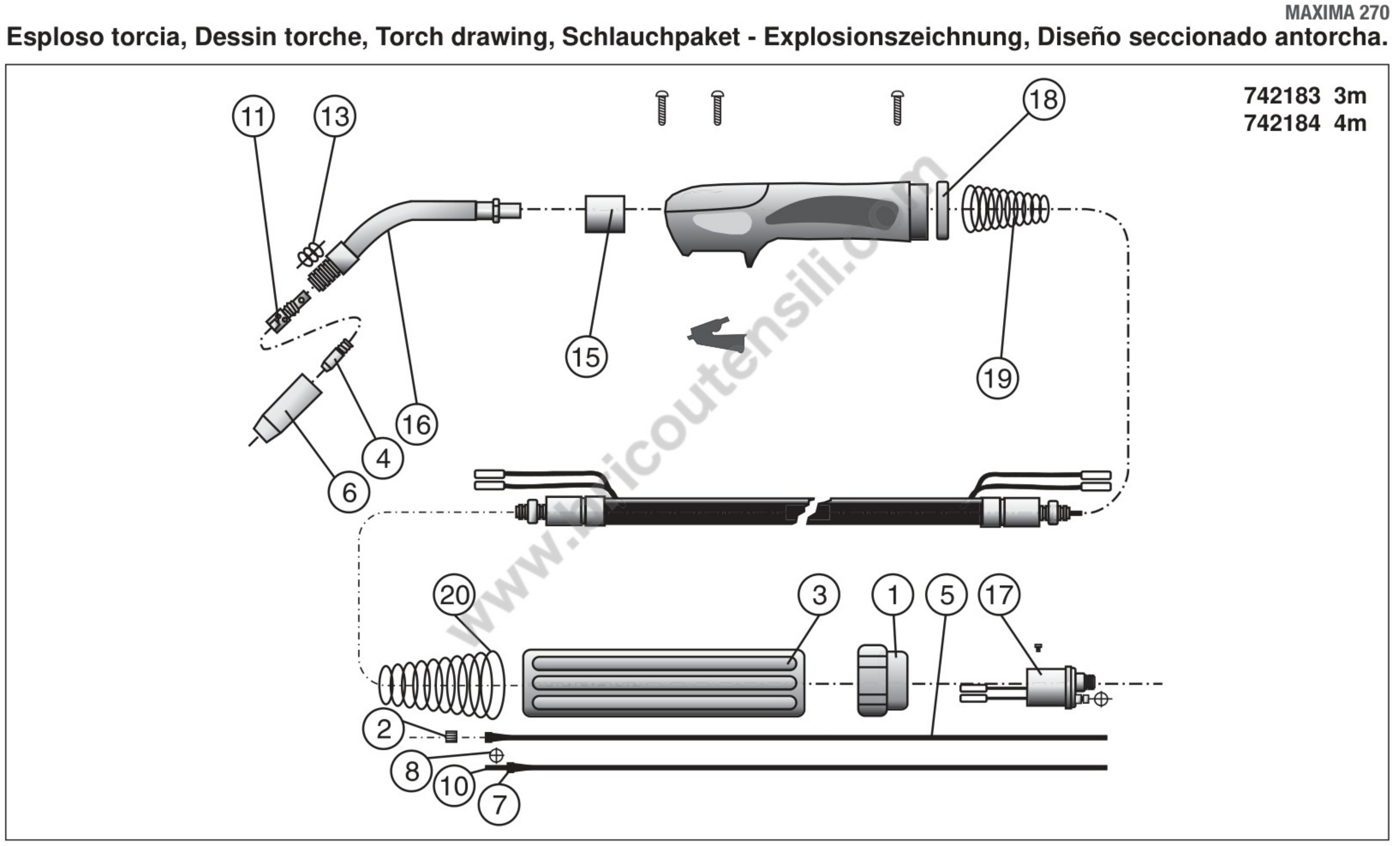

| MAXIMA 270 Pag.2 | ||
| Torch spare parts list | ||
| # | Part Num. | Description |
| 1 | 722007 | Ring Nut |
| 2 | 722013 | Liner Nut |
| 3 | 742175 | Torch Connection |
| 4 | 722415 | Contact Tip D. 0,6 Mm |
| 4 | 722552 | Al/flux Contact Tip D. 1 Mm |
| 4 | 722553 | Al/flux Contact Tip D. 1,2 Mm |
| 4 | 722680 | Contact Tip D.0,8 |
| 4 | 722681 | Contact Tip D. 1 Mm |
| 4 | 722682 | Contact Tip D. 1,2 Mm |
| 5 | 722437 | Liner D. 0,6-0,8 3M |
| 5 | 722516 | Wire Guide Hose D. 1-1,2 Mm Al |
| 5 | 722689 | Liner D. 1-1,2 Mm 3 M |
| 6 | 722684 | Cylindrical Nozzle |
| 6 | 722685 | Conical Nozzle |
| 6 | 722686 | Thin Headed Nozzle |
| 6 | 722687 | Spot Welding Nozzle D. 18 Mm |
| 7 | 722598 | Wire Guide Locking Nipples |
| 8 | 722601 | Or Ring |
| 8 | 722606 | Or Ring |
| 10 | 722600 | Wire Guide Locking Tube |
| 11 | 722688 | Gas Diffuser |
| 13 | 722690 | Nozzle Spring |
| 15 | 722693 | Torch Connection Insulation |
| 16 | 722696 | Swan Neck |
| 17 | 722441 | Torch Assy |
| 18 | 742171 | Torch Ring Nut |
| 19 | 742173 | Torch Holder + Spring |
| 20 | 742174 | Torch Spring |
