Telwin Spare Parts for Welding Machine INFINITY TIG 225 DC-HF_LIFT VRD
Telwin genuine spare parts for replacing or repairing Welding Machine INFINITY TIG 225 DC-HF_LIFT VRD – 816648.
In the following table, find the model and its corresponding spare part code.

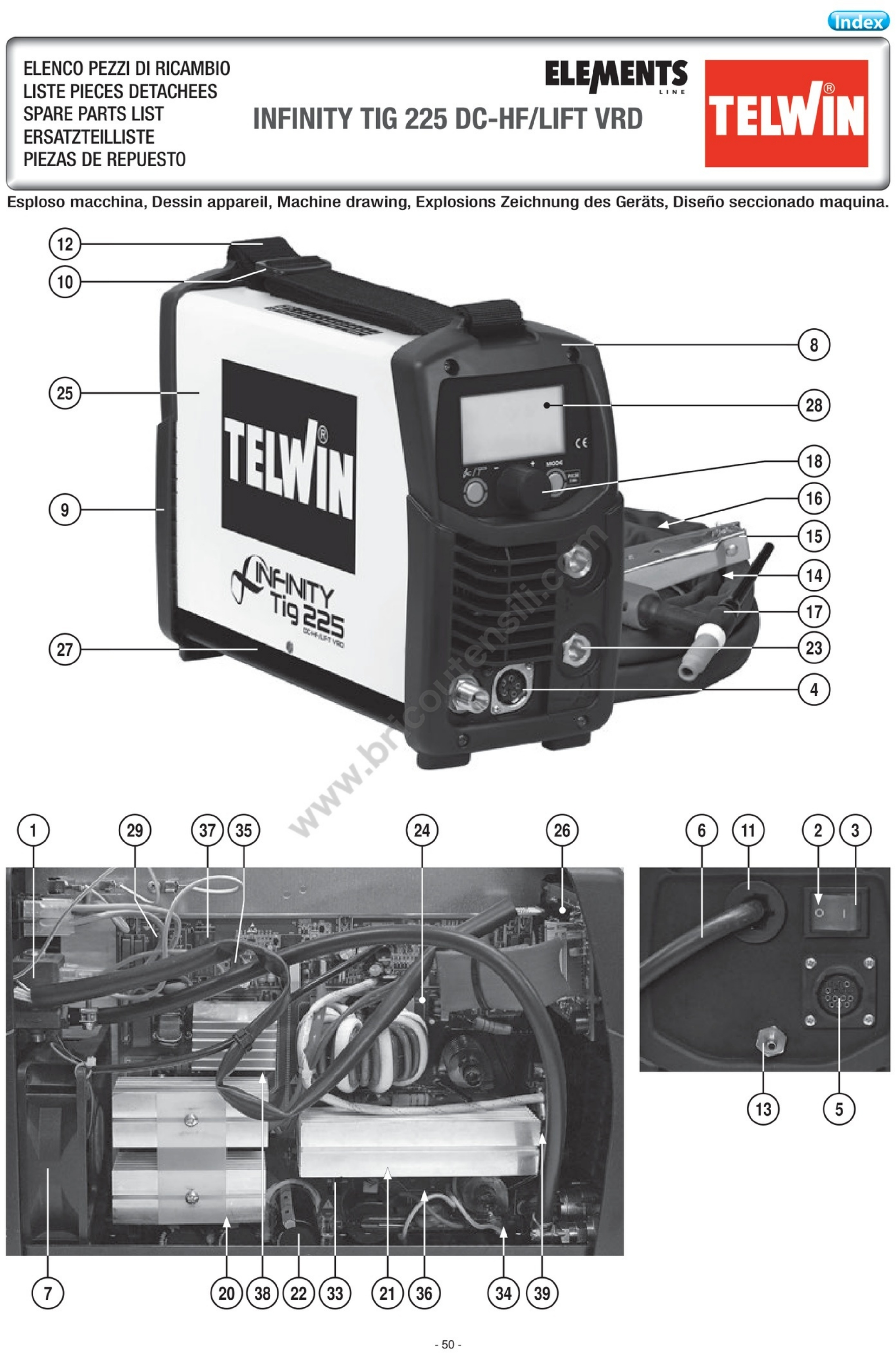

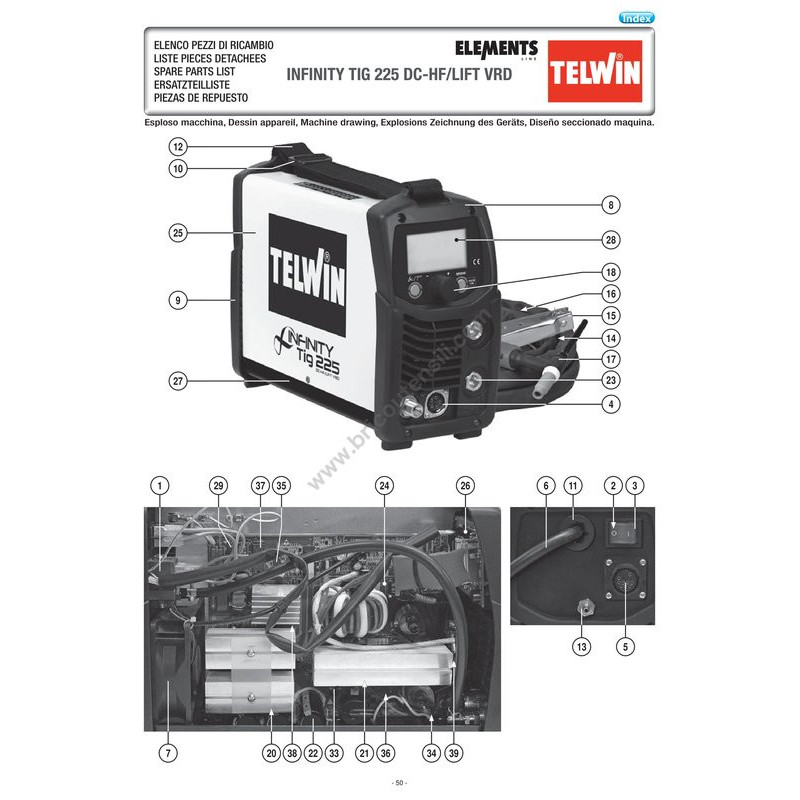

| Telwin INFINITY TIG 225 DC-HF_LIFT VRD | ||
| # | Part Num. | Description |
| 1 | 121800 | Electrovalve |
| 2 | 121248 | Switch |
| 3 | 122353 | Switch cover |
| 4 | 124766 | Torch button cable |
| 5 | 125167 | Control cable |
| 6 | 132157 | Mains cable |
| 7 | 152290 | Fan |
| 8 | 321302 | Front panel |
| 9 | 321303 | Back panel |
| 10 | 322065 | Belt buckle |
| 11 | 322112 | Cable bushing |
| 12 | 322408 | Belt |
| 13 | 602376 | Pipe fitting |
| 14 | 712040 | Dinse plug dx 50 |
| 15 | 712231 | Toledo 300 work clamp 300a |
| 16 | 713192 | Cable 25mmq 3m-work clamp-dx 50 |
| 17 | 742614 | St26 tig torch 4 m |
| 18 | 980520 | Encoder knob kit |
| 20 | 981588 | Kit igbt + diodes |
| 21 | 981583 | Diode kit |
| 22 | 981584 | Condenser kit snap-in |
| 23 | 981878 | Dx sockets kit 50mmq |
| 24 | 982084 | Power board kit |
| 25 | 982085 | Cover kit |
| 26 | 982086 | Front panel card kit |
| 27 | 982087 | Bottom kit |
| 28 | 982088 | Kit display |
| 29 | 111406 | Relais |
| 33 | 111550 | Mosfet |
| 34 | 111555 | Gas discharger 5000v |
| 35 | 111572 | Mosfet |
| 36 | 111580 | Resistance |
| 37 | 116738 | Relais 24vdc 17ma 250v 16a 1no |
| 38 | 116962 | Resistance 10r 2w 5% fuse |
| 39 | 121748 | Thermostat |

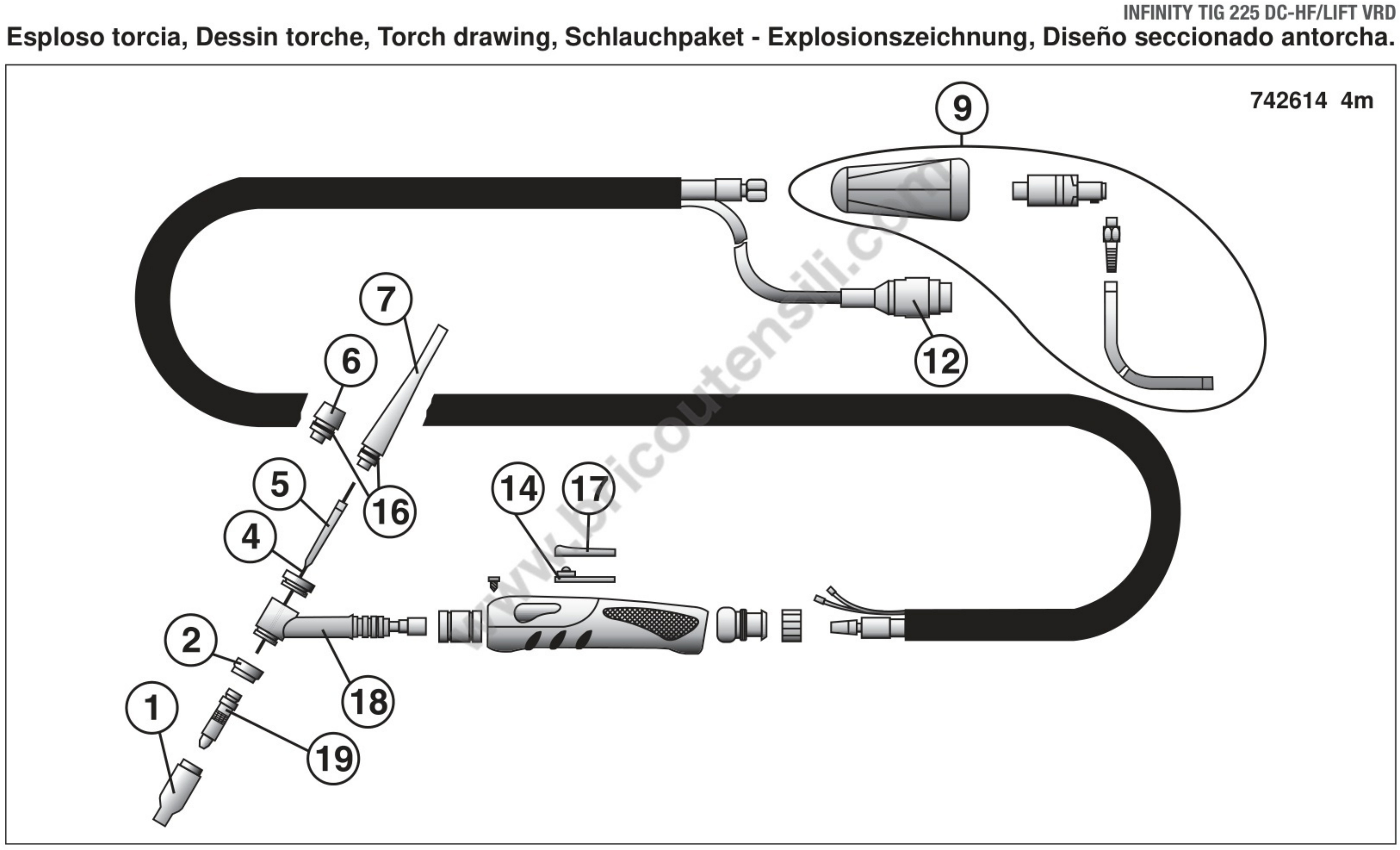

| INFINITY TIG 225 DC-HF_LIFT VRD Pag.2 | ||
| Torch spare parts list | ||
| # | Part Num. | Description |
| 1 | 802244 | Kit 10 Ceramic Nozzles Nr.4 |
| 1 | 802245 | Kit 10 Ceramic Nozzles Nr.6 |
| 1 | 802246 | Kit 10 Ceramic Nozzles Nr.7 |
| 1 | 802247 | Kit 10 Ceramic Nozzles Nr.8 |
| 1 | 802248 | Kit 10 Ceramic Nozzles Nr.10 |
| 2 | 722248 | Insulator |
| 4 | 802220 | Kit 10 Cerium-tungsten Electr. D.1 Mm |
| 4 | 802222 | Kit 10 Cerium-tungsten Electr. D.1,6 Mm |
| 4 | 802232 | Kit 10 Cerium-tungsten Electr. D.2,4 Mm |
| 4 | 802233 | Kit 10 Cerium-tungsten Electr. D.3,2 Mm |
| 4 | 802235 | Kit 10 Pure Tungsten Electr. D.1,6 Mm |
| 4 | 802236 | Kit 10 Pure Tungsten Electr. D.2,4 Mm |
| 4 | 802237 | Kit 10 Pure Tungsten Electr. D.3,2 Mm |
| 4 | 802238 | Kit 10 Pure Tungsten Electr. D. 4 Mm |
| 5 | 802239 | Kit 3 Electrode Holder Clamps D.1,0 Mm |
| 5 | 802240 | Kit 3 Electrode Holder Clamps D.1,6 Mm |
| 5 | 802241 | Kit 3 Electrode Holder Clamps D.2,4 Mm |
| 5 | 802242 | Kit 3 Electrode Holder Clamps D.3,2 Mm |
| 5 | 802243 | Kit 3 Electrode Holder Clamps D.4 Mm |
| 6 | 722192 | Short Cap |
| 7 | 722193 | Long Cap |
| 9 | 981443 | Dinse 50 Connection Kit |
| 12 | 742599 | 5P Plug |
| 14 | 452089 | Pushbotton Contact |
| 16 | 722061 | Or Ring |
| 17 | 742042 | Pushbotton |
| 18 | 722944 | Torch Body |
| 19 | 802249 | Kit 3 Electrode Diffusers D.1 Mm |
| 19 | 802250 | Kit 3 Electrode Diffusers D.1,6 Mm |
| 19 | 802251 | Kit 3 Electrode Diffusers D.2,4 Mm |
| 19 | 802252 | Kit 3 Electrode Diffusers D.3,2 Mm |
| 19 | 802253 | Kit 3 Electrode Diffusers D.4 Mm |
