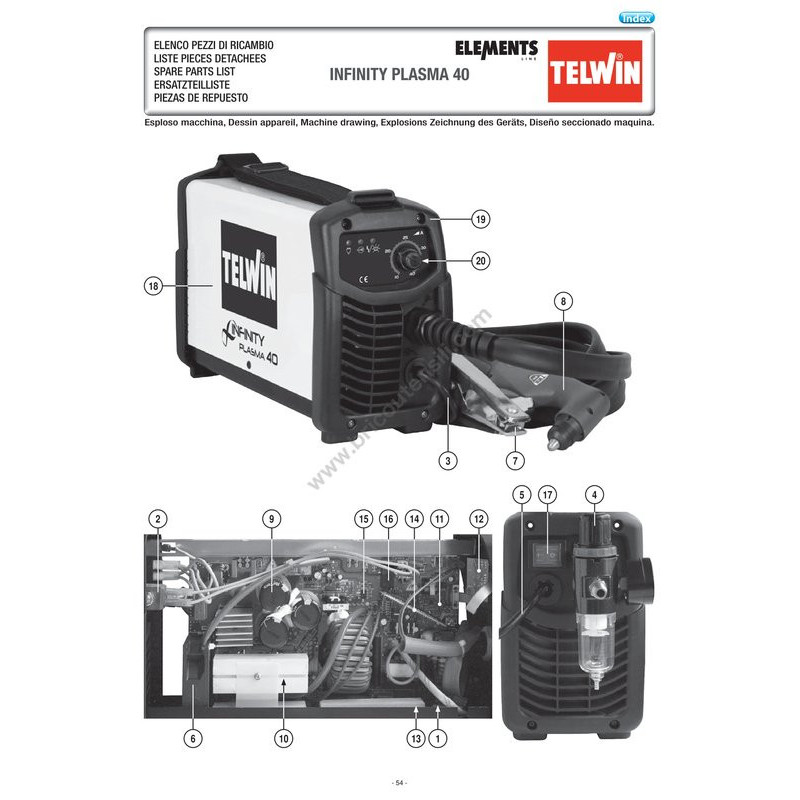

Page 1
zoom_in View exploded
local_shipping Usually Ships in 10 BUSYNESS DAYS
Page 2
zoom_in View exploded
local_shipping Usually Ships in 10 BUSYNESS DAYS
Shipping and delivery information will be available shortly.
Telwin Spare Parts for Welding Machine INFINITY PLASMA 40
Telwin genuine spare parts for replacing or repairing Welding Machine INFINITY PLASMA 40 – 816145.
In the following table, find the model and its corresponding spare part code.
| Telwin INFINITY PLASMA 40 | ||
| # | Part Num. | Description |
| 1 | 121249 | Thermostat |
| 2 | 122154 | Electro valve |
| 3 | 123422 | Cable 6 mmq 3 m |
| 4 | 125237 | Air pressure regulator |
| 5 | 132155 | Mains cable 3g1.5 2 M schuko plug |
| 6 | 152294 | Fan |
| 7 | 712231 | Toledo 300 work clamp 300a |
| 8 | 742685 | Ph plasma torch 4m straight |
| 9 | 981584 | Condenser kit snap-in |
| 10 | 981588 | Kit igbt + diodes |
| 11 | 982231 | Power board kit |
| 12 | 982232 | Front panel card kit |
| 13 | 982237 | Diodes kit |
| 14 | 982238 | Control pcb kit |
| 15 | 982248 | Kit power supply components |
| 16 | 982249 | Kit aux. Components |
| 17 | 982253 | Kit switch |
| 18 | 982257 | Kit metal sheet |
| 19 | 982258 | Kit plastic parts |
| 20 | 982259 | Kit potentiometer |
| INFINITY PLASMA 40 Pag.2 | ||
| Torch spare parts list | ||
| # | Part Num. | Description |
| 1 | 321301 | Fairleader |
| 2 | 802420 | Kit 5 Electrodes |
| 3 | 802422 | Kit 5 Insulating Diffusers |
| 4 | 802423 | Kit 5 Nozzles |
| 5 | 802425 | Kit 2 Torch Safety Caps |
| 6 | 802428 | Kit 5 Long Electrodes |
| 7 | 802429 | Kit 5 Long Nozzles |
