Telwin Spare Parts for Welding Maxmig 180/2

Name: Telwin Spare Parts for Welding Maxmig 180/2
Brand: Telwin s.p.a.
SKU: Maxmig 180/2
Availability: InStock

SKU: Maxmig 180/2

€0.10

VAT included

Telwin Spare Parts for Welding Maxmig 180/2

TELWIN authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Welding Maxmig 180/2.

New
Out-of-Stock

Telwin Spare Parts for Welding Maxmig 180/2

SKU: Maxmig 180/2 Condition: New

€0.10

VAT included

Telwin Spare Parts for Welding Maxmig 180/2

68 Spare parts

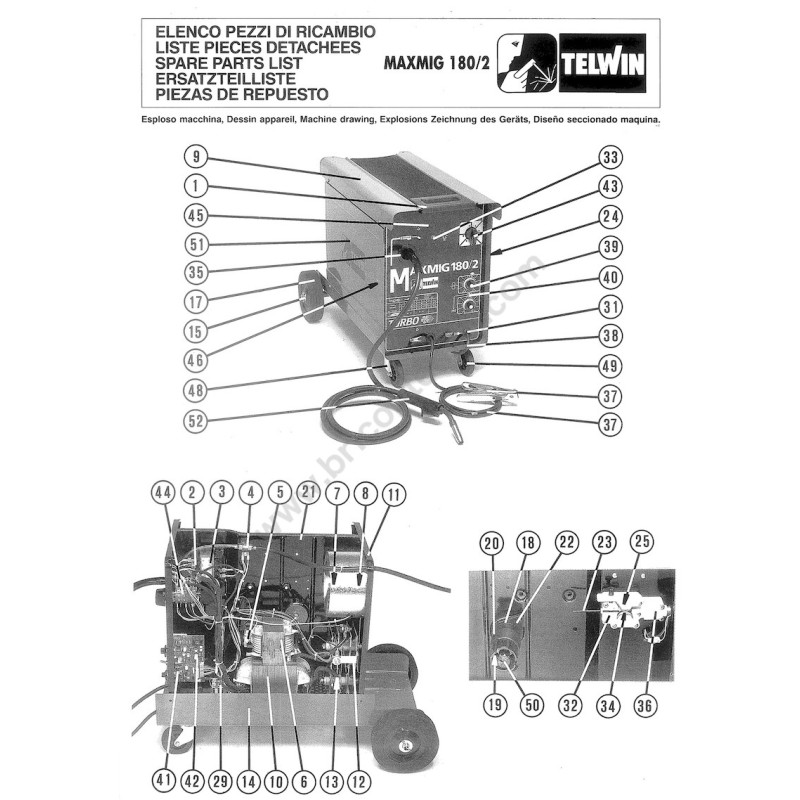

2 exploded views

Download Exploded PDF

Quantity

Out-of-Stock

SHIPPING IN: Usually Ships in 10 BUSYNESS DAYS

CHECK ITEM CODE OR S/N: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

CHECK ITEM OR S/N CODE TELWIN: TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS

Machine Type: Welding Machine

Original Product Manufacturer warranty included

Technical Support Our team helps you choose

Secure and guaranteed payments

68 spare parts

Page 1 View exploded Usually Ships in 10 BUSYNESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price	Buy
1	Image coming soon	322088 Handle	€0.00	Not available for order
2	Image coming soon	122407 Fuse 1 A	€0.00	Not available for order
3	Image coming soon	163540 Auxiliary transformer	€42.00
4		122682 Electrovalve for Inverter Telwin Mastermig-Supermig-Inverpulse	€20.14
5	Image coming soon	122525 THERMOSTAT	€6.30
6	Image coming soon	164145 Reactance	€0.00	Not available for order
7		152054 Fan for Inverter Telwin TELMIG 180/2	€2.21
8		152110 Fan Motor for Welding Machines Telwin TELMIG- DIGITAL MIG	€24.11
9	Image coming soon	650193 Cover	€0.00	Not available for order
10	Image coming soon	164249 Transformer	€0.00	Not available for order
11	Image coming soon	644237 Back part	€0.00	Not available for order
12	Image coming soon	112230 Rectifier	€38.75
13		112183 Protection Rectifier for Welding Telwin Bimax-Telmig	€2.50
14	Image coming soon	650172 Bottom part	€0.00	Not available for order
15		681092 Fixed Wheel D.175MM Axle for Telwin Welding Machines	€9.06
17		322201 Fixed Wheel D.175MM for Telwin Welding Machines	€9.06
18	Image coming soon	322081 REEL	€20.96
19		452057 Reel Spring for Welding Telwin MASTERMIG	€3.17
20		322180 Aspo Spacer Sleeve for Welding Telwin MASTERMIG	€2.45
21	Image coming soon	644238 Diaphragm	€0.00	Not available for order
22		990264 Reel Kit for Welding Telwin MASTERMIG-DIGITAL MIG	€23.30
23		990097 Gas Hose Kit for Inverter Telwin MIG-MAG	€8.92
24	Image coming soon	650863 Side part	€0.00	Not available for order
25		722019 Feed Roll For Wire mm 0,6/0,8 FE for Welding Telwin Telmig	€4.54
26		452022 Compressione Spring mm 9x21 for Inverter Telwin Bimax	€2.45
27	Image coming soon	422257 WIRE FEED HANDWHEEL	€0.00	Not available for order
28		232105 Roller Anchor for Welding Telwin TELMIG	€6.04
29	Image coming soon	122731 Contactor / Remote control switch	€0.00	Not available for order
30	Image coming soon	322128 PRESSURE ROLL BRACKET	€0.00	Not available for order
31	Image coming soon	322008 Cable gland / Press cable	€0.00	Not available for order
32		153007 Wire Drive Motor for Wire Welding Telwin Telmig-Technomig	€50.98
33	Image coming soon	122703 Pilot lamp	€0.00	Not available for order
34	Image coming soon	990257 GEARS KIT	€50.98
35		322143 Hooking Torch Ring for Torches Telwin Telmig 150/1 - 170/1	€2.45
36		322127 Fixing Torch Cover for Inverter Telwin BIMAX-TELMIG-TECHNOMIG	€2.72
37		712030 Toledo 250 Amp. Earth Clamp for Inverter and Plasma Telwin	€2.61
37	Image coming soon	713135 Earth cable	€0.00	Not available for order
38	Image coming soon	132230 Power cable	€0.00
39	Image coming soon	112125 Potentiometer Knob	€0.29
40	Image coming soon	122051 Toggle switch	€17.62
41	Image coming soon	112079 POTENTIOMETER 10K	€5.55
42	Image coming soon	114054 Control board	€76.69
43	Image coming soon	122058 Knob for switch	€2.20
44	Image coming soon	122567 Switch / Selector switch	€17.37
45	Image coming soon	646529 Front panel	€0.00	Not available for order
46	Image coming soon	452056 DOOR SPRING	€2.45
47		322126 Feed Roll Holder for Welding Telwin Telmig 150/1 - 183/2	€3.36
48		422820 Swivel Support for D.80MM Wheel for Telwin Welding Machines	€4.71
49		322245 Wheel D.80MM for Telwin Welding Machines	€3.36
50		312137 Reel Kit Handbill for Welding Telwin MASTERMIG-DIGITAL MIG	€20.96
51	Image coming soon	650862 Door / Access panel	€0.00	Not available for order
500		432036 Throwaway Argon + CO₂ ITA-USA Gas Bottle Adaptor Telwin 432036	€13.60
501	Image coming soon	712079 Coppered steel wire coil D. 0.8 - 5 Kg	€0.00	Not available for order
502	Image coming soon	712099 Coppered steel wire coil D. 0.6 - 5 Kg	€0.00	Not available for order
503		722341 Gas Regulator Refillable Bottle for Inverter Telwin Telmig	€54.39
504	Image coming soon	722039 Complete torch	€0.00	Not available for order

Page 2 View exploded Usually Ships in 10 BUSYNESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price	Buy
1	Image coming soon	802375 Kit 2 Pcs Conical Nozzles	€0.00	Not available for order
2	Image coming soon	802354 Kit 10 Pcs D. 0.8 Contact Tips	€0.00	Not available for order
3	Image coming soon	802392 Kit 10 Springs	€0.00	Not available for order
4		722326 Diffuser Insulation for Inverter Telwin Mastermig 220/2	€3.29
5	Image coming soon	722323 Swan Neck Isolator	€0.00	Not available for order
6	Image coming soon	722822 Swan Neck MB14AK - for Torches TM100	€18.50
7	Image coming soon	722674 Handle Fixing Ring Nut	€0.00	Not available for order
8	Image coming soon	722664 Upper Handle	€0.00	Not available for order
9	Image coming soon	722665 Lower Handle	€0.00	Not available for order
10		722677 Plasma Cutting Torch Button for Telwin TECNICA-TECHNOLOGY-SUPERIOR	€8.06
11	Image coming soon	722051 Gun Plug Body	€0.00	Not available for order
12	Image coming soon	722671 Wire Guide Hose	€0.00	Not available for order
500	Image coming soon	722039 Complete torch	€0.00	Not available for order

Shipping and delivery information will be available shortly.

Telwin Spare Parts for Welding Maxmig 180/2

In the following table, look for the model of the Welders and the respective parts of the code.

Telwin Welding Maxmig 180/2 Pag.1
#	Part Num.	Description
1	322088	Handle
2	122407	Fuse 1 A
3	163540	Auxiliary transformer
4	122682	Solenoid valve
5	122525	Thermostat
6	164145	Reactance
7	152054	Fan motor
8	152110	Fan
9	650193	Cover
10	164249	Transformer
11	644237	Back part
12	112230	Rectifier
13	112183	Rectifier protection
14	650172	Bottom part
15	681092	Axle for wheels
17	322201	Wheel
18	322081	Reel
19	452057	Spring for reel
20	322180	Spacer
21	644238	Diaphragm
22	990264	Kit reel
23	990097	Wire guide hose
24	650863	Side part
25	722019	Feed roller
26	452022	Spring
27	422257	Handwheel for feeder
28	232105	Ball bearing
29	122731	Contactor / Remote control switch
30	322128	Bracket counter roll
31	322008	Cable gland / Press cable
32	153007	Wire feeding motor
33	122703	Pilot lamp
34	990257	Gear kit
35	322143	Ring nut
36	322127	Torch fixing casing
37	713135	Earth cable
37	712030	Earth clamp
38	132230	Power cable
39	112125	Knob for potentiometer
40	122051	Toggle switch
41	112079	Potentiometer
42	114054	Control board
43	122058	Knob for switch
44	122567	Switch / Selector switch
45	646529	Front panel
46	452056	Spring for door
47	322126	Roller support
48	422820	Swivel support
49	322245	Wheel
50	312137	Handwheel for reel
51	650862	Door / Access panel
500	432036	Gas bottle regulator
501	712079	Coppered steel wire coil D. 0.8 - 5 Kg
502	712099	Coppered steel wire coil D. 0.6 - 5 Kg
503	722341	Pressure reducer
504	722039	Complete torch
Torch Pag.2
#	Part Num.	Description
1	802375	Kit 2 Pcs Conical Nozzles
2	802354	Kit 10 Pcs D. 0.6 Contact Tips
3	802392	Kit 10 Springs
4	722326	Diffuser Isolator
5	722323	Swan Neck Isolator
6	722822	Swan Neck With Diffuser
7	722674	Handle Fixing Ring Nut
8	722664	Upper Handle
9	722665	Complete Handle
10	722677	Push Button
11	722051	Gun Plug Body
12	722671	Wire Guide Hose
500	722039	Torch

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Telwin websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Telwin brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

Reference Maxmig 180/2

Data sheet

SHIPPING IN: Usually Ships in 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN: TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS
Machine Type: Welding Machine

Specific References

Condition New

Download

Telwin Maxmig 180/2

Download (393.68KB)
