Telwin Spare Parts for Welding Bimax 110 Automatic

SKU: Bimax 110 Automatic 821075
€4.03
VAT included

Telwin Spare Parts for Welding Bimax 110 Automatic

TELWIN Authorized Technical Assistance and original spare parts Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Bimax 110 Automatic - 821075.

Telwin Bimax 110 Automatic 821075
Telwin Spare Parts for Welding Bimax 110 Automatic
  • Telwin Spare Parts for Welding Bimax 110 Automatic
  • Telwin Spare Parts for Welding Bimax 110 Automatic
  • Telwin Spare Parts for Welding Bimax 110 Automatic

Telwin Spare Parts for Welding Bimax 110 Automatic

SKU: Bimax 110 Automatic 821075 Condition: New
€4.03
VAT included

Telwin Spare Parts for Welding Bimax 110 Automatic

TELWIN Authorized Technical Assistance and original spare parts Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Bimax 110 Automatic - 821075.

Telwin Bimax 110 Automatic 821075
settings 31 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:: TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

31 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 980098 RECTIFIER KIT €22.83
2
Protection Rectifier for Welding Telwin Bimax-Telmig 112183 Protection Rectifier for Welding Telwin Bimax-Telmig €4.03
3
0-1 Switch White 16A 250V VDE-F for Charger Telwin 122400 0-1 Switch White 16A 250V VDE-F for Charger Telwin €1.80
4
Yellow Switch for Inverter Welding Machines Telwin 122752 Yellow Switch for Inverter Welding Machines Telwin €2.63
5
photo_cameraImage coming soon 713035 CABLE 6MMQ 1,8 M AND WORK CLAMP €6.20
6
photo_cameraImage coming soon 132310 MAINS CABLE 3G1.5 2 M SCHUKO PLUG €10.71
7
Wire Drive Motor for Wire Welder Telwin Bimax-Technomig 981828 Wire Drive Motor for Wire Welder Telwin Bimax-Technomig €34.90
8
photo_cameraImage coming soon 164937 TRANSFORMER €76.36
10
photo_cameraImage coming soon 312007 HANDLE €3.02
11
Cable Busching for Inverter Welding and Battery Charger Telwin 322112 Cable Busching for Inverter Welding and Battery Charger Telwin €2.44
12
photo_cameraImage coming soon 322115 SPINDLE €12.34
18
photo_cameraImage coming soon 452017 SPINDLE SPRING €2.30
20
photo_cameraImage coming soon 644020 BACK PANEL €1.97
21
photo_cameraImage coming soon 642529 FRONT PANEL €4.62
22
photo_cameraImage coming soon 617022 COVER €5.08
23
photo_cameraImage coming soon 617023 SIDE PANEL €2.73
24
photo_cameraImage coming soon 644118 DIAPHRAGM €2.71
28
Feed Roll For wire mm 0,6/0,9 FE-FLUX for Flux Welding Telwin 722529 Feed Roll For wire mm 0,6/0,9 FE-FLUX for Flux Welding Telwin €3.21
29
photo_cameraImage coming soon 742769 TW160 MIG TORCH 2 M €61.57
30
Gas Hose Kit for Inverter Telwin MIG-MAG 990097 Gas Hose Kit for Inverter Telwin MIG-MAG €6.90
32
photo_cameraImage coming soon 712361 COLORADO 60B WORK CLAMP 60A €2.13
33
photo_cameraImage coming soon 322242 CLIP €2.30
34
photo_cameraImage coming soon 121715 THERMOSTAT €2.34
35
photo_cameraImage coming soon 990466 KIT PCB MOG/LIVE AUTOMATIC + CABLE €21.86
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
1
Contact Nozzle for Wire Weldings Telwin Bimax 722667 Contact Nozzle for Wire Weldings Telwin Bimax €1.58
2
Contact Nozzle for Wire Weldings Telwin Bimax 722667 Contact Nozzle for Wire Weldings Telwin Bimax €1.58
3
photo_cameraImage coming soon 722810 SWAN NECK DIFFUSER €15.43
4
photo_cameraImage coming soon 990721 VALVE €6.24
5
Button Spring Contact for Torch Telwin MIG 452097 Button Spring Contact for Torch Telwin MIG €2.44
6
Torch Lever for Inverter Telwin Bimax 105-4.135-4.165-4.195 322295 Torch Lever for Inverter Telwin Bimax 105-4.135-4.165-4.195 €2.44
7
photo_cameraImage coming soon 990722 CABLES SET 10MMQ €22.43
9
Steel Lines for Torches Telwin MIG-MAG 722077 Steel Lines for Torches Telwin MIG-MAG €4.03

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Telwin Spare Parts for Welding Bimax 110 Automatic

TELWIN Authorized Technical Assistance and original spare parts Worldwide Distributors

 and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Bimax 110 Automatic - 821075.

In the following table, look for the model of the Welding and the respective parts of the code.
Telwin Bimax 110 Automatic 821075

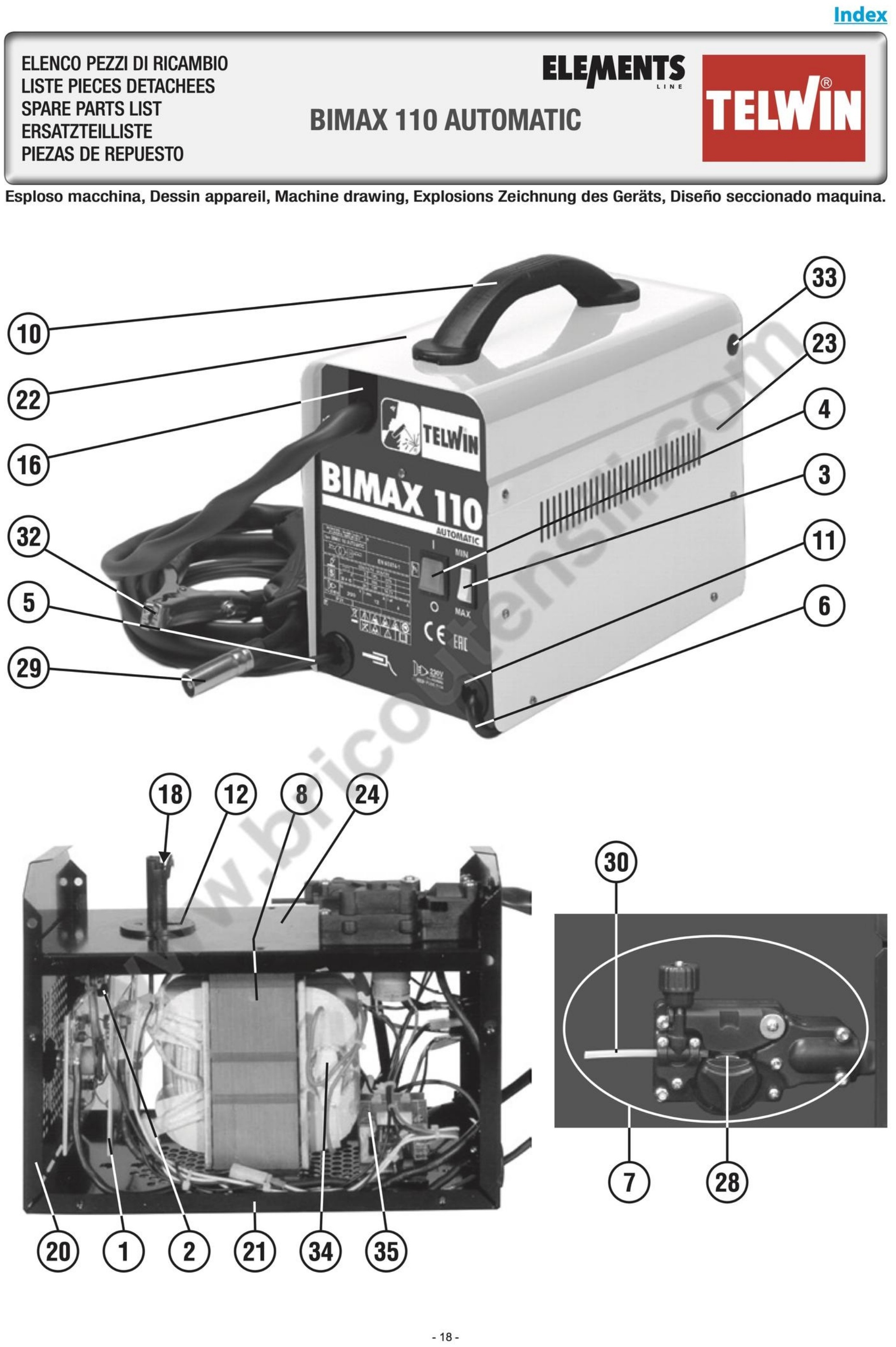

Welding Bimax 110 Automatic - 821075 Pag.1
# Part Num. Description
1 980098 RECTIFIER KIT
2 112183 RECTIFIER PROTECTION
3 122400 SWITCH
4 122752 SWITCH
5 713035 CABLE 6MMQ 1,8 M AND WORK CLAMP
6 132310 MAINS CABLE 3G1.5 2M SCHUKO PLUG
7 981828 MOTOR KIT
8 164937 TRANSFORMER
10 312007 HANDLE
11 322112 CABLE BUSHING
12 322115 SPINDLE
16 322473 CAP
18 452017 SPINDLE SPRING
20 644020 BACK PANEL
21 642529 FRONT PANEL
22 617022 COVER
23 617023 SIDE PANEL
24 644118 DIAPHRAGM
28 722529 FEED ROLL D. 0,6-0,9 MM FE/FLUX
29 742769 TW160 MIG TORCH 2 M
30 990097 GAS HOSE KIT
32 712361 COLORADO 60B WORK CLAMP 60A
33 322242 CLIP
34 121715 THERMOSTAT
35 990466 KIT PCB MOG/LIVE AUTOMATIC + CABLE

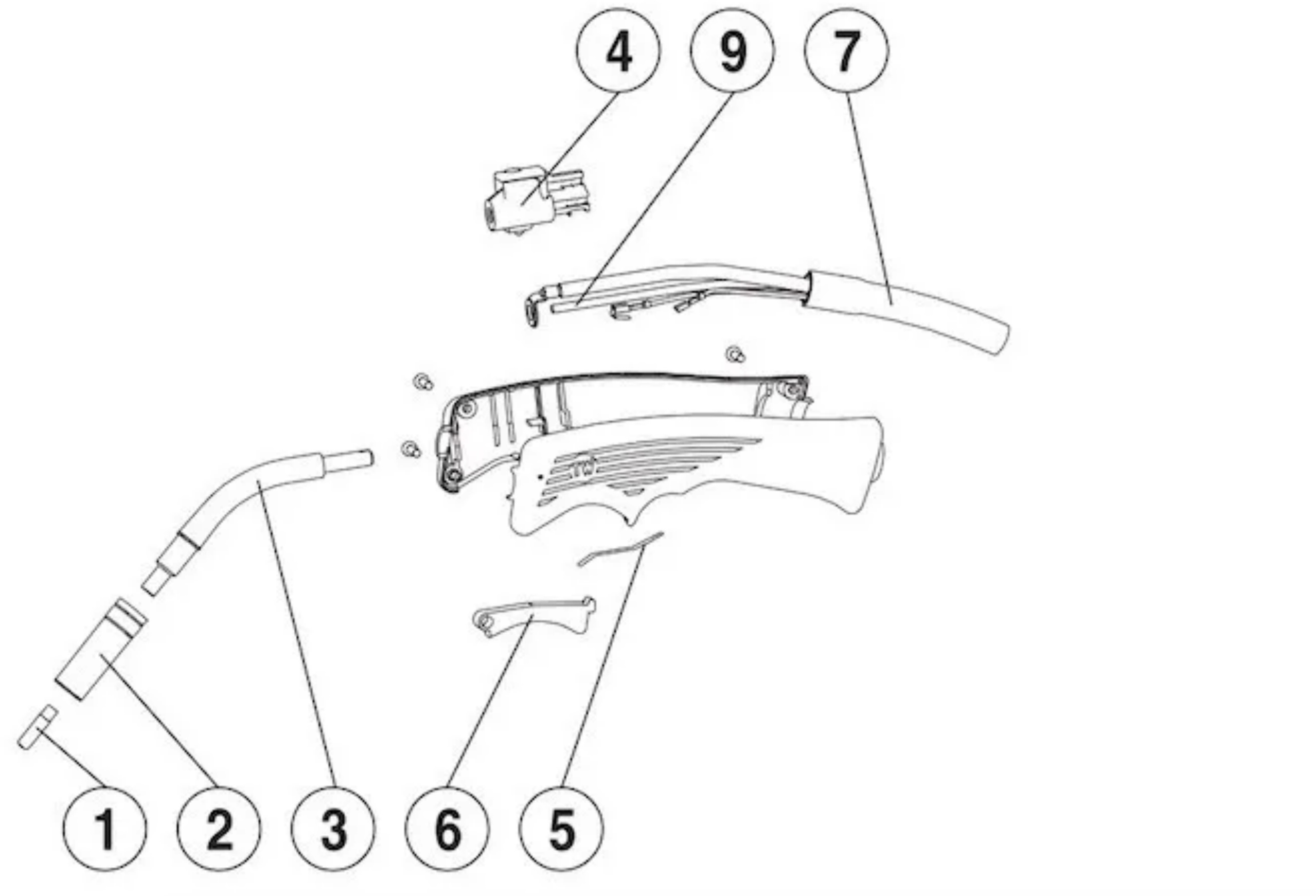

Parts Torch Pag.2
1 722667 CONTACT TIP D. 0,8 MM
2 722667 CYLINDRICAL NOZZLE
3 722810 SWAN NECK DISSUDER
4 990721 VALVE
5 452097 CONTACT SPRING FOR MIG TORCH
6 322295 PUSHBUTTON
7 990722 CABLES SET 10MMQ
9 722077 LINER D. 0,6-0,8 MM
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Telwin websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Telwin brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Bimax 110 Automatic 821075
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:
TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS

Specific References

New

Download

Diagram Telwin Bimax 110 A.

Diagram Telwin Bimax 110 A.

Download (304.27KB)
