Telwin s.p.a.

Telwin Spare Parts for Air Plasma Cutting Superplasma 120/3 HF 230-400V

SKU: Superplasma 120/3 HF - 830503
€14.36
VAT included

Telwin Spare Parts for Air Plasma Cutting Superplasma 120/3 HF 230-400V

Telwin original spare parts for to replace broken parts for to fix Air Plasma Cutting Superplasma 120/3 HF 230-400V - key 830503.

Fix Your Air Plasma Cutting Superplasma 120/3 HF. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

Superplasma 120/3 HF - 830503
Telwin Spare Parts for Air Plasma Cutting Superplasma 120/3 HF 230-400V
  • Telwin Spare Parts for Air Plasma Cutting Superplasma 120/3 HF 230-400V
  • Telwin Spare Parts for Air Plasma Cutting Superplasma 120/3 HF 230-400V - Drawing
  • Telwin Spare Parts for Air Plasma Cutting Superplasma 120/3 HF 230-400V - Torch Drawing
Telwin s.p.a.

Telwin Spare Parts for Air Plasma Cutting Superplasma 120/3 HF 230-400V

SKU: Superplasma 120/3 HF - 830503 Condition: New
€14.36
VAT included

Telwin Spare Parts for Air Plasma Cutting Superplasma 120/3 HF 230-400V

Telwin original spare parts for to replace broken parts for to fix Air Plasma Cutting Superplasma 120/3 HF 230-400V - key 830503.

Fix Your Air Plasma Cutting Superplasma 120/3 HF. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

Superplasma 120/3 HF - 830503
settings 54 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:: TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
54 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 1
Pos. Item Price Buy
1
 Plasma Cycle PCB Kit for Inverter Telwin SUPERPLASMA 60/3 HF 980729 Plasma Cycle PCB Kit for Inverter Telwin SUPERPLASMA 60/3 HF €222.68
2
 photo_cameraImage coming soon 112163 VOLTAGE CHANGING CARD €13.95
3
 photo_cameraImage coming soon 112352 RECTIFIER €76.03
4
 photo_cameraImage coming soon 114643 FILTER CARD €39.28
6
 photo_cameraImage coming soon 112546 RESISTANCE €59.91
7
 photo_cameraImage coming soon 112547 RESISTANCE €69.13
8
 photo_cameraImage coming soon 980541 H.F. CARD KIT €109.38
9
 photo_cameraImage coming soon 122037 AUXILIARY CONTACTS €5.70
10
 Dipswitch Knob for Welding Telwin 323101 Dipswitch Knob for Welding Telwin €2.56
11
 photo_cameraImage coming soon 122256 THERMOSTAT €2.83
12
 photo_cameraImage coming soon 121505 SWITCH €47.42
13
 Fuse 5x20 2A for Charger Telwin Alpine 20 Boost 122437 Fuse 5x20 2A for Charger Telwin Alpine 20 Boost €0.63
14
 AC Contactor for Welding Machine Telwin MASTERMIG 400 121214 AC Contactor for Welding Machine Telwin MASTERMIG 400 €47.63
15
 Yellow Pilot Lamp for Welding Machines Telwin Telmig-Mastermig 122594 Yellow Pilot Lamp for Welding Machines Telwin Telmig-Mastermig €2.03
17
 AC Contactor for Inverter Telwin TELMIG 183-203-250/2 Turbo 122694 AC Contactor for Inverter Telwin TELMIG 183-203-250/2 Turbo €18.45
18
 Green Switch for Inverter Telwin Mastermig 220-270-300-400 122725 Green Switch for Inverter Telwin Mastermig 220-270-300-400 €2.63
20
 photo_cameraImage coming soon 123438 CABLE 16 MMQ 5 M €24.76
21
 photo_cameraImage coming soon 132167 MAINS CABLE 4G6 3 M €31.66
22
 Fan Motor for Welding Telwin Linear-Mastermig-Supermig 152083 Fan Motor for Welding Telwin Linear-Mastermig-Supermig €78.00
23
 photo_cameraImage coming soon 152135 FAN BLADE €6.58
24
 photo_cameraImage coming soon 164993 TRANSFORMER AUXILIARY €73.51
25
 photo_cameraImage coming soon 980095 KIT TRANSFORMER €84.48
26
 photo_cameraImage coming soon 169220 TRANSFORMER €899.91
27
 photo_cameraImage coming soon 312068 CABLE BUSHING €3.20
28
 photo_cameraImage coming soon 312323 HANDLE €6.30
29
 photo_cameraImage coming soon 312332 FRAME €69.13
30
 photo_cameraImage coming soon 322187 WHEEL + SWIVEL SUPPORT €11.80
31
 photo_cameraImage coming soon 322772 WHEEL €13.12
32
 photo_cameraImage coming soon 322773 WHEEL CAP €2.40
33
 photo_cameraImage coming soon 483060 AXLE FOR WHEELS €5.40
34
 Pressure Reducer for Telwin SUPERPLASMA 60/3 HF 602019 Pressure Reducer for Telwin SUPERPLASMA 60/3 HF €19.05
35
 photo_cameraImage coming soon 602326 GAUGE €8.10
36
 photo_cameraImage coming soon 602040 AIR FILTER €32.65
40
 photo_cameraImage coming soon 644955 BOTTOM €29.69
44
 Toledo 300 Amp. Work Clamp for Inverter and Plasma Telwin 712231 Toledo 300 Amp. Work Clamp for Inverter and Plasma Telwin €5.89
45
 Telwin Superplasma 90/3 HF Torch 6M 722332 Telwin Superplasma 90/3 HF Torch 6M €424.25
46
 Torch Connection for Inverter Telwin Superior Plasma 60HF 722439 Torch Connection for Inverter Telwin Superior Plasma 60HF €59.30
47
 photo_cameraImage coming soon 990046 KIT CABLE BUSHING + RING NUT €8.93
48
 photo_cameraImage coming soon 122599 PRESSURE €15.98
49
 photo_cameraImage coming soon 122497 SOLENOID €13.94
50
 photo_cameraImage coming soon 122498 SOLENOID €31.66
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 2
Pos. Item Price Buy
1
 photo_cameraImage coming soon 742358 TORCH BODY KIT + HANDLE €176.31
3
 Plasma Cutting Torch Button for Telwin TECNICA-TECHNOLOGY-SUPERIOR 722677 Plasma Cutting Torch Button for Telwin TECNICA-TECHNOLOGY-SUPERIOR €15.80
5
 Kit 5 Long Nozzles for Telwin SUPERPLASMA 802083 Kit 5 Long Nozzles for Telwin SUPERPLASMA €47.48
5
 Kit 5 Nozzles 1.3 mm for Plasma Torch Telwin SUPERPLASMA 802119 Kit 5 Nozzles 1.3 mm for Plasma Torch Telwin SUPERPLASMA €17.91
5
 Kit 5 Nozzles 1.6 mm for Plasma Torch Telwin SUPERPLASMA 802124 Kit 5 Nozzles 1.6 mm for Plasma Torch Telwin SUPERPLASMA €17.91
6
 photo_cameraImage coming soon 802120 KIT 10 RINGS €4.91
7
 Kit 5 Brass Diffusers for Plasma Torch Telwin SUPERPLASMA 802121 Kit 5 Brass Diffusers for Plasma Torch Telwin SUPERPLASMA €22.61
8
 Set 5 Long Electrodes for Plasma Torch Telwin SUPERPLASMA 802082 Set 5 Long Electrodes for Plasma Torch Telwin SUPERPLASMA €31.65
8
 Set 5 Electrodes for Plasma Torch Telwin SUPERPLASMA 802122 Set 5 Electrodes for Plasma Torch Telwin SUPERPLASMA €18.08
9
 Kit 5 Insulating Diffusers for Telwin SUPERPLASMA 802123 Kit 5 Insulating Diffusers for Telwin SUPERPLASMA €49.75
11
 Kit 2 Torch Safety Caps for Plasma Torch Telwin SUPERPLASMA 802126 Kit 2 Torch Safety Caps for Plasma Torch Telwin SUPERPLASMA €62.17
12
 Kit 5 Spacers for Plasma Torch Telwin SUPERPLASMA 802127 Kit 5 Spacers for Plasma Torch Telwin SUPERPLASMA €19.84
13
 Plasma Torch Central Handle for Inverter Telwin Superior Plasma 60HF 742041 Plasma Torch Central Handle for Inverter Telwin Superior Plasma 60HF €74.25

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Telwin Spare Parts for Air Plasma Cutting Superplasma 120/3 HF 230-400V

Fix Your Air Plasma Cutting Superplasma 120/3 HF. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Plasma and the respective parts of the code.
Superplasma 120/3 HF - 830503

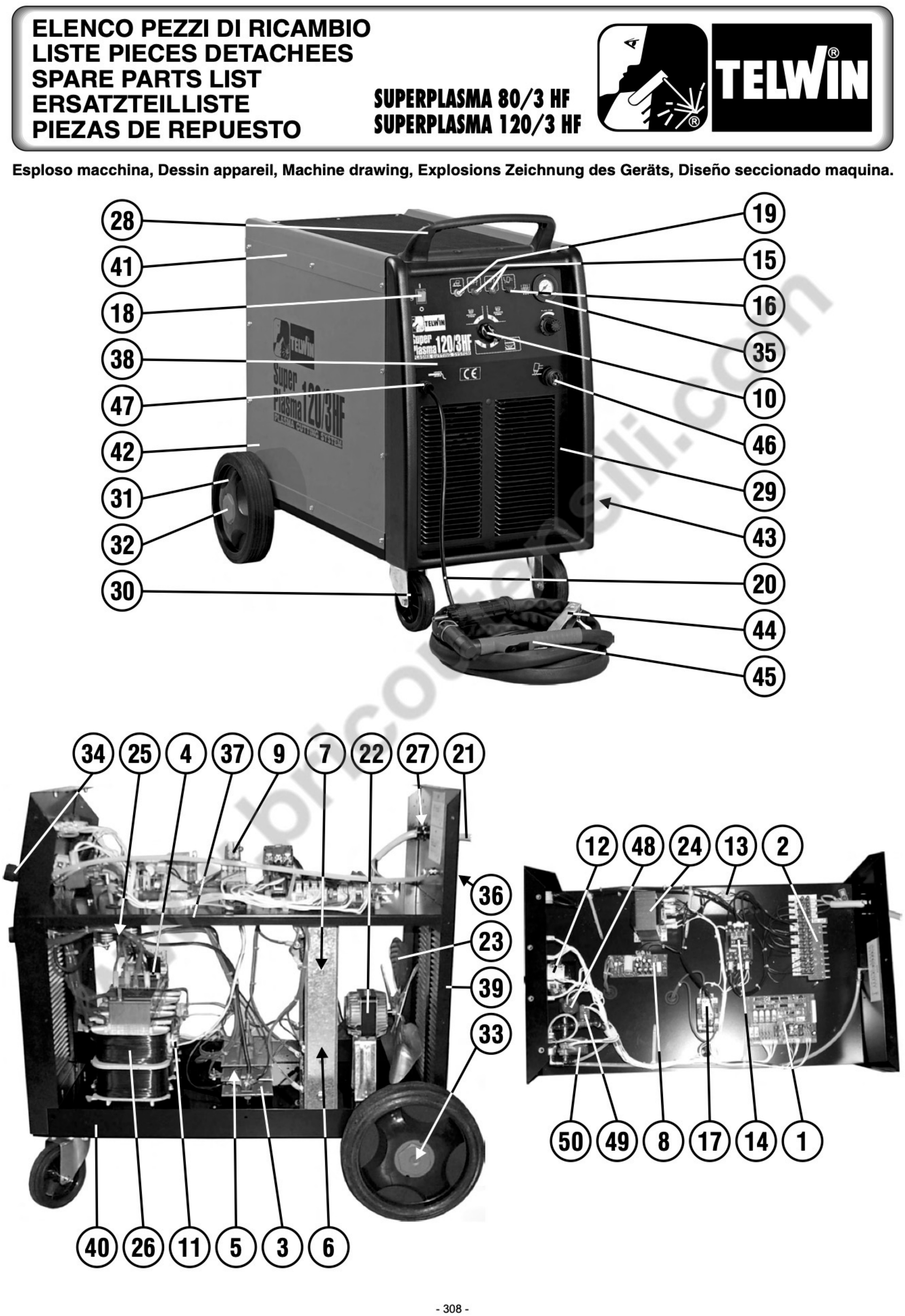

TELWIN SUPERPLASMA 120/3 HF 230-400V - 830503 Pag.1
# Description Part Num.
1 PLASMA CYCLE PCB KIT 980729
2 VOLTAGE CHANGING CARD 112163
3 RECTIFIER 112352
4 FILTER CARD 114643
5 VARISTOR 112513
6 RESISTOR 112546
7 RESISTANCE 112547
8 H.F. CARD KIT 980541
9 AUXILIARY CONTACTS 122037
10 SWITCH KNOB SET 323101
11 THERMOSTAT 122256
12 SWITCH 121505
13 FUSE 122437
14 CONTACTOR 121214
15 YELLOW PILOT LAMP 122594
16 RED LIGHT 122595
17 CONTACTOR 122694
18 SWITCH 122725
19 PILOT LAMP 122909
20 CABLE 16 MMQ 5 M 123438
21 MAINS CABLE 4G6 3 M 132167
22 MOTOR 152083
23 FAN BLADE 152135
24 AUXILIARY TRANSFORMER 164993
25 TRANSFORMER KIT 980095
26 TRANSFORMER 169220
27 CABLE BUSHING 312068
28 HANDLE 312323
29 FRAME 312332
30 WHEEL + SWIVEL SUPPORT 322187
31 WHEEL 322772
32 WHEEL CAP 322773
33 WHEELS AXLE 483060
34 PRESSURE REDUCER 602019
35 GAUGE 602326
36 AIR FILTER 602040
37 DIAPHRAGM 644893
38 FRONT PANEL 649299
39 BACK PANEL 649357
40 BOTTOM 644955
41 COVER 650486
42 RIGHT SIDE PANEL 655219
43 LEFT SIDE 655220
44 TOLEDO 300 WORK CLAMP 712231
45 PLASMA TORCH 6M 722332
46 TORCH CONNECTION 722439
47 KIT CABLE BUSHING + RING NUT 990046
48 PRESSURE SWITCH 122599
49 ELECTRO-VALVE 122497
50 ELECTRO-VALVE 122498

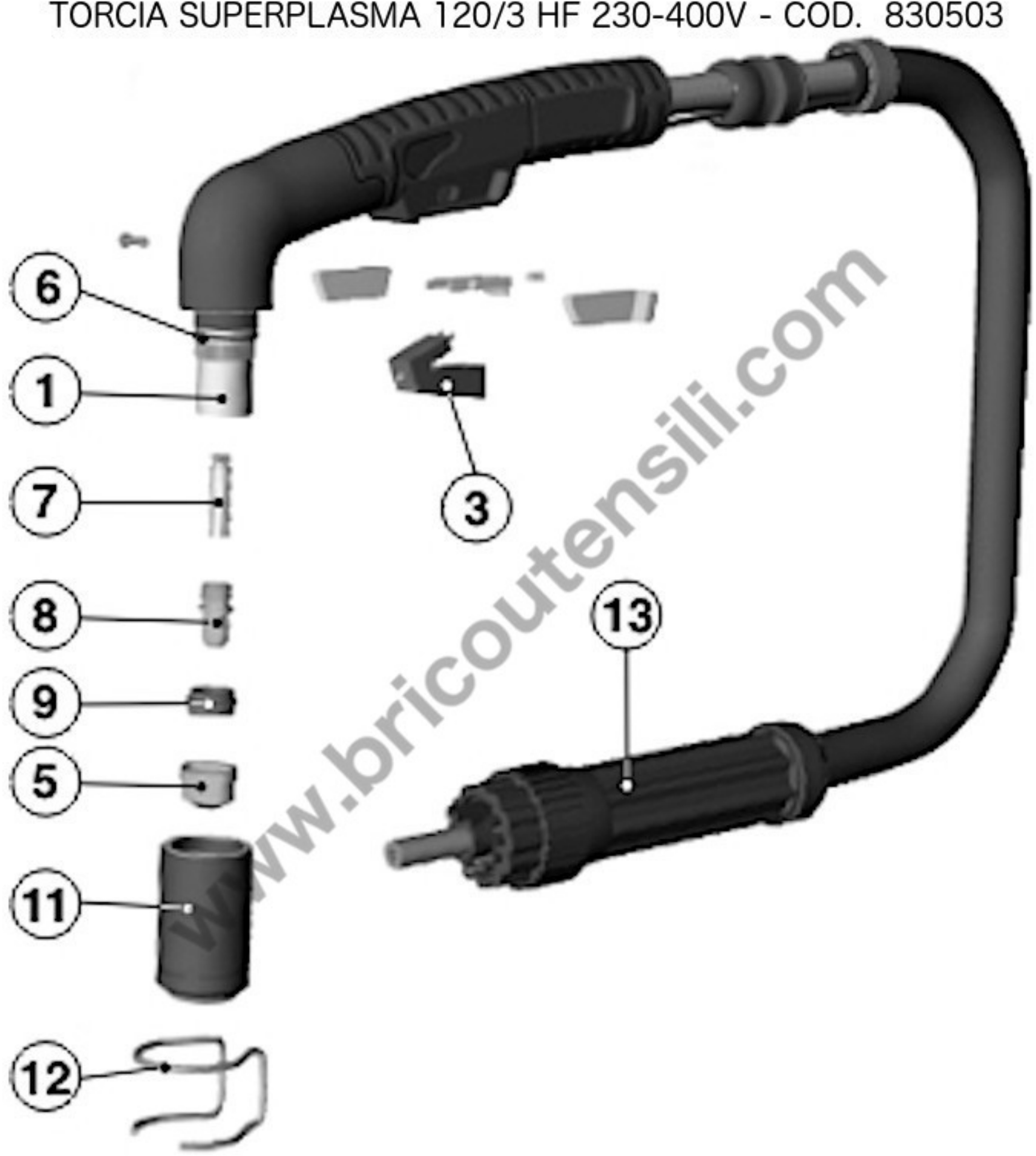

PLASMA TORCHE SUPERPLASMA 120/3 HF 230-400V Pag.2
1 TORCH ASSY KIT + GRIP 742358
3 PUSHBUTTON 722677
5 KIT 5 LONG NOZZLES 802083
5 KIT 5 NOZZLES D.1,6 802124
5 KIT 5 NOZZLES D.1,3 802119
6 KIT 10 OR RINGS 802120
7 KIT 5 BRASS DIFFUSERS 802121
8 KIT 5 LONG ELECTRODES 802082
8 KIT 5 ELECTRODES 802122
9 KIT 5 INSULATING DIFFUSERS 802123
11 KIT 2 TORCH SAFETY CAPS 802126
12 KIT 5 SPACERS 802127
13 TORCH CONNECTION 742041
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Telwin websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Telwin brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Superplasma 120/3 HF - 830503
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:
TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS

Specific References

New

Download

Diagram Superplasma 120/3 HF

Diagram Superplasma 120/3 HF

Download (529.64KB)
