Telwin Spare Parts for Air Plasma Cutting Superplasma 90/3 HF 230-400V

SKU: Superplasma 90/3 HF - 830062
€14.36
VAT included

Telwin Spare Parts for Air Plasma Cutting Superplasma 90/3 HF 230-400V

TELWIN authorized service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Air Plasma Cutting Superplasma 90/3 HF 230-400V - key 830062.

Telwin Superplasma 90/3 HF 830062


Telwin Spare Parts for Air Plasma Cutting Superplasma 90/3 HF 230-400V
  • Telwin Spare Parts for Air Plasma Cutting Superplasma 90/3 HF 230-400V
  • Telwin Spare Parts for Air Plasma Cutting Superplasma 90/3 HF 230-400V - Diagram
  • Telwin Spare Parts for Air Plasma Cutting Superplasma 90/3 HF 230-400V - Torche Diagram
  • Telwin Spare Parts for Air Plasma Cutting Superplasma 90/3 HF 230-400V - Torche Diagram - 1
Telwin s.p.a.

Telwin Spare Parts for Air Plasma Cutting Superplasma 90/3 HF 230-400V

SKU: Superplasma 90/3 HF - 830062 Condition: New
€14.36
VAT included

Telwin Spare Parts for Air Plasma Cutting Superplasma 90/3 HF 230-400V

TELWIN authorized service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Air Plasma Cutting Superplasma 90/3 HF 230-400V - key 830062.

Telwin Superplasma 90/3 HF 830062


settings 44 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:: TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
44 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 114633 CONTROL MODULE €129.67
2
 photo_cameraImage coming soon 112163 VOLTAGE CHANGING CARD €13.95
3
 photo_cameraImage coming soon 112352 RECTIFIER €76.03
4
 photo_cameraImage coming soon 980541 H.F. CARD KIT €109.38
5
 photo_cameraImage coming soon 114643 FILTER CARD €39.28
6
 photo_cameraImage coming soon 112546 RESISTANCE €59.91
7
 photo_cameraImage coming soon 112548 RESISTOR €61.24
8
 Fuse 5x20 2A for Charger Telwin Alpine 20 Boost 122437 Fuse 5x20 2A for Charger Telwin Alpine 20 Boost €0.63
9
 photo_cameraImage coming soon 121505 SWITCH €47.42
10
 AC Contactor for Welding Machine Telwin MASTERMIG 400 121214 AC Contactor for Welding Machine Telwin MASTERMIG 400 €47.63
11
 photo_cameraImage coming soon 122497 SOLENOID €13.94
12
 photo_cameraImage coming soon 122498 SOLENOID €31.66
13
 photo_cameraImage coming soon 122525 THERMOSTAT €6.51
13
 Plasma Torch Central Handle for Inverter Telwin Superior Plasma 60HF 742041 Plasma Torch Central Handle for Inverter Telwin Superior Plasma 60HF €74.25
14
 Yellow Pilot Lamp for Welding Machines Telwin Telmig-Mastermig 122594 Yellow Pilot Lamp for Welding Machines Telwin Telmig-Mastermig €2.03
16
 photo_cameraImage coming soon 122599 PRESSURE €15.98
17
 AC Contactor for Inverter Telwin TELMIG 183-203-250/2 Turbo 122694 AC Contactor for Inverter Telwin TELMIG 183-203-250/2 Turbo €18.45
18
 Green Switch for Inverter Telwin Mastermig 220-270-300-400 122725 Green Switch for Inverter Telwin Mastermig 220-270-300-400 €2.63
19
 photo_cameraImage coming soon 123438 CABLE 16 MMQ 5 M €24.76
20
 photo_cameraImage coming soon 132166 CABLE ALIM. 4G4 2.5 M €21.94
21
 Fan Motor for Welding Telwin Linear-Mastermig-Supermig 152083 Fan Motor for Welding Telwin Linear-Mastermig-Supermig €78.00
22
 photo_cameraImage coming soon 152135 FAN BLADE €6.58
26
 photo_cameraImage coming soon 312068 CABLE BUSHING €3.20
27
 photo_cameraImage coming soon 322187 WHEEL + SWIVEL SUPPORT €11.80
28
 photo_cameraImage coming soon 980109 WHEEL KIT €11.27
32
 photo_cameraImage coming soon 602040 AIR FILTER €32.65
33
 Pressure Reducer for Telwin SUPERPLASMA 60/3 HF 602019 Pressure Reducer for Telwin SUPERPLASMA 60/3 HF €19.05
41
 Toledo 300 Amp. Work Clamp for Inverter and Plasma Telwin 712231 Toledo 300 Amp. Work Clamp for Inverter and Plasma Telwin €5.89
42
 Telwin Superplasma 90/3 HF Torch 6M 722332 Telwin Superplasma 90/3 HF Torch 6M €424.25
45
 Torch Connection for Inverter Telwin Superior Plasma 60HF 722439 Torch Connection for Inverter Telwin Superior Plasma 60HF €59.30
47
 photo_cameraImage coming soon 990046 KIT CABLE BUSHING + RING NUT €8.93
48
 photo_cameraImage coming soon 322901 KNOB FOR SWITCH €2.30
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 2
Pos. Item Price Buy
1
 photo_cameraImage coming soon 742358 TORCH BODY KIT + HANDLE €176.31
3
 Plasma Cutting Torch Button for Telwin TECNICA-TECHNOLOGY-SUPERIOR 722677 Plasma Cutting Torch Button for Telwin TECNICA-TECHNOLOGY-SUPERIOR €15.80
5
 Kit 5 Long Nozzles for Telwin SUPERPLASMA 802083 Kit 5 Long Nozzles for Telwin SUPERPLASMA €47.48
5
 Kit 5 Nozzles 1.3 mm for Plasma Torch Telwin SUPERPLASMA 802119 Kit 5 Nozzles 1.3 mm for Plasma Torch Telwin SUPERPLASMA €17.91
5
 Kit 5 Nozzles 1.6 mm for Plasma Torch Telwin SUPERPLASMA 802124 Kit 5 Nozzles 1.6 mm for Plasma Torch Telwin SUPERPLASMA €17.91
6
 photo_cameraImage coming soon 802120 KIT 10 RINGS €4.91
7
 Kit 5 Brass Diffusers for Plasma Torch Telwin SUPERPLASMA 802121 Kit 5 Brass Diffusers for Plasma Torch Telwin SUPERPLASMA €22.61
8
 Set 5 Long Electrodes for Plasma Torch Telwin SUPERPLASMA 802082 Set 5 Long Electrodes for Plasma Torch Telwin SUPERPLASMA €31.65
8
 Set 5 Electrodes for Plasma Torch Telwin SUPERPLASMA 802122 Set 5 Electrodes for Plasma Torch Telwin SUPERPLASMA €18.08
9
 Kit 5 Insulating Diffusers for Telwin SUPERPLASMA 802123 Kit 5 Insulating Diffusers for Telwin SUPERPLASMA €49.75
11
 Kit 2 Torch Safety Caps for Plasma Torch Telwin SUPERPLASMA 802126 Kit 2 Torch Safety Caps for Plasma Torch Telwin SUPERPLASMA €62.17
12
 Kit 5 Spacers for Plasma Torch Telwin SUPERPLASMA 802127 Kit 5 Spacers for Plasma Torch Telwin SUPERPLASMA €19.84
13
 Plasma Torch Central Handle for Inverter Telwin Superior Plasma 60HF 742041 Plasma Torch Central Handle for Inverter Telwin Superior Plasma 60HF €74.25

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Telwin Spare Parts for Air Plasma Cutting Superplasma 90/3 HF 230-400V

TELWIN authorized service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Air Plasma Cutting Superplasma 90/3 HF 230-400V - key 830062.

In the following table, look for the model of the Plasma and the respective parts of the code.
Telwin Superplasma 90/3 HF 830062
TELWIN SUPERPLASMA 90/3 HF 230-400V - 830062 Pag.1
# Description Part Num.
1 CONTROL MODULE 114633
2 VOLTAGE CHANGING CARD 112163
3 RECTIFIER 112352
4 H.F. CARD 980541
5 FILTER CARD 114643
6 RESISTOR 112546
7 RESISTOR 112548
8 FUSE 122437
9 SWITCH 121505
10 CONTACTOR 121214
11 ELECTRO-VALVE 122497
12 ELECTRO-VALVE 122498
13 THERMOSTAT 122525
14 YELLOW PILOT LAMP 122594
15 RED LIGHT 122595
16 PRESSURE SWITCH 122599
17 CONTACTOR 122694
18 SWITCH 122725
19 CABLE 16 MMQ 5 M 123438
20 MAINS CABLE 4G4 2.5 M 132166
21 MOTOR 152083
22 FAN BLADE 152135
24 TRANSFORMER HF 164376
25 TRANSFORMER 164714
26 CABLE BUSHING 312068
27 WHEEL + SWIVEL SUPPORT 322187
28 WHEEL KIT 980109
29 WHEELS AXLE 422801
31 GAUGE 602022
32 AIR FILTER 602040
33 PRESSURE REDUCER 602019
34 HANDLE 644405
36 FRONT PANEL 646841
37 BOTTOM 650369
38 COVER 650370
39 RIGHT SIDE 655656
41 TOLEDO 300 WORK CLAMP 712231
42 PLASMA TORCH 6M 722332
45 TORCH CONNECTION 722439
47 KIT CABLE BUSHING + RING NUT 990046
48 SWITCH KNOB 322901
49 VARISTOR 112513

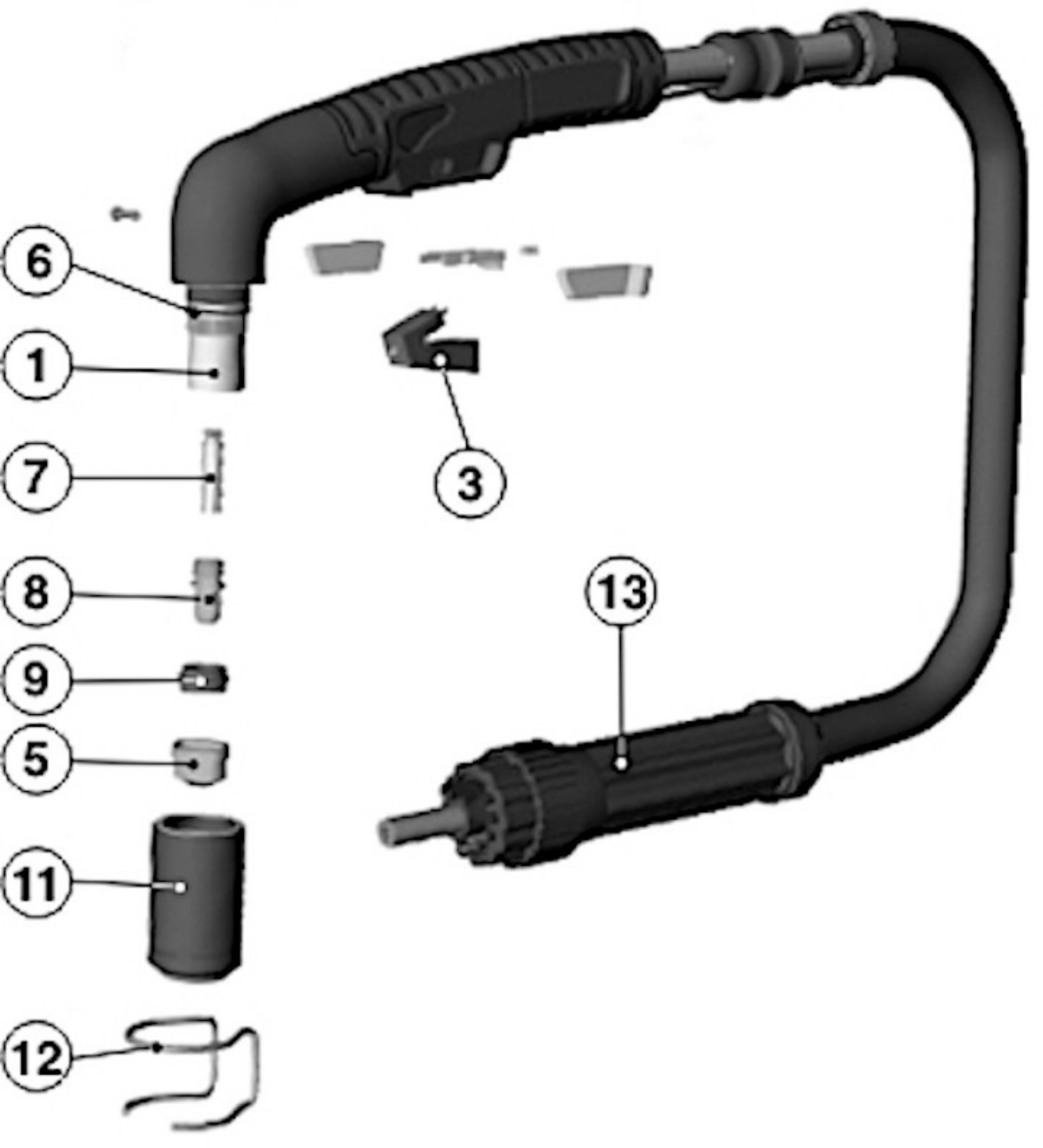

PLASMA TORCH SUPERPLASMA 90/3 HF 230-400V Pag.2
1 TORCH ASSY KIT + GRIP 742358
3 PUSHBUTTON 722677
5 KIT 5 LONG NOZZLES 802083
5 KIT 5 NOZZLES D.1,6 802124
5 KIT 5 NOZZLES D.1,3 802119
6 KIT 10 OR RINGS 802120
7 KIT 5 BRASS DIFFUSORS 802121
8 KIT 5 LONG ELECTRODES 802082
8 KIT 5 ELECTRODES 802122
9 KIT 5 INSULATING DIFFUSERS 802123
11 KIT 2 TORCH SAFETY CAPS 802126
12 KIT 5 SPACERS 802127
13 TORCH CONNECTION 742041
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Telwin websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Telwin brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Superplasma 90/3 HF - 830062
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:
TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS

Specific References

New

Download

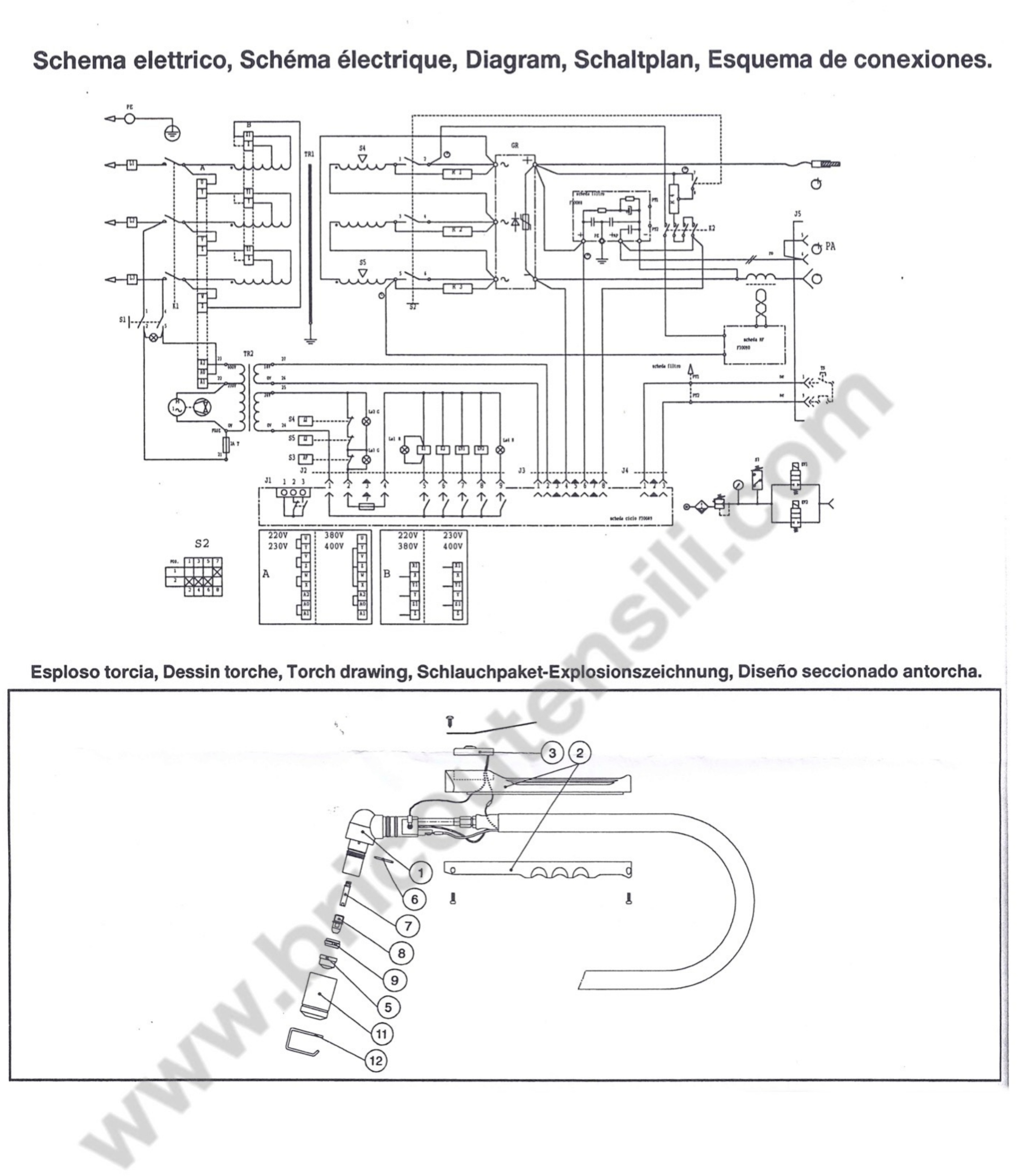

Diagram Superplasma 90/3 HF

Diagram Superplasma 90/3 HF

Download (754.74KB)

Torch Superplasma 90/3 HF

Torch Superplasma 90/3 HF

Download (127.43KB)
