Telwin s.p.a.

Telwin Spare Parts for Air Plasma Cutting Superplasma 80/3 HF 230-400V

SKU: Superplasma 80/3 HF - 830502
€14.36
VAT included

Telwin Spare Parts for Air Plasma Cutting Superplasma 80/3 HF 230-400V

TELWIN authorized service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Air Plasma Cutting Superplasma 80/3 HF 230-400V - key 830502.

Air Plasma Cutting Superplasma 80/3 HF 230-400V - key 830502.
Telwin Spare Parts for Air Plasma Cutting Superplasma 80/3 HF 230-400V
  • Telwin Spare Parts for Air Plasma Cutting Superplasma 80/3 HF 230-400V
  • Telwin Spare Parts for Air Plasma Cutting Superplasma 80/3 HF 230-400V
  • Telwin Spare Parts for Air Plasma Cutting Superplasma 80/3 HF 230-400V
Telwin s.p.a.

Telwin Spare Parts for Air Plasma Cutting Superplasma 80/3 HF 230-400V

SKU: Superplasma 80/3 HF - 830502 Condition: New
€14.36
VAT included

Telwin Spare Parts for Air Plasma Cutting Superplasma 80/3 HF 230-400V

TELWIN authorized service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Air Plasma Cutting Superplasma 80/3 HF 230-400V - key 830502.

Air Plasma Cutting Superplasma 80/3 HF 230-400V - key 830502.
settings 59 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:: TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
51 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 1
Pos. Item Price Buy
1
 Plasma Cycle PCB Kit for Inverter Telwin SUPERPLASMA 60/3 HF 980729 Plasma Cycle PCB Kit for Inverter Telwin SUPERPLASMA 60/3 HF €222.68
2
 photo_cameraImage coming soon 112163 VOLTAGE CHANGING CARD €13.95
3
 Rectifier for Telwin SUPERPLASMA 60/3 HF - 80/3 HF 112351 Rectifier for Telwin SUPERPLASMA 60/3 HF - 80/3 HF €51.45
4
 photo_cameraImage coming soon 114643 FILTER CARD €39.28
6
 photo_cameraImage coming soon 112544 RESISTOR €54.34
7
 Resistance for Telwin SUPERPLASMA 60/3 HF 112545 Resistance for Telwin SUPERPLASMA 60/3 HF €150.54
8
 photo_cameraImage coming soon 980541 H.F. CARD KIT €109.38
9
 photo_cameraImage coming soon 122037 AUXILIARY CONTACTS €5.70
10
 Dipswitch Knob for Welding Telwin 323101 Dipswitch Knob for Welding Telwin €2.56
11
 photo_cameraImage coming soon 122256 THERMOSTAT €2.83
12
 photo_cameraImage coming soon 121195 SWITCH €12.91
13
 Fuse 5x20 2A for Charger Telwin Alpine 20 Boost 122437 Fuse 5x20 2A for Charger Telwin Alpine 20 Boost €0.63
14
 AC Contactor for Inverter Telwin MASTERMIG 300-SUPERMIG 380 122585 AC Contactor for Inverter Telwin MASTERMIG 300-SUPERMIG 380 €27.74
15
 Yellow Pilot Lamp for Welding Machines Telwin Telmig-Mastermig 122594 Yellow Pilot Lamp for Welding Machines Telwin Telmig-Mastermig €2.03
17
 AC Contactor for Inverter Telwin TELMIG 183-203-250/2 Turbo 122694 AC Contactor for Inverter Telwin TELMIG 183-203-250/2 Turbo €18.45
18
 Green Switch for Inverter Telwin Mastermig 220-270-300-400 122725 Green Switch for Inverter Telwin Mastermig 220-270-300-400 €2.63
20
 photo_cameraImage coming soon 120247 CABLE 10 MMQ 5 M €14.21
21
 photo_cameraImage coming soon 132166 CABLE ALIM. 4G4 2.5 M €21.94
22
 Fan Motor for Welding Telwin Linear-Mastermig-Supermig 152083 Fan Motor for Welding Telwin Linear-Mastermig-Supermig €78.00
23
 photo_cameraImage coming soon 152135 FAN BLADE €6.58
24
 photo_cameraImage coming soon 164993 TRANSFORMER AUXILIARY €73.51
25
 photo_cameraImage coming soon 980095 KIT TRANSFORMER €84.48
26
 photo_cameraImage coming soon 169600 TRANSFORMER €693.67
27
 photo_cameraImage coming soon 312068 CABLE BUSHING €3.20
28
 photo_cameraImage coming soon 312323 HANDLE €6.30
29
 photo_cameraImage coming soon 312332 FRAME €69.13
30
 photo_cameraImage coming soon 322187 WHEEL + SWIVEL SUPPORT €11.80
31
 photo_cameraImage coming soon 322772 WHEEL €13.12
32
 photo_cameraImage coming soon 322773 WHEEL CAP €2.40
33
 photo_cameraImage coming soon 483060 AXLE FOR WHEELS €5.40
34
 Pressure Reducer for Telwin SUPERPLASMA 60/3 HF 602019 Pressure Reducer for Telwin SUPERPLASMA 60/3 HF €19.05
35
 photo_cameraImage coming soon 602326 GAUGE €8.10
36
 photo_cameraImage coming soon 602040 AIR FILTER €32.65
39
 photo_cameraImage coming soon 649300 BACK PANEL €24.76
40
 photo_cameraImage coming soon 644955 BOTTOM €29.69
44
 Toledo 300 Amp. Work Clamp for Inverter and Plasma Telwin 712231 Toledo 300 Amp. Work Clamp for Inverter and Plasma Telwin €5.89
45
 Plasma Torch for Inverter Telwin Superplasma 83 HF 722474 Plasma Torch for Inverter Telwin Superplasma 83 HF €260.70
46
 photo_cameraImage coming soon 722465 TORCH CONNECTION €11.40
47
 photo_cameraImage coming soon 990046 KIT CABLE BUSHING + RING NUT €8.93
48
 photo_cameraImage coming soon 122599 PRESSURE €15.98
49
 Electrovalve for Inverter Telwin Mastermig-Supermig-Inverpulse 122682 Electrovalve for Inverter Telwin Mastermig-Supermig-Inverpulse €20.15
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 2
Pos. Item Price Buy
1
 Body Torch + Button Complete Set for Telwin Superior Plasma 60HF 742349 Body Torch + Button Complete Set for Telwin Superior Plasma 60HF €148.42
2
 photo_cameraImage coming soon 990983 SPINE SAFETY KIT €18.50
3
 Plasma Cutting Torch Button for Telwin TECNICA-TECHNOLOGY-SUPERIOR 722677 Plasma Cutting Torch Button for Telwin TECNICA-TECHNOLOGY-SUPERIOR €15.80
4
 Kit 5 Electrodes for Plasma Torch Superior-Superplasma 60-83HF 802076 Kit 5 Electrodes for Plasma Torch Superior-Superplasma 60-83HF €16.58
5
 Kit 5 Nozzles for Plasma Torch Superior-Superplasma 60-83HF 802077 Kit 5 Nozzles for Plasma Torch Superior-Superplasma 60-83HF €11.00
6
 Kit 5 Long Nozzles for Telwin SUPERPLASMA 60/3 HF - 80/3 HF 802079 Kit 5 Long Nozzles for Telwin SUPERPLASMA 60/3 HF - 80/3 HF €15.33
7
 Kit 5 Long Electrodes for Telwin SUPERPLASMA 60/3 HF - 80/3 HF 802078 Kit 5 Long Electrodes for Telwin SUPERPLASMA 60/3 HF - 80/3 HF €17.91
8
 Kit 2 Insulating Diffusers for Plasma Torch Superior-Superplasma 60-83HF 802080 Kit 2 Insulating Diffusers for Plasma Torch Superior-Superplasma 60-83HF €24.95
9
 Kit 2 Nozzles-Holders for Plasma Torch Superior-Superplasma 60-83HF 802081 Kit 2 Nozzles-Holders for Plasma Torch Superior-Superplasma 60-83HF €22.16
10
 Kit 5 Spacers for Plasma Torch Superior-Superplasma 60-83HF 802128 Kit 5 Spacers for Plasma Torch Superior-Superplasma 60-83HF €15.48

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Telwin Spare Parts for Air Plasma Cutting Superplasma 80/3 HF 230-400V

TELWIN authorized service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Air Plasma Cutting Superplasma 80/3 HF 230-400V - key 830502.

In the following table, look for the model of the Plasma and the respective parts of the code.
Air Plasma Cutting Superplasma 80/3 HF 230-400V - key 830502..

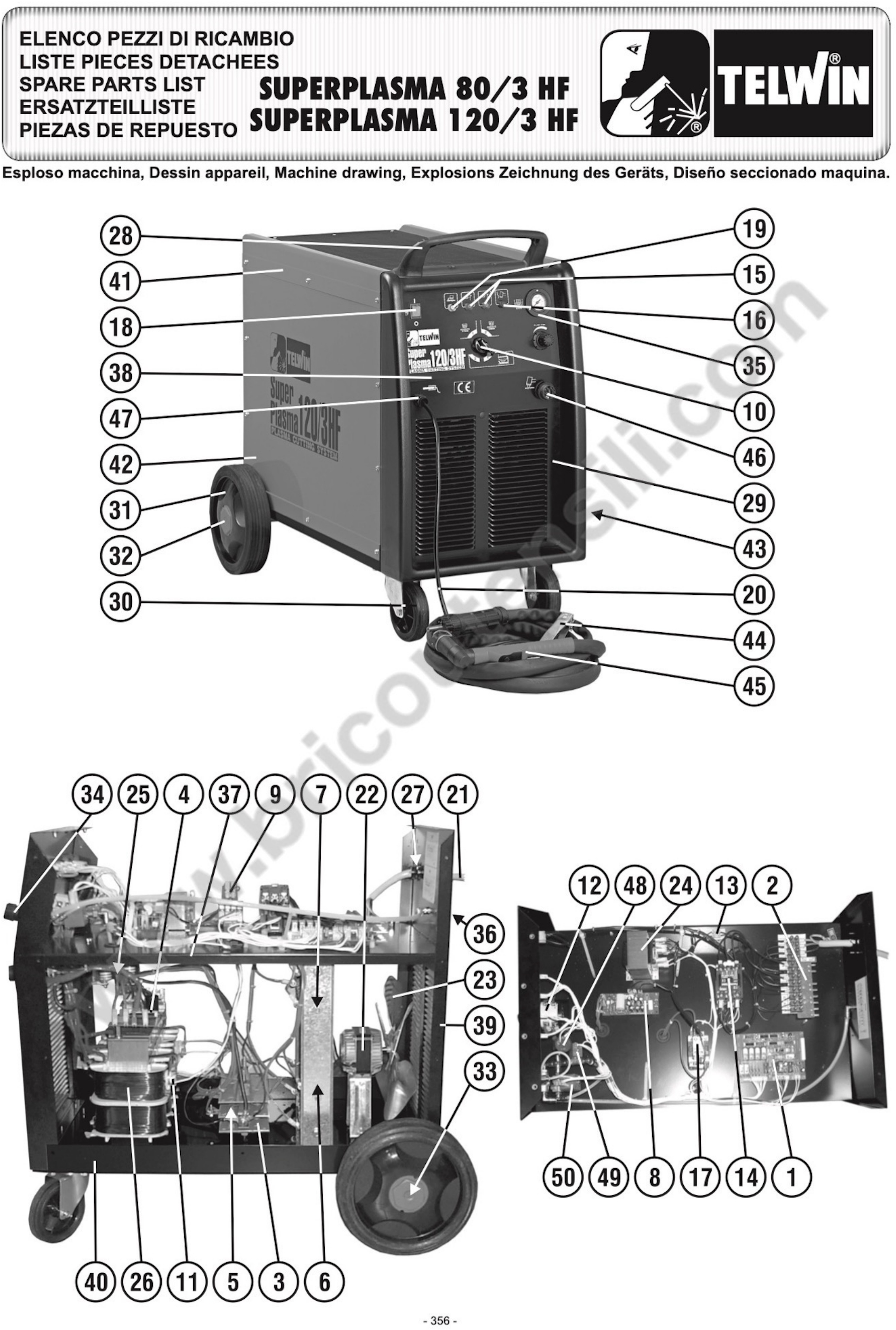

TELWIN SUPERPLASMA 80/3 HF 230-400V - key 830502 Pag.1
# Description Part Num.
1 PLASMA CYCLE PCB KIT 980729
2 VOLTAGE CHANGING CARD 112163
3 RECTIFIER 112351
4 FILTER CARD 114643
5 VARISTOR 112513
6 RESISTOR 112544
7 RESISTANCE 112545
8 H.F. CARD KIT 980541
9 AUXILIARY CONTACTS 122037
10 SWITCH KNOB SET 323101
11 THERMOSTAT 122256
12 SWITCH 121195
13 FUSE 122437
14 CONTACTOR 122585
15 YELLOW PILOT LAMP 122594
16 RED LIGHT 122595
17 CONTACTOR 122694
18 SWITCH 122725
19 PILOT LAMP 122909
20 CABLE 10 MMQ 5 M 120247
21 MAINS CABLE 4G4 2.5 M 132166
22 MOTOR 152083
23 FAN BLADE 152135
24 AUXILIARY TRANSFORMER 164993
25 TRANSFORMER KIT 980095
26 TRANSFORMER 169600
27 CABLE BUSHING 312068
28 HANDLE 312323
29 FRAME 312332
30 WHEEL + SWIVEL SUPPORT 322187
31 WHEEL 322772
32 WHEEL CAP 322773
33 WHEELS AXLE 483060
34 PRESSURE REDUCER 602019
35 GAUGE 602326
36 AIR FILTER 602040
37 DIAPHRAGM 644893
38 FRONT PANEL 649318
39 BACK PANEL 649300
40 BOTTOM 644955
41 COVER 650486
42 RIGHT SIDE PANEL 655228
43 LEFT SIDE 655229
44 TOLEDO 300 WORK CLAMP 712231
45 PLASMA TORCH 6M 722474
46 TORCH CONNECTION 722465
47 KIT CABLE BUSHING + RING NUT 990046
48 PRESSURE SWITCH 122599
49 ELECTRO-VALVE 122682

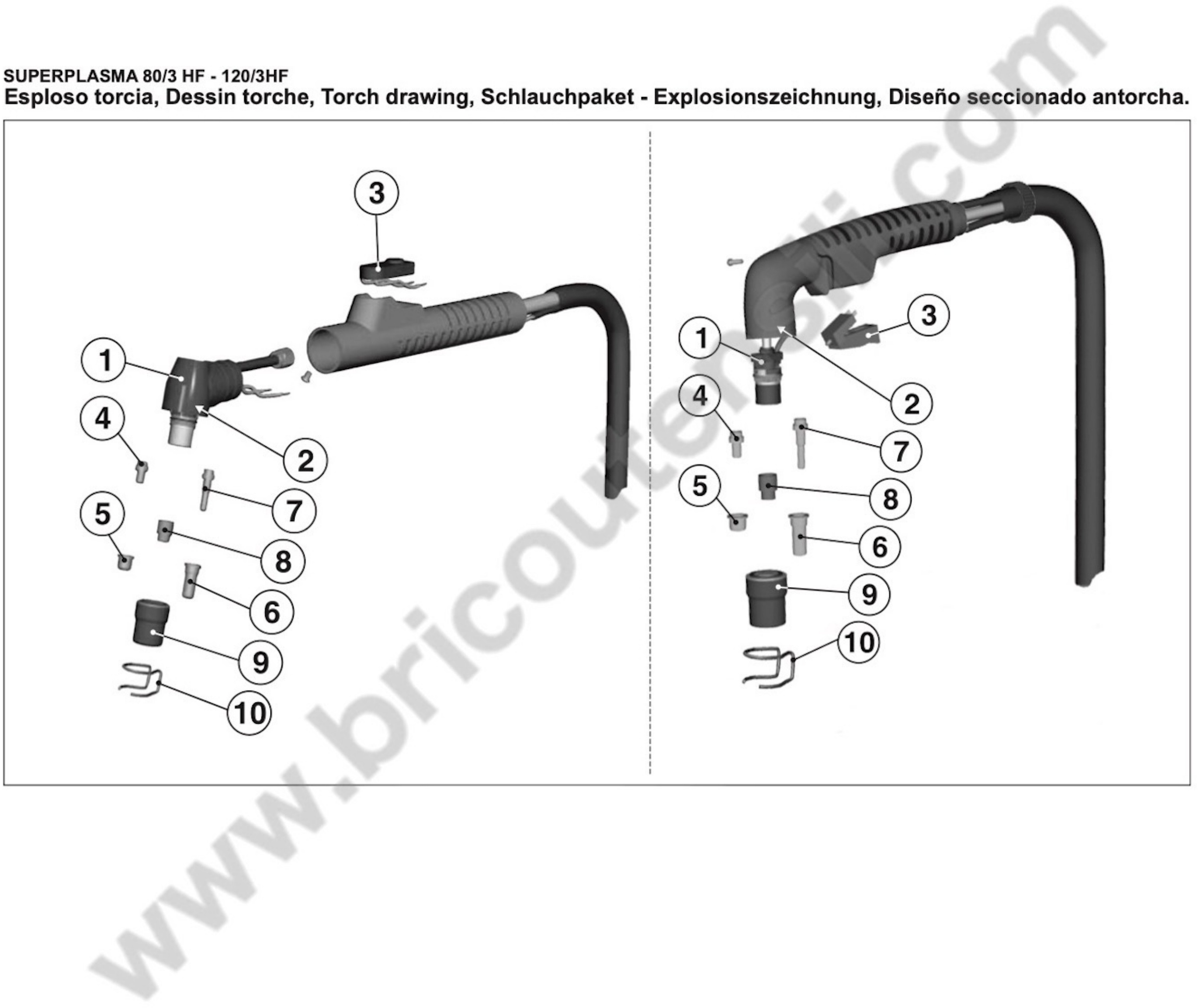

PLASMA TORCH SUPERPLASMA 80/3 HF 230-400V Pag.2
1 TORCH ASSY + PUSHBUTTON 742349
2 SAFETY PINS KIT 990983
3 PUSHBUTTON 722677
4 KIT 5 ELECTRODES 802076
5 KIT 5 NOZZLES 802077
6 KIT 5 LONG NOZZLES 802079
7 KIT 5 LONG ELECTRODES 802078
8 KIT 2 INSULATING DIFFUSERS 802080
9 KIT 2 TORCH SAFETY CAPS 802081
10 KIT 5 SPACERS 802128

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Telwin websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Telwin brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Superplasma 80/3 HF - 830502
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:
TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS

Specific References

New

Download

Superplasma 80/3 HF Drawing

Superplasma 80/3 HF Drawing

Download (595.08KB)
