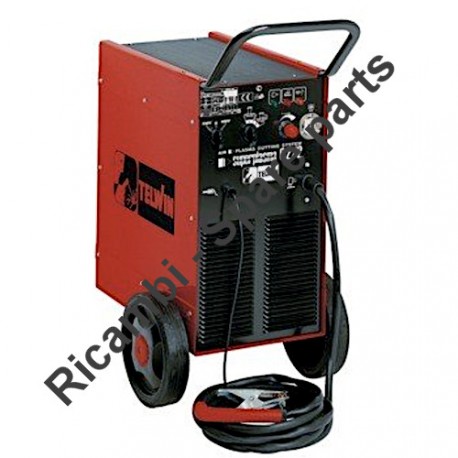

Telwin Spare Parts for Air Plasma Cutting Superplasma 62/2 230-400V

SKU: Superplasma 62/2 - 830501
€62.87
VAT included

Telwin Spare Parts for Air Plasma Cutting Superplasma 62/2 230-400V

TELWIN Authorized Technical Assistance, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to solve any maintenance and repair issues for Air Plasma Cutting Superplasma 62/2 230-400V 830501.

Air Plasma Cutting Superplasma 62/2 230-400V 830501
Telwin Spare Parts for Air Plasma Cutting Superplasma 62/2 230-400V
  • Telwin Spare Parts for Air Plasma Cutting Superplasma 62/2 230-400V
  • Telwin Spare Parts for Air Plasma Cutting Superplasma 62/2 230-400V - Drawing
  • Telwin Spare Parts for Air Plasma Cutting Superplasma 62/2 230-400V - Torch Drawing

Telwin Spare Parts for Air Plasma Cutting Superplasma 62/2 230-400V

SKU: Superplasma 62/2 - 830501 Condition: New
€62.87
VAT included

Telwin Spare Parts for Air Plasma Cutting Superplasma 62/2 230-400V

TELWIN Authorized Technical Assistance, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to solve any maintenance and repair issues for Air Plasma Cutting Superplasma 62/2 230-400V 830501.

Air Plasma Cutting Superplasma 62/2 230-400V 830501
settings 51 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:: TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

39 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 112284 RESISTANCE €59.27
2
Rectifier for Telwin SUPERPLASMA 60/3 HF - 80/3 HF 112351 Rectifier for Telwin SUPERPLASMA 60/3 HF - 80/3 HF €51.45
3
photo_cameraImage coming soon 112547 RESISTANCE €69.13
4
Dipswitch Knob for Welding Telwin 323101 Dipswitch Knob for Welding Telwin €2.56
5
photo_cameraImage coming soon 121195 SWITCH €12.91
6
photo_cameraImage coming soon 122497 SOLENOID €13.94
7
photo_cameraImage coming soon 122525 THERMOSTAT €6.51
8
AC Contactor for Inverter Telwin MASTERMIG 300-SUPERMIG 380 122585 AC Contactor for Inverter Telwin MASTERMIG 300-SUPERMIG 380 €27.74
9
Yellow Pilot Lamp for Welding Machines Telwin Telmig-Mastermig 122594 Yellow Pilot Lamp for Welding Machines Telwin Telmig-Mastermig €2.03
10
photo_cameraImage coming soon 122646 SWITCH €19.83
11
photo_cameraImage coming soon 122709 LAMP €1.39
15
Fan Motor for Welding Telwin Linear-Mastermig-Supermig 152083 Fan Motor for Welding Telwin Linear-Mastermig-Supermig €78.00
16
Cooler Fan for Welding Telwin Linear-Mastermig-Supermig 152113 Cooler Fan for Welding Telwin Linear-Mastermig-Supermig €13.79
17
photo_cameraImage coming soon 164923 TRANSFORMER €362.00
18
photo_cameraImage coming soon 169122 AUXILIARY TRANSFORMER €63.61
19
photo_cameraImage coming soon 312068 CABLE BUSHING €3.20
20
photo_cameraImage coming soon 322772 WHEEL €13.12
21
photo_cameraImage coming soon 322773 WHEEL CAP €2.40
24
photo_cameraImage coming soon 602326 GAUGE €8.10
25
photo_cameraImage coming soon 602040 AIR FILTER €32.65
27
photo_cameraImage coming soon 644408 FOOT €4.66
33
Colorado 150B Earth Clamp 150A for Inverter and Plasma Telwin 712001 Colorado 150B Earth Clamp 150A for Inverter and Plasma Telwin €2.43
34
photo_cameraImage coming soon 742065 PLASMA TORCH 6 M 30 A €287.06
35
photo_cameraImage coming soon 990046 KIT CABLE BUSHING + RING NUT €8.93
36
photo_cameraImage coming soon 322148 GLAND €3.12
38
photo_cameraImage coming soon 980735 * SEE 991713 * €1.30
39
Air Regulator for Telwin Superplasma 62/2 120008 Air Regulator for Telwin Superplasma 62/2 €57.60
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
1
Plasma Cutting Torch Button for Telwin TECNICA-TECHNOLOGY-SUPERIOR 722677 Plasma Cutting Torch Button for Telwin TECNICA-TECHNOLOGY-SUPERIOR €15.80
2
photo_cameraImage coming soon 990983 SPINE SAFETY KIT €18.50
3
Kit 5 Torch Electrodes for Telwin TECHNOLOGY PLASMA 54 KOMPRESSOR 802420 Kit 5 Torch Electrodes for Telwin TECHNOLOGY PLASMA 54 KOMPRESSOR €16.58
3
photo_cameraImage coming soon 802421 KIT 5 ELECTRODES €15.88
3
Kit 5 Long Electrodes for Telwin Tecnica PLASMA 31 802428 Kit 5 Long Electrodes for Telwin Tecnica PLASMA 31 €19.19
5
Kit 5 Insulating Diffusers for Plasma Torch Telwin TECNICA-TECHNOLOGY 802422 Kit 5 Insulating Diffusers for Plasma Torch Telwin TECNICA-TECHNOLOGY €56.54
6
Kit 5 Torch Nozzles for Telwin TECHNOLOGY PLASMA 54 KOMPRESSOR 802423 Kit 5 Torch Nozzles for Telwin TECHNOLOGY PLASMA 54 KOMPRESSOR €15.19
6
photo_cameraImage coming soon 802424 KIT 5 NOZZLES €13.91
6
Kit 5 Long Nozzles for Telwin TECNICA PLASMA 31 802429 Kit 5 Long Nozzles for Telwin TECNICA PLASMA 31 €24.64
8
Kit 2 Torch Safety Caps for Telwin Tecnica PLASMA 31 802425 Kit 2 Torch Safety Caps for Telwin Tecnica PLASMA 31 €26.45
10
photo_cameraImage coming soon 742036 BODY TORCH €209.91
11
Kit 5 Spacers for Plasma Torch Superior-Superplasma 60-83HF 802128 Kit 5 Spacers for Plasma Torch Superior-Superplasma 60-83HF €15.48

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Telwin Spare Parts for Air Plasma Cutting Superplasma 62/2 230-400V

TELWIN Authorized Technical Assistance, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Air Plasma Cutting Superplasma 62/2 230-400V 830501.

In the following table, look for the model of the Plasma and the respective parts of the code.
Air Plasma Cutting Superplasma 62/2 230-400V 830501

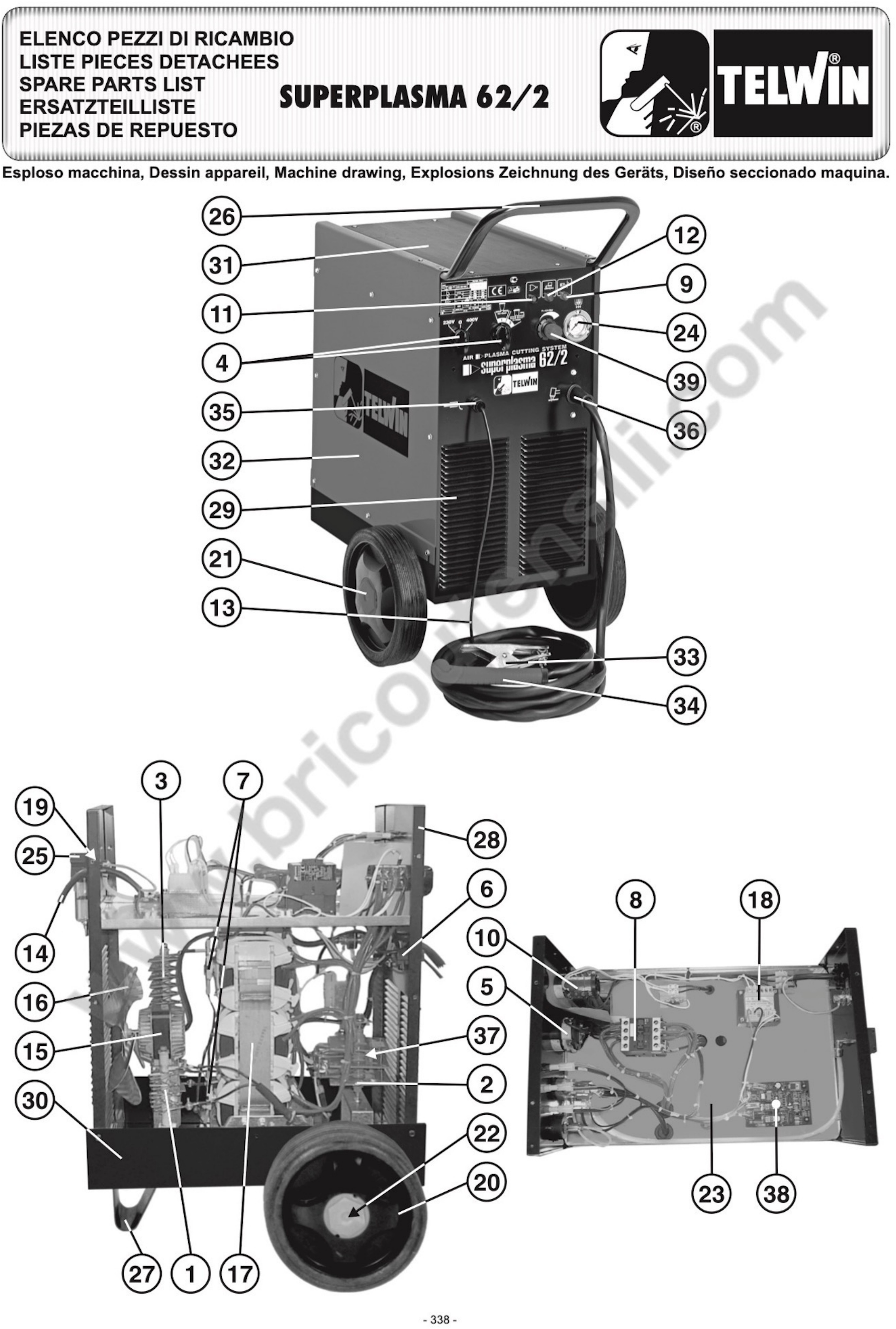

TELWIN SUPERPLASMA 62/2 230-400V key 830501 Pag.1
# Description Part Num.
1 RESISTANCE 112284
2 RECTIFIER 112351
3 RESISTANCE 112547
4 SWITCH KNOB SET 323101
5 SWITCH 121195
6 ELECTRO-VALVE 122497
7 THERMOSTAT 122525
8 CONTACTOR 122585
9 YELLOW PILOT LAMP 122594
10 SWITCH 122646
11 LAMP 122709
12 PILOT LAMP 122909
13 CABLE 6 MMQ 5 M 123252
14 MAINS CABLE 4G2.5 2 M 132165
15 MOTOR 152083
16 FAN BLADE 152113
17 TRANSFORMER 164923
18 AUXILIARY TRANSFORMER 169122
19 CABLE BUSHING 312068
20 WHEEL 322772
21 WHEEL CAP 322773
22 AXLE 482680
23 DIAPHRAGM 483256
24 MANOMETER 602326
25 AIR FILTER 602040
26 HANDLE 644083
27 FOOT 644408
28 BACK PANEL 644629
29 FRONT PANEL 649359
30 BOTTOM 644956
31 COVER 650397
32 SIDE PANEL 655875
33 COLORADO 150B WORK CLAMP 150A 712001
34 PLASMA TORCH 6 M 30 A 742065
35 KIT CABLE BUSHING + RING NUT 990046
36 CABLE BUSHING 322148
37 VARISTOR 112513
38 PLASMA CYCLE PCB KIT 980735
39 AIR REGULATOR 120008

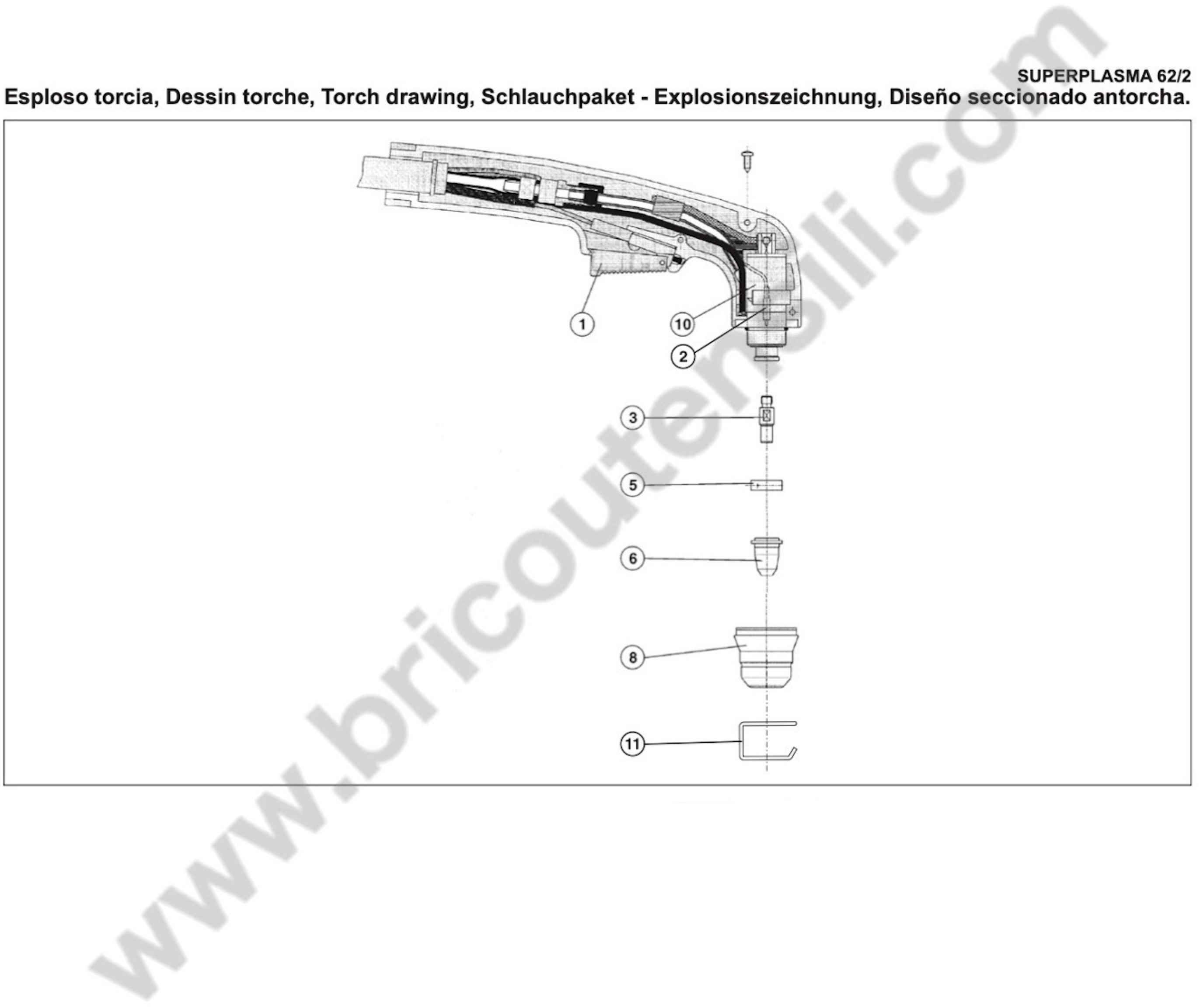

TORCHE SUPERPLASMA 62/2 230-400V key 830501 Pag.2
1 PUSHBUTTON 722677
2 SAFETY PINS KIT 990983
3 KIT 5 LONG ELECTRODES 802428
3 KIT 5 ELECTRODES 802421
3 KIT 5 ELECTRODES 802420
5 KIT 5 INSULATING DIFFUSERS 802422
6 KIT 5 NOZZLES 802423
6 KIT 5 LONG NOZZLES 802429
6 KIT 5 NOZZLES 802424
8 KIT 2 TORCH SAFETY CAPS 802425
10 TORCH BODY 742036
11 KIT 5 SPACERS 802128
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Telwin websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Telwin brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
