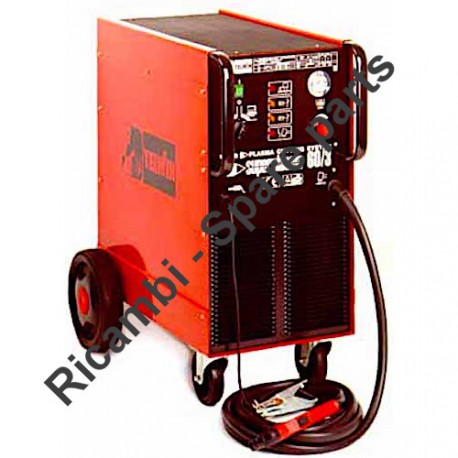

Telwin Spare Parts for Air Plasma Cutting Superplasma 60/3 HF 230-400V

SKU: Superplasma 60/3 HF - 830061
€7.73
VAT included

Telwin Spare Parts for Air Plasma Cutting Superplasma 60/3 HF 230-400V

We are TELWIN authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair problem for Air Plasma Cutting Superplasma 60/3 HF 230-400V   Key. 830061.

Air Plasma Cutting Superplasma 60/3 HF 230-400V Key. 830061.
Telwin Spare Parts for Air Plasma Cutting Superplasma 60/3 HF 230-400V
  • Telwin Spare Parts for Air Plasma Cutting Superplasma 60/3 HF 230-400V
  • Telwin Spare Parts for Air Plasma Cutting Superplasma 60/3 HF 230-400V - Drawing
  • Telwin Spare Parts for Air Plasma Cutting Superplasma 60/3 HF 230-400V - Torch Drawing
Telwin s.p.a.

Telwin Spare Parts for Air Plasma Cutting Superplasma 60/3 HF 230-400V

SKU: Superplasma 60/3 HF - 830061 Condition: New
€7.73
VAT included

Telwin Spare Parts for Air Plasma Cutting Superplasma 60/3 HF 230-400V

We are TELWIN authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair problem for Air Plasma Cutting Superplasma 60/3 HF 230-400V   Key. 830061.

Air Plasma Cutting Superplasma 60/3 HF 230-400V Key. 830061.
settings 49 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:: TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
35 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 1
Pos. Item Price Buy
Plasma Cycle PCB Kit for Inverter Telwin SUPERPLASMA 60/3 HF 980729 Plasma Cycle PCB Kit for Inverter Telwin SUPERPLASMA 60/3 HF €222.68
2
 photo_cameraImage coming soon 112165 CHANGING VOLTAGE CARD €7.29
2
 photo_cameraImage coming soon 990983 SPINE SAFETY KIT €18.50
3
 Rectifier for Telwin SUPERPLASMA 60/3 HF - 80/3 HF 112351 Rectifier for Telwin SUPERPLASMA 60/3 HF - 80/3 HF €51.45
5
 photo_cameraImage coming soon 114643 FILTER CARD €39.28
6
 Resistance for Telwin SUPERPLASMA 60/3 HF 112545 Resistance for Telwin SUPERPLASMA 60/3 HF €150.54
7
 photo_cameraImage coming soon 112547 RESISTANCE €69.13
8
 Fuse 5x20 2A for Charger Telwin Alpine 20 Boost 122437 Fuse 5x20 2A for Charger Telwin Alpine 20 Boost €0.63
10
 Electrovalve for Inverter Telwin Mastermig-Supermig-Inverpulse 122682 Electrovalve for Inverter Telwin Mastermig-Supermig-Inverpulse €20.15
11
 photo_cameraImage coming soon 122525 THERMOSTAT €6.51
12
 AC Contactor for Inverter Telwin MASTERMIG 300-SUPERMIG 380 122585 AC Contactor for Inverter Telwin MASTERMIG 300-SUPERMIG 380 €27.74
13
 Yellow Pilot Lamp for Welding Machines Telwin Telmig-Mastermig 122594 Yellow Pilot Lamp for Welding Machines Telwin Telmig-Mastermig €2.03
15
 photo_cameraImage coming soon 122599 PRESSURE €15.98
16
 AC Contactor for Inverter Telwin TELMIG 183-203-250/2 Turbo 122694 AC Contactor for Inverter Telwin TELMIG 183-203-250/2 Turbo €18.45
17
 Green Switch for Inverter Telwin Mastermig 220-270-300-400 122725 Green Switch for Inverter Telwin Mastermig 220-270-300-400 €2.63
20
 Fan Motor for Welding Telwin Linear-Mastermig-Supermig 152083 Fan Motor for Welding Telwin Linear-Mastermig-Supermig €78.00
21
 photo_cameraImage coming soon 152135 FAN BLADE €6.58
25
 photo_cameraImage coming soon 312068 CABLE BUSHING €3.20
26
 photo_cameraImage coming soon 322187 WHEEL + SWIVEL SUPPORT €11.80
27
 photo_cameraImage coming soon 980109 WHEEL KIT €11.27
31
 photo_cameraImage coming soon 602040 AIR FILTER €32.65
32
 Pressure Reducer for Telwin SUPERPLASMA 60/3 HF 602019 Pressure Reducer for Telwin SUPERPLASMA 60/3 HF €19.05
40
 Toledo 300 Amp. Work Clamp for Inverter and Plasma Telwin 712231 Toledo 300 Amp. Work Clamp for Inverter and Plasma Telwin €5.89
41
 Plasma Torch for Inverter Telwin Superplasma 83 HF 722474 Plasma Torch for Inverter Telwin Superplasma 83 HF €260.70
43
 photo_cameraImage coming soon 990046 KIT CABLE BUSHING + RING NUT €8.93
44
 Dipswitch Knob for Welding Telwin 323101 Dipswitch Knob for Welding Telwin €2.56
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 2
Pos. Item Price Buy
1
 Body Torch + Button Complete Set for Telwin Superior Plasma 60HF 742349 Body Torch + Button Complete Set for Telwin Superior Plasma 60HF €148.42
3
 Plasma Cutting Torch Button for Telwin TECNICA-TECHNOLOGY-SUPERIOR 722677 Plasma Cutting Torch Button for Telwin TECNICA-TECHNOLOGY-SUPERIOR €15.80
4
 Kit 5 Electrodes for Plasma Torch Superior-Superplasma 60-83HF 802076 Kit 5 Electrodes for Plasma Torch Superior-Superplasma 60-83HF €16.58
5
 Kit 5 Nozzles for Plasma Torch Superior-Superplasma 60-83HF 802077 Kit 5 Nozzles for Plasma Torch Superior-Superplasma 60-83HF €11.00
6
 Kit 5 Long Nozzles for Telwin SUPERPLASMA 60/3 HF - 80/3 HF 802079 Kit 5 Long Nozzles for Telwin SUPERPLASMA 60/3 HF - 80/3 HF €15.33
7
 Kit 5 Long Electrodes for Telwin SUPERPLASMA 60/3 HF - 80/3 HF 802078 Kit 5 Long Electrodes for Telwin SUPERPLASMA 60/3 HF - 80/3 HF €17.91
8
 Kit 2 Insulating Diffusers for Plasma Torch Superior-Superplasma 60-83HF 802080 Kit 2 Insulating Diffusers for Plasma Torch Superior-Superplasma 60-83HF €24.95
9
 Kit 2 Nozzles-Holders for Plasma Torch Superior-Superplasma 60-83HF 802081 Kit 2 Nozzles-Holders for Plasma Torch Superior-Superplasma 60-83HF €22.16
10
 Kit 5 Spacers for Plasma Torch Superior-Superplasma 60-83HF 802128 Kit 5 Spacers for Plasma Torch Superior-Superplasma 60-83HF €15.48

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Telwin Spare Parts for Air Plasma Cutting Superplasma 60/3 HF 230-400V

We are TELWIN authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair problem for Air Plasma Cutting Superplasma 60/3 HF 230-400V   Key. 830061.

In the following table, look for the model of the Plasma and the respective parts of the code.
>Air Plasma Cutting Superplasma 60/3 HF 230-400V Key. 830061.

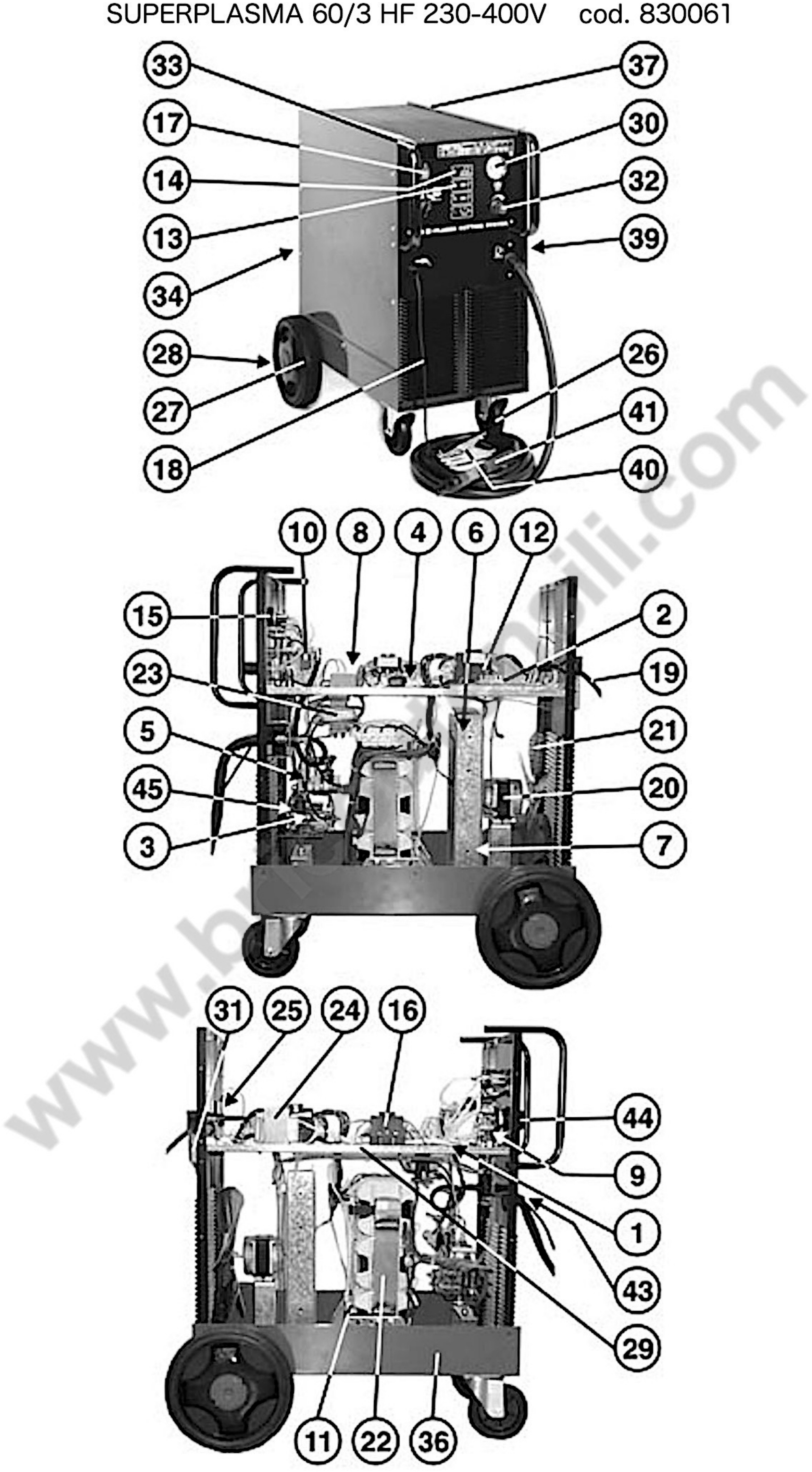

TELWIN SUPERPLASMA 60/3 HF 230-400V Key 830061 Pag.1
# Description Part Num.
0 PLASMA CYCLE PCB KIT 980729
2 CHANGING VOLTAGE CARD 112165
3 RECTIFIER 112351
4 H.F. CARD 112495
5 FILTER CARD 114643
6 RESISTANCE 112545
7 RESISTANCE 112547
8 FUSE 122437
9 SWITCH 122262
10 ELECTRO-VALVE 122682
11 THERMOSTAT 122525
12 CONTACTOR 122585
13 YELLOW PILOT LAMP 122594
14 RED LIGHT 122595
15 PRESSURE SWITCH 122599
16 CONTACTOR 122694
17 SWITCH 122725
18 CABLE 6 MMQ 5 M 123252
19 MAINS CABLE 4G2.5 2 M 132165
20 MOTOR 152083
21 FAN BLADE 152135
23 HF TRANSFORMER 164377
24 TRANSFORMER 164714
25 CABLE BUSHING 312068
26 WHEEL + SWIVEL SUPPORT 322187
27 WHEEL KIT 980109
28 WHEELS AXLE 422801
30 MANOMETER 602022
31 AIR FILTER 602040
32 PRESSURE REDUCER 602019
33 HANDLE 644405
36 BOTTOM 650369
37 COVER 650370
39 RIGHT SIDE 655656
40 TOLEDO 300 WORK CLAMP 712231
41 PLASMA TORCH 6M 722474
43 KIT CABLE BUSHING + RING NUT 990046
44 SWITCH KNOB SET 323101
45 VARISTOR 112513

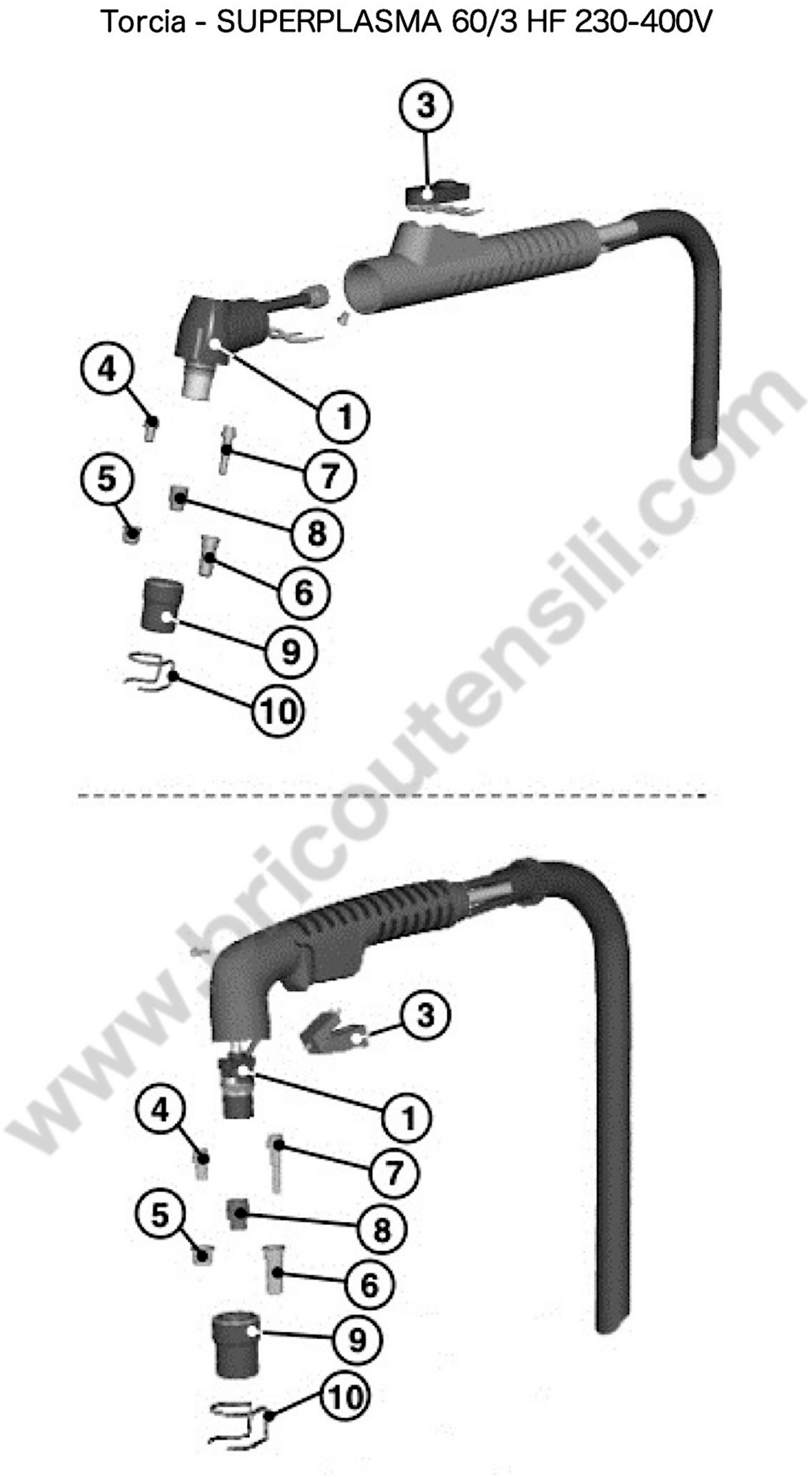

Torche - SUPERPLASMA 60/3 HF 230-400V Pag.2
1 TORCH ASSY + PUSHBUTTON 742349
2 SAFETY PINS KIT 990983
3 PUSHBUTTON 722677
4 KIT 5 ELECTRODES 802076
5 KIT 5 NOZZLES 802077
6 KIT 5 LONG NOZZLES 802079
7 KIT 5 LONG ELECTRODES 802078
8 KIT 2 INSULATING DIFFUSERS 802080
9 KIT 2 TORCH SAFETY CAPS 802081
10 KIT 5 SPACERS 802128
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Telwin websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Telwin brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
