Telwin Spare Parts for Welding Inverter INFINITY 220

SKU: Telwin INFINITY 220 - 816082
€5.41
VAT included

Telwin Spare Parts for Welding Inverter INFINITY 220

Telwin Genuine spare parts or replacement parts for to fix Welding Inverter INFINITY 220 - 816082.

Welding Inverter INFINITY 220 - 816082
Telwin Spare Parts for Welding Inverter INFINITY 220
  • Telwin Spare Parts for Welding Inverter INFINITY 220
  • Telwin Spare Parts for Welding Inverter INFINITY 220

Telwin Spare Parts for Welding Inverter INFINITY 220

SKU: Telwin INFINITY 220 - 816082 Condition: New
€5.41
VAT included

Telwin Spare Parts for Welding Inverter INFINITY 220

Telwin Genuine spare parts or replacement parts for to fix Welding Inverter INFINITY 220 - 816082.

Welding Inverter INFINITY 220 - 816082
settings 25 spare parts

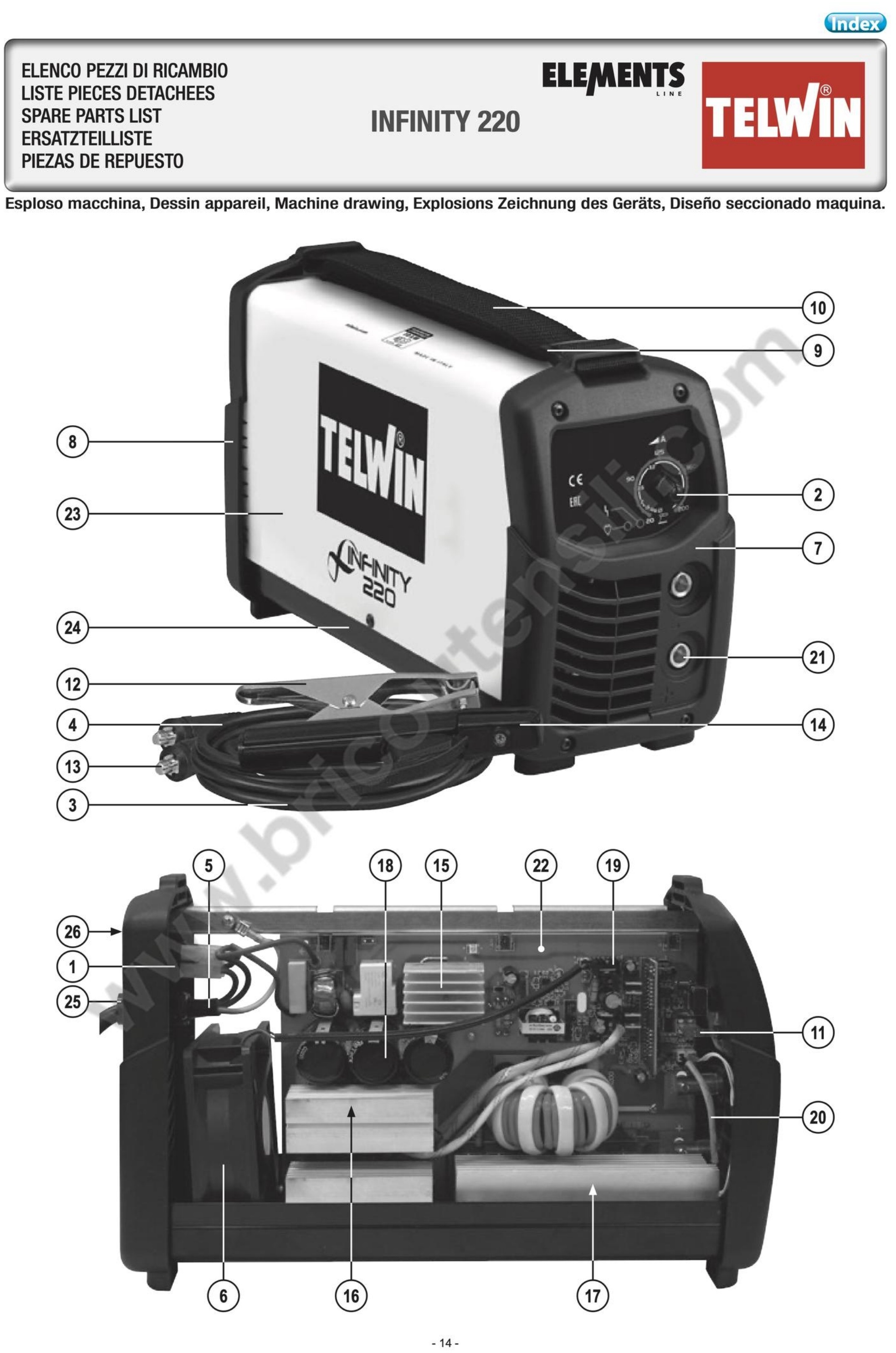

description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:: TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

25 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
1
Green Switch for Inverter Telwin Tecnica 211/S-Technology 236 HD 121248 Green Switch for Inverter Telwin Tecnica 211/S-Technology 236 HD €5.42
2
Small knob for Inverter Telwin 121395 Small knob for Inverter Telwin €0.61
3
photo_cameraImage coming soon 124465 CABLE 25 MMQ 2 M 25 €13.73
4
photo_cameraImage coming soon 124466 CABLE 25 MMQ 3 M DX 25 €16.83
5
photo_cameraImage coming soon 132345 MAINS CABLE 3G04.00 2.00 M €18.00
6
Telwin Fan for Welding Infinity 180 152290 Telwin Fan for Welding Infinity 180 €13.50
7
photo_cameraImage coming soon 321219 FRONT PANEL €10.71
8
Back-Cover for Inverter Telwin Infinity 170 321220 Back-Cover for Inverter Telwin Infinity 170 €14.37
9
photo_cameraImage coming soon 322065 BELT BUCKLE €2.31
10
photo_cameraImage coming soon 322408 BELT €3.12
11
Light Guide for Inverter Telwin Force 125 - 145 - 165 322898 Light Guide for Inverter Telwin Force 125 - 145 - 165 €2.43
12
Toledo 250 Amp. Earth Clamp for Inverter and Plasma Telwin 712030 Toledo 250 Amp. Earth Clamp for Inverter and Plasma Telwin €3.18
13
Plug DX 25 for Telwin Welding Machine 712039 Plug DX 25 for Telwin Welding Machine €3.47
14
Dallas 300 Electrode Holders Clamp 300A for Welding Telwin 712260 Dallas 300 Electrode Holders Clamp 300A for Welding Telwin €4.77
15
Telwin Infinity 180 Single Phase Bridge Kit 981581 Telwin Infinity 180 Single Phase Bridge Kit €6.08
16
photo_cameraImage coming soon 981582 KIT IGBT + DIODES €47.60
17
photo_cameraImage coming soon 981583 DIODE KIT €15.51
18
photo_cameraImage coming soon 981584 CONDENSER KIT SNAP-IN €24.98
19
Telwin Maxima 190 Synergic Kit Mosfet 981585 Telwin Maxima 190 Synergic Kit Mosfet €5.36
20
photo_cameraImage coming soon 981586 BRUSH HOLDER €7.50
21
photo_cameraImage coming soon 981587 DX SOCKETS KIT 25MMQ €13.16
22
photo_cameraImage coming soon 981791 POWER BOARD KIT €222.49
23
photo_cameraImage coming soon 981792 COVER KIT €9.26
24
photo_cameraImage coming soon 981793 BOTTOM KIT €5.59
25
photo_cameraImage coming soon 990046 KIT CABLE BUSHING + RING NUT €8.93

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Telwin Spare Parts for Welding Inverter INFINITY 220

Telwin Genuine spare parts or replacement parts for to fix Welding Inverter INFINITY 220 - 816082.

In the following table, look for the model of the Welding and the respective parts of the code.
Welding Inverter INFINITY 220 - 816082

Welding INFINITY 220 - 816082
# Part Num. Description
1 121248 SWITCH
2 121395 KNOB
3 124465 CABLE 25 MMQ 2 M 25
4 124466 CABLE 25 MMQ 3 M DX 25
5 132345 MAINS CABLE 3G04.00 2.00 M
6 152290 FAN
7 321219 FRONT PANEL
8 321220 BACK PANEL
9 322065 BELT BUCKLE
10 322408 BELT
11 322898 LIGHT GUIDE
12 712030 TOLEDO 250 WORK CLAMP 250A
13 712039 PLUG DX 25
14 712260 DALLAS 300 ELECTRODE HOLDER 300A
15 981581 SINGLE PHASE BRIDGE KIT
16 981582 KIT IGBT + DIODES
17 981583 DIODE KIT
18 981584 CONDENSER KIT SNAP-IN
19 981585 MOSFET FLYBACK KIT
20 981586 NTC CABLE KIT
21 981587 DX SOCKETS KIT 25MMQ
22 981791 POWER BOARD KIT
23 981792 COVER KIT
24 981793 BOTTOM KIT
25 990046 KIT CABLE BUSHING + RING NUT
26 122353 SWITCH COVER
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Telwin websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Telwin brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Telwin INFINITY 220 - 816082
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:
TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS

Specific References

New

Download

Diagram Telwin INFINITY 220

Diagram Telwin INFINITY 220

Download (197.83KB)
