Telwin Spare Parts for Welding Inverter INFINITY 170

SKU: Telwin INFINITY 170 - 816080
€0.36
VAT included

Telwin Spare Parts for Welding Inverter INFINITY 170

TELWIN authorized service center and original spare parts Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Welding Inverter INFINITY 170 - 816080.

Telwin INFINITY 170 - 816080
Telwin Spare Parts for Welding Inverter INFINITY 170
  • Telwin Spare Parts for Welding Inverter INFINITY 170
  • Telwin Spare Parts for Welding Inverter INFINITY 170

Telwin Spare Parts for Welding Inverter INFINITY 170

SKU: Telwin INFINITY 170 - 816080 Condition: New
€0.36
VAT included

Telwin Spare Parts for Welding Inverter INFINITY 170

TELWIN authorized service center and original spare parts Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Welding Inverter INFINITY 170 - 816080.

Telwin INFINITY 170 - 816080
settings 25 spare parts

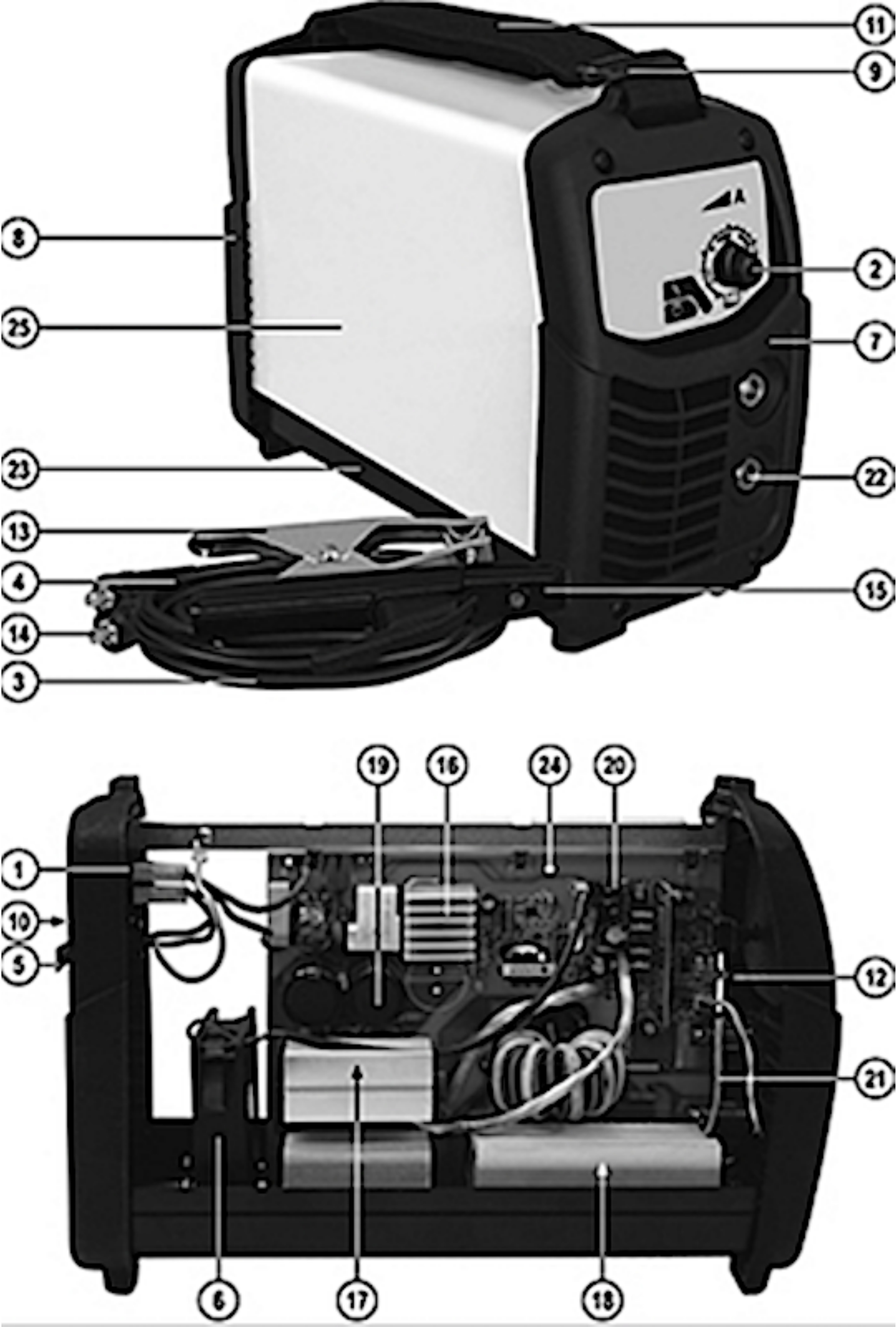

description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:: TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

24 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
1
Green Switch for Inverter Telwin Force 125-145-165-195 122381 Green Switch for Inverter Telwin Force 125-145-165-195 €5.42
2
Small knob for Inverter Telwin 121395 Small knob for Inverter Telwin €0.61
4
photo_cameraImage coming soon 124508 CABLE 16 MMQ 1.8 M - 25 €12.34
5
photo_cameraImage coming soon 132155 MAINS CABLE 3G1.5 2 M SCHUKO PLUG €12.34
6
Fan for Inverter Telwin Infinity 170 152293 Fan for Inverter Telwin Infinity 170 €13.36
7
photo_cameraImage coming soon 321219 FRONT PANEL €10.71
8
Back-Cover for Inverter Telwin Infinity 170 321220 Back-Cover for Inverter Telwin Infinity 170 €14.37
9
photo_cameraImage coming soon 322065 BELT BUCKLE €2.31
10
Cable Busching for Inverter Welding and Battery Charger Telwin 322112 Cable Busching for Inverter Welding and Battery Charger Telwin €2.44
11
photo_cameraImage coming soon 322408 BELT €3.12
12
Light Guide for Inverter Telwin Force 125 - 145 - 165 322898 Light Guide for Inverter Telwin Force 125 - 145 - 165 €2.43
13
Toledo 250 Amp. Earth Clamp for Inverter and Plasma Telwin 712030 Toledo 250 Amp. Earth Clamp for Inverter and Plasma Telwin €3.18
14
Plug DX 25 for Telwin Welding Machine 712039 Plug DX 25 for Telwin Welding Machine €3.47
15
Dallas 300 Electrode Holders Clamp 300A for Welding Telwin 712260 Dallas 300 Electrode Holders Clamp 300A for Welding Telwin €4.77
16
Telwin Infinity 180 Single Phase Bridge Kit 981581 Telwin Infinity 180 Single Phase Bridge Kit €6.08
17
photo_cameraImage coming soon 981582 KIT IGBT + DIODES €47.60
18
photo_cameraImage coming soon 981583 DIODE KIT €15.51
19
photo_cameraImage coming soon 981584 CONDENSER KIT SNAP-IN €24.98
20
Telwin Maxima 190 Synergic Kit Mosfet 981585 Telwin Maxima 190 Synergic Kit Mosfet €5.36
21
photo_cameraImage coming soon 981586 BRUSH HOLDER €7.50
22
photo_cameraImage coming soon 981587 DX SOCKETS KIT 25MMQ €13.16
23
photo_cameraImage coming soon 981788 BOTTOM KIT €10.71
24
photo_cameraImage coming soon 981786 POWER BOARD KIT €137.74
25
photo_cameraImage coming soon 981812 COVER KIT €7.95

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Telwin Spare Parts for Welding Inverter INFINITY 170

TELWIN authorized service center and original spare parts Worldwide Distributors

 and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Welding Inverter INFINITY 170 - 816080.

In the following table, look for the model of the Welding and the respective parts of the code.
Telwin INFINITY 170 - 816080

Welding INFINITY 170 - 816080
# Part Num. Description
1 122381 SWITCH
2 121395 KNOB
4 124508 CABLE 16 MMQ 1,8 M - 25
5 132155 MAINS CABLE 3G1.5 2 M SCHUKO PLUG
6 152293 FAN
7 321219 FRONT PANEL
8 321220 BACK PANEL
9 322065 BELT BUCKLE
10 322112 CABLE BUSHING
11 322408 BELT
12 322898 LIGHT GUIDE
13 712030 TOLEDO 250 WORK CLAMP 250A
14 712039 PLUG DX 25
15 712260 DALLAS 300 ELECTRODE HOLDER 300A
16 981581 SINGLE PHASE BRIDGE KIT
17 981582 KIT IGBT + DIODES
18 981583 DIODE KIT
19 981584 CONDENSER KIT SNAP-IN
20 981585 MOSFET FLYBACK KIT
21 981586 NTC CABLE KIT
22 981587 DX SOCKETS KIT 25MMQ
23 981788 BOTTOM KIT
24 981786 POWER BOARD KIT
25 981812 COVER KIT
26 122353 SWITCH COVER
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Telwin websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Telwin brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Telwin INFINITY 170 - 816080
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:
TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS

Specific References

New

Download

Diagram Telwin INFINITY 170

Diagram Telwin INFINITY 170

Download (319.76KB)
