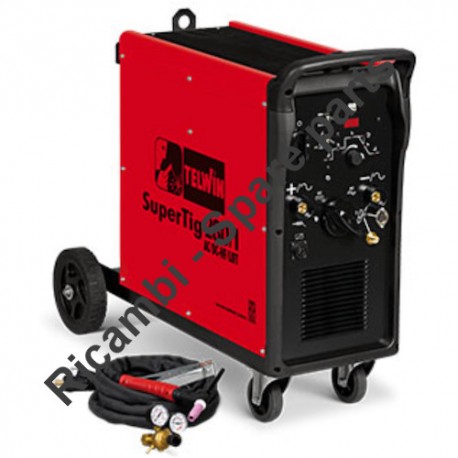

Telwin Spare Parts for Inverter SUPERTIG 280/1 AC/DC-HF/LIFT 400V

SKU: SUPERTIG 280/1 AC/DC - 832161
€9.32
VAT included

Telwin Spare Parts for Inverter SUPERTIG 280/1 AC/DC-HF/LIFT 400V

We are TELWIN authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for  Inverter Welding SUPERTIG 280/1 AC/DC-HF/LIFT 400V-832161.

SUPERTIG 280/1 AC/DC - 832161
Telwin Spare Parts for Inverter SUPERTIG 280/1 AC/DC-HF/LIFT 400V
  • Telwin Spare Parts for Inverter SUPERTIG 280/1 AC/DC-HF/LIFT 400V
  • Telwin Spare Parts for Inverter SUPERTIG 280/1 AC/DC-HF/LIFT 400V - Drawing
  • Telwin Spare Parts for Inverter SUPERTIG 280/1 AC/DC-HF/LIFT 400V - Torch Drawing
  • Telwin Spare Parts for Inverter SUPERTIG 280/1 AC/DC-HF/LIFT 400V - Wire Diagram

Telwin Spare Parts for Inverter SUPERTIG 280/1 AC/DC-HF/LIFT 400V

SKU: SUPERTIG 280/1 AC/DC - 832161 Condition: New
€9.32
VAT included

Telwin Spare Parts for Inverter SUPERTIG 280/1 AC/DC-HF/LIFT 400V

We are TELWIN authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for  Inverter Welding SUPERTIG 280/1 AC/DC-HF/LIFT 400V-832161.

SUPERTIG 280/1 AC/DC - 832161
settings 75 spare parts
description 4 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:: TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

72 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 112063 CAPACITOR €8.38
2
photo_cameraImage coming soon 112212 RESISTANCE €22.64
3
photo_cameraImage coming soon 120513 CONTROL CABLE €23.86
4
photo_cameraImage coming soon 120514 WIRING INTAKE €21.71
5
Thermostat for Welding Machines Telwin 121258 Thermostat for Welding Machines Telwin €6.82
6
photo_cameraImage coming soon 121381 PHASE RECTIFIER €274.91
7
photo_cameraImage coming soon 121432 SWITCH €275.91
8
photo_cameraImage coming soon 122019 SWITCH €59.91
9
photo_cameraImage coming soon 122060 KNOB FOR SWITCH €3.15
10
photo_cameraImage coming soon 122061 KNOB €4.55
13
photo_cameraImage coming soon 132127 CABLE ALIM. 3G6 3 M €31.10
14
Fan Motor for Welding Telwin Linear-Mastermig-Supermig 152083 Fan Motor for Welding Telwin Linear-Mastermig-Supermig €78.00
15
photo_cameraImage coming soon 152135 FAN BLADE €6.58
16
photo_cameraImage coming soon 164993 TRANSFORMER AUXILIARY €73.51
17
photo_cameraImage coming soon 169633 TRANSFORMER €355.01
18
photo_cameraImage coming soon 169636 TOGETHER TRANSFORMER + BALLAST €456.52
19
photo_cameraImage coming soon 312328 HANDLE €12.03
20
Wheel D.200x45 mm for Inverter Welding Telwin 322200 Wheel D.200x45 mm for Inverter Welding Telwin €18.29
21
photo_cameraImage coming soon 322246 WHEEL €3.64
22
photo_cameraImage coming soon 322929 FRAME €14.44
23
photo_cameraImage coming soon 422969 SWIVEL SUPPORT €7.17
25
photo_cameraImage coming soon 642081 FRONT €31.91
26
photo_cameraImage coming soon 644606 BRACKET FOR BOTTLE €11.45
27
photo_cameraImage coming soon 645441 BACK €26.41
28
photo_cameraImage coming soon 645442 FUND €36.73
29
photo_cameraImage coming soon 651144 COAT €18.43
30
photo_cameraImage coming soon 656008 SIDE €18.36
31
Fixed Wheel D.175MM Axle for Telwin Welding Machines 681092 Fixed Wheel D.175MM Axle for Telwin Welding Machines €10.49
32
photo_cameraImage coming soon 712032 TOLEDO 400 WORK CLAMP €8.98
33
Socket DX 50 for Telwin Welding Machine 712036 Socket DX 50 for Telwin Welding Machine €5.29
34
Earth Clamp with Cable (25mm² 3 mt DX50) Telwin 713169 713169 Earth Clamp with Cable (25mm² 3 mt DX50) Telwin 713169 €59.30
35
Telwin Gas Regulators for Refilable Bottles 722119 Telwin Gas Regulators for Refilable Bottles €58.24
36
photo_cameraImage coming soon 742427 ST26 TIG TORCH 4 M 220 A €159.63
37
Black Knob Set for Welding Telwin DIGITAL MIG 980772 Black Knob Set for Welding Telwin DIGITAL MIG €4.46
38
photo_cameraImage coming soon 980939 KIT CONTROL BOARD €347.56
39
photo_cameraImage coming soon 980940 BOARD KIT PILOTING €36.73
40
photo_cameraImage coming soon 980941 KIT HF TRANSFORMER €147.55
41
photo_cameraImage coming soon 980799 BOARD KIT HF AC / DC €106.22
42
Electrovalve for Inverter Telwin Mastermig-Supermig-Inverpulse 122682 Electrovalve for Inverter Telwin Mastermig-Supermig-Inverpulse €20.15
43
photo_cameraImage coming soon 990263 3/8" CONNECTION KIT TIG TORCH €5.10
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 802244 KIT 10 CERAMIC NOZZLES NR.4 €9.89
1
photo_cameraImage coming soon 802245 KIT 10 CERAMIC NOZZLES NR.6 €9.89
1
photo_cameraImage coming soon 802246 KIT 10 CERAMIC NOZZLES NR.7 €9.89
1
photo_cameraImage coming soon 802247 KIT 10 CERAMIC NOZZLES NR.8 €7.61
1
photo_cameraImage coming soon 802248 KIT 10 CERAMIC NOZZLES NR.10 €7.61
2
Insulator SR 17 for Telwin TIG Torch 722248 Insulator SR 17 for Telwin TIG Torch €8.21
4
photo_cameraImage coming soon 802220 KIT 10 CERIUM-TUNGSTEN ELECTR. D.1 MM €17.75
4
photo_cameraImage coming soon 802222 KIT 10 CERIUM-TUNGSTEN ELECTR. D.1,6 MM €17.75
4
photo_cameraImage coming soon 802232 KIT 10 CERIUM-TUNGSTEN ELECTR. D.2,4 MM €53.95
4
photo_cameraImage coming soon 802233 KIT 10 ELETTR.TUNGSTENO CERIUM D.3,2 MM €79.94
4
photo_cameraImage coming soon 802235 KIT 10 ELETTR.TUNGSTENO PURE D.1,6 MM €21.71
4
photo_cameraImage coming soon 802236 KIT 10 ELETTR.TUNGSTENO PURE D.2,4 MM €46.13
4
photo_cameraImage coming soon 802237 KIT 10 ELETTR.TUNGSTENO PURE D.3,2 MM €79.94
4
photo_cameraImage coming soon 802238 KIT 10 ELETTR.TUNGSTENO PURE D. 4 MM €164.46
5
photo_cameraImage coming soon 802239 KIT 3 ELECTRODE HOLDER CLAMPS D.1,0 MM €3.36
5
photo_cameraImage coming soon 802240 KIT 3 ELECTRODE HOLDER CLAMPS D.1,6 MM €3.61
5
photo_cameraImage coming soon 802241 KIT 3 ELECTRODE HOLDER CLAMPS D.2,4 MM €3.61
5
photo_cameraImage coming soon 802242 KIT 3 CLAMP ELECTRODE D.3,2 MM SERRA €3.12
5
photo_cameraImage coming soon 802243 KIT 3 CLAMP ELECTRODE D.4 MM SERRA €3.12
6
Short Hood SR 17 for Telwin TIG Torch 722192 Short Hood SR 17 for Telwin TIG Torch €4.03
7
Long Hood SR 17 for Telwin TIG Torch 722193 Long Hood SR 17 for Telwin TIG Torch €17.14
12
Telwin Inverter TIG Welding Machines Plug 3P 722999 Telwin Inverter TIG Welding Machines Plug 3P €13.68
14
PCB + Button for Torches Telwin TIG 452089 PCB + Button for Torches Telwin TIG €19.37
16
Long Hood O-Ring 2037 for Telwin TIG Torch 722061 Long Hood O-Ring 2037 for Telwin TIG Torch €0.97
17
Button for Torches Telwin TIG 742042 Button for Torches Telwin TIG €2.63
18
photo_cameraImage coming soon 722944 BODY TORCH €36.73
19
photo_cameraImage coming soon 802249 KIT 3 ELECTRODE DIFFUSERS D.1 MM €7.78
19
photo_cameraImage coming soon 802250 KIT 3 ELECTRODE DIFFUSERS D.1,6 MM €7.78
19
photo_cameraImage coming soon 802251 KIT 3 ELECTRODE DIFFUSERS D.2,4 MM €7.78
19
photo_cameraImage coming soon 802252 KIT 3 SPEAKER ELECTRODE D.3,2 MM €6.68
19
photo_cameraImage coming soon 802253 KIT 3 SPEAKER ELECTRODE D.4 MM €6.68
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
24
Throwaway Argon + CO₂ ITA-USA Gas Bottle Adaptor Telwin 432036 432036 Throwaway Argon + CO₂ ITA-USA Gas Bottle Adaptor Telwin 432036 €10.50

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Telwin Spare Parts for Inverter SUPERTIG 280/1 AC/DC-HF/LIFT 400V

We are TELWIN authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for  Inverter Welding SUPERTIG 280/1 AC/DC-HF/LIFT 400V-832161.

In the following table, look for the model of the Welding and the respective parts of the code.
SUPERTIG 280/1 AC/DC - 832161

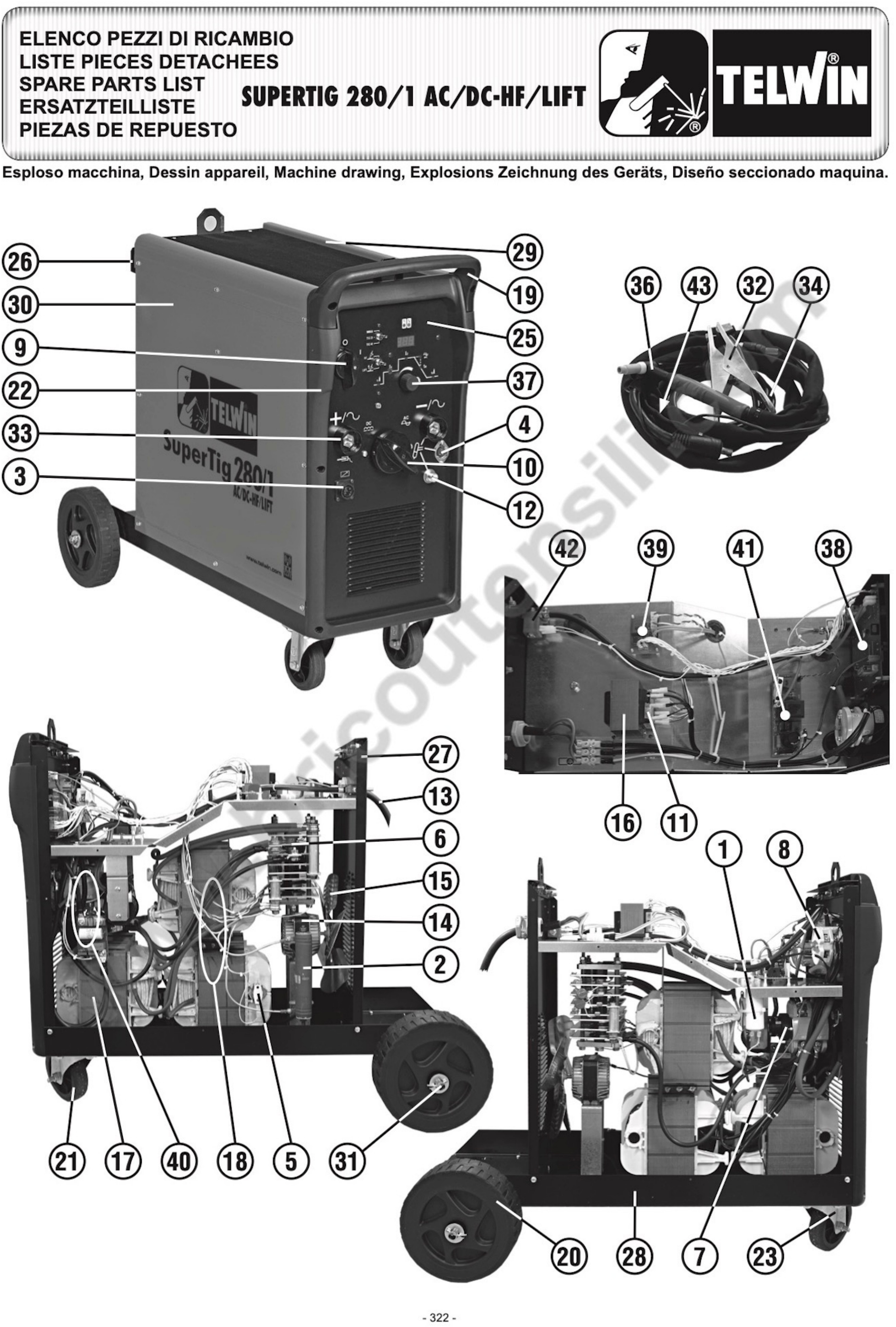

SUPERTIG 280/1 AC/DC-HF/LIFT 400V 832161 Pag.1
# Part Num. Description
1 112063 CAPACITOR
2 112212 RESISTANCE
3 120513 WIRING CONTROL
4 120514 WIRING INTAKE
5 121258 THERMOSTAT SOST 121715
6 121381 PHASE RECTIFIER
7 121432 SWITCH
8 122019 SWITCH
9 122060 KNOB FOR SWITCH
10 122061 KNOB
11 122879 FUSE
12 124138 KIT GAS PIPE
13 132127 CABLE ALIM. 3G6 3 M
14 152083 ENGINE
15 152135 FAN
16 164993 TRANSFORMER AUXILIARY
17 169633 TRANSFORMER
18 169636 TOGETHER TRANSFORMER + BALLAST
19 312328 HANDLE
20 322200 WHEEL FENCE
21 322246 WHEEL
22 322929 FRAME
23 422969 SUPPORT REVOLVING
24 432036 ADAPTOR CYLINDER ARGON IT
25 642081 FRONT
26 644606 BRACKET CYLINDER
27 645441 RETRO
28 645442 FUND
29 651144 COAT
30 656008 SIDE
31 681092 AXLE FOR WHEELS
32 712032 TOLEDO 400 CLAMP MASS
33 712036 SOCKET DX 50
34 713169 CABLE 25 MMQ 3 M CLAMP MASS DX50
35 722119 REDUCING PRESSURE GAUGE 2
36 742427 ST26 TIG TORCH 4 M 220 A
37 980772 BLACK KNOB SET
38 980939 KIT CONTROL BOARD
39 980940 BOARD KIT PILOTING
40 980941 KIT HF TRANSFORMER
41 980799 BOARD KIT HF AC / DC
42 122682 SOLENOID
43 990263 FITTING KIT 3/8 "TORCH TIG

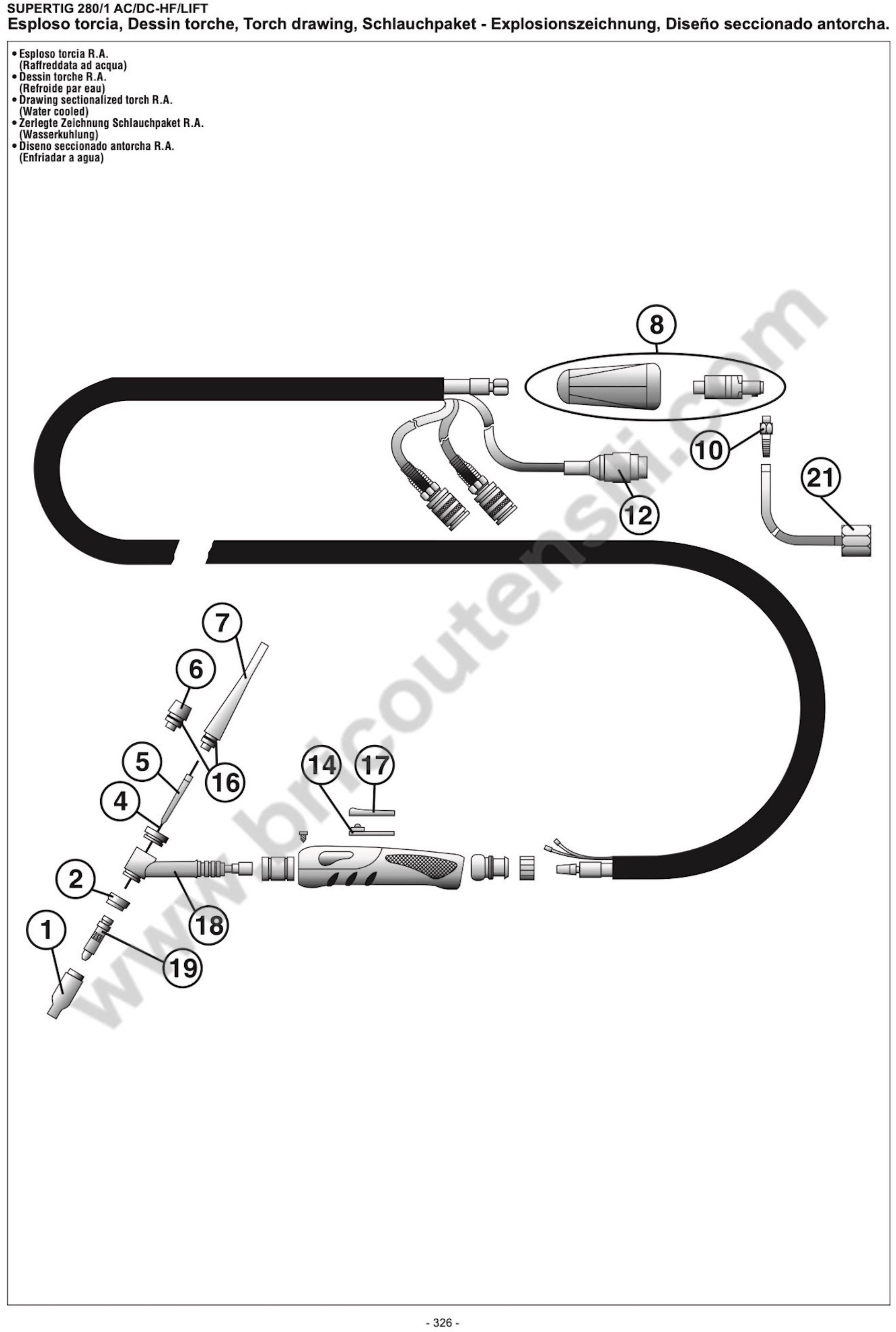

TORCH FOR SUPERTIG 280/1 AC/DC-HF/LIFT 400V – 832161 Pag.2
1 802247 KIT 10 CERAMIC NOZZLES NR.8
1 802248 KIT 10 CERAMIC NOZZLES NR.10
1 802245 KIT 10 CERAMIC NOZZLES NR.6
1 802246 KIT 10 CERAMIC NOZZLES NR.7
1 802244 KIT 10 CERAMIC NOZZLES NR.4
2 722248 INSULATION
4 802222 KIT 10 ELETTR.TUNGSTENO CERIUM D.1,6 MM
4 802233 KIT 10 ELETTR.TUNGSTENO CERIUM D.3,2 MM
4 802220 KIT 10 ELETTR.TUNGSTENO CERIUM D.1 MM
4 802235 KIT 10 ELETTR.TUNGSTENO PURE D.1,6 MM
4 802236 KIT 10 ELETTR.TUNGSTENO PURE D.2,4 MM
4 802238 KIT 10 ELETTR.TUNGSTENO PURE D. 4 MM
4 802232 KIT 10 ELETTR.TUNGSTENO CERIUM D.2,4 MM
4 802237 KIT 10 ELETTR.TUNGSTENO PURE D.3,2 MM
5 802241 KIT 3 CLAMP ELECTRODE D.2,4 MM SERRA
5 802240 KIT 3 CLAMP ELECTRODE D.1,6 MM SERRA
5 802239 KIT 3 CLAMP ELECTRODE D.1,0 MM SERRA
5 802243 KIT 3 CLAMP ELECTRODE D.4 MM SERRA
5 802242 KIT 3 CLAMP ELECTRODE D.3,2 MM SERRA
6 722192 HOOD SHORT
7 722193 HOOD LONG
9 981443 KIT CONNECTION 50
12 722999 PLUG 3P
14 452089 CONTACT BUTTON
16 722061 RING OR
17 742042 BUTTON
18 722944 BODY TORCH
19 802250 KIT 3 SPEAKER ELECTRODE D.1,6 MM
19 802251 KIT 3 SPEAKER ELECTRODE D.2,4 MM
19 802253 KIT 3 SPEAKER ELECTRODE D.4 MM
19 802252 KIT 3 SPEAKER ELECTRODE D.3,2 MM
19 802249 KIT 3 SPEAKER ELECTRODE D.1 MM

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Telwin websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Telwin brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

SUPERTIG 280/1 AC/DC - 832161
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:
TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS

Specific References

New

Download

SUPERTIG 280/1 AC/DC-HF Drawing

SUPERTIG 280/1 AC/DC-HF Drawing

Download (941.74KB)

You might also like

Telwin s.p.a. SKU: 112182
Protection Rectifier for Welding Telwin Linear-Mastermig Genuine spare Telwin, spare Telwin, Protection Rectifier - Varistor 150 VAC 6500 A for welding Telwin, LINEAR 220 230-400V - LINEAR 280 230-400V - MASTERMIG 220/2 230-400V -...
AVAILABLE €4.03
Telwin s.p.a. SKU: 722193
Long Hood SR 17 for Telwin TIG Torch Original spare Telwin, Long Hood SR 17 for Torches TIG ERGO. Parts for the following products: - TECHNOLOGY TIG 230 DC-HF/LIFT 230V-852032 - TECHNOLOGY TIG 185 DC 230V - TORCH TECHNOLOGY TIG 182...
Last items in stock €17.14
Telwin s.p.a. SKU: 722204
Torch Body SR 17 for Telwin TIG Torch Original replacement part Telwin, Assembly Torch Body SR 17 for Torches TIG ERGO. Part for the following products: - TECHNOLOGY TIG 230 DC-HF/LIFT 230V-852032 - TECHNOLOGY TIG 185 DC 230V - TORCH...
AVAILABLE €52.85
Telwin s.p.a. SKU: 722192
Short Hood SR 17 for Telwin TIG Torch Original replacement part Telwin, Short Hood SR 17 for Torches TIG ERGO. Part for the following products: - TECHNOLOGY TIG 230 DC-HF/LIFT 230V-852032 - TECHNOLOGY TIG 185 DC 230V - TORCH...
Last items in stock €4.03
Telwin s.p.a. SKU: 722248
Insulator SR 17 for Telwin TIG Torch Original spare Telwin, Insulator SR 17 for Torches TIG ERGO. Parts for the following products: - TECHNOLOGY TIG 230 DC-HF/LIFT 230V-852032 - TECHNOLOGY TIG 185 DC 230V - TORCH TECHNOLOGY TIG 182...
AVAILABLE €8.21
Telwin s.p.a. SKU: 722061
Long Hood O-Ring 2037 for Telwin TIG Torch Original spare Telwin, Long Hood O-Ring 2037 for Torches TIG ERGO. Parts for the following products: - TECHNOLOGY TIG 185 DC 230V - TECHNOLOGY TIG 230 DC-HF/LIFT 230V - TECHNOLOGY TIG 182...
AVAILABLE €0.97
Telwin s.p.a. SKU: 152083
Fan Motor for Welding Telwin Linear-Mastermig-Supermig Original part Telwin, fan motor for Telwin welding machines, LINEAR 220-280-300-340-410-430-530-630 - MASTERMIG 270/2-300-400 - SUPERMIG 380-480-580. Part For the following...
AVAILABLE €78.00
Telwin s.p.a. SKU: 152113
Cooler Fan for Welding Telwin Linear-Mastermig-Supermig Original part Telwin, Cooler Fan for Telwin welding machines, LINEAR 220-280-300-340-410 - MASTERMIG 270/2-300-400 - SUPERMIG 380-480-580 - DIGITAL MIG 330. Part For the...
Last items in stock €13.79
Telwin s.p.a. SKU: 980772
Black Knob Set for Welding Telwin DIGITAL MIG Original parts Telwin, Black Knob Set for Welding Telwin DIGITAL MIG 180 - 220 - 330 - 222 TWIN Part for the following products: - INVERTER DIGITAL MIG 180 230V - INVERTER DIGITAL SUPERMIG...
Last items in stock €4.46
Telwin s.p.a. SKU: 722999
Telwin Inverter TIG Welding Machines Plug 3P Genuine parts Telwin, Plug 3P for Telwin Inverter TIG Welding Machines. Parts for the following products: - TECNICA TIG 160 DC-HF - SUPERIOR TIG 421 DC - SUPERTIG 200 AC/DC-HF -...
Last items in stock €13.68
Comments (0)
