Telwin s.p.a.

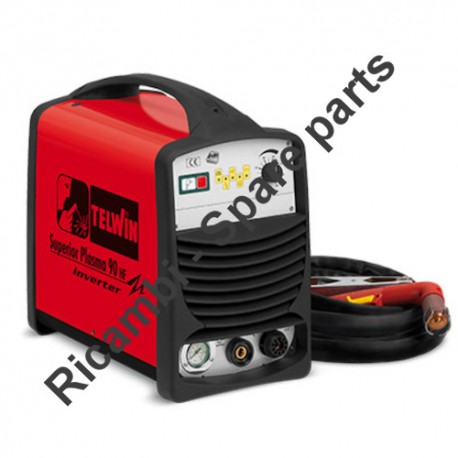

Telwin Spare Parts for Air Plasma Cutting Superior Plasma 90 HF

SKU: SUPERIOR PLASMA 90 HF – 815518
€2.57
VAT included

Telwin Spare Parts for Air Plasma Cutting Superior Plasma 90 HF

We have the original Spares TELWIN for Air Plasma Cutting Superior Plasma 90 HF 400V – 815518 the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Superior Plasma 90 HF. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Guaranteted Parts

SUPERIOR PLASMA 90 HF – 815518
Telwin Spare Parts for Air Plasma Cutting Superior Plasma 90 HF
  • Telwin Spare Parts for Air Plasma Cutting Superior Plasma 90 HF
  • Telwin Spare Parts for Air Plasma Cutting Superior Plasma 90 HF - Drawing
  • Telwin Spare Parts for Air Plasma Cutting Superior Plasma 90 HF - Torche Drawing
Telwin s.p.a.

Telwin Spare Parts for Air Plasma Cutting Superior Plasma 90 HF

SKU: SUPERIOR PLASMA 90 HF – 815518 Condition: New
€2.57
VAT included

Telwin Spare Parts for Air Plasma Cutting Superior Plasma 90 HF

We have the original Spares TELWIN for Air Plasma Cutting Superior Plasma 90 HF 400V – 815518 the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Superior Plasma 90 HF. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Guaranteted Parts

SUPERIOR PLASMA 90 HF – 815518
settings 58 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:: TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
56 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

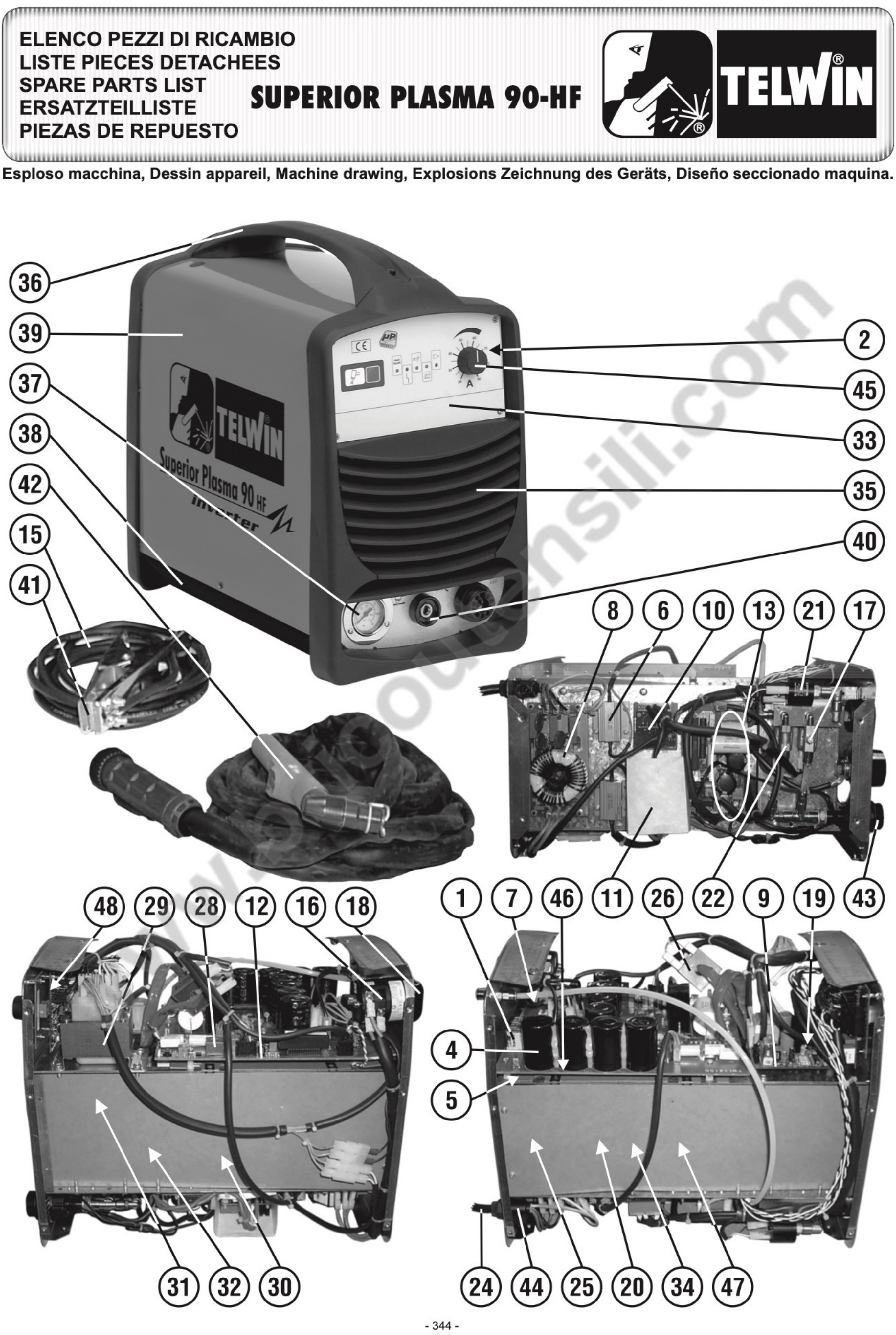

Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 112342 RELAY ' €2.63
4
 Capacitor for Inverter Telwin Force 145 - Technology 186 HD 112514 Capacitor for Inverter Telwin Force 145 - Technology 186 HD €9.02
5
 Single-Phase Rectifier for Inverter Telwin INVERPULSE-SUPERIOR 116066 Single-Phase Rectifier for Inverter Telwin INVERPULSE-SUPERIOR €15.79
6
 photo_cameraImage coming soon 113194 RESISTANCE €27.16
7
 photo_cameraImage coming soon 113334 RESISTOR €1.58
8
 photo_cameraImage coming soon 980943 DATA ENTRY FILTER KIT €66.70
9
 photo_cameraImage coming soon 980632 KIT SHEET FEEDER €138.91
10
 photo_cameraImage coming soon 980728 AUXILIARY CONTROL BOARD KIT €40.24
11
 photo_cameraImage coming soon 980732 BOARD KIT HF €134.91
12
 photo_cameraImage coming soon 980445 BOARD KIT PRIMARY €791.31
13
 photo_cameraImage coming soon 980179 BOARD KIT FILTER HF €126.13
14
 Telwin Superior Plasma 60 HF Pressure Reducer 120203 Telwin Superior Plasma 60 HF Pressure Reducer €57.65
15
 photo_cameraImage coming soon 120315 CABLE 10 MMQ 5 M - 50 €21.24
16
 photo_cameraImage coming soon 122017 SWITCH €15.48
17
 Electrovalve for Inverter Telwin Technology-Technomig-Telmig 122035 Electrovalve for Inverter Telwin Technology-Technomig-Telmig €18.82
18
 Dipswitch Knob for Welding Telwin 323101 Dipswitch Knob for Welding Telwin €2.56
20
 photo_cameraImage coming soon 122508 THERMOSTAT €2.62
21
 photo_cameraImage coming soon 122599 PRESSURE €15.98
22
 photo_cameraImage coming soon 122850 SOLENOID €12.55
24
 photo_cameraImage coming soon 132026 CABLE ALIM. 4G2.5 2 M €12.84
25
 Fan for Inverter Superior-Inverpulse 152000 Fan for Inverter Superior-Inverpulse €65.41
26
 photo_cameraImage coming soon 152015 CURRENT TRANSFORMER TA €20.93
28
 photo_cameraImage coming soon 152232 TRANSFORMER PULSE €12.18
29
 photo_cameraImage coming soon 990592 TRANSFORMER AUXILIARY €57.01
30
 photo_cameraImage coming soon 980155 KIT TRANSFORMER €69.01
31
 photo_cameraImage coming soon 990843 TRANSFORMER €167.01
32
 photo_cameraImage coming soon 980100 REACTOR €60.96
33
 photo_cameraImage coming soon 313516 ASSEMBLY FRONT PANEL €16.55
34
 photo_cameraImage coming soon 980636 KIT FORM SECONDARY €158.18
35
 photo_cameraImage coming soon 322536 FRAME €14.05
36
 photo_cameraImage coming soon 322538 HANDLE €7.07
37
 Pressure Gauge for Telwin Tecnica PLASMA 31 602072 Pressure Gauge for Telwin Tecnica PLASMA 31 €8.46
38
 photo_cameraImage coming soon 644952 FUND €11.82
39
 photo_cameraImage coming soon 655134 COAT €31.43
40
 Socket DX 50 for Telwin Welding Machine 712036 Socket DX 50 for Telwin Welding Machine €5.29
41
 Toledo 300 Amp. Work Clamp for Inverter and Plasma Telwin 712231 Toledo 300 Amp. Work Clamp for Inverter and Plasma Telwin €5.89
42
 Telwin Superplasma 90/3 HF Torch 6M 722332 Telwin Superplasma 90/3 HF Torch 6M €424.25
43
 Torch Connection for Inverter Telwin Superior Plasma 60HF 722439 Torch Connection for Inverter Telwin Superior Plasma 60HF €59.30
44
 photo_cameraImage coming soon 990046 KIT CABLE BUSHING + RING NUT €8.93
45
 Telwin Superior Plasma 90 HF Black Knob Kit 980771 Telwin Superior Plasma 90 HF Black Knob Kit €10.18
46
 photo_cameraImage coming soon 990588 KIT IGBT €95.62
47
 photo_cameraImage coming soon 990589 KIT DIODES €62.71
48
 photo_cameraImage coming soon 990590 KIT ASSEMBLY PANEL-FORM €251.09
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

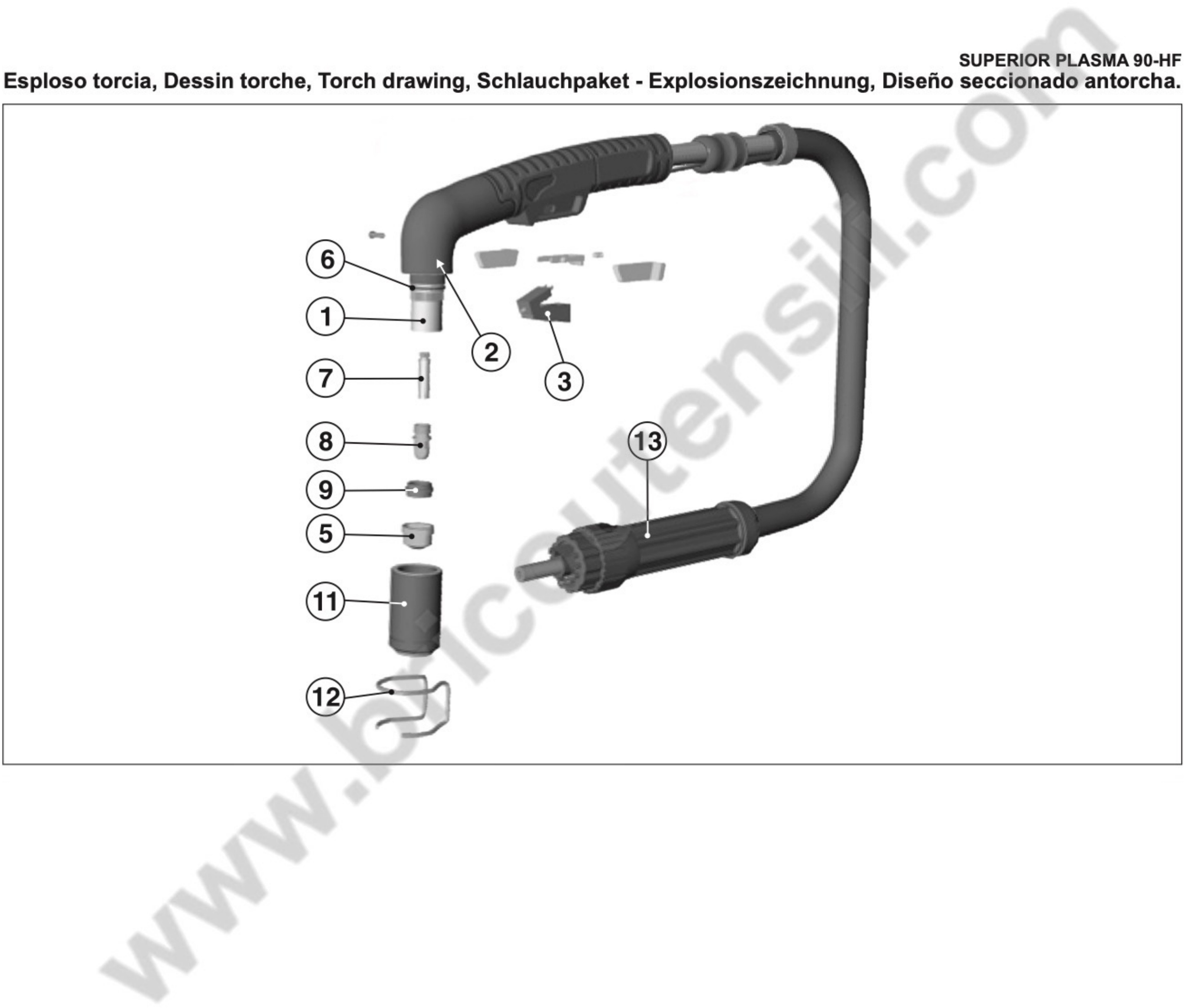

Esploso pagina 2
Pos. Item Price Buy
1
 photo_cameraImage coming soon 742358 TORCH BODY KIT + HANDLE €176.31
3
 Plasma Cutting Torch Button for Telwin TECNICA-TECHNOLOGY-SUPERIOR 722677 Plasma Cutting Torch Button for Telwin TECNICA-TECHNOLOGY-SUPERIOR €15.80
5
 Kit 5 Long Nozzles for Telwin SUPERPLASMA 802083 Kit 5 Long Nozzles for Telwin SUPERPLASMA €47.48
5
 Kit 5 Nozzles 1.3 mm for Plasma Torch Telwin SUPERPLASMA 802119 Kit 5 Nozzles 1.3 mm for Plasma Torch Telwin SUPERPLASMA €17.91
5
 Kit 5 Nozzles 1.6 mm for Plasma Torch Telwin SUPERPLASMA 802124 Kit 5 Nozzles 1.6 mm for Plasma Torch Telwin SUPERPLASMA €17.91
6
 photo_cameraImage coming soon 802120 KIT 10 RINGS €4.91
7
 Kit 5 Brass Diffusers for Plasma Torch Telwin SUPERPLASMA 802121 Kit 5 Brass Diffusers for Plasma Torch Telwin SUPERPLASMA €22.61
8
 Set 5 Long Electrodes for Plasma Torch Telwin SUPERPLASMA 802082 Set 5 Long Electrodes for Plasma Torch Telwin SUPERPLASMA €31.65
8
 Set 5 Electrodes for Plasma Torch Telwin SUPERPLASMA 802122 Set 5 Electrodes for Plasma Torch Telwin SUPERPLASMA €18.08
9
 Kit 5 Insulating Diffusers for Telwin SUPERPLASMA 802123 Kit 5 Insulating Diffusers for Telwin SUPERPLASMA €49.75
11
 Kit 2 Torch Safety Caps for Plasma Torch Telwin SUPERPLASMA 802126 Kit 2 Torch Safety Caps for Plasma Torch Telwin SUPERPLASMA €62.17
12
 Kit 5 Spacers for Plasma Torch Telwin SUPERPLASMA 802127 Kit 5 Spacers for Plasma Torch Telwin SUPERPLASMA €19.84
13
 Plasma Torch Central Handle for Inverter Telwin Superior Plasma 60HF 742041 Plasma Torch Central Handle for Inverter Telwin Superior Plasma 60HF €74.25

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Telwin Spare Parts for Air Plasma Cutting Superior Plasma 90 HF

We have the original Spares TELWIN for Air Plasma Cutting Superior Plasma 90 HF 400V – 815518 the diagram, parts list and tool repair that help you need to get your tools running like new again.

In the following table, look for the model of the Plasma and the respective parts of the code.
SUPERIOR PLASMA 90 HF – 815518

SUPERIOR PLASMA 90 HF 400V – 815518 Pag.1
# Part Num. Description
1 112342 RELAY '
2 112511 Potentiometer - Obsolete Not Avalaible
4 112514 CAPACITOR
5 116066 RECTIFIER
6 113194 RESISTANCE
7 113334 RESISTANCE
8 980943 DATA ENTRY FILTER KIT
9 980632 KIT SHEET FEEDER
10 980728 AUXILIARY CONTROL BOARD KIT
11 980732 BOARD KIT HF
12 980445 BOARD KIT PRIMARY
13 980179 BOARD KIT FILTER HF
14 120203 AIR PRESSURE REDUCER
15 120315 CABLE 10 MMQ 5 M - 50
16 122017 SWITCH
17 122035 SOLENOID
18 323101 SWITCH KNOB ASSY
19 122433 FUSE 1A
20 122508 THERMOSTAT
21 122599 PRESSURE
22 122850 SOLENOID
24 132026 CABLE ALIM. 4G2.5 2 M
25 152000 FAN
26 152015 CURRENT TRANSFORMER TA
28 152232 TRANSFORMER PULSE
29 990592 TRANSFORMER AUXILIARY
30 980155 KIT TRANSFORMER
31 990843 TRANSFORMER
32 980100 REACTOR
33 313516 ASSEMBLY FRONT PANEL
34 980636 KIT FORM SECONDARY
35 322536 FRAME
36 322538 HANDLE
37 602072 GAUGE
38 644952 FUND
39 655134 COAT
40 712036 SOCKET DX 50
41 712231 TOLEDO 300 EARTH CLAMP
42 722332 PLASMA TORCH 6 M 150 A
43 722439 TORCH CONNECTION
44 990046 GLAND NUT KIT +
45 980771 KIT BLACK KNOB
46 990588 KIT IGBT
47 990589 KIT DIODES
48 990590 KIT ASSEMBLY PANEL-FORM
TORCH FOR SUPERIOR PLASMA 90 HF 400V – 815518 Pag.2
1 742358 TORCH BODY KIT + HANDLE
3 722677 BUTTON
5 802124 KIT 5 NOZZLES D.1,6
5 802083 KIT 5 NOZZLES LONG
5 802119 KIT 5 NOZZLES D.1,3
6 802120 KIT 10 RINGS
7 802121 KIT 5 SPEAKER BRASS
8 802082 KIT 5 PADS LONG
8 802122 KIT 5 ELECTRODES
9 802123 KIT 5 SPEAKER INSULATION
11 802126 KIT 2 TOE TORCH
12 802127 KIT 5 SPACERS
13 742041 TORCH CONNECTOR
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Telwin websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Telwin brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
SUPERIOR PLASMA 90 HF – 815518
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:
TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS

Specific References

New

Download

Superior Plasma 90 HF Diagram

Superior Plasma 90 HF Diagram

Download (611.36KB)
