Telwin s.p.a.

Telwin Spare Parts for Air Plasma Cutting Superplasma 130 HF

SKU: Telwin Superplasma 130 HF 830512
€14.36
VAT included

Telwin Spare Parts for Air Plasma Cutting Superplasma 130 HF

We are TELWIN authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair problem for Air Plasma Cutting Superplasma 130 HF - 830512.

Telwin Superplasma 130 HF 830512
Telwin Spare Parts for Air Plasma Cutting Superplasma 130 HF
  • Telwin Spare Parts for Air Plasma Cutting Superplasma 130 HF
  • Telwin Spare Parts for Air Plasma Cutting Superplasma 130 HF - Drawing
  • Telwin Spare Parts for Air Plasma Cutting Superplasma 130 HF - Torch Drawing
Telwin s.p.a.

Telwin Spare Parts for Air Plasma Cutting Superplasma 130 HF

SKU: Telwin Superplasma 130 HF 830512 Condition: New
€14.36
VAT included

Telwin Spare Parts for Air Plasma Cutting Superplasma 130 HF

We are TELWIN authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair problem for Air Plasma Cutting Superplasma 130 HF - 830512.

Telwin Superplasma 130 HF 830512
settings 57 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:: TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
57 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

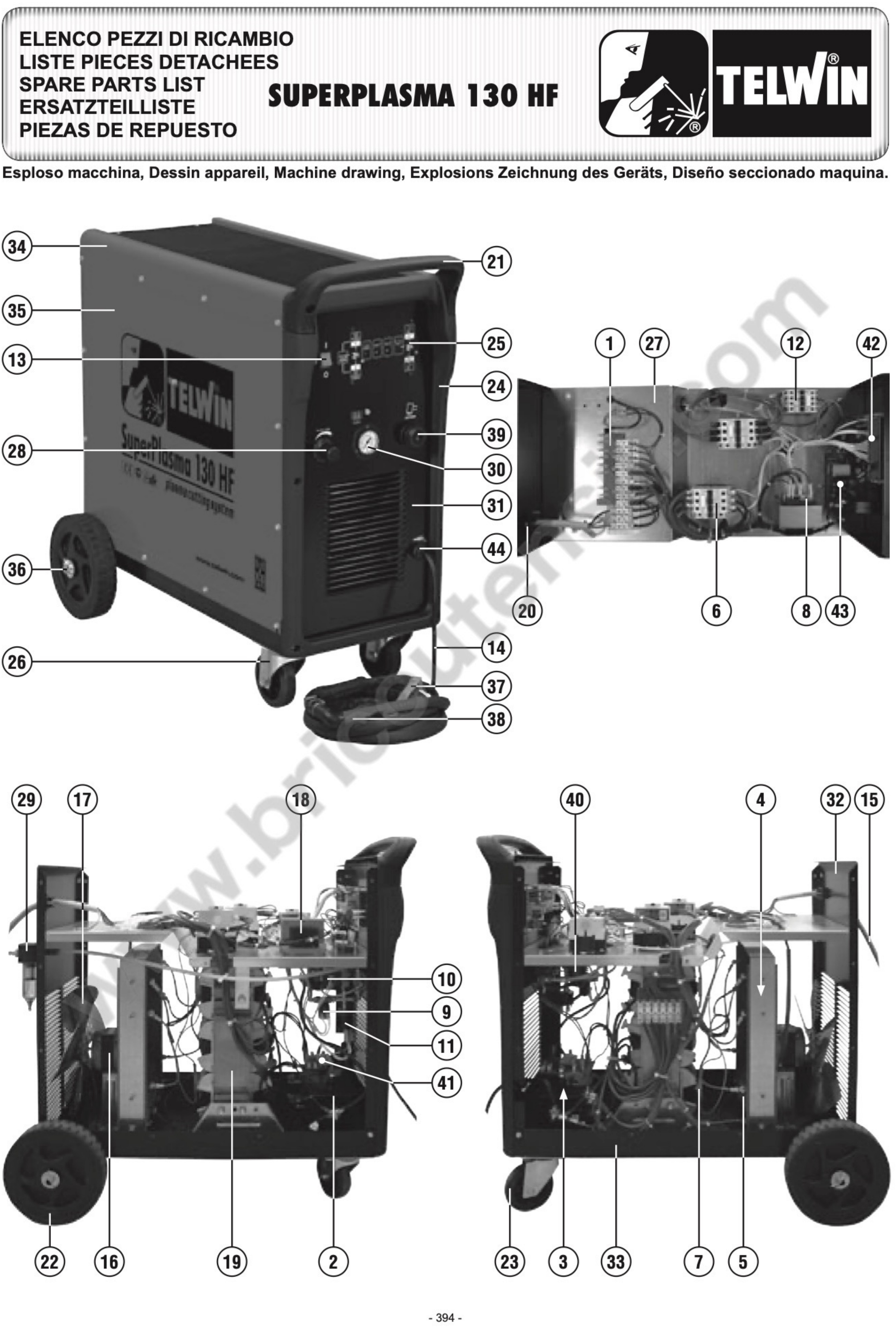

Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 112163 VOLTAGE CHANGING CARD €13.95
2
 photo_cameraImage coming soon 112352 RECTIFIER €76.03
4
 photo_cameraImage coming soon 112546 RESISTANCE €59.91
5
 photo_cameraImage coming soon 112547 RESISTANCE €69.13
6
 AC Contactor for Welding Machine Telwin MASTERMIG 400 121214 AC Contactor for Welding Machine Telwin MASTERMIG 400 €47.63
7
 photo_cameraImage coming soon 122256 THERMOSTAT €2.83
8
 Fuse 5x20 2A for Charger Telwin Alpine 20 Boost 122437 Fuse 5x20 2A for Charger Telwin Alpine 20 Boost €0.63
9
 photo_cameraImage coming soon 122497 SOLENOID €13.94
10
 photo_cameraImage coming soon 122498 SOLENOID €31.66
11
 photo_cameraImage coming soon 122599 PRESSURE €15.98
12
 AC Contactor for Inverter Telwin TELMIG 183-203-250/2 Turbo 122694 AC Contactor for Inverter Telwin TELMIG 183-203-250/2 Turbo €18.45
13
 Green Switch for Inverter Telwin Mastermig 220-270-300-400 122725 Green Switch for Inverter Telwin Mastermig 220-270-300-400 €2.63
14
 photo_cameraImage coming soon 123438 CABLE 16 MMQ 5 M €24.76
15
 photo_cameraImage coming soon 132202 MAINS CABLE 4G6 3 M €30.17
16
 Fan Motor for Welding Telwin Linear-Mastermig-Supermig 152083 Fan Motor for Welding Telwin Linear-Mastermig-Supermig €78.00
17
 photo_cameraImage coming soon 152135 FAN BLADE €6.58
18
 photo_cameraImage coming soon 164993 TRANSFORMER AUXILIARY €73.51
19
 photo_cameraImage coming soon 169220 TRANSFORMER €899.91
20
 photo_cameraImage coming soon 312068 CABLE BUSHING €3.20
21
 photo_cameraImage coming soon 312328 HANDLE €12.03
22
 Wheel D.200x45 mm for Inverter Welding Telwin 322200 Wheel D.200x45 mm for Inverter Welding Telwin €18.29
23
 photo_cameraImage coming soon 322246 WHEEL €3.64
24
 photo_cameraImage coming soon 322698 FRAME €9.91
25
 photo_cameraImage coming soon 322890 BUSH €6.53
26
 photo_cameraImage coming soon 422969 SWIVEL SUPPORT €7.17
27
 photo_cameraImage coming soon 484337 IRIS €16.15
28
 Pressure Reducer for Telwin SUPERPLASMA 60/3 HF 602019 Pressure Reducer for Telwin SUPERPLASMA 60/3 HF €19.05
29
 photo_cameraImage coming soon 602040 AIR FILTER €32.65
30
 photo_cameraImage coming soon 602326 GAUGE €8.10
31
 photo_cameraImage coming soon 642194 FRONT €26.70
32
 photo_cameraImage coming soon 642195 BACK €21.51
33
 photo_cameraImage coming soon 645531 FUND €26.96
34
 photo_cameraImage coming soon 651168 COAT €19.63
35
 photo_cameraImage coming soon 656073 SIDE €16.82
36
 Fixed Wheel D.175MM Axle for Telwin Welding Machines 681092 Fixed Wheel D.175MM Axle for Telwin Welding Machines €10.49
37
 Toledo 300 Amp. Work Clamp for Inverter and Plasma Telwin 712231 Toledo 300 Amp. Work Clamp for Inverter and Plasma Telwin €5.89
38
 Telwin Superplasma 90/3 HF Torch 6M 722332 Telwin Superplasma 90/3 HF Torch 6M €424.25
39
 Torch Connection for Inverter Telwin Superior Plasma 60HF 722439 Torch Connection for Inverter Telwin Superior Plasma 60HF €59.30
40
 photo_cameraImage coming soon 980095 KIT TRANSFORMER €84.48
41
 photo_cameraImage coming soon 981152 FILTER KIT FORM €30.47
42
 photo_cameraImage coming soon 981153 KIT CONTROL BOARD €167.91
43
 photo_cameraImage coming soon 981179 BOARD KIT HF €38.60
44
 photo_cameraImage coming soon 990439 CABLE BUSHING KIT €3.07
45
 photo_cameraImage coming soon 122859 THERMOSTAT €4.51
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

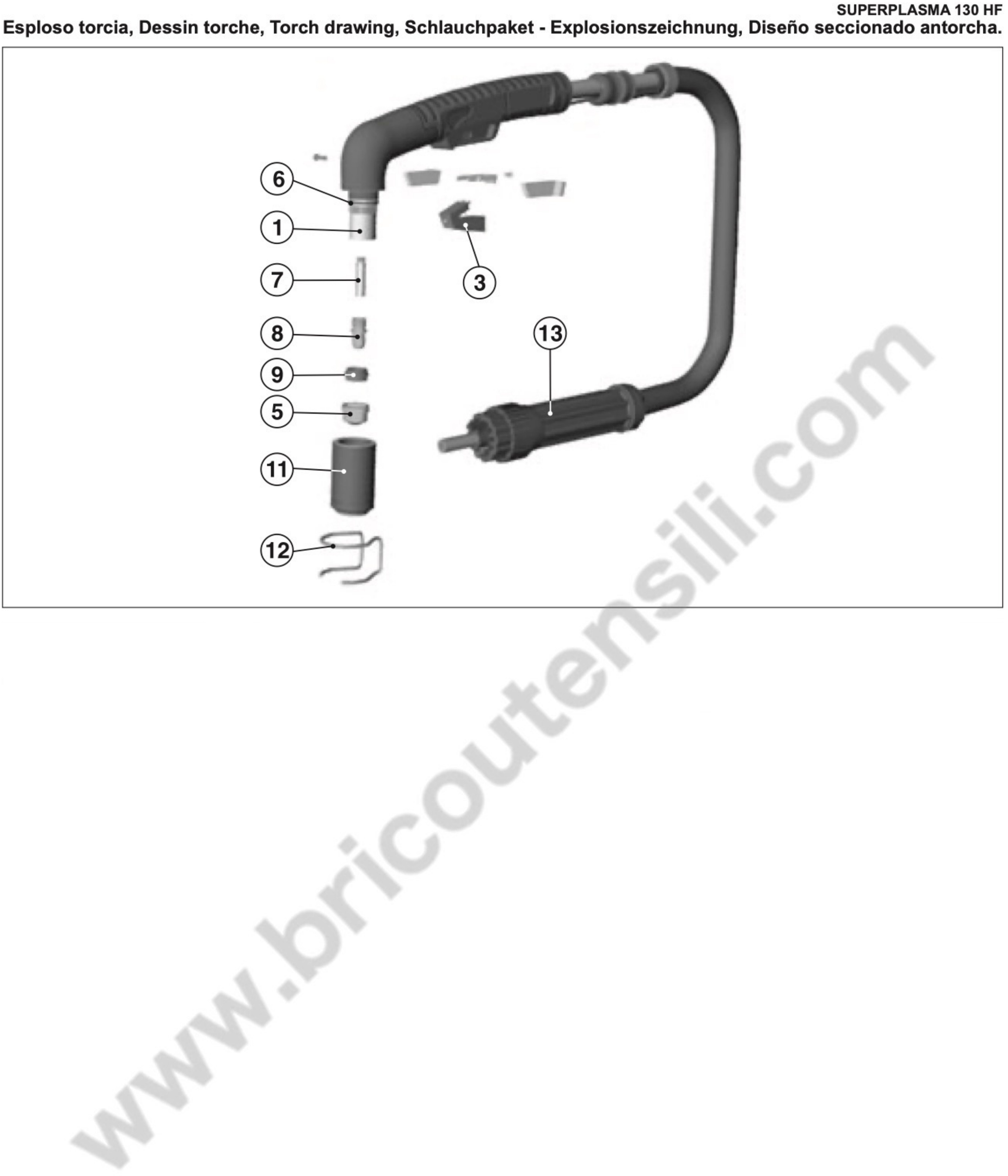

Esploso pagina 2
Pos. Item Price Buy
1
 photo_cameraImage coming soon 742358 TORCH BODY KIT + HANDLE €176.31
3
 Plasma Cutting Torch Button for Telwin TECNICA-TECHNOLOGY-SUPERIOR 722677 Plasma Cutting Torch Button for Telwin TECNICA-TECHNOLOGY-SUPERIOR €15.80
5
 Kit 5 Long Nozzles for Telwin SUPERPLASMA 802083 Kit 5 Long Nozzles for Telwin SUPERPLASMA €47.48
5
 Kit 5 Nozzles 1.3 mm for Plasma Torch Telwin SUPERPLASMA 802119 Kit 5 Nozzles 1.3 mm for Plasma Torch Telwin SUPERPLASMA €17.91
5
 Kit 5 Nozzles 1.6 mm for Plasma Torch Telwin SUPERPLASMA 802124 Kit 5 Nozzles 1.6 mm for Plasma Torch Telwin SUPERPLASMA €17.91
6
 photo_cameraImage coming soon 802120 KIT 10 RINGS €4.91
7
 Kit 5 Brass Diffusers for Plasma Torch Telwin SUPERPLASMA 802121 Kit 5 Brass Diffusers for Plasma Torch Telwin SUPERPLASMA €22.61
8
 Set 5 Long Electrodes for Plasma Torch Telwin SUPERPLASMA 802082 Set 5 Long Electrodes for Plasma Torch Telwin SUPERPLASMA €31.65
8
 Set 5 Electrodes for Plasma Torch Telwin SUPERPLASMA 802122 Set 5 Electrodes for Plasma Torch Telwin SUPERPLASMA €18.08
9
 Kit 5 Insulating Diffusers for Telwin SUPERPLASMA 802123 Kit 5 Insulating Diffusers for Telwin SUPERPLASMA €49.75
11
 Kit 2 Torch Safety Caps for Plasma Torch Telwin SUPERPLASMA 802126 Kit 2 Torch Safety Caps for Plasma Torch Telwin SUPERPLASMA €62.17
12
 Kit 5 Spacers for Plasma Torch Telwin SUPERPLASMA 802127 Kit 5 Spacers for Plasma Torch Telwin SUPERPLASMA €19.84
13
 Plasma Torch Central Handle for Inverter Telwin Superior Plasma 60HF 742041 Plasma Torch Central Handle for Inverter Telwin Superior Plasma 60HF €74.25

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Telwin Spare Parts for Air Plasma Cutting Superplasma 130 HF

We are TELWIN authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair problem for Air Plasma Cutting Superplasma 130 HF - 830512.

In the following table, look for the model of the Plasma and the respective parts of the code.
Telwin Superplasma 130 HF 830512

SUPERPLASMA 130 HF 230-400V – 830512 Pag.1
# Part Num. Description
1 112163 BASE VOLTAGE CHANGE
2 112352 RECTIFIER
3 112513 VARISTOR
4 112546 RESISTANCE
5 112547 RESISTANCE
6 121214 CONTACTOR
7 122256 THERMOSTAT
8 122437 FUSE
9 122497 SOLENOID
10 122498 SOLENOID
11 122599 PRESSURE
12 122694 RELAY
13 122725 SWITCH
14 123438 CABLE 16 MMQ 5 M
15 132202 CABLE ALIM. 4G6 3 M
16 152083 ENGINE
17 152135 FAN
18 164993 TRANSFORMER AUXILIARY
19 169220 TRANSFORMER
20 312068 GLAND
21 312328 HANDLE
22 322200 WHEEL FENCE
23 322246 WHEEL
24 322698 FRAME
25 322890 BUSH
26 422969 SUPPORT REVOLVING
27 484337 IRIS
28 602019 PRESSURE REDUCER
29 602040 AIR FILTER
30 602326 GAUGE
31 642194 FRONT
32 642195 RETRO
33 645531 FUND
34 651168 COAT
35 656073 SIDE
36 681092 AXLE FOR WHEELS
37 712231 TOLEDO 300 CLAMP MASS
38 722332 PLASMA TORCH 6 M 150 A
39 722439 TORCH CONNECTION
40 980095 KIT TRANSFORMER
41 981152 FILTER KIT FORM
42 981153 KIT CONTROL BOARD
43 981179 BOARD KIT HF
44 990439 GLAND KIT
45 122859 THERMOSTAT
TORCH FOR SUPERPLASMA 130 HF 230-400V – 830512 Pag.2
1 742358 TORCH BODY KIT + HANDLE
3 722677 BUTTON
5 802124 KIT 5 NOZZLES D.1,6
5 802083 KIT 5 NOZZLES LONG
5 802119 KIT 5 NOZZLES D.1,3
6 802120 KIT 10 RINGS
7 802121 KIT 5 SPEAKER BRASS
8 802082 KIT 5 PADS LONG
8 802122 KIT 5 ELECTRODES
9 802123 KIT 5 SPEAKER INSULATION
11 802126 KIT 2 TOE TORCH
12 802127 KIT 5 SPACERS
13 742041 TORCH CONNECTOR
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Telwin websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Telwin brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Telwin Superplasma 130 HF 830512
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:
TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS

Specific References

New

Download

Diagram Telwin Super. 130 HF

Diagram Telwin Super. 130 HF

Download (486.84KB)
