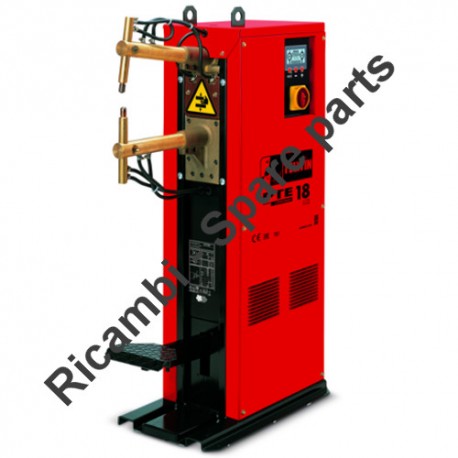

Telwin Spare Parts for Spotter PTE 18

SKU: Telwin PTE 18 - 824039
€58.21
VAT included

Telwin Spare Parts for Spotter PTE 18

TELWIN Authorized Technical Assistance and original spare parts Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Spotter PTE 18 - 824039.

Telwin PTE 18 - 824039
Telwin Spare Parts for Spotter PTE 18
  • Telwin Spare Parts for Spotter PTE 18
  • Telwin Spare Parts for Spotter PTE 18-28/PCP 18-28

Telwin Spare Parts for Spotter PTE 18

SKU: Telwin PTE 18 - 824039 Condition: New
€58.21
VAT included

Telwin Spare Parts for Spotter PTE 18

TELWIN Authorized Technical Assistance and original spare parts Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Spotter PTE 18 - 824039.

Telwin PTE 18 - 824039
settings 40 spare parts

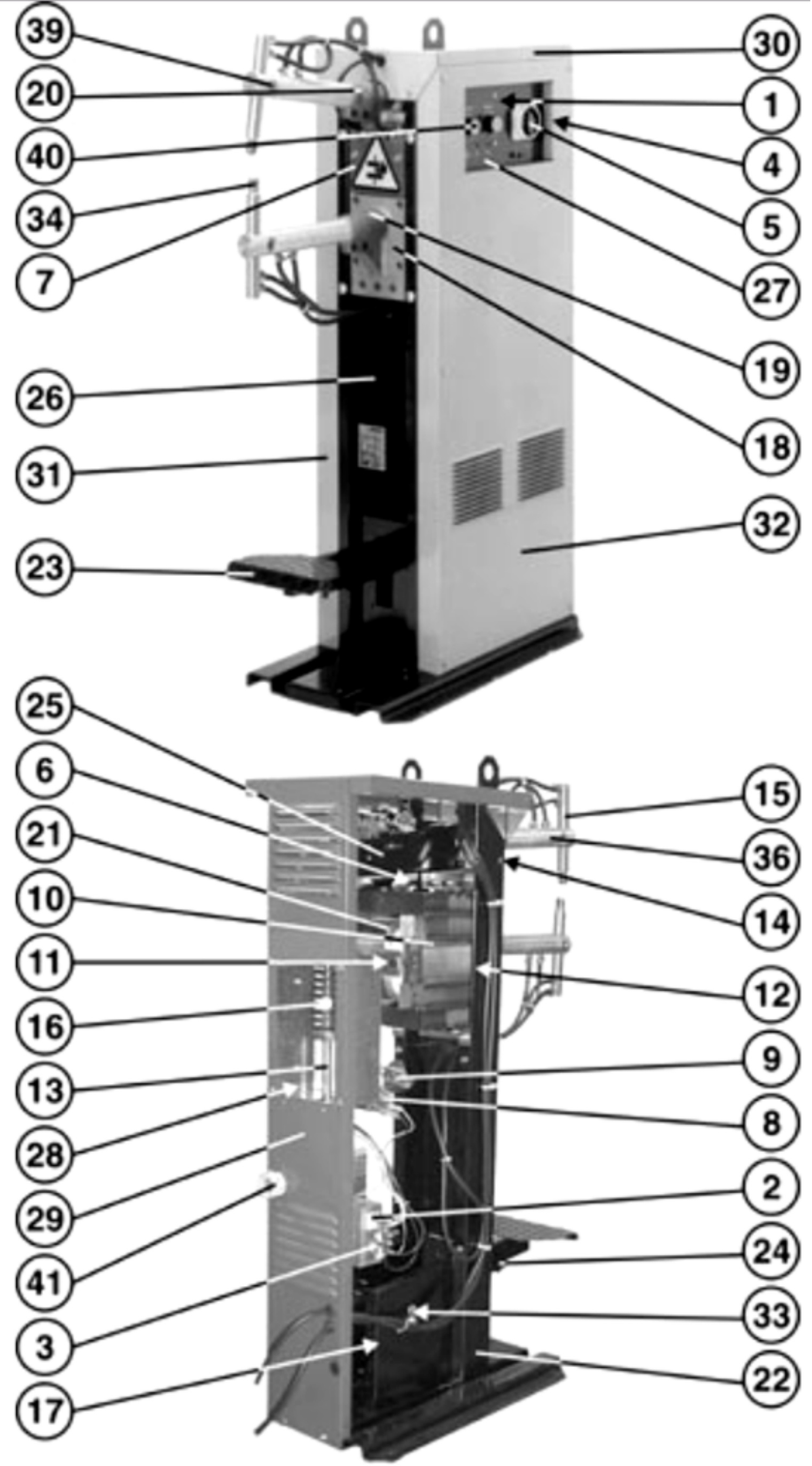

description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:: TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

39 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 980671 KIT CONTROL BOARD €144.91
2
photo_cameraImage coming soon 112692 SCR €54.88
3
photo_cameraImage coming soon 114628 SHEET SNUBBER SCR €32.91
4
photo_cameraImage coming soon 122018 SWITCH €11.80
5
Dipswitch Knob for Welding Telwin 323101 Dipswitch Knob for Welding Telwin €2.56
6
photo_cameraImage coming soon 990844 WIRING THERMOSTAT €21.51
7
photo_cameraImage coming soon 142116 PROTECTIVE MASK €6.61
8
Fan Motor for Welding Machines Telwin Eurarc-Artika-Quality 152073 Fan Motor for Welding Machines Telwin Eurarc-Artika-Quality €34.72
9
Fan for Welding Machines Telwin Eurarc-Artika-Quality 152111 Fan for Welding Machines Telwin Eurarc-Artika-Quality €8.21
10
photo_cameraImage coming soon 164268 TRANSFORMER €410.01
12
photo_cameraImage coming soon 322274 INSULATION €1.48
13
photo_cameraImage coming soon 422246 THREADED ROD €17.43
14
photo_cameraImage coming soon 422266 BOLT €1.52
15
Electrode Holder for Spotter Telwin PCP 18 - PCP 28 443020 Electrode Holder for Spotter Telwin PCP 18 - PCP 28 €60.04
16
photo_cameraImage coming soon 452020 SPRING PRESSURE €9.22
17
photo_cameraImage coming soon 452077 SPRING €2.94
18
photo_cameraImage coming soon 512025 MERGER LOWER ARM €432.61
20
photo_cameraImage coming soon 512026 MOBILE MERGER €318.87
21
photo_cameraImage coming soon 513051 COIL SECONDARY €199.04
22
photo_cameraImage coming soon 644298 FRAME €277.98
23
photo_cameraImage coming soon 644538 PEDAL €23.17
24
photo_cameraImage coming soon 644539 ASSEMBLY LEVER €44.89
25
photo_cameraImage coming soon 644543 LEVER ARM €53.80
26
photo_cameraImage coming soon 648675 FRONT €13.58
27
photo_cameraImage coming soon 648681 DASHBOARD €15.65
28
photo_cameraImage coming soon 650326 COVER €3.54
29
photo_cameraImage coming soon 650391 BACK €24.01
30
photo_cameraImage coming soon 650392 COAT €20.05
31
photo_cameraImage coming soon 655329 RIGHT SIDE €46.96
32
photo_cameraImage coming soon 655330 LEFT SIDE €48.03
33
photo_cameraImage coming soon 681179 BOLT €11.64
34
Standard Straight Electrode for Spot Welding Telwin CP-18 PTE 18 690035 Standard Straight Electrode for Spot Welding Telwin CP-18 PTE 18 €13.79
35
Bended Electrode for Spotter Telwin PCP 18-28/PTE 18-28 690036 Bended Electrode for Spotter Telwin PCP 18-28/PTE 18-28 €27.74
36
photo_cameraImage coming soon 803100 XP1 KIT ARM 350 M €565.22
37
photo_cameraImage coming soon 803101 XP2 KIT ARM 500 MM €703.85
38
photo_cameraImage coming soon 803102 XP3 KIT ARM 700 MM €885.15
39
photo_cameraImage coming soon 990187 BUSHING KIT FOR ARMS €9.88
40
photo_cameraImage coming soon 990329 SWITCH KNOB KIT €10.91
41
photo_cameraImage coming soon 990368 CABLE BUSHING KIT €24.18

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Telwin Spare Parts for Spotter PTE 18

TELWIN Authorized Technical Assistance and original spare parts Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Spotter PTE 18 - 824039.

In the following table, look for the model of the Spotter and the respective parts of the code.
Telwin PTE 18 - 824039

PTE 18 400V – 824039
# Part Num. Description
1 980671 KIT CONTROL BOARD
2 112692 SCR
3 114628 SHEET SNUBBER SCR
4 122018 SWITCH
5 323101 TOGETHER FOR SWITCH KNOB
6 990844 WIRING THERMOSTAT
7 142116 PROTECTIVE MASK
8 152073 ENGINE
9 152111 FAN
10 164268 TRANSFORMER
11 322272 INSULATION WASHER
12 322274 INSULATION
13 422246 THREADED ROD
14 422266 BOLT
15 443020 ELECTRODE HOLDER
16 452020 SPRING PRESSURE
17 452077 SPRING
18 512025 MERGER LOWER ARM
20 512026 MOBILE MERGER
21 513051 COIL SECONDARY
22 644298 FRAME
23 644538 PEDAL
24 644539 ASSEMBLY LEVER
25 644543 LEVER ARM
26 648675 FRONT
27 648681 DASHBOARD
28 650326 COVER
29 650391 RETRO
30 650392 COAT
31 655329 RIGHT SIDE
32 655330 LEFT SIDE
33 681179 BOLT
34 690035 ELECTRODE STANDARD RIGHT
35 690036 BENDED ELECTRODE
36 803100 XP1 KIT ARM 350 M
37 803101 XP2 KIT ARM 500 MM
38 803102 XP3 KIT ARM 700 MM
39 990187 BUSHING KIT FOR ARMS
40 990329 KIT WHEEL
41 990368 GLAND KIT

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Telwin websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Telwin brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Telwin PTE 18 - 824039
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:
TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS

Specific References

New

Download

Diagram Telwin PTE 18

Diagram Telwin PTE 18

Download (323.22KB)
