Telwin Parts for Inverter TECHNOLOGY TIG 172 AC/DC HF/LIFT 230V

SKU: TECHNOLOGY TIG 172 AC/DC 815541
€2.03
VAT included

Telwin Parts for Inverter TECHNOLOGY TIG 172 AC/DC HF/LIFT 230V

Telwin original spare parts for the replacement of damaged parts or to repair electrical or electronics components of inverter TECHNOLOGY TIG 172 AC/DC HF/LIFT 230V key 815541.

TECHNOLOGY TIG 172 AC/DC 815541
Telwin Parts for Inverter TECHNOLOGY TIG 172 AC/DC HF/LIFT 230V
  • Telwin Parts for Inverter TECHNOLOGY TIG 172 AC/DC HF/LIFT 230V
  • Telwin Parts for Inverter TECHNOLOGY TIG 172 AC/DC HF/LIFT 230V - Drawing
  • Telwin Parts for Inverter TECHNOLOGY TIG 172 AC/DC HF/LIFT 230V - Wire Drawing
Telwin s.p.a.

Telwin Parts for Inverter TECHNOLOGY TIG 172 AC/DC HF/LIFT 230V

SKU: TECHNOLOGY TIG 172 AC/DC 815541 Condition: New
€2.03
VAT included

Telwin Parts for Inverter TECHNOLOGY TIG 172 AC/DC HF/LIFT 230V

Telwin original spare parts for the replacement of damaged parts or to repair electrical or electronics components of inverter TECHNOLOGY TIG 172 AC/DC HF/LIFT 230V key 815541.

TECHNOLOGY TIG 172 AC/DC 815541
settings 43 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:: TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
33 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

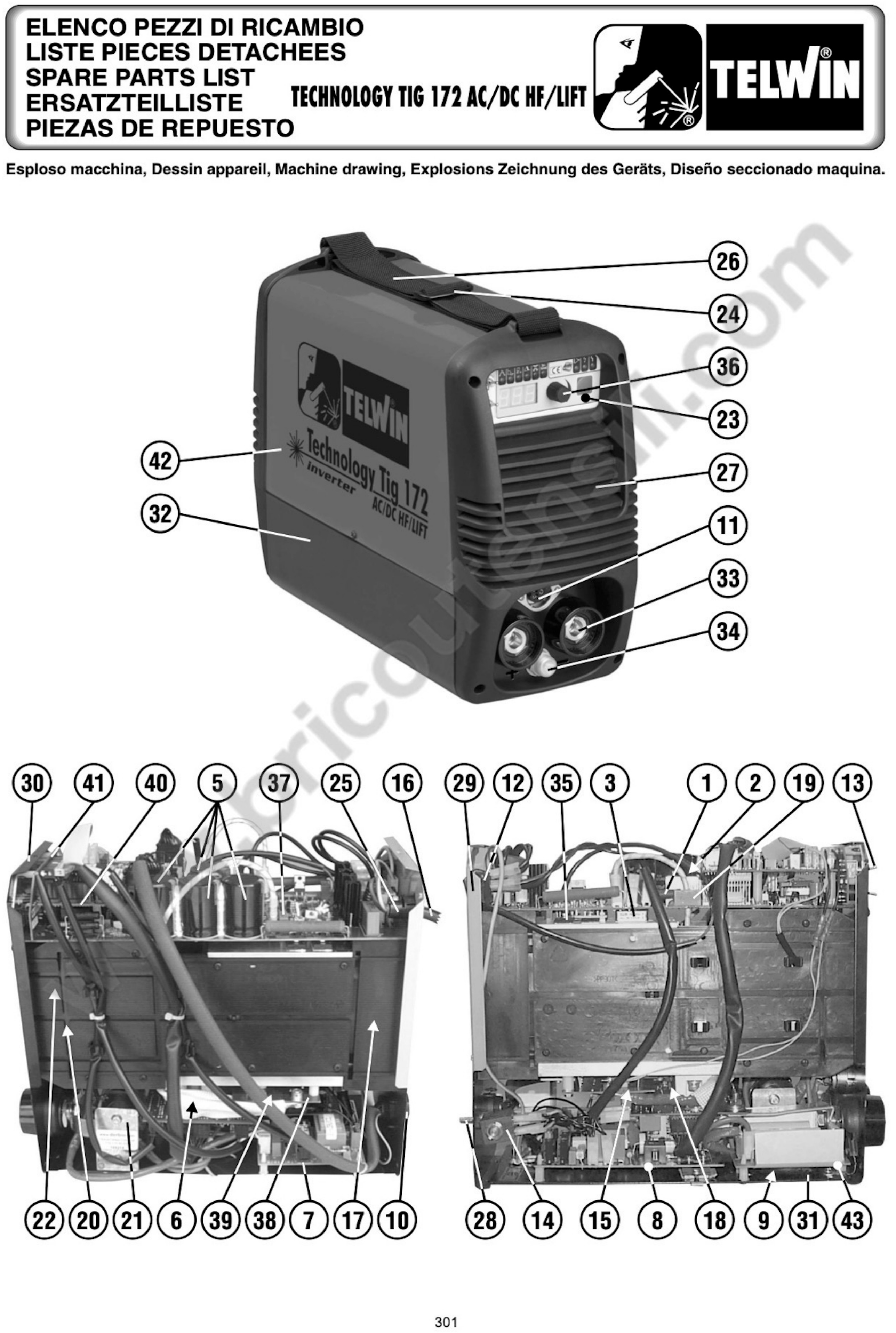

Esploso pagina 1
Pos. Item Price Buy
1
 Wire Resistance for Inverter Telwin Force 145 - 165 - 195 112048 Wire Resistance for Inverter Telwin Force 145 - 165 - 195 €2.91
2
 photo_cameraImage coming soon 112342 RELAY ' €2.63
3
 photo_cameraImage coming soon 112357 PHASE RECTIFIER €12.21
5
 Capacitor for Inverter Telwin Force 145 - Technology 186 HD 112514 Capacitor for Inverter Telwin Force 145 - Technology 186 HD €9.02
6
 photo_cameraImage coming soon 113890 SCR €161.84
7
 photo_cameraImage coming soon 980472 TORCH PUSHBUTTON CARD KIT €50.90
8
 photo_cameraImage coming soon 980467 H.F. CARD KIT €114.00
9
 photo_cameraImage coming soon 120176 CAPACITOR €2.15
10
 photo_cameraImage coming soon 120513 CONTROL CABLE €23.86
11
 photo_cameraImage coming soon 120514 WIRING INTAKE €21.71
13
 photo_cameraImage coming soon 121233 SWITCH €4.65
14
 Electrovalve for Inverter Telwin Technology-Technomig-Telmig 122035 Electrovalve for Inverter Telwin Technology-Technomig-Telmig €18.82
15
 photo_cameraImage coming soon 121128 THERMOSTAT €9.37
16
 photo_cameraImage coming soon 132158 CABLE ALIM. 3G2.5 2 M €7.41
17
 Fan for Inverter Superior 152214 Fan for Inverter Superior €29.08
18
 photo_cameraImage coming soon 152219 SHUNT €4.22
19
 Power Adapter for Inverter Telwin 152230 Power Adapter for Inverter Telwin €7.34
21
 photo_cameraImage coming soon 980159 TRANSFORMER KIT €62.09
22
 photo_cameraImage coming soon 980177 OUTPUT INDUCTANCE KIT €48.86
23
 photo_cameraImage coming soon 313768 FRONT PANEL €16.57
24
 photo_cameraImage coming soon 322065 BELT BUCKLE €2.31
25
 Cable Busching for Inverter Welding and Battery Charger Telwin 322112 Cable Busching for Inverter Welding and Battery Charger Telwin €2.44
26
 photo_cameraImage coming soon 322408 BELT €3.12
27
 Telwin Superior Plasma 60 HF Front Panel 322508 Telwin Superior Plasma 60 HF Front Panel €16.58
30
 photo_cameraImage coming soon 644884 FRONT PANEL €14.05
32
 photo_cameraImage coming soon 980931 FAN GUIDE €9.03
33
 Socket DX 50 for Telwin Welding Machine 712036 Socket DX 50 for Telwin Welding Machine €5.29
34
 photo_cameraImage coming soon 990120 GAS PIPE CONNECTOR KIT €5.82
36
 photo_cameraImage coming soon 990661 KIT KNOB €5.27
37
 photo_cameraImage coming soon 990727 PRIMARY KIT €322.66
41
 photo_cameraImage coming soon 990731 PANEL KIT €118.07
43
 photo_cameraImage coming soon 990764 KIT SUPPORT CONTROL PCB €48.86
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

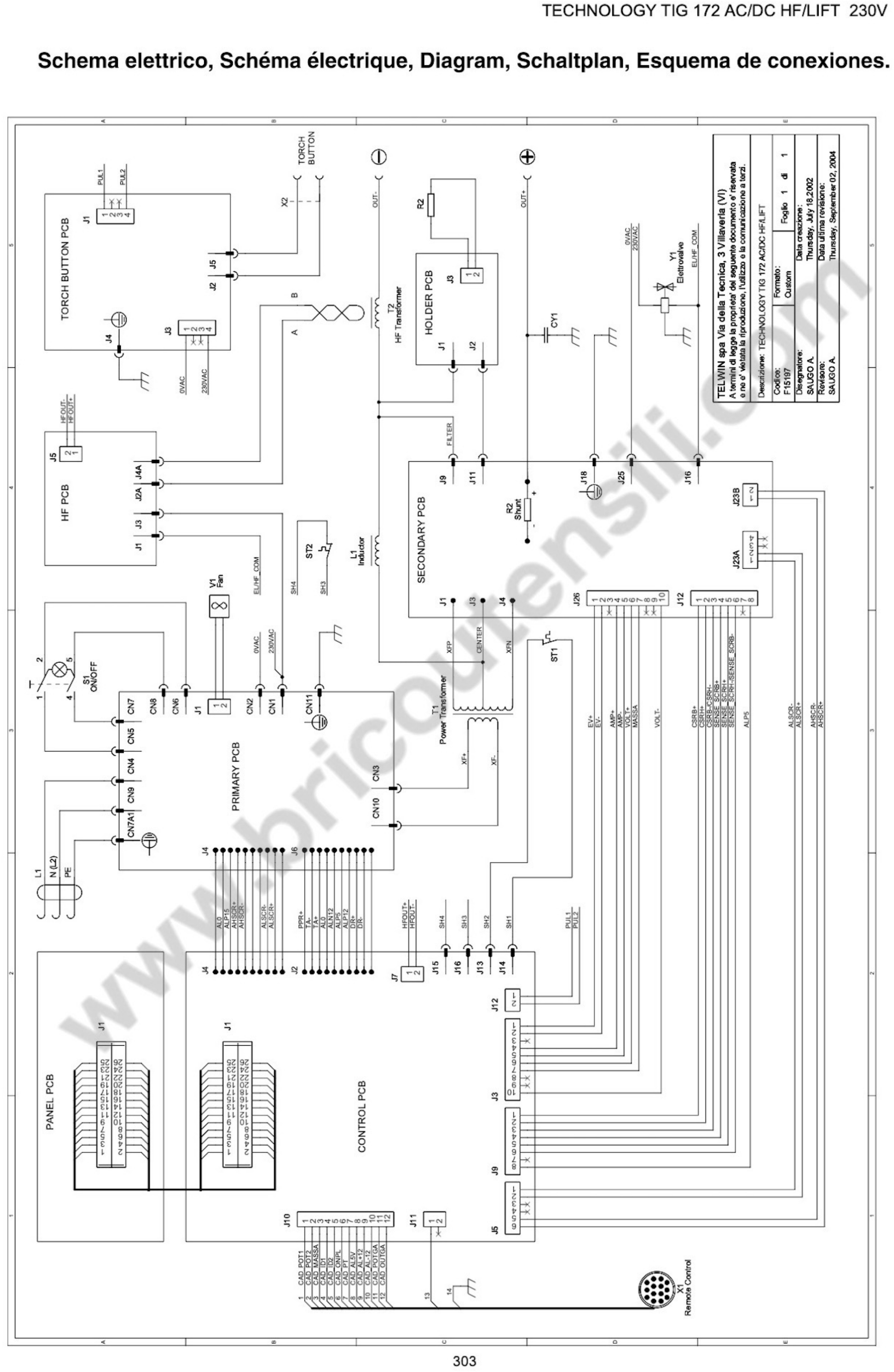

Esploso pagina 2
Pos. Item Price Buy
4
 photo_cameraImage coming soon 113585 SCR €41.10

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Telwin Parts for Inverter TECHNOLOGY TIG 172 AC/DC HF/LIFT 230V

Telwin genuine spare parts or replacements parts for to repair inverter TECHNOLOGY TIG 172 AC/DC HF/LIFT 230V key 815541.

In the following table, look for the model of the drill and the respective parts of the code.
TECHNOLOGY TIG 172 AC/DC 815541
TECHNOLOGY TIG 172 AC/DC HF/LIFT 230V key 815541
# Description Part Num.
1 RESISTANCE 112048
2 RELAIS 112342
3 SINGLE-PHASE RECTIFIER 112357
4 SCR 113585
5 CAPACITOR 112514
6 SCR 113890
7 TORCH PUSHBUTTON CARD KIT 980472
8 H.F. CARD KIT 980467
9 CAPACITOR 120176
10 CONTROL CABLE 120513
11 SOCKET CABLE 120514
12 SWITCH 121007
13 SWITCH 121233
14 ELECTROVALVE 122035
15 THERMOSTAT 121128
16 MAINS CABLE 3G2.5 2 M 132158
17 FAN 152214
18 SHUNT 152219
19 CURRENT TRANSFORMER 152230
20 TRANSFORMER KIT 980158
21 TRANSFORMER KIT 980159
22 OUTPUT INDUCTANCE KIT 980177
23 FRONT PANEL 313768
24 BELT BUCKLE 322065
25 CABLE BUSHING 322112
26 BELT 322408
27 FRAME - FRONT PANEL 322508
28 PIPE FITTING 602052
29 BACK PANEL 638568
30 FRONT PANEL 644884
31 BOTTOM 644885
32 BOTTOM KIT 980931
33 SOCKET DX 50 712036
34 GAS PIPE CONNECTOR KIT 990120
35 IGBT KIT - DISCONTINUED 990729
36 KIT KNOB 990661
37 PRIMARY KIT 990727
38 SECUNDARY KIT 990728
39 KIT 10 DIODES 980360
40 CONTROL BOARD KIT 990730
41 PANEL KIT 990731
42 COVER KIT 990732
43 KIT SUPPORT CONTROL PCB 990764
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Telwin websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Telwin brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
