Telwin s.p.a.

Telwin Spare Parts for Battery Charger Alpine 30 BOOST

SKU: Alpine 30 Boost - 807547
€21.05
VAT included

Telwin Spare Parts for Battery Charger Alpine 30 BOOST

TELWIN authorized service center and original spare parts Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Battery Charger Alpine 30 Boost - 807547.

Alpine 30 Boost - 807547
Telwin Spare Parts for Battery Chargers Alpine 30 BOOST
  • Telwin Spare Parts for Battery Chargers Alpine 30 BOOST
  • Telwin Spare Parts for Battery Chargers Alpine 30 BOOST
Telwin s.p.a.

Telwin Spare Parts for Battery Charger Alpine 30 BOOST

SKU: Alpine 30 Boost - 807547 Condition: New
€21.05
VAT included

Telwin Spare Parts for Battery Charger Alpine 30 BOOST

TELWIN authorized service center and original spare parts Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Battery Charger Alpine 30 Boost - 807547.

Alpine 30 Boost - 807547
settings 20 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:: TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
19 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

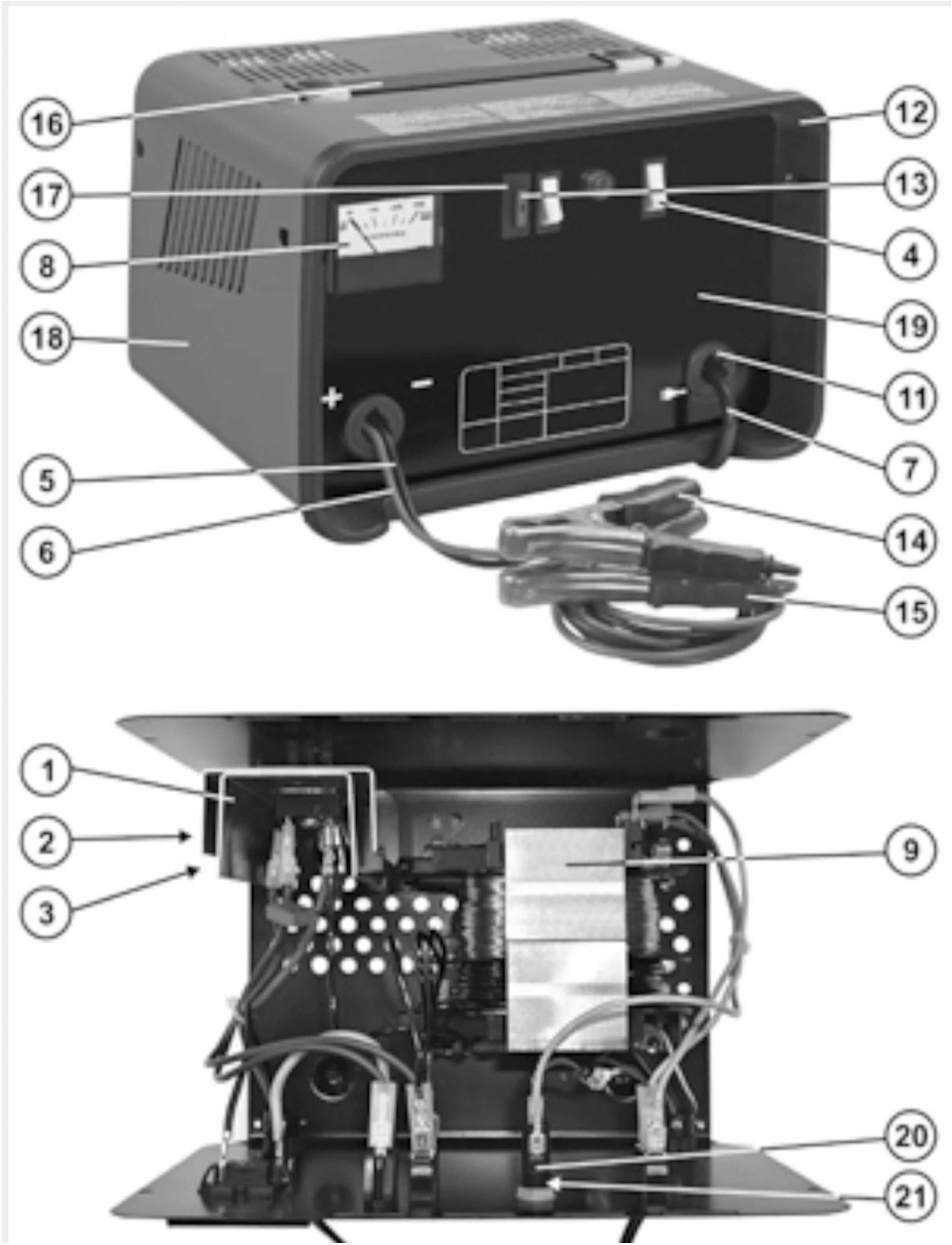

Esploso pagina 1
Pos. Item Price Buy
1
 Rectifier for Charger Telwin Alpine 30 Boost 121004 Rectifier for Charger Telwin Alpine 30 Boost €21.05
2
 photo_cameraImage coming soon 981967 KIT THERMOSTAT €10.50
3
 photo_cameraImage coming soon 122132 THERMOSTAT €8.71
4
 0-1 Switch White 16A 250V VDE-F for Charger Telwin 122400 0-1 Switch White 16A 250V VDE-F for Charger Telwin €1.80
5
 photo_cameraImage coming soon 123987 CABLE 4 MMQ 1,5 M & GROUND €7.99
6
 photo_cameraImage coming soon 123988 CABLE 4mmq 1.5M + POSITIVE CLAMP €11.01
7
 photo_cameraImage coming soon 132085 CABLE ALIM. 3G0.75 1.5M PLUG SCHUKO €3.07
8
 Kit Amperometer 30A for Chargers Telwin Alpine 20-30 Boost 981782 Kit Amperometer 30A for Chargers Telwin Alpine 20-30 Boost €14.60
9
 photo_cameraImage coming soon 169400 TRANSFORMER €66.79
12
 photo_cameraImage coming soon 322665 FRAME €6.30
13
 Kit 10 Fuses 15 A for Charger Telwin 802256 Kit 10 Fuses 15 A for Charger Telwin €5.02
14
 photo_cameraImage coming soon 712361 COLORADO 60B WORK CLAMP 60A €2.13
15
 photo_cameraImage coming soon 712360 COLORADO 60R POSITIVE CLAMP 60A €2.13
16
 Handle Kit for Battery Chargers Telwin Autotronic 25 Boost 990340 Handle Kit for Battery Chargers Telwin Autotronic 25 Boost €6.57
17
 Holder Fuse Kit for Charger Telwin Alpine 13-14-15-16 Boost 990352 Holder Fuse Kit for Charger Telwin Alpine 13-14-15-16 Boost €9.02
18
 photo_cameraImage coming soon 990939 KIT COAT €9.60
19
 photo_cameraImage coming soon 981251 KIT FRONT €7.55
20
 Holder Fuse for Charger Telwin Alpine 14 - 18 - 20 Boost 122159 Holder Fuse for Charger Telwin Alpine 14 - 18 - 20 Boost €2.08
21
 Fuse 5x20 4A for Charger Telwin Alpine 30 Boost 122515 Fuse 5x20 4A for Charger Telwin Alpine 30 Boost €0.47

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Telwin Spare Parts for Battery Charger Alpine 30 BOOST

TELWIN authorized service center and original spare parts Worldwide Distributors

 and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Battery Charger Alpine 30 Boost - 807547.

In the following table, look for the model of the Battery Charger and the respective parts of the code.
Alpine 30 Boost - 807547

ALPINE 30 BOOST 230V 12-24V - 807547
# Part Num. Description
1 121004 RECTIFIER
2 981967 THERMOSTAT
3 122132 THERMOSTAT
4 122400 SWITCH
5 123987 CABLE 4 MMQ 1,5 M & CALIPER MASS
6 123988 CABLE 4mmq 1.5M + POSITIVE CLAMP
7 132085 CABLE ALIM. 3G0.75 1.5M PLUG SCHUKO
8 981782 KIT AMPEROMETER 30A
9 169400 TRANSFORMER
11 322138 GLAND
12 322665 FRAME
13 802256 KIT 10 FUSES 15A
14 712361 COLORADO 60B PINZA MASS 60A
15 712360 COLORADO 60R POSITIVE CLAMP 60A
16 990340 KIT HANDLE
17 990352 KIT FUSE
18 990939 KIT COAT
19 981251 KIT FRONT
20 122159 FUSE
21 122515 FUSE
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Telwin websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Telwin brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Alpine 30 Boost - 807547
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:
TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS

Specific References

New

Download

Diagram Telwin Alpine 30 BOOST

Diagram Telwin Alpine 30 BOOST

Download (161.44KB)
