Telwin s.p.a.

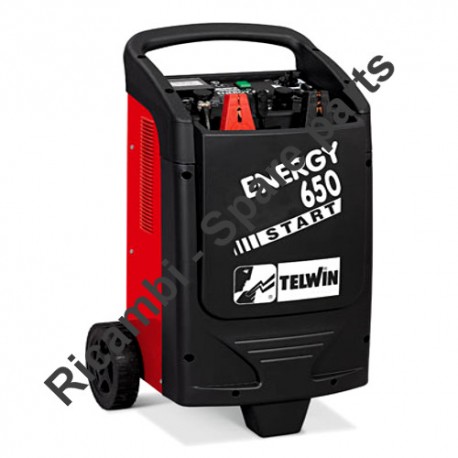

Telwin Spare Parts for Battery Chargers Energy 650 Start

SKU: ENERGY 650 START - 829385
€91.59
VAT included

Telwin Spare Parts for Battery Chargers Energy 650 Start

Telwin original spare parts for the replacement of damaged parts or to repair electrical or electronics components of Battery Chargers Energy 650 Start - 829385.

Fix Your Battery Chargers Energy 650 Start. All Spares are Ready For Delivery. Our Spares are Genuine Parts and Come with a Full Guarantee.

ENERGY 650 START - 829385
Telwin Spare Parts for Battery Chargers Energy 650 Start
  • Telwin Spare Parts for Battery Chargers Energy 650 Start
  • Telwin Spare Parts for Battery Chargers Dynamic
Telwin s.p.a.

Telwin Spare Parts for Battery Chargers Energy 650 Start

SKU: ENERGY 650 START - 829385 Condition: New
€91.59
VAT included

Telwin Spare Parts for Battery Chargers Energy 650 Start

Telwin original spare parts for the replacement of damaged parts or to repair electrical or electronics components of Battery Chargers Energy 650 Start - 829385.

Fix Your Battery Chargers Energy 650 Start. All Spares are Ready For Delivery. Our Spares are Genuine Parts and Come with a Full Guarantee.

ENERGY 650 START - 829385
settings 41 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:: TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
41 spare parts

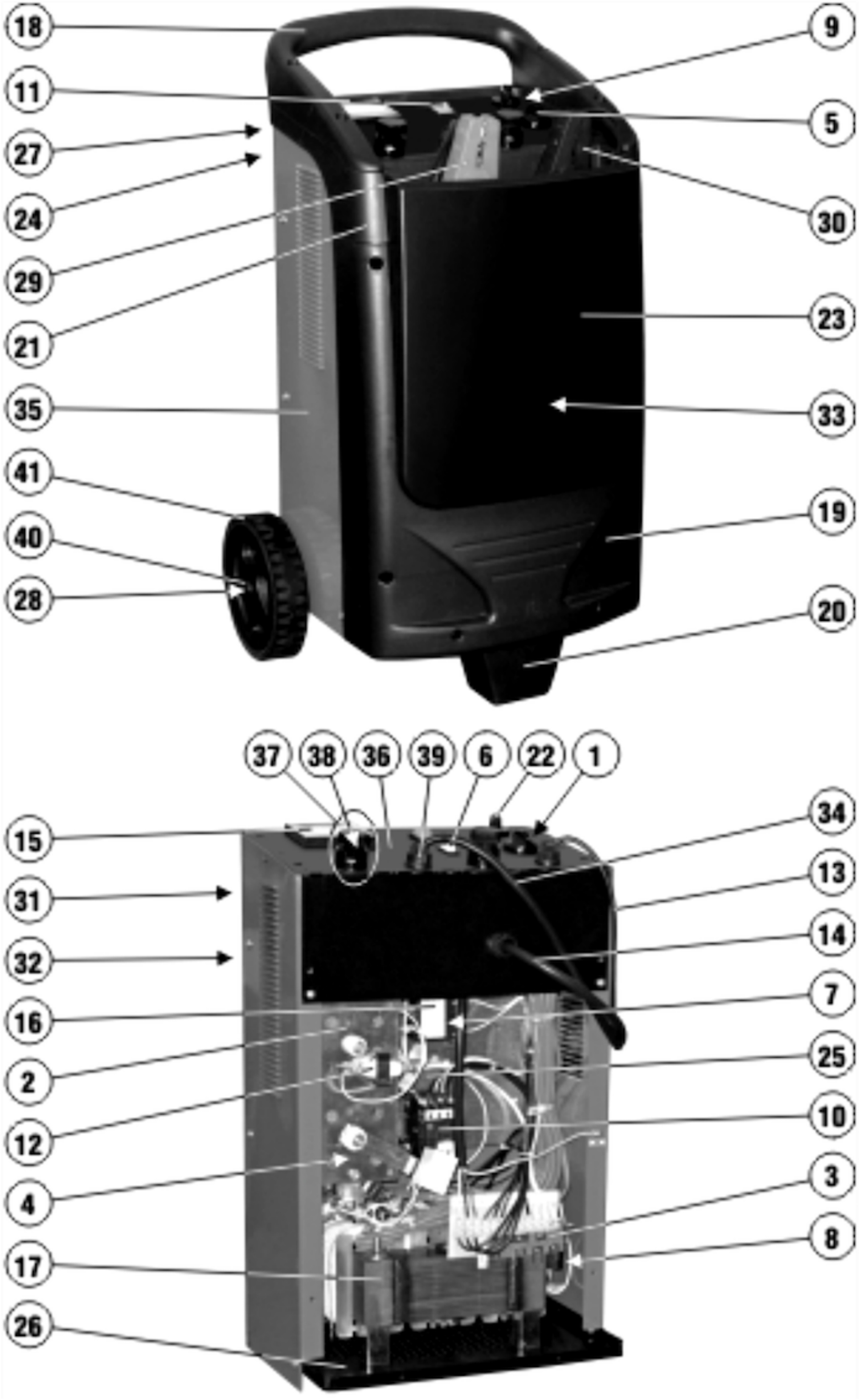

Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 1
Pos. Item Price Buy
1
 Timer for Charger Telwin Dynamic 620 112120 Timer for Charger Telwin Dynamic 620 €23.39
2
 Rectifier for Weldings Telwin Mastermig-Supermig 112131 Rectifier for Weldings Telwin Mastermig-Supermig €91.52
3
 photo_cameraImage coming soon 112165 CHANGING VOLTAGE CARD €7.29
4
 Protection Rectifier for Welding Telwin Linear-Mastermig 112182 Protection Rectifier for Welding Telwin Linear-Mastermig €4.03
5
 Timer Knob for Charger Telwin Dynamic - Energy 112296 Timer Knob for Charger Telwin Dynamic - Energy €3.47
6
 0-1 Switch White 16A 250V VDE-F for Charger Telwin 122400 0-1 Switch White 16A 250V VDE-F for Charger Telwin €1.80
7
 Fuse T630mA L250V for Charger Telwin NEVADA 12-15 122432 Fuse T630mA L250V for Charger Telwin NEVADA 12-15 €0.32
8
 photo_cameraImage coming soon 122525 THERMOSTAT €6.51
9
 Dipswitch 16A for Charger Telwin Energy 650 Start 122649 Dipswitch 16A for Charger Telwin Energy 650 Start €45.15
10
 AC Contactor for Inverter Telwin TELMIG 183-203-250/2 Turbo 122694 AC Contactor for Inverter Telwin TELMIG 183-203-250/2 Turbo €18.45
11
 Green Switch for Inverter Telwin Mastermig 220-270-300-400 122725 Green Switch for Inverter Telwin Mastermig 220-270-300-400 €2.63
12
 photo_cameraImage coming soon 122796 THERMOSTAT €3.20
13
 photo_cameraImage coming soon 123993 REMOTE CONTROL 6 M €35.86
14
 photo_cameraImage coming soon 132244 MAINS CABLE 4G2.5 2 M €11.24
15
 Amperometer for Charger Telwin DYNAMIC 620 152134 Amperometer for Charger Telwin DYNAMIC 620 €35.53
16
 Auxiliary Power Adapter for Welding Machines Telwin TELMIG 183-203-250/2 164270 Auxiliary Power Adapter for Welding Machines Telwin TELMIG 183-203-250/2 €37.26
17
 photo_cameraImage coming soon 164709 TRANSFORMER €490.91
18
 photo_cameraImage coming soon 312399 HANDLE €15.35
19
 photo_cameraImage coming soon 322796 SPRING (B) €15.01
20
 photo_cameraImage coming soon 322798 PISTON PIN €2.52
21
 photo_cameraImage coming soon 322799 WASHER (C) €7.66
22
 Dipswitch Knob for Welding Telwin 323101 Dipswitch Knob for Welding Telwin €2.56
23
 photo_cameraImage coming soon 362032 POCKET €8.97
24
 photo_cameraImage coming soon 483899 FUSE BOX €2.45
25
 photo_cameraImage coming soon 980528 KIT IRIS €9.66
26
 photo_cameraImage coming soon 645343 FUND €7.59
27
 photo_cameraImage coming soon 650557 fuse cover MASK €3.05
28
 photo_cameraImage coming soon 681055 AXLE FOR WHEELS €6.36
29
 photo_cameraImage coming soon 712025 POSITIVE CLAMP (+) €13.34
30
 photo_cameraImage coming soon 712026 WORK CLAMP €12.46
31
 Kit 10 Fuses 100A for Charger Telwin Energy 650 Start 802131 Kit 10 Fuses 100A for Charger Telwin Energy 650 Start €18.82
32
 photo_cameraImage coming soon 980037 CLAMP FUSE €5.33
33
 photo_cameraImage coming soon 980485 POSITIVE CABLE 25 MMQ 2,5 M €21.80
34
 photo_cameraImage coming soon 980486 NEGATIVE CABLE 25 MMQ 3 M €24.53
35
 photo_cameraImage coming soon 980487 BRUSH HOLDER €9.92
36
 photo_cameraImage coming soon 980488 DASHBOARD KIT €10.21
37
 Clamp D.33 mm Kit for Charger Telwin Dynamic 220-320-420-520 990162 Clamp D.33 mm Kit for Charger Telwin Dynamic 220-320-420-520 €11.50
38
 Insulating Washers Kit for Charger Telwin Dynamic 220-320-420-520 990163 Insulating Washers Kit for Charger Telwin Dynamic 220-320-420-520 €4.03
39
 photo_cameraImage coming soon 990439 CABLE BUSHING KIT €3.07
40
 Wheels Lock Cap for Inverter Welding Telwin 322102 Wheels Lock Cap for Inverter Welding Telwin €0.45
41
 Fixed Wheel D.175MM for Telwin Welding Machines 322201 Fixed Wheel D.175MM for Telwin Welding Machines €15.80

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Telwin Spare Parts for Battery Chargers Energy 650 Start

Telwin original spare parts for the replacement of damaged parts or to repair electrical or electronics components of Battery Chargers Energy 650 Start - 829385.

In the following table, look for the model of the Battery Chargers and the respective parts of the code.
ENERGY 650 START - 829385

ENERGY 650 START 230-400V 12-24V - 829385
# Part Num. Description
1 112120 TIMER
2 112131 RECTIFIER
3 112165 BASE VOLTAGE CHANGE
4 112182 PROTECTION RECTIFIER
5 112296 KNOB TIMER
6 122400 SWITCH
7 122432 FUSE
8 122525 THERMOSTAT
9 122649 SWITCH
10 122694 RELAY
11 122725 SWITCH
12 122796 THERMOSTAT
13 123993 REMOTE CONTROL 6 M
14 132244 CABLE ALIM. 4G2.5 2 M
15 152134 AMPEROMETER
16 164270 TRANSFORMER AUXILIARY
17 164709 TRANSFORMER
18 312399 HANDLE
19 322796 FRONT
20 322798 FOOT
21 322799 FRAME
22 323101 TOGETHER FOR SWITCH KNOB
23 362032 POCKET
24 483899 FUSE BOX
25 980528 KIT IRIS
26 645343 FUND
27 650557 fuse cover MASK
28 681055 AXLE FOR WHEELS
29 712025 CLAMP POSITIVE (+)
30 712026 GROUND CLAMP
31 802131 KIT 10 FUSES 100A
32 980037 CLAMP FUSE
33 980485 POSITIVE CABLE 25 MMQ 2,5 M
34 980486 NEGATIVE CABLE 25 MMQ 3 M
35 980487 KIT RETRO
36 980488 DASHBOARD KIT
37 990162 CLAMP KIT COMPLETE D.33MM
38 990163 KIT PAIR WASHER INSULATING
39 990439 GLAND KIT
40 322102 CAP LOCK WHEELS
41 322201 WHEEL FENCE

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Telwin websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Telwin brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
