Telwin s.p.a.

Telwin Spare Parts for Flux Welding Supermig 480

SKU: Telwin Supermig 480 - 822044
€91.59
VAT included

Telwin Spare Parts for Flux Welding Supermig 480

TELWIN Authorized Technical Assistance, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Welding Machine Flux and Mig-mag Supermig 480 - 822044.

Telwin Supermig 480 - 822044
Telwin Spare Parts for Flux Welding Supermig 480
  • Telwin Spare Parts for Flux Welding Supermig 480
  • Telwin Spare Parts for Flux Welding Supermig 480 - Drawing
  • Telwin Spare Parts for Flux Welding Supermig 480 - Torch Drawing
Telwin s.p.a.

Telwin Spare Parts for Flux Welding Supermig 480

SKU: Telwin Supermig 480 - 822044 Condition: New
€91.59
VAT included

Telwin Spare Parts for Flux Welding Supermig 480

TELWIN Authorized Technical Assistance, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Welding Machine Flux and Mig-mag Supermig 480 - 822044.

Telwin Supermig 480 - 822044
settings 125 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:: TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
120 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

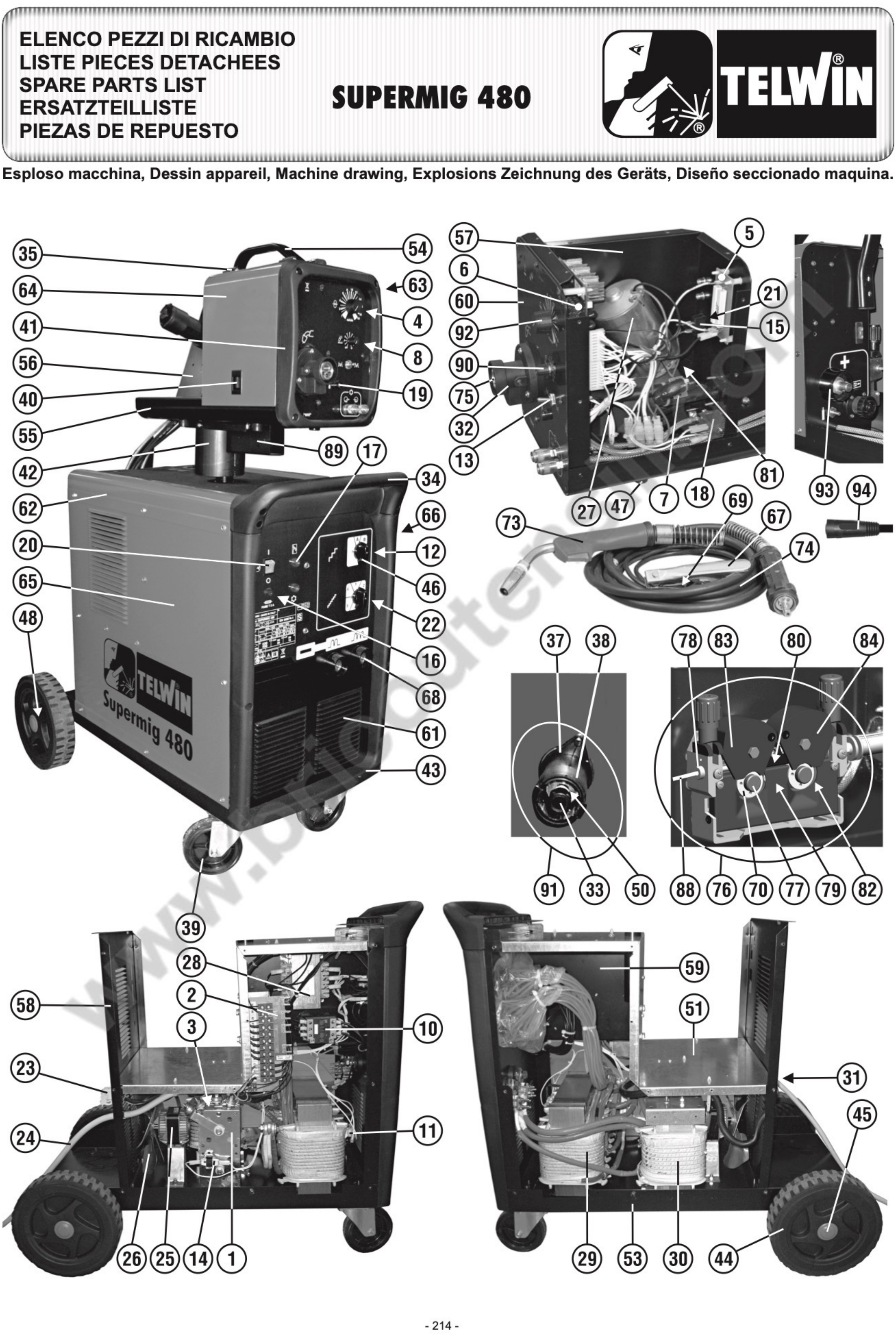

Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 112163 VOLTAGE CHANGING CARD €13.95
2
 Protection Rectifier for Welding Telwin Linear-Mastermig 112182 Protection Rectifier for Welding Telwin Linear-Mastermig €4.03
3
 photo_cameraImage coming soon 112282 POTENTIOMETER €6.47
4
 photo_cameraImage coming soon 112283 POTENTIOMETER €8.89
5
 Rectifier for Weldings Telwin Mastermig-Supermig 112131 Rectifier for Weldings Telwin Mastermig-Supermig €91.52
6
 photo_cameraImage coming soon 114637 WIRE FEED RESISTANCE CARD €14.32
7
 photo_cameraImage coming soon 114765 REED CARD €18.41
8
 photo_cameraImage coming soon 114960 CARD €25.68
10
 Small knob for Inverter Telwin 121395 Small knob for Inverter Telwin €0.61
11
 photo_cameraImage coming soon 122052 SWITCH €5.60
12
 photo_cameraImage coming soon 122132 THERMOSTAT €8.71
13
 Holder Fuse for Charger Telwin Alpine 14 - 18 - 20 Boost 122159 Holder Fuse for Charger Telwin Alpine 14 - 18 - 20 Boost €2.08
13
 Holder for Contact Tip for Flux Welding Machine Telwin 722789 Holder for Contact Tip for Flux Welding Machine Telwin €6.26
14
 Thermostat for Welding Machines Telwin 121258 Thermostat for Welding Machines Telwin €6.82
15
 Fuse 5x20 2A for Charger Telwin Alpine 20 Boost 122437 Fuse 5x20 2A for Charger Telwin Alpine 20 Boost €0.63
16
 AC Contactor for Welding Machine Telwin MASTERMIG 400 121214 AC Contactor for Welding Machine Telwin MASTERMIG 400 €47.63
16
 Handle Torch Ring for Torches Telwin Telmig 150/1 - 183/2 742171 Handle Torch Ring for Torches Telwin Telmig 150/1 - 183/2 €1.34
17
 Yellow Pilot Lamp for Welding Machines Telwin Telmig-Mastermig 122594 Yellow Pilot Lamp for Welding Machines Telwin Telmig-Mastermig €2.03
18
 Electrovalve for Inverter Telwin Mastermig-Supermig-Inverpulse 122682 Electrovalve for Inverter Telwin Mastermig-Supermig-Inverpulse €20.15
18
 Torch Spring for Torches Telwin MIG-MAG 742174 Torch Spring for Torches Telwin MIG-MAG €5.42
19
 photo_cameraImage coming soon 122709 LAMP €1.39
20
 Green Switch for Inverter Telwin Mastermig 220-270-300-400 122725 Green Switch for Inverter Telwin Mastermig 220-270-300-400 €2.63
22
 photo_cameraImage coming soon 121399 SWITCH €45.43
23
 photo_cameraImage coming soon 121400 SWITCH €94.86
24
 photo_cameraImage coming soon 122849 GUARD €2.11
25
 photo_cameraImage coming soon 132202 MAINS CABLE 4G6 3 M €30.17
26
 Fan Motor for Welding Telwin Linear-Mastermig-Supermig 152083 Fan Motor for Welding Telwin Linear-Mastermig-Supermig €78.00
27
 Cooler Fan for Welding Telwin Linear-Mastermig-Supermig 152113 Cooler Fan for Welding Telwin Linear-Mastermig-Supermig €13.79
28
 photo_cameraImage coming soon 153029 WIRE FEED MOTOR €104.75
29
 photo_cameraImage coming soon 169512 REACTANCE €179.39
30
 photo_cameraImage coming soon 169639 TRASFO AUX 230-400V/0-24-42V €143.17
31
 photo_cameraImage coming soon 169660 TRANSFORMER 230-400V €850.01
32
 Connection Protection Torch for Welders Telwin Mastermig-Supermig 312105 Connection Protection Torch for Welders Telwin Mastermig-Supermig €11.14
33
 Reel Kit Handbill for Welding Telwin MASTERMIG-DIGITAL MIG 312137 Reel Kit Handbill for Welding Telwin MASTERMIG-DIGITAL MIG €16.94
35
 photo_cameraImage coming soon 313926 BOTTLE HOLDER €10.28
36
 photo_cameraImage coming soon 322081 REEL €16.47
37
 Aspo Spacer Sleeve for Welding Telwin MASTERMIG 322180 Aspo Spacer Sleeve for Welding Telwin MASTERMIG €3.31
38
 photo_cameraImage coming soon 322187 WHEEL + SWIVEL SUPPORT €11.80
39
 photo_cameraImage coming soon 322487 SLIDING SHUTTER €9.74
40
 photo_cameraImage coming soon 322648 FRAME €5.92
41
 photo_cameraImage coming soon 322663 WIREFEEDER PROTECTION HOLDER €15.65
42
 photo_cameraImage coming soon 322736 FRAME €15.01
43
 photo_cameraImage coming soon 322772 WHEEL €13.12
44
 photo_cameraImage coming soon 322773 WHEEL CAP €2.40
45
 Dipswitch Knob for Welding Telwin 323101 Dipswitch Knob for Welding Telwin €2.56
46
 photo_cameraImage coming soon 323001 FOOT €2.39
47
 photo_cameraImage coming soon 152254 SHUNT FOR AMMETER €4.52
48
 photo_cameraImage coming soon 422020 WHEELS AXLE €5.05
49
 Throwaway Argon + CO₂ ITA-USA Gas Bottle Adaptor Telwin 432036 432036 Throwaway Argon + CO₂ ITA-USA Gas Bottle Adaptor Telwin 432036 €10.50
50
 Reel Spring for Welding Telwin MASTERMIG 452057 Reel Spring for Welding Telwin MASTERMIG €2.61
51
 photo_cameraImage coming soon 484139 GRA SPACE €36.19
52
 photo_cameraImage coming soon 642084 FRONT PANEL €28.35
53
 photo_cameraImage coming soon 642058 FRONT PANEL €13.09
54
 photo_cameraImage coming soon 642059 BACK PANEL €17.30
55
 photo_cameraImage coming soon 644444 TORCH HOOK €6.00
56
 photo_cameraImage coming soon 645153 HANDLE €11.65
57
 photo_cameraImage coming soon 645154 BOTTOM €17.14
58
 photo_cameraImage coming soon 645157 BRAKET €15.93
59
 photo_cameraImage coming soon 645102 BOTTOM €37.19
60
 photo_cameraImage coming soon 645444 DIAPHRAGM €31.63
61
 photo_cameraImage coming soon 645300 BACK PANEL €22.84
62
 photo_cameraImage coming soon 651104 COVER €18.71
63
 photo_cameraImage coming soon 655411 COVER €10.94
64
 photo_cameraImage coming soon 655412 DOOR €7.32
65
 photo_cameraImage coming soon 655896 RIGHT SIDE PANEL €24.55
66
 photo_cameraImage coming soon 655897 LEFT SIDE €24.55
67
 photo_cameraImage coming soon 712032 TOLEDO 400 WORK CLAMP €8.98
68
 Socket DX 50 for Telwin Welding Machine 712036 Socket DX 50 for Telwin Welding Machine €5.29
69
 Plug DX 50 for Telwin Welding Machine 712040 Plug DX 50 for Telwin Welding Machine €6.16
70
 photo_cameraImage coming soon 712112 PLUG €14.47
71
 photo_cameraImage coming soon 712114 PLUG DX 50 €8.98
72
 Feed Roll For wire mm 0,8/1,0 FE for Flux Welding Telwin 722227 Feed Roll For wire mm 0,8/1,0 FE for Flux Welding Telwin €19.49
73
 Feed Roll mm 1,2/1,6 FE for Flux Welding Telwin 722241 Feed Roll mm 1,2/1,6 FE for Flux Welding Telwin €15.31
74
 Telwin Gas Regulators for Refilable Bottles 722346 Telwin Gas Regulators for Refilable Bottles €95.37
75
 Torch MIG MT 36 3 M 400 A for Weldings Telwin SUPERMIG-MASTERMIG 742186 Torch MIG MT 36 3 M 400 A for Weldings Telwin SUPERMIG-MASTERMIG €211.13
76
 Earth Clamp with Cable (50mm² 3 mt DX50) Telwin 723031 723031 Earth Clamp with Cable (50mm² 3 mt DX50) Telwin 723031 €84.34
77
 Connection Torch Mig for Weldings Telwin Supermig 480-580-490-610 723067 Connection Torch Mig for Weldings Telwin Supermig 480-580-490-610 €55.64
78
 photo_cameraImage coming soon 723096 WIRE FEED ASSY €229.11
79
 Roller Fixing Screw for Welding Machines Telwin 742397 Roller Fixing Screw for Welding Machines Telwin €1.29
80
 Front Wire Guide for Welding Telwin SUPERMIG-MASTERMIG 742064 Front Wire Guide for Welding Telwin SUPERMIG-MASTERMIG €8.21
81
 photo_cameraImage coming soon 742079 GEARBLOCKING SCREW €4.75
82
 photo_cameraImage coming soon 742121 WIRE GUIDE €12.38
83
 Motor Drive Gear for Welding Inverter SUPERMIG 480 - 580 742155 Motor Drive Gear for Welding Inverter SUPERMIG 480 - 580 €23.37
84
 photo_cameraImage coming soon 742166 ADAPTER €19.76
85
 photo_cameraImage coming soon 742167 LEFT ANCHOR FOR PRESSURE ROLLER €62.81
86
 photo_cameraImage coming soon 742168 RIGHT ANCHOR FOR PRESSURE ROLLER €62.81
87
 photo_cameraImage coming soon 742304 FEED ROLL D. 0,8-1 AL €22.82
88
 photo_cameraImage coming soon 980082 HANDLE KIT €11.80
89
 photo_cameraImage coming soon 980124 KIT SWIVEL SUPPORT €53.52
90
 Potentiometer Big Knob for Inverter Telwin 121424 Potentiometer Big Knob for Inverter Telwin €0.81
91
 photo_cameraImage coming soon 980790 CONTROL PCB KIT €135.24
93
 Reel Kit for Welding Telwin MASTERMIG-DIGITAL MIG 990264 Reel Kit for Welding Telwin MASTERMIG-DIGITAL MIG €18.45
94
 Holder Fuse Kit for Charger Telwin Alpine 13-14-15-16 Boost 990352 Holder Fuse Kit for Charger Telwin Alpine 13-14-15-16 Boost €9.02
95
 photo_cameraImage coming soon 312068 CABLE BUSHING €3.20
96
 photo_cameraImage coming soon 990873 GAS HOSE KIT €1.56
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

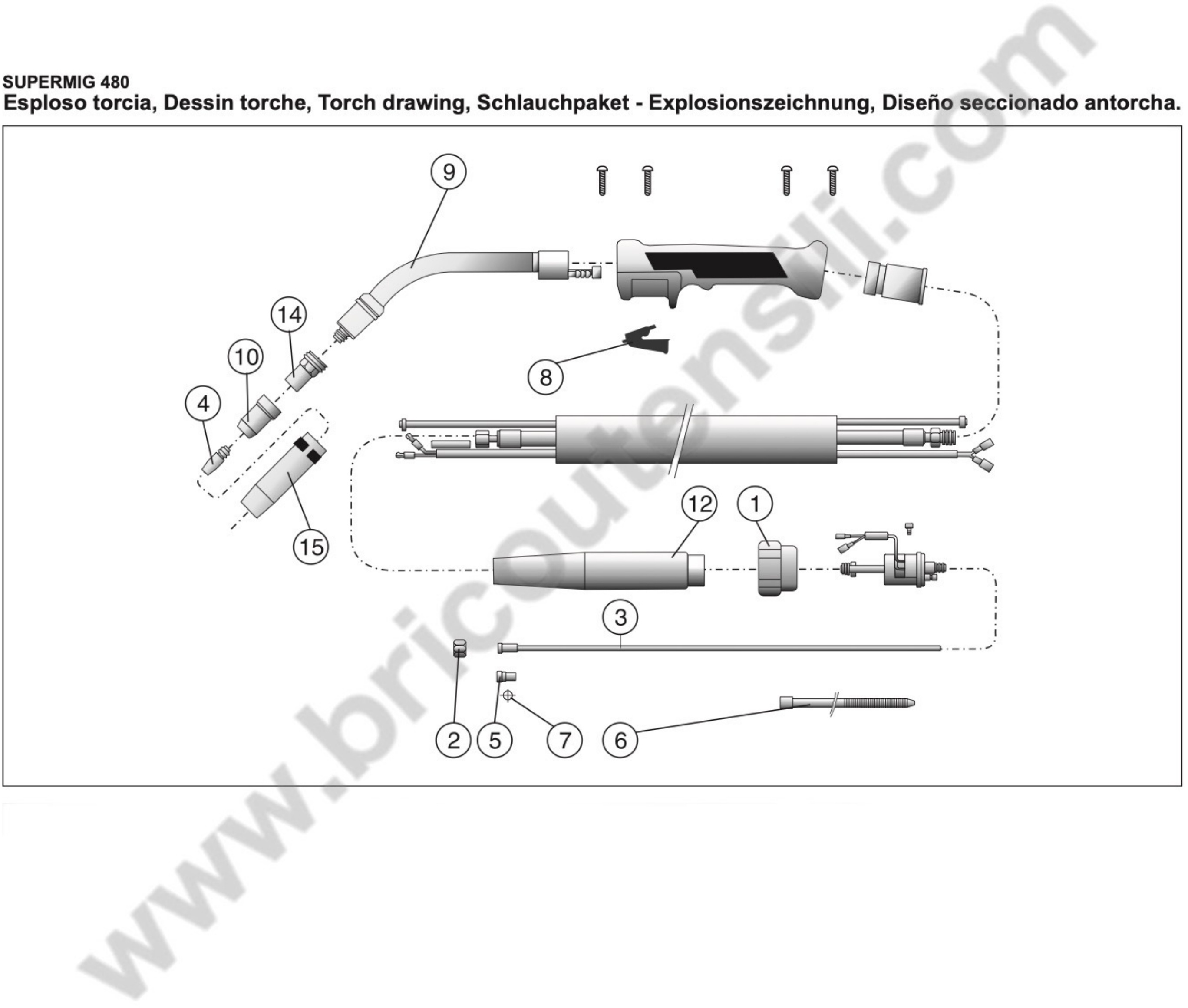

Esploso pagina 2
Pos. Item Price Buy
1
 Torch Ring Nut for Torches Telwin MIG-MAG 722007 Torch Ring Nut for Torches Telwin MIG-MAG €9.91
2
 Sleeve Lock Nut for Torches Telwin MIG-MAG 722013 Sleeve Lock Nut for Torches Telwin MIG-MAG €3.92
3
 Contact Nozzle mm 0,6X25 for Wire Weldings Telwin 722415 Contact Nozzle mm 0,6X25 for Wire Weldings Telwin €1.59
3
 Contact Nozzle mm 1,0X25 for Wire Weldings Telwin 722552 Contact Nozzle mm 1,0X25 for Wire Weldings Telwin €1.85
3
 Contact Nozzle D. 1,2 MM AL/FLUX for Inverter Telwin Mastermig 270 722553 Contact Nozzle D. 1,2 MM AL/FLUX for Inverter Telwin Mastermig 270 €1.92
3
 Contact Nozzle mm 0,8x28 for Wire Welding Telwin 722680 Contact Nozzle mm 0,8x28 for Wire Welding Telwin €2.06
3
 Contact Nozzle mm 1,0x28 for Wire Welding Telwin 722681 Contact Nozzle mm 1,0x28 for Wire Welding Telwin €2.06
3
 Contact Nozzle mm 1,2x28 for Wire Welding Telwin 722682 Contact Nozzle mm 1,2x28 for Wire Welding Telwin €2.06
3
 Contact Nozzle for Wire Weldings Telwin Mastermig-Supermig 722797 Contact Nozzle for Wire Weldings Telwin Mastermig-Supermig €1.59
3
 photo_cameraImage coming soon 722818 CONTACT TIP D. 1,6 MM AL €1.49
4
 Liner Wire Conduit mm 0.6-0.8 for Torches Telwin MIG-MAG 722437 Liner Wire Conduit mm 0.6-0.8 for Torches Telwin MIG-MAG €9.91
4
 photo_cameraImage coming soon 722597 WIRE GUIDE HOSE D. 1,6-2 MM 3 M AL €42.82
4
 Liner Wire Conduit mm 1.0-1.2 for Torches Telwin MIG-MAG 722689 Liner Wire Conduit mm 1.0-1.2 for Torches Telwin MIG-MAG €9.91
4
 photo_cameraImage coming soon 742164 WIRE GUIDE HOSE D. 1-1,2 MM 3 M €72.81
5
 Torch Body for Torches Telwin MIG-MAG 722441 Torch Body for Torches Telwin MIG-MAG €26.35
6
 Conical Nozzle mm 16 for Wire Weldings Telwin SUPERMIG 380-480 722792 Conical Nozzle mm 16 for Wire Weldings Telwin SUPERMIG 380-480 €11.14
6
 Thin Head Nozzle for Inverter Telwin Digital Supermig 490 722793 Thin Head Nozzle for Inverter Telwin Digital Supermig 490 €20.15
6
 photo_cameraImage coming soon 722794 SPOT WELDING NOZZLE €21.33
7
 Sleeve Lock Nipples for Torches Telwin MIG-MAG 722598 Sleeve Lock Nipples for Torches Telwin MIG-MAG €4.14
7
 photo_cameraImage coming soon 722599 WIRE GUIDE LOCKING NIPPLES €4.72
8
 Sleeve Lock Hose for Torches Telwin MIG-MAG 722600 Sleeve Lock Hose for Torches Telwin MIG-MAG €21.27
9
 photo_cameraImage coming soon 120738 CABLE €21.15
12
 Swan Neck for Welding Machines Telwin Mastermig 400 722788 Swan Neck for Welding Machines Telwin Mastermig 400 €98.16
14
 photo_cameraImage coming soon 742175 TORCH CONNECTION €13.98
15
 Gas Diffuser for Inverter Telwin SUPERMIG 380 - 480 722791 Gas Diffuser for Inverter Telwin SUPERMIG 380 - 480 €4.89

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Telwin Spare Parts for Flux Welding Supermig 480

TELWIN Authorized Technical Assistance, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Welding Machine Flux and Mig-mag Supermig 480 - 822044.
In the following table, look for the model of the Welding machine and theirs spare parts codes.
Telwin Supermig 480 - 822044
SUPERMIG 480 230-400V key 822044 Pag.1
# Description Part Num.
1 VOLTAGE CHANGING CARD 112163
2 RECTIFIER PROTECTION 112182
3 POTENTIOMETER 112282
4 POTENTIOMETER 112283
5 RECTIFIER 112131
6 WIRE FEED RESISTANCE CARD 114637
7 REED CARD 114765
8 CARD 114960
9 CABLE 120738
10 KNOB 121395
11 SWITCH 122052
12 THERMOSTAT 122132
13 FUSE HOLDER 122159
14 THERMOSTAT SOST 121715 121258
15 FUSE 122437
16 CONTACTOR 121214
17 YELLOW PILOT LAMP 122594
18 ELECTRO-VALVE 122682
19 LAMP 122709
20 SWITCH 122725
21 FUSE 122742
22 SWITCH 121399
23 SWITCH 121400
24 GUARD 122849
25 MAINS CABLE 4G6 3 M 132202
26 MOTOR 152083
27 FAN BLADE 152113
28 WIRE FEED MOTOR 153029
29 REACTANCE 169512
30 TRASFO AUX 230-400V/0-24-42V 169639
31 TRANSFORMER 230-400V 169660
32 TORCH CONNECTION PROTECTION 312105
33 REEL HANDWHEEL 312137
34 HINGE SET 312382
35 BOTTLE HOLDER 313926
36 REEL 322081
37 SPACER 322180
38 WHEEL + SWIVEL SUPPORT 322187
39 SLIDING SHUTTER 322487
40 FRAME 322648
41 WIREFEEDER PROTECTION HOLDER 322663
42 FRAME 322736
43 WHEEL 322772
44 WHEEL CAP 322773
45 SWITCH KNOB SET 323101
46 FOOT 323001
47 SHUNT FOR AMMETER 152254
48 WHEELS AXLE 422020
49 ARGON GAS BOTTLE IT ADAPTOR 432036
50 REEL SPRING 452057
51 GRA SPACE 484139
52 FRONT PANEL 642084
53 FRONT PANEL 642058
54 BACK PANEL 642059
55 TORCH HOOK 644444
56 HANDLE 645153
57 BOTTOM 645154
58 BRAKET 645157
59 BOTTOM 645102
60 DIAPHRAGM 645444
61 BACK PANEL 645300
62 COVER 651104
63 COVER 655411
64 DOOR 655412
65 RIGHT SIDE PANEL 655896
66 LEFT SIDE 655897
67 TOLEDO 400 WORK CLAMP 712032
68 SOCKET DX 50 712036
69 PLUG DX 50 712040
70 PLUG 712112
71 PLUG DX 50 712114
72 FEED ROLL D. 0,8-1 MM FE 722227
73 FEED ROLL D. 1,2-1,6 MM FE 722241
74 GAS REGULATOR 2 MANOMETERS 722346
75 MT36 MIG TORCH 3 M 400 A 742186
76 CABLE 50 MMQ 3 M WORK CLAMP DX50 723031
77 TORCH CONNECTION 723067
78 WIRE FEED ASSY 723096
79 ROLLERFIXING SCREW 742397
80 WIRE GUIDE INLET 742064
81 GEARBLOCKING SCREW 742079
82 WIRE GUIDE 742121
83 MOTOR DRIVE GEAR 742155
84 ADAPTER 742166
85 LEFT ANCHOR FOR PRESSURE ROLLER 742167
86 RIGHT ANCHOR FOR PRESSURE ROLLER 742168
87 FEED ROLL D. 0,8-1 AL 742304
88 HANDLE KIT 980082
89 KIT SWIVEL SUPPORT 980124
90 KNOB 121424
91 CONTROL PCB KIT 980790
93 REEL KIT 990264
94 FUSEHOLDER KIT 990352
95 CABLE BUSHING 312068
96 GAS HOSE KIT 990873
Torch SUPERMIG 480 230-400V Pag.2
1 RING NUT 722007
2 LINER NUT 722013
3 CONTACT TIP D. 1,2 MM AL/FLUX 722553
3 CONTACT TIP D. 1 MM FE 722681
3 CONTACT TIP D. 1 MM AL/FLUX 722552
3 CONTACT TIP D. 1,2 MM FE 722682
3 CONTACT TIP D. 1,6 MM FE 722797
3 CONTACT TIP D. 0,6 MM FE 722415
3 CONTACT TIP D. 0,8 MM FE 722680
3 CONTACT TIP D. 1,6 MM AL 722818
4 WIRE GUIDE HOSE D. 1,6-2 MM 3 M AL 722597
4 WIRE GUIDE HOSE D. 1-1,2 MM 3 M 722689
4 WIRE GUIDE HOSE D. 0,6-0,8 MM 3 M 722437
4 WIRE GUIDE HOSE D. 1-1,2 MM 3 M 742164
5 TORCH ASSY 722441
6 THIN HEADED NOZZLE 722793
6 CONICAL NOZZLE 722792
6 SPOT WELDING NOZZLE 722794
7 WIRE GUIDE LOCKING NIPPLES 722599
7 WIRE GUIDE LOCKING NIPPLES 722598
8 WIRE GUIDE LOCKING TUBE 722600
9 OR RING 722606
9 OR RING 722601
12 SWAN NECK 722788
13 CONTACT TIP HOLDER 722789
14 TORCH CONNECTION 742175
15 GAS DIFFUSER 722791
16 TORCH RING NUT 742171
17 TORCH HOLDER + SPRING 742173
18 TORCH SPRING 742174
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Telwin websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Telwin brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Telwin Supermig 480 - 822044
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:
TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS

Specific References

New

Download

Telwin Supermig 480 Drawing

Telwin Supermig 480 Drawing

Download (665.86KB)

You might also like

Thermostat for Welding Machines Telwin
Telwin s.p.a. SKU: 121258
Thermostat for Welding Machines Telwin
Thermostat for Welding Machines Telwin Genuine spare Telwin, thermostat for arc and wire Welding Machines. Part for the following items: - MODERNA 150 230V ACD cod. 809200 - NORDICA 4181 TURBO 230V ACD cod.814104 - NORDICA 2160 230...
AVAILABLE €6.82
Details
Capillary Pipe for Welders Telwin Mastermig-Supermig
Telwin s.p.a. SKU: 722358
Capillary Pipe for Welders Telwin Mastermig-Supermig
Capillary Pipe for Welders Telwin Mastermig-Supermig Genuine spare part Telwin, Capillary Pipe Diameter mm 2X5 - Lenght 122 mm, for welders Telwin, Mastermig - Supermig - Digital Supermig - Mastermig - Technomig.
AVAILABLE €8.21
Details
Potentiometer for Welders Telwin BIMAX-TELMIG-SUPERMIG
Telwin s.p.a. SKU: 113574
Potentiometer for Welders Telwin BIMAX-TELMIG-SUPERMIG
Potentiometer for Welders Telwin BIMAX-TELMIG-SUPERMIG Original part Telwin, Potentiometer for welders Telwin, BIMAX 182 - TELMIG 195/2 -200/2-180/2-251-281/2 - SUPERMIG 380. For the following items: - TELMIG 195/2 TURBO 230-400V...
AVAILABLE €9.17
Details
Rectifier for Weldings Telwin Mastermig-Supermig
Telwin s.p.a. SKU: 112131
Rectifier for Weldings Telwin Mastermig-Supermig
Rectifier for Weldings Telwin Mastermig-Supermig Original replacement part Telwin, Rectifier for  Weldings Telwin, Mastermig - Supermig - Digital Supermig. Part for the following items: -  SUPERMIG 380 230-400V cod. 822043 -...
Last items in stock €91.52
Details
Protection Rectifier for Welding Telwin Linear-Mastermig
Telwin s.p.a. SKU: 112182
Protection Rectifier for Welding Telwin Linear-Mastermig
Protection Rectifier for Welding Telwin Linear-Mastermig Genuine spare Telwin, spare Telwin, Protection Rectifier - Varistor 150 VAC 6500 A for welding Telwin, LINEAR 220 230-400V - LINEAR 280 230-400V - MASTERMIG 220/2 230-400V -...
AVAILABLE €4.03
Details
Potentiometer for Welders Telwin SUPERMIG 380 230-400V
Telwin s.p.a. SKU: 116411
Potentiometer for Welders Telwin SUPERMIG 380 230-400V
Potentiometer for Welders Telwin SUPERMIG 380 230-400V Original part Telwin, Potentiometer for welders Telwin, SUPERMIG 380 230-400V cod.822043 For the following items: - SUPERMIG 380 230-400V cod.822043 Technical data: - Pot. Carb....
AVAILABLE €6.82
Details
Torches Spring for Torches Telwin MIG-MAG-TIG-Plasma
Telwin s.p.a. SKU: 742174
Torch Spring for Torches Telwin MIG-MAG
Torch Spring for Torches Telwin MIG-MAG Genuine replacement part TELWIN, Cable reinforced Spring for Torches MIG - MAG. Part for the following products: - Torch MASTERMIG 300 230-400V - Torch MASTERMIG 270/2 230-400V - Torch...
AVAILABLE €5.42
Details
Torch Ring Nut for Torches Telwin MIG-MAG-TIG-Plasma
Telwin s.p.a. SKU: 722007
Torch Ring Nut for Torches Telwin MIG-MAG
Torch Ring Nut for Torches Telwin MIG-MAG Genuine part TELWIN, Body Torch Ring Nut for Torches MIG - MAG. Parts for the following products: - Torch MASTERMIG 300 230-400V - Torch MASTERMIG 270/2 230-400V - Torch MASTERMIG 400 230-400V...
AVAILABLE €9.91
Details
Torch Body for Torches Telwin MIG-MAG
Telwin s.p.a. SKU: 722441
Torch Body for Torches Telwin MIG-MAG
Torch Body for Torches Telwin MIG-MAG Genuine part TELWIN, Torch Body for Torches MIG - MAG. Parts for the following products: - Torch MASTERMIG 300 230-400V - Torch MASTERMIG 270/2 230-400V - Torch MASTERMIG 400 230-400V - Torch...
AVAILABLE €26.35
Details
Sleeve Lock Nipples for Torches Telwin MIG-MAG
Telwin s.p.a. SKU: 722598
Sleeve Lock Nipples for Torches Telwin MIG-MAG
Sleeve Lock Nipples for Torches Telwin MIG-MAG Genuine part TELWIN, Sleeve Lock Nipples for Torches MIG - MAG. Parts for the following products: - Torch MASTERMIG 300 230-400V - Torch MASTERMIG 270/2 230-400V - Torch MASTERMIG 400...
AVAILABLE €4.14
Details
Sleeve Lock Nut for Torches Telwin MIG-MAG
Telwin s.p.a. SKU: 722013
Sleeve Lock Nut for Torches Telwin MIG-MAG
Sleeve Lock Nut for Torches Telwin MIG-MAG Genuine part TELWIN, Sleeve Lock Nut for Torches MIG - MAG. Parts for the following products: - MASTERMIG 300 230-400V cod. 827003 - MASTERMIG 220/2 230-400V - MASTERMIG 270/2 230-400V -...
AVAILABLE €3.92
Details
Sleeve Lock Hose for Torches Telwin MIG-MAG
Telwin s.p.a. SKU: 722600
Sleeve Lock Hose for Torches Telwin MIG-MAG
Sleeve Lock Hose for Torches Telwin MIG-MAG Genuine part TELWIN, Sleeve Lock Hose for Torches MIG - MAG. Parts for the following products: - MASTERMIG 300 230-400V - MASTERMIG 270/2 230-400V - MASTERMIG 400 230-400V - SUPERMIG 380...
AVAILABLE €21.27
Details
Liner Wire Conduit mm 0.6-0.8 for Torches Telwin MIG-MAG
Telwin s.p.a. SKU: 722437
Liner Wire Conduit mm 0.6-0.8 for Torches Telwin MIG-MAG
Liner Wire Conduit mm 0.6-0.8 for Torches Telwin MIG-MAG Genuine part TELWIN, Liner Wire Conduit Diameter mm 0.6-0.8 length 3.4 mt for Torches MIG - MAG. Parts for the following products: - MASTERMIG 300 230-400V - MASTERMIG 270/2...
AVAILABLE €9.91
Details
Wire Guide Sleeve mm 1.0-1.2 for Torches Telwin MIG-MAG
Telwin s.p.a. SKU: 722689
Liner Wire Conduit mm 1.0-1.2 for Torches Telwin MIG-MAG
Liner Wire Conduit mm 1.0-1.2 for Torches Telwin MIG-MAG Genuine part TELWIN, Liner Wire Conduit Diameter mm 1.0-1.2 length 3.4 mt for Torches MIG - MAG. Parts for the following products: - MASTERMIG 300 230-400V - MASTERMIG 270/2...
AVAILABLE €9.91
Details
Front Wire Guide for Welding Telwin SUPERMIG-MASTERMIG
Telwin s.p.a. SKU: 742064
Front Wire Guide for Welding Telwin SUPERMIG-MASTERMIG
Front Wire Guide for Welding Telwin SUPERMIG-MASTERMIG Original part Telwin, Front Wire Guide for welding Machines, MASTERMIG 220-270-300-400 / 2 - SUPERMIG 380-480-580 - DIGITAL MIG 220-222-330 - INVERPULSE 320-425-625. Part for the...
Last items in stock €8.21
Details
Fan Motor for Welding Telwin Linear-Mastermig-Supermig
Telwin s.p.a. SKU: 152083
Fan Motor for Welding Telwin Linear-Mastermig-Supermig
Fan Motor for Welding Telwin Linear-Mastermig-Supermig Original part Telwin, fan motor for Telwin welding machines, LINEAR 220-280-300-340-410-430-530-630 - MASTERMIG 270/2-300-400 - SUPERMIG 380-480-580. Part For the following...
AVAILABLE €78.00
Details
Cooler Fan for Welding Telwin Linear-Mastermig-Supermig
Telwin s.p.a. SKU: 152113
Cooler Fan for Welding Telwin Linear-Mastermig-Supermig
Cooler Fan for Welding Telwin Linear-Mastermig-Supermig Original part Telwin, Cooler Fan for Telwin welding machines, LINEAR 220-280-300-340-410 - MASTERMIG 270/2-300-400 - SUPERMIG 380-480-580 - DIGITAL MIG 330. Part For the...
Last items in stock €13.79
Details
Potentiometer Big Knob for Inverter Telwin
Telwin s.p.a. SKU: 121424
Potentiometer Big Knob for Inverter Telwin
Potentiometer Big Knob for Inverter Telwin Genuine part Telwin, Potentiometer Big Knob for welding inverters, BIMAX 4.135-4.165-4.195-132-152-162-182 - TELMIG 150/1-170/1-180/2-183/2-195/2-200/2-203/2-250/2. Part for the following...
AVAILABLE €0.81
Details
Reel Kit for Welding Telwin MASTERMIG-DIGITAL MIG
Telwin s.p.a. SKU: 990264
Reel Kit for Welding Telwin MASTERMIG-DIGITAL MIG
Reel Kit for Welding Telwin MASTERMIG-DIGITAL MIG Original parts Telwin, Reel Kit for Welding Telwin MASTERMIG 220/2 - 270/2 - 300 - 400 - 232 DUPLEX - DIGITAL MIG 180 - 220 - 330 - 222 TWIN...
Last items in stock €18.45
Details
Dipswitch 25A for Welding Telwin Supermig-Mastermig
Telwin s.p.a. SKU: 121514
Dipswitch 25A for Welding Telwin Supermig-Mastermig
Dipswitch 25A for Welding Telwin Supermig-Mastermig Genuine spare part Telwin, Dipswitch 25A for Welding Machines Telwin SUPERMIG 380 230-400V cod. 822043 - MASTERMIG 400 230-400V cod. 827004 Part for the following...
AVAILABLE €31.72
Details
Swan Neck for Welding Machines Telwin Mastermig 400
Telwin s.p.a. SKU: 722788
Swan Neck for Welding Machines Telwin Mastermig 400
Swan Neck for Welding Machines Telwin Mastermig 400 Genuine part Telwin, Swan Neck for Weldering Machines Telwin DIGITAL SUPERMIG 490 230-400V Synergic - INVERPULSE 320 MIG/TIG/MMA 400V - Mastermig 400 - 827004 - Supermig 380 - 822043...
AVAILABLE €98.16
Details
Motor Drive Gear for Welding Inverter SUPERMIG 480 - 580
Telwin s.p.a. SKU: 742155
Motor Drive Gear for Welding Inverter SUPERMIG 480 - 580
Motor Drive Gear  for Welding Inverter SUPERMIG 480 - 580 Original replacement part Telwin, Motor Drive Gear  for  Welding   Inverter  SUPERMIG 480 - 580 - DIGITAL SUPERMIG 490 - 610 - INVERPULSE 425 - 625. Part for the...
Last items in stock €23.37
Details
Yellow Pilot Lamp for Welding Machines Telwin Telmig-Mastermig
Telwin s.p.a. SKU: 122594
Yellow Pilot Lamp for Welding Machines Telwin Telmig-Mastermig
Yellow Pilot Lamp for Welding Machines Telwin Telmig-Mastermig Original replacement part Telwin, Yellow Pilot Lamp 24 V, for Welding Machines Mastermig 220 - Telmig 183/2 - Telmig 203/2 Turbo - Telmig 250/2 Turbo - Supermig 580. Part...
AVAILABLE €2.03
Details
Roller Fixing Screw for Welding Machines Telwin
Telwin s.p.a. SKU: 742397
Roller Fixing Screw for Welding Machines Telwin
Roller Fixing Screw for Welding Machines Telwin Genuine spare part Telwin, Roller Fixing Screw for Welding Machines Mastermig - Supermig - DIGITAL SUPERMIG - INVERPULSE. - Part for the following products: -  Mastermig 220/2 -...
AVAILABLE €1.29
Details
AC Contactor for Welding Machine Telwin MASTERMIG 400
Telwin s.p.a. SKU: 121214
AC Contactor for Welding Machine Telwin MASTERMIG 400
AC Contactor for Welding Machine Telwin MASTERMIG 400 Original spare Telwin, AC Contactor 3SC8-3210 - 3NO+1NO - 24V 50/60 HZ for Mastermig 400 - Mastermig 500 - Supermig 480 Part for the...
Usually Ships in: 7/10 Business Days Approx. €47.63
Details
Thin Head Nozzle for Inverter Telwin Digital Supermig 490
Telwin s.p.a. SKU: 722793
Thin Head Nozzle for Inverter Telwin Digital Supermig 490
Thin Head Nozzle for Inverter Telwin Digital Supermig 490 Genuine part TELWIN, Thin Head Nozzle for Inverter DIGITAL SUPERMIG 490 - INVERPULSE 320 - Mastermig 400 - Supermig 380 - 480. Part fort he following products: -  DIGITAL...
AVAILABLE €20.15
Details
Telwin Supermig 580 Kit Thermostat
Telwin s.p.a. SKU: 981968 ex 122132
Telwin Supermig 580 Kit Thermostat
Telwin Welding Supermig 580 Kit Thermostat Genuine part Telwin, Kit Thermostat for Supermig 580 - SUPERMIG 490 Synergic. Part for the following products: -  Supermig 580 - 822045 -  Supermig...
Last items in stock €8.96
Details
Comments (0)
