Telwin s.p.a.

Telwin Spare Parts for Flux Welding Supermig 380

SKU: Supermig 380 - 822043
€91.59
VAT included

Telwin Spare Parts for Flux Welding Supermig 380

TELWIN Authorized Technical Assistance, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for welding machine Flux and Mig-mag Supermig 380 - 822048.

Supermig 380 - 822043
Telwin Spare Parts for Flux Welding Supermig 380
  • Telwin Spare Parts for Flux Welding Supermig 380
  • Telwin Spare Parts for Flux Welding Supermig 380 - Diagram
  • Telwin Spare Parts for Flux Welding Supermig 380 - Torch Diagram
Telwin s.p.a.

Telwin Spare Parts for Flux Welding Supermig 380

SKU: Supermig 380 - 822043 Condition: New
€91.59
VAT included

Telwin Spare Parts for Flux Welding Supermig 380

TELWIN Authorized Technical Assistance, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for welding machine Flux and Mig-mag Supermig 380 - 822048.

Supermig 380 - 822043
settings 116 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:: TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
109 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

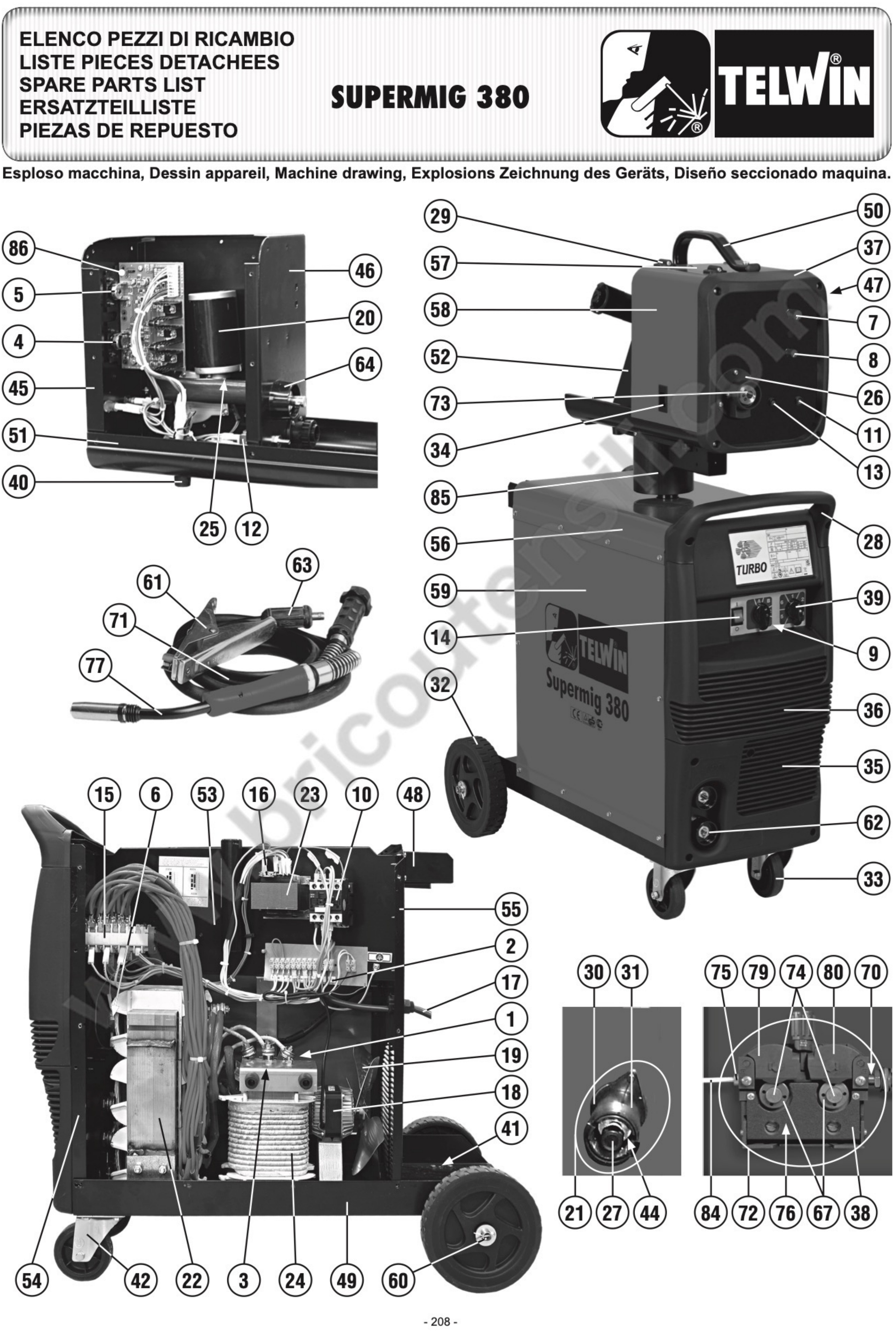

Esploso pagina 1
Pos. Item Price Buy
10
 AC Contactor for Inverter Telwin MASTERMIG 300-SUPERMIG 380 122585 AC Contactor for Inverter Telwin MASTERMIG 300-SUPERMIG 380 €27.74
11
 Yellow Pilot Lamp for Welding Machines Telwin Telmig-Mastermig 122594 Yellow Pilot Lamp for Welding Machines Telwin Telmig-Mastermig €2.03
19
 Cooler Fan for Welding Telwin Linear-Mastermig-Supermig 152113 Cooler Fan for Welding Telwin Linear-Mastermig-Supermig €13.79
20
 photo_cameraImage coming soon 153033 WIRE FEED MOTOR €49.91
21
 Reel Kit for Welding Telwin MASTERMIG-DIGITAL MIG 990264 Reel Kit for Welding Telwin MASTERMIG-DIGITAL MIG €18.45
22
 photo_cameraImage coming soon 164312 TRANSFORMER €589.07
23
 Auxiliary Power Adapter for Welder Telwin Mastermig-Digital Mig 164991 Auxiliary Power Adapter for Welder Telwin Mastermig-Digital Mig €72.29
24
 photo_cameraImage coming soon 169426 REACTOR €128.96
26
 Connection Protection Torch for Welders Telwin Mastermig-Supermig 312105 Connection Protection Torch for Welders Telwin Mastermig-Supermig €11.14
27
 Reel Kit Handbill for Welding Telwin MASTERMIG-DIGITAL MIG 312137 Reel Kit Handbill for Welding Telwin MASTERMIG-DIGITAL MIG €16.94
28
 photo_cameraImage coming soon 312328 HANDLE €12.03
30
 photo_cameraImage coming soon 322081 REEL €16.47
31
 Aspo Spacer Sleeve for Welding Telwin MASTERMIG 322180 Aspo Spacer Sleeve for Welding Telwin MASTERMIG €3.31
32
 Wheel D.200x45 mm for Inverter Welding Telwin 322200 Wheel D.200x45 mm for Inverter Welding Telwin €18.29
33
 photo_cameraImage coming soon 322246 WHEEL €3.64
34
 photo_cameraImage coming soon 322487 SLIDING SHUTTER €9.74
35
 photo_cameraImage coming soon 322639 LOWER SIDE FRAME €12.21
36
 photo_cameraImage coming soon 322642 UPPER FRONT PANEL €18.81
37
 photo_cameraImage coming soon 322648 FRAME €5.92
38
 photo_cameraImage coming soon 322814 CYLINDER €71.68
39
 Dipswitch Knob for Welding Telwin 323101 Dipswitch Knob for Welding Telwin €2.56
40
 photo_cameraImage coming soon 323001 FOOT €2.39
42
 photo_cameraImage coming soon 422969 SWIVEL SUPPORT €7.17
43
 Throwaway Argon + CO₂ ITA-USA Gas Bottle Adaptor Telwin 432036 432036 Throwaway Argon + CO₂ ITA-USA Gas Bottle Adaptor Telwin 432036 €10.50
44
 Reel Spring for Welding Telwin MASTERMIG 452057 Reel Spring for Welding Telwin MASTERMIG €2.61
45
 photo_cameraImage coming soon 642053 FRONT PANEL €12.51
46
 photo_cameraImage coming soon 642054 BACK PANEL €16.66
47
 photo_cameraImage coming soon 644444 TORCH HOOK €6.00
48
 photo_cameraImage coming soon 644606 BRACKET FOR BOTTLE €11.45
49
 photo_cameraImage coming soon 644996 BOTTOM €33.19
50
 photo_cameraImage coming soon 645153 HANDLE €11.65
51
 photo_cameraImage coming soon 645154 BOTTOM €17.14
52
 photo_cameraImage coming soon 645157 BRAKET €15.93
53
 photo_cameraImage coming soon 645409 DIAPHRAGM €41.96
54
 photo_cameraImage coming soon 642164 FRONT PANEL €19.52
55
 photo_cameraImage coming soon 645411 BACK PANEL €17.69
56
 photo_cameraImage coming soon 651049 COVER €15.44
57
 photo_cameraImage coming soon 655411 COVER €10.94
58
 photo_cameraImage coming soon 655412 DOOR €7.32
59
 photo_cameraImage coming soon 655984 SIDE PANEL €20.05
60
 Fixed Wheel D.175MM Axle for Telwin Welding Machines 681092 Fixed Wheel D.175MM Axle for Telwin Welding Machines €10.49
61
 photo_cameraImage coming soon 712032 TOLEDO 400 WORK CLAMP €8.98
62
 Socket DX 50 for Telwin Welding Machine 712036 Socket DX 50 for Telwin Welding Machine €5.29
63
 Plug DX 50 for Telwin Welding Machine 712040 Plug DX 50 for Telwin Welding Machine €6.16
64
 photo_cameraImage coming soon 712112 PLUG €14.47
65
 photo_cameraImage coming soon 712114 PLUG DX 50 €8.98
66
 Feed Roll For wire mm 0,6/0,8 FE for Flux Welding Telwin 722225 Feed Roll For wire mm 0,6/0,8 FE for Flux Welding Telwin €13.93
67
 Feed Roll For wire mm 0,8/1,0 FE for Flux Welding Telwin 722227 Feed Roll For wire mm 0,8/1,0 FE for Flux Welding Telwin €19.49
68
 Feed Roll mm 1,2/1,6 FE for Flux Welding Telwin 722241 Feed Roll mm 1,2/1,6 FE for Flux Welding Telwin €15.31
69
 Telwin Gas Regulators for Refilable Bottles 722346 Telwin Gas Regulators for Refilable Bottles €95.37
70
 Capillary Pipe for Welders Telwin Mastermig-Supermig 722358 Capillary Pipe for Welders Telwin Mastermig-Supermig €8.21
71
 Earth Clamp with Cable (35mm² 3 mt DX50) Telwin 723030 723030 Earth Clamp with Cable (35mm² 3 mt DX50) Telwin 723030 €71.61
72
 photo_cameraImage coming soon 723198 WIRE FEED ASSY €138.20
73
 photo_cameraImage coming soon 980097 TORCH CONNECTION KIT €46.15
74
 Roller Fixing Screw for Welding Machines Telwin 742397 Roller Fixing Screw for Welding Machines Telwin €1.29
75
 Front Wire Guide for Welding Telwin SUPERMIG-MASTERMIG 742064 Front Wire Guide for Welding Telwin SUPERMIG-MASTERMIG €8.21
76
 photo_cameraImage coming soon 742166 ADAPTER €19.76
77
 Torch MIG MT 36 3 M 400 A for Weldings Telwin SUPERMIG-MASTERMIG 742186 Torch MIG MT 36 3 M 400 A for Weldings Telwin SUPERMIG-MASTERMIG €211.13
78
 photo_cameraImage coming soon 742304 FEED ROLL D. 0,8-1 AL €22.82
79
 photo_cameraImage coming soon 742307 LEFT ANCHOR FOR PRESSURE ROLLER €37.53
80
 photo_cameraImage coming soon 742308 RIGHT ANCHOR FOR PRESSURE ROLLER €37.53
81
 photo_cameraImage coming soon 742348 MOTOR DRIVE GEAR €37.76
82
 Feed Roll mm 1,0/1,2 FE for Flux Welding Telwin 742366 Feed Roll mm 1,0/1,2 FE for Flux Welding Telwin €13.68
83
 photo_cameraImage coming soon 742495 GEAR €31.46
84
 Gas Hose Kit for Inverter Telwin MIG-MAG 990097 Gas Hose Kit for Inverter Telwin MIG-MAG €6.90
85
 photo_cameraImage coming soon 980124 KIT SWIVEL SUPPORT €53.52
86
 Timer Control Board Kit for Inverter Telwin Mastermig-Supermig 980714 Timer Control Board Kit for Inverter Telwin Mastermig-Supermig €79.90
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

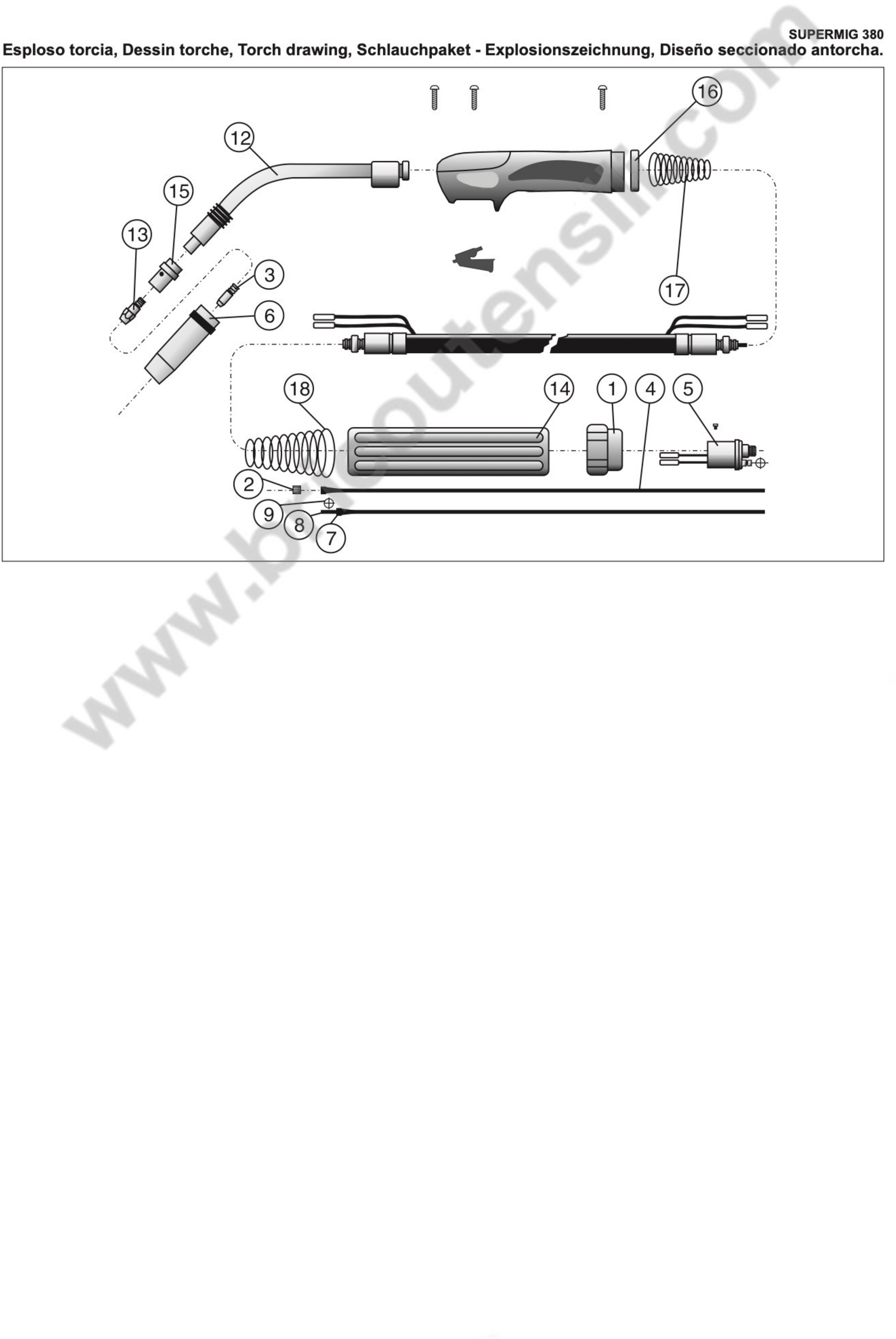

Esploso pagina 2
Pos. Item Price Buy
1
 Rectifier for Weldings Telwin Mastermig-Supermig 112131 Rectifier for Weldings Telwin Mastermig-Supermig €91.52
1
 Torch Ring Nut for Torches Telwin MIG-MAG 722007 Torch Ring Nut for Torches Telwin MIG-MAG €9.91
2
 photo_cameraImage coming soon 112165 CHANGING VOLTAGE CARD €7.29
2
 Sleeve Lock Nut for Torches Telwin MIG-MAG 722013 Sleeve Lock Nut for Torches Telwin MIG-MAG €3.92
3
 Protection Rectifier for Welding Telwin Linear-Mastermig 112182 Protection Rectifier for Welding Telwin Linear-Mastermig €4.03
3
 Contact Nozzle mm 0,6X25 for Wire Weldings Telwin 722415 Contact Nozzle mm 0,6X25 for Wire Weldings Telwin €1.59
3
 Contact Nozzle mm 1,0X25 for Wire Weldings Telwin 722552 Contact Nozzle mm 1,0X25 for Wire Weldings Telwin €1.85
3
 Contact Nozzle D. 1,2 MM AL/FLUX for Inverter Telwin Mastermig 270 722553 Contact Nozzle D. 1,2 MM AL/FLUX for Inverter Telwin Mastermig 270 €1.92
3
 Contact Nozzle mm 0,8x28 for Wire Welding Telwin 722680 Contact Nozzle mm 0,8x28 for Wire Welding Telwin €2.06
3
 Contact Nozzle mm 1,0x28 for Wire Welding Telwin 722681 Contact Nozzle mm 1,0x28 for Wire Welding Telwin €2.06
3
 Contact Nozzle mm 1,2x28 for Wire Welding Telwin 722682 Contact Nozzle mm 1,2x28 for Wire Welding Telwin €2.06
3
 Contact Nozzle for Wire Weldings Telwin Mastermig-Supermig 722797 Contact Nozzle for Wire Weldings Telwin Mastermig-Supermig €1.59
3
 photo_cameraImage coming soon 722818 CONTACT TIP D. 1,6 MM AL €1.49
4
 Potentiometer for Welders Telwin BIMAX-TELMIG-SUPERMIG 113574 Potentiometer for Welders Telwin BIMAX-TELMIG-SUPERMIG €9.17
4
 Liner Wire Conduit mm 0.6-0.8 for Torches Telwin MIG-MAG 722437 Liner Wire Conduit mm 0.6-0.8 for Torches Telwin MIG-MAG €9.91
4
 photo_cameraImage coming soon 722597 WIRE GUIDE HOSE D. 1,6-2 MM 3 M AL €42.82
4
 Liner Wire Conduit mm 1.0-1.2 for Torches Telwin MIG-MAG 722689 Liner Wire Conduit mm 1.0-1.2 for Torches Telwin MIG-MAG €9.91
4
 photo_cameraImage coming soon 742164 WIRE GUIDE HOSE D. 1-1,2 MM 3 M €72.81
5
 Potentiometer for Welders Telwin SUPERMIG 380 230-400V 116411 Potentiometer for Welders Telwin SUPERMIG 380 230-400V €6.82
5
 Torch Body for Torches Telwin MIG-MAG 722441 Torch Body for Torches Telwin MIG-MAG €26.35
6
 Thermostat for Welding Machines Telwin 121258 Thermostat for Welding Machines Telwin €6.82
6
 Conical Nozzle mm 16 for Wire Weldings Telwin SUPERMIG 380-480 722792 Conical Nozzle mm 16 for Wire Weldings Telwin SUPERMIG 380-480 €11.14
6
 Thin Head Nozzle for Inverter Telwin Digital Supermig 490 722793 Thin Head Nozzle for Inverter Telwin Digital Supermig 490 €20.15
6
 photo_cameraImage coming soon 722794 SPOT WELDING NOZZLE €21.33
7
 Potentiometer Knob for Inverter Telwin Mastermig 232 Duplex 121394 Potentiometer Knob for Inverter Telwin Mastermig 232 Duplex €0.40
7
 Sleeve Lock Nipples for Torches Telwin MIG-MAG 722598 Sleeve Lock Nipples for Torches Telwin MIG-MAG €4.14
7
 photo_cameraImage coming soon 722599 WIRE GUIDE LOCKING NIPPLES €4.72
8
 Small knob for Inverter Telwin 121395 Small knob for Inverter Telwin €0.61
8
 Sleeve Lock Hose for Torches Telwin MIG-MAG 722600 Sleeve Lock Hose for Torches Telwin MIG-MAG €21.27
9
 Dipswitch 25A for Welding Telwin Supermig-Mastermig 121514 Dipswitch 25A for Welding Telwin Supermig-Mastermig €31.72
12
 Electrovalve for Inverter Telwin Mastermig-Supermig-Inverpulse 122682 Electrovalve for Inverter Telwin Mastermig-Supermig-Inverpulse €20.15
12
 Swan Neck for Welding Machines Telwin Mastermig 400 722788 Swan Neck for Welding Machines Telwin Mastermig 400 €98.16
13
 photo_cameraImage coming soon 122709 LAMP €1.39
13
 Holder for Contact Tip for Flux Welding Machine Telwin 722789 Holder for Contact Tip for Flux Welding Machine Telwin €6.26
14
 Green Switch for Inverter Telwin Mastermig 220-270-300-400 122725 Green Switch for Inverter Telwin Mastermig 220-270-300-400 €2.63
14
 photo_cameraImage coming soon 742175 TORCH CONNECTION €13.98
15
 photo_cameraImage coming soon 122802 SWITCH €45.81
15
 Gas Diffuser for Inverter Telwin SUPERMIG 380 - 480 722791 Gas Diffuser for Inverter Telwin SUPERMIG 380 - 480 €4.89
16
 Handle Torch Ring for Torches Telwin Telmig 150/1 - 183/2 742171 Handle Torch Ring for Torches Telwin Telmig 150/1 - 183/2 €1.34
17
 photo_cameraImage coming soon 132244 MAINS CABLE 4G2.5 2 M €11.24
18
 Fan Motor for Welding Telwin Linear-Mastermig-Supermig 152083 Fan Motor for Welding Telwin Linear-Mastermig-Supermig €78.00
18
 Torch Spring for Torches Telwin MIG-MAG 742174 Torch Spring for Torches Telwin MIG-MAG €5.42

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Telwin Spare Parts for Flux Welding Supermig 380

TELWIN Authorized Technical Assistance, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for welding machine Flux and Mig-mag Supermig 380 - 822048.

In the following table, look for the model of the Welding machine and theirs spare parts codes.
Supermig 380 - 822043

SUPERMIG 380 230-400V key 822048 Pag.1
# Description
Part Num.
1 RECTIFIER 112131
2 CHANGING VOLTAGE CARD
112165
3 RECTIFIER PROTECTION
112182
4 POTENTIOMETER
113574
5 POTENTIOMETER
116411
6 THERMOSTAT SOST 121715
121258
7 KNOB
8 KNOB
121395
9 SWITCH
121514
10 CONTACTOR
122585
11 YELLOW PILOT LAMP
122594
12 ELECTRO-VALVE
122682
13 LAMP
122709
14 SWITCH
122725
15 SWITCH
122802
16 FUSE
122879
17 MAINS CABLE 4G2.5 2 M
132244
18 MOTOR 152083
19 FAN BLADE
152113
20 WIRE FEED MOTOR
153033
21 REEL KIT
990264
22 TRANSFORMER
164312
23 AUXILIARY TRANSFORMER
164991
24 REACTANCE
169426
25 WOODRUFF KEYS
232128
26 TORCH CONNECTION PROTECTION
312105
27 REEL HANDWHEEL
312137
28 HANDLE
312328
29 HINGE SET
312382
30 REEL
322081
31 SPACER
322180
32 FIXED WHEEL
322200
33 WHEEL
322246
34 SLIDING SHUTTER
322487
35 LOWER SIDE FRAME
322639
36 UPPER FRONT PANEL
322642
37 FRAME
322648
38 COVER
322814
39 SWITCH KNOB SET
323101
40 FOOT
323001
41 SUPPORT
422817
42 SWIVEL SUPPORT
422969
43 ARGON GAS BOTTLE IT ADAPTOR
432036
44 REEL SPRING
452057
45 FRONT PANEL
642053
46 BACK PANEL
642054
47 TORCH HOOK
644444
48 BRACKET FOR BOTTLE
644606
49 BOTTOM
644996
50 HANDLE
645153
51 BOTTOM
645154
52 BRAKET
645157
53 DIAPHRAGM
645409
54 FRONT PANEL
642164
55 BACK PANEL
645411
56 COVER
651049
57 COVER
655411
58 DOOR
655412
59 SIDE PANEL
655984
60 WHEELS AXLE
681092
61 TOLEDO 400 WORK CLAMP
712032
62 SOCKET DX 50 712036
63 PLUG DX 50 712040
64 PLUG
712112
65 PLUG DX 50
712114
66 FEED ROLL D. 0,6-0,8 MM FE
722225
67 FEED ROLL D. 0,8-1 MM FE
722227
68 FEED ROLL D. 1,2-1,6 MM FE
722241
69 GAS REGULATOR 2 MANOMETERS
722346
70 WIRE CONDUIT Ø 2X5
722358
71 CABLE 35 MMQ 3 M WORK CLAMP DX50 723030
72 WIRE FEED ASSY
723198
73 TORCH CONNECTION KIT
980097
74 ROLLERFIXING SCREW
75 WIRE GUIDE INLET
742064
76 ADAPTER
742166
77 MT36 MIG TORCH 3 M 400 A
742186
78 FEED ROLL D. 0,8-1 AL
742304
79 LEFT ANCHOR FOR PRESSURE ROLLER
742307
80 RIGHT ANCHOR FOR PRESSURE ROLLER
742308
81 MOTOR DRIVE GEAR
742348
82 FEED ROLL D. 1-1,2 MM FE
742366
83 GEAR
742495
84 GAS HOSE KIT
990097
85 KIT SWIVEL SUPPORT
980124
86 TIMER CONTROL PCB KIT 980714
Torch SUPERMIG 380 230-400V Pag.2
1 RING NUT 722007
2 LINER NUT 722013
3 CONTACT TIP D. 1,2 MM AL/FLUX 722553
3 CONTACT TIP D. 1 MM FE 722681
3 CONTACT TIP D. 1 MM AL/FLUX 722552
3 CONTACT TIP D. 1,2 MM FE 722682
3 CONTACT TIP D. 1,6 MM FE 722797
3 CONTACT TIP D. 0,6 MM FE 722415
3 CONTACT TIP D. 0,8 MM FE 722680
3 CONTACT TIP D. 1,6 MM AL 722818
4 WIRE GUIDE HOSE D. 1,6-2 MM 3 M AL 722597
4 WIRE GUIDE HOSE D. 1-1,2 MM 3 M 722689
4 WIRE GUIDE HOSE D. 0,6-0,8 MM 3 M 722437
4 WIRE GUIDE HOSE D. 1-1,2 MM 3 M 742164
5 TORCH ASSY 722441
6 THIN HEADED NOZZLE 722793
6 CONICAL NOZZLE 722792
6 SPOT WELDING NOZZLE 722794
7 WIRE GUIDE LOCKING NIPPLES 722599
7 WIRE GUIDE LOCKING NIPPLES 722598
8 WIRE GUIDE LOCKING TUBE 722600
9 OR RING 722606
9 OR RING 722601
12 SWAN NECK 722788
13 CONTACT TIP HOLDER 722789
14 TORCH CONNECTION 742175
15 GAS DIFFUSER 722791
16 TORCH RING NUT 742171
17 TORCH HOLDER + SPRING 742173
18 TORCH SPRING 742174

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Telwin websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Telwin brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

Supermig 380 - 822043
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:
TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS

Specific References

New

Download

Telwin Supermig 380 Diagram

Telwin Supermig 380 Diagram

Download (640.56KB)

You might also like

Thermostat for Welding Machines Telwin
Telwin s.p.a. SKU: 121258
Thermostat for Welding Machines Telwin
Thermostat for Welding Machines Telwin Genuine spare Telwin, thermostat for arc and wire Welding Machines. Part for the following items: - MODERNA 150 230V ACD cod. 809200 - NORDICA 4181 TURBO 230V ACD cod.814104 - NORDICA 2160 230...
AVAILABLE €6.82
Details
Capillary Pipe for Welders Telwin Mastermig-Supermig
Telwin s.p.a. SKU: 722358
Capillary Pipe for Welders Telwin Mastermig-Supermig
Capillary Pipe for Welders Telwin Mastermig-Supermig Genuine spare part Telwin, Capillary Pipe Diameter mm 2X5 - Lenght 122 mm, for welders Telwin, Mastermig - Supermig - Digital Supermig - Mastermig - Technomig.
AVAILABLE €8.21
Details
Potentiometer for Welders Telwin BIMAX-TELMIG-SUPERMIG
Telwin s.p.a. SKU: 113574
Potentiometer for Welders Telwin BIMAX-TELMIG-SUPERMIG
Potentiometer for Welders Telwin BIMAX-TELMIG-SUPERMIG Original part Telwin, Potentiometer for welders Telwin, BIMAX 182 - TELMIG 195/2 -200/2-180/2-251-281/2 - SUPERMIG 380. For the following items: - TELMIG 195/2 TURBO 230-400V...
AVAILABLE €9.17
Details
Rectifier for Weldings Telwin Mastermig-Supermig
Telwin s.p.a. SKU: 112131
Rectifier for Weldings Telwin Mastermig-Supermig
Rectifier for Weldings Telwin Mastermig-Supermig Original replacement part Telwin, Rectifier for  Weldings Telwin, Mastermig - Supermig - Digital Supermig. Part for the following items: -  SUPERMIG 380 230-400V cod. 822043 -...
Last items in stock €91.52
Details
Protection Rectifier for Welding Telwin Linear-Mastermig
Telwin s.p.a. SKU: 112182
Protection Rectifier for Welding Telwin Linear-Mastermig
Protection Rectifier for Welding Telwin Linear-Mastermig Genuine spare Telwin, spare Telwin, Protection Rectifier - Varistor 150 VAC 6500 A for welding Telwin, LINEAR 220 230-400V - LINEAR 280 230-400V - MASTERMIG 220/2 230-400V -...
AVAILABLE €4.03
Details
Potentiometer for Welders Telwin SUPERMIG 380 230-400V
Telwin s.p.a. SKU: 116411
Potentiometer for Welders Telwin SUPERMIG 380 230-400V
Potentiometer for Welders Telwin SUPERMIG 380 230-400V Original part Telwin, Potentiometer for welders Telwin, SUPERMIG 380 230-400V cod.822043 For the following items: - SUPERMIG 380 230-400V cod.822043 Technical data: - Pot. Carb....
AVAILABLE €6.82
Details
Torches Spring for Torches Telwin MIG-MAG-TIG-Plasma
Telwin s.p.a. SKU: 742174
Torch Spring for Torches Telwin MIG-MAG
Torch Spring for Torches Telwin MIG-MAG Genuine replacement part TELWIN, Cable reinforced Spring for Torches MIG - MAG. Part for the following products: - Torch MASTERMIG 300 230-400V - Torch MASTERMIG 270/2 230-400V - Torch...
AVAILABLE €5.42
Details
Torch Ring Nut for Torches Telwin MIG-MAG-TIG-Plasma
Telwin s.p.a. SKU: 722007
Torch Ring Nut for Torches Telwin MIG-MAG
Torch Ring Nut for Torches Telwin MIG-MAG Genuine part TELWIN, Body Torch Ring Nut for Torches MIG - MAG. Parts for the following products: - Torch MASTERMIG 300 230-400V - Torch MASTERMIG 270/2 230-400V - Torch MASTERMIG 400 230-400V...
AVAILABLE €9.91
Details
Torch Body for Torches Telwin MIG-MAG
Telwin s.p.a. SKU: 722441
Torch Body for Torches Telwin MIG-MAG
Torch Body for Torches Telwin MIG-MAG Genuine part TELWIN, Torch Body for Torches MIG - MAG. Parts for the following products: - Torch MASTERMIG 300 230-400V - Torch MASTERMIG 270/2 230-400V - Torch MASTERMIG 400 230-400V - Torch...
AVAILABLE €26.35
Details
Sleeve Lock Nipples for Torches Telwin MIG-MAG
Telwin s.p.a. SKU: 722598
Sleeve Lock Nipples for Torches Telwin MIG-MAG
Sleeve Lock Nipples for Torches Telwin MIG-MAG Genuine part TELWIN, Sleeve Lock Nipples for Torches MIG - MAG. Parts for the following products: - Torch MASTERMIG 300 230-400V - Torch MASTERMIG 270/2 230-400V - Torch MASTERMIG 400...
AVAILABLE €4.14
Details
Sleeve Lock Nut for Torches Telwin MIG-MAG
Telwin s.p.a. SKU: 722013
Sleeve Lock Nut for Torches Telwin MIG-MAG
Sleeve Lock Nut for Torches Telwin MIG-MAG Genuine part TELWIN, Sleeve Lock Nut for Torches MIG - MAG. Parts for the following products: - MASTERMIG 300 230-400V cod. 827003 - MASTERMIG 220/2 230-400V - MASTERMIG 270/2 230-400V -...
AVAILABLE €3.92
Details
Sleeve Lock Hose for Torches Telwin MIG-MAG
Telwin s.p.a. SKU: 722600
Sleeve Lock Hose for Torches Telwin MIG-MAG
Sleeve Lock Hose for Torches Telwin MIG-MAG Genuine part TELWIN, Sleeve Lock Hose for Torches MIG - MAG. Parts for the following products: - MASTERMIG 300 230-400V - MASTERMIG 270/2 230-400V - MASTERMIG 400 230-400V - SUPERMIG 380...
AVAILABLE €21.27
Details
Liner Wire Conduit mm 0.6-0.8 for Torches Telwin MIG-MAG
Telwin s.p.a. SKU: 722437
Liner Wire Conduit mm 0.6-0.8 for Torches Telwin MIG-MAG
Liner Wire Conduit mm 0.6-0.8 for Torches Telwin MIG-MAG Genuine part TELWIN, Liner Wire Conduit Diameter mm 0.6-0.8 length 3.4 mt for Torches MIG - MAG. Parts for the following products: - MASTERMIG 300 230-400V - MASTERMIG 270/2...
AVAILABLE €9.91
Details
Wire Guide Sleeve mm 1.0-1.2 for Torches Telwin MIG-MAG
Telwin s.p.a. SKU: 722689
Liner Wire Conduit mm 1.0-1.2 for Torches Telwin MIG-MAG
Liner Wire Conduit mm 1.0-1.2 for Torches Telwin MIG-MAG Genuine part TELWIN, Liner Wire Conduit Diameter mm 1.0-1.2 length 3.4 mt for Torches MIG - MAG. Parts for the following products: - MASTERMIG 300 230-400V - MASTERMIG 270/2...
AVAILABLE €9.91
Details
Front Wire Guide for Welding Telwin SUPERMIG-MASTERMIG
Telwin s.p.a. SKU: 742064
Front Wire Guide for Welding Telwin SUPERMIG-MASTERMIG
Front Wire Guide for Welding Telwin SUPERMIG-MASTERMIG Original part Telwin, Front Wire Guide for welding Machines, MASTERMIG 220-270-300-400 / 2 - SUPERMIG 380-480-580 - DIGITAL MIG 220-222-330 - INVERPULSE 320-425-625. Part for the...
Last items in stock €8.21
Details
Fan Motor for Welding Telwin Linear-Mastermig-Supermig
Telwin s.p.a. SKU: 152083
Fan Motor for Welding Telwin Linear-Mastermig-Supermig
Fan Motor for Welding Telwin Linear-Mastermig-Supermig Original part Telwin, fan motor for Telwin welding machines, LINEAR 220-280-300-340-410-430-530-630 - MASTERMIG 270/2-300-400 - SUPERMIG 380-480-580. Part For the following...
AVAILABLE €78.00
Details
Cooler Fan for Welding Telwin Linear-Mastermig-Supermig
Telwin s.p.a. SKU: 152113
Cooler Fan for Welding Telwin Linear-Mastermig-Supermig
Cooler Fan for Welding Telwin Linear-Mastermig-Supermig Original part Telwin, Cooler Fan for Telwin welding machines, LINEAR 220-280-300-340-410 - MASTERMIG 270/2-300-400 - SUPERMIG 380-480-580 - DIGITAL MIG 330. Part For the...
Last items in stock €13.79
Details
Potentiometer Big Knob for Inverter Telwin
Telwin s.p.a. SKU: 121424
Potentiometer Big Knob for Inverter Telwin
Potentiometer Big Knob for Inverter Telwin Genuine part Telwin, Potentiometer Big Knob for welding inverters, BIMAX 4.135-4.165-4.195-132-152-162-182 - TELMIG 150/1-170/1-180/2-183/2-195/2-200/2-203/2-250/2. Part for the following...
AVAILABLE €0.81
Details
Reel Kit for Welding Telwin MASTERMIG-DIGITAL MIG
Telwin s.p.a. SKU: 990264
Reel Kit for Welding Telwin MASTERMIG-DIGITAL MIG
Reel Kit for Welding Telwin MASTERMIG-DIGITAL MIG Original parts Telwin, Reel Kit for Welding Telwin MASTERMIG 220/2 - 270/2 - 300 - 400 - 232 DUPLEX - DIGITAL MIG 180 - 220 - 330 - 222 TWIN...
Last items in stock €18.45
Details
Dipswitch 25A for Welding Telwin Supermig-Mastermig
Telwin s.p.a. SKU: 121514
Dipswitch 25A for Welding Telwin Supermig-Mastermig
Dipswitch 25A for Welding Telwin Supermig-Mastermig Genuine spare part Telwin, Dipswitch 25A for Welding Machines Telwin SUPERMIG 380 230-400V cod. 822043 - MASTERMIG 400 230-400V cod. 827004 Part for the following...
AVAILABLE €31.72
Details
Swan Neck for Welding Machines Telwin Mastermig 400
Telwin s.p.a. SKU: 722788
Swan Neck for Welding Machines Telwin Mastermig 400
Swan Neck for Welding Machines Telwin Mastermig 400 Genuine part Telwin, Swan Neck for Weldering Machines Telwin DIGITAL SUPERMIG 490 230-400V Synergic - INVERPULSE 320 MIG/TIG/MMA 400V - Mastermig 400 - 827004 - Supermig 380 - 822043...
AVAILABLE €98.16
Details
Potentiometer Knob for Inverter Telwin Mastermig 232 Duplex
Telwin s.p.a. SKU: 121394
Potentiometer Knob for Inverter Telwin Mastermig 232 Duplex
Potentiometer Knob for Inverter Telwin Mastermig 232 Duplex Telwin Original Part, Potentiometer Knob for Inverter Welding Mastermig 232 Duplex - echnomig 150 DUAL SYNERGIC - TECNICA TIG 160 DC-HF/LIFT. Part for the following products:...
AVAILABLE €0.40
Details
Yellow Pilot Lamp for Welding Machines Telwin Telmig-Mastermig
Telwin s.p.a. SKU: 122594
Yellow Pilot Lamp for Welding Machines Telwin Telmig-Mastermig
Yellow Pilot Lamp for Welding Machines Telwin Telmig-Mastermig Original replacement part Telwin, Yellow Pilot Lamp 24 V, for Welding Machines Mastermig 220 - Telmig 183/2 - Telmig 203/2 Turbo - Telmig 250/2 Turbo - Supermig 580. Part...
AVAILABLE €2.03
Details
Roller Fixing Screw for Welding Machines Telwin
Telwin s.p.a. SKU: 742397
Roller Fixing Screw for Welding Machines Telwin
Roller Fixing Screw for Welding Machines Telwin Genuine spare part Telwin, Roller Fixing Screw for Welding Machines Mastermig - Supermig - DIGITAL SUPERMIG - INVERPULSE. - Part for the following products: -  Mastermig 220/2 -...
AVAILABLE €1.29
Details
Thin Head Nozzle for Inverter Telwin Digital Supermig 490
Telwin s.p.a. SKU: 722793
Thin Head Nozzle for Inverter Telwin Digital Supermig 490
Thin Head Nozzle for Inverter Telwin Digital Supermig 490 Genuine part TELWIN, Thin Head Nozzle for Inverter DIGITAL SUPERMIG 490 - INVERPULSE 320 - Mastermig 400 - Supermig 380 - 480. Part fort he following products: -  DIGITAL...
AVAILABLE €20.15
Details
Comments (0)
