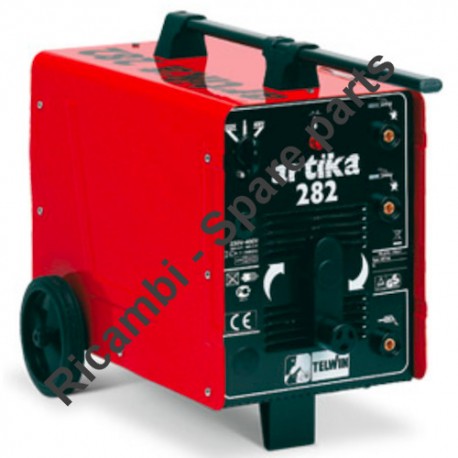

Telwin Spare Parts for Electrode Welding Artika 282 - 814095

We are TELWIN authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Electrode Welding Machine ARTIKA 282 230-400V cod. 814095

In the following table, look for the model of the drill and the respective parts of the code.

ARTIKA 282 230-400V cod. 814095
1	SWITCH KNOB SET	323101
2	YELLOW LIGHT	122707
3	SWITCH	121517
4	MAINS CABLE 3G2.5 2 M	132267
5	MOTOR	152073
6	FAN BLADE	152111
7	TRANSFORMER	169201
8	REAR HANDLE SUPPORT	312015
9	FRONT HANDLE SUPPORT	312016
10	BRAKET COVER	312199
11	KNOB FOR HANDWHEEL	312200
12	REGULATION SCREW	313744
13	TRANSPARENT PLATE	322063
14	CAP	322092
15	WHEEL LOCKING RING	322102
16	CABLE BUSHING	322112
17	FIXED WHEEL	322198
18	REGULATION INDICATOR	422512
19	SPRING FOR REGULATION SCREW	452119
20	FOOT	644402
21	HANDLE	644712
22	FRONT PANEL	649301
23	COVER KIT	990880
24	WHEELS AXLE	681082
25	SOCKET DX 25	712035
26	THERMOSTAT	122901
