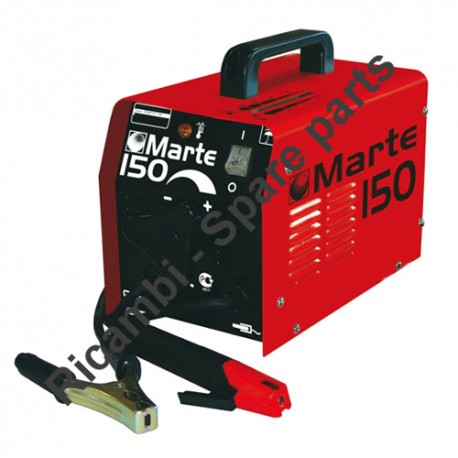

Telwin Spare Parts for Electrode Welding Marte 150
€2.76
VAT included
Telwin Spare Parts for Electrode Welding Marte 150
We are TELWIN authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Electrode Welding Machine Marte 150.
Telwin Spare Parts for Electrode Welding Marte 150
€2.76
VAT included
Telwin Spare Parts for Electrode Welding Marte 150
We are TELWIN authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Electrode Welding Machine Marte 150.
settings
11 Spare parts
description

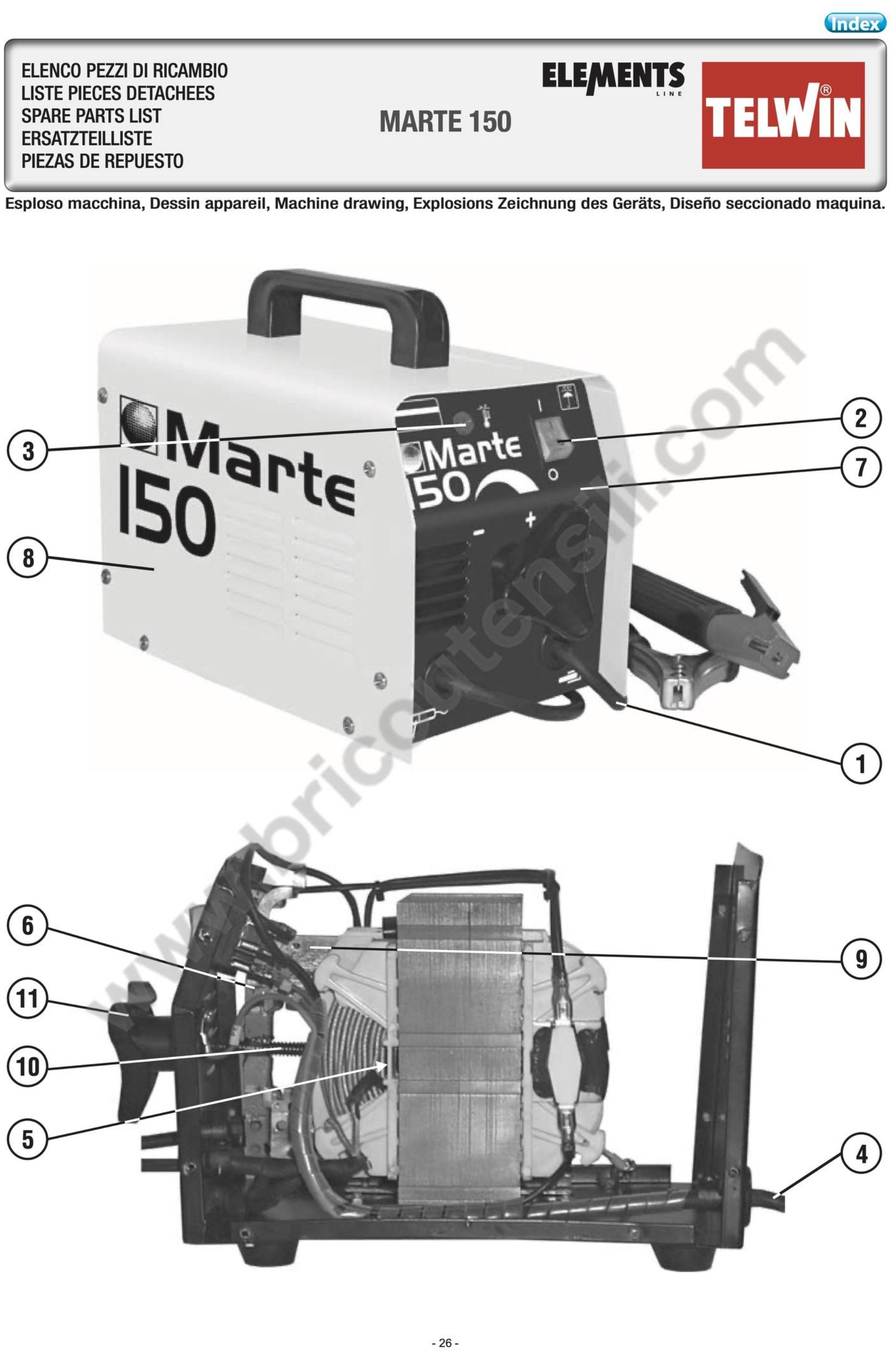

1 exploded view
verified_user
Original Product
Manufacturer warranty included
support_agent
Technical Support
Our team helps you choose
Secure and guaranteed payments
11 spare parts
Page 1
zoom_in View exploded
local_shipping Usually Ships in 10 BUSYNESS DAYS
| Pos. | Item | Price | Buy | |
|---|---|---|---|---|
|
1
|
|
120301 CABLE 10 MMQ 1.8 M | €13.63 | |
|
2
|
|
121224 Switch for Welding Telwin Pratica - Marte | €0.95 | |
|
3
|
|
122545 PILOT LIGHT | €1.64 | |
|
4
|
|
132319 MAINS CABLE 3G1.5 2.5M SCHUKO PLUG | €13.63 | |
|
5
|
|
452129 SPRING FOR REGULATION SCREW | €2.45 | Not available for order |
|
6
|
|
483521 JOKEE | €0.40 | Not available for order |
|
7
|
|
649688 FRONT PANEL | €11.82 | |
|
8
|
|
655404 COVER | €4.82 | Not available for order |
|
9
|
|
990988 SHUNT KIT | €9.09 | |
|
10
|
|
242126 REGULATION SCREW | €2.45 | |
|
11
|
|
312378 HANDWHEEL | €3.18 | Not available for order |
Shipping and delivery information will be available shortly.
Telwin Spare Parts for Electrode Welding Marte 150
We are TELWIN authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Electrode Welding Machine Marte 150.
In the following table, look for the model of the Welding and the respective parts of the code.
| MARTE 150 230V ACD code 809039 | ||
| # | Description | Part Num. |
| 1 | CABLE 10 MMQ 1,8 M | 120301 |
| 2 | SWITCH | 121224 |
| 3 | PILOT LAMP | 122545 |
| 4 | MAINS CABLE 3G1.5 2.5M SCHUKO PLUG | 132319 |
| 5 | SPRING FOR REGULATION SCREW | 452129 |
| 6 | JOKEE | 483521 |
| 7 | FRONT PANEL | 649688 |
| 8 | COVER | 655404 |
| 9 | KIT SHUNT | 990988 |
| 10 | REGULATION SCREW | 242126 |
| 11 | HANDWHEEL | 312378 |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Telwin websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Telwin brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
809039
10 Items
Data sheet
- Machine Type
- Welding Machine
- CHECK ITEM OR S/N CODE TELWIN
- TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS
- SHIPPING IN
- Usually Ships in 10 BUSYNESS DAYS
- CHECK ITEM CODE OR S/N
- CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
Specific References
