Telwin Parts for Diesel Welding Machine THUNDER 314D CE LOMBARDINI

Original spare parts and replacement parts for Telwin Diesel Welding Machine THUNDER 314D CE LOMBARDINI cod. 825003

Petrol or Diesel engine-driven (HONDA motor or Kholer) welding machine for MMA electrode welding in AC alternate current. Uses rutile electrodes. Can be used as an AC single-phase generator for powering electrictools (eg: sanders, drills, dowel hole drills, demolishers), compressors, neon and incandescent lighting systems, etc. Characteristics: twin cylinder 4-stroke air cooled petrol engine * recoil starter * two welding current adjustment ranges * welding machine-generator selector * two 3.5 kVA single-phase outputs with protection * thermostatic protection * automatic shutdown for lack of oil.

In the following table, look for the model of the drill and the respective parts of the code.

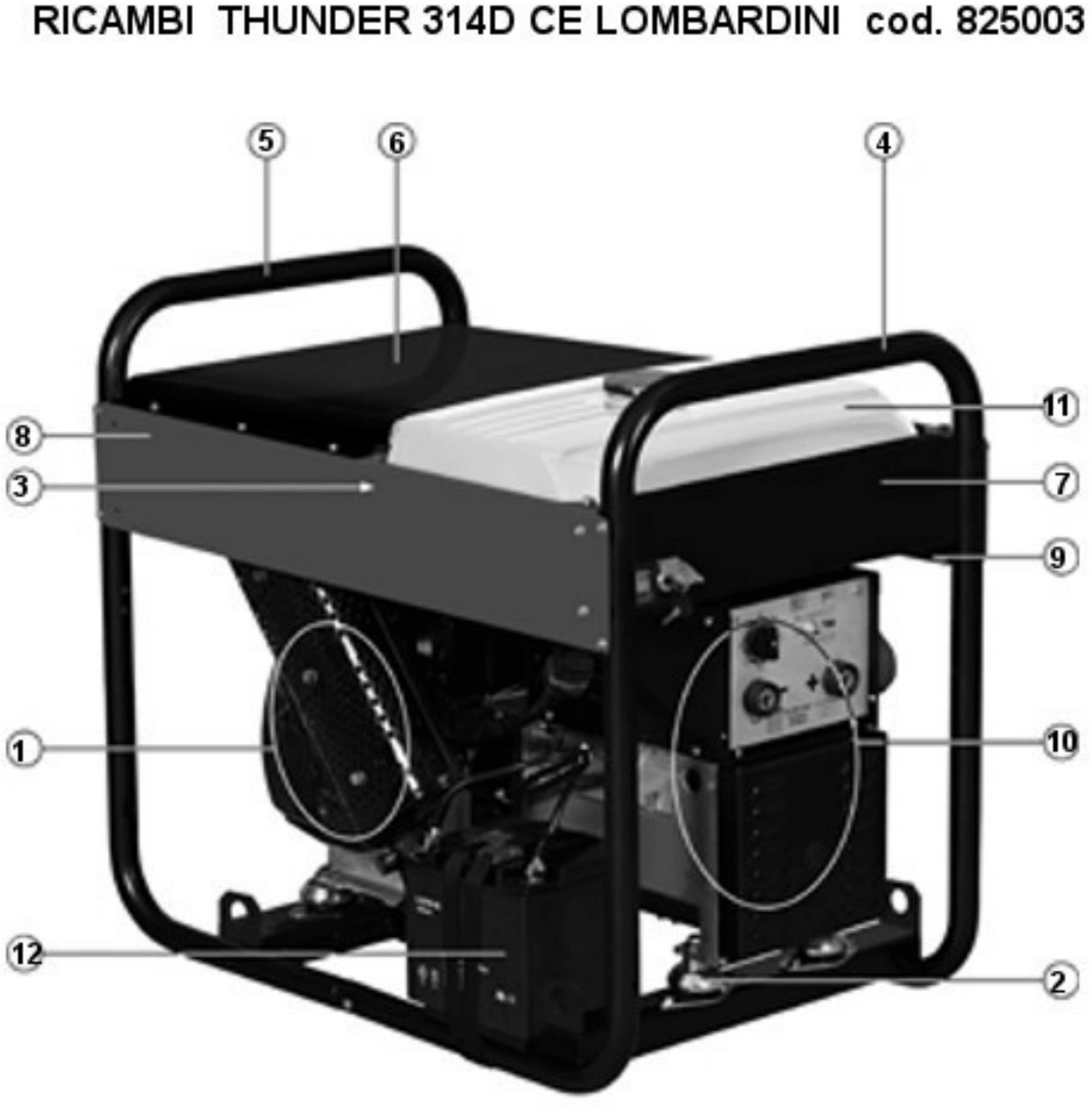

THUNDER 314D CE LOMBARDINI cod. 825003
1	MOTORE DIESEL 19,0HP LOMBARDINI	154011
2	ANTIVIBRANTE	321051
3	KIT ANTIVIBRANTE	981192
4	ASSIEME TELAIO ANTERIORE	645533
5	ASSIEME TELAIO POSTERIORE	645534
6	MANTELLO	645537
7	FRONTALE DIESEL	645538
8	FIANCO DESTRO	656083
9	FIANCO SINISTRO	656084
10	ASSIEME SALDATRICE 300A DC	723805
11	KIT SERBATOIO DIESEL	981171
