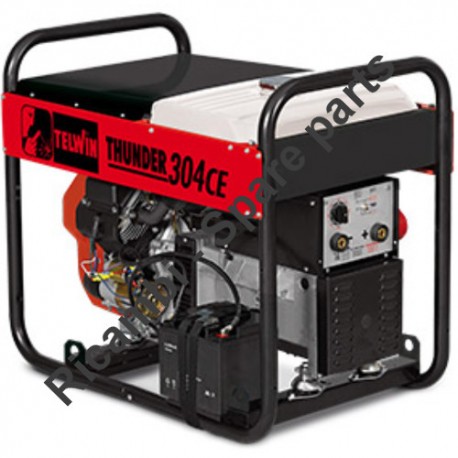

Telwin Spare Parts for Petrol Welding Machine THUNDER 304 CE KOHLER

Original spare parts and replacement parts for Telwin Petrol Welding Machine THUNDER 304 CE KOHLER cod. 825002

Petrol or Diesel engine-driven (HONDA motor or Kholer) welding machine for MMA electrode welding in AC alternate current. Uses rutile electrodes. Can be used as an AC single-phase generator for powering electrictools (eg: sanders, drills, dowel hole drills, demolishers), compressors, neon and incandescent lighting systems, etc. Characteristics: twin cylinder 4-stroke air cooled petrol engine * recoil starter * two welding current adjustment ranges * welding machine-generator selector * two 3.5 kVA single-phase outputs with protection * thermostatic protection * automatic shutdown for lack of oil.

In the following table, look for the model of the drill and the respective parts of the code.

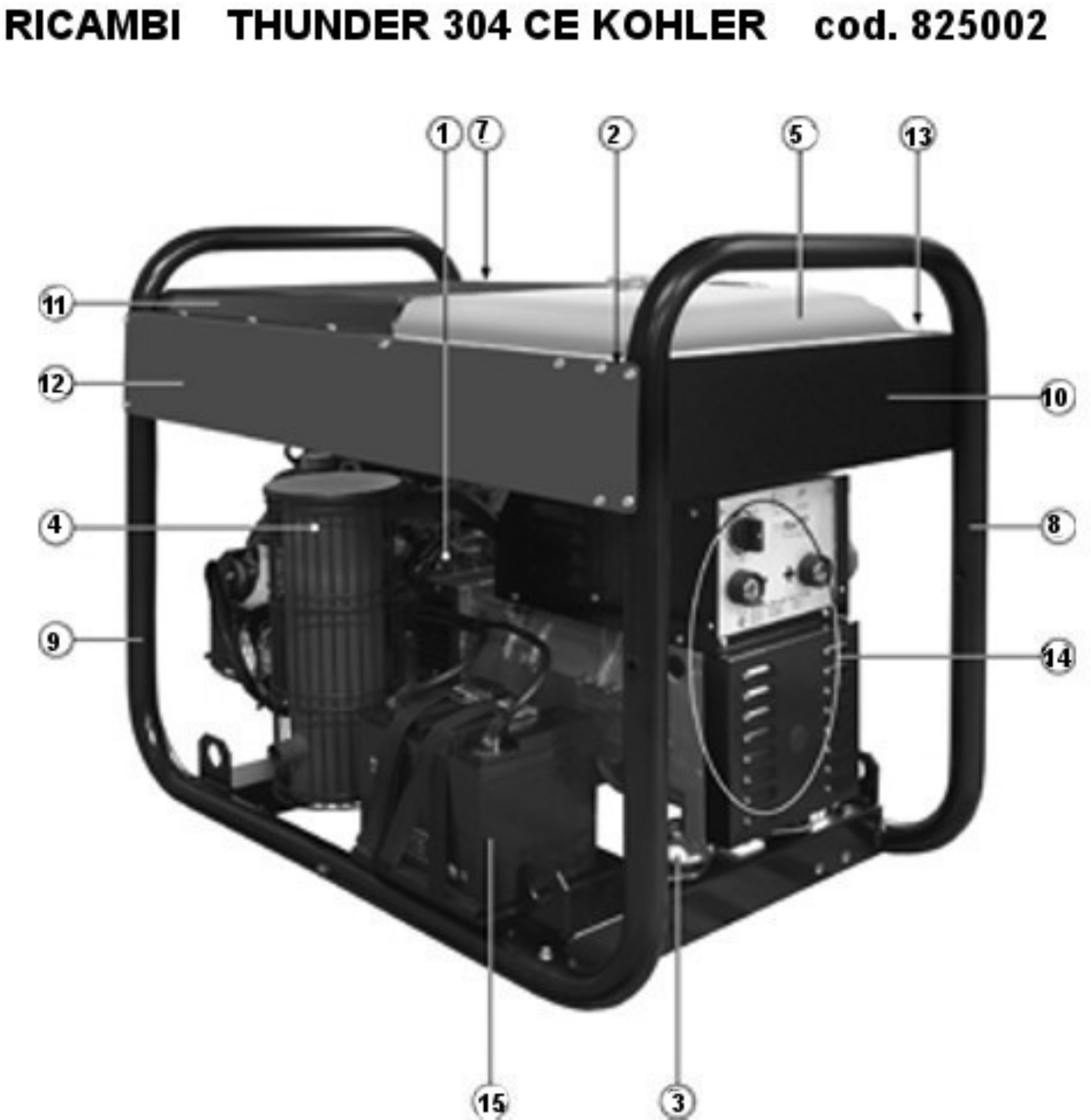

THUNDER 304 CE KOHLER cod. 825002
1	MOTORE BENZINA 25,0HP HONDA	154010
2	ANTIVIBRANTE	321051
3	KIT ANTIVIBRANTE	981192
4	KIT MARMITTA KOHLER	314433
5	KIT SERBATOIO BENZINA	981170
6	SCHERMO PER MARMITTA	484354
7	RUBINETTO SERBATOIO	602329
8	ASSIEME TELAIO ANTERIORE	645533
9	ASSIEME TELAIO POSTERIORE	645534
10	FRONTALE BENZINA	645536
11	MANTELLO	645537
12	FIANCO DESTRO	656081
13	FIANCO SINISTRO	656082
14	ASSIEME SALDATRICE 300A DC	723806
15	BATTERIA 12V 38AH	993102
