Telwin Parts for Inverter SUPERIOR TIG 252 AC/DC HF/LIFT VRD 400V

SKU: SUPERIOR TIG 252 AC/DC - 816030
€9.20
VAT included

Telwin Parts for Inverter SUPERIOR TIG 252 AC/DC HF/LIFT VRD 400V

Telwin original spare parts for to replace broken parts for to fix Inverter Welding SUPERIOR TIG 252 AC/DC HF/LIFT VRD 400V - 816030.

Fix Your Inverter Welding. All Spares can be supplied at discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

SUPERIOR TIG 252 AC/DC - 816030
Telwin Parts for Inverter SUPERIOR TIG 252 AC/DC HF/LIFT VRD 400V
  • Telwin Parts for Inverter SUPERIOR TIG 252 AC/DC HF/LIFT VRD 400V
  • Telwin Parts for Inverter SUPERIOR TIG 252 AC/DC HF/LIFT VRD 400V - Drawing
  • Telwin Parts for Inverter SUPERIOR TIG 252 AC/DC HF/LIFT VRD 400V - Torch Drawing
Telwin s.p.a.

Telwin Parts for Inverter SUPERIOR TIG 252 AC/DC HF/LIFT VRD 400V

SKU: SUPERIOR TIG 252 AC/DC - 816030 Condition: New
€9.20
VAT included

Telwin Parts for Inverter SUPERIOR TIG 252 AC/DC HF/LIFT VRD 400V

Telwin original spare parts for to replace broken parts for to fix Inverter Welding SUPERIOR TIG 252 AC/DC HF/LIFT VRD 400V - 816030.

Fix Your Inverter Welding. All Spares can be supplied at discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

SUPERIOR TIG 252 AC/DC - 816030
settings 58 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:: TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
53 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

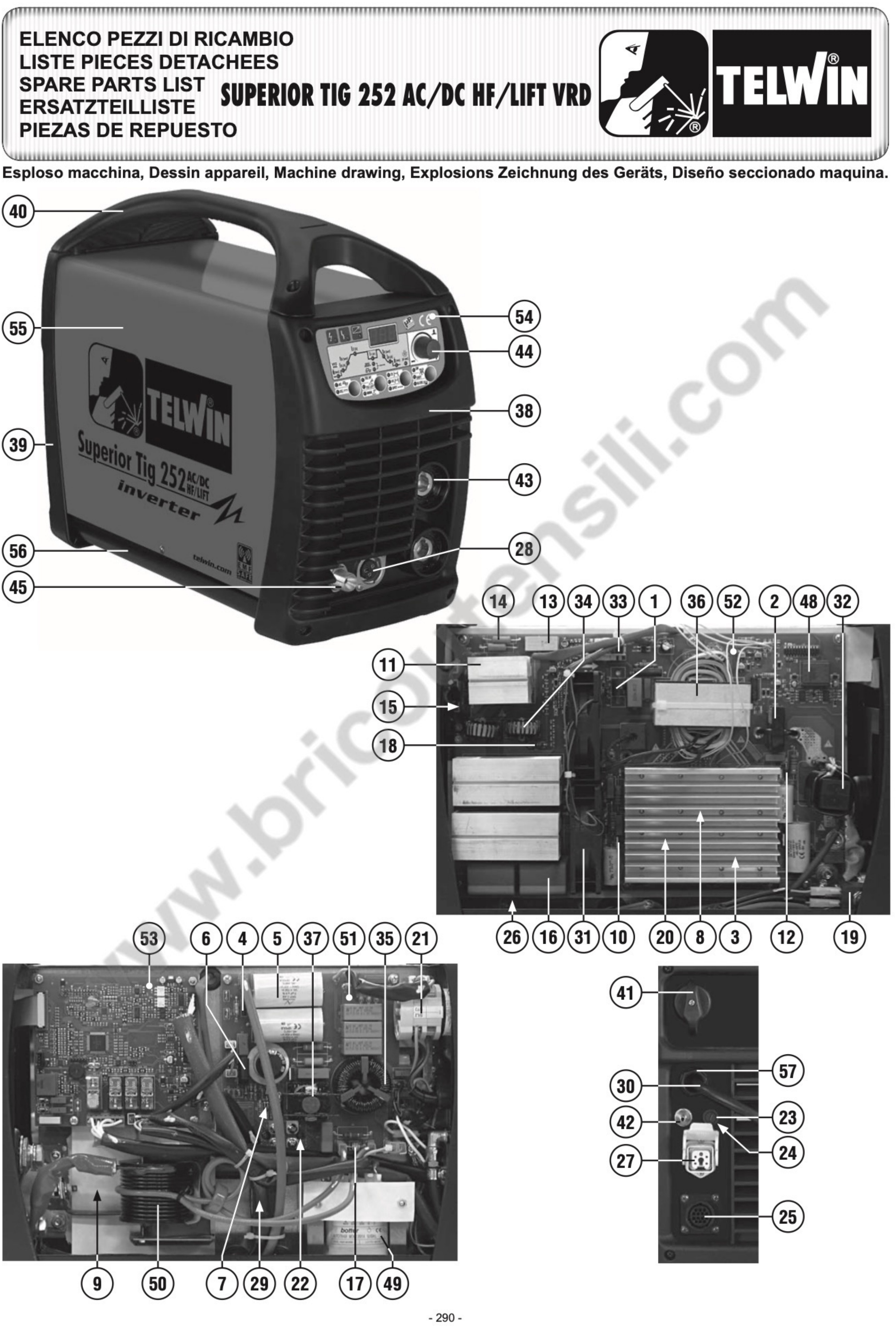

Esploso pagina 1

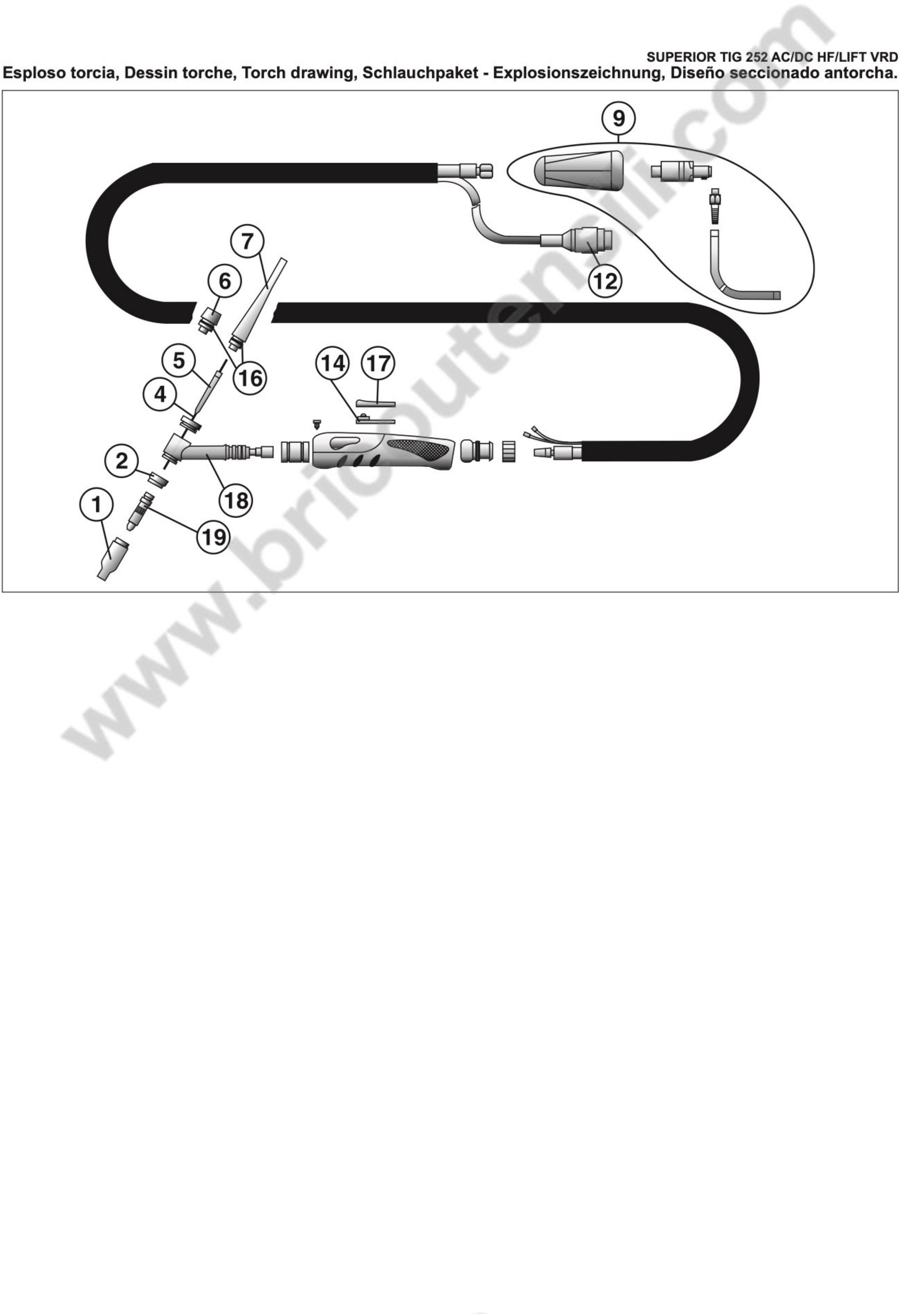

Esploso pagina 2
1 / 2
Pos. Item Price Buy
1
 photo_cameraImage coming soon 111095 Igbt €9.20
2
 photo_cameraImage coming soon 111191 SENSOR HALL €42.25
3
 photo_cameraImage coming soon 111193 Igbt €62.42
4
 photo_cameraImage coming soon 112689 DIODE €4.61
5
 photo_cameraImage coming soon 112895 COND.MKP ASS. 5U 700V C4G €10.56
6
 photo_cameraImage coming soon 112949 PHASE RECTIFIER €2.87
7
 photo_cameraImage coming soon 113072 BY228 DIODE 3A 1500V €1.51
8
 Diode for Inverter Telwin Superior 252-322 113747 Diode for Inverter Telwin Superior 252-322 €40.29
9
 photo_cameraImage coming soon 116443 RESISTANCE €3.41
10
 photo_cameraImage coming soon 116486 DIODE €1.79
13
 Relay 24VDC for Inverter Force 116738 Relay 24VDC for Inverter Force €5.42
15
 photo_cameraImage coming soon 116760 VARISTOR €1.26
16
 photo_cameraImage coming soon 116882 CAPACITOR €21.17
17
 photo_cameraImage coming soon 116904 DRAIN GAS 400V €5.68
18
 Wire Resistance for Inverter Telwin Tecnica TIG 190 DC-Lift Vrd 230v 116962 Wire Resistance for Inverter Telwin Tecnica TIG 190 DC-Lift Vrd 230v €2.42
19
 photo_cameraImage coming soon 121029 ELECTROVALVE €14.02
20
 photo_cameraImage coming soon 121261 THERMOSTAT €5.50
21
 photo_cameraImage coming soon 121556 SWITCH €16.51
22
 photo_cameraImage coming soon 111197 IGBT 1200V 50A SOT227 €61.34
23
 Holder Fuse for Charger Telwin Alpine 14 - 18 - 20 Boost 122159 Holder Fuse for Charger Telwin Alpine 14 - 18 - 20 Boost €2.08
24
 Fuse 5x20 2A for Charger Telwin Alpine 20 Boost 122437 Fuse 5x20 2A for Charger Telwin Alpine 20 Boost €0.63
25
 photo_cameraImage coming soon 124105 WIRING CONTROL / C.A.D. €22.52
26
 photo_cameraImage coming soon 124656 WIRING RESISTANCE €19.24
27
 photo_cameraImage coming soon 124657 WIRING G.R.A. €11.20
28
 photo_cameraImage coming soon 124658 WIRING KEY TORCH €26.60
29
 photo_cameraImage coming soon 124668 WIRING FAN €12.24
30
 photo_cameraImage coming soon 132237 MAINS CABLE 4G1.5 2 M €14.05
31
 Fan for Inverter Technology-Technomig 152269 Fan for Inverter Technology-Technomig €17.98
32
 photo_cameraImage coming soon 169556 REACTOR €34.63
33
 photo_cameraImage coming soon 169627 TRANSFORMER €19.66
34
 photo_cameraImage coming soon 169746 REACTOR €9.54
35
 photo_cameraImage coming soon 169747 CHOKE FILTER €45.09
36
 photo_cameraImage coming soon 169789 POWER TRANSFORMER €100.20
37
 photo_cameraImage coming soon 169795 TRASFO FLYBACK HF €21.66
38
 photo_cameraImage coming soon 321117 WASHER (H) €16.58
39
 photo_cameraImage coming soon 321118 O-RING €15.47
40
 photo_cameraImage coming soon 321119 HANDLE €8.20
41
 Dipswitch Knob for Welding Telwin 323101 Dipswitch Knob for Welding Telwin €2.56
43
 Socket DX 50 for Telwin Welding Machine 712036 Socket DX 50 for Telwin Welding Machine €5.29
45
 photo_cameraImage coming soon 980548 GAS PIPE CONNECTOR KIT €7.03
46
 photo_cameraImage coming soon 981370 KIT IGBT + DIODE €47.67
47
 photo_cameraImage coming soon 981371 KIT IGBT + TRANSFORMER PULSE €83.42
48
 photo_cameraImage coming soon 981372 KIT TRANSFORMER PULSE €14.36
49
 photo_cameraImage coming soon 981401 KIT TRANSFORMER AUXILIARY €8,252.21
50
 photo_cameraImage coming soon 981402 KIT HF TRANSFORMER €103.48
51
 photo_cameraImage coming soon 981403 FILTER KIT FORM €275.23
52
 photo_cameraImage coming soon 981404 POWER CARD KIT €1,173.82
53
 Telwin Superior TIG 252 Control Card Kit 981405 Telwin Superior TIG 252 Control Card Kit €244.11
54
 photo_cameraImage coming soon 981406 KEYPAD CARD KIT €75.35
55
 photo_cameraImage coming soon 981407 KIT COAT €13.96
56
 photo_cameraImage coming soon 981408 KIT FUND €9.72
57
 photo_cameraImage coming soon 990046 KIT CABLE BUSHING + RING NUT €8.93
58
 photo_cameraImage coming soon 981535 KIT FORM PANEL €48.91

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Telwin Parts for Inverter SUPERIOR TIG 252 AC/DC HF/LIFT VRD 400V

Telwin genuine spare parts for replacing or repairing Inverter Welding SUPERIOR TIG 252 AC/DC HF/LIFT VRD 400V - 816030.

Fix Your Inverter Welding. All Spares can be supplied at discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Welding and the respective parts of the code.
SUPERIOR TIG 252 AC/DC - 816030
SUPERIOR TIG 252 AC/DC HF/LIFT VRD 400V - 816030
# Part NUm. Description
1 111095 IGBT
2 111191 SENSOR HALL
3 111193 IGBT
4 112689 DIODE
5 112895 COND.MKP ASS. 5U 700V C4G
6 112949 PHASE RECTIFIER
7 113072 BY228 DIODE 3A 1500V
8 113747 DIODE
9 116443 RESISTANCE
10 116486 DIODE
11 111259 PONTE singl. 12A 1000V
12 116733 SUPPRESSOR VOLTAGE
13 116738 RELAY '24VDC 17mA 250V 16A 1NO
14 116752 RESISTANCE
15 116760 VARISTOR
16 116882 CAPACITOR
17 116904 DRAIN GAS 400V
18 116962 RESISTANCE 10R 2W 5% FUSE
19 121029 SOLENOID
20 121261 THERMOSTAT
21 121556 SWITCH
22 111197 IGBT 1200V 50A SOT227
23 122159 FUSE
24 122437 FUSE
25 124105 WIRING CONTROL / C.A.D.
26 124656 WIRING RESISTANCE
27 124657 WIRING G.R.A.
28 124658 WIRING KEY TORCH
29 124668 WIRING FAN
30 132237 CABLE ALIM. 4G1.5 2 M
31 152269 FAN
32 169556 REACTOR
33 169627 TRANSFORMER
34 169746 REACTOR
35 169747 CHOKE FILTER
36 169789 POWER TRANSFORMER
37 169795 TRASFO FLYBACK HF
38 321117 FRONT
39 321118 RETRO
40 321119 HANDLE
41 323101 TOGETHER FOR SWITCH KNOB
42 602052 WATER CONNECTION
43 712036 SOCKET DX 50
44 121547 KNOB FOR POT
45 980548 CONNECTION KIT INLET GAS
46 981370 KIT IGBT + DIODE
47 981371 KIT IGBT + TRANSFORMER PULSE
48 981372 KIT TRANSFORMER PULSE
49 981401 KIT TRANSFORMER AUXILIARY
50 981402 KIT HF TRANSFORMER
51 981403 FILTER KIT FORM
52 981404 POWER CARD KIT
53 981405 CONTROL CARD KIT
54 981406 KEYPAD CARD KIT
55 981407 KIT COAT
56 981408 KIT FUND
57 990046 GLAND NUT KIT +
58 981535 KIT FORM PANEL
