Telwin s.p.a.

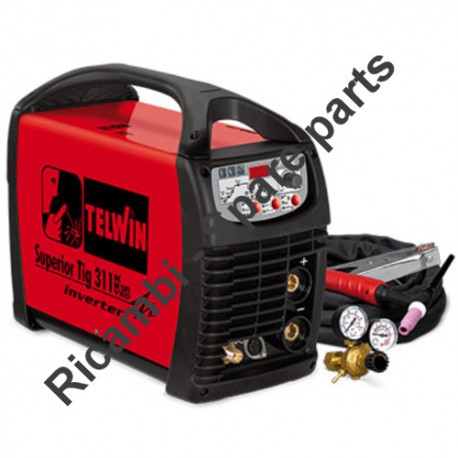

Telwin Parts for Inverter SUPERIOR TIG 311 DC-HF/LIFT 400V

SKU: SUPERIOR TIG 311 DC-HF - 816015
€2.57
VAT included

Telwin Parts for Inverter SUPERIOR TIG 311 DC-HF/LIFT 400V

TELWIN Authorized Technical Assistance, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Inverter Welding SUPERIOR TIG 311 DC-HF/LIFT 816015

SUPERIOR TIG 311 DC-HF/LIFT 400V - 816015
Telwin Parts for Inverter SUPERIOR TIG 311 DC-HF/LIFT 400V
  • Telwin Parts for Inverter SUPERIOR TIG 311 DC-HF/LIFT 400V
  • Telwin Parts for Inverter SUPERIOR TIG 311 DC-HF/LIFT 400V
  • Telwin Parts for Inverter SUPERIOR TIG 311 DC-HF/LIFT 400V - Torch Drawing
Telwin s.p.a.

Telwin Parts for Inverter SUPERIOR TIG 311 DC-HF/LIFT 400V

SKU: SUPERIOR TIG 311 DC-HF - 816015 Condition: New
€2.57
VAT included

Telwin Parts for Inverter SUPERIOR TIG 311 DC-HF/LIFT 400V

TELWIN Authorized Technical Assistance, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Inverter Welding SUPERIOR TIG 311 DC-HF/LIFT 816015

SUPERIOR TIG 311 DC-HF/LIFT 400V - 816015
settings 68 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:: TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
65 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 1
Pos. Item Price Buy
2
 Wire Resistance for Inverter Telwin Force 145 - 165 - 195 112048 Wire Resistance for Inverter Telwin Force 145 - 165 - 195 €2.91
4
 photo_cameraImage coming soon 112342 RELAY ' €2.63
5
 photo_cameraImage coming soon 981215 BOARD KIT FILTER HF €37.76
6
 Capacitor for Inverter Telwin Force 145 - Technology 186 HD 112514 Capacitor for Inverter Telwin Force 145 - Technology 186 HD €9.02
7
 Single-Phase Rectifier for Inverter Telwin INVERPULSE-SUPERIOR 116066 Single-Phase Rectifier for Inverter Telwin INVERPULSE-SUPERIOR €15.79
8
 photo_cameraImage coming soon 980732 BOARD KIT HF €134.91
9
 photo_cameraImage coming soon 120513 CONTROL CABLE €23.86
11
 photo_cameraImage coming soon 121029 ELECTROVALVE €14.02
13
 Dipswitch Knob for Welding Telwin 323101 Dipswitch Knob for Welding Telwin €2.56
14
 photo_cameraImage coming soon 122508 THERMOSTAT €2.62
15
 Dipswitch 16A for Inverter Telwin SUPERIOR 260 CE 400V 121523 Dipswitch 16A for Inverter Telwin SUPERIOR 260 CE 400V €19.78
17
 photo_cameraImage coming soon 123503 WIRING INTAKE €16.60
18
 photo_cameraImage coming soon 132026 CABLE ALIM. 4G2.5 2 M €12.84
20
 Fan for Inverter Superior 152214 Fan for Inverter Superior €29.08
21
 photo_cameraImage coming soon 152231 CURRENT TRANSFORMER TA €13.69
22
 photo_cameraImage coming soon 152232 TRANSFORMER PULSE €12.18
23
 photo_cameraImage coming soon 980294 KIT HF TRANSFORMER €49.35
24
 photo_cameraImage coming soon 980160 KIT TRANSFORMER €79.91
25
 Telwin Superior Plasma 60 HF Front Panel 322508 Telwin Superior Plasma 60 HF Front Panel €16.58
27
 photo_cameraImage coming soon 322408 BELT €3.12
28
 photo_cameraImage coming soon 644793 FUND €12.39
29
 photo_cameraImage coming soon 981045 KIT COAT €10.09
30
 Socket DX 50 for Telwin Welding Machine 712036 Socket DX 50 for Telwin Welding Machine €5.29
31
 photo_cameraImage coming soon 990046 KIT CABLE BUSHING + RING NUT €8.93
32
 photo_cameraImage coming soon 990120 GAS PIPE CONNECTOR KIT €5.82
33
 photo_cameraImage coming soon 990287 DATA ENTRY FILTER KIT €68.35
34
 photo_cameraImage coming soon 990298 BOARD KIT PRIMARY €530.03
35
 Knob Kit for Welding Telwin Mastermig-Superior 990328 Knob Kit for Welding Telwin Mastermig-Superior €6.12
36
 photo_cameraImage coming soon 980164 KIT FORM SECONDARY €128.49
37
 photo_cameraImage coming soon 990609 KIT + TRANSFORMER INDUCTANCE €142.40
38
 photo_cameraImage coming soon 980411 KIT CONTROL BOARD €132.03
39
 photo_cameraImage coming soon 980165 KIT 5 DIODES 400V 150A €55.57
40
 photo_cameraImage coming soon 990625 KIT IGBT €54.49
41
 photo_cameraImage coming soon 322065 BELT BUCKLE €2.31
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 2
Pos. Item Price Buy
1
 photo_cameraImage coming soon 802244 KIT 10 CERAMIC NOZZLES NR.4 €9.89
1
 photo_cameraImage coming soon 802245 KIT 10 CERAMIC NOZZLES NR.6 €9.89
1
 photo_cameraImage coming soon 802246 KIT 10 CERAMIC NOZZLES NR.7 €9.89
1
 photo_cameraImage coming soon 802247 KIT 10 CERAMIC NOZZLES NR.8 €7.61
1
 photo_cameraImage coming soon 802248 KIT 10 CERAMIC NOZZLES NR.10 €7.61
2
 Insulator SR 17 for Telwin TIG Torch 722248 Insulator SR 17 for Telwin TIG Torch €8.21
4
 photo_cameraImage coming soon 802220 KIT 10 CERIUM-TUNGSTEN ELECTR. D.1 MM €17.75
4
 photo_cameraImage coming soon 802222 KIT 10 CERIUM-TUNGSTEN ELECTR. D.1,6 MM €17.75
4
 photo_cameraImage coming soon 802232 KIT 10 CERIUM-TUNGSTEN ELECTR. D.2,4 MM €53.95
4
 photo_cameraImage coming soon 802233 KIT 10 ELETTR.TUNGSTENO CERIUM D.3,2 MM €79.94
4
 photo_cameraImage coming soon 802235 KIT 10 ELETTR.TUNGSTENO PURE D.1,6 MM €21.71
4
 photo_cameraImage coming soon 802236 KIT 10 ELETTR.TUNGSTENO PURE D.2,4 MM €46.13
4
 photo_cameraImage coming soon 802237 KIT 10 ELETTR.TUNGSTENO PURE D.3,2 MM €79.94
4
 photo_cameraImage coming soon 802238 KIT 10 ELETTR.TUNGSTENO PURE D. 4 MM €164.46
5
 photo_cameraImage coming soon 802239 KIT 3 ELECTRODE HOLDER CLAMPS D.1,0 MM €3.36
5
 photo_cameraImage coming soon 802240 KIT 3 ELECTRODE HOLDER CLAMPS D.1,6 MM €3.61
5
 photo_cameraImage coming soon 802241 KIT 3 ELECTRODE HOLDER CLAMPS D.2,4 MM €3.61
5
 photo_cameraImage coming soon 802242 KIT 3 CLAMP ELECTRODE D.3,2 MM SERRA €3.12
5
 photo_cameraImage coming soon 802243 KIT 3 CLAMP ELECTRODE D.4 MM SERRA €3.12
6
 Short Hood SR 17 for Telwin TIG Torch 722192 Short Hood SR 17 for Telwin TIG Torch €4.03
7
 Long Hood SR 17 for Telwin TIG Torch 722193 Long Hood SR 17 for Telwin TIG Torch €17.14
12
 Telwin Inverter TIG Welding Machines Plug 3P 722999 Telwin Inverter TIG Welding Machines Plug 3P €13.68
14
 PCB + Button for Torches Telwin TIG 452089 PCB + Button for Torches Telwin TIG €19.37
16
 Long Hood O-Ring 2037 for Telwin TIG Torch 722061 Long Hood O-Ring 2037 for Telwin TIG Torch €0.97
17
 Button for Torches Telwin TIG 742042 Button for Torches Telwin TIG €2.63
18
 photo_cameraImage coming soon 722944 BODY TORCH €36.73
19
 photo_cameraImage coming soon 802249 KIT 3 ELECTRODE DIFFUSERS D.1 MM €7.78
19
 photo_cameraImage coming soon 802250 KIT 3 ELECTRODE DIFFUSERS D.1,6 MM €7.78
19
 photo_cameraImage coming soon 802251 KIT 3 ELECTRODE DIFFUSERS D.2,4 MM €7.78
19
 photo_cameraImage coming soon 802252 KIT 3 SPEAKER ELECTRODE D.3,2 MM €6.68
19
 photo_cameraImage coming soon 802253 KIT 3 SPEAKER ELECTRODE D.4 MM €6.68

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Telwin Parts for Inverter SUPERIOR TIG 311 DC-HF/LIFT 400V

TELWIN Authorized Technical Assistance, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Inverter Welding SUPERIOR TIG 311 DC-HF/LIFT 400V - 816015

In the following table, look for the model of the Welding and the respective parts of the code.
SUPERIOR TIG 311 DC-HF/LIFT 400V - 816015

SUPERIOR TIG 311 DC-HF/LIFT 400V - 816015 Pag.1
# Part Num. Description
2 112048 RESISTANCE
4 112342 RELAY '
5 981215 BOARD KIT FILTER HF
6 112514 CAPACITOR
7 116066 RECTIFIER
8 980732 BOARD KIT HF
9 120513 WIRING CONTROL
10 121006 FUSE
11 121029 SOLENOID
13 323101 TOGETHER FOR SWITCH KNOB
14 122508 THERMOSTAT
15 121523 SWITCH
17 123503 WIRING INTAKE
18 132026 CABLE ALIM. 4G2.5 2 M
20 152214 FAN
21 152231 CURRENT TRANSFORMER TA
22 152232 TRANSFORMER PULSE
23 980294 KIT HF TRANSFORMER
24 980160 KIT TRANSFORMER
25 322508 FRAME - FRONT PANEL
26 602052 WATER CONNECTION
27 322408 BELT
28 644793 FUND
29 981045 KIT COAT
30 712036 SOCKET DX 50
31 990046 GLAND NUT KIT +
32 990120 CONNECTION KIT INLET GAS
33 990287 DATA ENTRY FILTER KIT
34 990298 BOARD KIT PRIMARY
35 990328 KIT WHEEL
36 980164 KIT FORM SECONDARY
37 990609 KIT + TRANSFORMER INDUCTANCE
38 980411 KIT CONTROL BOARD
39 980165 KIT 5 DIODES 400V 150A
40 990625 KIT IGBT
41 322065 BUCKLE FOR BELT
TORCH FOR SUPERIOR TIG 311 DC-HF/LIFT 400 - 816015 Pag.2
1 802247 KIT 10 CERAMIC NOZZLES NR.8
1 802248 KIT 10 CERAMIC NOZZLES NR.10
1 802245 KIT 10 CERAMIC NOZZLES NR.6
1 802246 KIT 10 CERAMIC NOZZLES NR.7
1 802244 KIT 10 CERAMIC NOZZLES NR.4
2 722248 INSULATION
4 802222 KIT 10 ELETTR.TUNGSTENO CERIUM D.1,6 MM
4 802233 KIT 10 ELETTR.TUNGSTENO CERIUM D.3,2 MM
4 802220 KIT 10 ELETTR.TUNGSTENO CERIUM D.1 MM
4 802235 KIT 10 ELETTR.TUNGSTENO PURE D.1,6 MM
4 802236 KIT 10 ELETTR.TUNGSTENO PURE D.2,4 MM
4 802238 KIT 10 ELETTR.TUNGSTENO PURE D. 4 MM
4 802232 KIT 10 ELETTR.TUNGSTENO CERIUM D.2,4 MM
4 802237 KIT 10 ELETTR.TUNGSTENO PURE D.3,2 MM
5 802241 KIT 3 CLAMP ELECTRODE D.2,4 MM SERRA
5 802240 KIT 3 CLAMP ELECTRODE D.1,6 MM SERRA
5 802239 KIT 3 CLAMP ELECTRODE D.1,0 MM SERRA
5 802243 KIT 3 CLAMP ELECTRODE D.4 MM SERRA
5 802242 KIT 3 CLAMP ELECTRODE D.3,2 MM SERRA
6 722192 HOOD SHORT
7 722193 HOOD LONG
9 981443 KIT CONNECTION 50
12 722999 PLUG 3P
14 452089 CONTACT BUTTON
16 722061 RING OR
17 742042 BUTTON
18 722944 BODY TORCH
19 802250 KIT 3 SPEAKER ELECTRODE D.1,6 MM
19 802251 KIT 3 SPEAKER ELECTRODE D.2,4 MM
19 802253 KIT 3 SPEAKER ELECTRODE D.4 MM
19 802252 KIT 3 SPEAKER ELECTRODE D.3,2 MM
19 802249 KIT 3 SPEAKER ELECTRODE D.1 MM
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Telwin websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Telwin brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
SUPERIOR TIG 311 DC-HF - 816015
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:
TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS

Specific References

New

Download

SUPERIOR TIG 311 DC-HF Drawing

SUPERIOR TIG 311 DC-HF Drawing

Download (347.34KB)

You might also like

Relè for Inverter Telwin Tecnica 144-164
Telwin s.p.a. SKU: 113790
Relè for Inverter Telwin Tecnica 144-164
Relè for Inverter Telwin Tecnica 144-164 Genuine spare part Telwin, Relè for Inverter TECNICA 144 230V cod. 815481 - TECNICA 164 230V cod. 815482 - SUPERIOR TIG 251 DC-HF/LIFT VRD - 816116 Part...
AVAILABLE €6.82
Details
Fan for Inverter Superior-Inverpulse
Telwin s.p.a. SKU: 152000
Fan for Inverter Superior-Inverpulse
Fan for Inverter Superior-Inverpulse Original spare Telwin, Fan Inverter Welder series, Superior 400-630 CE 400V - TIG 322-421-422 DC-HF/LIFT 400V - INVERPULSE 425-625 MIG/TIG/MMA 400V. Parts for the following products: - SUPERIOR 400...
Last items in stock €65.41
Details
Long Hood SR 17 for Telwin TIG Torch
Telwin s.p.a. SKU: 722193
Long Hood SR 17 for Telwin TIG Torch
Long Hood SR 17 for Telwin TIG Torch Original spare Telwin, Long Hood SR 17 for Torches TIG ERGO. Parts for the following products: - TECHNOLOGY TIG 230 DC-HF/LIFT 230V-852032 - TECHNOLOGY TIG 185 DC 230V - TORCH TECHNOLOGY TIG 182...
Last items in stock €17.14
Details
Short Hood SR 17 for Telwin TIG Torch
Telwin s.p.a. SKU: 722192
Short Hood SR 17 for Telwin TIG Torch
Short Hood SR 17 for Telwin TIG Torch Original replacement part Telwin, Short Hood SR 17 for Torches TIG ERGO. Part for the following products: - TECHNOLOGY TIG 230 DC-HF/LIFT 230V-852032 - TECHNOLOGY TIG 185 DC 230V - TORCH...
Last items in stock €4.03
Details
Insulator SR 17 for Telwin TIG Torch
Telwin s.p.a. SKU: 722248
Insulator SR 17 for Telwin TIG Torch
Insulator SR 17 for Telwin TIG Torch Original spare Telwin, Insulator SR 17 for Torches TIG ERGO. Parts for the following products: - TECHNOLOGY TIG 230 DC-HF/LIFT 230V-852032 - TECHNOLOGY TIG 185 DC 230V - TORCH TECHNOLOGY TIG 182...
AVAILABLE €8.21
Details
Long Hood O-Ring 2037 for Telwin TIG Torch
Telwin s.p.a. SKU: 722061
Long Hood O-Ring 2037 for Telwin TIG Torch
Long Hood O-Ring 2037 for Telwin TIG Torch Original spare Telwin, Long Hood O-Ring 2037 for Torches TIG ERGO. Parts for the following products: - TECHNOLOGY TIG 185 DC 230V - TECHNOLOGY TIG 230 DC-HF/LIFT 230V - TECHNOLOGY TIG 182...
AVAILABLE €0.97
Details
Knob Kit for Welding Telwin Mastermig-Superior
Telwin s.p.a. SKU: 990328
Knob Kit for Welding Telwin Mastermig-Superior
Knob Kit for Welding Telwin Mastermig-Superior Original parts Telwin, Knob kit for Telwin welding machines, MASTERMIG 400 - 260 SUPERIOR - SUPERIOR TIG 311 - SUPERIOR PLASMA 60 HF - ETRONITHY 400 EC. For the following products:...
Last items in stock €6.12
Details
IGBT for Inverter Telwin TECHNOLOGY TIG 182 AC/DC-HF/LIFT
Telwin s.p.a. SKU: 113603
IGBT for Inverter Telwin TECHNOLOGY TIG 182 AC/DC-HF/LIFT
IGBT for Inverter Telwin TECHNOLOGY TIG 182 AC/DC-HF/LIFT Original spare parts Telwin, IGBT for Inverter Machines Telwin TECHNOLOGY TIG 182 - INVERPULSE 425 - 625 MIG/TIG/MMA - SUPERIOR TIG 322 - 422 AC/DC-HF/LIFT Part for the...
AVAILABLE €12.86
Details
Dipswitch 16A for Inverter Telwin SUPERIOR 260 CE 400V
Telwin s.p.a. SKU: 121523
Dipswitch 16A for Inverter Telwin SUPERIOR 260 CE 400V
Dipswitch 16A for Inverter Telwin SUPERIOR 260 CE 400V Genuine spare Telwin, Dipswitch 16A 400V for Inverter SUPERIOR 260 CE 400V - 815503 - SUPERIOR TIG 311 DC-HF/LIFT 400V - 816015 - SUPERIOR PLASMA 60 HF 400V – 815506 Part for the...
on 7/10 Business Days Approx. €19.78
Details
Telwin Inverter TIG Welding Machines Plug 3P
Telwin s.p.a. SKU: 722999
Telwin Inverter TIG Welding Machines Plug 3P
Telwin Inverter TIG Welding Machines Plug 3P Genuine parts Telwin, Plug 3P for Telwin Inverter TIG Welding Machines. Parts for the following products: - TECNICA TIG 160 DC-HF - SUPERIOR TIG 421 DC - SUPERTIG 200 AC/DC-HF -...
Last items in stock €13.68
Details
Telwin Superior Plasma 60 HF Front Panel
Telwin s.p.a. SKU: 322508
Telwin Superior Plasma 60 HF Front Panel
Telwin Superior Plasma 60 HF Front Panel Genuine parts Telwin, Front Panel (Frame) for Superior Plasma 60 HF. Parts for the following products: - SUPERIOR PLASMA 60 HF – 815506 - TECHNOLOGY TIG 222 AC/DC - 85203 - TECH...
AVAILABLE €16.58
Details
Comments (0)
