Telwin Parts for Inverter SUPERIOR TIG 322 AC/DC HF/LIFT 400V

SKU: SUPERIOR TIG 322 AC/DC - 816016
€4.87
VAT included

Telwin Parts for Inverter SUPERIOR TIG 322 AC/DC HF/LIFT 400V

TELWIN Authorized Technical Assistance, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any issues for Inverter Welding SUPERIOR TIG 322 AC/DC HF/LIFT 400V - 816016

SUPERIOR TIG 322 AC/DC - 816016
Telwin Parts for Inverter SUPERIOR TIG 322 AC/DC HF/LIFT 400V
  • Telwin Parts for Inverter SUPERIOR TIG 322 AC/DC HF/LIFT 400V

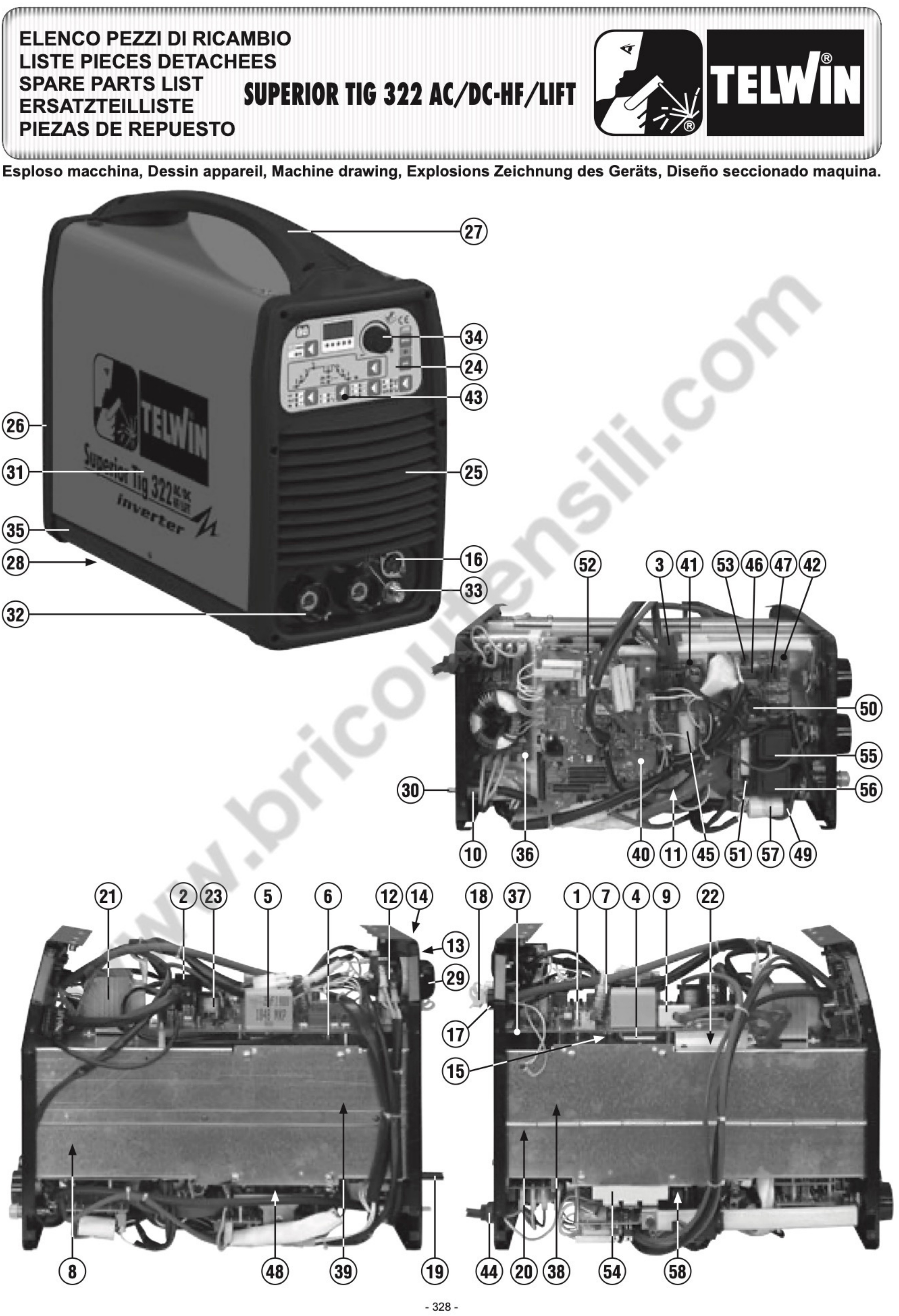

  • Telwin Parts for Inverter SUPERIOR TIG 322 AC/DC HF/LIFT 400V - Drawing

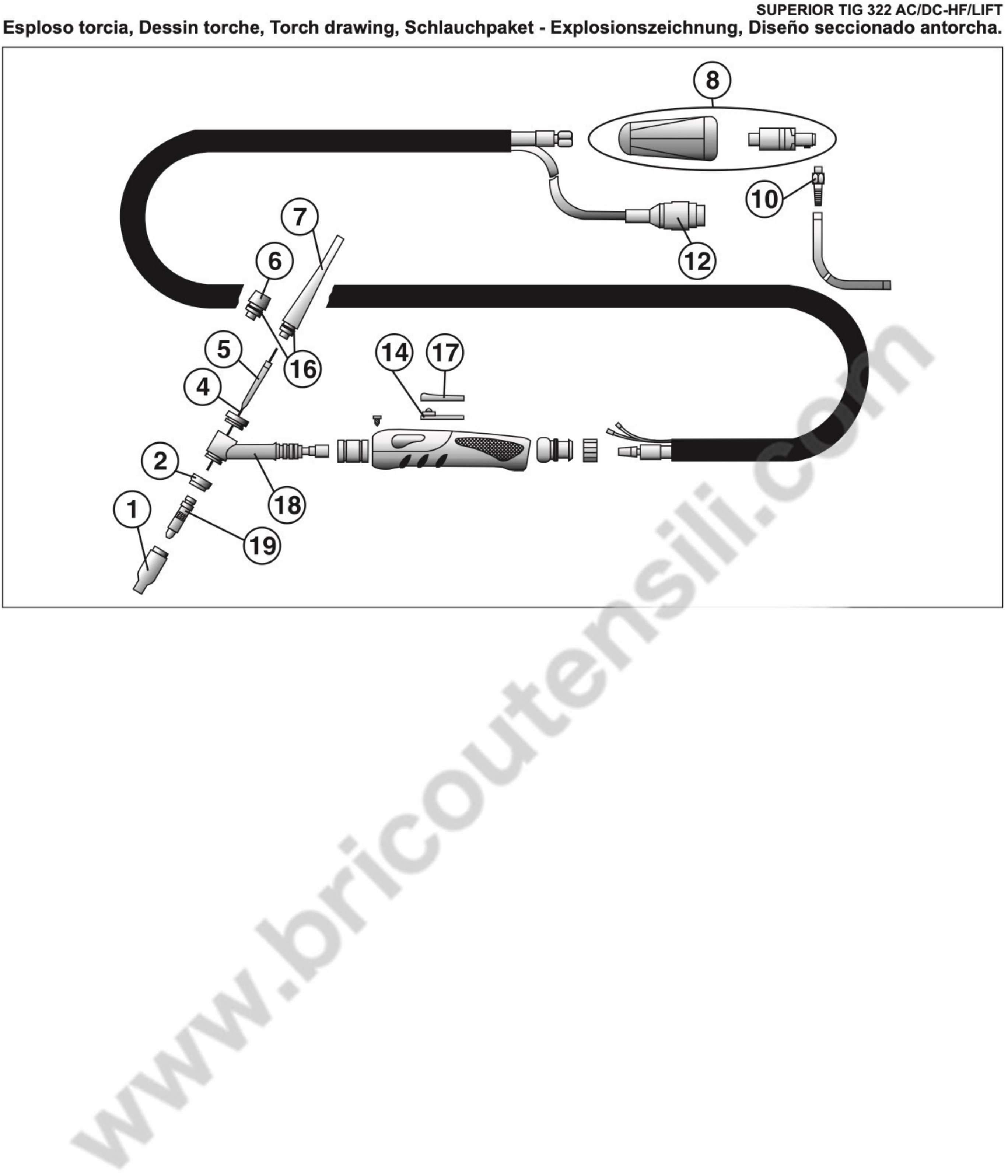

  • Telwin Parts for Inverter SUPERIOR TIG 322 AC/DC HF/LIFT 400V - Torch Drawing
  • Telwin Parts for Inverter SUPERIOR TIG 322 AC/DC HF/LIFT 400V - Wire Drawing

Telwin Parts for Inverter SUPERIOR TIG 322 AC/DC HF/LIFT 400V

SKU: SUPERIOR TIG 322 AC/DC - 816016 Condition: New
€4.87
VAT included

Telwin Parts for Inverter SUPERIOR TIG 322 AC/DC HF/LIFT 400V

TELWIN Authorized Technical Assistance, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any issues for Inverter Welding SUPERIOR TIG 322 AC/DC HF/LIFT 400V - 816016

SUPERIOR TIG 322 AC/DC - 816016
settings 57 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:: TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

56 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
1
Telwin 113233 Relè for Inverter Welding 113233 Telwin 113233 Relè for Inverter Welding €4.14
2
IGBT for Inverter Telwin TECHNOLOGY TIG 182 AC/DC-HF/LIFT 113603 IGBT for Inverter Telwin TECHNOLOGY TIG 182 AC/DC-HF/LIFT €12.86
3
photo_cameraImage coming soon 113870 SENSOR HALL €77.22
4
photo_cameraImage coming soon 116603 Igbt €236.67
5
photo_cameraImage coming soon 116740 CAPACITOR €23.14
6
photo_cameraImage coming soon 111249 DIODE 55A 600V €54.04
7
photo_cameraImage coming soon 116747 REACTOR €10.80
8
photo_cameraImage coming soon 116759 RESISTANCE €14.94
9
photo_cameraImage coming soon 116836 SENSOR HALL €31.61
10
photo_cameraImage coming soon 121029 ELECTROVALVE €14.02
11
photo_cameraImage coming soon 121481 THERMOSTAT €9.50
12
photo_cameraImage coming soon 122017 SWITCH €15.48
13
Holder Fuse for Charger Telwin Alpine 14 - 18 - 20 Boost 122159 Holder Fuse for Charger Telwin Alpine 14 - 18 - 20 Boost €2.08
14
Fuse 5x20 2A for Charger Telwin Alpine 20 Boost 122437 Fuse 5x20 2A for Charger Telwin Alpine 20 Boost €0.63
15
photo_cameraImage coming soon 121325 THERMOSTAT €8.94
16
photo_cameraImage coming soon 122713 JACK FOR TORCH €23.82
17
photo_cameraImage coming soon 124321 WIRING CONTROL €24.37
18
photo_cameraImage coming soon 124324 WIRING G.R.A. €10.42
19
photo_cameraImage coming soon 132026 CABLE ALIM. 4G2.5 2 M €12.84
20
Fan for Inverter Superior-Inverpulse 152000 Fan for Inverter Superior-Inverpulse €65.41
21
photo_cameraImage coming soon 990987 AUXILIARY TRANSFORMER €88.47
22
photo_cameraImage coming soon 169550 INDUCTANCE €27.49
23
photo_cameraImage coming soon 169627 TRANSFORMER €19.66
24
photo_cameraImage coming soon 314357 FRONT PANEL €21.08
25
photo_cameraImage coming soon 322881 FRONT €16.10
26
photo_cameraImage coming soon 322882 BACK €16.10
27
photo_cameraImage coming soon 322883 HANDLE €7.97
28
photo_cameraImage coming soon 323001 FOOT €2.39
29
Dipswitch Knob for Welding Telwin 323101 Dipswitch Knob for Welding Telwin €2.56
31
photo_cameraImage coming soon 656031 COAT €28.56
32
Socket DX 50 for Telwin Welding Machine 712036 Socket DX 50 for Telwin Welding Machine €5.29
33
photo_cameraImage coming soon 980548 GAS PIPE CONNECTOR KIT €7.03
34
Black Knob Set for Welding Telwin DIGITAL MIG 980772 Black Knob Set for Welding Telwin DIGITAL MIG €4.46
35
photo_cameraImage coming soon 980817 KIT FUND €16.50
36
Telwin SUPERIOR 400 CE Data Entry Filter Kit 981521 Telwin SUPERIOR 400 CE Data Entry Filter Kit €96.72
37
photo_cameraImage coming soon 981081 BOARD KIT PRIMARY €772.47
38
photo_cameraImage coming soon 981082 KIT HF TRANSFORMER €138.35
39
photo_cameraImage coming soon 981083 KIT POWER TRANSFORMER €207.54
40
photo_cameraImage coming soon 981084 KIT FORM SECONDARY €916.27
41
photo_cameraImage coming soon 981085 BOARD KIT INDUCTOR €182.82
42
photo_cameraImage coming soon 981053 BOARD KIT HF / SURVOLT. €271.87
43
photo_cameraImage coming soon 981075 KIT PANEL + CARD €300.23
44
photo_cameraImage coming soon 990439 CABLE BUSHING KIT €3.07
45
photo_cameraImage coming soon 112828 CAPACITOR €8.54
46
photo_cameraImage coming soon 112949 PHASE RECTIFIER €2.87
48
Diode for Inverter Telwin Superior 252-322 113747 Diode for Inverter Telwin Superior 252-322 €40.29
49
photo_cameraImage coming soon 111092 DIODE €4.73
50
photo_cameraImage coming soon 116967 CAPACITOR €1.24
51
Diode for Inverter Telwin Superior 322-422 116325 Diode for Inverter Telwin Superior 322-422 €5.17
52
photo_cameraImage coming soon 116442 DIODE €5.30
53
photo_cameraImage coming soon 116465 RESISTANCE €2.60
54
photo_cameraImage coming soon 116644 Igbt €157.78
55
photo_cameraImage coming soon 116821 REACTOR €21.49
56
photo_cameraImage coming soon 116937 TRANSFORMER X booster €29.97
57
photo_cameraImage coming soon 116940 CAPACITOR €4.96
58
photo_cameraImage coming soon 122571 THERMOSTAT €15.45

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Telwin Parts for Inverter SUPERIOR TIG 322 AC/DC HF/LIFT 400V

TELWIN Authorized Technical Assistance

, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Inverter Welding SUPERIOR TIG 322 AC/DC HF/LIFT 400V - 816016

In the following table, look for the model of the Welding and the respective parts of the code.
SUPERIOR TIG 322 AC/DC - 816016

SUPERIOR TIG 322 AC/DC HF/LIFT 400V - 816016
# Part Num. Description
1 113233 RELAY '
2 113603 IGBT
3 113870 SENSOR HALL
4 116603 IGBT
5 116740 CAPACITOR
6 111249 DIODE 55A 600V
7 116747 REACTOR
8 116759 RESISTANCE
9 116836 SENSOR HALL
10 121029 SOLENOID
11 121481 THERMOSTAT
12 122017 SWITCH
13 122159 FUSE
14 122437 FUSE
15 121325 THERMOSTAT
16 122713 JACK FOR TORCH
17 124321 WIRING CONTROL
18 124324 WIRING G.R.A.
19 132026 CABLE ALIM. 4G2.5 2 M
20 152000 FAN
21 990987 TRANSFORMER AUXILIARY
22 169550 REACTOR
23 169627 TRANSFORMER
24 314357 FRONT PANEL
25 322881 FRONT
26 322882 RETRO
27 322883 HANDLE
28 323001 FOOT
29 323101 SWITCH KNOB ASSY
30 602052 WATER CONNECTION
31 656031 COAT
32 712036 SOCKET DX 50
33 980548 CONNECTION KIT INLET GAS
34 980772 BLACK KNOB SET
35 980817 KIT FUND
36 981521 DATA ENTRY FILTER KIT
37 981081 BOARD KIT PRIMARY
38 981082 KIT HF TRANSFORMER
39 981083 KIT POWER TRANSFORMER
40 981084 KIT FORM SECONDARY
41 981085 BOARD KIT INDUCTOR
42 981053 BOARD KIT HF / SURVOLT.
43 981075 KIT PANEL + CARD
44 990439 GLAND KIT
45 112828 CAPACITOR
46 112949 PHASE RECTIFIER
48 113747 DIODE
49 111092 DIODE
50 116967 CAPACITOR
51 116325 DIODE
52 116442 DIODE
53 116465 RESISTANCE
54 116644 IGBT
55 116821 REACTOR
56 116937 TRANSFORMER X booster
57 116940 CAPACITOR
58 122571 THERMOSTAT
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Telwin websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Telwin brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
SUPERIOR TIG 322 AC/DC - 816016
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:
TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS

Specific References

New

Download

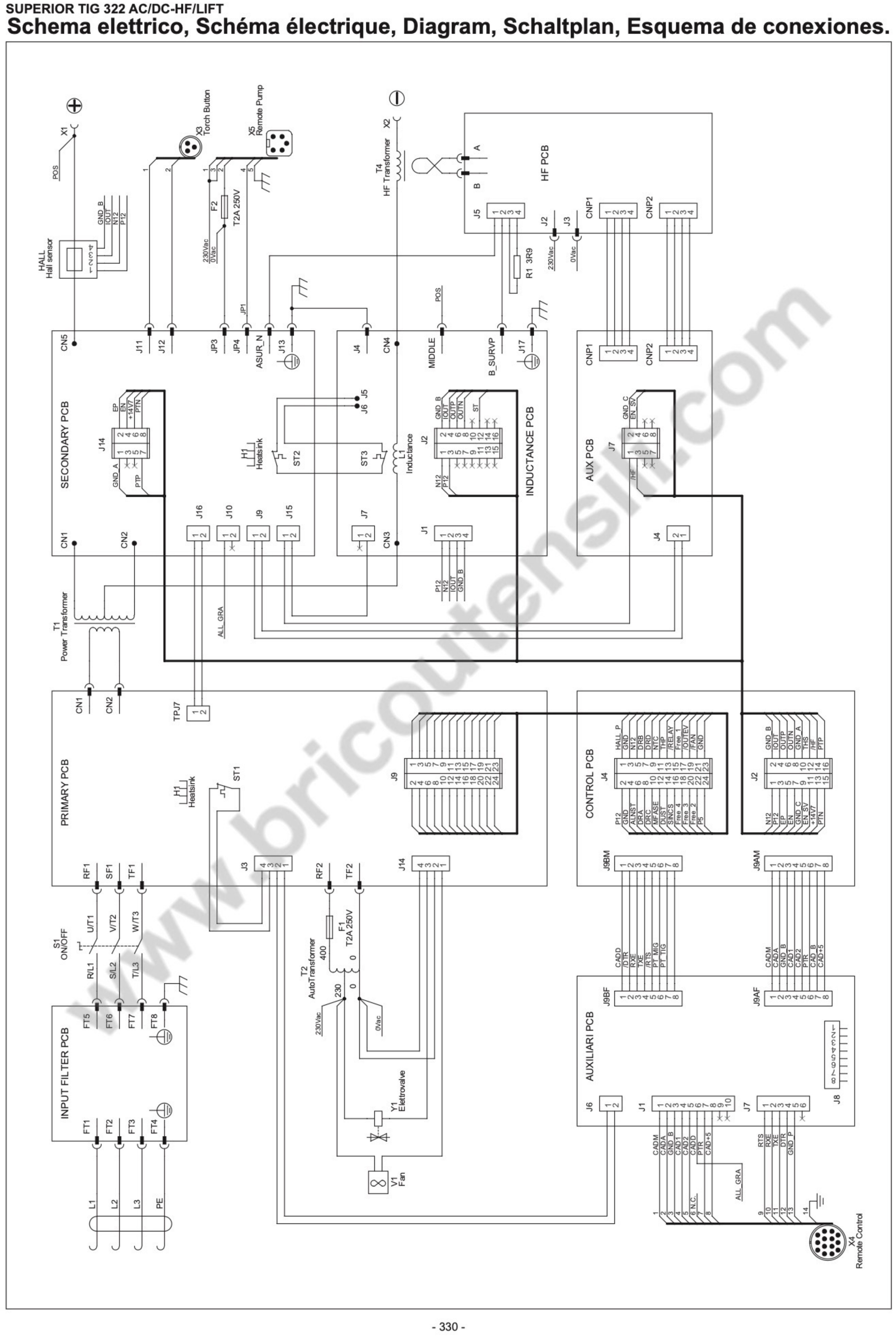

Diagram Telwin Superior Tig 322

Diagram Telwin Superior Tig 322

Download (863.41KB)
