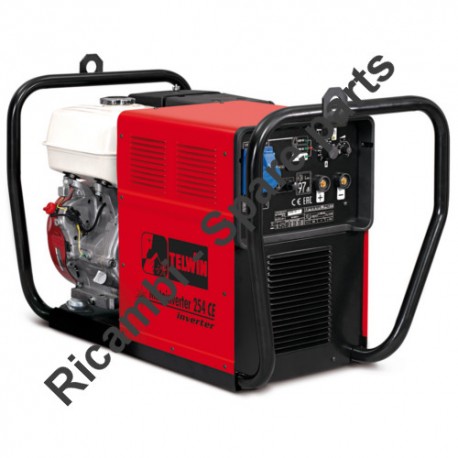

Telwin Spare Parts for Motoinveter 254 CE HONDA

We are TELWIN authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for  Gasoline or Diesel Motoinverter 254 CE HONDA cod. 815975

Inverter technology, petrol engine-driven (HONDA engine) welding machine with high frequency permanent magnets alternator for electrode MMA and TIG-DC welding with scratch striking. Use with a wide range of electrodes: rutile, basic, cellulosic, stainless steel, cast iron, etc. It can also beused as direct current (DC) generator for powering electrical tools such as drills, sanders, etc. Characteristics: 4-stroke, air cooled petrol engine with recoil starter * shutdown for lack of oil *over-fast engine safeguard * continuous welding current adjustment * high current stability by variations in engine revs * arc-force, hot start, anti-stick devices * welding machine-generator selector switch * thermostatic protection.

In the following table, look for the model of the drill and the respective parts of the code.

MOTOINVERTER 254 CE HONDA cod.815975
1	KIT SCHEDA CONTROLLO	980693
2	RADDRIZZATORE	116369
3	POTENZIOMETRO	116865
4	PRESA	121220
5	DEVIATORE	121268
6	FUSIBILE 8A	122112
7	MOTORE BENZINA 13,0HP HONDA	154008
8	TRASFORMATORE	169574
9	TIRANTE FILETTATO	242125
10	ASSIEME STATORE	314134
11	CORNICE	322666
12	VENTOLA	322722
13	ANTIVIBRANTE	322875
14	KIT VENTILATORE	990976
15	DIAFRAMMA	483818
16	SCUDO ALTERNATORE	522042
17	FLANGIA	522045
18	COPRIVENTOLA	645142
19	MANOPOLA	121424
20	ASSIEME FONDO	645523
21	FRONTALE	645333
22	RETRO	645334
23	MANOPOLA	121395
24	SCHERMO	645340
25	KIT MORSETTO DI CARICA NERO	990073
26	CRUSCOTTO	649971
27	MANTELLO	651119
28	FIANCO DESTRO	655944
29	FIANCO SINISTRO	655945
30	KIT PIEDINI	980493
31	PRESA DX 25	712035
32	KIT ROTORE COMPLETO	980490
33	KIT SCHEDA PRIMARIO	980491
34	KIT SCHEDA SECONDARIO	980492
