Telwin Spare Parts for DIGITAL CAR PULLER 5000 230V

SKU: DIGITAL CAR PULLER 5000 828073
€42.33
VAT included

Telwin Spare Parts for DIGITAL CAR PULLER 5000 230V

Telwin genuine spare parts for replacing or repairing DIGITAL CAR PULLER 5000 230V – 828073

Resistance welding (welder) electronics, microprocessor controlled, suitable for applications in the body shop. Digital panel, multifunction allows automatic adjustment of the welding parameters according to the chosen tool and sheet thickness.

DIGITAL CAR PULLER 5000  828073
Telwin Spare Parts for DIGITAL CAR PULLER 5000 230V
  • Telwin Spare Parts for DIGITAL CAR PULLER 5000 230V
  • Telwin Spare Parts for DIGITAL CAR PULLER 5000 230V
  • Telwin Spare Parts for DIGITAL CAR PULLER 5000 230V - Torch Diagram

Telwin Spare Parts for DIGITAL CAR PULLER 5000 230V

SKU: DIGITAL CAR PULLER 5000 828073 Condition: New
€42.33
VAT included

Telwin Spare Parts for DIGITAL CAR PULLER 5000 230V

Telwin genuine spare parts for replacing or repairing DIGITAL CAR PULLER 5000 230V – 828073

Resistance welding (welder) electronics, microprocessor controlled, suitable for applications in the body shop. Digital panel, multifunction allows automatic adjustment of the welding parameters according to the chosen tool and sheet thickness.

DIGITAL CAR PULLER 5000  828073
settings 26 spare parts

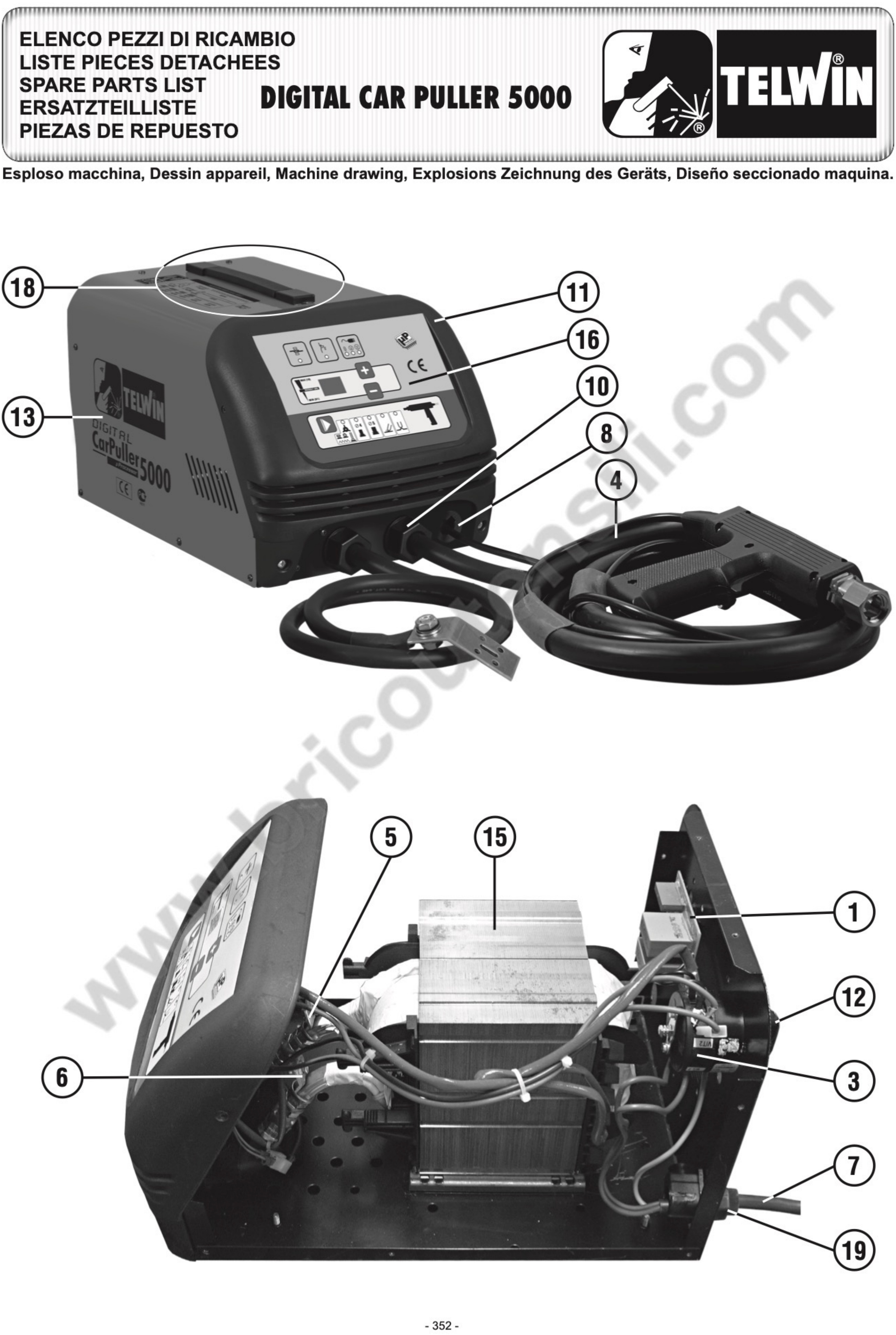

description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Shipped on: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:: TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

26 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 114627 SHEET FILTER €21.79
2
Microswitch for Telwin Digital Car Puller 5000 121329 Microswitch for Telwin Digital Car Puller 5000 €8.21
3
photo_cameraImage coming soon 121507 SWITCH €12.34
4
photo_cameraImage coming soon 124199 CABLE GUN €11.38
5
photo_cameraImage coming soon 124571 WIRING NTC €9.67
6
photo_cameraImage coming soon 124201 WIRING THERMOSTAT €9.86
7
photo_cameraImage coming soon 132101 CABLE ALIM. 3G4 4 M €20.83
8
Cable Busching for Inverter Welding and Battery Charger Telwin 322112 Cable Busching for Inverter Welding and Battery Charger Telwin €2.44
9
photo_cameraImage coming soon 322148 GLAND €3.12
10
photo_cameraImage coming soon 322414 GLAND €6.55
11
photo_cameraImage coming soon 322472 FRONT €13.92
12
Dipswitch Knob for Welding Telwin 323101 Dipswitch Knob for Welding Telwin €2.56
13
photo_cameraImage coming soon 980925 KIT COAT €16.54
14
Electrode Holder Chuck for Telwin Digital Car Puller 5000 722956 Electrode Holder Chuck for Telwin Digital Car Puller 5000 €23.56
15
photo_cameraImage coming soon 980959 KIT TRANSFORMER €300.01
16
photo_cameraImage coming soon 980960 KIT PANEL + CARD €140.41
17
Gun Handle Kit for Telwin Digital Car Puller 5000 990240 Gun Handle Kit for Telwin Digital Car Puller 5000 €17.07
18
photo_cameraImage coming soon 990398 KIT HANDLE €11.53
19
photo_cameraImage coming soon 990439 CABLE BUSHING KIT €3.07
20
Electrode Holder Chuck Nut for Telwin Digital Car Puller 5000 742355 Electrode Holder Chuck Nut for Telwin Digital Car Puller 5000 €6.49
21
photo_cameraImage coming soon 113585 SCR €41.10
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
2
Microswitch for Telwin Digital Car Puller 5000 121329 Microswitch for Telwin Digital Car Puller 5000 €8.21
9
photo_cameraImage coming soon 322148 GLAND €3.12
14
Electrode Holder Chuck for Telwin Digital Car Puller 5000 722956 Electrode Holder Chuck for Telwin Digital Car Puller 5000 €23.56
17
Gun Handle Kit for Telwin Digital Car Puller 5000 990240 Gun Handle Kit for Telwin Digital Car Puller 5000 €17.07
20
Electrode Holder Chuck Nut for Telwin Digital Car Puller 5000 742355 Electrode Holder Chuck Nut for Telwin Digital Car Puller 5000 €6.49

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Telwin Spare Parts for DIGITAL CAR PULLER 5000 230V

Telwin genuine spare parts for replacing or repairing DIGITAL CAR PULLER 5000 230V – 828073

Resistance welding (welder) electronics, microprocessor controlled, suitable for applications in the body shop. Digital panel, multifunction allows automatic adjustment of the welding parameters according to the chosen tool and sheet thickness.

In the following table, look for the model of the Spotter and the respective parts of the code.
DIGITAL CAR PULLER 5000  828073

DIGITAL CAR PULLER 5000 230V – 828073
# Part Num. Description
1 114627 SHEET FILTER
2 121329 MICRO SWITCH
3 121507 SWITCH
4 124199 CABLE GUN
5 124571 WIRING NTC
6 124201 WIRING THERMOSTAT
7 132101 CABLE ALIM. 3G4 4 M
8 322112 GLAND
9 322148 GLAND
10 322414 GLAND
11 322472 FRONT
12 323101 SWITCH KNOB ASSY
13 980925 KIT COAT
14 722956 CHUCK ELECTRODE HOLDER
15 980959 KIT TRANSFORMER
16 980960 KIT PANEL + CARD
17 990240 GUN HANDLE KIT
18 990398 KIT HANDLE
19 990439 GLAND KIT
20 742355 NUT
21 113585 SCR
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Telwin websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Telwin brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
DIGITAL CAR PULLER 5000 828073
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:
TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS

Specific References

New

Download

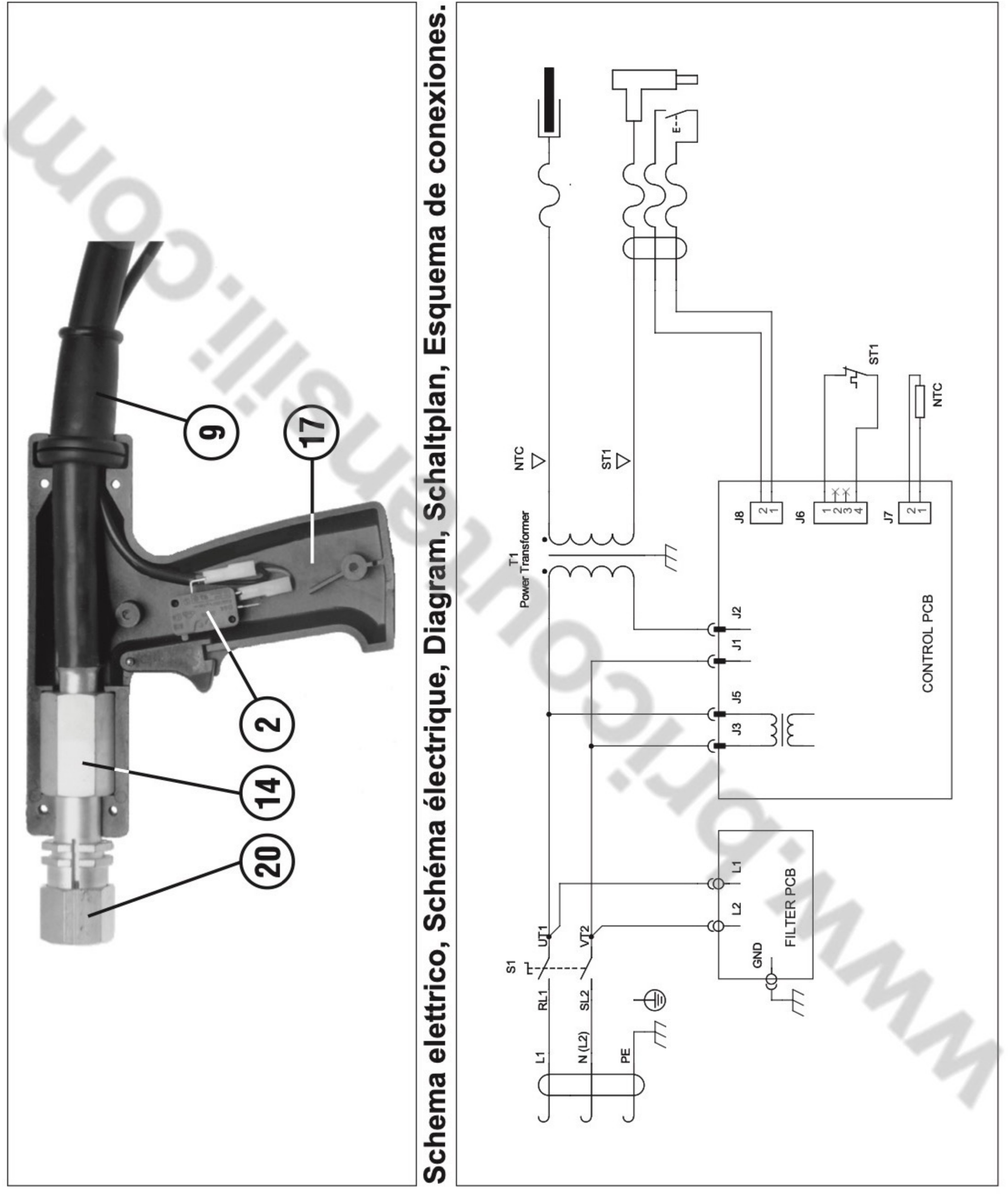

Diagram Telwin Digital C.Puller

Diagram Telwin Digital C.Puller

Download (499.96KB)
