Telwin Spare Parts for Welding Inverter INFINITY 120

SKU: Telwin INFINITY 120 - 816078
€1.83
VAT included

Telwin Spare Parts for Welding Inverter INFINITY 120

We are TELWIN authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair problem for Welding Inverter INFINITY 120 - 816078.
Telwin Spare Parts for Welding Inverter INFINITY 120
  • Telwin Spare Parts for Welding Inverter INFINITY 120
  • Telwin Spare Parts for Welding Inverter INFINITY 120

Telwin Spare Parts for Welding Inverter INFINITY 120

SKU: Telwin INFINITY 120 - 816078 Condition: New
€1.83
VAT included

Telwin Spare Parts for Welding Inverter INFINITY 120

We are TELWIN authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair problem for Welding Inverter INFINITY 120 - 816078.
settings 30 spare parts

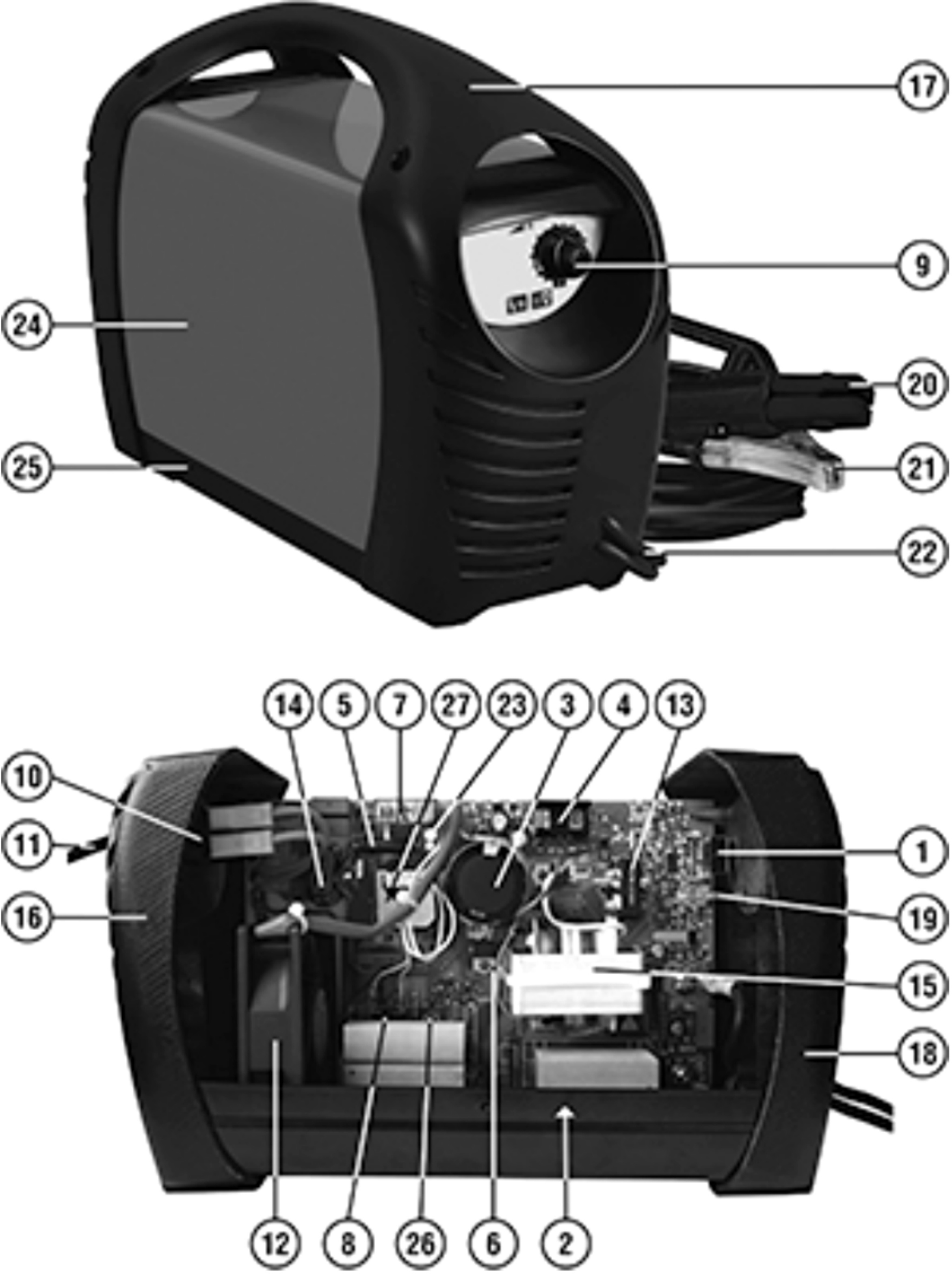

description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:: TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

29 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
1
Potentiometer for Inverter Telwin Force 125-145-165 112017 Potentiometer for Inverter Telwin Force 125-145-165 €4.03
2
Diode 112948 for Inverter Tecnica 151-171-211/S 112948 Diode 112948 for Inverter Tecnica 151-171-211/S €4.34
3
Capacitor for Inverter Telwin Force 125 - 165 - Force Tig 170 113122 Capacitor for Inverter Telwin Force 125 - 165 - Force Tig 170 €10.50
4
Transistor for Inverter Force 116171 Transistor for Inverter Force €1.66
5
Wire Resistance for Inverter Telwin Force 125 116328 Wire Resistance for Inverter Telwin Force 125 €2.49
6
Diode 116694 for Inverter Force 125 116694 Diode 116694 for Inverter Force 125 €3.47
7
Relay 24VDC for Inverter Force 116738 Relay 24VDC for Inverter Force €5.42
8
Thermostat for Inverter Telwin Force 145 - 165-168 MPGE 121249 Thermostat for Inverter Telwin Force 145 - 165-168 MPGE €3.47
9
Small knob for Inverter Telwin 121395 Small knob for Inverter Telwin €0.61
10
Green Switch for Inverter Telwin Force 125-145-165-195 122381 Green Switch for Inverter Telwin Force 125-145-165-195 €5.42
11
photo_cameraImage coming soon 132155 MAINS CABLE 3G1.5 2 M SCHUKO PLUG €12.34
12
photo_cameraImage coming soon 152901 FAN 24VDC 92x92x25 CN €13.01
13
photo_cameraImage coming soon 152266 TA 1/100 €6.91
14
Inductance Filter for Inverter Telwin 164741 Inductance Filter for Inverter Telwin €6.99
15
photo_cameraImage coming soon 169638 POWER TRANSFORMER €22.35
16
Back-Cover for Inverter Telwin FORCE 145-165-195-TIG170-168 MPGE 322894 Back-Cover for Inverter Telwin FORCE 145-165-195-TIG170-168 MPGE €16.58
17
Black Handle for Inverter Telwin FORCE 145-165-195-TIG170-168 MPGE 322895 Black Handle for Inverter Telwin FORCE 145-165-195-TIG170-168 MPGE €13.79
18
Front Cover for Inverter Telwin Force 125 322896 Front Cover for Inverter Telwin Force 125 €16.57
19
Light Guide for Inverter Telwin Force 125 - 145 - 165 322898 Light Guide for Inverter Telwin Force 125 - 145 - 165 €2.43
20
Dallas 300 Electrode Holders Clamp 300A for Welding Telwin 712260 Dallas 300 Electrode Holders Clamp 300A for Welding Telwin €4.77
21
photo_cameraImage coming soon 713254 6mmq 1.8M CABLE CLAMP MASS-HOLE €5.85
22
photo_cameraImage coming soon 713255 MMQ 1.8 CABLE 6 M GROMMET €7.68
23
photo_cameraImage coming soon 980780 KIT FULL BOARD €132.04
23
photo_cameraImage coming soon 982053 Complete Control Pcb Kit €140.01
24
photo_cameraImage coming soon 981811 COVER KIT €4.15
25
photo_cameraImage coming soon 980786 BOTTOM KIT €7.89
26
Kit IGBT + Diode for Inverter Telwin Force 125 980787 Kit IGBT + Diode for Inverter Telwin Force 125 €22.30
27
Bridge + Thermostat Set for Inverter Telwin Force 125 980801 Bridge + Thermostat Set for Inverter Telwin Force 125 €7.82
27
photo_cameraImage coming soon 981824 Hex. Hd. Tapping Screw D4x45 €4.37

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Telwin Spare Parts for Welding Inverter INFINITY 120

We are TELWIN authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair problem for Welding Inverter INFINITY 120 - 816078.

In the following table, look for the model of the Welding and the respective parts of the code.
Welding Inverter INFINITY 120 - 816078

Welding Inverter INFINITY 120 - 816078
# Part Num. Description
1 112017 POTENTIOMETER
2 112948 DIODE
3 113122 CAPACITOR
4 116171 TRANSISTOR 100V
5 116328 RESISTANCE
6 116694 DIODE
7 116738 RELAIS 24VDC 17MA 250V 16A 1NO
8 121249 THERMOSTAT
9 121395 KNOB
10 122381 SWITCH
11 132155 MAINS CABLE 3G1.5 2 M SCHUKO PLUG
12 152901 FAN
13 152266 TA 1/100
14 164741 FILTER INDUCTANCE
15 169638 POWER TRAFO
16 322894 BACK PANEL
17 322895 HANDLE
18 322896 FRONT PANEL
19 322898 LIGHT GUIDE
20 712260 DALLAS 300 ELECTRODE HOLDER 300A
21 713254 CABLE 6MMQ 1.8M WORK CLAMP-EYELET
22 713255 CABLE 6 MMQ 1.8 M EYELET
23 980780 COMPLETE PCB KIT/ EU
23 982053 KIT SCHEDA COMPLETA CH
24 981811 COVER KIT
25 980786 BOTTOM KIT
26 980787 IGBT + DIODE KIT
26 982050 KIT IGBT + DIODI
27 980801 BRIDGE + THERMAL SWITCH KIT
27 981824 SINGLE PHASE BRIDGE KIT

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Telwin websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Telwin brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Telwin INFINITY 120 - 816078
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:
TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS

Specific References

New

Download

Diagram Telwin INFINITY 120

Diagram Telwin INFINITY 120

Download (323.72KB)
