Telwin Spare Parts for Electrode Welding Linear 410/S

Telwin original spare parts for to replace broken parts for to fix Electrode Welding Machine Linear 410/S - 818008.

MMA, rectified, electrode welding machine in direct current (DC). Stepless regulation of welding current. Use with a wide range of electrodes: rutile, basic, stainless steel, cast iron and aluminium.

Telwin Linear 410/S - 818008

Telwin Spare Parts for Electrode Welding Linear 410/S
  • Telwin Spare Parts for Electrode Welding Linear 410/S
  • Telwin Spare Parts for Electrode Welding Linear 410/S
Telwin s.p.a.

Telwin Spare Parts for Electrode Welding Linear 410/S

SKU: Telwin Linear 410/S - 818008 Condition: New
€104.39
VAT included

Telwin Spare Parts for Electrode Welding Linear 410/S

Telwin original spare parts for to replace broken parts for to fix Electrode Welding Machine Linear 410/S - 818008.

MMA, rectified, electrode welding machine in direct current (DC). Stepless regulation of welding current. Use with a wide range of electrodes: rutile, basic, stainless steel, cast iron and aluminium.

Telwin Linear 410/S - 818008

settings 30 Spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:: TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS
Machine Type: Welding Machine
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
30 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

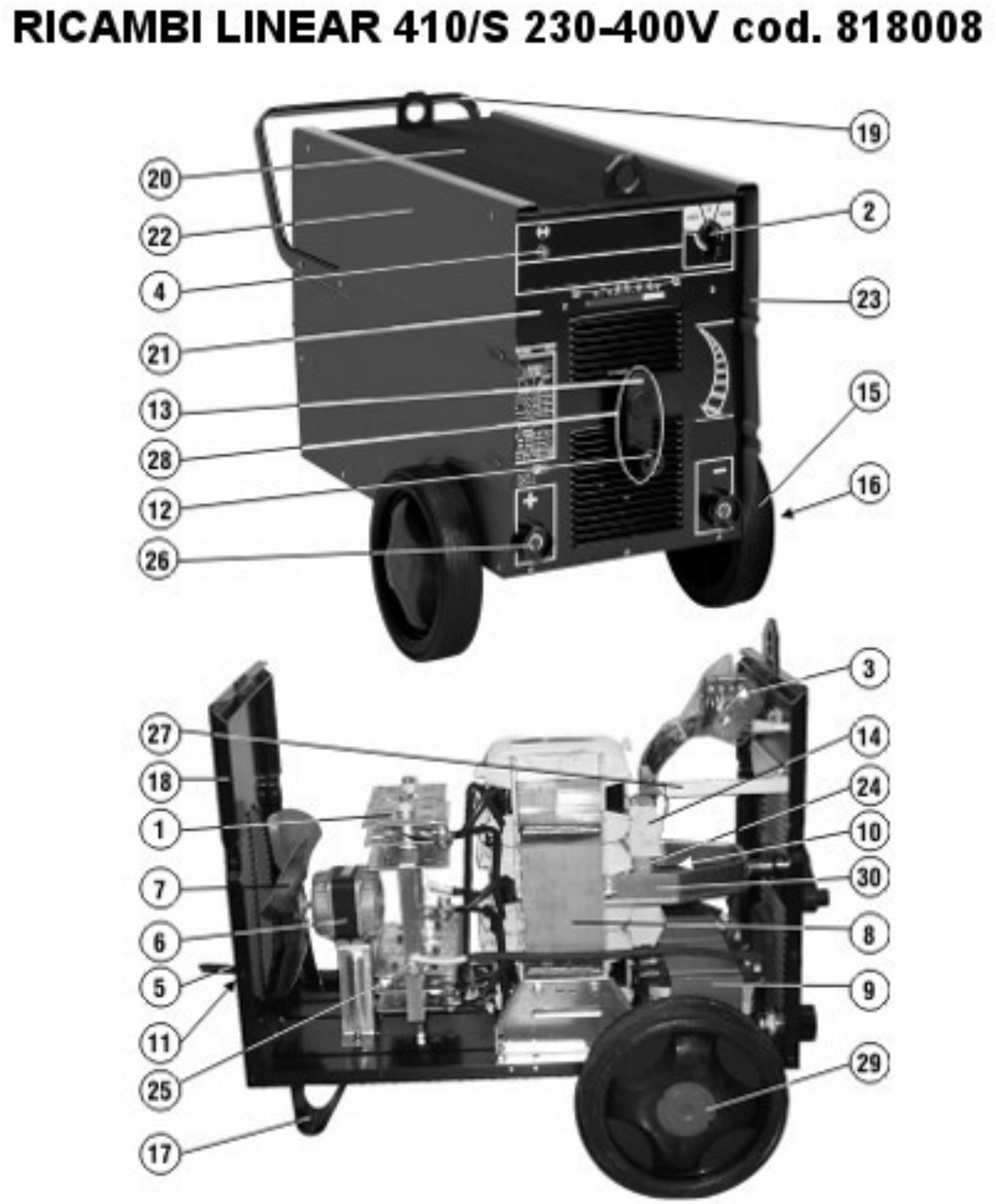

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 112316 RECTIFIER €80.88
2
 Dipswitch Knob for Welding Telwin 323101 Dipswitch Knob for Welding Telwin €2.56
3
 photo_cameraImage coming soon 122392 SWITCH €47.32
4
 Telwin 122596 Green Pilot Lamp 24 V 122596 Telwin 122596 Green Pilot Lamp 24 V €2.65
5
 photo_cameraImage coming soon 132283 MAINS CABLE 4G4 4.5 M €32.22
6
 Fan Motor for Welding Telwin Linear-Mastermig-Supermig 152083 Fan Motor for Welding Telwin Linear-Mastermig-Supermig €87.50
7
 Cooler Fan for Welding Telwin Linear-Mastermig-Supermig 152113 Cooler Fan for Welding Telwin Linear-Mastermig-Supermig €13.79
8
 photo_cameraImage coming soon 990362 TRANSFORMER KIT €1,100.01
9
 photo_cameraImage coming soon 169378 REACTANCE €73.53
10
 photo_cameraImage coming soon 242099 REGULATION SCREW €8.91
11
 photo_cameraImage coming soon 312068 CABLE BUSHING €3.20
12
 photo_cameraImage coming soon 312200 KNOB FOR HANDWHEEL €10.91
13
 photo_cameraImage coming soon 312242 HANDWHEEL ( NEW 990367 ) €11.51
14
 photo_cameraImage coming soon 313253 SHUNT €24.75
15
 photo_cameraImage coming soon 322772 WHEEL €13.12
16
 photo_cameraImage coming soon 422940 WHEELS AXLE €4.75
17
 photo_cameraImage coming soon 644408 FOOT €4.66
18
 photo_cameraImage coming soon 980599 BOTTOM KIT €42.17
19
 photo_cameraImage coming soon 644465 HANDLE €13.95
20
 photo_cameraImage coming soon 645330 COVER €17.83
21
 photo_cameraImage coming soon 980600 FRONT PANEL KIT €22.44
22
 photo_cameraImage coming soon 650595 RIGHT SIDE PANEL €25.19
23
 photo_cameraImage coming soon 650596 LEFT SIDE €24.86
24
 photo_cameraImage coming soon 681171 JOKE €10.51
25
 Protection Rectifier for Welding Telwin Linear-Mastermig 112182 Protection Rectifier for Welding Telwin Linear-Mastermig €4.03
26
 Socket DX 50 for Telwin Welding Machine 712036 Socket DX 50 for Telwin Welding Machine €5.29
27
 photo_cameraImage coming soon 312305 REGULATION INDICATOR €2.42
28
 Handwheel Kit for Welding Telwin Linear 220 - 280 - 340 990367 Handwheel Kit for Welding Telwin Linear 220 - 280 - 340 €12.20
29
 photo_cameraImage coming soon 322773 WHEEL CAP €2.40
30
 photo_cameraImage coming soon 482120 U BOLT €4.53

Shipping and delivery information will be available shortly.

Telwin Spare Parts for Electrode Welding Linear 410/S

Telwin original spare parts for to replace broken parts for to fix Electrode Welding Machine Linear 410/S - 818008.

In the following table, look for the model of the Welding and the respective parts of the code.
Telwin Linear 410/S - 818008

LINEAR 410/S 230-400V   key 818008
# Description Part Num.
1 RECTIFIER 112316
2 SWITCH KNOB SET 323101
3 SWITCH 122392
4 GREEN PILOT LAMP 122596
5 MAINS CABLE 4G4 4.5 M 132283
6 MOTOR 152083
7 FAN BLADE 152113
8 TRANSFORMER KIT 990362
9 REACTANCE 169378
10 REGULATION SCREW 242099
11 CABLE BUSHING 312068
12 KNOB FOR HANDWHEEL 312200
13 HANDWHEEL 312242
14 SHUNT 313253
15 WHEEL 322772
16 WHEELS AXLE 422940
17 FOOT 644408
18 BOTTOM KIT 980599
19 HANDLE 644465
20 COVER 645330
21 FRONT PANEL KIT 980600
22 RIGHT SIDE PANEL 650595
23 LEFT SIDE 650596
24 JOKE 681171
25 RECTIFIER PROTECTION 112182
26 SOCKET DX 50 712036
27 REGULATION INDICATOR 312305
28 HANDWEELKIT 990367
29 WHEEL CAP 322773
30 U BOLT 482120
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Telwin websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Telwin brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Telwin Linear 410/S - 818008
12 Items

Data sheet

Machine Type
Welding Machine
SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:
TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS

Specific References

New

Download

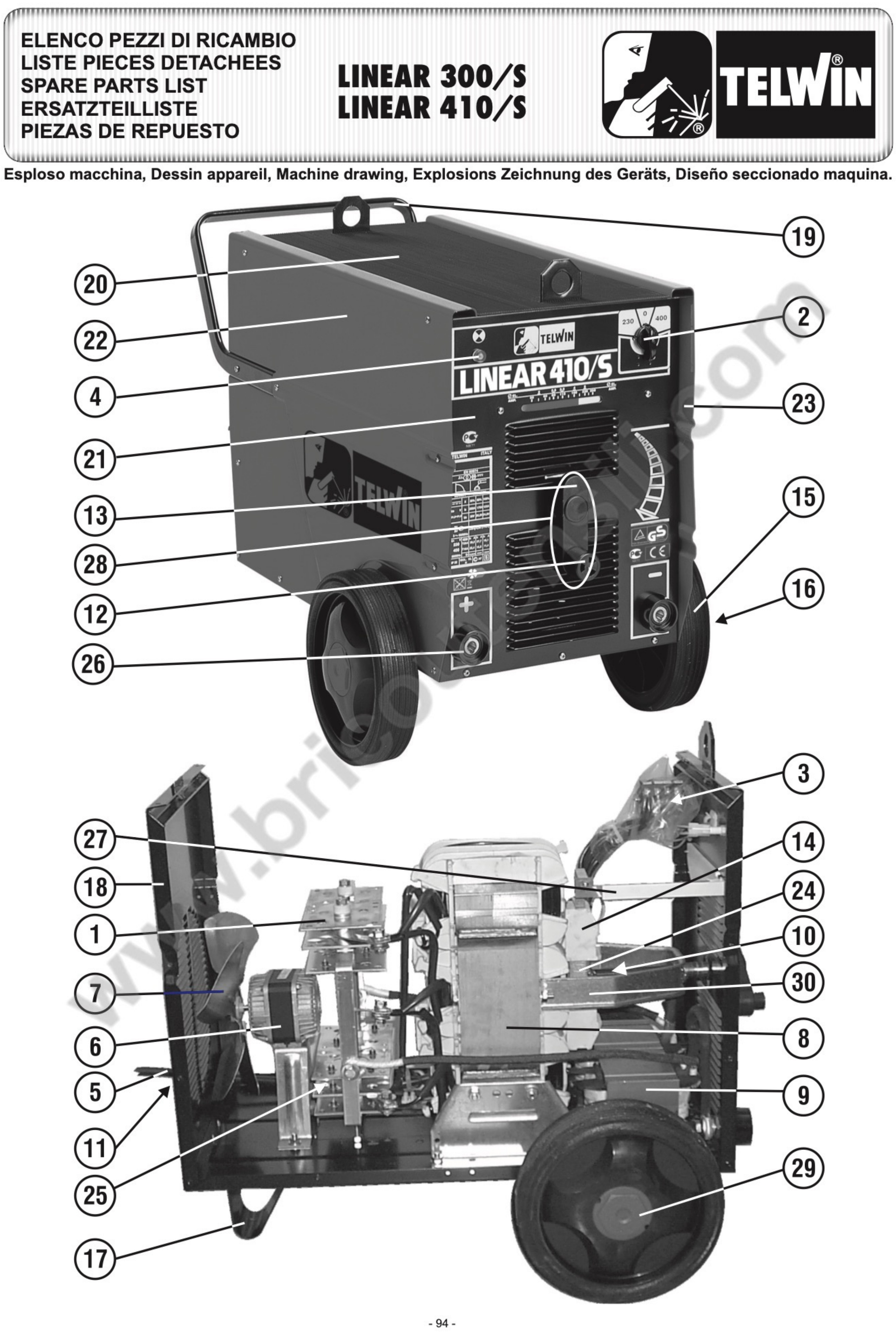

Diagram Telwin Linear 410S

Diagram Telwin Linear 410S

Download (450.06KB)
