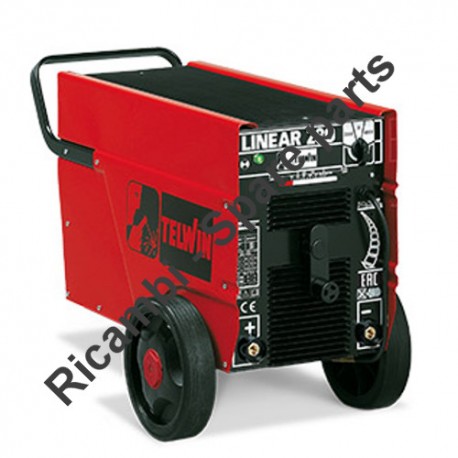

Telwin Spare Parts for Electrode Welding Linear 280

SKU: Telwin Linear 280 - 818002
€2.65
VAT included

Telwin Spare Parts for Electrode Welding Linear 280

Telwin original spare parts for to replace broken parts for to fix Electrode Welding Machine Linear 280 - 818002

MMA, rectified, electrode welding machine in direct current (DC). Stepless regulation of welding current. Use with a wide range of electrodes: rutile, basic, stainless steel, cast iron and aluminium.

Telwin Spare Parts for Electrode Welding Linear 280
  • Telwin Spare Parts for Electrode Welding Linear 280

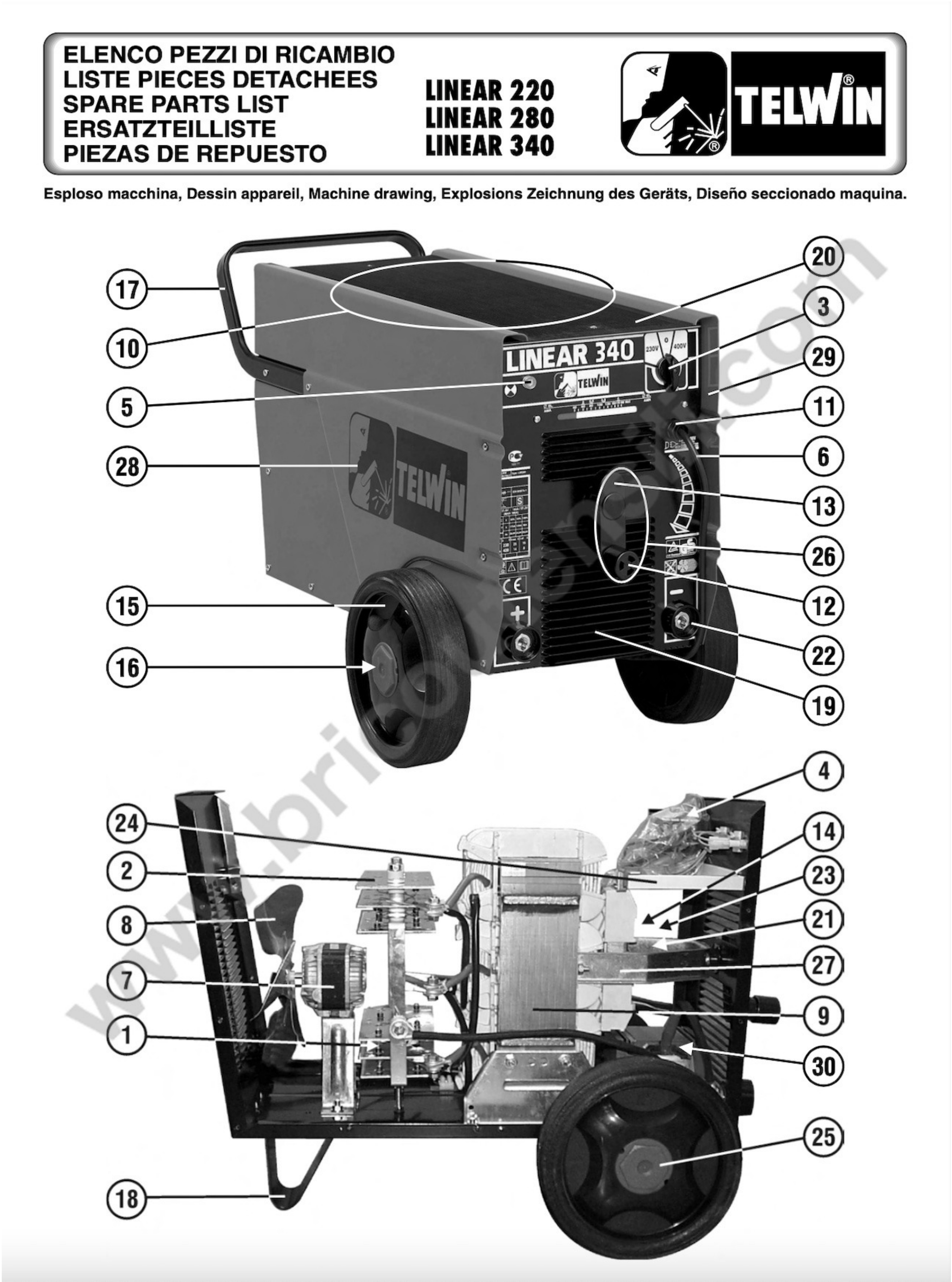

  • Telwin Spare Parts for Electrode Welding Linear 280 - Drawing

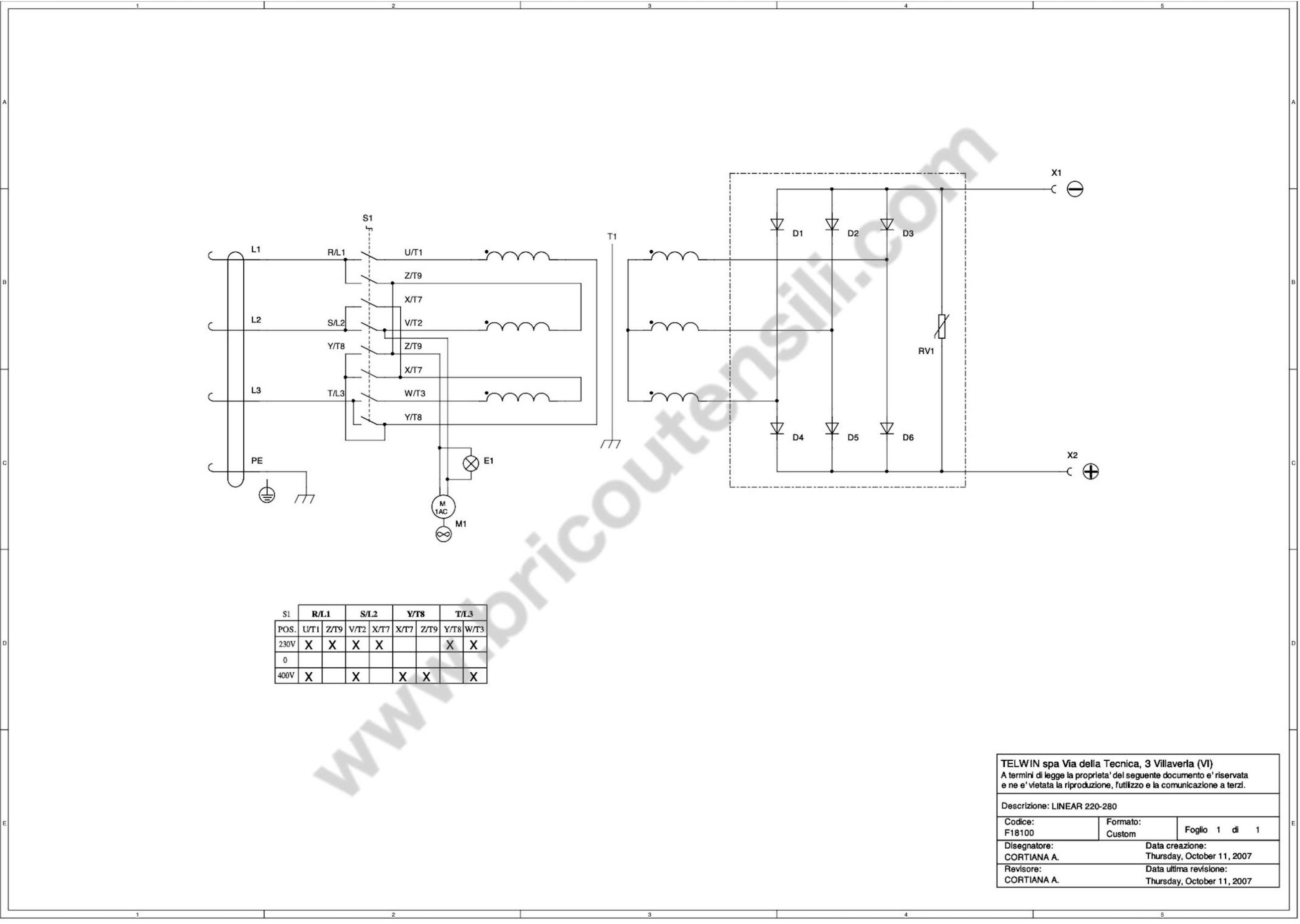

  • Telwin Spare Parts for Electrode Welding Linear 280 - Wire Diagram

Telwin Spare Parts for Electrode Welding Linear 280

SKU: Telwin Linear 280 - 818002 Condition: New
€2.65
VAT included

Telwin Spare Parts for Electrode Welding Linear 280

Telwin original spare parts for to replace broken parts for to fix Electrode Welding Machine Linear 280 - 818002

MMA, rectified, electrode welding machine in direct current (DC). Stepless regulation of welding current. Use with a wide range of electrodes: rutile, basic, stainless steel, cast iron and aluminium.

settings 29 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:: TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

29 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
1
Protection Rectifier for Welding Telwin Linear-Mastermig 112182 Protection Rectifier for Welding Telwin Linear-Mastermig €4.03
2
Three-Phase Rectifier for Welding Telwin Linear-Mastermig 112315 Three-Phase Rectifier for Welding Telwin Linear-Mastermig €69.59
3
Dipswitch Knob for Welding Telwin 323101 Dipswitch Knob for Welding Telwin €2.56
4
photo_cameraImage coming soon 122646 SWITCH €19.83
5
Telwin 122596 Green Pilot Lamp 24 V 122596 Telwin 122596 Green Pilot Lamp 24 V €2.65
6
photo_cameraImage coming soon 132282 MAINS CABLE 4G2.5 3.5 M €19.57
7
Fan Motor for Welding Telwin Linear-Mastermig-Supermig 152083 Fan Motor for Welding Telwin Linear-Mastermig-Supermig €78.00
8
Cooler Fan for Welding Telwin Linear-Mastermig-Supermig 152113 Cooler Fan for Welding Telwin Linear-Mastermig-Supermig €13.79
9
photo_cameraImage coming soon 990358 TRANSFORMER KIT €429.67
10
photo_cameraImage coming soon 980375 COVER KIT €60.01
11
photo_cameraImage coming soon 990439 CABLE BUSHING KIT €3.07
12
photo_cameraImage coming soon 312200 KNOB FOR HANDWHEEL €10.91
13
photo_cameraImage coming soon 312242 HANDWHEEL ( NEW 990367 ) €11.51
14
photo_cameraImage coming soon 313252 SHUNT €42.91
15
photo_cameraImage coming soon 322772 WHEEL €13.12
16
photo_cameraImage coming soon 422956 WHEELS AXLE €6.11
17
photo_cameraImage coming soon 644407 HANDLE €14.05
18
photo_cameraImage coming soon 644408 FOOT €4.66
19
photo_cameraImage coming soon 649105 FRONT PANEL €44.02
20
photo_cameraImage coming soon 645302 COVER €13.51
21
photo_cameraImage coming soon 681171 JOKE €10.51
22
Socket DX 50 for Telwin Welding Machine 712036 Socket DX 50 for Telwin Welding Machine €5.29
23
photo_cameraImage coming soon 242095 REGULATION SCREW €6.11
24
photo_cameraImage coming soon 312305 REGULATION INDICATOR €2.42
25
photo_cameraImage coming soon 322773 WHEEL CAP €2.40
26
Handwheel Kit for Welding Telwin Linear 220 - 280 - 340 990367 Handwheel Kit for Welding Telwin Linear 220 - 280 - 340 €12.20
27
photo_cameraImage coming soon 482119 U BOLT €4.32
28
photo_cameraImage coming soon 655937 RIGHT SIDE PANEL €22.27
29
photo_cameraImage coming soon 655936 LEFT SIDE €22.27

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Telwin Spare Parts for Electrode Welding Linear 280

Telwin original spare parts for to replace broken parts for to fix Electrode Welding Machine Linear 280 - 818002.

In the following table, look for the model of the Welding and the respective parts of the code.
LINEAR 280 230-400V   cod. 818002
# Description Part Num.
1 RECTIFIER PROTECTION 112182
2 RECTIFIER 112315
3 SWITCH KNOB SET 323101
4 SWITCH 122646
5 GREEN PILOT LAMP 122596
6 MAINS CABLE 4G2.5 3.5 M 132282
7 MOTOR 152083
8 FAN BLADE 152113
9 TRANSFORMER KIT 990358
10 COVER KIT 980375
11 CABLE BUSHING KIT 990439
12 KNOB FOR HANDWHEEL 312200
13 HANDWHEEL 312242
14 SHUNT 313252
15 WHEEL 322772
16 WHEELS AXLE 422956
17 HANDLE 644407
18 FOOT 644408
19 FRONT PANEL 649105
20 COVER 645302
21 JOKE 681171
22 SOCKET DX 50 712036
23 REGULATION SCREW 242095
24 REGULATION INDICATOR 312305
25 WHEEL CAP 322773
26 HANDWEELKIT 990367
27 U BOLT 482119
28 RIGHT SIDE PANEL 655937
29 LEFT SIDE 655936
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Telwin websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Telwin brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Telwin Linear 280 - 818002
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:
TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS

Specific References

New

Download

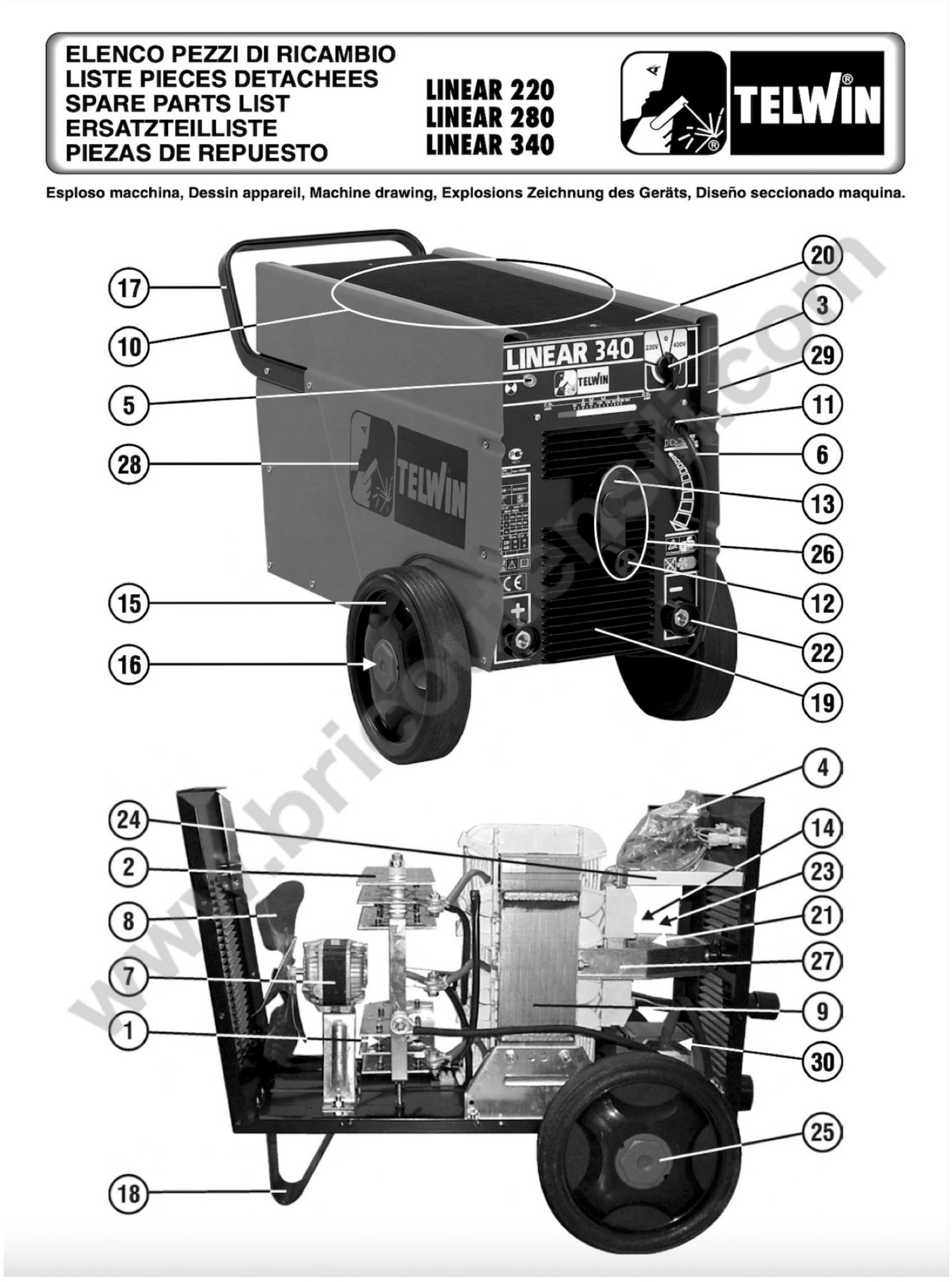

Telwin Linear 280 Drawing
