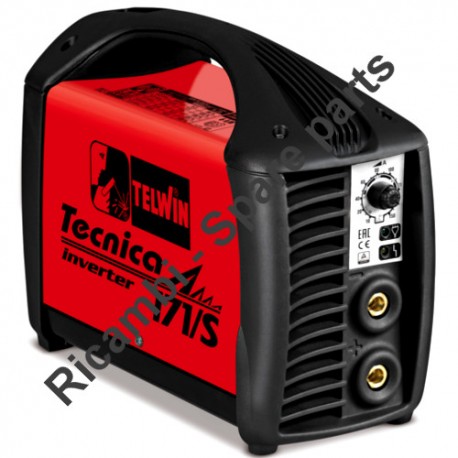

Telwin Spare Parts for Welding Inverter Tecnica 171/S

SKU: Telwin Tecnica 171/S - 816003
€1.83
VAT included

Telwin Spare Parts for Welding Inverter Tecnica 171/S

Telwin original spare parts to replace worn components or repair damaged parts of the Welding Inverter Tecnica 171/S - 816003.

Telwin Tecnica 171/S - 816003
Telwin Spare Parts for Welding Inverter Tecnica 171/S
  • Telwin Spare Parts for Welding Inverter Tecnica 171/S
  • Telwin Spare Parts for Welding Inverter Tecnica 171/S

Telwin Spare Parts for Welding Inverter Tecnica 171/S

SKU: Telwin Tecnica 171/S - 816003 Condition: New
€1.83
VAT included

Telwin Spare Parts for Welding Inverter Tecnica 171/S

Telwin original spare parts to replace worn components or repair damaged parts of the Welding Inverter Tecnica 171/S - 816003.

Telwin Tecnica 171/S - 816003
settings 26 spare parts

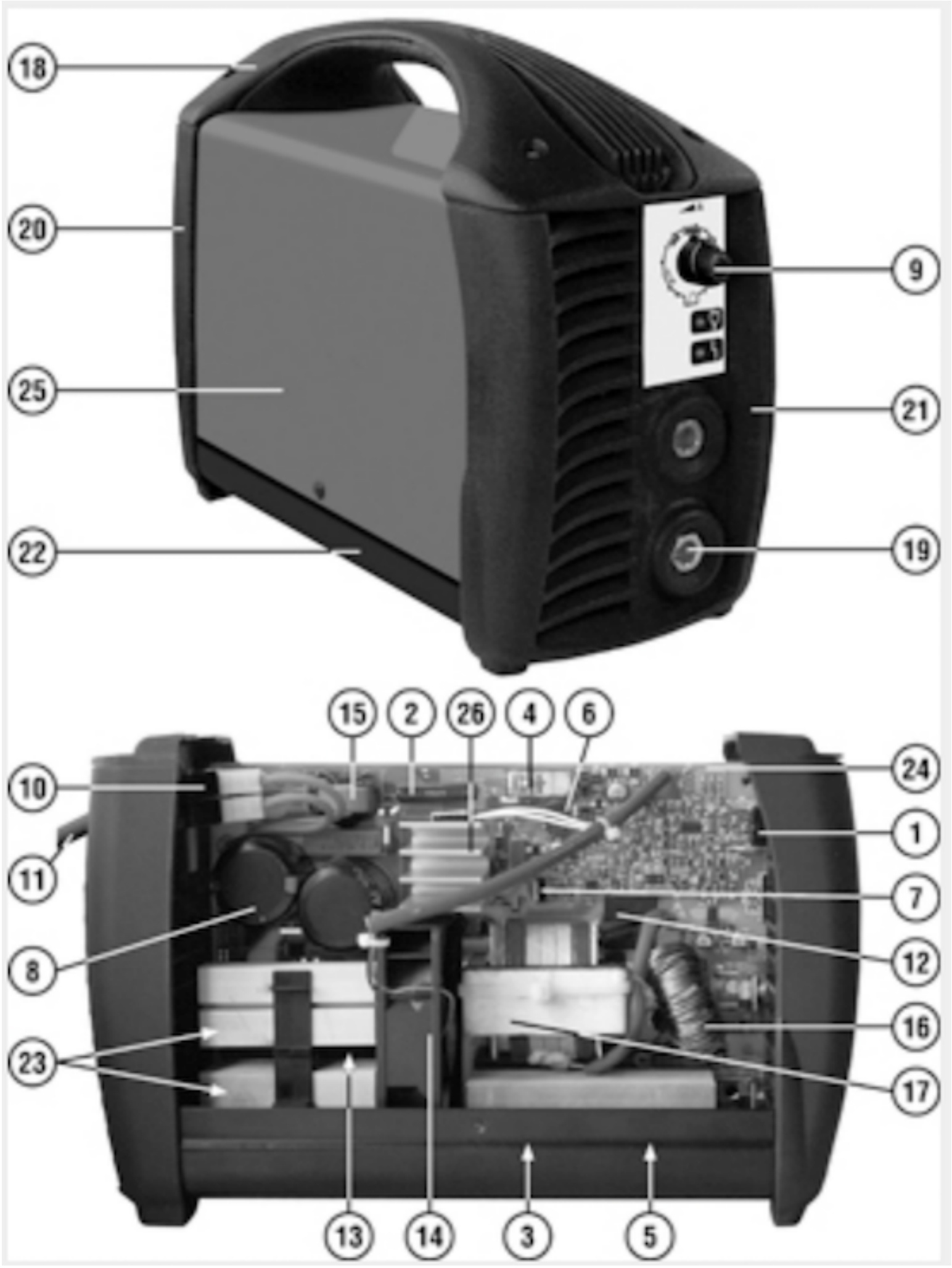

description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:: TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

25 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
1
Potentiometer for Inverter Telwin Force 125-145-165 112017 Potentiometer for Inverter Telwin Force 125-145-165 €4.03
2
Wire Resistance for Inverter Telwin Force 145 - 165 - 195 112048 Wire Resistance for Inverter Telwin Force 145 - 165 - 195 €2.91
4
Relay 14VDC for Inverter Telwin 116320 Relay 14VDC for Inverter Telwin €5.42
5
Diode for Inverter Telwin Tecnica 151-S - 171-S - 211-S 116839 Diode for Inverter Telwin Tecnica 151-S - 171-S - 211-S €7.24
6
Inductance UH 330 1 A for Inverter Telwin 116848 Inductance UH 330 1 A for Inverter Telwin €2.63
7
Mosfet N-CH for Welding Inverter Telwin Tecnica 151/S - 171/S 116849 Mosfet N-CH for Welding Inverter Telwin Tecnica 151/S - 171/S €2.18
8
Capacitor for Inverter Telwin Tecnica 171/S - Tecnica Tig 190 116857 Capacitor for Inverter Telwin Tecnica 171/S - Tecnica Tig 190 €14.94
9
Small knob for Inverter Telwin 121395 Small knob for Inverter Telwin €0.61
10
Green Switch for Inverter Telwin Force 125-145-165-195 122381 Green Switch for Inverter Telwin Force 125-145-165-195 €5.42
11
photo_cameraImage coming soon 132155 MAINS CABLE 3G1.5 2 M SCHUKO PLUG €12.34
12
Power Adapter for Inverter Telwin 152230 Power Adapter for Inverter Telwin €7.34
13
Pulse Transformer for Inverter Telwin 152247 Pulse Transformer for Inverter Telwin €10.43
14
Fan for Inverter Telwin Tecnica 151/S 152904 Fan for Inverter Telwin Tecnica 151/S €13.39
15
Inductance Filter for Inverter Telwin 164741 Inductance Filter for Inverter Telwin €6.99
16
Inductance for Inverter Telwin Tecnica 151/S 169907 Inductance for Inverter Telwin Tecnica 151/S €11.54
17
photo_cameraImage coming soon 169665 POWER TRANSFORMER €27.62
18
Handle for Inverter Telwin Tecnica 151/S - 171/S 312434 Handle for Inverter Telwin Tecnica 151/S - 171/S €8.50
19
Front-Cover for Inverter Telwin TECNICA 151/S-171/S-211/S 322950 Front-Cover for Inverter Telwin TECNICA 151/S-171/S-211/S €16.58
20
Back-Cover for Inverter Telwin Tecnica 151/S - 171/S 322951 Back-Cover for Inverter Telwin Tecnica 151/S - 171/S €16.58
21
Socket MMQ 25 DX for Telwin Welding Machine 712000 Socket MMQ 25 DX for Telwin Welding Machine €2.63
22
photo_cameraImage coming soon 980345 BOTTOM KIT €10.01
23
Kit IGBT + Diode for Inverter Telwin Tecnica 151/171S 980614 Kit IGBT + Diode for Inverter Telwin Tecnica 151/171S €27.00
24
photo_cameraImage coming soon 980985 COMPLETE CONTROL PCB KIT €179.47
25
photo_cameraImage coming soon 980988 COVER KIT €11.85
26
Bridge + Thermal Switch Kit for Inverter Telwin Tecnica 171/S 980992 Bridge + Thermal Switch Kit for Inverter Telwin Tecnica 171/S €19.78

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Telwin Spare Parts for Welding Inverter Tecnica 171/S

Telwin original spare parts to replace worn components or repair damaged parts of the Welding Inverter Tecnica 171/S - 816003.

In the following table, look for the model of the Welding and the respective parts of the code.
Telwin Tecnica 171/S - 816003
Welding Inverter Tecnica 171/S - 816003
Pos. Description Code
1 POTENTIOMETER 112017
2 RESISTANCE 112048
4 RELAY 116320
5 DIODE 116839
6 INDUCTANCE 116848
7 MOSFET N-CH 116849
8 CAPACITOR 116857
9 KNOB 121395
10 SWITCH 122381
11 MAINS CABLE 3G1.5 2 M SCHUKO PLUG 132155
12 CURRENT TRANSFORMER 152230
13 PULSE TRANSFORMER 152247
14 FAN 152904
15 FILTER INDUCTANCE 164741
16 INDUCTANCE 169907
17 POWER TRANSFORMER 169665
18 HANDLE SET 312434
19 FRONT PANEL 322950
20 BACK PANEL 322951
21 SOCKET DX 25 712000
22 BOTTOM KIT 980345
23 KIT IGBT + DIODE 980614
24 COMPLETE CONTROL PCB KIT 980985
25 COVER KIT 980988
26 BRIDGE + THERMAL SWITCH KIT 980992
27 SWITCH COVER 122353
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Telwin websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Telwin brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Telwin Tecnica 171/S - 816003
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:
TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS

Specific References

New

Download

Diagram Telwin Tecnica 171/S

Diagram Telwin Tecnica 171/S

Download (335.92KB)
