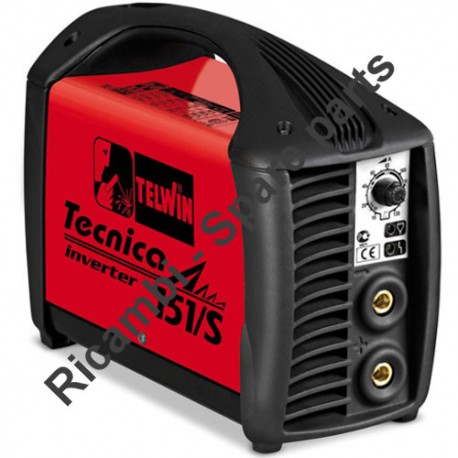

Telwin Spare Parts for Welding Inverter Tecnica 151/S

SKU: Telwin Tecnica 151/S - 816002
€1.83
VAT included

Telwin Spare Parts for Welding Inverter Tecnica 151/S

TELWIN authorized service center and original spare parts Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Welding Inverter Tecnica 151/S - 816002.

Telwin Tecnica 151/S - 816002

Telwin Spare Parts for Welding Inverter Tecnica 151/S
  • Telwin Spare Parts for Welding Inverter Tecnica 151/S
  • Telwin Spare Parts for Welding Inverter Tecnica 151/S
Telwin s.p.a.

Telwin Spare Parts for Welding Inverter Tecnica 151/S

SKU: Telwin Tecnica 151/S - 816002 Condition: New
€1.83
VAT included

Telwin Spare Parts for Welding Inverter Tecnica 151/S

TELWIN authorized service center and original spare parts Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Welding Inverter Tecnica 151/S - 816002.

Telwin Tecnica 151/S - 816002

settings 26 Spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:: TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS
Machine Type: Welding Machine
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
26 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

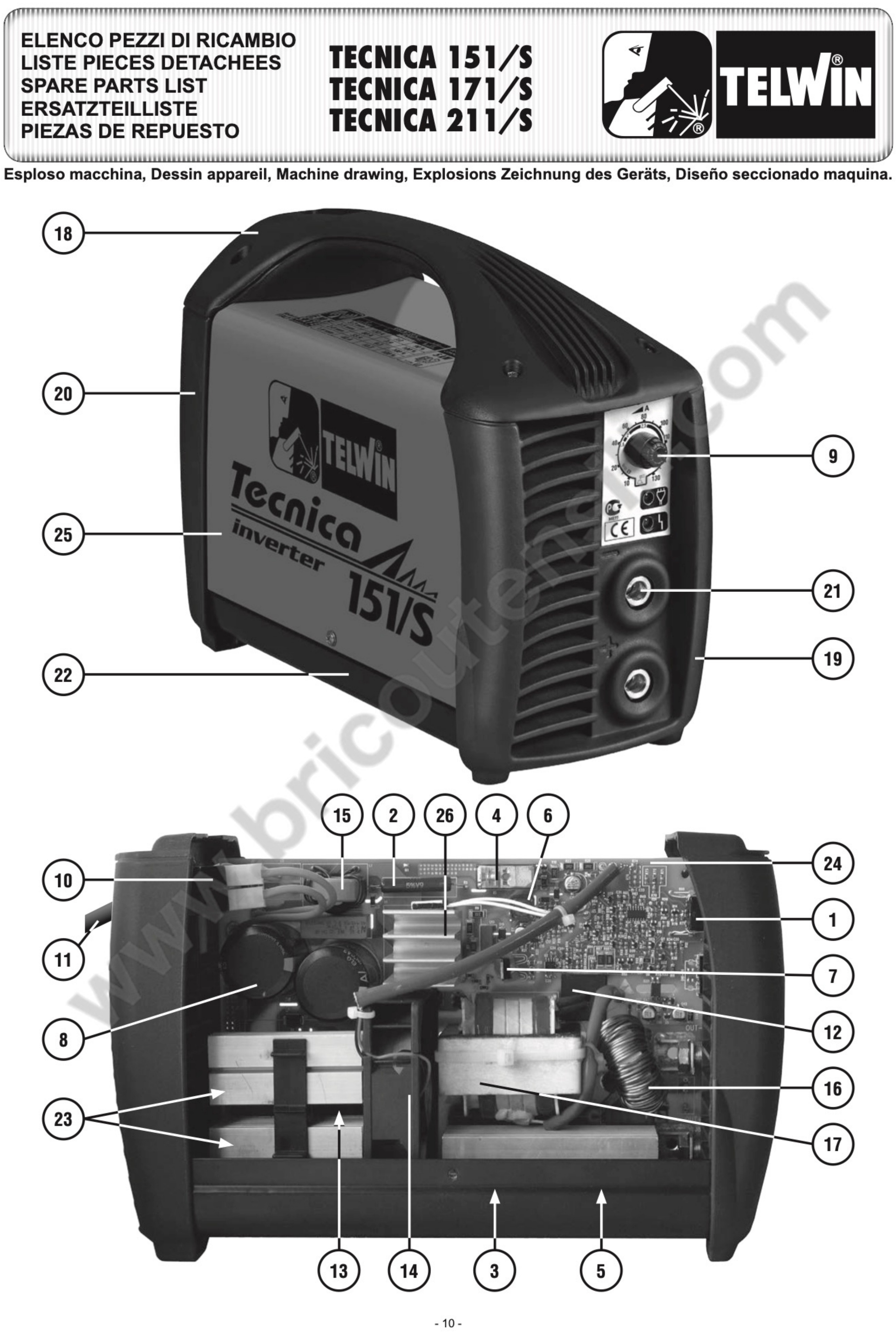

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 Potentiometer for Inverter Telwin Force 125-145-165 112017 Potentiometer for Inverter Telwin Force 125-145-165 €4.03
2
 Wire Resistance for Inverter Telwin Force 145 - 165 - 195 112048 Wire Resistance for Inverter Telwin Force 145 - 165 - 195 €2.91
3
 Diode 112948 for Inverter Tecnica 151-171-211/S 112948 Diode 112948 for Inverter Tecnica 151-171-211/S €4.34
4
 Relay 14VDC for Inverter Telwin 116320 Relay 14VDC for Inverter Telwin €5.42
5
 Diode for Inverter Telwin Tecnica 151-S - 171-S - 211-S 116839 Diode for Inverter Telwin Tecnica 151-S - 171-S - 211-S €7.24
6
 Inductance UH 330 1 A for Inverter Telwin 116848 Inductance UH 330 1 A for Inverter Telwin €2.63
7
 Mosfet N-CH for Welding Inverter Telwin Tecnica 151/S - 171/S 116849 Mosfet N-CH for Welding Inverter Telwin Tecnica 151/S - 171/S €2.18
8
 Capacitor for Inverter Telwin Tecnica 151/S 116856 Capacitor for Inverter Telwin Tecnica 151/S €11.72
9
 Small knob for Inverter Telwin 121395 Small knob for Inverter Telwin €0.61
10
 Green Switch for Inverter Telwin Force 125-145-165-195 122381 Green Switch for Inverter Telwin Force 125-145-165-195 €5.42
11
 photo_cameraImage coming soon 132155 MAINS CABLE 3G1.5 2 M SCHUKO PLUG €12.34
12
 Power Adapter for Inverter Telwin 152230 Power Adapter for Inverter Telwin €7.34
13
 Pulse Transformer for Inverter Telwin 152247 Pulse Transformer for Inverter Telwin €10.43
14
 Fan for Inverter Telwin Tecnica 151/S 152904 Fan for Inverter Telwin Tecnica 151/S €13.39
15
 Inductance Filter for Inverter Telwin 164741 Inductance Filter for Inverter Telwin €6.99
16
 Inductance for Inverter Telwin Tecnica 151/S 169907 Inductance for Inverter Telwin Tecnica 151/S €11.54
17
 Power Transformer for Inverter Telwin Tecnica 151/S-171/S 169719 Power Transformer for Inverter Telwin Tecnica 151/S-171/S €76.75
18
 Handle for Inverter Telwin Tecnica 151/S - 171/S 312434 Handle for Inverter Telwin Tecnica 151/S - 171/S €8.50
19
 Front-Cover for Inverter Telwin TECNICA 151/S-171/S-211/S 322950 Front-Cover for Inverter Telwin TECNICA 151/S-171/S-211/S €16.58
20
 Back-Cover for Inverter Telwin Tecnica 151/S - 171/S 322951 Back-Cover for Inverter Telwin Tecnica 151/S - 171/S €16.58
21
 Socket MMQ 25 DX for Telwin Welding Machine 712000 Socket MMQ 25 DX for Telwin Welding Machine €2.63
22
 photo_cameraImage coming soon 980345 BOTTOM KIT €10.01
23
 Kit IGBT + Diode for Inverter Telwin Tecnica 151/171S 980614 Kit IGBT + Diode for Inverter Telwin Tecnica 151/171S €27.00
24
 photo_cameraImage coming soon 980984 COMPLETE PCB KIT €175.30
25
 photo_cameraImage coming soon 980987 COVER KIT €10.91
26
 Bridge + Thermal Switch Kit for Inverter Tecnica 151/S 980991 Bridge + Thermal Switch Kit for Inverter Tecnica 151/S €20.77

Shipping and delivery information will be available shortly.

Telwin Spare Parts for Welding Inverter Tecnica 151/S

TELWIN authorized service center and original spare parts Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Welding Inverter Tecnica 151/S - 816002.

In the following table, look for the model of the Welding and the respective parts of the code.
Telwin Tecnica 151/S - 816002

Welding Inverter Tecnica 151/S - 816002
# Description Part Num.
1 POTENTIOMETER 112017
2 RESISTANCE 112048
3 DIODE 112948
4 RELAIS 116320
5 DIODE 116839
6 INDUCTANCE 116848
7 MOSFET N-CH 116849
8 CAPACITOR 116856
9 KNOB 121395
10 SWITCH 122381
11 MAINS CABLE 3G1.5 2 M SCHUKO PLUG 132155
12 CURRENT TRANSFORMER 152230
13 PULSE TRANSFORMER 152247
14 FAN 152904
15 FILTER INDUCTANCE 164741
16 INDUCTANCE 169907
17 POWER TRANSFORMER 169719
18 HANDLE SET 312434
19 FRONT PANEL 322950
20 BACK PANEL 322951
21 SOCKET DX 25 712000
22 BOTTOM KIT 980345
23 KIT IGBT + DIODE 980614
24 COMPLETE PCB KIT 980984
25 COVER KIT 980987
26 BRIDGE + THERMAL SWITCH KIT 980991
27 SWITCH COVER 122353
