Telwin Spare Parts for Welding Inverter Force 145

SKU: 815856
€1.92
VAT included

Telwin Spare Parts for Welding Inverter Force 145

We supply original TELWIN spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Welding Inverter Force 145 - 815856.

Telwin Force 145 - 815856
Telwin Spare Parts for Welder Inverter Force 145
  • Telwin Spare Parts for Welder Inverter Force 145
  • Telwin Spare Parts for Welder Inverter Force 145 - Drawing
Telwin s.p.a.

Telwin Spare Parts for Welding Inverter Force 145

SKU: 815856 Condition: New
€1.92
VAT included

Telwin Spare Parts for Welding Inverter Force 145

We supply original TELWIN spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Welding Inverter Force 145 - 815856.

Telwin Force 145 - 815856
settings 28 Spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN: Usually Ships in 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN: TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS
Machine Type: Welding Machine
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
28 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in 10 BUSYNESS DAYS

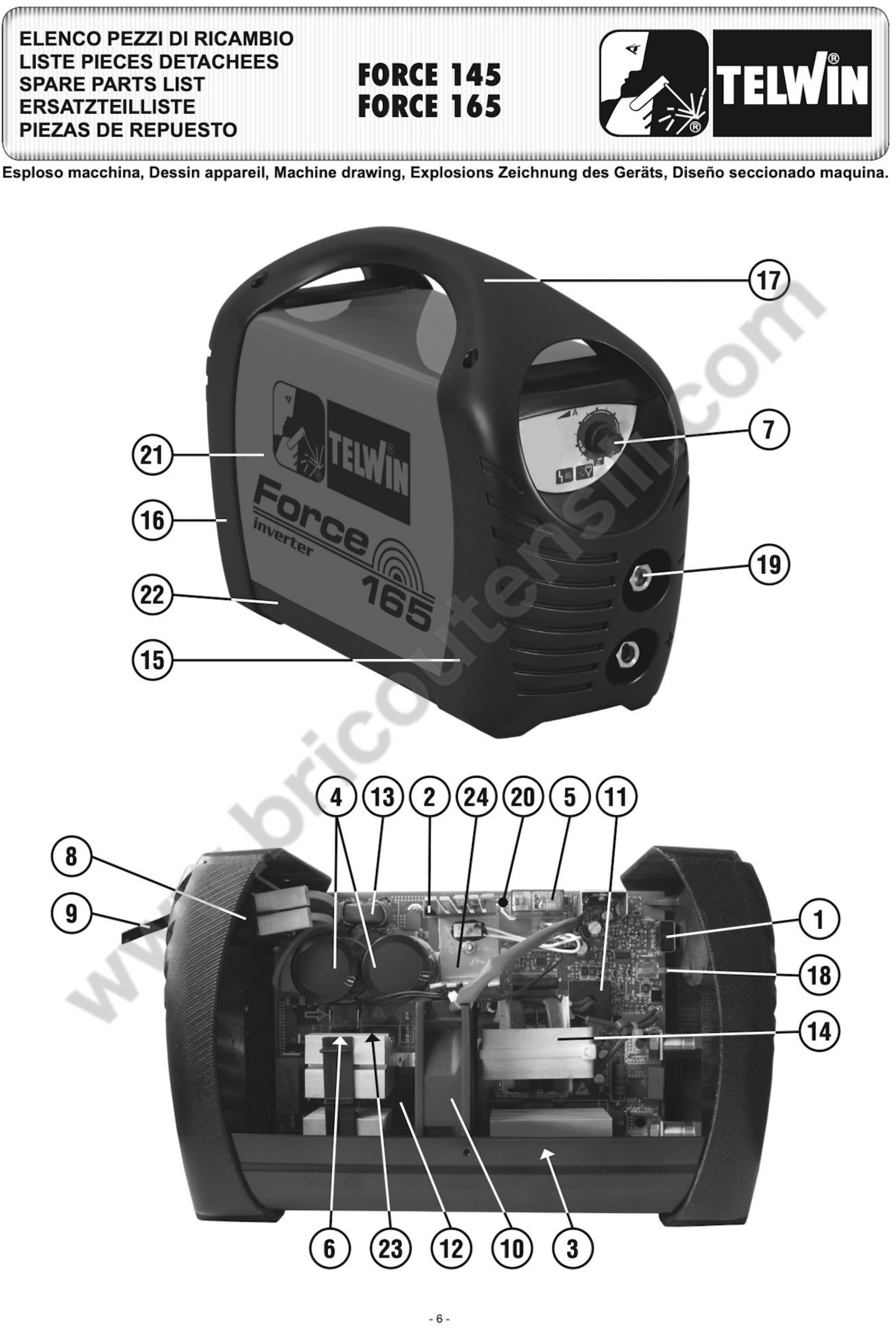

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
A
 Image coming soon 124508 CABLE 16 MMQ 1.8 M - 25 €13.63
1
 Potentiometer for Inverter Telwin Force 125-145-165 112017 Potentiometer for Inverter Telwin Force 125-145-165 €1.82
2
 Wire Resistance for Inverter Telwin Force 145 - 165 - 195 112048 Wire Resistance for Inverter Telwin Force 145 - 165 - 195 €2.25
3
 Kit Diodes for Inverter Telwin Force 145 - 165 981332 Kit Diodes for Inverter Telwin Force 145 - 165 €17.91
4
 Capacitor for Inverter Telwin Force 145 - Technology 186 HD 112514 Capacitor for Inverter Telwin Force 145 - Technology 186 HD €9.27
5
 Relay 24VDC for Inverter Force 116738 Relay 24VDC for Inverter Force €3.27
6
 Thermostat for Inverter Telwin Force 145 - 165-168 MPGE 121249 Thermostat for Inverter Telwin Force 145 - 165-168 MPGE €2.54
7
 Small knob for Inverter Telwin 121395 Small knob for Inverter Telwin €0.32
8
 Green Switch for Inverter Telwin Force 125-145-165-195 122381 Green Switch for Inverter Telwin Force 125-145-165-195 €2.35
9
 Image coming soon 132155 MAINS CABLE 3G1.5 2 M SCHUKO PLUG €14.54
10
 Fan for Inverter Force 152019 Fan for Inverter Force €9.45
11
 Power Adapter for Inverter Telwin 152230 Power Adapter for Inverter Telwin €7.18
12
 Pulse Transformer for Inverter Telwin 152247 Pulse Transformer for Inverter Telwin €13.63
13
 Inductance Filter for Inverter Telwin 164741 Inductance Filter for Inverter Telwin €6.82
14
 Power Transformer for Inverter Telwin Force 125 169631 Power Transformer for Inverter Telwin Force 125 €31.81
15
 Front-Cover for Inverter Telwin FORCE 145-165-195-TIG170-168 MPGE 322893 Front-Cover for Inverter Telwin FORCE 145-165-195-TIG170-168 MPGE €11.82
16
 Back-Cover for Inverter Telwin FORCE 145-165-195-TIG170-168 MPGE 322894 Back-Cover for Inverter Telwin FORCE 145-165-195-TIG170-168 MPGE €11.82
17
 Black Handle for Inverter Telwin FORCE 145-165-195-TIG170-168 MPGE 322895 Black Handle for Inverter Telwin FORCE 145-165-195-TIG170-168 MPGE €6.82
18
 Light Guide for Inverter Telwin Force 125 - 145 - 165 322898 Light Guide for Inverter Telwin Force 125 - 145 - 165 €2.45
19
 Socket MMQ 25 DX for Telwin Welding Machine 712000 Socket MMQ 25 DX for Telwin Welding Machine €1.27
20
 Image coming soon 980781 COMPLETE CARD KIT €179.28 Not available for order
21
 Image coming soon 980784 COVER KIT €13.63
22
 Image coming soon 980786 BOTTOM KIT €14.54
23
 Image coming soon 980788 IGBT + DIODE KIT €36.54 Not available for order
24
 Bridge + Thermal Switch Kit for Inverter Force 145-165 980802 Bridge + Thermal Switch Kit for Inverter Force 145-165 €11.63
500
 Colorado 150B Earth Clamp 150A for Inverter and Plasma Telwin 712001 Colorado 150B Earth Clamp 150A for Inverter and Plasma Telwin €2.38 Not available for order
501
 Dallas 300 Electrode Holders Clamp 300A for Welding Telwin 712260 Dallas 300 Electrode Holders Clamp 300A for Welding Telwin €4.82 Not available for order
502
 Plug DX 25 for Telwin Welding Machine 712039 Plug DX 25 for Telwin Welding Machine €3.60 Not available for order

Shipping and delivery information will be available shortly.

Telwin Spare Parts for Welding Inverter Force 145

We supply original TELWIN spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Welding Inverter Force 145 - 815856.

In the following table, look for the model of the Welder and the respective parts of the code.
Telwin Force 145 - 815856
Welding Inverter Force 145 - 815856
# Description Part Num.
1 POTETTIOMETER 112017
2 RESISTANCE 112048
3 DIODES KIT 981332
4 CAPACITOR 112514
5 RELAY '24VDC 17MA 250V 16A 1NO 116738
6 THERMOSTAT 121249
A CABLE 16 MMQ 1.8 M - 25 124508
7 KNOB 121395
8 SWITCH 122381
9 3G1.5 2M POWER CABLE 132155
10 COOLING FAN 152019
11 POWER TRASFORMER 152230
12 PULSE TRANSFORMER 152247
13 FILTER INDUCTANCE 164741
14 POWER TRANSFORMER 169631
15 FRONT 322893
16 BACK 322894
17 HANDLE 322895
18 LIGHT GUIDE 322898
19 SOCKET DX 25 712000
20 COMPLETE CARD KIT 980781
21 COVER KIT 980784
22 BOTTOM KIT 980786
23 IGBT + DIODE KIT 980788
24 Bridge + Thermal Switch Kit 980802
500 COLORADO 150B MASS 150A CAP 712001
501 DALLAS 300 PORTAELETTRODI 300A CUTTER 712260
502 SOCKET DX 25 712039
