Telwin Spare Parts for Welding Inverter Force 125

SKU: Telwin Force 125 - 117275
€1.83
VAT included

Telwin Spare Parts for Welding Inverter Force 125

TELWIN Authorized Technical Assistance and original spare parts Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Welding Inverter Force 125 - 117275

Telwin Force 125 - 117275
Telwin Spare Parts for Welder Inverter Force 125

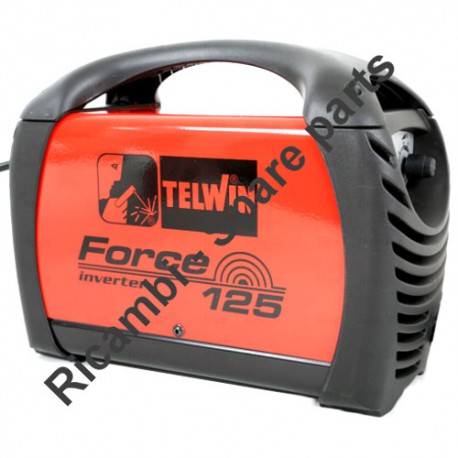

  • Telwin Spare Parts for Welder Inverter Force 125
  • Telwin Spare Parts Drawing for Welder Inverter Force 125

Telwin Spare Parts for Welding Inverter Force 125

SKU: Telwin Force 125 - 117275 Condition: New
€1.83
VAT included

Telwin Spare Parts for Welding Inverter Force 125

TELWIN Authorized Technical Assistance and original spare parts Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Welding Inverter Force 125 - 117275

Telwin Force 125 - 117275
settings 38 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:: TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

37 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 112017  POTENTIOMETER €1.72
2
Diode 112948 for Inverter Tecnica 151-171-211/S 112948 Diode 112948 for Inverter Tecnica 151-171-211/S €4.34
3
Capacitor for Inverter Telwin Force 125 - 165 - Force Tig 170 113122 Capacitor for Inverter Telwin Force 125 - 165 - Force Tig 170 €10.50
4
Transistor for Inverter Force 116171 Transistor for Inverter Force €1.66
5
Wire Resistance for Inverter Telwin Force 125 116328 Wire Resistance for Inverter Telwin Force 125 €2.49
6
Diode 116694 for Inverter Force 125 116694 Diode 116694 for Inverter Force 125 €3.47
7
Relay 24VDC for Inverter Force 116738 Relay 24VDC for Inverter Force €5.42
8
Thermostat for Inverter Telwin Force 145 - 165-168 MPGE 121249 Thermostat for Inverter Telwin Force 145 - 165-168 MPGE €3.47
9
Small knob for Inverter Telwin 121395 Small knob for Inverter Telwin €0.61
10
Green Switch for Inverter Telwin Force 125-145-165-195 122381 Green Switch for Inverter Telwin Force 125-145-165-195 €5.42
11
photo_cameraImage coming soon 132155 MAINS CABLE 3G1.5 2 M SCHUKO PLUG €12.34
12
Fan for Inverter Force 152019 Fan for Inverter Force €13.79
13
photo_cameraImage coming soon 152266 TA 1/100 €6.91
14
Inductance Filter for Inverter Telwin 164741 Inductance Filter for Inverter Telwin €6.99
15
photo_cameraImage coming soon 169638 POWER TRANSFORMER €22.35
16
Back-Cover for Inverter Telwin FORCE 145-165-195-TIG170-168 MPGE 322894 Back-Cover for Inverter Telwin FORCE 145-165-195-TIG170-168 MPGE €16.58
17
Black Handle for Inverter Telwin FORCE 145-165-195-TIG170-168 MPGE 322895 Black Handle for Inverter Telwin FORCE 145-165-195-TIG170-168 MPGE €13.79
18
Front Cover for Inverter Telwin Force 125 322896 Front Cover for Inverter Telwin Force 125 €16.57
19
Light Guide for Inverter Telwin Force 125 - 145 - 165 322898 Light Guide for Inverter Telwin Force 125 - 145 - 165 €2.43
20
Dallas 300 Electrode Holders Clamp 300A for Welding Telwin 712260 Dallas 300 Electrode Holders Clamp 300A for Welding Telwin €4.77
21
photo_cameraImage coming soon 713254 6mmq 1.8M CABLE CLAMP MASS-HOLE €5.85
22
photo_cameraImage coming soon 713255 MMQ 1.8 CABLE 6 M GROMMET €7.68
23
photo_cameraImage coming soon 980780 KIT FULL BOARD €132.04
24
photo_cameraImage coming soon 980783 COAT KIT €5.42
25
photo_cameraImage coming soon 980786 BOTTOM KIT €7.89
26
Kit IGBT + Diode for Inverter Telwin Force 125 980787 Kit IGBT + Diode for Inverter Telwin Force 125 €22.30
27
Bridge + Thermostat Set for Inverter Telwin Force 125 980801 Bridge + Thermostat Set for Inverter Telwin Force 125 €7.82
60
photo_cameraImage coming soon 111332 Condenser €27.73
61
Wire Resistance for Inverter Telwin Force 145 - 165 - 195 112048 Wire Resistance for Inverter Telwin Force 145 - 165 - 195 €2.91
62
photo_cameraImage coming soon 121762 Thermostat €2.56
63
photo_cameraImage coming soon 152312 Ta 1/300 €3.23
64
Power Transformer for Inverter Telwin Force 125 169631 Power Transformer for Inverter Telwin Force 125 €33.30
65
photo_cameraImage coming soon 982053 Complete Control Pcb Kit €140.01
67
photo_cameraImage coming soon 981824 Hex. Hd. Tapping Screw D4x45 €4.37
68
photo_cameraImage coming soon 121761 Thermostat €2.64
69
photo_cameraImage coming soon 152316 Pulse Transformer €4.51
70
photo_cameraImage coming soon 981591 Diode Kit €13.39

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Telwin Spare Parts for Welding Inverter Force 125

TELWIN Authorized Technical Assistance and original spare parts Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Welding Inverter Force 125 - 117275

In the following table, look for the model of the Welder and the respective parts of the code.
Telwin Force 125 - 117275
Welding Inverter Force 125 230V 117275
# Description Part Num.
1 POTENTIOMETER 112017
2 DIODE 112948
3 CONDENSER 113122
4 TRANSISTOR 100V 116171
5 RESISTANCE 116328
6 DIODE 116694
7 RELAY '24VDC 17mA 250V 16A 1NO 116738
8 THERMOSTAT 121249
9 KNOB 121395
10 SWITCH 122381
11 CABLE ALIM. 3G1.5 2 M PEG SCHUKO 132155
12 FAN 152019
13 TA 1/100 152266
14 FILTER REACTOR 164741
15 POWER TRANSFORMER 169638
16 RETRO 322894
17 HANDLE 322895
18 FRONT 322896
19 LIGHT GUIDE 322898
20 DALLAS 300 CLAMP 300A ELECTRODE 712260
21 6mmq 1.8M CABLE CLAMP MASS-HOLE 713254
22 MMQ 1.8 CABLE 6 M GROMMET 713255
23 KIT FULL BOARD 980780
24 COAT KIT 980783
25 KIT FUND 980786
26 KIT IGBT + Diode 980787
27 BRIDGE KIT + THERMOSTAT 980801
60 Condenser 111332
61 Resistance 112048
62 Thermostat 121762
63 Ta 1/300 152312
64 Power Trafo 169631
65 Complete Control Pcb Kit 982053
66 Kit Igbt + Diodes 982050
67 Single Phase Bridge Kit 981824
68 Thermostat 121761
69 Pulse Transformer 152316
70 Diode Kit 981591
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Telwin websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Telwin brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Telwin Force 125 - 117275
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:
TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS

Specific References

New

Download

Telwin Force 125 Parts Drawing

Telwin Force 125 Parts Drawing

Download (377.41KB)
