Telwin s.p.a.

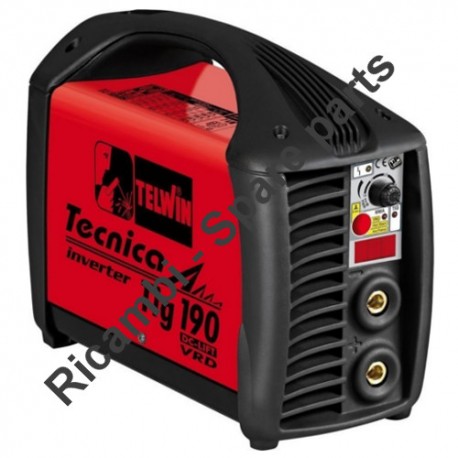

Telwin Spare Parts for Welding Inverter Tecnica TIG 190 DC-LIFT VRD

SKU: Tecnica Tig 190 DC LIFT 816219
€2.03
VAT included

Telwin Spare Parts for Welding Inverter Tecnica TIG 190 DC-LIFT VRD

We are TELWIN authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair problem for Welding Inverter Tig Tecnica TIG 190 DC-LIFT VRD 230V-816219.
Tecnica Tig 190 DC-LIFT VRD
Telwin Spare Parts for Welding Inverter Tecnica TIG 190 DC-LIFT VRD
  • Telwin Spare Parts for Welding Inverter Tecnica TIG 190 DC-LIFT VRD
  • Telwin Spare Parts for Welding Inverter Tecnica TIG 190 DC-LIFT VRD
  • Telwin Spare Parts for Welding Inverter Tecnica TIG 190 DC-LIFT VRD
Telwin s.p.a.

Telwin Spare Parts for Welding Inverter Tecnica TIG 190 DC-LIFT VRD

SKU: Tecnica Tig 190 DC LIFT 816219 Condition: New
€2.03
VAT included

Telwin Spare Parts for Welding Inverter Tecnica TIG 190 DC-LIFT VRD

We are TELWIN authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair problem for Welding Inverter Tig Tecnica TIG 190 DC-LIFT VRD 230V-816219.
Tecnica Tig 190 DC-LIFT VRD
settings 55 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:: TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
48 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 1
Pos. Item Price Buy
1
 Wire Resistance for Inverter Telwin Force 145 - 165 - 195 112048 Wire Resistance for Inverter Telwin Force 145 - 165 - 195 €2.91
2
 photo_cameraImage coming soon 112357 PHASE RECTIFIER €12.21
3
 Relay 14VDC for Inverter Telwin 116320 Relay 14VDC for Inverter Telwin €5.42
4
 Diode for Inverter Telwin Tecnica 151-S - 171-S - 211-S 116839 Diode for Inverter Telwin Tecnica 151-S - 171-S - 211-S €7.24
5
 photo_cameraImage coming soon 116959 ENCODER €2.94
6
 Wire Resistance for Inverter Telwin Tecnica TIG 190 DC-Lift Vrd 230v 116962 Wire Resistance for Inverter Telwin Tecnica TIG 190 DC-Lift Vrd 230v €2.42
7
 PWM Controller for Inverter Force TIG 170 DC-LIFT 116966 PWM Controller for Inverter Force TIG 170 DC-LIFT €3.45
9
 Green Switch for Inverter Telwin Force 125-145-165-195 122381 Green Switch for Inverter Telwin Force 125-145-165-195 €5.42
10
 photo_cameraImage coming soon 132155 MAINS CABLE 3G1.5 2 M SCHUKO PLUG €12.34
11
 Power Adapter for Inverter Telwin 152230 Power Adapter for Inverter Telwin €7.34
12
 Pulse Transformer for Inverter Telwin 152247 Pulse Transformer for Inverter Telwin €10.43
13
 Fan for Inverter Telwin Tecnica 151/S 152904 Fan for Inverter Telwin Tecnica 151/S €13.39
14
 Inductance Filter for Inverter Telwin 164741 Inductance Filter for Inverter Telwin €6.99
15
 photo_cameraImage coming soon 169665 POWER TRANSFORMER €27.62
16
 photo_cameraImage coming soon 169700 TRANSFORMER X FLYBACK €13.78
17
 Handle for Inverter Telwin Tecnica 151/S - 171/S 312434 Handle for Inverter Telwin Tecnica 151/S - 171/S €8.50
18
 Front-Cover for Inverter Telwin TECNICA 151/S-171/S-211/S 322950 Front-Cover for Inverter Telwin TECNICA 151/S-171/S-211/S €16.58
19
 Back-Cover for Inverter Telwin Tecnica 151/S - 171/S 322951 Back-Cover for Inverter Telwin Tecnica 151/S - 171/S €16.58
20
 Socket MMQ 25 DX for Telwin Welding Machine 712000 Socket MMQ 25 DX for Telwin Welding Machine €2.63
21
 photo_cameraImage coming soon 980345 BOTTOM KIT €10.01
22
 Kit IGBT + Diode for Inverter Telwin Tecnica 151/171S 980614 Kit IGBT + Diode for Inverter Telwin Tecnica 151/171S €27.00
23
 photo_cameraImage coming soon 981103 COVER KIT €6.29
24
 photo_cameraImage coming soon 981104 COMPLETE PCB KIT €261.32
25
 photo_cameraImage coming soon 981105 CONTROL PCB KIT €34.52
26
 photo_cameraImage coming soon 981112 KEYPAD PCB KIT €46.51
27
 Capacitor for Inverter Telwin Tecnica 171/S - Tecnica Tig 190 116857 Capacitor for Inverter Telwin Tecnica 171/S - Tecnica Tig 190 €14.94
28
 Inductance for Inverter Telwin Tecnica 151/S 169907 Inductance for Inverter Telwin Tecnica 151/S €11.54
29
 photo_cameraImage coming soon 123437 CABLE 16 MMQ 3 M - 25 €23.01
30
 Throwaway Argon + CO₂ ITA-USA Gas Bottle Adaptor Telwin 432036 432036 Throwaway Argon + CO₂ ITA-USA Gas Bottle Adaptor Telwin 432036 €10.50
31
 Toledo 250 Amp. Earth Clamp for Inverter and Plasma Telwin 712030 Toledo 250 Amp. Earth Clamp for Inverter and Plasma Telwin €3.18
32
 Plug DX 25 for Telwin Welding Machine 712039 Plug DX 25 for Telwin Welding Machine €3.47
33
 Gas Regulator Refillable Bottle for Inverter Telwin Telmig 722341 Gas Regulator Refillable Bottle for Inverter Telwin Telmig €42.33
34
 photo_cameraImage coming soon 722563 ST9V TIG TORCH 4 M €107.77
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 2
Pos. Item Price Buy
1
 photo_cameraImage coming soon 802229 KIT 10 CERAMIC NOZZLES NR.5 €8.10
1
 photo_cameraImage coming soon 802230 KIT 10 CERAMIC NOZZLES NR.6 €8.09
1
 photo_cameraImage coming soon 802231 KIT 10 CERAMIC NOZZLES NR.4 €8.09
2
 photo_cameraImage coming soon 722984 INSULATING €8.10
4
 photo_cameraImage coming soon 802220 KIT 10 CERIUM-TUNGSTEN ELECTR. D.1 MM €17.75
4
 photo_cameraImage coming soon 802222 KIT 10 CERIUM-TUNGSTEN ELECTR. D.1,6 MM €17.75
5
 photo_cameraImage coming soon 802223 KIT 3 ELECTRODE HOLDER CLAMPS D.1,6 MM €2.95
5
 photo_cameraImage coming soon 802225 KIT 3 ELECTRODE HOLDER CLAMPS D.1 MM €2.95
6
 photo_cameraImage coming soon 722982 SHORT CAP €5.39
7
 photo_cameraImage coming soon 722981 LONG CAP €8.10
9
 photo_cameraImage coming soon 981442 25 CONNECTION KIT €32.57
15
 photo_cameraImage coming soon 722948 HANDLE €5.39
18
 photo_cameraImage coming soon 722947 TORCH BODY €35.01
19
 photo_cameraImage coming soon 802226 KIT 3 ELECTRODE DIFFUSERS D.1,6 MM €5.94
19
 photo_cameraImage coming soon 802228 KIT 3 ELECTRODE DIFFUSERS D.1 MM €5.94

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Telwin Spare Parts for Welding Inverter Tecnica TIG 190 DC-LIFT VRD

We are TELWIN authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair problem for Welding Inverter Tig Tecnica TIG 190 DC-LIFT VRD 230V-816219.

In the following table, look for the model of the Welding and the respective parts of the code.
Tecnica Tig 190 DC-LIFT VRD

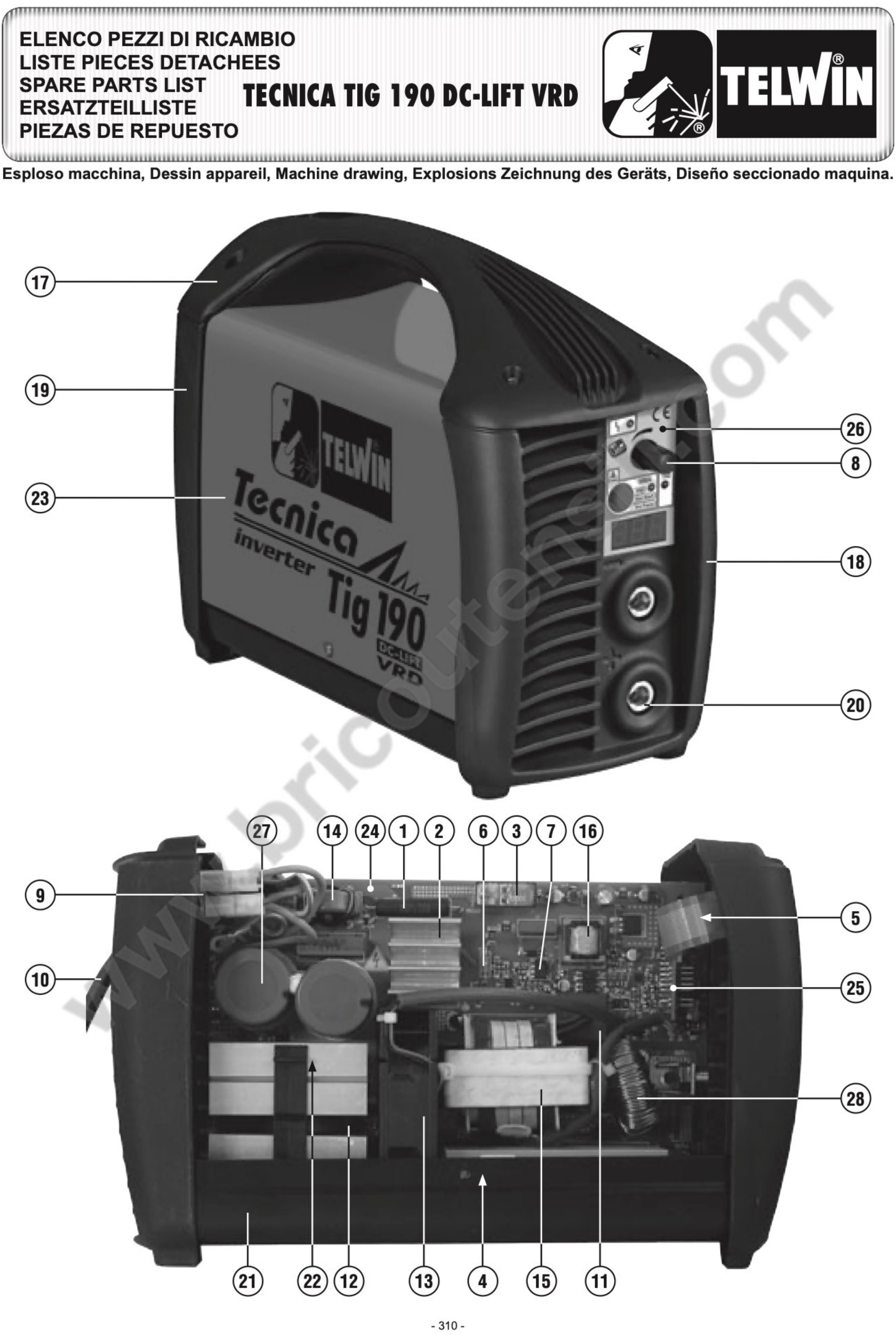

Welding Inverter Tecnica Tig 190 DC-LIFT VRD 230V-816219 Pag.1
# Description Part Num.
1 RESISTANCE 112048
2 SINGLE-PHASE RECTIFIER 112357
3 RELAIS 116320
4 DIODE 116839
5 ENCODER 116959
6 RESISTANCE 10R 2W 5% FUSE 116962
7 PWM CONTROLLER 116966
8 POTENTIOMETER KNOB 121547
9 SWITCH 122381
10 MAINS CABLE 3G1.5 2 M SCHUKO PLUG 132155
11 CURRENT TRANSFORMER 152230
12 PULSE TRANSFORMER 152247
13 FAN 152904
14 FILTER INDUCTANCE 164741
15 POWER TRANSFORMER 169665
16 TRANSFORMER X FLYBACK 169700
17 HANDLE SET 312434
18 FRONT PANEL 322950
19 BACK PANEL 322951
20 SOCKET DX 25 712000
21 BOTTOM KIT 980345
22 KIT IGBT + DIODE 980614
23 COVER KIT 981103
24 COMPLETE PCB KIT 981104
25 CONTROL PCB KIT 981105
26 KEYPAD PCB KIT 981112
27 CONDENSER 116857
28 INDUCTANCE 169907
29 CABLE 16 MMQ 3 M - 25 123437
30 ARGON GAS BOTTLE IT ADAPTOR 432036
31 TOLEDO 250 WORK CLAMP 250A 712030
32 PLUG DX 25 712039
33 GAS REGULATOR REFILLABLE BOTTLE 722341
34 ST9V TORCIA TIG 4 M 722563

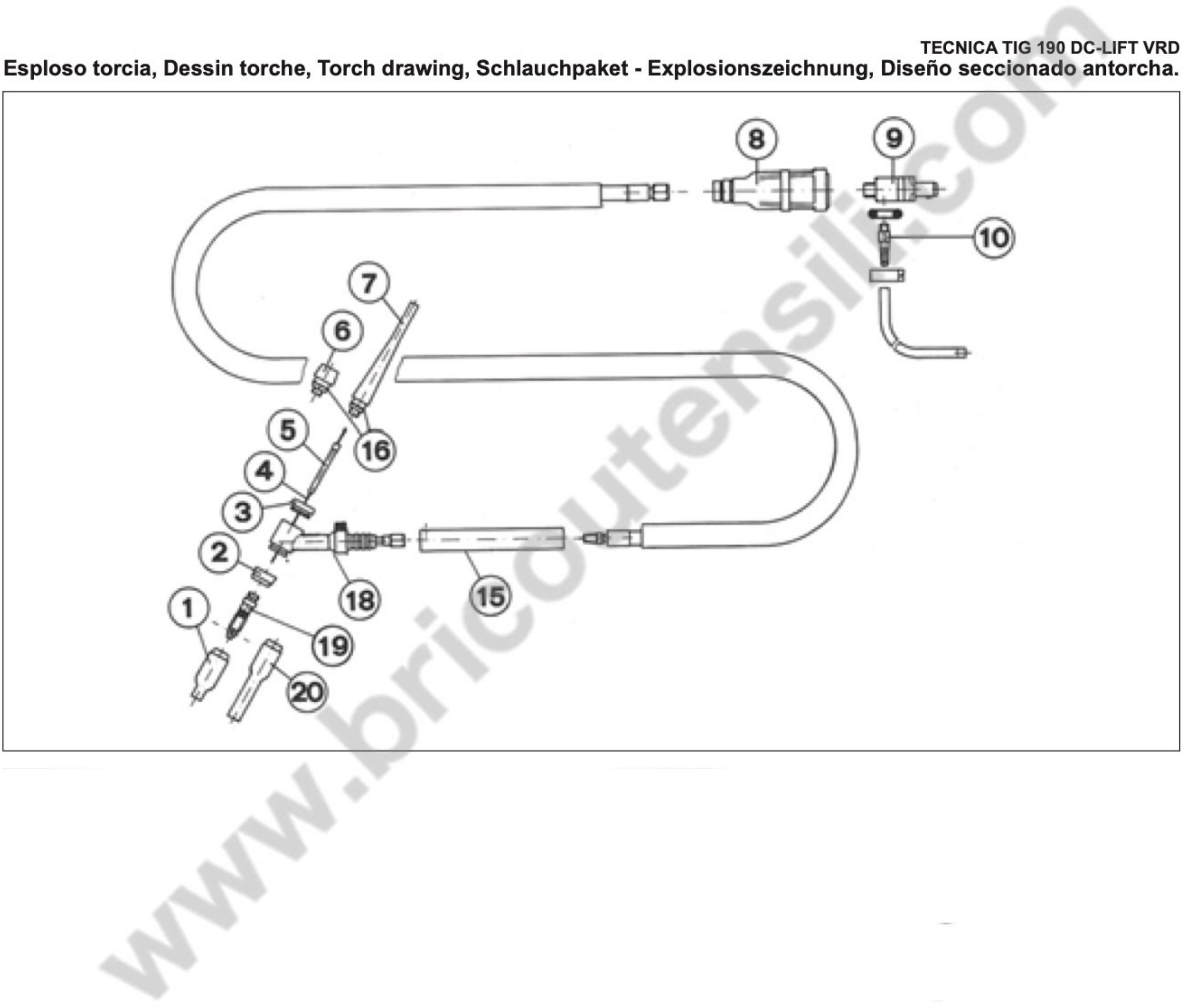

Torch Inverter Tecnica Tig 190 DC-LIFT VRD 230V-816219 Pag.2
1 KIT 10 CERAMIC NOZZLES NR.6 802231
1 KIT 10 CERAMIC NOZZLES NR.5 802229
1 KIT 10 CERAMIC NOZZLES NR.4 802230
2 INSULATING 722984
3 ORING 722985
4 KIT 10 CERIUM-TUNGSTEN ELECTR. D.1,6 MM 802222
4 KIT 10 CERIUM-TUNGSTEN ELECTR. D.1 MM 802220
4 KIT 10 CERIUM-TUNGSTEN ELECTR. D.1,2 MM 802221
5 KIT 3 ELECTRODE HOLDER CLAMPS Ø 1,2 MM 802224
5 KIT 3 ELECTRODE HOLDER CLAMPS D.1,6 MM 802223
5 KIT 3 ELECTRODE HOLDER CLAMPS D.1 MM 802225
6 SHORT CAP 722982
7 LONG CAP 722981
9 CONNECTION KIT 25 981442
15 HANDLE 722948
16 ORING OR 722983
18 TORCH BODY 722947
19 KIT 3 ELECTRODE DIFFUSERS D.1,6 MM 802228
19 KIT 3 ELECTRODE DIFFUSERS Ø 1,2 MMM 802226
19 KIT 3 ELECTRODE DIFFUSERS D.1 MM 802227
20 LONG CERAMIC NOZZLE NR.4 722996
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Telwin websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Telwin brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Tecnica Tig 190 DC LIFT 816219
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:
TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS

Specific References

New

Download

Tecnica Tig 190 DC-LIFT VRD

Tecnica Tig 190 DC-LIFT VRD

Download (438.05KB)
