Tanaka Spare Parts for Hedge Trimmer HTD2530PF

SKU: Tanaka HTD2530PF
€0.94
VAT included

Tanaka Spare Parts for Hedge Trimmer HTD2530PF

Hitachi-HIKOKI Tanaka Authorized Technical Assistance and original spare parts Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Edge Trimmer HTD2530PF.

Tanaka Spare Parts for Hedge Trimmer HTD2530PF
  • Tanaka Spare Parts for Hedge Trimmer HTD2530PF
  • Tanaka Spare Parts for Hedge Trimmer HTD2530PF
  • Tanaka Spare Parts for Hedge Trimmer HTD2530PF
  • Tanaka Spare Parts for Hedge Trimmer HTD2530PF
  • Tanaka Spare Parts for Hedge Trimmer HTD2530PF
  • Tanaka Spare Parts for Hedge Trimmer HTD2530PF
  • Tanaka Spare Parts for Hedge Trimmer HTD2530PF
  • Tanaka Spare Parts for Hedge Trimmer HTD2530PF
  • Tanaka Spare Parts for Hedge Trimmer HTD2530PF
  • Tanaka Spare Parts for Hedge Trimmer HTD2530PF
  • Tanaka Spare Parts for Hedge Trimmer HTD2530PF
HiKOKI Power Tools Italia S.p.a.

Tanaka Spare Parts for Hedge Trimmer HTD2530PF

SKU: Tanaka HTD2530PF Condition: New
€0.94
VAT included

Tanaka Spare Parts for Hedge Trimmer HTD2530PF

Hitachi-HIKOKI Tanaka Authorized Technical Assistance and original spare parts Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Edge Trimmer HTD2530PF.

settings 152 Spare parts
description 10 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx

SHIPPING IN: Usually Ships in 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
152 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in 10/15 BUSINESS DAYS

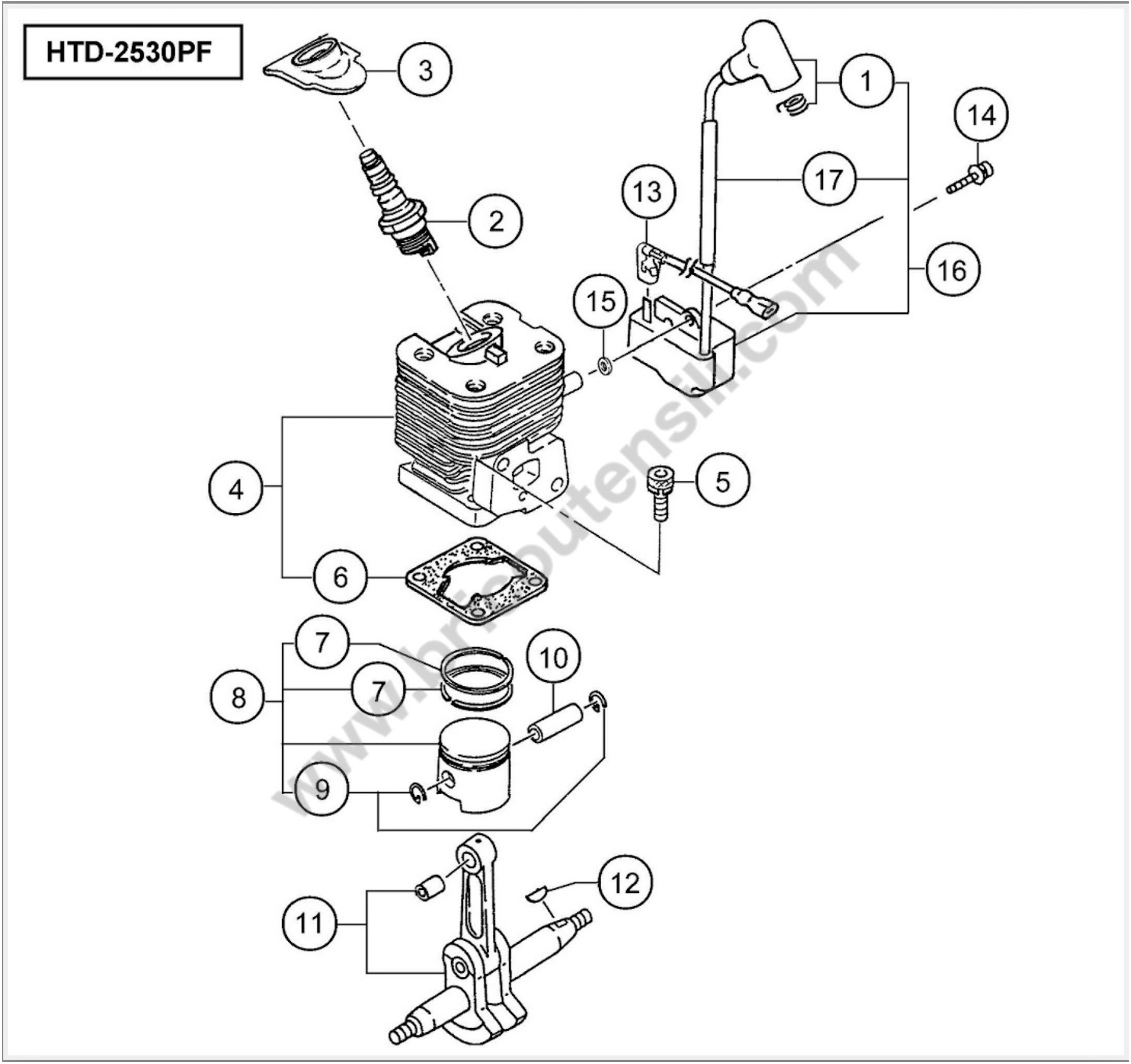

Esploso pagina 1
Pos. Item Price Buy
4
 Image coming soon 6685462 CYLINDER SET €109.74
5
 Bolt M5X18/S for Chainsaws Hitachi CS38EK-CS45EL 6684586 Bolt M5X18/S for Chainsaws Hitachi CS38EK-CS45EL €2.38
6
 Image coming soon 6685728 CYLINDER GASKET €2.38
7
 Image coming soon 6684588 PISTON RING €9.70
8
 Image coming soon 6685877 PISTON SET €46.30
9
 Hitachi CG33EJ-LP Circlip 6685078 Hitachi CG33EJ-LP Circlip €1.16
10
 PISTON PIN 6686016 PISTON PIN €6.04
12
 Image coming soon 6684899 WOODRUFF KEY 3X13X4.5 €1.16 Not available for order
16
 Image coming soon 6687704 IGNITION COIL ASS'Y €80.46
Page 2 zoom_in View exploded local_shipping Usually Ships in 10/15 BUSINESS DAYS

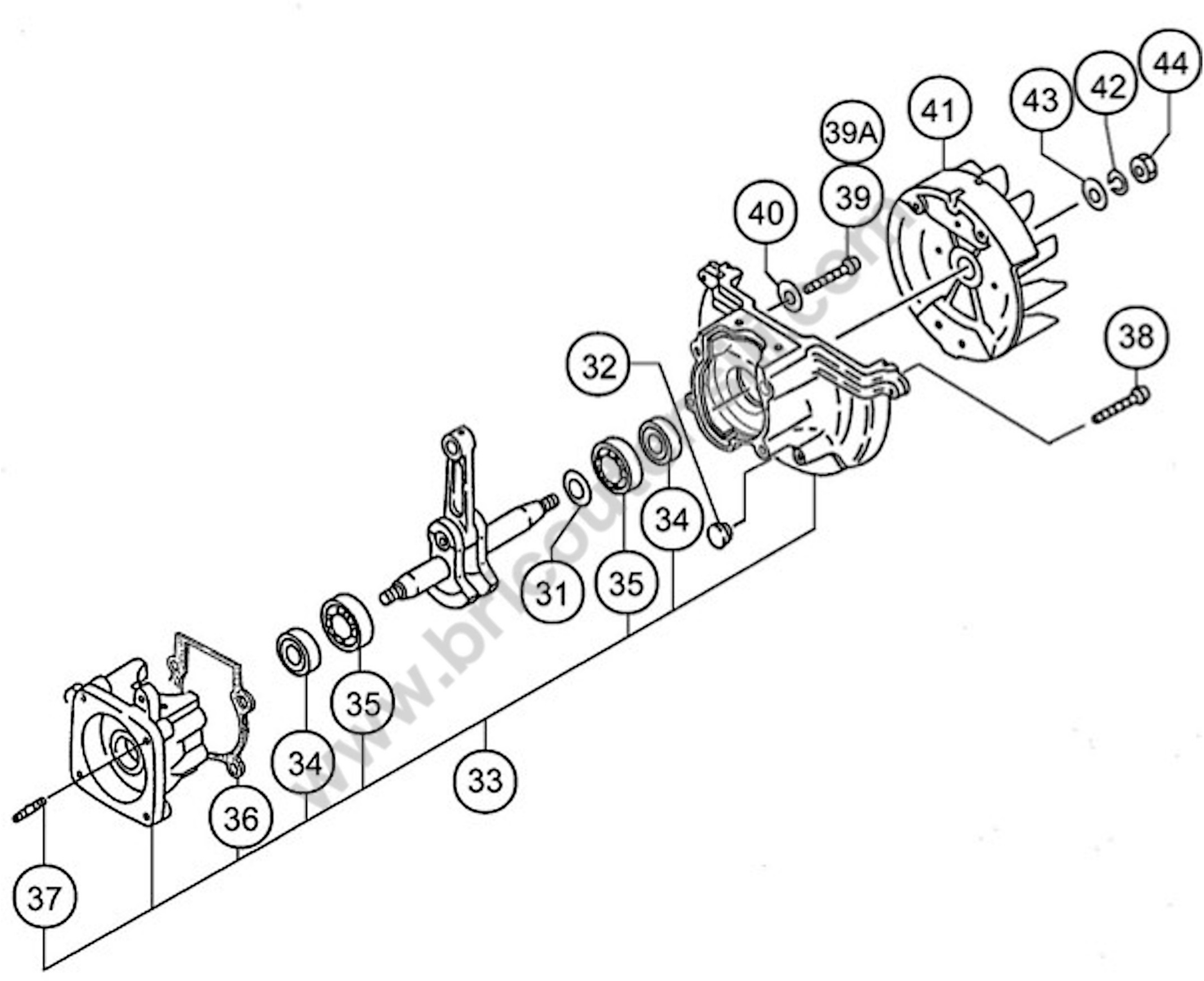

Esploso pagina 2
Pos. Item Price Buy
31
 Image coming soon 6684604 GEAR SHAFT SHIM 0.20 €0.00 Not available for order
31
 Image coming soon 6689177 GEAR SHAFT SHIM 0.10 €0.00 Not available for order
31
 Image coming soon 6689178 GEAR SHAFT SHIM 0.15 €0.00 Not available for order
33
 Image coming soon 6686529 CRANK CASE ASS'Y €120.72
37
 Image coming soon 6686771 STUD BOLT 6X22 €1.16
38
 Image coming soon 6684786 HEX. SOCKET HD. BOLT M5X30 S €1.16
39A
 Image coming soon 6695055 HEX. HOLE BOLT 5X45 €0.00 Not available for order
39
 Image coming soon 6695350 SCREW 5X45S €1.16
40
 Spring Washer 5 for Brushcutter Hitachi CG33EJ-SL 6684834 Spring Washer 5 for Brushcutter Hitachi CG33EJ-SL €1.16
42
 Image coming soon 6684971 WASHER 8 €2.38
43
 Image coming soon 6684611 BOLT WASHER M8 €1.16
Page 3 zoom_in View exploded local_shipping Usually Ships in 10/15 BUSINESS DAYS

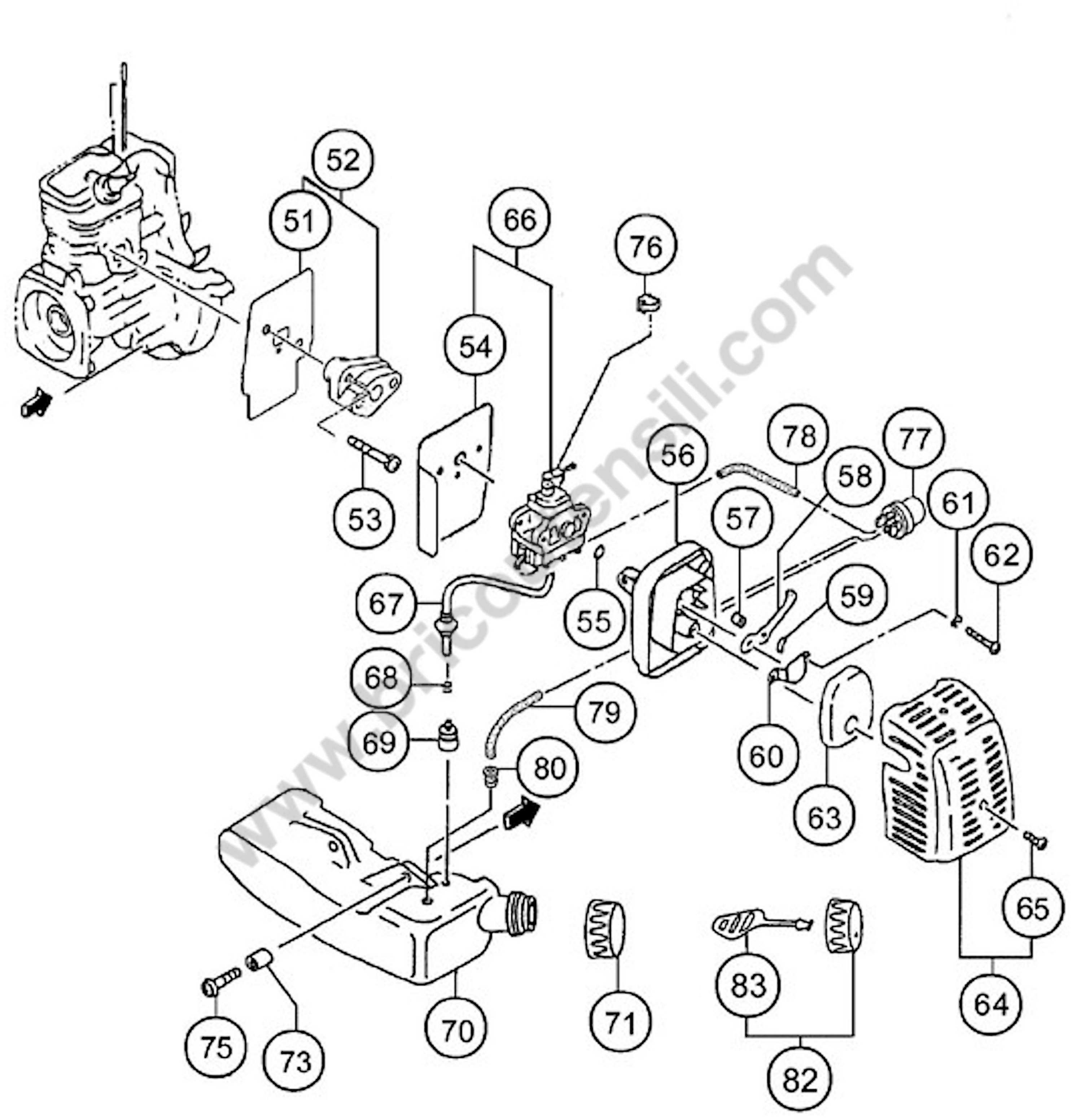

Esploso pagina 3
Pos. Item Price Buy
51
 Image coming soon 6689874 INTAKE MANIFOLD GASKET €2.38
52
 Image coming soon 6689937 INSULATOR SET,SPARE €13.36
53
 Image coming soon 6695515 HEX HOLE BOLT 5X25WS €1.16
54
 Image coming soon 6689828 CARBURETOR GASKET €4.82
56
 Image coming soon 6690119 CLEANER BODY COMP. €8.48 Not available for order
57
 Image coming soon 6690804 COLLAR 7.5 €0.00 Not available for order
59
 Image coming soon 6684658 WAVE WASHER 8 €2.38
60
 Blow Over Check Board for Brushcutter Hitachi CG40EAS 6690843 Blow Over Check Board for Brushcutter Hitachi CG40EAS €3.60
61
 Washer D. 5 for Chainsaw Hitachi CS45EL-CS38EK 6684662 Washer D. 5 for Chainsaw Hitachi CS45EL-CS38EK €1.16
62
 Image coming soon 6684660 SCREW M5X60 €0.00 Not available for order
63
 Image coming soon 6690364 CLEANER SPONGE €1.16
64
 Image coming soon 6690415 AIR FILTER COVER €10.92
65
 Image coming soon 6689737 SPECIAL SCREW €0.00 Not available for order
66
 Image coming soon 6690461 CARBURETOR SET WYL139A €115.84
68
 Hose Clip 6.3 D. for Brushcutters Chainsaws Hitachi Hikoki Tanaka 6684619 Hose Clip 6.3 D. for Brushcutters Chainsaws Hitachi Hikoki Tanaka €1.16
70
 Tanaka HTD2530PF Fuel Tank 6691516 Tanaka HTD2530PF Fuel Tank €15.80 Not available for order
71
 Image coming soon 6691748 TANK CAP D ASS'Y €9.70
73
 Collar 5.8 for Brushcutter Hitachi CG47EJ-L 6692244 Collar 5.8 for Brushcutter Hitachi CG47EJ-L €1.16
75
 Hex Hole Bolt M5x18PS for Hedge Trimmer Tanaka THT 210 6695505 Hex Hole Bolt M5x18PS for Hedge Trimmer Tanaka THT 210 €2.38
76
 Image coming soon 6691337 SWIVEL CAP €2.38
77
 Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka 6685139 Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka €13.36
78
 Image coming soon 6692347 FUEL PIPE 2.5X4X80 €0.00 Not available for order
79
 Image coming soon 6692346 FUEL PIPE 2.5X4X70 €0.00 Not available for order
80
 RETURN GROMMET 6697846 RETURN GROMMET €2.38
82
 Image coming soon 6685049 TANK CAP ASS'Y €13.36
Page 4 zoom_in View exploded local_shipping Usually Ships in 10/15 BUSINESS DAYS

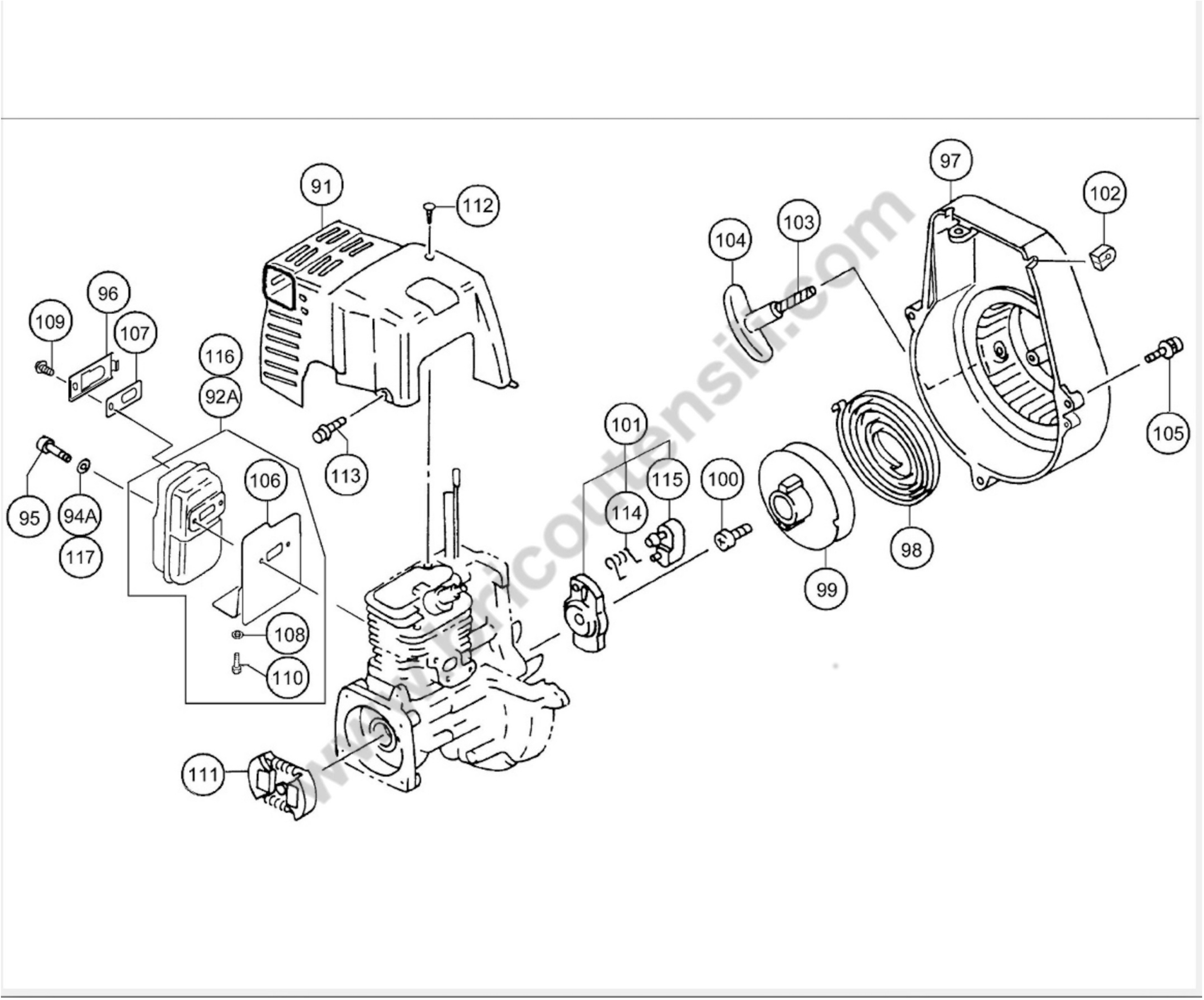

Esploso pagina 4
Pos. Item Price Buy
91
 Image coming soon 6692772 MUFFLER PROTECTOR €17.02
94A
 Image coming soon 6696547 CLUTCH WASHER (B) €2.38
97
 Image coming soon 6686957 FAN CASE COMP. €21.90
98
 RECOIL SPRING 6684675 RECOIL SPRING €12.14
99
 STARTER ROPE REEL 6693066 STARTER ROPE REEL €6.04
100
 Image coming soon 6693633 SET SCREW €1.16 Not available for order
101
 STARTER PULLEY ASS'Y 6693405 STARTER PULLEY ASS'Y €9.70
102
 Image coming soon 6688049 PRIMARY CORD GROMMET €1.16
103
 ROPE 6693168 ROPE €3.60
104
 Image coming soon 6693237 STARTER HANDLE €4.82
105
 Image coming soon 6684682 HEX.HOLE BOLT 4X15/PS €0.00 Not available for order
106
 Image coming soon 6692718 MUFFLER COVER A COMP. €12.14
107
 Image coming soon 6692696 MUFFLER ARRESTOR €2.38
108
 Image coming soon 6684661 WASHER 5 €1.16
111
 Image coming soon 6688494 CLUTCH €0.00 Not available for order
113
 Image coming soon 6695441 4X12PS SCREW €2.38
114
 STARTER PAWL SPRING 6684684 STARTER PAWL SPRING €3.60
115
 Starter Pawl for Hedge Trimmer Hitachi CH78EC(C) 6693319 Starter Pawl for Hedge Trimmer Hitachi CH78EC(C) €3.60
116
 Image coming soon 6692455 MUFFLER SET €119.50
117
 Bolt Washer 6 for Brushcutters Chainsaws Hitachi Hikoki Tanaka 6684639 Bolt Washer 6 for Brushcutters Chainsaws Hitachi Hikoki Tanaka €2.38
Page 5 zoom_in View exploded local_shipping Usually Ships in 10/15 BUSINESS DAYS
Esploso pagina 5
Pos. Item Price Buy
121
 Image coming soon 6684698 SCREW €3.60
122
 Image coming soon 6684697 SWIVEL €4.82
123
 Image coming soon 6684696 STOP RING €1.16
124
 Image coming soon 6684695 ORING €3.60
126
 Image coming soon 6691457 PUMP GASKET €9.70
127
 Pump Diaphragm for Chainsaw Hitachi CS33EB 6684693 Pump Diaphragm for Chainsaw Hitachi CS33EB €9.70
128
 Carburator Inlet Screen for Chainsaws and Bruschcutters Hitachi 6684700 Carburator Inlet Screen for Chainsaws and Bruschcutters Hitachi €3.60
130
 Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51 6685220 Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51 €3.60
131
 Image coming soon 6690830 METERING DIAPHRAGM COMP. €15.80
133
 Image coming soon 6691312 SET SCREW €2.38
Page 6 zoom_in View exploded local_shipping Usually Ships in 10/15 BUSINESS DAYS

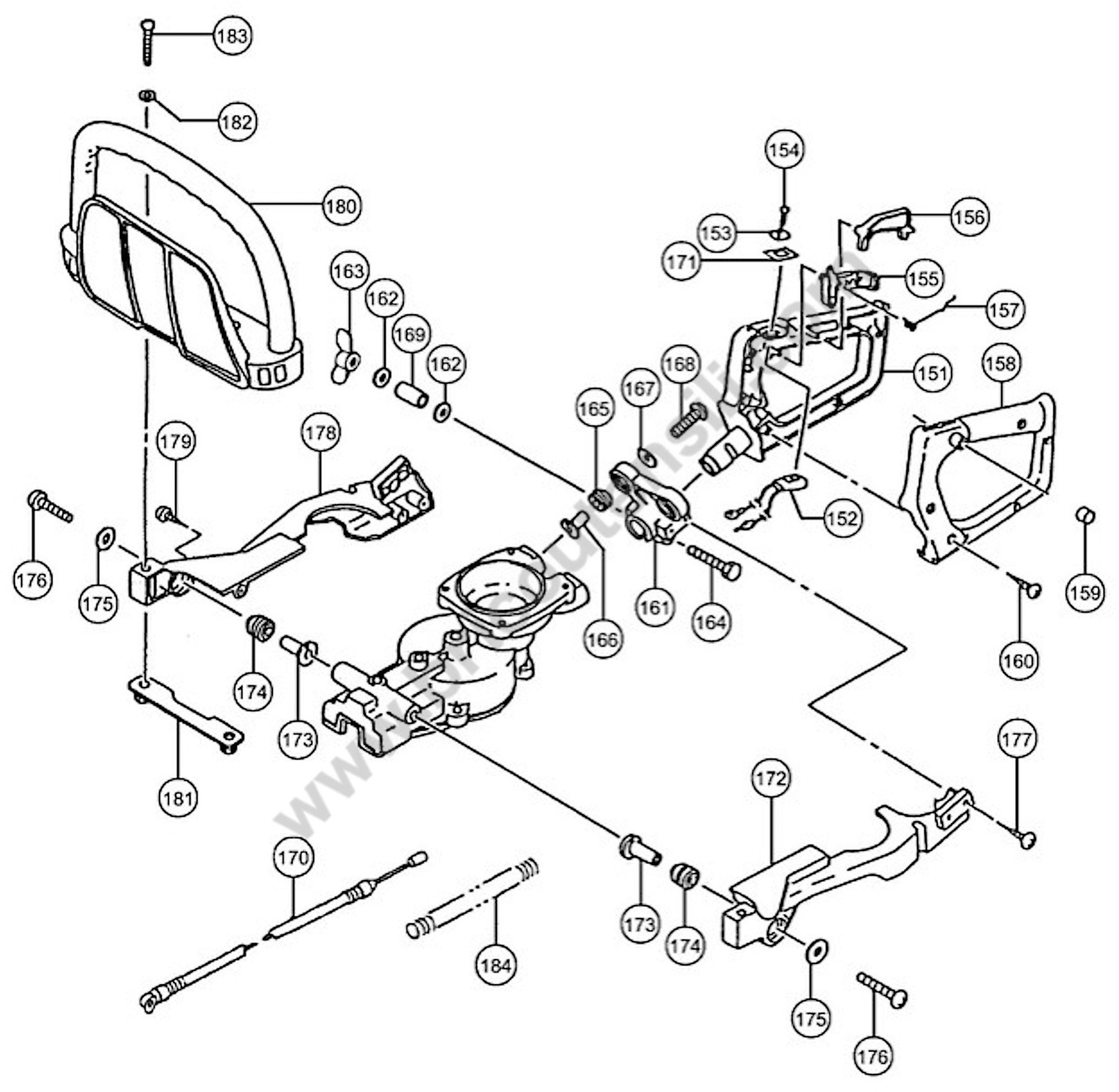

Esploso pagina 6
Pos. Item Price Buy
151
 Image coming soon 6686272 HANDLE DX €14.58
152
 Image coming soon 6687763 STOP BUTTON €13.36
153
 Image coming soon 6688366 BUTTON STOP €1.16
154
 Image coming soon 6684913 SCREW 3X10 €0.00 Not available for order
155
 Image coming soon 6688227 TRIGGER €3.60
156
 Image coming soon 6688236 SAFETY LEVER €3.60
157
 Image coming soon 6688244 SPRING LEVER ACCELERATOR €2.38
158
 Image coming soon 6686308 HANDLE SX €14.58
159
 Image coming soon 6693002 CAP €0.00 Not available for order
160
 Image coming soon 6684636 TAPPING SCREW D4.5X16 €0.00 Not available for order
161
 Image coming soon 6686366 HANDLE HOLDER €9.70
162
 Image coming soon 6695183 SMALL WASHER 6 €1.16
163
 Image coming soon 6695154 WINGNUT €1.16
165
 Damper B for Hedge Trimmer Tanaka THT 210 6688412 Damper B for Hedge Trimmer Tanaka THT 210 €2.38
166
 Tanaka TCS-3301S Damper Collar B 6688485 Tanaka TCS-3301S Damper Collar B €3.60
167
 Image coming soon 6689680 WASHER €0.00 Not available for order
168
 Image coming soon 6695345 SCREW 5X30/S €0.00 Not available for order
169
 Image coming soon 6688628 COLLAR 16 €3.60
171
 Image coming soon 6694588 STOP SWITCH €2.38
172
 Clamp Body Left for Hedge Trimmer Tanaka THT 210 6688313 Clamp Body Left for Hedge Trimmer Tanaka THT 210 €29.90
173
 Tanaka TCS-3301S Damper Collar B 6688485 Tanaka TCS-3301S Damper Collar B €3.60
174
 Damper B for Hedge Trimmer Tanaka THT 210 6688412 Damper B for Hedge Trimmer Tanaka THT 210 €2.38
175
 Image coming soon 6689680 WASHER €0.00 Not available for order
176
 Image coming soon 6695345 SCREW 5X30/S €0.00 Not available for order
177
 Image coming soon 6684637 TAPPING SCREW D4.5X12 €0.00 Not available for order
178
 Clamp Body Right for Hedge Trimmer Tanaka THT 210 6688325 Clamp Body Right for Hedge Trimmer Tanaka THT 210 €19.46 Not available for order
179
 Image coming soon 6684637 TAPPING SCREW D4.5X12 €0.00 Not available for order
180
 Image coming soon 6688097 HANDLE €13.36
181
 Handle Support for Hedge Trimmer Tanaka THT 210 6686111 Handle Support for Hedge Trimmer Tanaka THT 210 €6.04
182
 Image coming soon 6684661 WASHER 5 €1.16
Page 7 zoom_in View exploded local_shipping Usually Ships in 10/15 BUSINESS DAYS

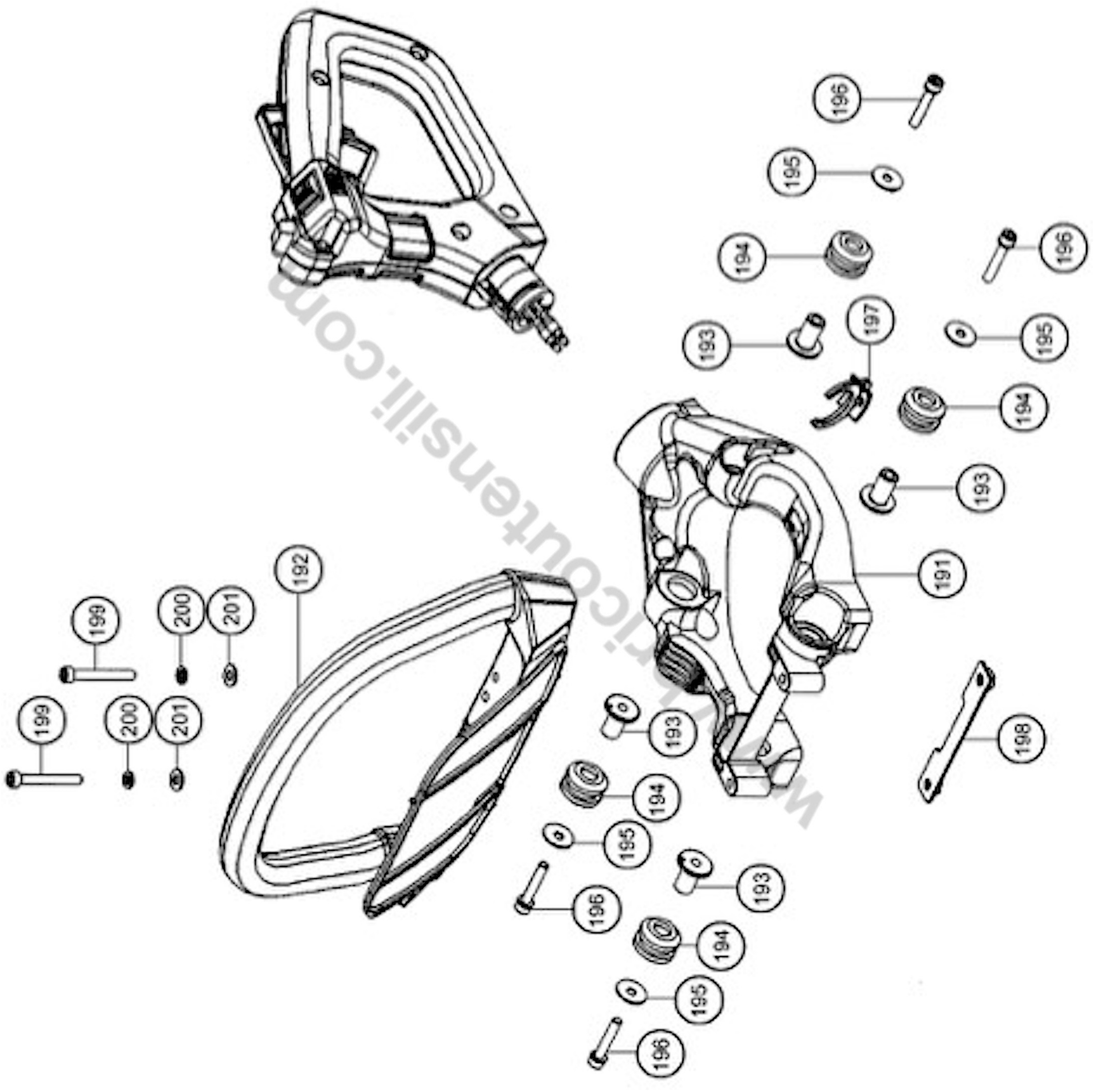

Esploso pagina 7
Pos. Item Price Buy
191
 Image coming soon 6688377 FLAME €12.14
192
 Image coming soon 6688097 HANDLE €13.36
193
 Tanaka TCS-3301S Damper Collar B 6688485 Tanaka TCS-3301S Damper Collar B €3.60
194
 Damper B for Hedge Trimmer Tanaka THT 210 6688412 Damper B for Hedge Trimmer Tanaka THT 210 €2.38
195
 Image coming soon 6689680 WASHER €0.00 Not available for order
196
 Image coming soon 6684786 HEX. SOCKET HD. BOLT M5X30 S €1.16
197
 Image coming soon 6696359 STOPPED €2.38
198
 Handle Support for Hedge Trimmer Tanaka THT 210 6686111 Handle Support for Hedge Trimmer Tanaka THT 210 €6.04
199
 Image coming soon 6695054 HEX. HOLE BOLT 5X40 €0.00 Not available for order
200
 Spring Washer 5 for Brushcutter Hitachi CG33EJ-SL 6684834 Spring Washer 5 for Brushcutter Hitachi CG33EJ-SL €1.16
201
 Image coming soon 6684918 WASHER M5 €2.38
Page 8 zoom_in View exploded local_shipping Usually Ships in 10/15 BUSINESS DAYS

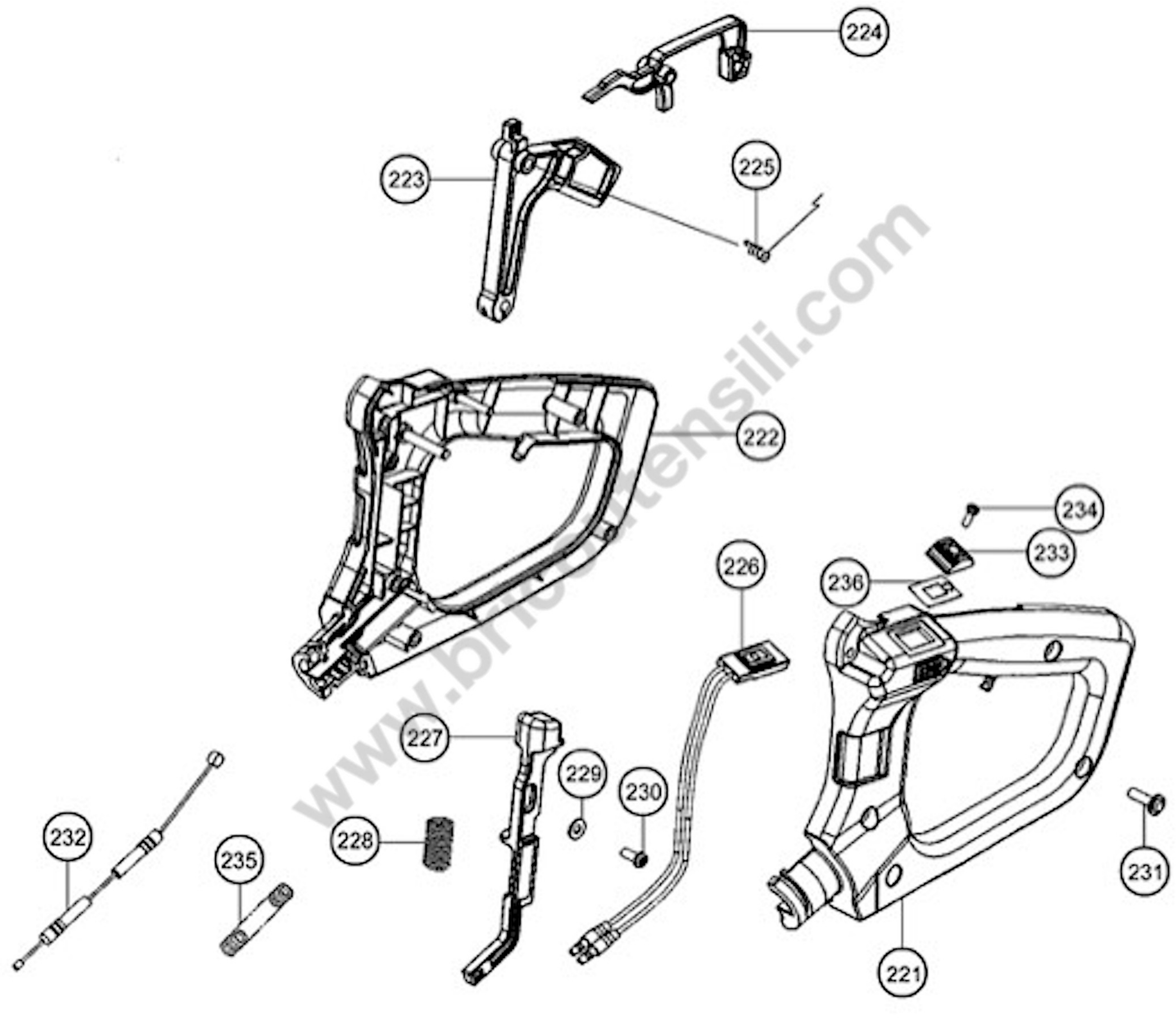

Esploso pagina 8
Pos. Item Price Buy
221
 Image coming soon 6686314 HANDLE B - SINCE C226131 FOR US €9.70
222
 Image coming soon 6686279 HANDLE A - SINCE C226131 FOR US €9.70
223
 Image coming soon 6688230 THROTTLE LEVER €2.38
224
 Image coming soon 6688240 SAFETY LEVER OR €2.38
225
 Image coming soon 6688244 SPRING LEVER ACCELERATOR €2.38
227
 Image coming soon 6688246 LOCK LEVER €2.38
228
 Image coming soon 6688279 SPRING €2.38
229
 Oil Pump Setting Bolt Washer for Chainsaw Tanaka TCS-2800S 6685070 Oil Pump Setting Bolt Washer for Chainsaw Tanaka TCS-2800S €2.38
230
 Guide Plate Screw M4x10 for Chainsaw Hitachi CS25EC-SC 6685161 Guide Plate Screw M4x10 for Chainsaw Hitachi CS25EC-SC €1.16
231
 Image coming soon 6684636 TAPPING SCREW D4.5X16 €0.00 Not available for order
233
 Image coming soon 6688366 BUTTON STOP €1.16
234
 Image coming soon 6684913 SCREW 3X10 €0.00 Not available for order
235
 Image coming soon 6687524 PROTECTION TUBE 150L €1.16
236
 Image coming soon 6694588 STOP SWITCH €2.38
Page 9 zoom_in View exploded local_shipping Usually Ships in 10/15 BUSINESS DAYS

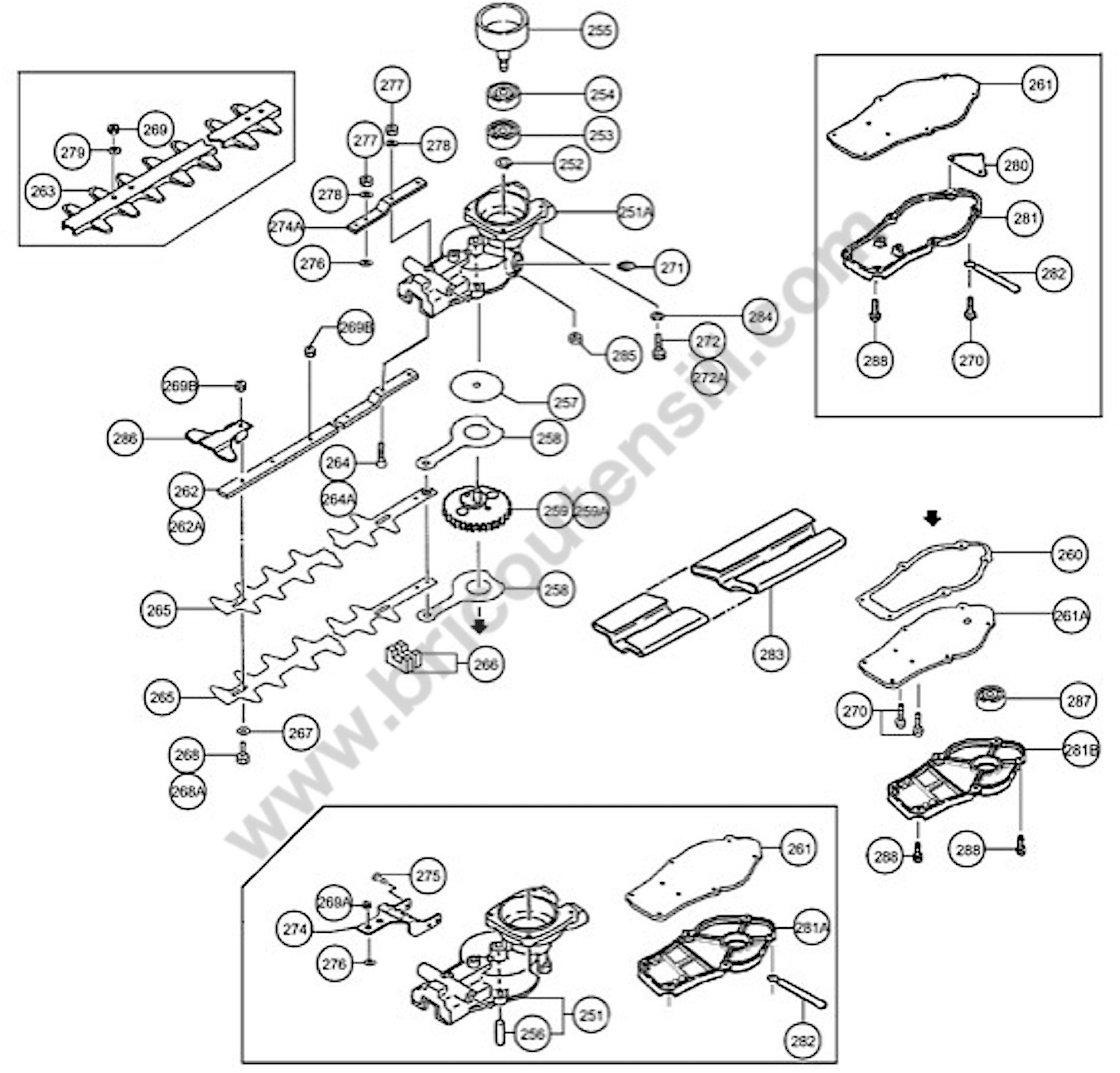

Esploso pagina 9
Pos. Item Price Buy
251
 Gear Case Complete for Hedge Trimmer Tanaka THT 210 6688669 Gear Case Complete for Hedge Trimmer Tanaka THT 210 €64.60
251A
 Image coming soon 6688684 GEAR CASE COMP. €42.64 Not available for order
252
 Stop Ring C-15 for Hedge Trimmer Tanaka THT 210 THT 210 B 6695285 Stop Ring C-15 for Hedge Trimmer Tanaka THT 210 THT 210 B €1.16
253
 Ball Bearing 6002Z for Hedge Trimmer Hitachi CH62EA(ST) 6695538 Ball Bearing 6002Z for Hedge Trimmer Hitachi CH62EA(ST) €14.58
254
 Ball Bearing 6002Z for Hedge Trimmer Hitachi CH62EA(ST) 6695538 Ball Bearing 6002Z for Hedge Trimmer Hitachi CH62EA(ST) €14.58
255
 Clutch Drum for Hedge Trimmers Tanaka THT 210-HTD2530PF 6688570 Clutch Drum for Hedge Trimmers Tanaka THT 210-HTD2530PF €46.30
256
 Shaft, Gear for Hedge Trimmer Tanaka THT 210 6688960 Shaft, Gear for Hedge Trimmer Tanaka THT 210 €3.60
257
 Image coming soon 6686612 PLATE €2.38
258
 Cam Rod for Hedge Trimmer Hitachi CH78EC3(ST) 6686811 Cam Rod for Hedge Trimmer Hitachi CH78EC3(ST) €19.46
259A
 Image coming soon 6688625 GEAR 2 COMP. €48.74
259
 Image coming soon 6688974 GEAR €91.44
260
 Gear Case Cover Gasket for Hedge Trimmer Hitachi CH62EA3 (ST) 6688909 Gear Case Cover Gasket for Hedge Trimmer Hitachi CH62EA3 (ST) €2.38 Not available for order
261
 Image coming soon 6692100 COVER €12.14
261A
 Image coming soon 6692101 GEAR CASE COVER €0.00 Not available for order
262
 Image coming soon 6687143 CUTTER GUIDE,845.5MM €51.18
262A
 Image coming soon 6687144 CUTTER GUIDE 845L M6 €38.98
263
 Image coming soon 6687289 PROTECTION PLATE €20.68
264
 Image coming soon 6695073 HEX HOLE FLUSH SCREW 6X16 €1.16 Not available for order
264A
 Image coming soon 6695075 HEX. HOLE FLUSH BOLT 6X25 €2.38
265
 Image coming soon 6687092 CUTTER A (812L) €79.24 Not available for order
266
 Clean Blade Felt for Hedge Trimmers Tanaka THT 210-HTD2530PF 6686654 Clean Blade Felt for Hedge Trimmers Tanaka THT 210-HTD2530PF €2.38 Not available for order
267
 Image coming soon 6687187 WASHER 7 BLACK €2.38
268A
 Image coming soon 6687158 FIXING BOLT A M6 €0.00 Not available for order
268
 Image coming soon 6687160 BOLT €0.00 Not available for order
269A
 Image coming soon 6695170 FLANGE NUT 6 €0.00 Not available for order
269B
 Image coming soon 6695170 FLANGE NUT 6 €0.00 Not available for order
270
 Hex Hole Bolt M4x10S for Hedgetrimmer Hitachi CH62EA 6695484 Hex Hole Bolt M4x10S for Hedgetrimmer Hitachi CH62EA €3.60
271
 Grease Nipple for Hedgetrimmers Hitachi - HIKOKI - Tanaka 6688643 Grease Nipple for Hedgetrimmers Hitachi - HIKOKI - Tanaka €3.60
272A
 Image coming soon 6695495 SCREW €0.00 Not available for order
274
 Image coming soon 6690759 SUPPORT PLATE €13.36
274A
 Image coming soon 6690762 SUPPORT PLATE €8.48
275
 Hex Hole Bolt M4x10S for Hedgetrimmer Hitachi CH62EA 6695484 Hex Hole Bolt M4x10S for Hedgetrimmer Hitachi CH62EA €3.60
276
 Image coming soon 6684822 SPECIAL WASHER B €2.38
277
 Image coming soon 6695175 LOCK NUT 6 UPSP €1.16
278
 Bolt Washer 6 for Brushcutters Chainsaws Hitachi Hikoki Tanaka 6684639 Bolt Washer 6 for Brushcutters Chainsaws Hitachi Hikoki Tanaka €2.38
279
 Bolt Washer 6 for Brushcutters Chainsaws Hitachi Hikoki Tanaka 6684639 Bolt Washer 6 for Brushcutters Chainsaws Hitachi Hikoki Tanaka €2.38
280
 Image coming soon 6688636 SPACER €8.48
281B
 Image coming soon 6688844 GEAR CASE B €28.00
281A
 Image coming soon 6688850 GEAR CASE B €24.34
281
 Image coming soon 6695987 GEAR CASE B SET €20.68
282
 Image coming soon 6688011 CORD CLAMP COMP. €0.00 Not available for order
284
 Image coming soon 6695219 S.WASHER 6 €2.38
286
 Image coming soon 6687275 GUARD PLATE €4.82 Not available for order
287
 Image coming soon 6695547 BALL BEARING 608 ZZ C3 €10.92
288
 Image coming soon 6684595 HEX. SOCKET HD. BOLT (W/SP.WASHER) M4X12 €1.16
Page 10 zoom_in View exploded local_shipping Usually Ships in 10/15 BUSINESS DAYS

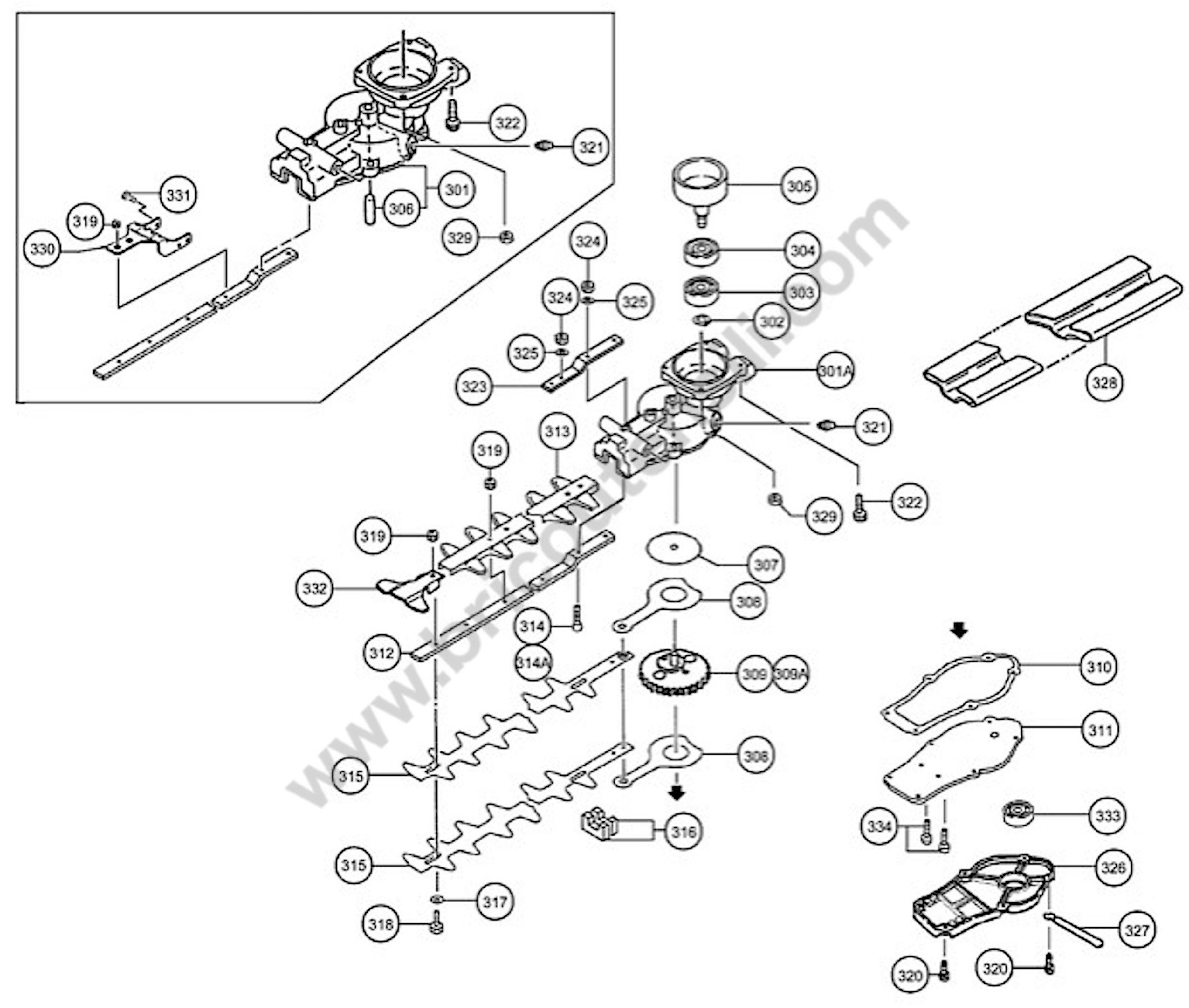

Esploso pagina 10
Pos. Item Price Buy
301
 Gear Case Complete for Hedge Trimmer Tanaka THT 210 6688669 Gear Case Complete for Hedge Trimmer Tanaka THT 210 €64.60
301A
 Image coming soon 6688684 GEAR CASE COMP. €42.64 Not available for order
302
 Stop Ring C-15 for Hedge Trimmer Tanaka THT 210 THT 210 B 6695285 Stop Ring C-15 for Hedge Trimmer Tanaka THT 210 THT 210 B €1.16
303
 Ball Bearing 6002Z for Hedge Trimmer Hitachi CH62EA(ST) 6695538 Ball Bearing 6002Z for Hedge Trimmer Hitachi CH62EA(ST) €14.58
304
 Ball Bearing 6002Z for Hedge Trimmer Hitachi CH62EA(ST) 6695538 Ball Bearing 6002Z for Hedge Trimmer Hitachi CH62EA(ST) €14.58
305
 Clutch Drum for Hedge Trimmers Tanaka THT 210-HTD2530PF 6688570 Clutch Drum for Hedge Trimmers Tanaka THT 210-HTD2530PF €46.30
306
 Shaft, Gear for Hedge Trimmer Tanaka THT 210 6688960 Shaft, Gear for Hedge Trimmer Tanaka THT 210 €3.60
307
 Image coming soon 6686612 PLATE €2.38
308
 Cam Rod for Hedge Trimmer Hitachi CH78EC3(ST) 6686811 Cam Rod for Hedge Trimmer Hitachi CH78EC3(ST) €19.46
309A
 Image coming soon 6688625 GEAR 2 COMP. €48.74
309
 Image coming soon 6688974 GEAR €91.44
310
 Gear Case Cover Gasket for Hedge Trimmer Hitachi CH62EA3 (ST) 6688909 Gear Case Cover Gasket for Hedge Trimmer Hitachi CH62EA3 (ST) €2.38 Not available for order
311
 Image coming soon 6692100 COVER €12.14
312
 Image coming soon 6687144 CUTTER GUIDE 845L M6 €38.98
313
 Image coming soon 6687289 PROTECTION PLATE €20.68
314
 Image coming soon 6695073 HEX HOLE FLUSH SCREW 6X16 €1.16 Not available for order
314A
 Image coming soon 6695075 HEX. HOLE FLUSH BOLT 6X25 €2.38
315
 Image coming soon 6687092 CUTTER A (812L) €79.24 Not available for order
316
 Clean Blade Felt for Hedge Trimmers Tanaka THT 210-HTD2530PF 6686654 Clean Blade Felt for Hedge Trimmers Tanaka THT 210-HTD2530PF €2.38 Not available for order
317
 Image coming soon 6687187 WASHER 7 BLACK €2.38
318
 Image coming soon 6687158 FIXING BOLT A M6 €0.00 Not available for order
319
 Image coming soon 6695170 FLANGE NUT 6 €0.00 Not available for order
320
 Image coming soon 6684595 HEX. SOCKET HD. BOLT (W/SP.WASHER) M4X12 €1.16
321
 Grease Nipple for Hedgetrimmers Hitachi - HIKOKI - Tanaka 6688643 Grease Nipple for Hedgetrimmers Hitachi - HIKOKI - Tanaka €3.60
322
 Image coming soon 6695495 SCREW €0.00 Not available for order
323
 Image coming soon 6690762 SUPPORT PLATE €8.48
324
 Image coming soon 6695175 LOCK NUT 6 UPSP €1.16
325
 Bolt Washer 6 for Brushcutters Chainsaws Hitachi Hikoki Tanaka 6684639 Bolt Washer 6 for Brushcutters Chainsaws Hitachi Hikoki Tanaka €2.38
326
 Image coming soon 6688850 GEAR CASE B €24.34
327
 Image coming soon 6688011 CORD CLAMP COMP. €0.00 Not available for order
330
 Image coming soon 6690759 SUPPORT PLATE €13.36
331
 Hex Hole Bolt M4x10S for Hedgetrimmer Hitachi CH62EA 6695484 Hex Hole Bolt M4x10S for Hedgetrimmer Hitachi CH62EA €3.60
332
 Image coming soon 6687275 GUARD PLATE €4.82 Not available for order
333
 Image coming soon 6695547 BALL BEARING 608 ZZ C3 €10.92
334
 Hex Hole Bolt M4x10S for Hedgetrimmer Hitachi CH62EA 6695484 Hex Hole Bolt M4x10S for Hedgetrimmer Hitachi CH62EA €3.60

Shipping and delivery information will be available shortly.

Tanaka Spare Parts for Hedge Trimmer HTD2530PF

Hitachi-HIKOKI Tanaka Authorized Technical Assistance

 and original spare parts Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Edge Trimmer HTD2530PF.

In the following table, look for the model of the Edge Trimmer and the respective parts of the code.
Tanaka HTD2530PF

Hedge Trimmer HTD2530PF
# Part Num. Description
4 6685462 CYLINDER SET
5 6684586 HEX.HOLE BOLT M5X18/S
6 6685728 CYLINDER GASKET
7 6684588 PISTON RING
8 6685877 PISTON SET
9 6685078 CIRCLIP
10 6686016 PISTON PIN
12 6684899 WOODRUFF KEY 3X13X4.5
16 6687704 IGNITION COIL ASS'Y
Pag.2
31 6689177 GEAR SHAFT SHIM 0.10
31 6689178 GEAR SHAFT SHIM 0.15
31 6684604 GEAR SHAFT SHIM 0.20
33 6686529 CRANK CASE ASS'Y
37 6686771 STUD BOLT 6X22
38 6684786 HEX. SOCKET HD. BOLT M5X30 S
39 6695350 SCREW 5X45S
39A 6695055 HEX. HOLE BOLT 5X45
40 6684834 SPRING WASHER 5
42 6684971 S.WASHER 8
43 6684611 BOLT WASHER M8
Pag.3
51 6689874 INTAKE MANIFOLD GASKET
52 6689937 INSULATOR SET,SPARE
53 6695515 HEX. HOLE BOLT 5X25WS
54 6689828 CARBURETOR GASKET
56 6690119 CLEANER BODY COMP.
57 6690804 COLLAR 7.5
59 6684658 WAVE WASHER 8
60 6690843 BLOW OVER CHECK BOARD
61 6684662 S.WASHER 5
62 6684660 SCREW M5X60
63 6690364 CLEANER SPONGE
64 6690415 CLEANER COVER ASS'Y
65 6689737 SPECIAL SCREW
66 6690461 CARBURETOR SET WYL139A
68 6684619 CLIP,6.3 DIA.
70 6691516 TANK
71 6691748 TANK CAP D ASS'Y
73 6692244 COLLAR 5.8
75 6695505 HEX. HOLE BOLT 5X18PS
76 6691337 SWIVEL CAP
77 6685139 PRIMING PUMP COMP.
78 6692347 FUEL PIPE 2.5X4X80
79 6692346 FUEL PIPE 2.5X4X70
80 6697846 RETURN GROMMET
82 6685049 TANK CAP ASS'Y
Pag.4
91 6692772 MUFFLER PROTECTOR
94A 6696547 CLUTCH WASHER (B)
97 6686957 FAN CASE COMP.
98 6684675 RECOIL SPRING
99 6693066 STARTER ROPE REEL
100 6693633 SET SCREW
101 6693405 STARTER PULLEY ASS'Y
102 6688049 PRIMARY CORD GROMMET
103 6693168 ROPE
104 6693237 STARTER HANDLE
105 6684682 HEX. HOLE BOLT 4X15/PS
106 6692718 MUFFLER COVER A COMP.
107 6692696 MUFFLER ARRESTOR
108 6684661 WASHER 5
111 6688494 CLUTCH
113 6695441 BOLT 4X12PS
114 6684684 STARTER PAWL SPRING
115 6693319 STARTER PAWL
116 6692455 MUFFLER SET
117 6684639 BOLT WASHER 6
Pag.5
121 6684698 THROTTLE SET SCREW
122 6684697 SWIVEL
123 6684696 STOP RING
124 6684695 O-RING
126 6691457 PUMP GASKET
127 6684693 PUMP DIAPHRAGM
128 6684700 INLET SCREEN
130 6685220 DIAPHRAGM PACKING-METERING
131 6690830 METERING DIAPHRAGM COMP.
133 6691312 SET SCREW
Pag.6
151 6686272 HANDLE A - TILL C226130 FOR USA
152 6687763 STOP BUTTON COMP.
153 6688366 BUTTON STOP
154 6684913 SCREW 3X10
155 6688227 THROTTLE LEVER
156 6688236 SAFETY LEVER
157 6688244 THROTTLE LEVER SPRING
158 6686308 HANDLE B - TILL C226130 FOR USA
159 6693002 CAP
160 6684636 TAPPING SCREW D4.5X16
161 6686366 HANDLE BRACKET
162 6695183 SMALL WASHER 6
163 6695154 WING NUT 6
165 6688412 DAMPER B
166 6688485 DAMPER COLLAR B
167 6689680 BRAKE SHAFT WASHER
168 6695345 SCREW 5X30/S
169 6688628 COLLAR 16
171 6694588 STOP BUTTON MARK
172 6688313 CLAMP BODY A
173 6688485 DAMPER COLLAR B
174 6688412 DAMPER B
175 6689680 BRAKE SHAFT WASHER
176 6695345 SCREW 5X30/S
177 6684637 TAPPING SCREW D4.5X12
178 6688325 CLAMP BODY B
179 6684637 TAPPING SCREW D4.5X12
180 6688097 HANDLE
181 6686111 HANDLE SUPPORT COMP.
182 6684661 WASHER 5
Pag.7
191 6688377 FLAME
192 6688097 HANDLE
193 6688485 DAMPER COLLAR B
194 6688412 DAMPER B
195 6689680 BRAKE SHAFT WASHER
196 6684786 HEX. SOCKET HD. BOLT M5X30 S
197 6696359 CLIP
198 6686111 HANDLE SUPPORT COMP.
199 6695054 HEX. HOLE BOLT 5X40
200 6684834 SPRING WASHER 5
201 6684918 WASHER M5 (BLACK)
Pag.8
221 6686314 HANDLE B - SINCE C226131 FOR US
222 6686279 HANDLE A - SINCE C226131 FOR US
223 6688230 THROTTLE LEVER
224 6688240 SAFETY LEVER OR
225 6688244 THROTTLE LEVER SPRING
227 6688246 LOCK LEVER
228 6688279 SPRING
229 6685070 BOLT WASHER M4
230 6685161 TAPPING SCREW D4X10
231 6684636 TAPPING SCREW D4.5X16
233 6688366 BUTTON STOP
234 6684913 SCREW 3X10
235 6687524 PROTECTION TUBE 150L
236 6694588 STOP BUTTON MARK
Pag.9
251 6688669 GEAR CASE COMP.
251A 6688684 GEAR CASE COMP.
252 6695285 STOP RING C-15, OUTER
253 6695538 BALL BEARING #6002Z, 32MM/OD
254 6695538 BALL BEARING #6002Z, 32MM/OD
255 6688570 CLUTCH DRUM COMP.
256 6688960 SHAFT, GEAR
257 6686612 GUIDE PLATE
258 6686811 CAM ROD
259 6688974 GEAR 2
259A 6688625 GEAR 2 COMP.
260 6688909 GEAR CASE GASKET
261 6692100 GEAR CASE COVER
261A 6692101 GEAR CASE COVER
262 6687143 CUTTER GUIDE,845.5MM
262A 6687144 CUTTER GUIDE 845L M6
263 6687289 PROTECTION PLATE
264 6695073 HEX HOLE FLUSH SCREW 6X16
264A 6695075 HEX. HOLE FLUSH BOLT 6X25
265 6687092 CUTTER A (812L)
266 6686654 GREASE SEAL A
267 6687187 WASHER 7 BLACK
268 6687160 CUTTER FIXING BOLT A
268A 6687158 FIXING BOLT A M6
269A 6695170 FLANGE NUT 6
269B 6695170 FLANGE NUT 6
270 6695484 HEX. HOLE BOLT 4X10S
271 6688643 GREASE NIPPLE COMP.
272A 6695495 HEX. HOLE BOLT 6X18/S
274 6690759 SUPPORT PLATE
274A 6690762 SUPPORT PLATE
275 6695484 HEX. HOLE BOLT 4X10S
276 6684822 SPECIAL WASHER B
277 6695175 LOCK NUT 6 UPS-P
278 6684639 BOLT WASHER 6
279 6684639 BOLT WASHER 6
279 6684639 BOLT WASHER 6
280 6688636 SPACER
281 6695987 GEAR CASE B SET
281A 6688850 GEAR CASE B
281B 6688844 GEAR CASE B
282 6688011 CORD CLAMP COMP.
284 6695219 S.WASHER 6
286 6687275 GUARD PLATE
287 6695547 BALL BEARING 608 ZZ C3
288 6684595 HEX. SOCKET HD. BOLT (W/SP.WASHER) M4X12
Pag.10
301 6688669 GEAR CASE COMP.
301A 6688684 GEAR CASE COMP.
302 6695285 STOP RING C-15, OUTER
303 6695538 BALL BEARING #6002Z, 32MM/OD
304 6695538 BALL BEARING #6002Z, 32MM/OD
305 6688570 CLUTCH DRUM COMP.
306 6688960 GEAR SHAFT
307 6686612 GUIDE PLATE
308 6686811 CAM ROD
309 6688974 GEAR 2
309A 6688625 GEAR 2 COMP.
310 6688909 GEAR CASE GASKET
311 6692100 GEAR CASE COVER
312 6687144 CUTTER GUIDE 845L M6
313 6687289 PROTECTION PLATE
314 6695073 HEX HOLE FLUSH SCREW 6X16
314A 6695075 HEX. HOLE FLUSH BOLT 6X25
315 6687092 CUTTER A (812L)
316 6686654 GREASE SEAL A
317 6687187 WASHER 7 BLACK
318 6687158 FIXING BOLT A M6
319 6695170 FLANGE NUT 6
320 6684595 HEX. SOCKET HD. BOLT (W/SP.WASHER) M4X12
321 6688643 GREASE NIPPLE COMP.
322 6695495 HEX. HOLE BOLT 6X18/S
323 6690762 SUPPORT PLATE
324 6695175 LOCK NUT 6 UPS-P
325 6684639 BOLT WASHER 6
326 6688850 GEAR CASE B
327 6688011 CORD CLAMP COMP.
330 6690759 SUPPORT PLATE
331 6695484 HEX. HOLE BOLT 4X10S
332 6687275 GUARD PLATE
333 6695547 BALL BEARING 608 ZZ C3
334 6695484 HEX. HOLE BOLT 4X10S
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Tanaka websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Tanaka brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Tanaka HTD2530PF
6 Items

Data sheet

MORE INFO:
[email protected]
SHIPPING IN
Usually Ships in 10/15 BUSINESS DAYS

Specific References

New

Download

Tanaka HTD2530PF Diagram

Tanaka HTD2530PF Diagram

Download (3.67MB)

You might also like

Clutch Drum for Hedge Trimmers Tanaka THT 210-HTD2530PF
HiKOKI Power Tools Italia S.p.a. SKU: 6688570
Clutch Drum for Hedge Trimmers Tanaka THT 210-HTD2530PF
Clutch Drum for Hedge Trimmers Tanaka THT 210-HTD2530PF Original parts Hitachi Koky Tanaka, Clutch Drum, for Hedge Trimmers THT 210 - HTD2530PF Parts for the following products: -  Hedge Trimmer THT 210 -  Hedge Trimmer THT 210 B -...
AVAILABLE €46.30
Details
Washer D. 5 for Chainsaw Hitachi CS45EL-CS38EK
HiKOKI Power Tools Italia S.p.a. SKU: 6684662
Washer D. 5 for Chainsaw Hitachi CS45EL-CS38EK
Washer D. 5 for Chainsaw Hitachi CS45EL-CS38EK Original spare Hitachi, Washer D. 5 for Chaisaw Hitachi CS45EL - CS38EK - Tanaka ECV-4501 - ECV-3801 - Brusch Cutter CG24EKS - CG40EK-LP - CG33EJ-LP - CG27EJ-SLNP. Parts for the following...
AVAILABLE €1.16
Details
Clamp Body Right for Hedge Trimmer Tanaka THT 210
HiKOKI Power Tools Italia S.p.a. SKU: 6688325
Clamp Body Right for Hedge Trimmer Tanaka THT 210
Clamp Body Right for Hedge Trimmer Tanaka THT 210 Genuine spare parts Tanaka, Clamp Body Right for Hedge Trimmer Tanaka THT 210 - HTD2530PF Part for the following items: -  Hedge Trimmer Tanaka THT 210 -  Hedge Trimmer Tanaka...
Out-of-Stock €19.46
Details
Clamp Body Left for Hedge Trimmer Tanaka THT 210
HiKOKI Power Tools Italia S.p.a. SKU: 6688313
Clamp Body Left for Hedge Trimmer Tanaka THT 210
Clamp Body Left for Hedge Trimmer Tanaka THT 210 Genuine spare parts Tanaka, Clamp Body Left for Hedge Trimmer Tanaka THT 210 - HTD2530PF Part for the following items: -  Hedge Trimmer Tanaka THT 210 -  Hedge Trimmer Tanaka...
Last items in stock €29.90
Details
Damper B for Hedge Trimmer Tanaka THT 210
HiKOKI Power Tools Italia S.p.a. SKU: 6688412
Damper B for Hedge Trimmer Tanaka THT 210
Damper B for Hedge Trimmer Tanaka THT 210 Genuine spare parts Tanaka, Damper B for Hedge Trimmer Tanaka THT 210 - HTD2530PF - Chainsaws Tanaka TCS-3301S - ECS-3350D Part for the following items: - Hedge Trimmer Tanaka THT 210 - Hedge...
AVAILABLE €2.38
Details
Clean Blade Felt for Hedge Trimmers Tanaka THT 210-HTD2530PF
HiKOKI Power Tools Italia S.p.a. SKU: 6686654
Clean Blade Felt for Hedge Trimmers Tanaka THT 210-HTD2530PF
Clean Blade Felt for Hedge Trimmers Tanaka THT 210-HTD2530PF Original parts Hitachi Koky Tanaka, Clean Blade Felt for Hedge Trimmers THT 210 - HTD2530PF - Hitachi CH78ED Parts for the following products: - Hedge Trimmer Tanaka...
Details
Gear Case Complete for Hedge Trimmer Tanaka THT 210 Sale
HiKOKI Power Tools Italia S.p.a. SKU: 6688669
Gear Case Complete for Hedge Trimmer Tanaka THT 210
Gear Case Complete for Hedge Trimmer Tanaka THT 210 Genuine spare part Tanaka, Gear Case Complete for Hedge Trimmer THT 210 - Tanaka HTD2530PF. Part for the following items: - Hedge Trimmer Tanaka...
Usually Ships in: 7/10 Business Days Approx. €64.60
Details
Spring Washer 5 for Brushcutter Hitachi CG33EJ-SL
HiKOKI Power Tools Italia S.p.a. SKU: 6684834
Spring Washer 5 for Brushcutter Hitachi CG33EJ-SL
Spring Washer 5 for Brushcutter Hitachi CG33EJ-SL Original spare part Hitachi, Spring Washer 5 for Brushcutters CG33EJ-SL - CG47EY-T - CG27EJ-SLNP - CG22EJ. Parts for the following products: - Brushcutter TBC-340 - Brushcutter...
AVAILABLE €1.16
Details
Shield Tube for Chainsaw Hitachi Tanaka TCS-2801S Sale
HiKOKI Power Tools Italia S.p.a. SKU: 6685247
Shield Tube for Chainsaw Hitachi Tanaka TCS-2801S
Shield Tube for Chainsaw Hitachi Tanaka TCS-2801S Original spare part Hitachi Koky Tanaka, Shield Tube for Chainsaws TCS-2800S - TCS-2801S - Hedgetrimmers THT-2530 - THT 210 B. Part for the following products: - Chainsaw Tanaka...
AVAILABLE €6.04
Details
Cam Rod for Hedge Trimmer Hitachi CH78EC3(ST)
HiKOKI Power Tools Italia S.p.a. SKU: 6686811
Cam Rod for Hedge Trimmer Hitachi CH78EC3(ST)
Cam Rod for Hedge Trimmer Hitachi CH78EC3(ST) Original spare part Hitachi Koky Tanaka, Cam Rod for Hedge Trimmer Hitachi Tanaka CH78EC(ST) -  CH78EC3(ST) - CH66EB(ST) - CH66EB2(ST) - CH66EB3(ST). Parts for the following products: -...
on 7/10 Business Days Approx €19.46
Details
Collar 5.8 for Brushcutter Hitachi CG47EJ-L
HiKOKI Power Tools Italia S.p.a. SKU: 6692244
Collar 5.8 for Brushcutter Hitachi CG47EJ-L
Collar 5.8 for Brushcutter Hitachi CG47EJ-L Original part Hitachi-HIKOKI, Fuel Tank Collar 5.8 for Brushcutters CG47EJ-L - CG47EY-T - CG40EF-L - CG47EF(L) - CG22EJ. Parts for the following...
Usually Ships in: 7/10 Business Days Approx. €1.16
Details
Hex Hole Bolt M5x18PS for Hedge Trimmer Tanaka THT 210
HiKOKI Power Tools Italia S.p.a. SKU: 6695505
Hex Hole Bolt M5x18PS for Hedge Trimmer Tanaka THT 210
Hex Hole Bolt M5x18PS for Hedge Trimmer Tanaka THT 210 Original spare part Hitachi-HIKOKI Tanaka, Hex Hole Bolt M5x18PS for Hedge Trimmers THT 210 - THT 210 B - THT 210 S. Parts for the following products: -  Hedge Trimmer Tanaka THT...
AVAILABLE €2.38
Details
Ball Bearing 6002Z for Hedge Trimmer Hitachi CH62EA(ST)
HiKOKI Power Tools Italia S.p.a. SKU: 6695538
Ball Bearing 6002Z for Hedge Trimmer Hitachi CH62EA(ST)
Ball Bearing 6002Z for Hedge Trimmer Hitachi CH62EA(ST) Original spare part Hitachi HiKoki Tanaka, Ball Bearing 6002Z C3 32MM OD for Hedge Trimmers Hitachi CH62EA(ST) - CH62EA2(ST) Part for the following products: -  Hedge Trimmer...
on 7/10 Business Days Approx €14.58
Details
Shaft, Gear for Hedge Trimmer Tanaka THT 210
HiKOKI Power Tools Italia S.p.a. SKU: 6688960
Shaft, Gear for Hedge Trimmer Tanaka THT 210
Shaft, Gear for Hedge Trimmer Tanaka THT 210 Original parts Hitachi HiKoki Tanaka, Shaft, Gear for Hedge Trimmers THT 210 - THT 210 B - HTD2530PF - CH62EA (ST) Parts for the following products: -  Hedge Trimmer THT 210 -  Hedge...
on 7/10 Business Days Approx €3.60
Details
Handle Support for Hedge Trimmer Tanaka THT 210
HiKOKI Power Tools Italia S.p.a. SKU: 6686111
Handle Support for Hedge Trimmer Tanaka THT 210
Handle Support for Hedge Trimmer Tanaka THT 210 Original parts Hitachi Koky Tanaka, Handle Support Comp. for Hedge Trimmer THT 210 - THT 210 B - THT 210 S Parts for the following products: -  Hedge Trimmer Tanaka THT 210 -  Hedge...
on 7/10 Business Days Approx €6.04
Details
Grease Nipple for Hedgetrimmers Hitachi - HIKOKI - Tanaka
HiKOKI Power Tools Italia S.p.a. SKU: 6688643
Grease Nipple for Hedgetrimmers Hitachi - HIKOKI - Tanaka
Grease Nipple for Hedgetrimmers Hitachi - HIKOKI - Tanaka Original spare part Hitachi HIKOKI, Grease Nipple for Hedgetrimmers Hitachi - HIKOKI - Tanaka. Parts for the following products: - HEDGETRIMMER THT-2520 - 2520 B - HEDGETRIMMER...
Last items in stock €3.60
Details
Tanaka HTD2530PF Fuel Tank
HiKOKI Power Tools Italia S.p.a. SKU: 6691516
Tanaka HTD2530PF Fuel Tank
Tanaka HTD2530PF Fuel Tank Original parts Hitachi Koky Tanaka, Fuel Tank, for Hedge Trimmers HTD2530PF Parts for the following products: - Hedge Trimmer HTD2530PF - Code: 6691516 old 591-03015-21
Out-of-Stock €15.80
Details
Comments (0)
No customer reviews for the moment.
