Tanaka Spare Parts for Brushcutter TBC-290
Hitachi-HIKOKI Tanaka authorized service center
and original spare parts Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Brushcutter TBC-290.S.D.
In the following table, look for the model of the Brush Cutter and the respective parts of the code.
| TANAKA TBC-290.S.D |

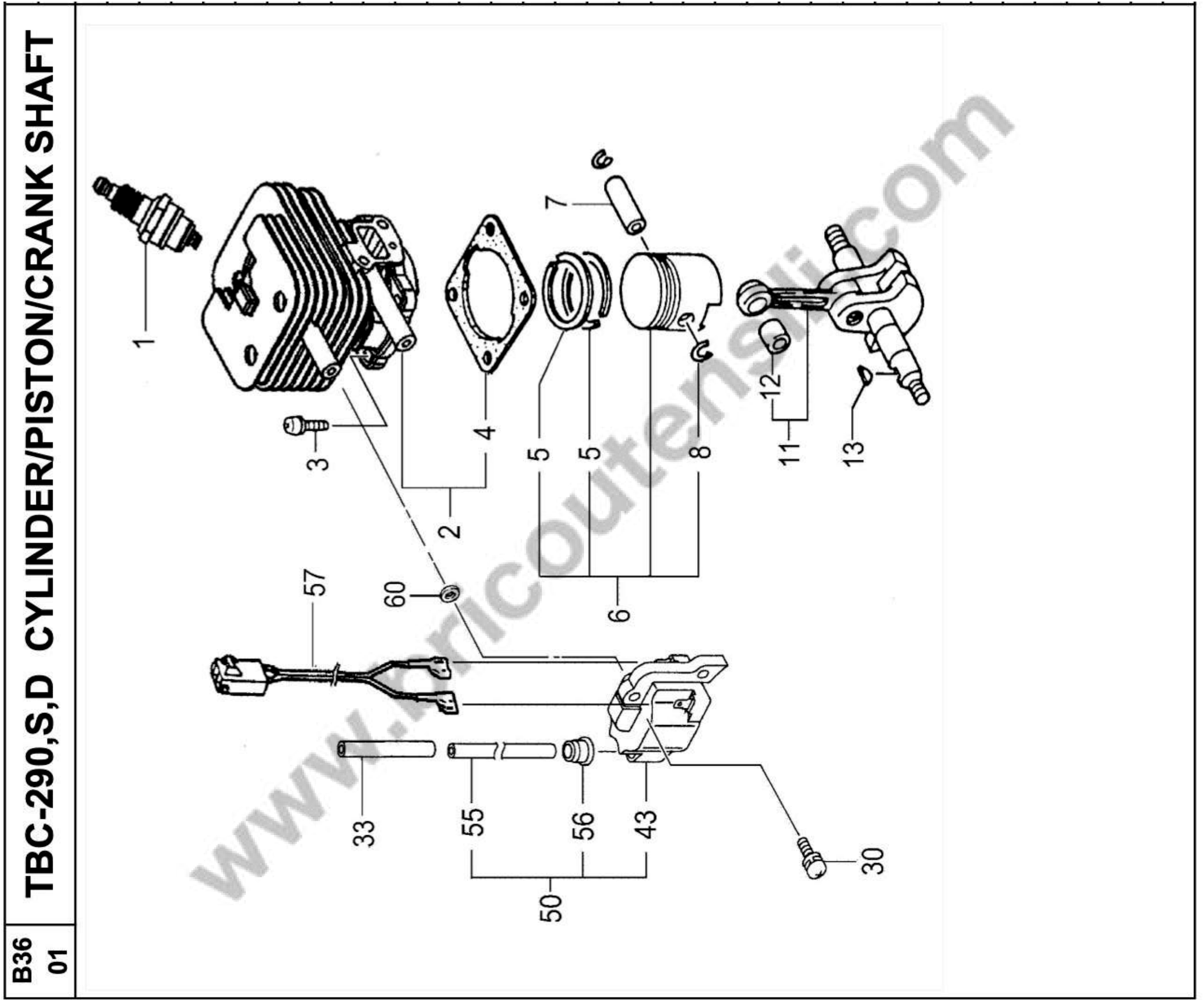

CYLINDER/PISTON/CRANK SHAFT Pag.1
|
| # |
Part Num. |
Description |
| 001 |
RCJ6Y |
SPARK PLUG RCJ6Y |
| 002 |
6685484 |
CYLINDER SET |
| 003 |
6684903 |
HEX HOLE BOLT 5X16S |
| 004 |
6685746 |
CYLINDER GASKET |
| 005 |
6686130 |
PISTON RING |
| 006 |
6685896 |
PISTON SET |
| 007 |
6686016 |
PISTON PIN |
| 008 |
6685078 |
CIR CLIP |
| 011 |
6686212 |
CRANK SHAFT COMP. |
| 012 |
6695592 |
NEEDLE BEARING |
| 013 |
6684899 |
WOOD-RUFF KEY |
| 030 |
6684682 |
BOLT |
| 030 |
6684599 |
HEX.HOLE BOLT 4X18WS |
| 033 |
250-07020-20 |
INSULATOR TUBE, 110L |
| 043 |
6687665 |
IGNITION COIL ASSY (OBSOLETE) (OBSOLETE) |
| 050 |
6687665 |
IGNITION COIL ASSY (OBSOLETE) (OBSOLETE) |
| 055 |
6687888 |
CORD |
| 056 |
6684602 |
RUBBER CAP |
| 057 |
6687972 |
REED WIRE ASSY |
| 060 |
6684600 |
WASHER |

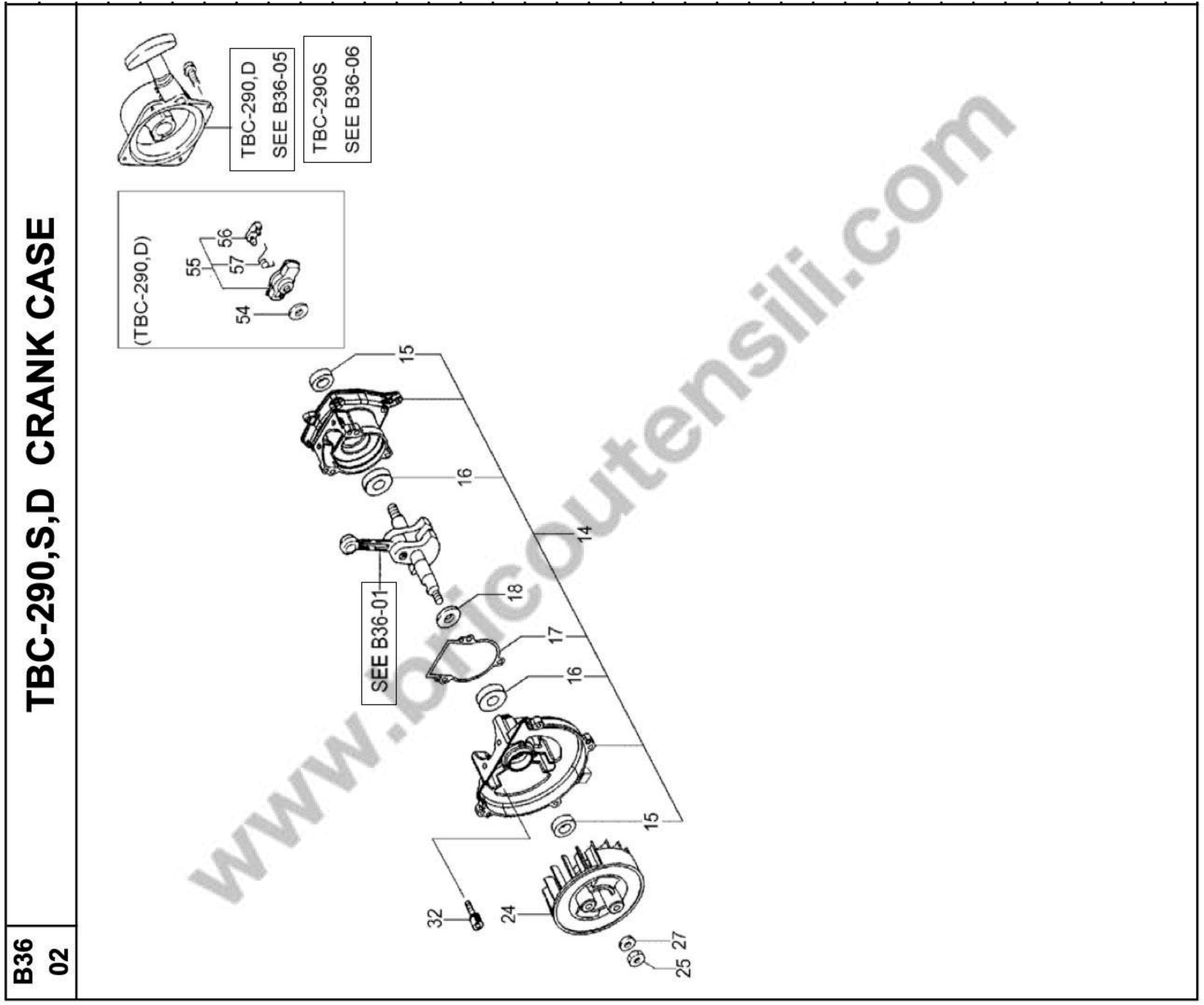

CRANK CASE Pag.2
|
| 014 |
6686580 |
CRANKCASE ASSY |
| 015 |
6684607 |
OIL SEAL REPLACES |
| 016 |
6684608 |
BEARING |
| 017 |
6686721 |
CRANK CASE GASKETB |
| 018 |
6689177 |
GEAR SHAFT SHIM 0.10 |
| 018 |
6689178 |
SHIM |
| 018 |
6684604 |
GEAR SHAFT SHIM 0.20 |
| 018 |
6684605 |
SHIM |
| 024 |
6687374 |
MAGNETO ROTOR COMP |
| 025 |
6684612 |
HEX NUT |
| 027 |
6695184 |
WASHER |
| 032 |
6684903 |
HEX HOLE BOLT 5X16S |
| 054 |
6689645 |
CUTTER WASHER B |
| 055 |
6693394 |
STARTER ASSY |
| 056 |
6693299 |
PAWL |
| 057 |
6693345 |
STARTER PAWL SPRING |

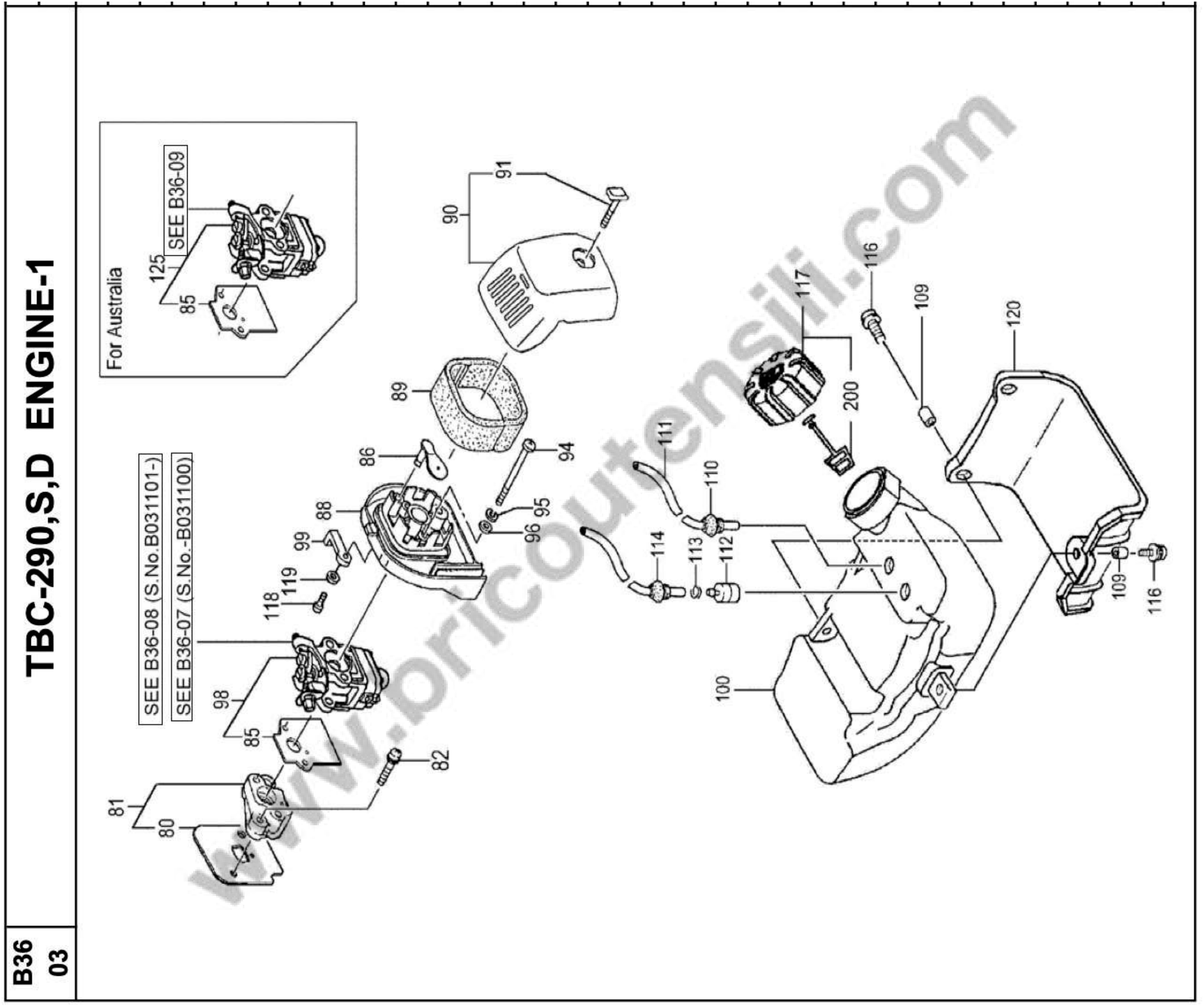

ENGINE-1 Pag.3
|
| 080 |
6689895 |
INLET MANIFOLD GASKET |
| 081 |
6689972 |
INSULATOR SET |
| 082 |
6695515 |
HEX HOLE BOLT 5X25WS |
| 085 |
6684616 |
GASKET |
| 086 |
6691278 |
CHOKE PLATE 1.0 |
| 088 |
6690120 |
CLEANER BODY COMP. |
| 089 |
6690365 |
CLEANER SPONGE |
| 090 |
6690421 |
CLEANER COVER ASS'Y |
| 091 |
6698730 |
COVER FIXING BOLT COMP |
| 094 |
6694913 |
SCREW |
| 095 |
6684662 |
S.WASHER 5 |
| 096 |
6684864 |
SMALL WASHER 5 |
| 098 |
6690499 |
CARBURETTOR |
| 098 |
6690500 |
CARBURETOR SET WYJ392 |
| 099 |
6691239 |
CHOKE CONTROL LEVER |
| 100 |
6691587 |
TANK COMP |
| 109 |
6692244 |
COLLAR |
| 109 |
6684623 |
COLLAR |
| 110 |
6688156 |
FUEL PIPE GROMMET |
| 111 |
6684880 |
FUEL PIPE 3X5X85 |
| 112 |
6684620 |
FILTER |
| 113 |
6684619 |
CLIP |
| 114 |
6688169 |
FUEL PIPE ASSY |
| 116 |
6695386 |
SCREW |
| 116 |
6695506 |
HEX HOLE BOLT |
| 117 |
6685049 |
TANK CAP ASSY |
| 118 |
6695112 |
TAPPING SCREW |
| 119 |
6685070 |
WASHER 4 |
| 120 |
6694793 |
STAND |
| 200 |
6684625 |
TANK CAP CHAIN |

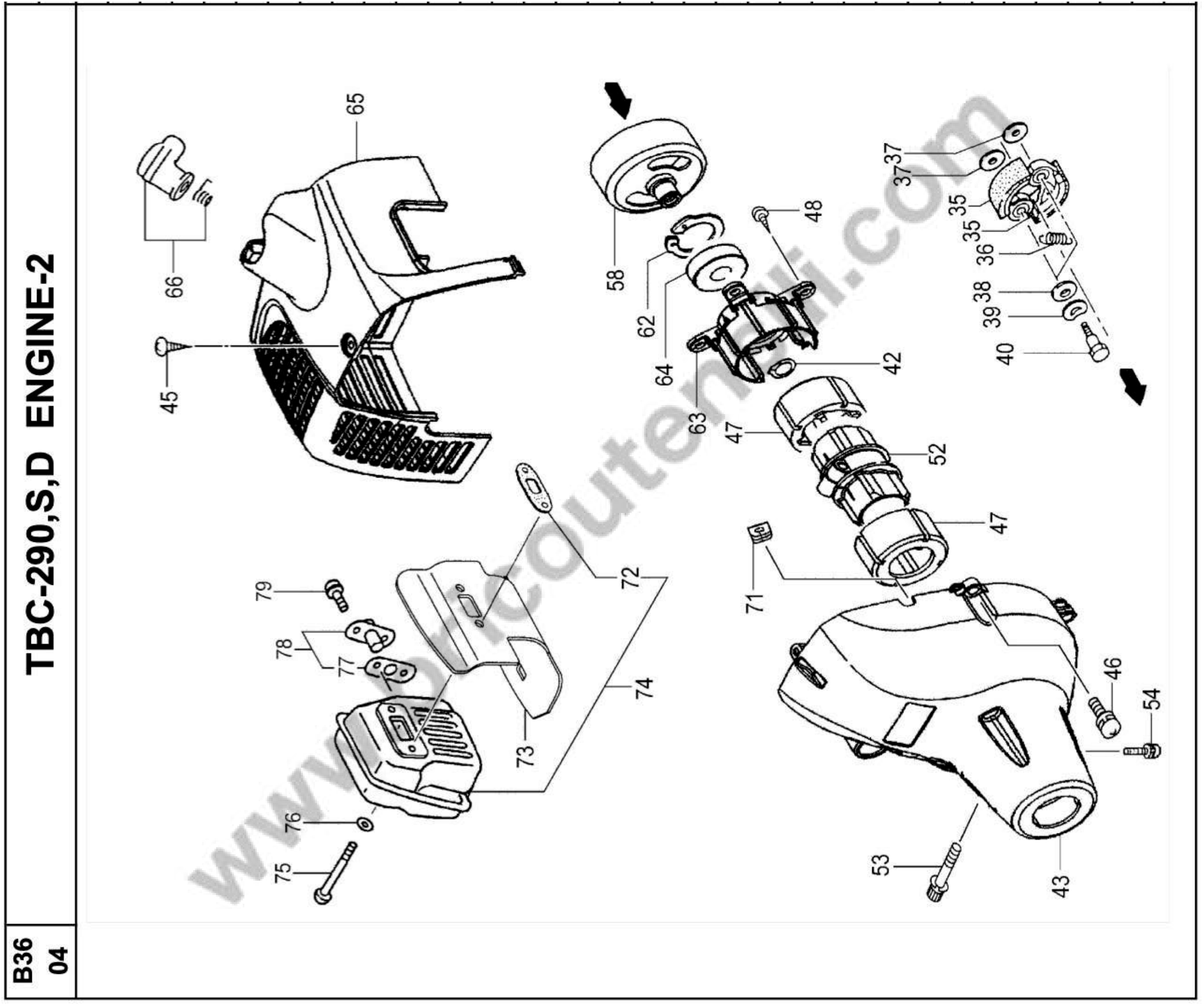

ENGINE-2 Pag.4
|
| 035 |
6688616 |
CLUTCH SHOE [ F085280] |
| 036 |
6697798 |
CLUTCH SPRING [F085280] |
| 037 |
6687946 |
SPECIAL WASHER M6 |
| 038 |
6684645 |
CLUTCH PLATE A 0.5 [F085280] |
| 039 |
6684648 |
BEND WASHER. |
| 040 |
6689627 |
CLUTCH STEP BOLT |
| 042 |
6684664 |
STOP RING |
| 043 |
6687019 |
FANCASE COMP |
| 045 |
6684637 |
SCREW |
| 046 |
6695512 |
HEX.HOLE BOLT 5X15SW |
| 047 |
6691838 |
ANTI VIBE RUBBER |
| 048 |
6685275 |
TAPPING SCREW 5X14 |
| 052 |
6689656 |
PIPE HOLDER |
| 053 |
6684709 |
HEX.HOLE BOLT 5X25/S |
| 054 |
6697445 |
HEX BOLT 4X12 |
| 058 |
6688597 |
CLUTCH SHAFT COMP. |
| 062 |
993-53032-002 |
STOP RING R-32 INNER |
| 063 |
6686667 |
BEARING CASE |
| 064 |
6695553 |
BEARING |
| 065 |
6692803 |
MUFFLER PROTECTOR |
| 066 |
6687468 |
SPARK PLUG CAP |
| 071 |
6688057 |
PRIMARY CORD GROMMET |
| 072 |
6692732 |
GASKET |
| 073 |
6687260 |
HEAT SHIELD |
| 074 |
6692489 |
MUFFLER SET |
| 075 |
6684638 |
HEX HOLE BOLT 6X55 |
| 076 |
6695193 |
WASHER M6 |
| 077 |
6692887 |
SPECIAL GASKET |
| 078 |
6692669 |
TAIL PIPE SET |
| 079 |
6695325 |
SCREW 4X8/S |

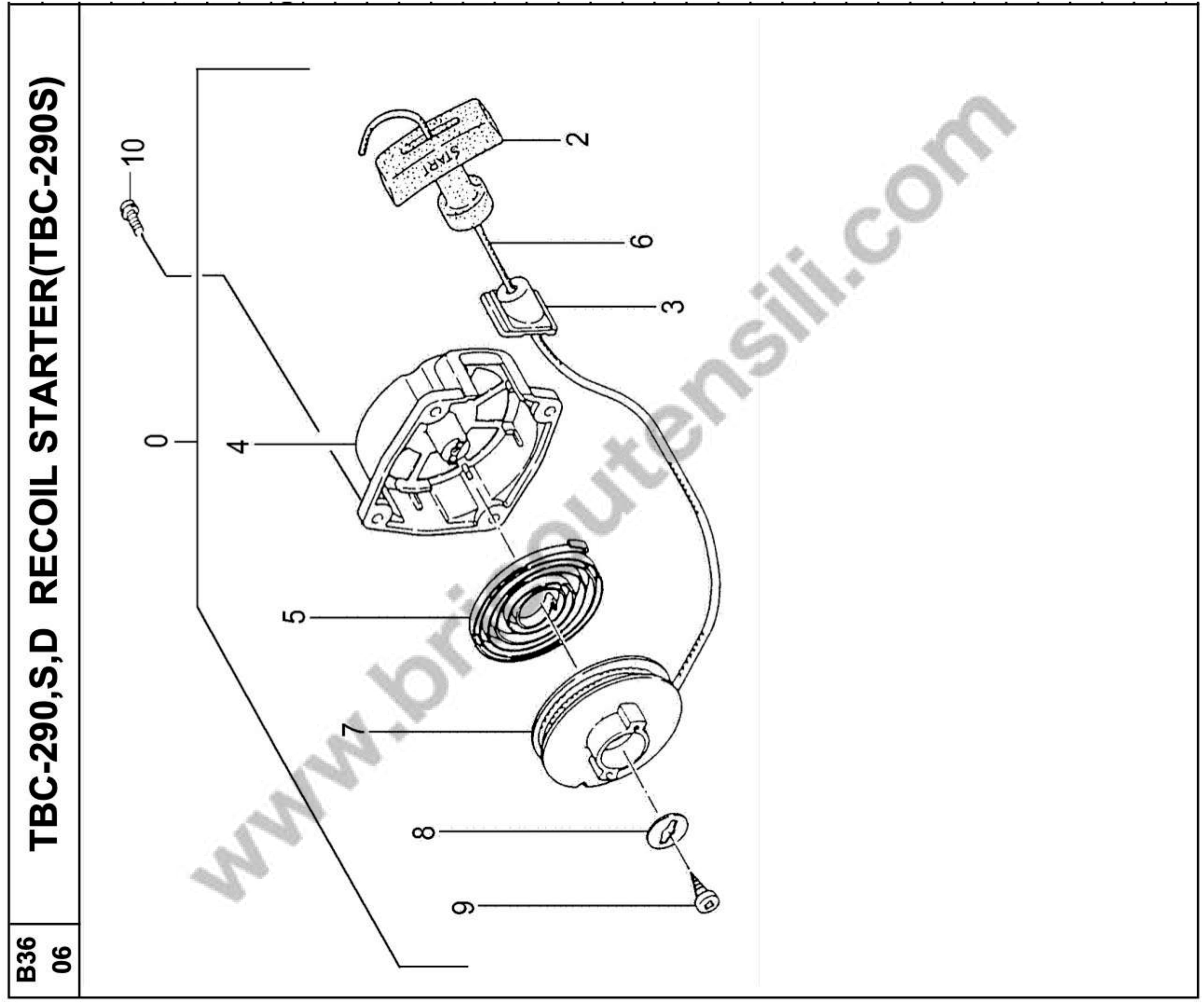

RECOIL STARTER Pag.5
|
| 000 |
6692969 |
STARTER ASSY |
| 002 |
6693227 |
STARTER HANDLE |
| 003 |
6693135 |
ROPE GUIDE |
| 004 |
6693035 |
STARTER BODY |
| 005 |
6693111 |
SPRING SUPERSEDES |
| 006 |
6693157 |
ROPE 3 5X890 |
| 007 |
6693057 |
STARTER SUPERSEDES |
| 008 |
6693419 |
ROPE REEL WASHER |
| 009 |
6693632 |
SCREW |
| 010 |
6695502 |
HEX HOLE BOLT 4X18PS |

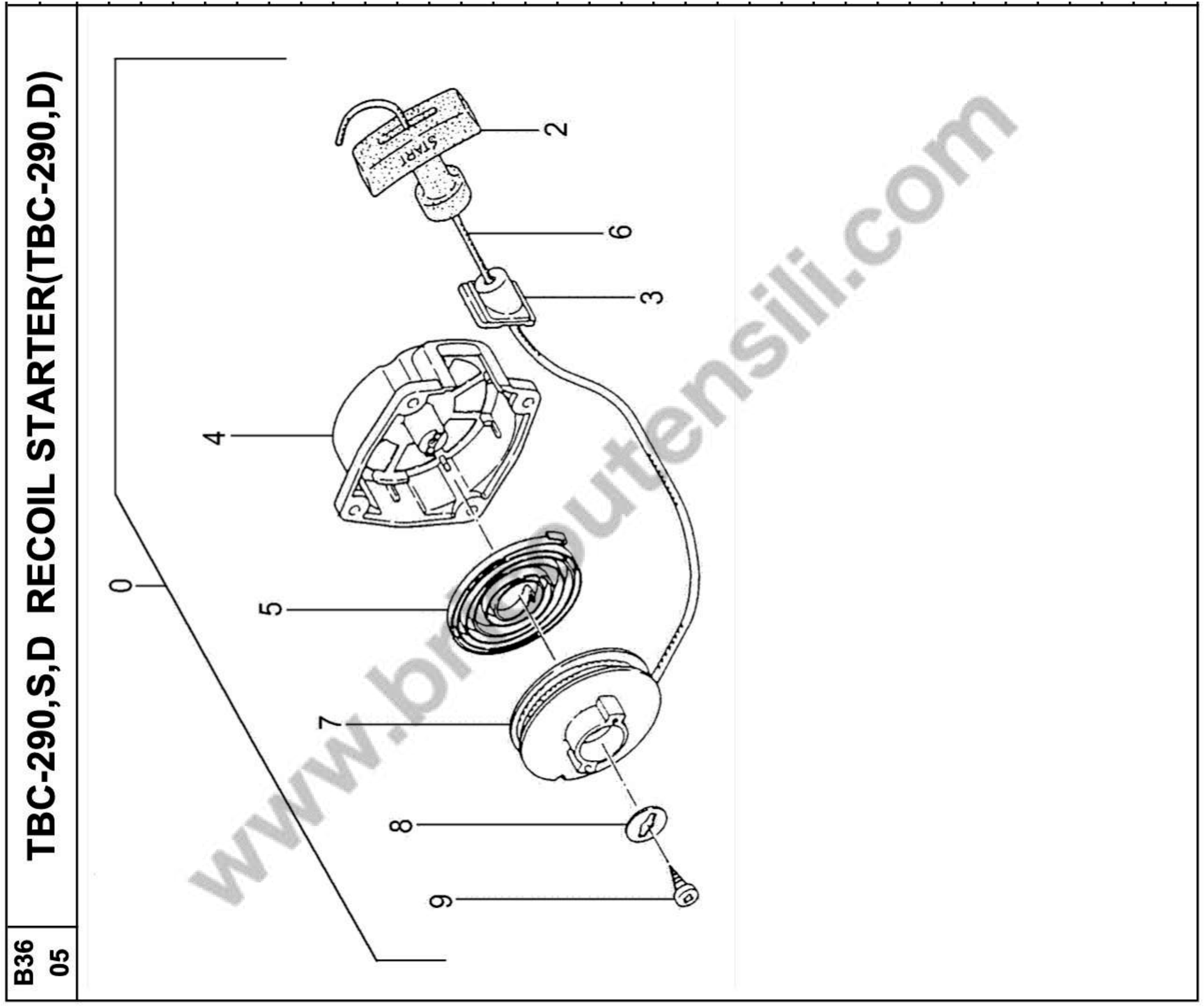

RECOIL STARTER 1 Pag.6
|
| 000 |
6692992 |
RECOIL STARTER ASS'Y |
| 001 |
6693240 |
STARTER HANDLE |
| 002 |
6693038 |
RECOIL STARTER BODY |
| 003 |
783-07085-20 |
RECOIL ROPE |
| 004 |
6693138 |
RECOIL SPRING |
| 005 |
6693252 |
SPRING PLATE |
| 006 |
6693101 |
SPRING CASE ASSY |
| 007 |
6689170 |
STARTER BUSH (OBSOLETE) (OBSOLETE) |
| 008 |
6693075 |
STARTER PULLEY |
| 009 |
6687947 |
SPECIAL WASHER 5.2X15 |
| 010 |
6685275 |
TAPPING SCREW 5X14 |
| 011 |
6684612 |
HEX NUT |
| 012 |
6684599 |
HEX.HOLE BOLT 4X18WS |
| 015 |
806-07027-20 |
STARTER BASE |
| 016 |
6685153 |
TAPPING SCREW |
| 020 |
6693408 |
STARTER PULLEY ASSY |
| 061 |
6693098 |
PULLEY |

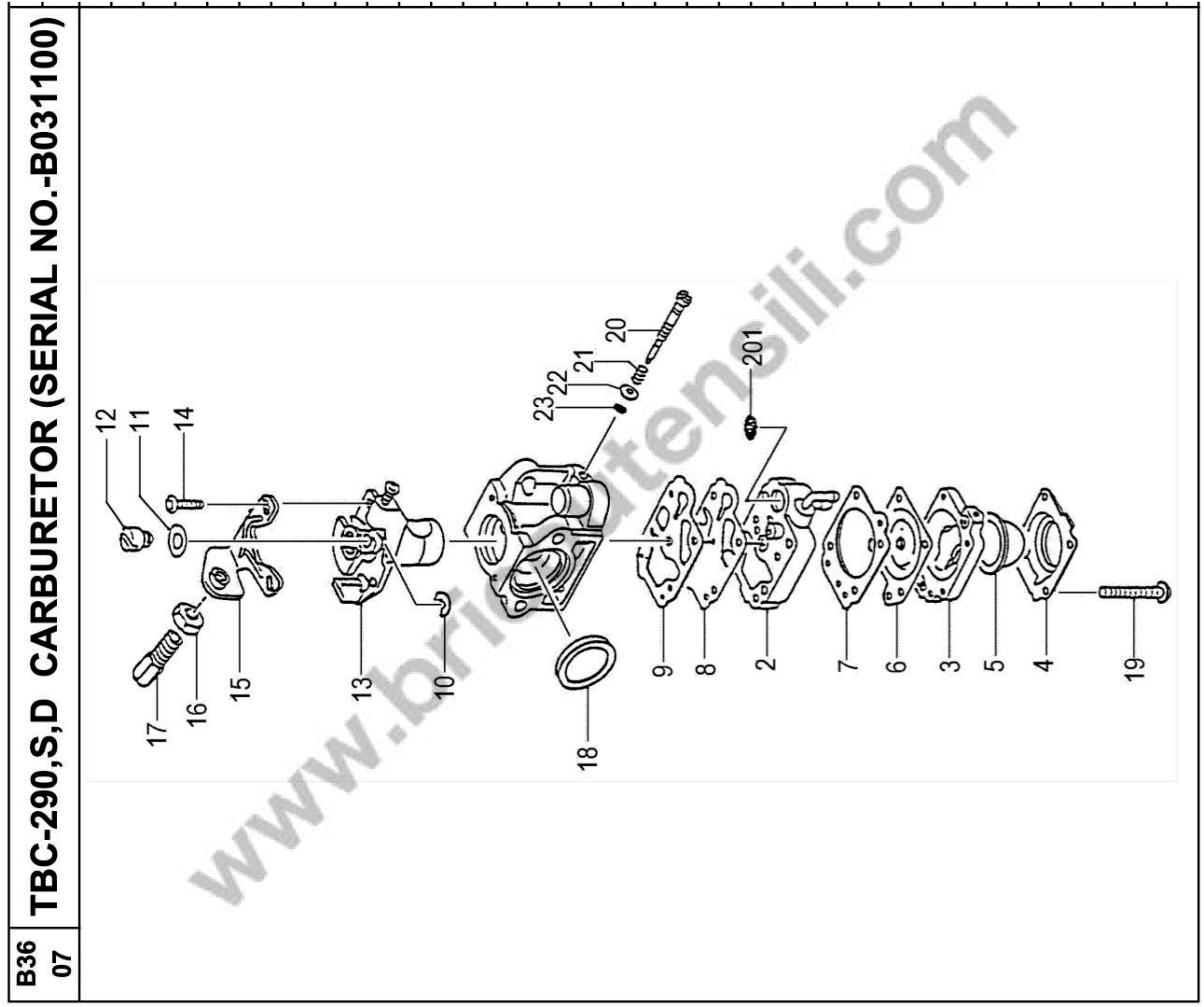

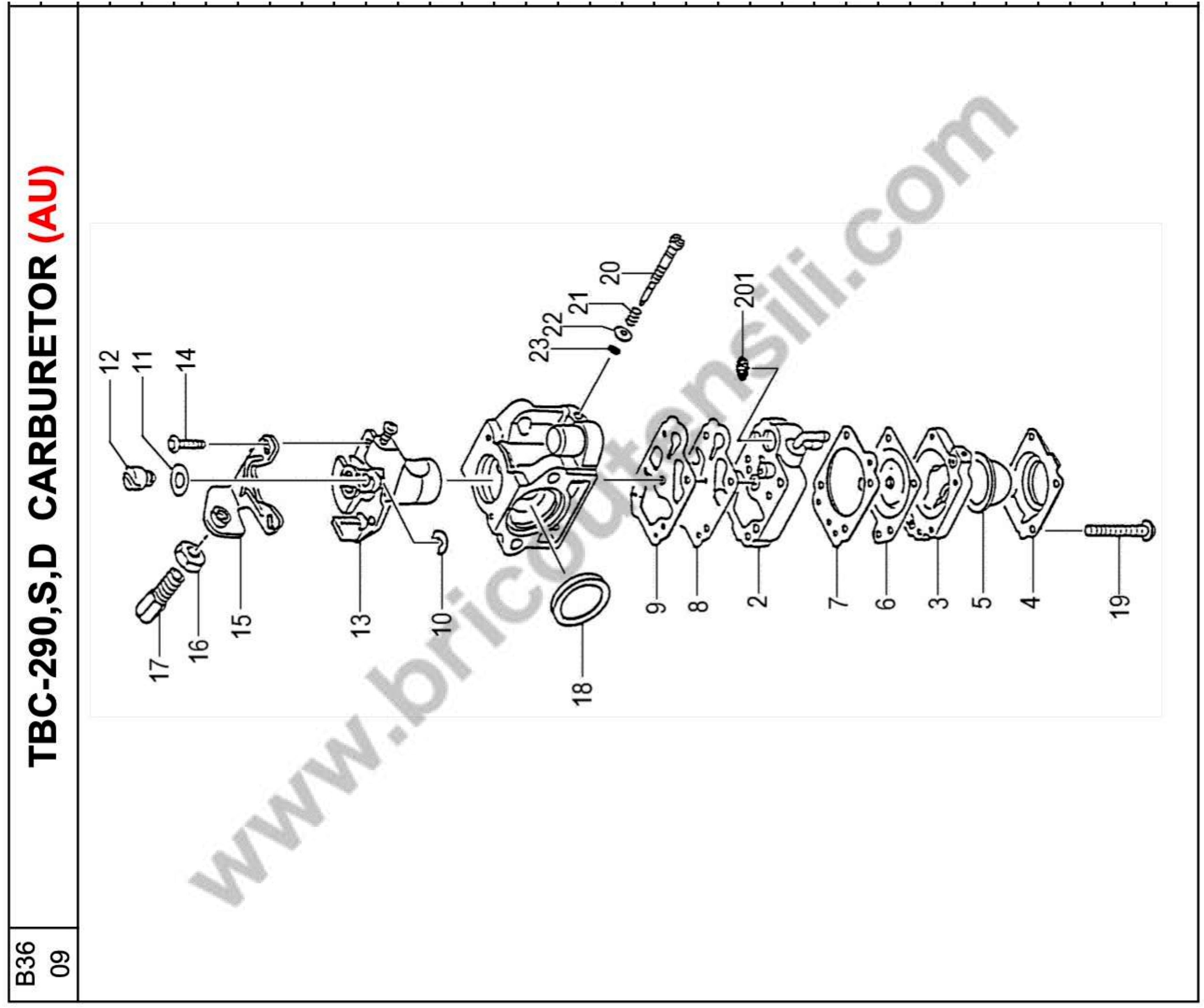

CARBURETOR (SERIAL NO.-B031100) Pag.7
|
| 002 |
6684879 |
PUMP BODY COMP |
| 003 |
6684687 |
PRIMING PUMP COMP |
| 004 |
6684688 |
DIAPHRAGM COVER |
| 005 |
6684689 |
PRIMING BODY |
| 006 |
6690827 |
METERING DIAPHRAGM COMP |
| 007 |
6684691 |
DIAPHRAGM GASKET |
| 008 |
6684693 |
PUMP DIAPHRAGM |
| 009 |
6691457 |
PUMP GASKET |
| 010 |
6684696 |
STOP RING |
| 011 |
6684874 |
THRUST WASHER |
| 012 |
6684697 |
SWIVEL |
| 013 |
6690947 |
THROTTLE VALVE |
| 014 |
6684870 |
THROTTLE SET SCREW |
| 015 |
6684873 |
CABLE ADJUSTER STAY |
| 016 |
6684872 |
NUT |
| 017 |
6684871 |
CABLE ADJUSTER |
| 018 |
6684875 |
CLEANER PACKING |
| 019 |
6684699 |
SET SCREW |
| 020 |
460-25242-20 |
HIGH ADJUST SCREW |
| 021 |
6692048 |
HIGH/LOW ADJUST SPRING |
| 022 |
549-25137-20 |
WASHER (OBSOLETE) |
| 023 |
550-25137-20 |
O-RING (OBSOLETE) |
| 201 |
6684700 |
INLET SCREEN |

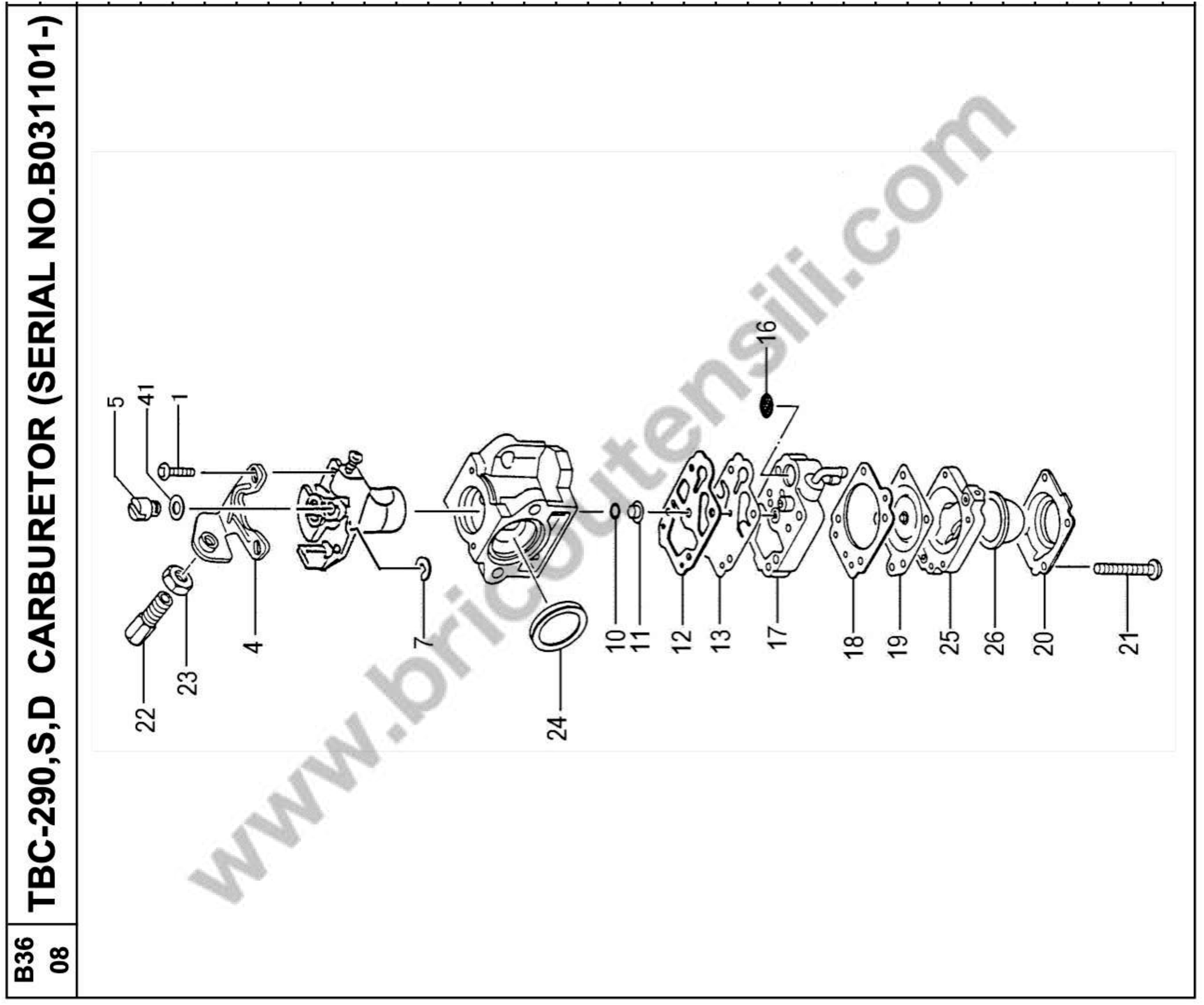

CARBURETOR (SERIAL NO.B031101-) Pag.8
|
| 001 |
6684870 |
THROTTLE SET SCREW |
| 004 |
6684873 |
CABLE ADJUSTER STAY |
| 005 |
6684697 |
SWIVEL |
| 007 |
6684696 |
STOP RING |
| 010 |
6684695 |
O-RING |
| 011 |
6691849 |
USE 599.2000W.43 |
| 012 |
6691457 |
PUMP GASKET |
| 013 |
6684693 |
PUMP DIAPHRAGM |
| 016 |
6684700 |
INLET SCREEN |
| 017 |
6684879 |
PUMP BODY COMP |
| 018 |
6684691 |
DIAPHRAGM GASKET |
| 019 |
6690827 |
METERING DIAPHRAGM COMP |
| 020 |
6684688 |
DIAPHRAGM COVER |
| 021 |
6684699 |
SET SCREW |
| 022 |
6684871 |
CABLE ADJUSTER |
| 023 |
6684872 |
NUT |
| 024 |
6684875 |
CLEANER PACKING |
| 025 |
6684687 |
PRIMING PUMP COMP |
| 026 |
6684689 |
PRIMING BODY |
| 041 |
6684874 |
THRUST WASHER |

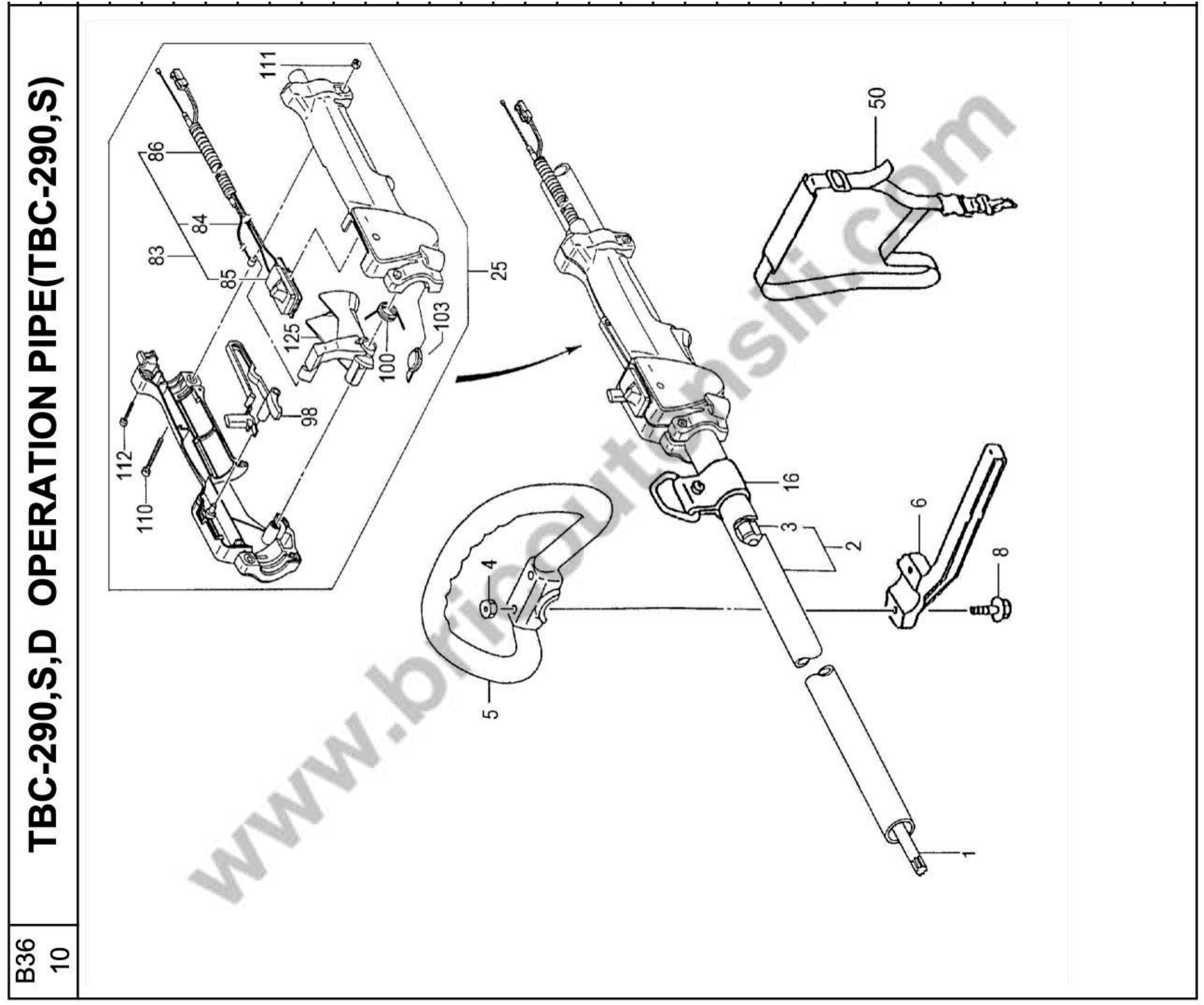

OPERATION PIPE 290/S Pag.9
|
| 001 |
6689478 |
DRIVE SHAFT |
| 002 |
6689407 |
DRIVE SHAFT PIPE COMP |
| 003 |
6689518 |
BUSHING ASSY |
| 004 |
6684792 |
NUT |
| 005 |
6691049 |
LOOP HANDLE, |
| 006 |
6691231 |
BARRIER |
| 008 |
6684838 |
BOLT 6X43/P(BLACK) |
| 010 |
6695255 |
SCREW |
| 011 |
6689681 |
BRAKE SHAFT WASHER |
| 012 |
6691098 |
AV COVER |
| 016 |
6689275 |
LIFTING METAL ASSY |
| 025 |
6693748 |
THROTTLE LEVER ASSY |
| 050 |
6684839 |
SHOULDER BELT ASS'Y, SINGLE |
| 051 |
6691036 |
HANDLE |
| 083 |
6693978 |
T/CABLE/SWITCH ASSY |
| 084 |
6694022 |
THROTTLE WIRE |
| 085 |
6687459 |
STOP SWITCH |
| 086 |
6687526 |
PROTECTION TUBE 7X175 |
| 098 |
6684721 |
THROTTLE LEVER |
| 100 |
6684722 |
RETURN SPRING |
| 103 |
6684724 |
BLIND PLUG |
| 110 |
6684803 |
BOLT |
| 111 |
6684727 |
CONTAL NUT 5 |
| 112 |
6684725 |
SCREW |
| 125 |
6684804 |
THROTTLE LEVER |

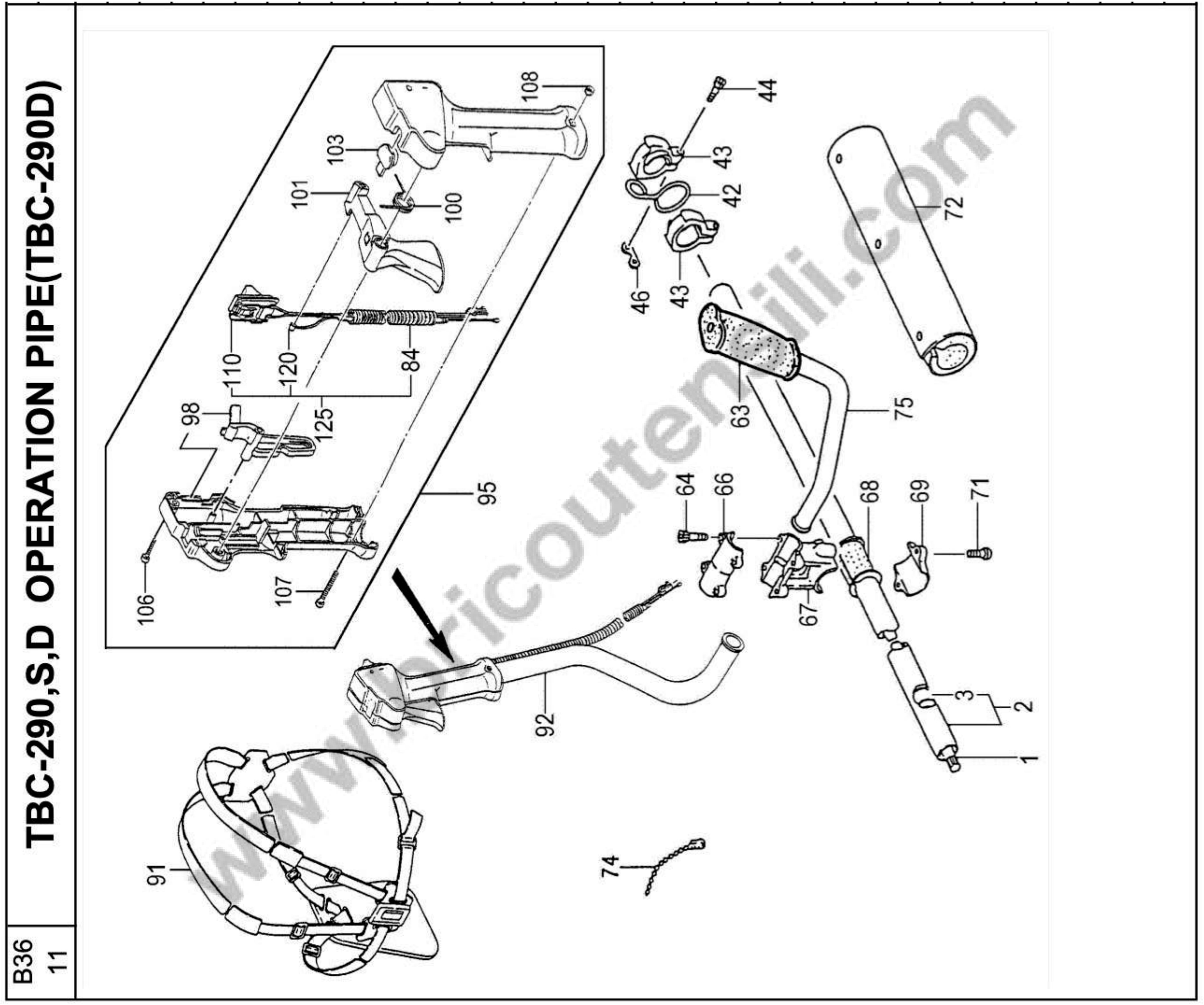

OPERATION PIPE 290D Pag.10
|
| 001 |
6689478 |
DRIVE SHAFT |
| 002 |
6689407 |
DRIVE SHAFT PIPE COMP |
| 003 |
6689518 |
BUSHING ASSY |
| 042 |
6689274 |
LIFTING METAL |
| 043 |
6689258 |
BRACKET |
| 044 |
6695501 |
HEX. HOLE BOLT 5X30.P |
| 046 |
6689100 |
NUT |
| 063 |
6684708 |
HANDLE GRIP |
| 064 |
6684709 |
HEX.HOLE BOLT 5X25/S |
| 066 |
6684710 |
HANDLE BRACKET A |
| 067 |
6684711 |
HANDLE BRACKET B |
| 068 |
6691187 |
AV RUBBER |
| 069 |
6684713 |
HANDLE BRACKET C |
| 071 |
6697451 |
HEX SCREW 6X25 |
| 072 |
6689283 |
USE 336.33411.82 (OBSOLETE) (OBSOLETE) |
| 074 |
6690707 |
USE 460.33111.20 |
| 075 |
6684716 |
LEFT HANDLE (OBSOLETE) (OBSOLETE) (OBSOLETE) |
| 084 |
6687546 |
PROTECTION TUBE 7X865L |
| 091 |
TB00079652000 |
HARNESS D3X HDOUBLE |
| 092 |
6691075 |
RIGHT HANDLE SK |
| 095 |
6693765 |
HANDLE ASSY |
| 098 |
6684721 |
THROTTLE LEVER |
| 100 |
6684722 |
RETURN SPRING |
| 101 |
6684723 |
TRIGGER |
| 103 |
6684724 |
BLIND PLUG |
| 106 |
6684725 |
SCREW |
| 107 |
6684726 |
SCREW |
| 108 |
6684727 |
CONTAL NUT 5 |
| 110 |
6687460 |
STOP SWITCH |
| 120 |
6694023 |
THROTTLE WIRE |
| 125 |
6693979 |
THROTTLE CABLE |

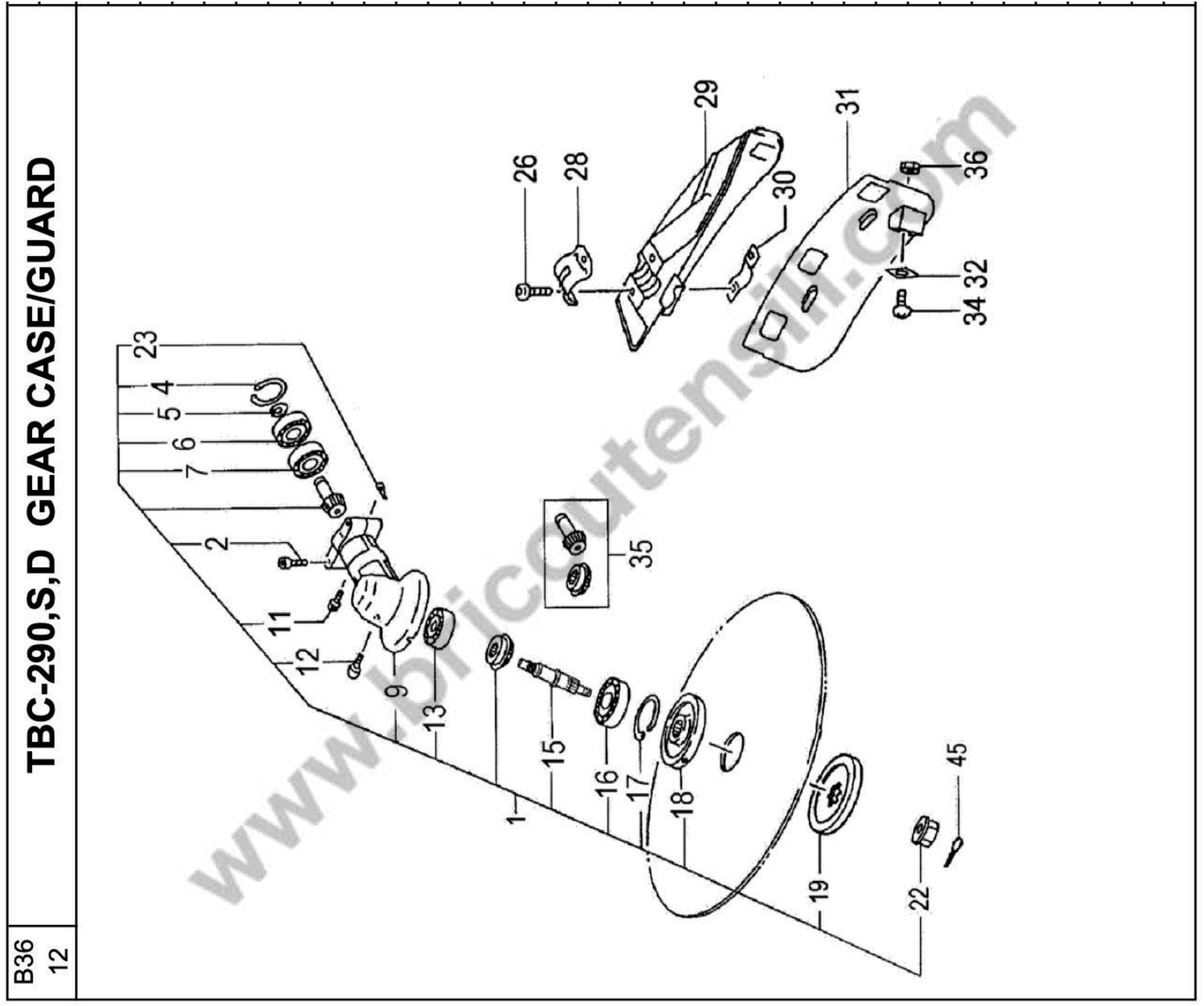

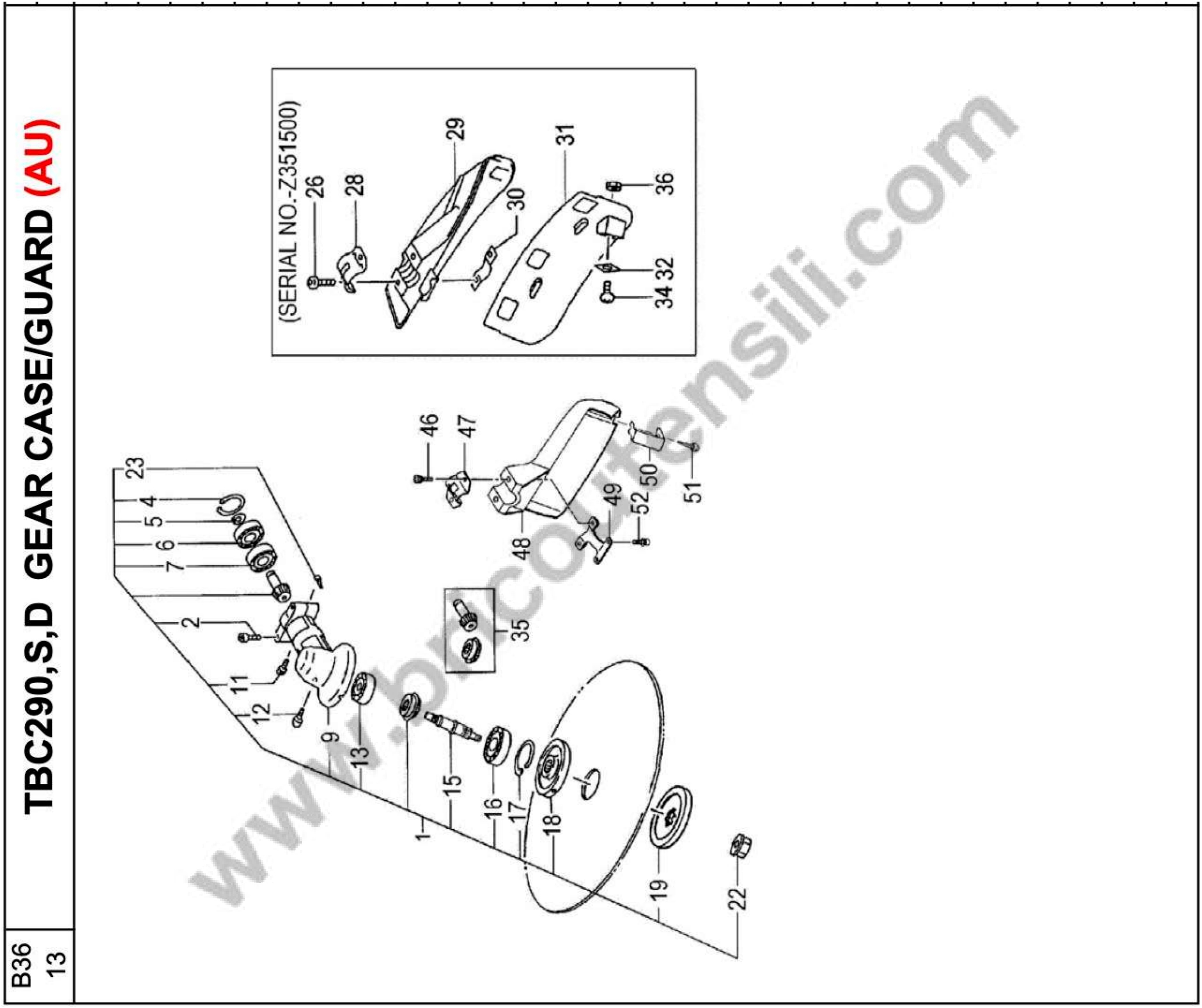

GEAR CASE/GUARD Pag.11
|
| 001 |
6688771 |
GEAR CASE ASSY |
| 001 |
6688696 |
GEAR CASE ASSY (OBSOLETE) (OBSOLETE) |
| 002 |
6684709 |
HEX.HOLE BOLT 5X25/S |
| 004 |
6695294 |
STOP RING |
| 005 |
6695315 |
OUTER STOP RING |
| 006 |
6695526 |
BALL BEARING |
| 007 |
6695524 |
BEARING |
| 009 |
6688771 |
GEAR CASE ASSY |
| 011 |
6684667 |
HEX.HOLE BOLT 5X12S |
| 012 |
6689109 |
OILING BOLT |
| 013 |
6684734 |
BEARING |
| 015 |
6688946 |
GEAR SHAFT |
| 015 |
6688924 |
GEAR SHAFT |
| 016 |
6695554 |
BEARING |
| 017 |
6695295 |
STOP RING |
| 018 |
6689032 |
CUTTER HOLDER |
| 019 |
6689055 |
CUTTER HOLDER |
| 022 |
6689073 |
FIXING NUT M1OX1.25 |
| 023 |
6689160 |
GEAR CASE WASHER |
| 026 |
6697451 |
HEX SCREW 6X25 |
| 028 |
6690294 |
COVER BRACKET |
| 029 |
6690242 |
SAFETY COVER |
| 030 |
6684748 |
COVER BRACKET |
| 031 |
6690372 |
SHROUD |
| 032 |
6693386 |
BLADE |
| 034 |
6695334 |
SCREW |
| 035 |
6688875 |
GEAR/PINION SET,SPARE |
| 036 |
6684965 |
HEX NUT |
| 045 |
6689168 |
SPLIT PIN SET |

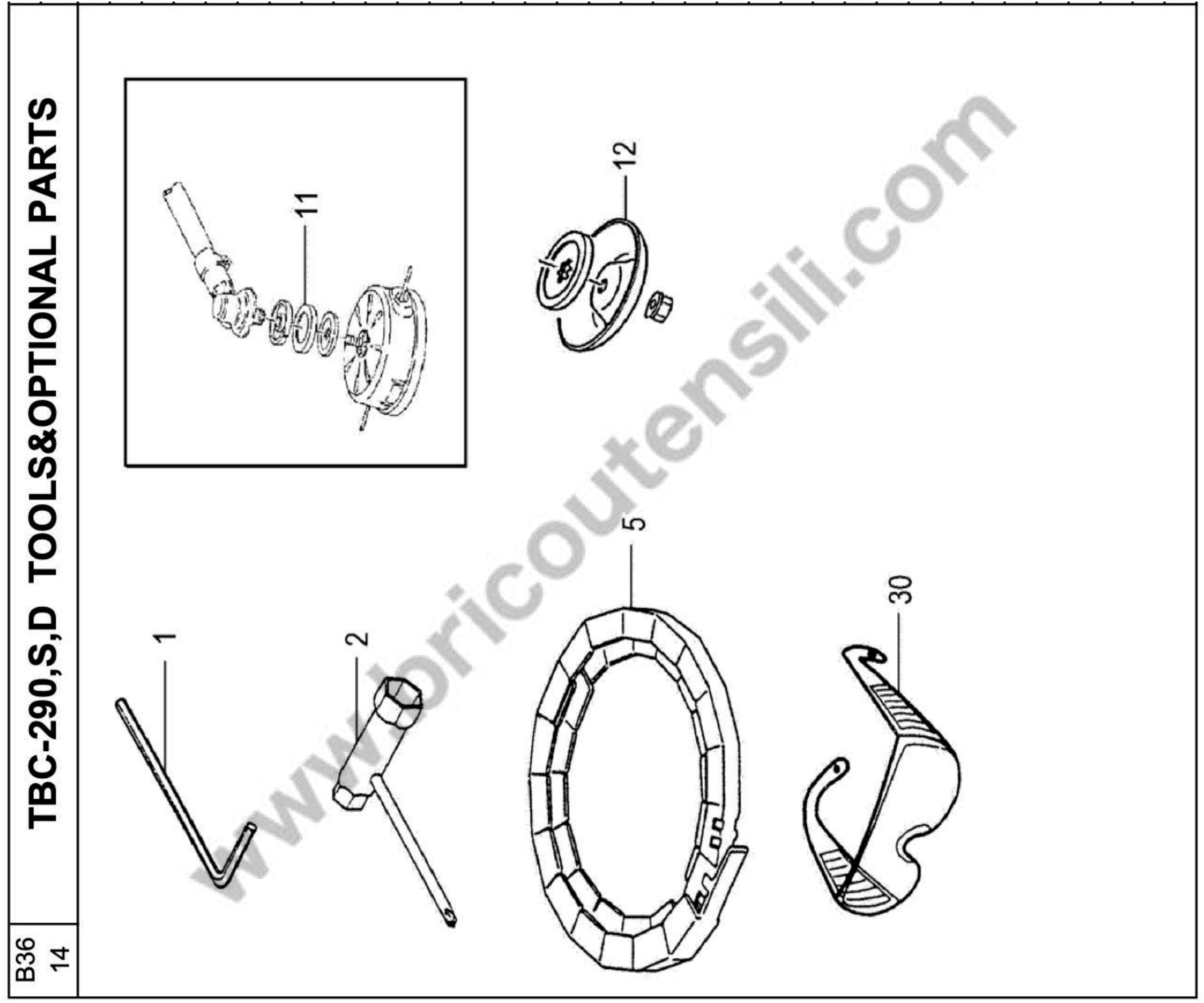

TOOLS/OPTIONAL PARTS Pag.12
|
| 001 |
6684813 |
HEX.WRENCH 4 |
| 002 |
6684764 |
COMBI BOX SPANNER |
| 003 |
6693520 |
HEX. WRENCH 3 |
| 005 |
615-37224-20 |
CUTTER COVER , Y254260 |
| 011 |
6684763 |
WINDING PROTECTOR |
| 030 |
6684765 |
PROTECTIVE GLASSES |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Tanaka websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Tanaka brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Italiano
