HiKOKI Power Tools Italia S.p.a.

Tanaka Spare Parts for Hedge Trimmer THT-2520 - 2520B

SKU: Tanaka THT2520 - 2520 B
€9.61
VAT included

Tanaka Spare Parts for Hedge Trimmer THT-2520 - 2520B

Hitachi-HIKOKI Tanaka Authorized Technical Assistance, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Engine Edge Trimmer THT-2520 - 2520B.
Tanaka Spare Parts for Hedge Trimmer THT-2520 - 2520B
  • Tanaka Spare Parts for Hedge Trimmer THT-2520 - 2520B
  • Tanaka Spare Parts for Hedge Trimmer THT-2520 - 2520B - 1
  • Tanaka Spare Parts for Hedge Trimmer THT-2520 - 2520B - 2
  • Tanaka Spare Parts for Hedge Trimmer THT-2520 - 2520B - 3
  • Tanaka Spare Parts for Hedge Trimmer THT-2520 - 2520B - 4
  • Tanaka Spare Parts for Hedge Trimmer THT-2520 - 2520B - 5
  • Tanaka Spare Parts for Hedge Trimmer THT-2520 - 2520B - 6
  • Tanaka Spare Parts for Hedge Trimmer THT-2520 - 2520B - 7
  • Tanaka Spare Parts for Hedge Trimmer THT-2520 - 2520B - 8
  • Tanaka Spare Parts for Hedge Trimmer THT-2520 - 2520B - 9
HiKOKI Power Tools Italia S.p.a.

Tanaka Spare Parts for Hedge Trimmer THT-2520 - 2520B

SKU: Tanaka THT2520 - 2520 B Condition: New
€9.61
VAT included

Tanaka Spare Parts for Hedge Trimmer THT-2520 - 2520B

Hitachi-HIKOKI Tanaka Authorized Technical Assistance, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Engine Edge Trimmer THT-2520 - 2520B.
settings 193 spare parts
description 10 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
137 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

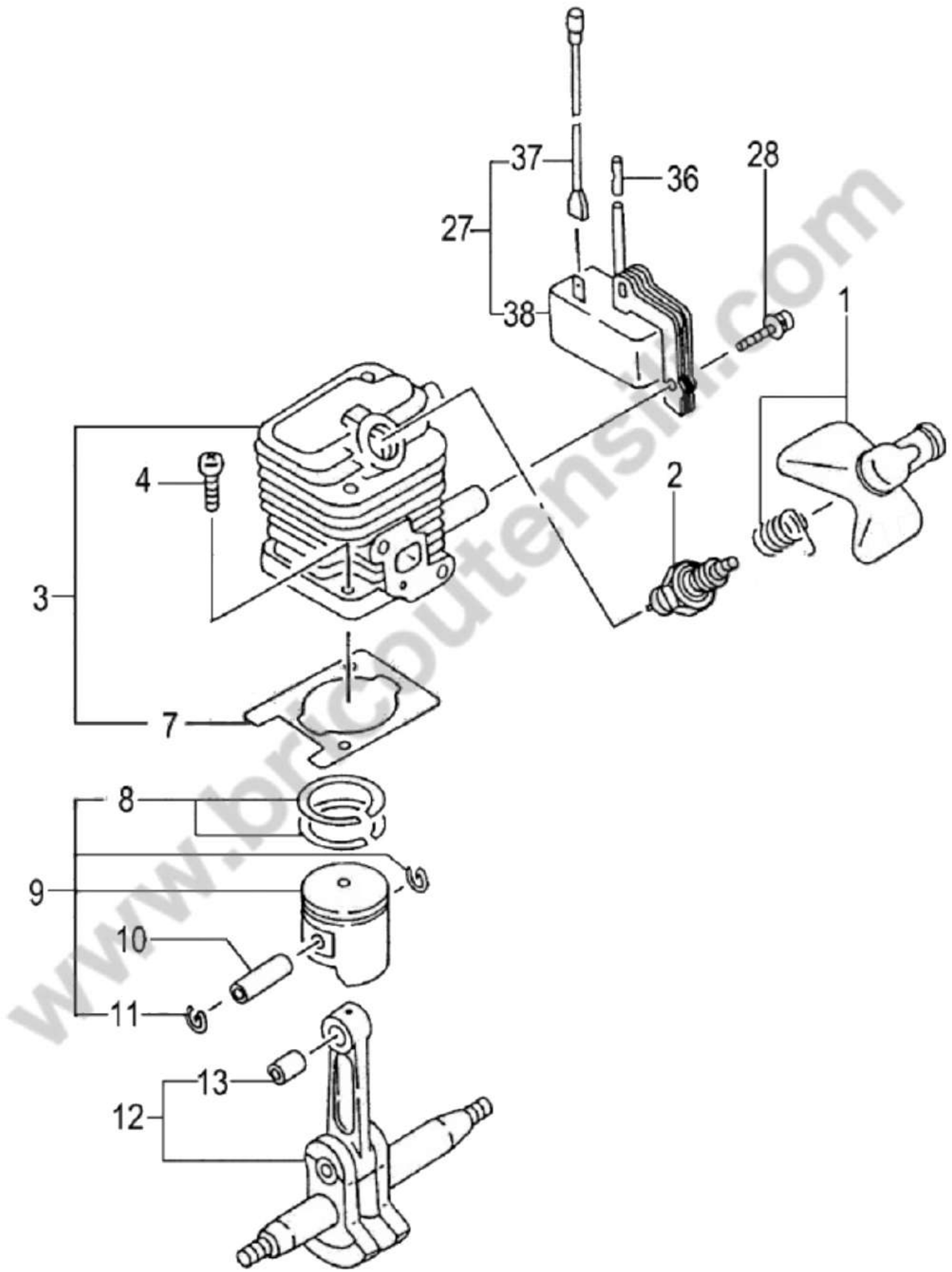

Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 6687476 SPARK PLUG CAP €9.07
2
 photo_cameraImage coming soon BPMR6A SPARK PLUG BPMR6A €8.48
3
 photo_cameraImage coming soon 6685481 CYLINDER ASS'Y €87.15
4
 Bolt M5X18/S for Chainsaws Hitachi CS38EK-CS45EL 6684586 Bolt M5X18/S for Chainsaws Hitachi CS38EK-CS45EL €1.98
7
 photo_cameraImage coming soon 6685744 CYLINDER GASKET €2.09
8
 photo_cameraImage coming soon 6684588 PISTON RING €8.99
9
 photo_cameraImage coming soon 6685893 PISTON ASS'Y €36.18
10
 Piston Pin for Brushcutter Hitachi CG27EASP 6684591 Piston Pin for Brushcutter Hitachi CG27EASP €4.14
11
 photo_cameraImage coming soon 6686028 PISTON PIN CIRCLIP €1.53
12
 photo_cameraImage coming soon 6686205 CRANK SHAFT COMP. €199.57
13
 photo_cameraImage coming soon 6695589 BEARING €10.82
36
 Insulator Tube for Chainsaw Hitachi CS25EC-SC 6684597 Insulator Tube for Chainsaw Hitachi CS25EC-SC €1.08
Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

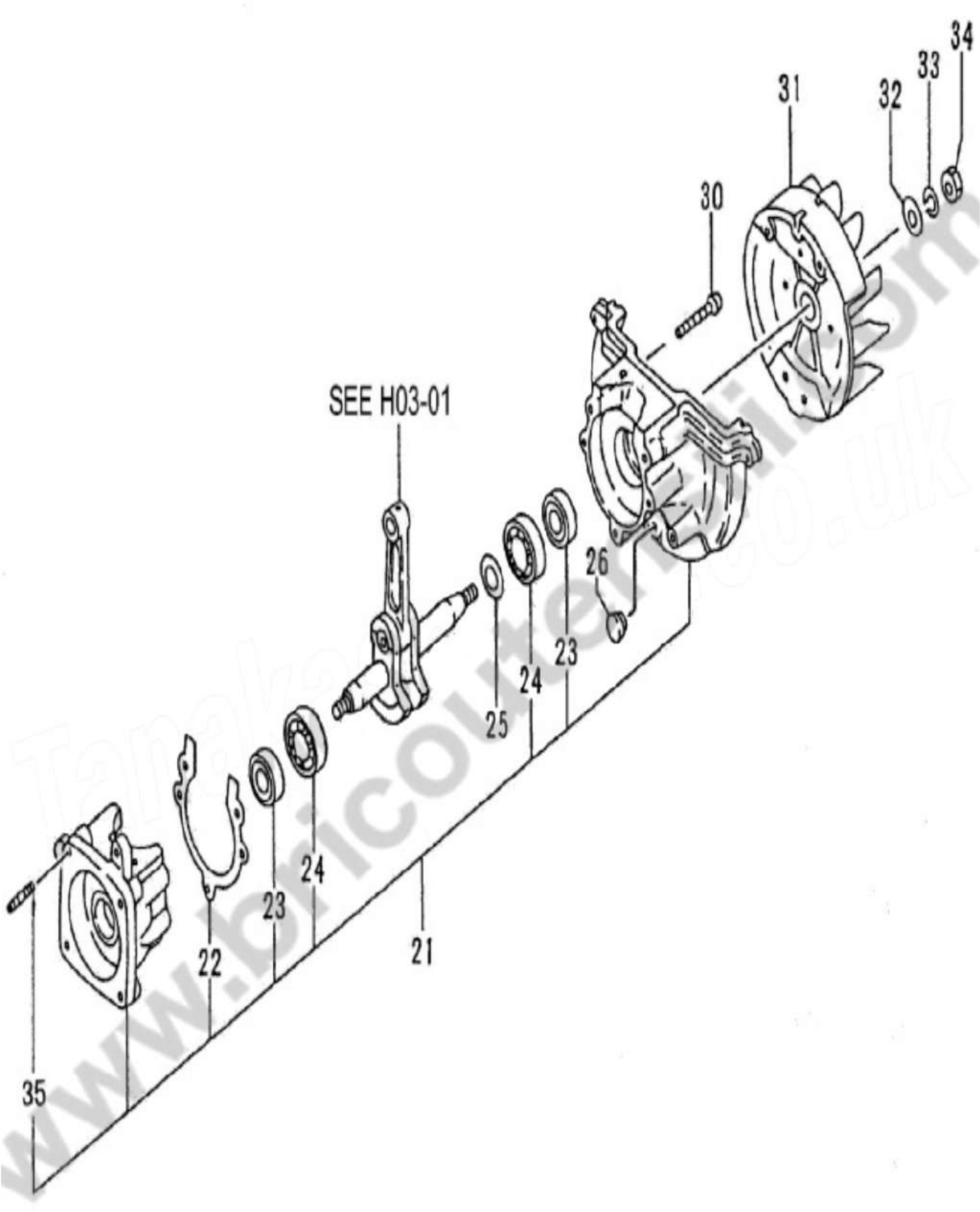

Esploso pagina 2
Pos. Item Price Buy
23
 photo_cameraImage coming soon 6684607 OIL SEAL TB 12227 €3.20
24
 photo_cameraImage coming soon 6684608 BALL BEARING 6001 C3 €6.06
30
 photo_cameraImage coming soon 6684786 HEX. SOCKET HD. BOLT M5X30 S €1.60
31
 photo_cameraImage coming soon 6687389 MAGNETO ROTOR COMP. €46.81
32
 photo_cameraImage coming soon 6684611 BOLT WASHER M8 €1.24
33
 photo_cameraImage coming soon 6684971 WASHER 8 €1.80
35
 photo_cameraImage coming soon 6686771 STUD BOLT 6X22 €1.56
Page 3 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

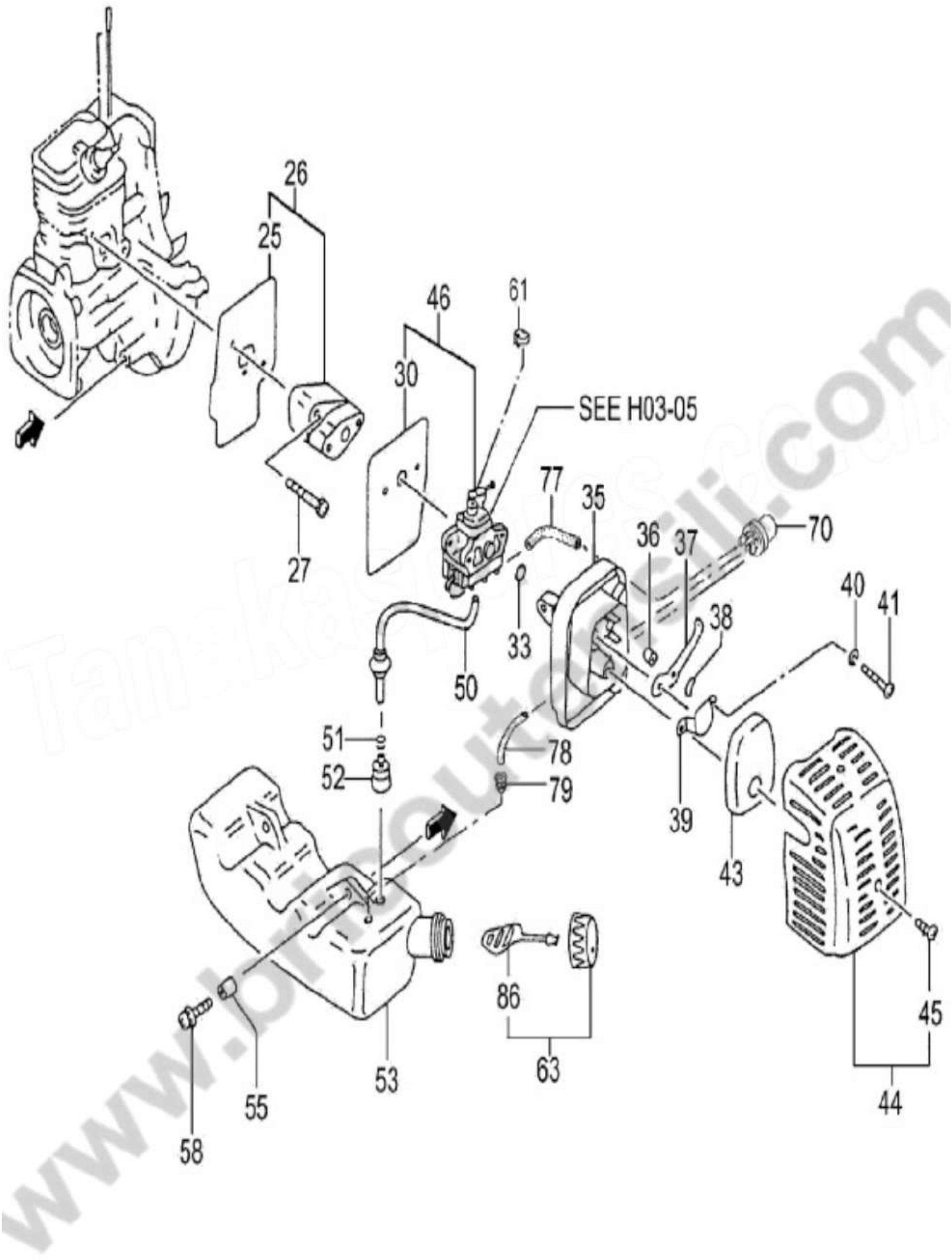

Esploso pagina 3
Pos. Item Price Buy
26
 photo_cameraImage coming soon 6689966 CARB. INSULATOR SET,SPARE €13.24
27
 photo_cameraImage coming soon 6695515 HEX HOLE BOLT 5X25WS €1.67
30
 photo_cameraImage coming soon 6689839 CARBURETOR GASKET €2.39
37
 photo_cameraImage coming soon 6691272 CHOKE LEVER €3.08
38
 photo_cameraImage coming soon 6684658 WAVE WASHER 8 €2.45
39
 Blow Over Check Board for Brushcutter Hitachi CG40EAS 6690843 Blow Over Check Board for Brushcutter Hitachi CG40EAS €3.48
40
 Washer D. 5 for Chainsaw Hitachi CS45EL-CS38EK 6684662 Washer D. 5 for Chainsaw Hitachi CS45EL-CS38EK €1.28
43
 photo_cameraImage coming soon 6690364 CLEANER SPONGE €1.61
44
 photo_cameraImage coming soon 6690415 AIR FILTER COVER €10.82
46
 photo_cameraImage coming soon 6690481 CARB. SET,SPARE €70.28
50
 Shield Tube for Chainsaw Hitachi Tanaka TCS-2801S 6685247 Shield Tube for Chainsaw Hitachi Tanaka TCS-2801S €5.38
51
 Hose Clip 6.3 D. for Brushcutters Chainsaws Hitachi Hikoki Tanaka 6684619 Hose Clip 6.3 D. for Brushcutters Chainsaws Hitachi Hikoki Tanaka €1.25
52
 photo_cameraImage coming soon 6684620 PUMP FILTER BODY COMP. €21.52
55
 Collar 5.8 for Brushcutter Hitachi CG47EJ-L 6692244 Collar 5.8 for Brushcutter Hitachi CG47EJ-L €1.08
58
 Hex Hole Bolt M5x18PS for Hedge Trimmer Tanaka THT 210 6695505 Hex Hole Bolt M5x18PS for Hedge Trimmer Tanaka THT 210 €2.16
61
 photo_cameraImage coming soon 6691337 SWIVEL CAP €1.78
63
 Tank Cap Ass'y (Orange) for Hedge Trimmer Tanaka THT 210 6691716 Tank Cap Ass'y (Orange) for Hedge Trimmer Tanaka THT 210 €12.64
70
 Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka 6685139 Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka €13.15
78
 Fuel Hose for Brushcutters Hitachi CG47EF (L)-CG47EJ-L-CG47EY-T 6685267 Fuel Hose for Brushcutters Hitachi CG47EF (L)-CG47EJ-L-CG47EY-T €3.31
86
 photo_cameraImage coming soon 6684625 TANK CAP CHAIN €1.78
Page 4 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

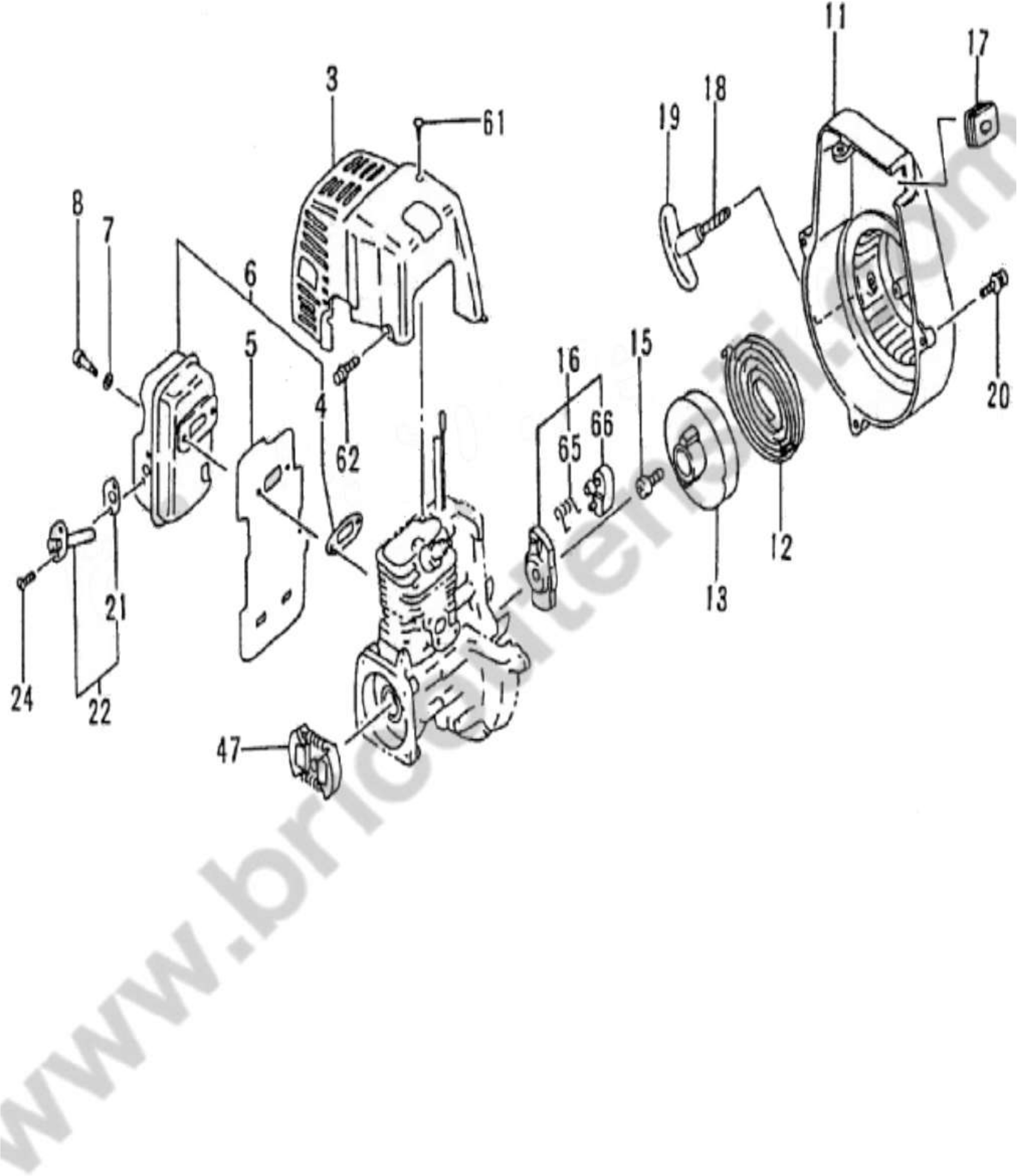

Esploso pagina 4
Pos. Item Price Buy
4
 photo_cameraImage coming soon 6692744 MUFFLER GASKET €3.28
5
 photo_cameraImage coming soon 6687252 HEAT SHIELD €3.30
6
 photo_cameraImage coming soon 6692477 MUFFLER ASS'Y €51.25
7
 photo_cameraImage coming soon 6684661 WASHER 5 €1.27
8
 Hex Socket Hd Bolt M5X50 for Hedge Trimmer Tanaka THT 210 6685114 Hex Socket Hd Bolt M5X50 for Hedge Trimmer Tanaka THT 210 €1.66
11
 photo_cameraImage coming soon 6687010 FAN CASE COMP., VERMILION €33.49
12
 photo_cameraImage coming soon 6684675 RECOIL SPRING €12.16
13
 photo_cameraImage coming soon 6693066 STARTER ROPE REEL €5.99
15
 photo_cameraImage coming soon 6693633 SET SCREW €1.74
16
 photo_cameraImage coming soon 6693405 STARTER PULLEY ASS'Y €9.09
17
 photo_cameraImage coming soon 6688050 GROMMET €1.56
18
 photo_cameraImage coming soon 6693168 ROPE €3.26
19
 photo_cameraImage coming soon 6693237 STARTER HANDLE €5.27
24
 photo_cameraImage coming soon 6695325 SCREW 4X8/S €1.24
62
 photo_cameraImage coming soon 6695441 4X12PS SCREW €1.80
65
 photo_cameraImage coming soon 6684684 STARTER PAWL SPRING €3.48
66
 Starter Pawl for Hedge Trimmer Hitachi CH78EC(C) 6693319 Starter Pawl for Hedge Trimmer Hitachi CH78EC(C) €3.46
Page 5 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

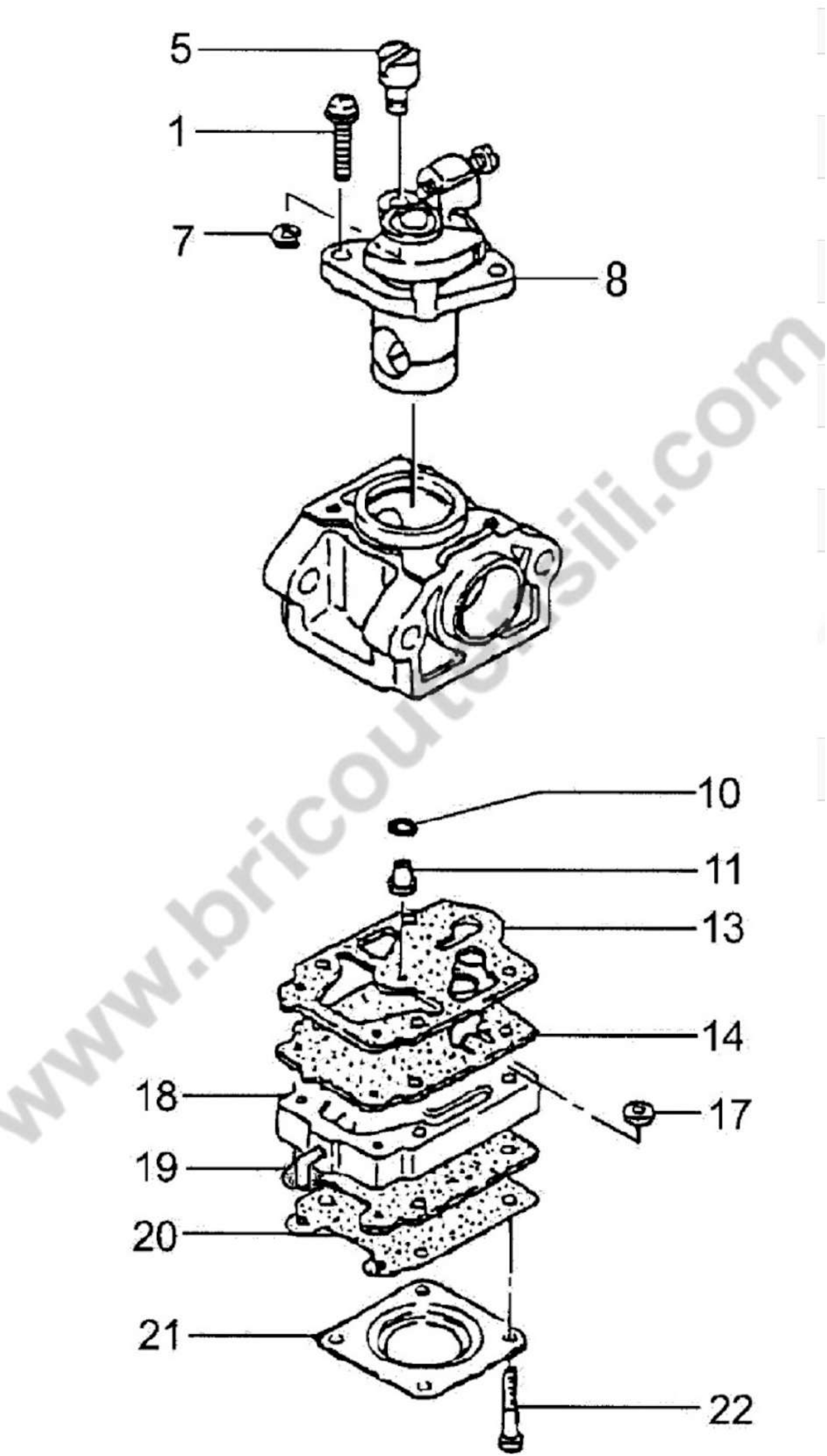

Esploso pagina 5
Pos. Item Price Buy
5
 photo_cameraImage coming soon 6684697 SWIVEL €4.96
7
 photo_cameraImage coming soon 6684696 STOP RING €1.76
8
 photo_cameraImage coming soon 6684883 THROTTLE VALVE €38.04
10
 photo_cameraImage coming soon 6684695 ORING €3.16
13
 photo_cameraImage coming soon 6691457 PUMP GASKET €9.57
14
 Pump Diaphragm for Chainsaw Hitachi CS33EB 6684693 Pump Diaphragm for Chainsaw Hitachi CS33EB €9.95
17
 Carburator Inlet Screen for Chainsaws and Bruschcutters Hitachi 6684700 Carburator Inlet Screen for Chainsaws and Bruschcutters Hitachi €3.18
19
 Carburator Disc Gasket for Hedge Trimmer Tanaka THT 210 6690837 Carburator Disc Gasket for Hedge Trimmer Tanaka THT 210 €4.04
20
 Metering Diaphragm Comp. for Chainsaws Hitachi CS25-33-40-45-51 6690827 Metering Diaphragm Comp. for Chainsaws Hitachi CS25-33-40-45-51 €23.70
21
 photo_cameraImage coming soon 6685222 DIAPHRAGM COVER €6.54
22
 photo_cameraImage coming soon 6691312 SET SCREW €2.48
Page 6 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

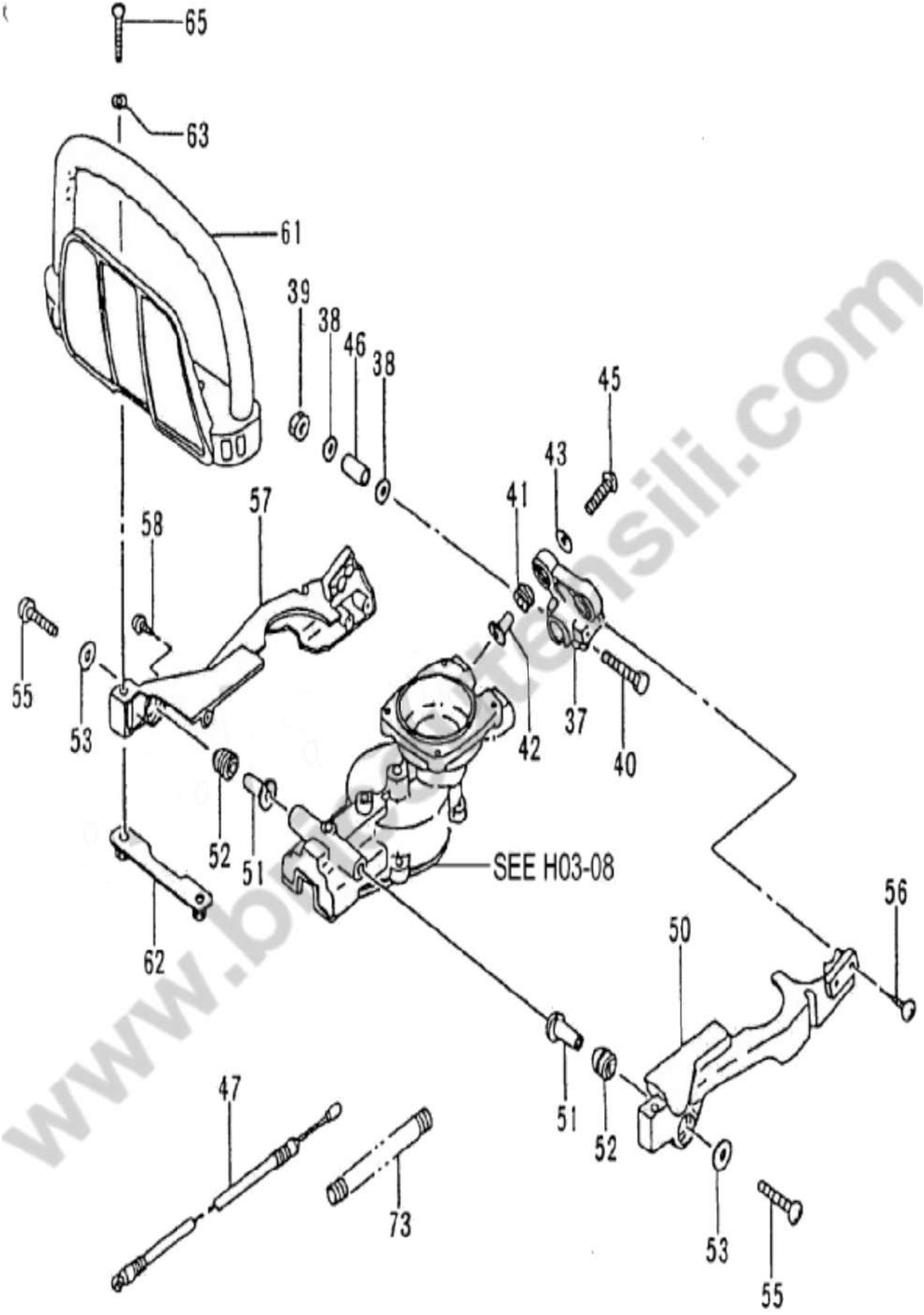

Esploso pagina 6
Pos. Item Price Buy
38
 photo_cameraImage coming soon 6695183 SMALL WASHER 6 €1.24
41
 Damper B for Hedge Trimmer Tanaka THT 210 6688412 Damper B for Hedge Trimmer Tanaka THT 210 €2.06
42
 Tanaka TCS-3301S Damper Collar B 6688485 Tanaka TCS-3301S Damper Collar B €3.16
47
 photo_cameraImage coming soon 6693907 THROTTLE CABLE €6.10
50
 Clamp Body Left for Hedge Trimmer Tanaka THT 210 6688313 Clamp Body Left for Hedge Trimmer Tanaka THT 210 €25.65
51
 Tanaka TCS-3301S Damper Collar B 6688485 Tanaka TCS-3301S Damper Collar B €3.16
52
 Damper B for Hedge Trimmer Tanaka THT 210 6688412 Damper B for Hedge Trimmer Tanaka THT 210 €2.06
57
 Clamp Body Right for Hedge Trimmer Tanaka THT 210 6688325 Clamp Body Right for Hedge Trimmer Tanaka THT 210 €19.40 Not available for order
62
 Handle Support for Hedge Trimmer Tanaka THT 210 6686111 Handle Support for Hedge Trimmer Tanaka THT 210 €6.19
63
 photo_cameraImage coming soon 6684661 WASHER 5 €1.27
Page 7 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

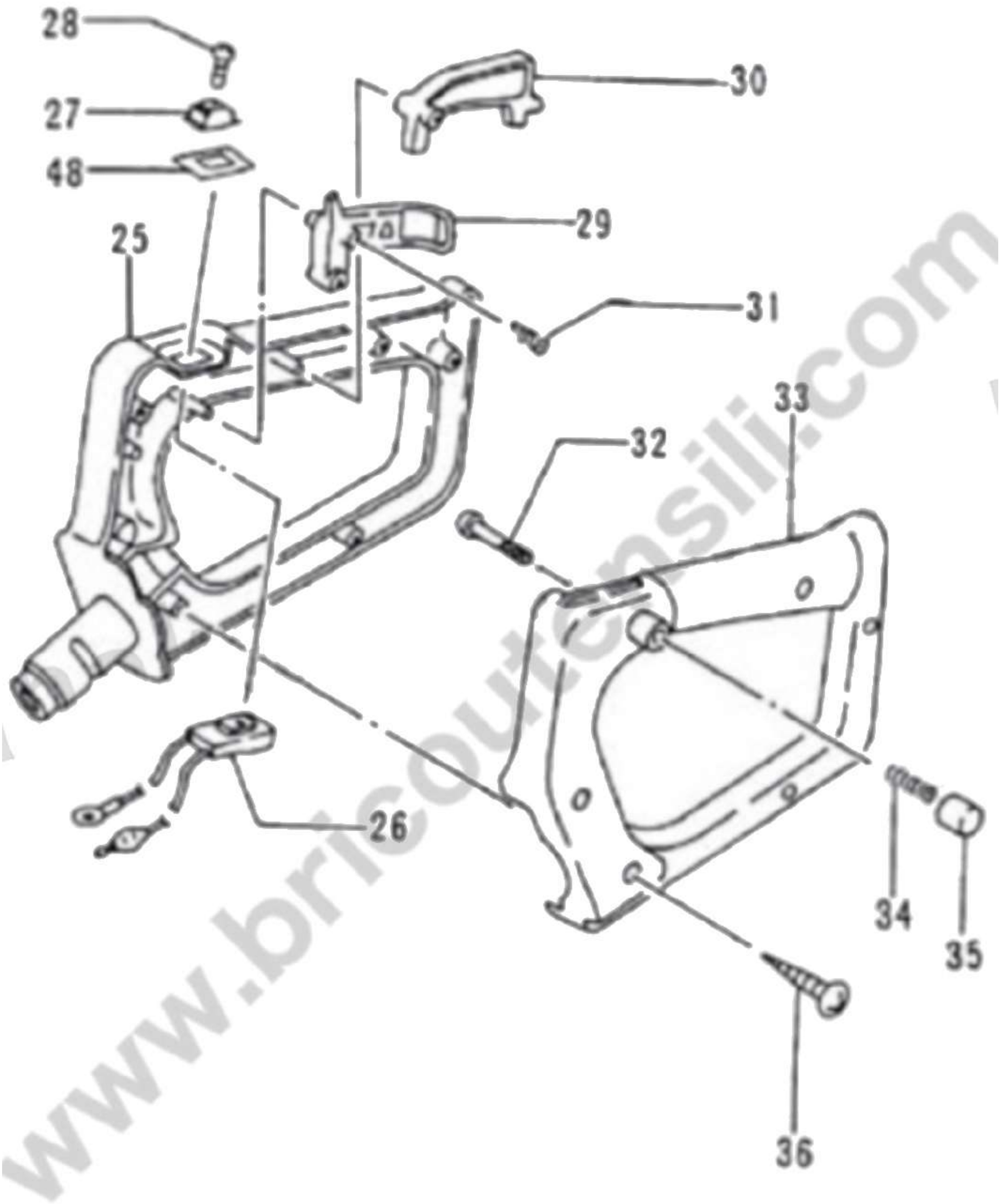

Esploso pagina 7
Pos. Item Price Buy
25
 photo_cameraImage coming soon 6686272 HANDLE DX €14.42
26
 photo_cameraImage coming soon 6687763 STOP BUTTON €12.89
29
 photo_cameraImage coming soon 6688227 TRIGGER €3.21
30
 photo_cameraImage coming soon 6688236 SAFETY LEVER €3.28
31
 photo_cameraImage coming soon 6688244 SPRING LEVER ACCELERATOR €2.77
32
 Handle Push Pin for Hedge Trimmer Tanaka THT 210 6686430 Handle Push Pin for Hedge Trimmer Tanaka THT 210 €1.79
33
 photo_cameraImage coming soon 6686308 HANDLE SX €14.06
35
 Handle Push Pin Cap for Hedge Trimmer Tanaka THT 210 6692681 Handle Push Pin Cap for Hedge Trimmer Tanaka THT 210 €1.18
48
 photo_cameraImage coming soon 6694588 STOP SWITCH €2.42
Page 8 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

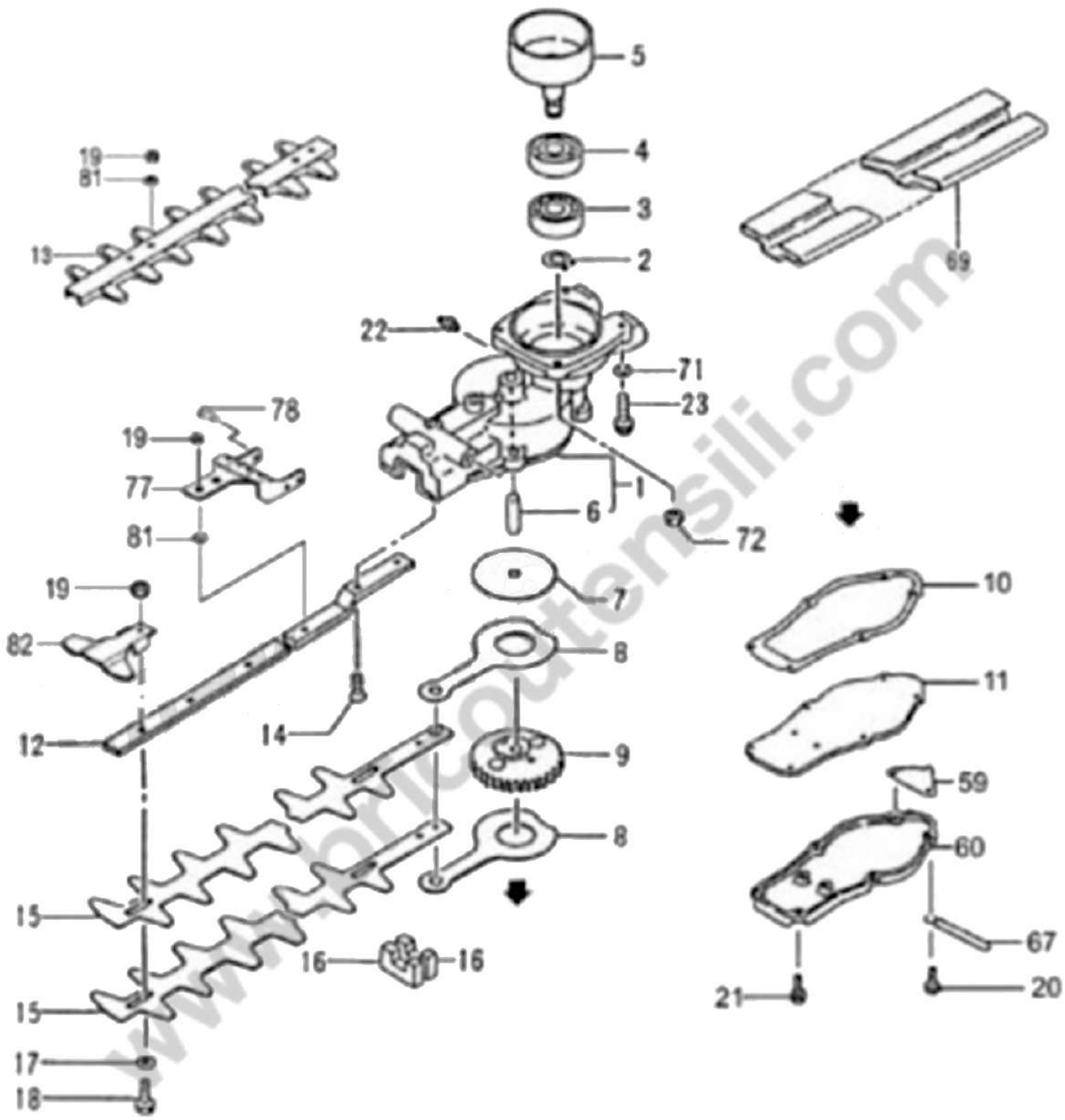

Esploso pagina 8
Pos. Item Price Buy
2
 Stop Ring C-15 for Hedge Trimmer Tanaka THT 210 THT 210 B 6695285 Stop Ring C-15 for Hedge Trimmer Tanaka THT 210 THT 210 B €0.66
3
 photo_cameraImage coming soon 6697745 BEARING €6.48
4
 Ball Bearing 6002Z for Hedge Trimmer Hitachi CH62EA(ST) 6695538 Ball Bearing 6002Z for Hedge Trimmer Hitachi CH62EA(ST) €14.45
5
 Clutch Drum for Hedge Trimmers Tanaka THT 210-HTD2530PF 6688570 Clutch Drum for Hedge Trimmers Tanaka THT 210-HTD2530PF €44.53
7
 photo_cameraImage coming soon 6686612 PLATE €2.03
8
 photo_cameraImage coming soon 6686809 ROD €11.59
9
 photo_cameraImage coming soon 6688974 GEAR €87.68
10
 Gear Case Cover Gasket for Hedge Trimmer Hitachi CH62EA3 (ST) 6688909 Gear Case Cover Gasket for Hedge Trimmer Hitachi CH62EA3 (ST) €2.13
12
 photo_cameraImage coming soon 6687143 CUTTER GUIDE,845.5MM €49.56
13
 photo_cameraImage coming soon 6687289 PROTECTION PLATE €19.89
14
 photo_cameraImage coming soon 6695073 HEX HOLE FLUSH SCREW 6X16 €1.61
15
 photo_cameraImage coming soon 6687092 CUTTER A (812L) €75.90
16
 Clean Blade Felt for Hedge Trimmers Tanaka THT 210-HTD2530PF 6686654 Clean Blade Felt for Hedge Trimmers Tanaka THT 210-HTD2530PF €1.79
17
 photo_cameraImage coming soon 6687187 WASHER 7 BLACK €2.09
22
 Grease Nipple for Hedgetrimmers Hitachi - HIKOKI - Tanaka 6688643 Grease Nipple for Hedgetrimmers Hitachi - HIKOKI - Tanaka €3.48
59
 photo_cameraImage coming soon 6688636 SPACER €8.20
69
 photo_cameraImage coming soon 112293200/0 Nut €1.74
71
 photo_cameraImage coming soon 6695219 S.WASHER 6 €1.78
72
 photo_cameraImage coming soon 6695475 SPRING NUT 6 €1.67
77
 photo_cameraImage coming soon 6690759 SUPPORT PLATE €13.19
82
 photo_cameraImage coming soon 6687275 GUARD PLATE €4.77
Page 9 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

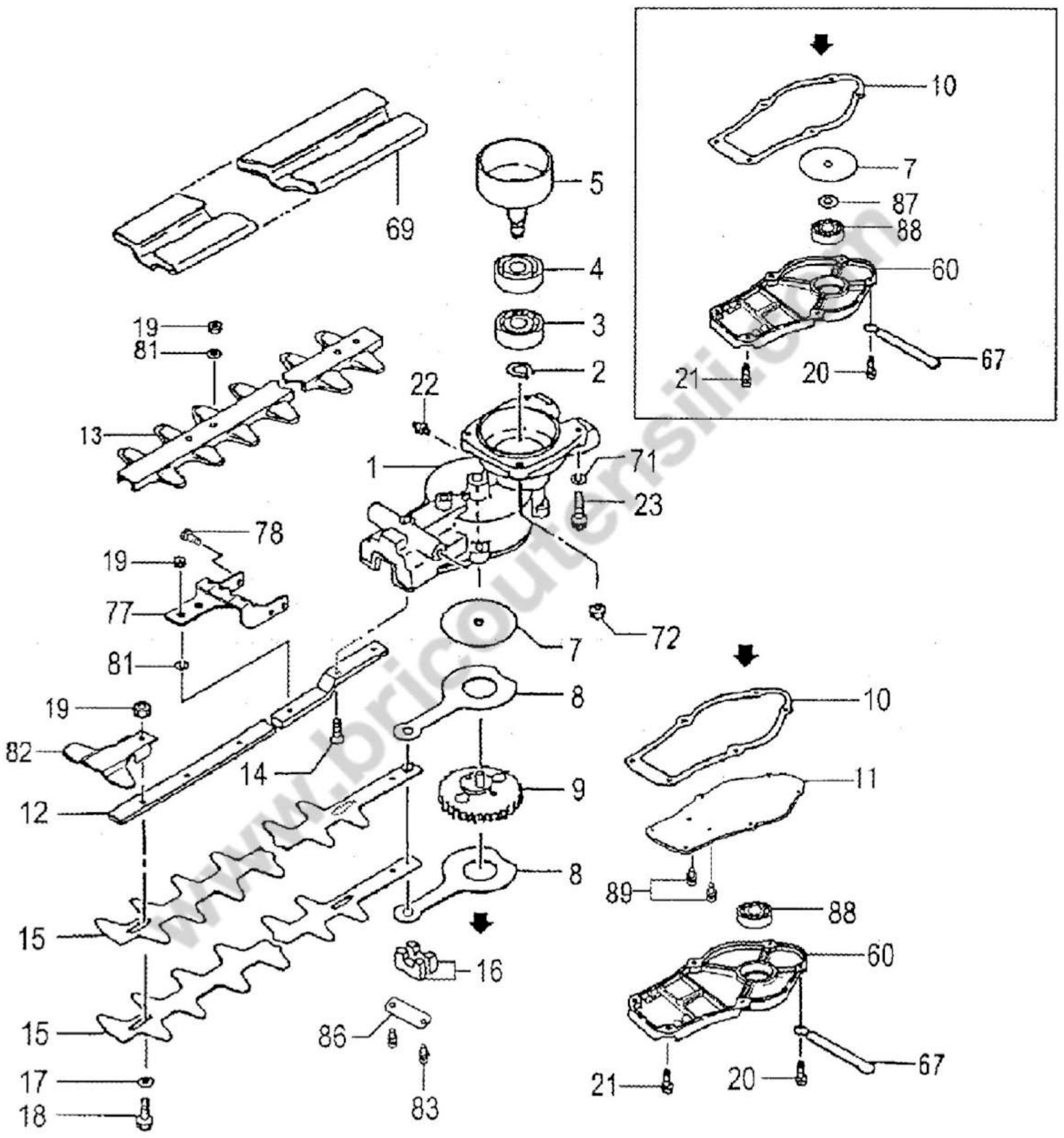

Esploso pagina 9
Pos. Item Price Buy
1
 photo_cameraImage coming soon 6688676 CARTER €44.56
2
 Stop Ring C-15 for Hedge Trimmer Tanaka THT 210 THT 210 B 6695285 Stop Ring C-15 for Hedge Trimmer Tanaka THT 210 THT 210 B €0.66
3
 photo_cameraImage coming soon 6002C3 BEARING 6002C3 €7.00
4
 Ball Bearing 6002Z for Hedge Trimmer Hitachi CH62EA(ST) 6695538 Ball Bearing 6002Z for Hedge Trimmer Hitachi CH62EA(ST) €14.45
5
 Clutch Drum for Hedge Trimmers Tanaka THT 210-HTD2530PF 6688570 Clutch Drum for Hedge Trimmers Tanaka THT 210-HTD2530PF €44.53
7
 photo_cameraImage coming soon 6686612 PLATE €2.03
8
 Cam Rod for Hedge Trimmer Hitachi CH78EC3(ST) 6686811 Cam Rod for Hedge Trimmer Hitachi CH78EC3(ST) €19.38
9
 photo_cameraImage coming soon 6688625 GEAR 2 COMP. €47.48
10
 Gear Case Cover Gasket for Hedge Trimmer Hitachi CH62EA3 (ST) 6688909 Gear Case Cover Gasket for Hedge Trimmer Hitachi CH62EA3 (ST) €2.13
12
 photo_cameraImage coming soon 6687143 CUTTER GUIDE,845.5MM €49.56
13
 photo_cameraImage coming soon 6687289 PROTECTION PLATE €19.89
14
 photo_cameraImage coming soon 6695073 HEX HOLE FLUSH SCREW 6X16 €1.61
15
 photo_cameraImage coming soon 6687092 CUTTER A (812L) €75.90
16
 Clean Blade Felt for Hedge Trimmers Tanaka THT 210-HTD2530PF 6686654 Clean Blade Felt for Hedge Trimmers Tanaka THT 210-HTD2530PF €1.79
17
 photo_cameraImage coming soon 6687187 WASHER 7 BLACK €2.09
19
 Blade Nut for Hedge Trimmers Tanaka THT 210 6687156 Blade Nut for Hedge Trimmers Tanaka THT 210 €1.18
20
 photo_cameraImage coming soon 6684595 HEX. SOCKET HD. BOLT (W/SP.WASHER) M4X12 €1.71
21
 photo_cameraImage coming soon 6684595 HEX. SOCKET HD. BOLT (W/SP.WASHER) M4X12 €1.71
22
 Grease Nipple for Hedgetrimmers Hitachi - HIKOKI - Tanaka 6688643 Grease Nipple for Hedgetrimmers Hitachi - HIKOKI - Tanaka €3.48
60
 photo_cameraImage coming soon 6688850 GEAR CASE B €23.94
71
 photo_cameraImage coming soon 6695219 S.WASHER 6 €1.78
72
 photo_cameraImage coming soon 6695475 SPRING NUT 6 €1.67
77
 photo_cameraImage coming soon 6690759 SUPPORT PLATE €13.19
78
 Hex Hole Bolt M4x10S for Hedgetrimmer Hitachi CH62EA 6695484 Hex Hole Bolt M4x10S for Hedgetrimmer Hitachi CH62EA €3.16
81
 Bolt Washer 6 for Brushcutters Chainsaws Hitachi Hikoki Tanaka 6684639 Bolt Washer 6 for Brushcutters Chainsaws Hitachi Hikoki Tanaka €1.98
82
 photo_cameraImage coming soon 6687275 GUARD PLATE €4.77
83
 Hex Hole Bolt M4x10S for Hedgetrimmer Hitachi CH62EA 6695484 Hex Hole Bolt M4x10S for Hedgetrimmer Hitachi CH62EA €3.16
86
 photo_cameraImage coming soon 6686826 CAM ROD PLATE €1.80
88
 photo_cameraImage coming soon 6695547 BALL BEARING 608 ZZ C3 €10.07
89
 Hex Hole Bolt M4x10S for Hedgetrimmer Hitachi CH62EA 6695484 Hex Hole Bolt M4x10S for Hedgetrimmer Hitachi CH62EA €3.16

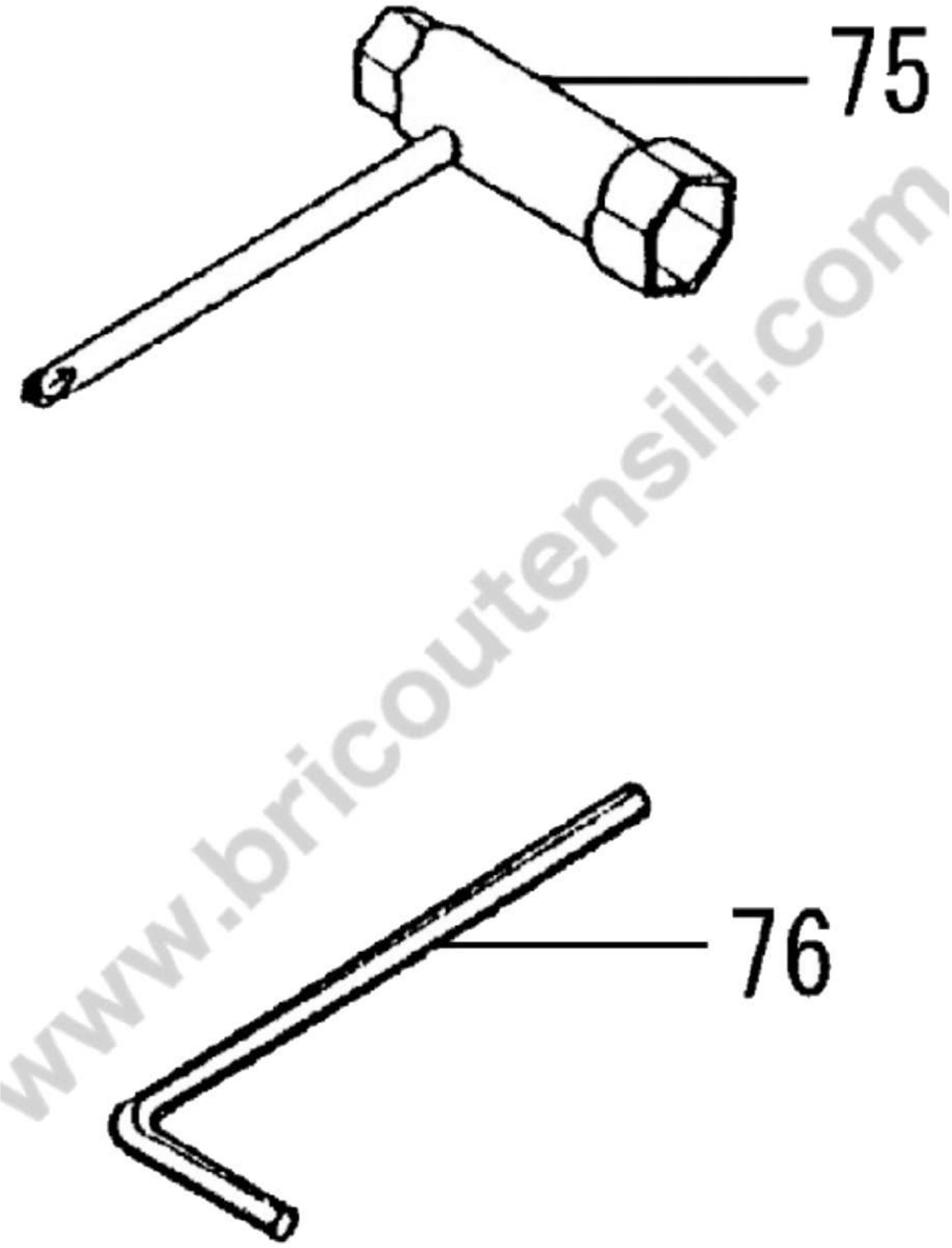

Page 10 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 10
info_outline

No spare parts mapped to this page.
Check the other pages for available parts.

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Tanaka Spare Parts for Hedge Trimmer THT-2520 - 2520B

Hitachi-HIKOKI Tanaka Authorized Technical Assistance, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Engine Edge Trimmer THT-2520 - 2520B.

In the following table, look for the model of the Edge Trimmer and the respective parts of the code.
Tanaka THT-2530

THT-2520 and THT-2520B -  Cylinder/Piston/Crank Shaft Pag.1
# Part Num. Description
1 6687476 SPARK PLUG CAP
2 BPMR6A SPARK PLUG BPMR6A
3 6685481 CYLINDER SET
4 6684586 CYLINDER BOLT HEX.HOLE BOLT 5x18/S
7 6685744 CYLINDER GASKET
8 6684588 RING
9 6685893 PISTON SET
10 6684591 PISTON PIN
11 6686028 PISTON PIN CIRCLIP
12 6686205 CRANKSHAFT COMP
13 6695589 NEEDLE BEARING F-810 1.4X8.5
27 6687350 IGNITION COIL COMP.
28 6684599 HEX.HOLE BOLT 4X18WS
36 6684597 INSULATOR TUBE 50L
37 6687866 CORD 200M
38 6687694 USE 167.21532.80
Crank Case Pag.2
23 6684607 OIL SEAL REPLACES
24 6684608 BEARING
25 6689177 GEAR SHAFT SHIM 0.10
26 6691822 CUSHION RUBBER
30 6684786 HEX.HOLE BOLT 5X30S
31 6687389 FLYWHEEL
32 6684611 WASHER 8
33 6684971 S WASHER 8
34 6684612 HEX NUT
35 6686771 STUD BOLT 6X22
Fuel Tank & Engine-1 Pag.3
26 6689966 CARBURETOR INSULATOR SET, SPARE
27 6695515 HEX HOLE BOLT 5X25WS
30 6689839 CARBURETOR GASKET
33 6698966 O RING
35 6690119 CLEANER BODY COMPLETE
36 6690804 COLLAR 7.5
37 6691272 CHOKE VALVE
38 6684658 WASHER
39 6690843 BLOW OVER CHECK BOARD
40 6684662 S.WASHER 5
41 6684660 SCREW
43 6690364 CLEANER SPONGE
44 6690415 CLEANER COVER ASSY
45 6689737 SPECIAL SCREW
46 6690481 CARB. SET,SPARE
50 6685247 FUEL PIPE ASS'Y L=130
51 6684619 CLIP
52 6684620 FILTER
53 6691582 TANK WHT
55 6692244 COLLAR
58 6695505 HEX.HOLE BOLT 5X18PS
61 6691337 SWIVEL CAP
63 6691716 TANK CAP ASSY
70 6685139 PRIMING PUMP COMP
77 6692347 FUEL PIPE
78 6685267 PIPE
79 6697447 RETURN GROMMET
86 6684625 TANK CAP CHAIN
Recoil Ass'y & Engine-2 Pag.4
4 6692744 MUFFLER GASKET
5 6687252 HEAT SHIELD
6 6692477 MUFFLER SET
7 6684661 WASHER 5
8 6685114 HEX HOLE BOLT 5X50
11 6687010 FAN CASE COMP WAS
12 6684675 RECOIL SPRING
13 6693066 STARTER ROPE REEL
15 6693633 SET SCREW
16 6693405 STARTER PULLEY ASSY
17 6688050 GROMMET
18 6693168 STARTER ROPE
19 6693237 STARTER HANDLE
20 6684682 BOLT
21 6692886 SPECIAL MUFFLER GASKET
22 6692656 USE 721.06500.91
24 6695325 SCREW 4X8/S
47 6688494 CLUTCH ASSY
61 6684636 SCREW
62 6695441 BOLT
65 6684684 STARTER PAWL SPRING
66 6693319 STARTER PAWL
Carburettor Assembly Pag.5
5 6684697 SWIVEL
7 6684696 STOP RING
8 6684883 THROTTLE VALVE COMP
10 6684695 O-RING
11 6691872 MAIN JET
13 6691457 PUMP GASKET
14 6684693 PUMP DIAPHRAGM
17 6684700 INLET SCREEN
18 575.25182.80 Pump Body Comp
19 6690837 DIAPHRAGM GASKET
20 6690827 METERING DIAPHRAGM COMP
21 6685222 DIAPHRAGM COVER
22 6691312 SET SCREW
Front Handle Assembly Pag.6
38 6695183 WASHER
39 6684792 NUT
40 6694995 BOLT
41 6688412 DAMPER B WAS
42 6688485 DAMPER COLLAR B
43 6689680 WASHER
45 6695345 SCREW
46 6688627 COLLAR 18
47 6693907 THROTTLE WIRE
50 6688313 CLAMP BODY A
51 6688485 DAMPER COLLAR B
52 6688412 DAMPER B WAS
53 6689680 WASHER
55 6695345 SCREW
56 6684637 SCREW
57 6688325 CLAMP BODY B
58 6684637 SCREW
61 6688094 FRONT HANDLE - DISCONTINUED
62 6686111 HANDLE SUPPORT COMP.
63 6684661 WASHER 5
65 6695348 SCREW
73 6687519 SPLIT TUBE
Rear Handle Assembly Pag.7
25 6686272 HANDLE a
26 6687763 STOP BUTTON COMP
27 6697453 BUTTON STOP
28 6684913 SCREW
29 6688227 THROTTLE LEVER
30 6688236 SAFETY LEVER
31 6688244 SPRING
32 6686430 PUSH PIN
33 6686308 HANDLE B
34 6686447 STOPPER SPRING
35 6692681 PUSH PIN CAP
36 6684636 SCREW
48 6694588 MARK
Gear Case/Blade (Serial No-Y323500) Pag.8
2 6695285 STOP RING C-15 OUTER
3 6697745 BEARING
4 6695538 BALL BEARING #6002Z, 32MM/OD
5 6688570 CLUTCH DRUM COMP
6 6688973 GEAR & DRUM SET
7 6686612 GUIDE PLATE
8 6686809 CAM ROD
9 6688974 GEAR 2
10 6688909 GEAR CASE GASKET
11 6692101 GEAR CASE COVER
12 6687143 CUTTER GUIDE 845.5MM
12 6687143 CUTTER GUIDE 845.5MM
13 6687289 PROTECTION PLATE
14 6695073 HEX.HOLE FLUSH SCREW 6X16
15 6687092 BLADE
16 6686654 GREASE SEAL X 1 [TWO NEEDED]
17 6687187 WASHER
18 6687160 CUTTER FIXING BOLT A IMPERIAL THREAD
19 6697443 NUT IMPERIAL
20 6695487 HEX.HOLE BOLT 4X15/S
21 6697445 HEX BOLT 4X12
22 6688643 GREASE NIPPLE COMP.
23 6695058 SCREW
59 6688636 SPACER
60 6688849 USE 301.33191.00
67 6688011 CORD CLAMP COMP
69 112293200/0 HEXAGON NUT M8 UNI 5588 ACC.6S
71 6695219 S. WASHER 6
72 6695475 SPRING NUT
77 6690759 CUTTER GUIDE SUPPORT
78 6697446 HEX BOLT 4X10
81 6695193 WASHER M6
82 6687275 GUARD PLATE
Gear Case/Blade (Serial No-Y323501) Pag.9
1 6688676 CARTER
2 6695285 SEEGER
3 6002C3 BEARING
4 6695538 BEARING
5 6688570 CLUTCH BELL
7 6686612 PLATE-Z242900
7 6686612 PLATE Z242901-
8 6686811 BIELLA
9 6688625 GEAR
10 6688909 GASKET
11 630-33165-200 COVER Z242901-
12 6687143 BLADE GUIDE
13 6687289 BLADE PROTECTION
14 6695073 SCREW
15 6687092 BLADE
16 6686654 OIL SEAL
17 6687187 WASHER
18 6687160 BOLT
19 6687156 NUT
20 6684595 SCREW
21 6684595 SCREW
22 6688643 GREASER
23 6695058 SCREW
60 6688850 CARTER
67 6688011 STOPPED
69 6687306 BLADE PROTECTION NOT AVAILABLE
71 6695219 WASHER NOT AVAILABLE
72 6695475 NUT
77 6690759 PLATE
78 6695484 SCREW
81 6684639 WASHER
82 6687275 PLATE
83 6695484 SCREW -Z242900
86 6686826 PLATE -Z242900
87 6685975 THICKNESS -Z242900
88 6695547 BEARING
89 6695484 SCREW Z242901-
Tools Spark Plug Spanner, Wrench Pag.10
76 6684813 HEX.WRENCH 4
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Tanaka websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Tanaka brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Tanaka THT2520 - 2520 B
5 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Drawing THT-2520 - 2520 B

Drawing THT-2520 - 2520 B

Download (670.78KB)

You might also like

Clutch Drum for Hedge Trimmers Tanaka THT 210-HTD2530PF
HiKOKI Power Tools Italia S.p.a. SKU: 6688570
Clutch Drum for Hedge Trimmers Tanaka THT 210-HTD2530PF
Clutch Drum for Hedge Trimmers Tanaka THT 210-HTD2530PF Original parts Hitachi Koky Tanaka, Clutch Drum, for Hedge Trimmers THT 210 - HTD2530PF Parts for the following products: -  Hedge Trimmer THT 210 -  Hedge Trimmer THT 210 B -...
Last items in stock €44.53
Details
Hex Socket Hd Bolt M5X50 for Hedge Trimmer Tanaka THT 210
HiKOKI Power Tools Italia S.p.a. SKU: 6685114
Hex Socket Hd Bolt M5X50 for Hedge Trimmer Tanaka THT 210
Hex Socket Hd Bolt M5X50 for Hedge Trimmer Tanaka THT 210 Genuine spare part Tanaka, Hex Socket Hd Bolt M5X50 for Hedge Trimmer Tanaka THT 210 - THT-2530 - Brushcutter Tanaka TBC-230S Part for the following items: - Hedge Trimmer...
AVAILABLE €1.66
Details
Piston Pin for Brushcutter Hitachi CG27EASP
HiKOKI Power Tools Italia S.p.a. SKU: 6684591
Piston Pin for Brushcutter Hitachi CG27EASP
Piston Pin for Brushcutter Hitachi CG27EASP Genuine part Hitachi Koky Tanaka, Piston Pin for Brushcutters CG24EASP - CG24EKS - CG25EUS - CG27EASP - CG27EJ(SLNP) Parts for the following products: - Brushcutter Hitachi CG24EASP -...
Last items in stock €4.14
Details
Washer D. 5 for Chainsaw Hitachi CS45EL-CS38EK
HiKOKI Power Tools Italia S.p.a. SKU: 6684662
Washer D. 5 for Chainsaw Hitachi CS45EL-CS38EK
Washer D. 5 for Chainsaw Hitachi CS45EL-CS38EK Original spare Hitachi, Washer D. 5 for Chaisaw Hitachi CS45EL - CS38EK - Tanaka ECV-4501 - ECV-3801 - Brusch Cutter CG24EKS - CG40EK-LP - CG33EJ-LP - CG27EJ-SLNP. Parts for the following...
AVAILABLE €1.28
Details
Clamp Body Right for Hedge Trimmer Tanaka THT 210
HiKOKI Power Tools Italia S.p.a. SKU: 6688325
Clamp Body Right for Hedge Trimmer Tanaka THT 210
Clamp Body Right for Hedge Trimmer Tanaka THT 210 Genuine spare parts Tanaka, Clamp Body Right for Hedge Trimmer Tanaka THT 210 - HTD2530PF Part for the following items: -  Hedge Trimmer Tanaka THT 210 -  Hedge Trimmer Tanaka...
Out-of-Stock €19.40
Details
Clamp Body Left for Hedge Trimmer Tanaka THT 210
HiKOKI Power Tools Italia S.p.a. SKU: 6688313
Clamp Body Left for Hedge Trimmer Tanaka THT 210
Clamp Body Left for Hedge Trimmer Tanaka THT 210 Genuine spare parts Tanaka, Clamp Body Left for Hedge Trimmer Tanaka THT 210 - HTD2530PF Part for the following items: -  Hedge Trimmer Tanaka THT 210 -  Hedge Trimmer Tanaka...
Last items in stock €25.65
Details
Tank Cap Ass'y (Orange) for Hedge Trimmer Tanaka THT 210
HiKOKI Power Tools Italia S.p.a. SKU: 6691716
Tank Cap Ass'y (Orange) for Hedge Trimmer Tanaka THT 210
Tank Cap Ass'y (Orange) for Hedge Trimmer Tanaka THT 210 Genuine spare part Tanaka, Tank Cap Ass'y (Orange) for Hedge Trimmer THT 210 - CH62EA (ST) -  CH66EB (ST) - CH78EC (ST). Part...
Last items in stock €12.64
Details
Fuel Tank for Hedge Trimmer Tanaka THT 210 - THT 210 B
HiKOKI Power Tools Italia S.p.a. SKU: 6697631
Fuel Tank for Hedge Trimmer Tanaka THT 210 - THT 210 B
Fuel Tank for Hedge Trimmer Tanaka THT 210 - THT 210 B Genuine replacement part Tanaka, Fuel Tank for Hedge Trimmers THT 210 - THT 210 B - THT 1800 - THT 2100 - THT 2510 - THT 2520...
Last items in stock €20.79
Details
Blade Nut for Hedge Trimmers Tanaka THT 210
HiKOKI Power Tools Italia S.p.a. SKU: 6687156
Blade Nut for Hedge Trimmers Tanaka THT 210
Blade Nut for Hedge Trimmers Tanaka THT 210 Original replacement part Hitachi Koky Tanaka, Blade Nut for Hedge Trimmers THT 210 - THT 210 B - THT 2530. Part for the following products: - Tosasiepi THT 210 - Tosasiepi THT 210 B -...
AVAILABLE €1.18
Details
Starter Pawl for Hedge Trimmer Hitachi CH78EC(C)
HiKOKI Power Tools Italia S.p.a. SKU: 6693319
Starter Pawl for Hedge Trimmer Hitachi CH78EC(C)
Starter Pawl for Hedge Trimmer Hitachi CH78EC(C) Original spare part Hitachi Koky Tanaka, Starter Pawl for Hedge Trimmer Hitachi Tanaka Hitachi CH78EC(C) -  CH78ED - Tanaka THT-2530 - THT 210 B....
AVAILABLE €3.46
Details
Collar 5.8 for Brushcutter Hitachi CG47EJ-L
HiKOKI Power Tools Italia S.p.a. SKU: 6692244
Collar 5.8 for Brushcutter Hitachi CG47EJ-L
Collar 5.8 for Brushcutter Hitachi CG47EJ-L Original part Hitachi-HIKOKI, Fuel Tank Collar 5.8 for Brushcutters CG47EJ-L - CG47EY-T - CG40EF-L - CG47EF(L) - CG22EJ. Parts for the following...
Last items in stock €1.08
Details
Hex Hole Bolt M5x18PS for Hedge Trimmer Tanaka THT 210
HiKOKI Power Tools Italia S.p.a. SKU: 6695505
Hex Hole Bolt M5x18PS for Hedge Trimmer Tanaka THT 210
Hex Hole Bolt M5x18PS for Hedge Trimmer Tanaka THT 210 Original spare part Hitachi-HIKOKI Tanaka, Hex Hole Bolt M5x18PS for Hedge Trimmers THT 210 - THT 210 B - THT 210 S. Parts for the following products: -  Hedge Trimmer Tanaka THT...
AVAILABLE €2.16
Details
Retaining Ring 26MM for Brushcutter Tanaka TBC-340
HiKOKI Power Tools Italia S.p.a. SKU: 6695294
Retaining Ring 26MM for Brushcutter Tanaka TBC-340
Retaining Ring 26MM for Brushcutter Tanaka TBC-340 Genuine spare part Tanaka, Retaining Ring 26MM for Brushcutter Tanaka TBC-340 - TBC-340D - Hitachi CG33EJ-SL Part for the following products: -  Brushcutter Tanaka TBC-340 -...
on 7/10 Business Days Approx €2.08
Details
Grease Nipple for Hedgetrimmers Hitachi - HIKOKI - Tanaka
HiKOKI Power Tools Italia S.p.a. SKU: 6688643
Grease Nipple for Hedgetrimmers Hitachi - HIKOKI - Tanaka
Grease Nipple for Hedgetrimmers Hitachi - HIKOKI - Tanaka Original spare part Hitachi HIKOKI, Grease Nipple for Hedgetrimmers Hitachi - HIKOKI - Tanaka. Parts for the following products: - HEDGETRIMMER THT-2520 - 2520 B - HEDGETRIMMER...
Last items in stock €3.48
Details
Comments (0)
