Tanaka Spare Parts for Engine Brush Cutter TBC-225CS

SKU: Tanaka TBC-225CS
€33.63
VAT included

Tanaka Spare Parts for Engine Brush Cutter TBC-225CS

Original spare parts Tanaka recommended for you, at the lowest prices with quick delivery, for to make maintenance or repair Engine Brush Cutter TBC-225CS.
Tanaka Spare Parts for Engine Brush Cutter TBC-225CS
  • Tanaka Spare Parts for Engine Brush Cutter TBC-225CS
  • Tanaka Spare Parts for Engine Brush Cutter TBC-225CS
  • Tanaka Spare Parts for Engine Brush Cutter TBC-225CS
  • Tanaka Spare Parts for Engine Brush Cutter TBC-225CS
  • Tanaka Spare Parts for Engine Brush Cutter TBC-225CS
  • Tanaka Spare Parts for Engine Brush Cutter TBC-225CS
  • Tanaka Spare Parts for Engine Brush Cutter TBC-225CS
  • Tanaka Spare Parts for Engine Brush Cutter TBC-225CS
  • Tanaka Spare Parts for Engine Brush Cutter TBC-225CS
  • Tanaka Spare Parts for Engine Brush Cutter TBC-225CS
  • Tanaka Spare Parts for Engine Brush Cutter TBC-225CS
  • Tanaka Spare Parts for Engine Brush Cutter TBC-225CS

Tanaka Spare Parts for Engine Brush Cutter TBC-225CS

SKU: Tanaka TBC-225CS Condition: New
€33.63
VAT included

Tanaka Spare Parts for Engine Brush Cutter TBC-225CS

Original spare parts Tanaka recommended for you, at the lowest prices with quick delivery, for to make maintenance or repair Engine Brush Cutter TBC-225CS.
settings 93 spare parts
description 10 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

79 spare parts

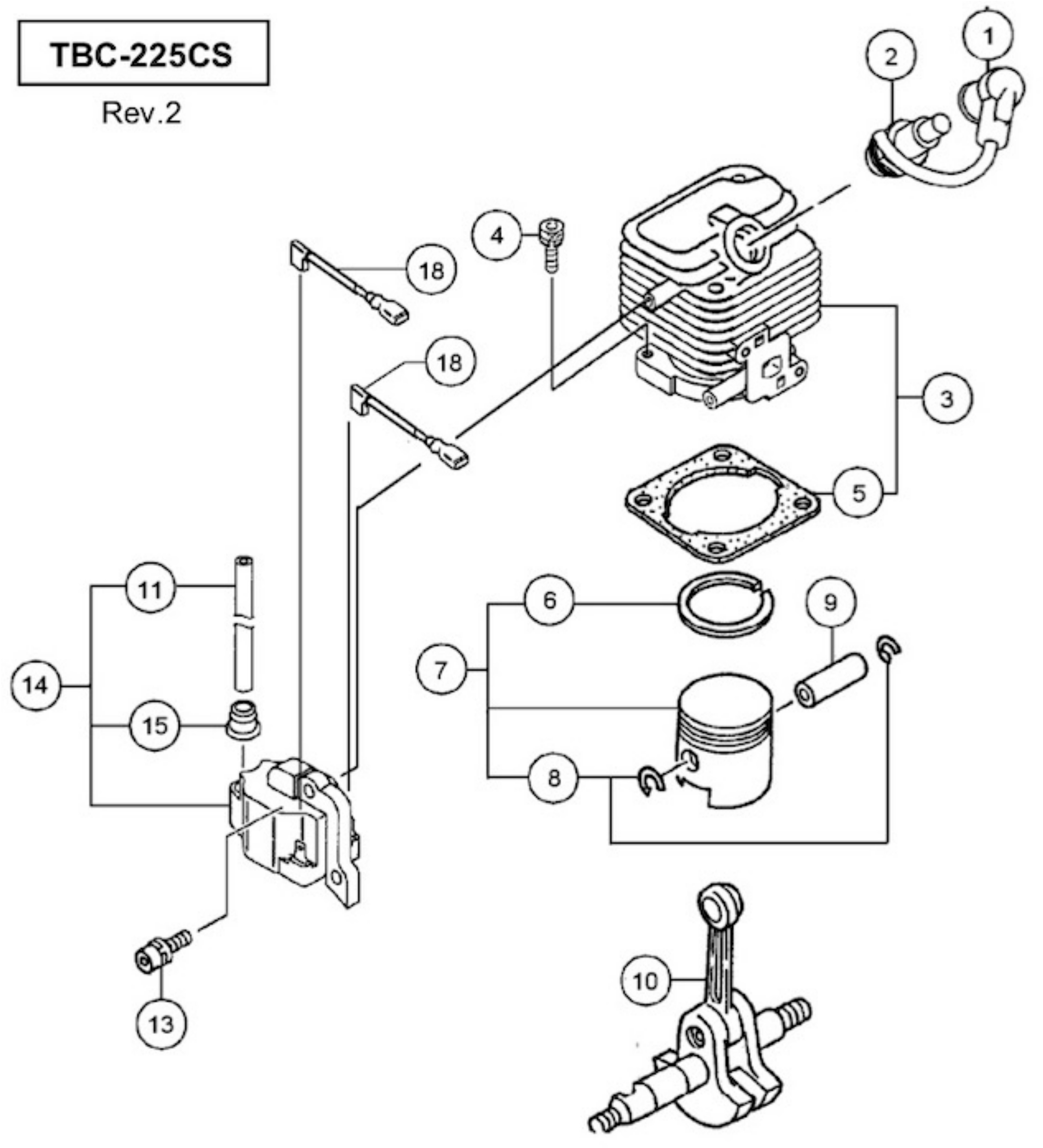

Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 6687468 SPARK PLUG CAP ASS'Y €5.31
2
photo_cameraImage coming soon 6699317 SPARK PLUG ASS'Y BPM6A €5.79
3
photo_cameraImage coming soon 6685489 CYLINDER SET €51.25
4
Bolt M5X18/S for Chainsaws Hitachi CS38EK-CS45EL 6684586 Bolt M5X18/S for Chainsaws Hitachi CS38EK-CS45EL €1.98
5
Cylinder Gasket for Blower Hitachi Tanaka RB 85E 6685709 Cylinder Gasket for Blower Hitachi Tanaka RB 85E €2.52
6
Piston Ring for Hedge Trimmer Tanaka THT 210 6686118 Piston Ring for Hedge Trimmer Tanaka THT 210 €9.05
7
photo_cameraImage coming soon 6685869 PISTON COMPLETE €32.02
8
Circlip for Brushcutter Hitachi CG 24EBS 6684590 Circlip for Brushcutter Hitachi CG 24EBS €1.57
9
Piston Pin for Brushcutter Hitachi Tanaka CG22EAS 6696944 Piston Pin for Brushcutter Hitachi Tanaka CG22EAS €7.30
10
photo_cameraImage coming soon 6686217 CRANK SHAFT COMP. €99.56
11
photo_cameraImage coming soon 6687888 HIGH TENSION CORD 140L €3.19
15
Ignition Coil Rubber Cap for Brushcutters Hitachi Tanaka 6684602 Ignition Coil Rubber Cap for Brushcutters Hitachi Tanaka €2.65

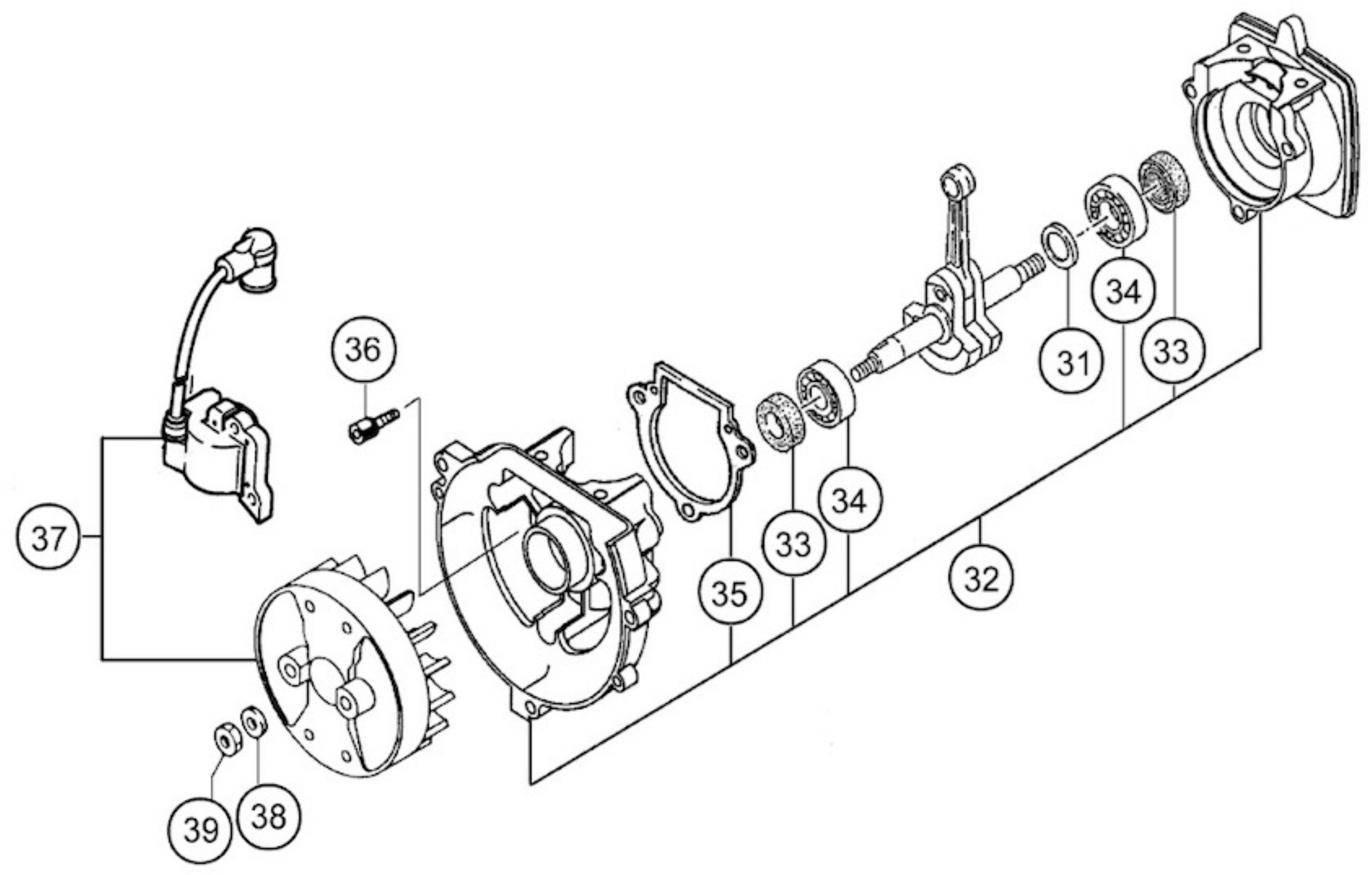

Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
32
photo_cameraImage coming soon 6686585 CRANK CASE ASS'Y €45.26
33
photo_cameraImage coming soon 6684607 OIL SEAL TB 12227 €3.20
34
photo_cameraImage coming soon 6684608 BALL BEARING 6001 C3 €6.06
38
photo_cameraImage coming soon 6684611 BOLT WASHER M8 €1.24

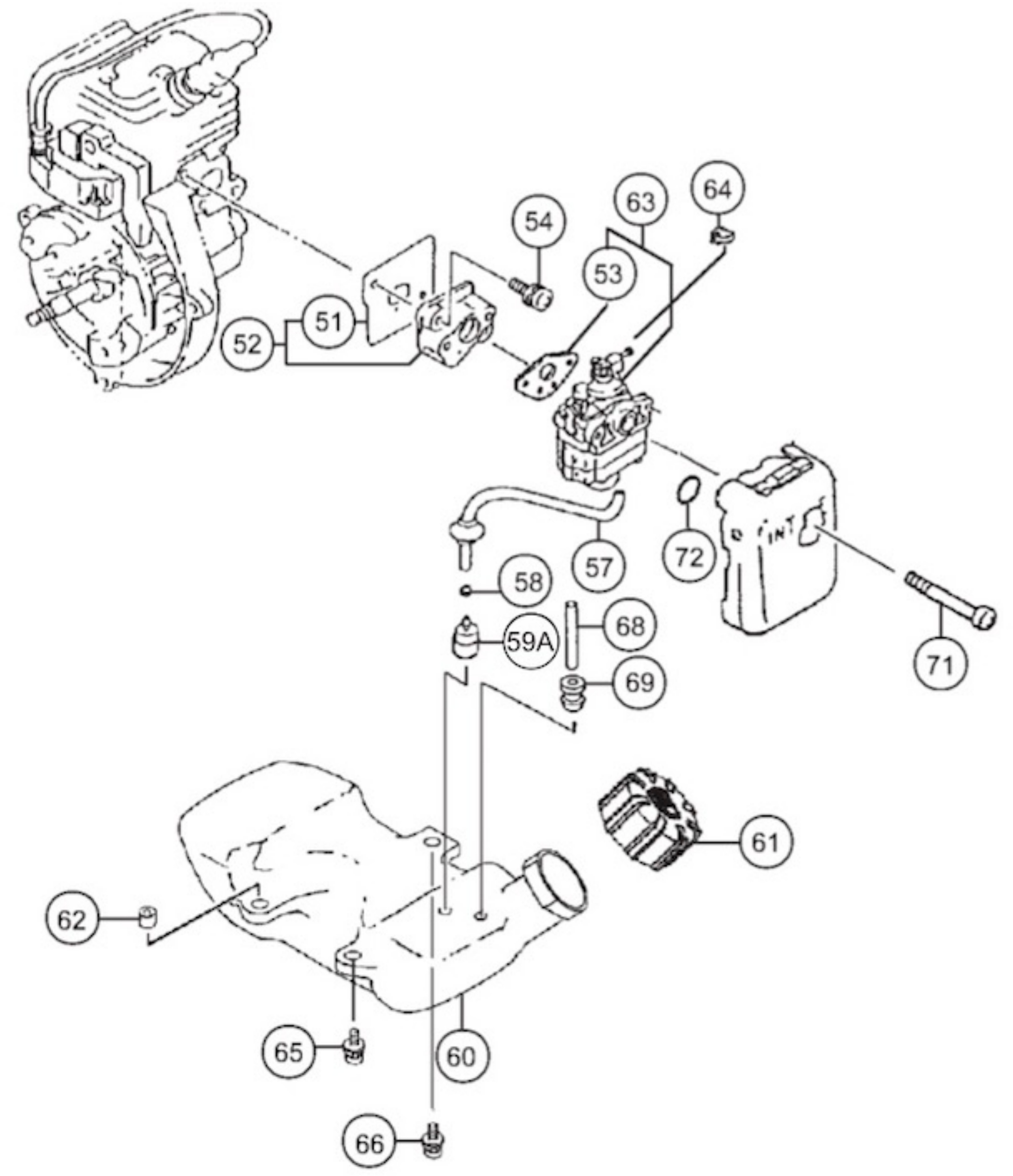

Page 3 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
51
photo_cameraImage coming soon 6689890 INLET MANIFOLD GASKET €1.55
52
photo_cameraImage coming soon 6689914 CARB INSULATOR SET €11.48
54
photo_cameraImage coming soon 6695514 HEX.HOLE BOLT 5X22/WS €1.93
57
photo_cameraImage coming soon 6688174 SHIELD TUBE €4.48
58
Hose Clip 6.3 D. for Brushcutters Chainsaws Hitachi Hikoki Tanaka 6684619 Hose Clip 6.3 D. for Brushcutters Chainsaws Hitachi Hikoki Tanaka €1.25
61
photo_cameraImage coming soon 6691748 TANK CAP D ASS'Y €9.84
62
Collar 5.8 for Brushcutter Hitachi CG47EJ-L 6692244 Collar 5.8 for Brushcutter Hitachi CG47EJ-L €1.08
64
photo_cameraImage coming soon 6691337 SWIVEL CAP €1.78
65
photo_cameraImage coming soon 6695504 HEX.HOLE BOLT 5X16/PS €1.98
68
photo_cameraImage coming soon 6684880 FUEL PIPE 3X5X80 €1.83
69
photo_cameraImage coming soon 6697846 RETURN GROMMET €1.79

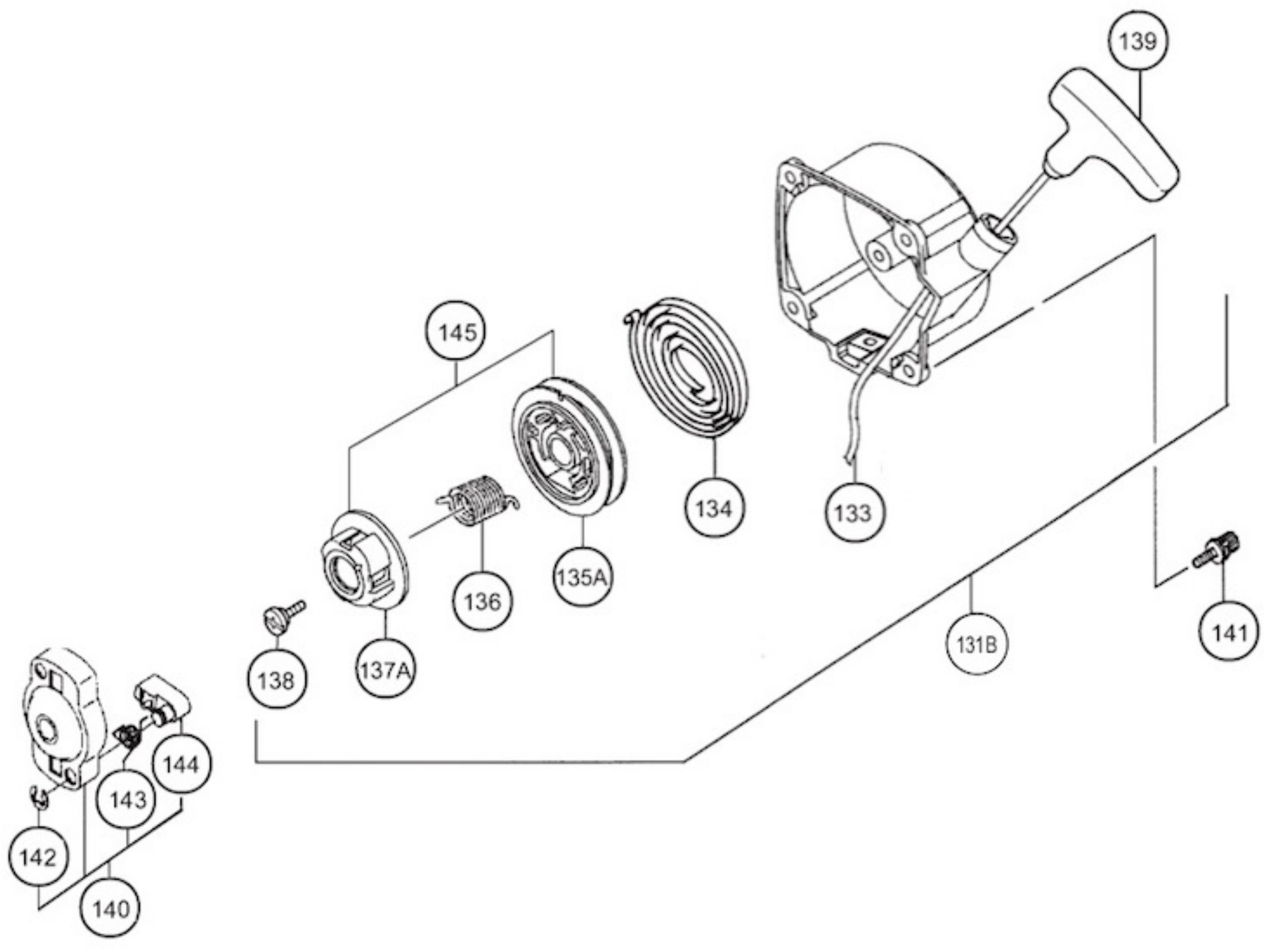

Page 4 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
131B
photo_cameraImage coming soon 6601570 RECOIL STARTER BODY ASS'Y €25.32
133
photo_cameraImage coming soon 6684674 STARTER ROPE 3.5X860 €5.16
134
photo_cameraImage coming soon 6684675 RECOIL SPRING €12.16
135A
photo_cameraImage coming soon 6699997 STARTER ROPE REEL €6.45
136
Damper Spring for Brushcutters Hitachi CG22EAS-CG24EASP-CG27EASP 6684677 Damper Spring for Brushcutters Hitachi CG22EAS-CG24EASP-CG27EASP €7.83
137A
photo_cameraImage coming soon 6699996 CAM PLATE FOR (S) TYPE SINCE 9.2013 FOR AUS €5.81
138
Set Screw for Hedge Trimmer Hitachi CH62EA(ST) 6684679 Set Screw for Hedge Trimmer Hitachi CH62EA(ST) €6.81
140
Starter Pulley for Bruschcutters Hitachi CG22EAS-CG24EASP-CG27-33EJ 6684681 Starter Pulley for Bruschcutters Hitachi CG22EAS-CG24EASP-CG27-33EJ €23.26
141
photo_cameraImage coming soon 6695508 HEX. HOLE BOLT 4X18WS €1.84
142
photo_cameraImage coming soon 6684683 STOP RING E5 €1.22
143
photo_cameraImage coming soon 6684684 STARTER PAWL SPRING €3.48
144
photo_cameraImage coming soon 6684685 STARTER PAWL €6.11
145
photo_cameraImage coming soon 6699691 CAMPLATE ASS'Y €11.62

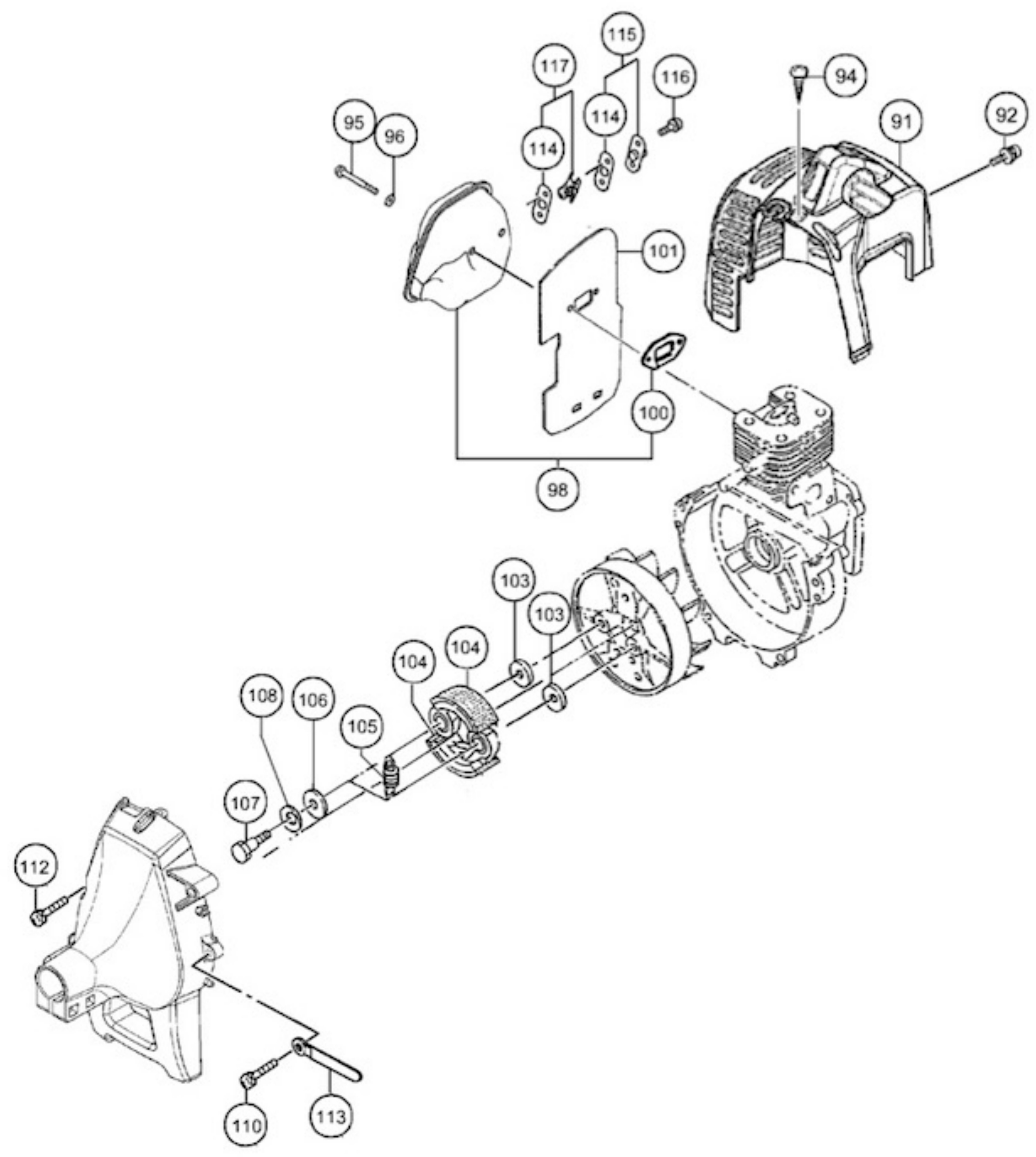

Page 5 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
91
photo_cameraImage coming soon 6692809 MUFFLER PROTECTOR BLACK €6.77
95
Hex Socket Hd Bolt M5X50 for Hedge Trimmer Tanaka THT 210 6685114 Hex Socket Hd Bolt M5X50 for Hedge Trimmer Tanaka THT 210 €1.66
96
photo_cameraImage coming soon 6684918 WASHER M5 €1.98
100
photo_cameraImage coming soon 6692745 MUFFLER GASKET €1.55
101
photo_cameraImage coming soon 6687253 HEAT SHIELD €3.12
103
photo_cameraImage coming soon 6684642 CLUTCH WASHER B €1.98
104
photo_cameraImage coming soon 6688616 CLUTCH SHOE COMP.,T-16 €12.68
105
photo_cameraImage coming soon 6689430 CLUTCH SPRING €2.97
106
photo_cameraImage coming soon 6684645 CLUTCH PLATE A 0.5 €1.98
107
photo_cameraImage coming soon 6689627 STEP BOLT €1.65
108
photo_cameraImage coming soon 6684648 BENT WASHER 8 €1.98
110
photo_cameraImage coming soon 6684647 HEX HOLE BOLT M5X18/WS €1.88
114
photo_cameraImage coming soon 6692883 MUFFLER SPECIAL GASKET €1.93
116
photo_cameraImage coming soon 6685109 MACHINE SCREW (W/SP. WASHER) M4X8 €1.52

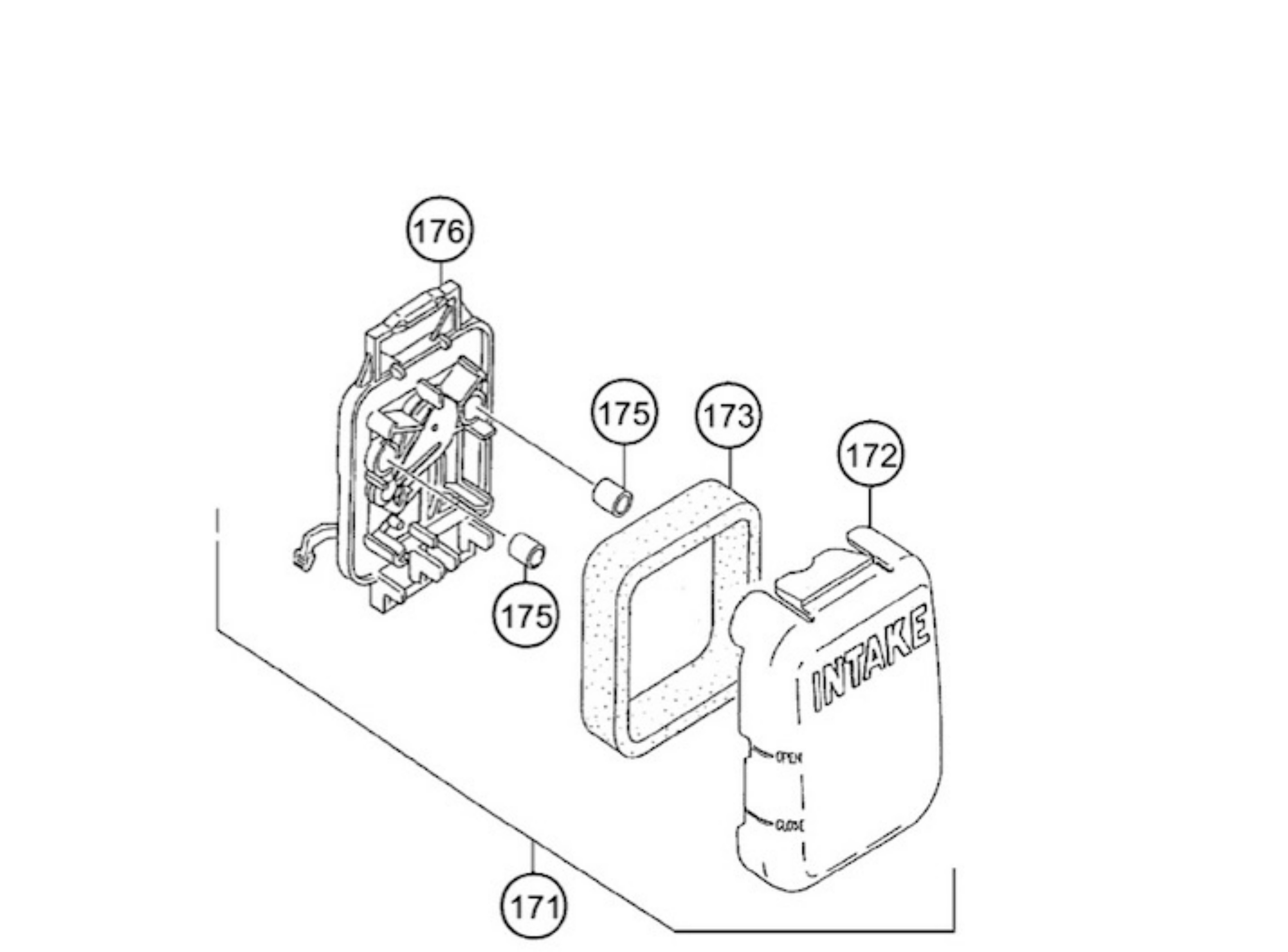

Page 6 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
171
photo_cameraImage coming soon 6690005 AIR CLEANER ASS'Y €10.61
172
photo_cameraImage coming soon 6690139 AIR CLEANER CAP €6.85
173
photo_cameraImage coming soon 6690347 CLEANER ELEMENT €5.39
175
photo_cameraImage coming soon 6690801 COLLAR €4.30

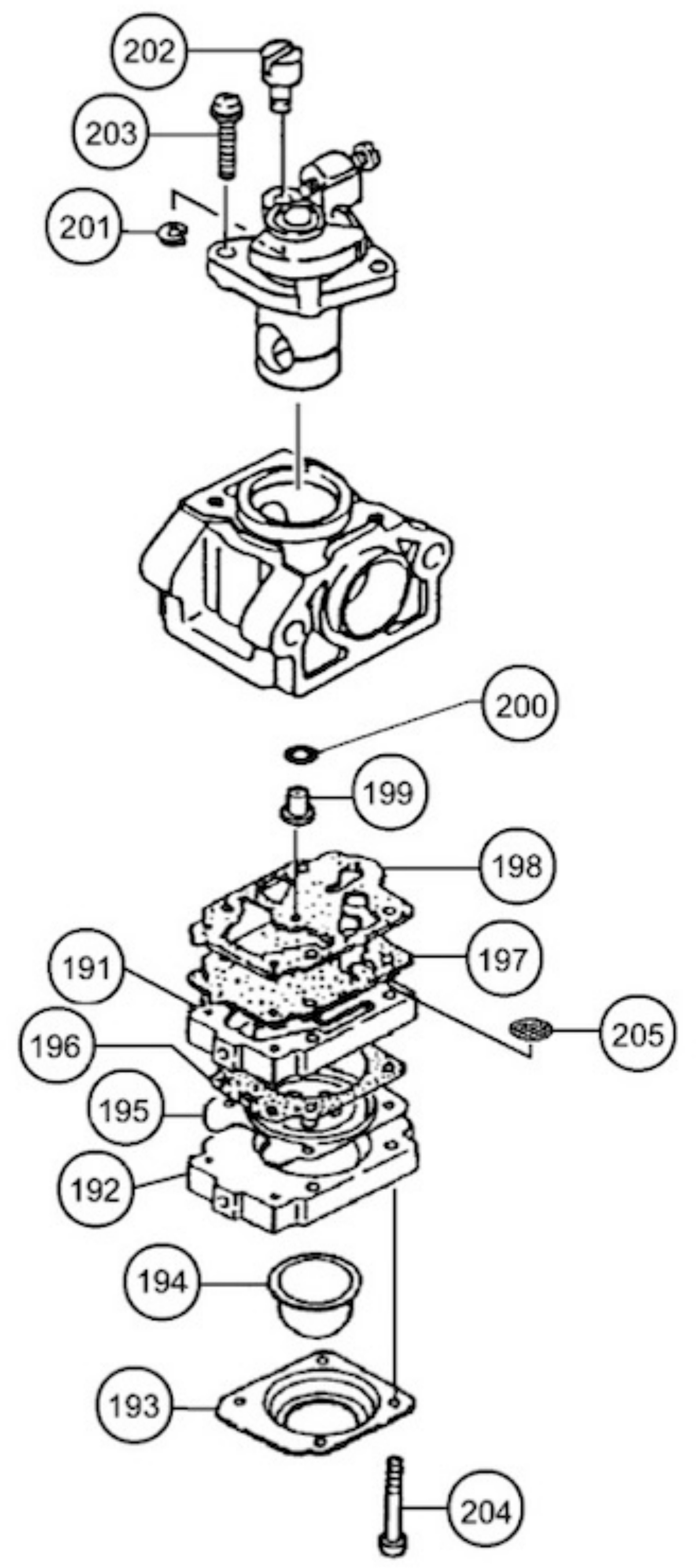

Page 7 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
191
photo_cameraImage coming soon 6684879 PUMP BODY COMP. €53.04
192
photo_cameraImage coming soon 6684687 PRIMING PUMP COMP. €18.30
194
photo_cameraImage coming soon 6684689 PRIMING BODY €6.88
195
photo_cameraImage coming soon 6690830 METERING DIAPHRAGM COMP. €15.00
196
photo_cameraImage coming soon 6684691 DIAPHRAGM GASKET €6.12
197
Pump Diaphragm for Chainsaw Hitachi CS33EB 6684693 Pump Diaphragm for Chainsaw Hitachi CS33EB €9.95
198
photo_cameraImage coming soon 6691457 PUMP GASKET €9.57
199
photo_cameraImage coming soon 6691844 MAIN JET #38 €8.71
200
photo_cameraImage coming soon 6684695 ORING €3.16
201
photo_cameraImage coming soon 6684696 STOP RING €1.76
202
photo_cameraImage coming soon 6684697 SWIVEL €4.96
203
photo_cameraImage coming soon 6684698 SCREW €3.06
205
Carburator Inlet Screen for Chainsaws and Bruschcutters Hitachi 6684700 Carburator Inlet Screen for Chainsaws and Bruschcutters Hitachi €3.18

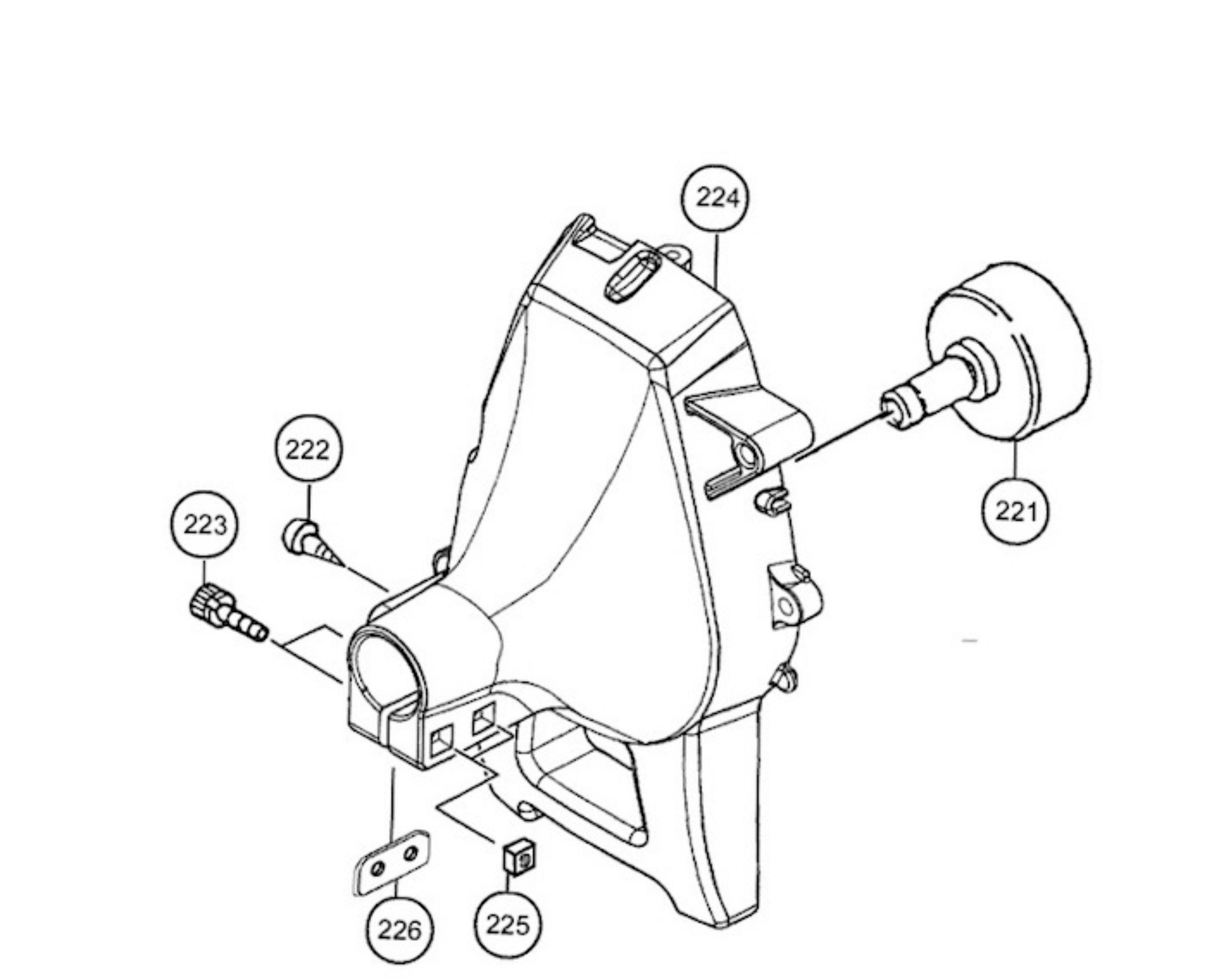

Page 8 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
info_outline

No spare parts mapped to this page.
Check the other pages for available parts.

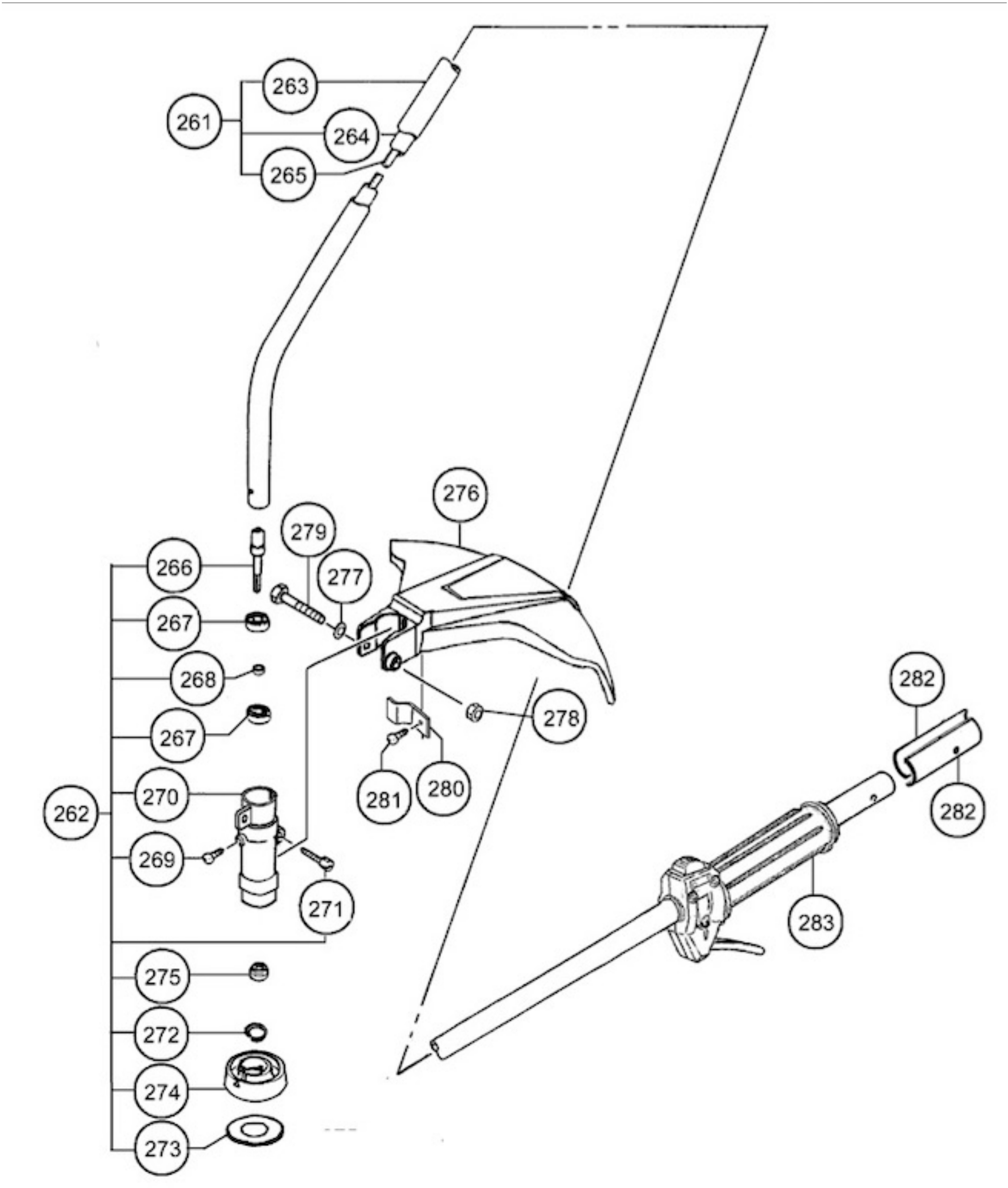

Page 9 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
267
photo_cameraImage coming soon 6695547 BALL BEARING 608 ZZ C3 €10.07
272
photo_cameraImage coming soon 6684971 WASHER 8 €1.80
277
Bolt Washer 6 for Brushcutters Chainsaws Hitachi Hikoki Tanaka 6684639 Bolt Washer 6 for Brushcutters Chainsaws Hitachi Hikoki Tanaka €1.98
281
photo_cameraImage coming soon 6685074 TAPPING SCREW D5X16 €1.93
282
photo_cameraImage coming soon 6689501 HOLDER, PIPE BLK €3.04

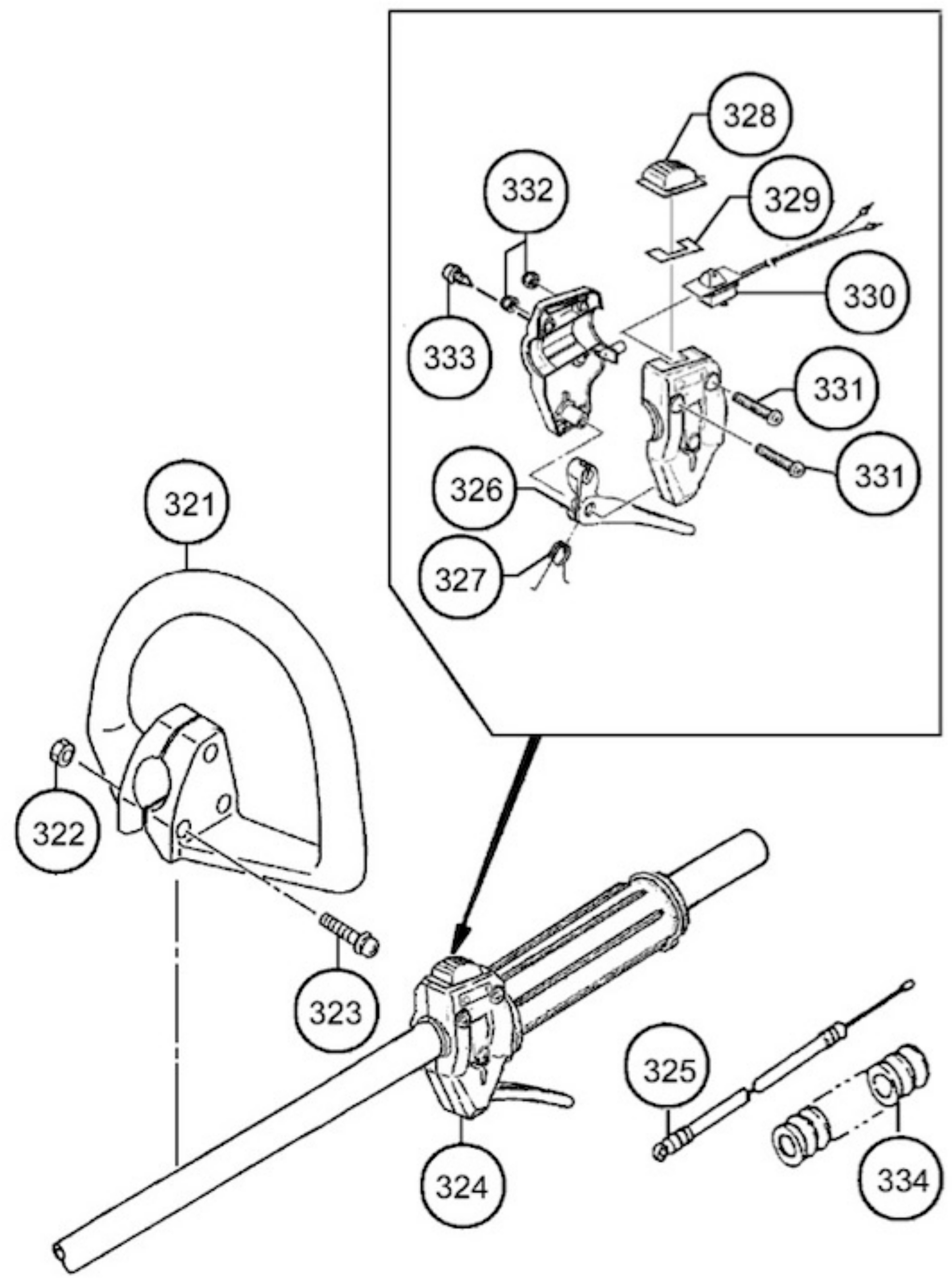

Page 10 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
322
photo_cameraImage coming soon 6685075 NUT M5 (BLACK) €1.52
331
Screw 5x30 for Hedge Trimmer Tanaka THT 210 6685076 Screw 5x30 for Hedge Trimmer Tanaka THT 210 €1.17
333
Chain Catcher Screw M5X14 for Chainsaw Hitachi CS25EC-SC 6685275 Chain Catcher Screw M5X14 for Chainsaw Hitachi CS25EC-SC €1.27
Page 11 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
info_outline

No spare parts mapped to this page.
Check the other pages for available parts.

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Tanaka Spare Parts for Engine Brush Cutter TBC-225CS

Original spare parts Tanaka recommended for you, at the lowest prices with quick delivery, for to make maintenance or repair Engine Brush Cutter TBC-225CS.

In the following table, look for the model of the Brush Cutter and the respective parts of the code.
TBC-225CS

Engine Brush Cutter TBC-225CS
# Part Num. Description
1 6687468 SPARK PLUG CAP ASS'Y
2 6699317 SPARK PLUG ASS'Y BPM6A
3 6685489 CYLINDER SET
4 6684586 HEX.HOLE BOLT M5X18/S
5 6685709 CYLINDER GASKET
6 6686118 PISTON RING
7 6685869 PISTON ASS'Y
8 6684590 CIR CLIP
9 6696944 PISTON PIN
10 6686217 CRANK SHAFT COMP.
11 6687888 HIGH TENSION CORD 140L
13 6684682 HEX. HOLE BOLT 4X15/PS
14 6699772 IGNITION COIL ASS'Y - DISCONTINUED
15 6684602 RUBBER CAP
31 6684604 GEAR SHAFT SHIM 0.20
31 6684605 GEAR SHAFT SHIM 0.30
32 6686585 CRANK CASE ASS'Y
33 6684607 OIL SEAL TB 12227
34 6684608 BALL BEARING 6001 C3
35 6686719 CRANK CASE GASKET
36 6684586 HEX.HOLE BOLT M5X18/S
38 6684611 BOLT WASHER M8
39 6684612 HEX. NUT M8
51 6689890 INLET MANIFOLD GASKET
52 6689914 CARB INSULATOR SET
53 6684615 CARBURETOR GASKET
54 6695514 HEX.HOLE BOLT 5X22/WS
57 6688174 SHIELD TUBE
58 6684619 CLIP,6.3 DIA.
61 6691748 TANK CAP D ASS'Y
62 6692244 COLLAR 5.8
63 6690512 CARBURETOR SET WYL182
64 6691337 SWIVEL CAP
65 6695504 HEX. HOLE BOLT 5X16/PS
68 6684880 FUEL PIPE 3X5X85
69 6697846 RETURN GROMMET
91 6692809 MUFFLER PROTECTOR BLACK
94 6684637 TAPPING SCREW D4.5X12
95 6685114 HEX. SOCKET HD. BOLT M5X50
96 6684918 WASHER M5 (BLACK)
100 6692745 MUFFLER GASKET
101 6687253 HEAT SHIELD
103 6684642 CLUTCH WASHER B
104 6688616 CLUTCH SHOE COMP.,T-16
105 6689430 CLUTCH SPRING
106 6684645 CLUTCH PLATE A 0.5
107 6689627 STEP BOLT
108 6684648 BENT WASHER 8
110 6684647 HEX. HOLE BOLT M5X18/WS
112 6684973 HEX.HOLE BOLT M5X30/WS
113 6688011 CORD CLAMP COMP.
114 6692883 MUFFLER SPECIAL GASKET
116 6685109 MACHINE SCREW (W/SP. WASHER) M4X8
131B 6601570 RECOIL STARTER BODY ASS'Y
133 6684674 STARTER ROPE 3.5X860
134 6684675 RECOIL SPRING
135A 6699997 STARTER ROPE REEL
136 6684677 DAMPER SPRING
137A 6699996 CAM PLATE
138 6684679 SET SCREW
139 6684680 STARTER HANDLE
140 6684681 STARTER PULLEY ASS'Y
141 6695508 HEX. HOLE BOLT 4X18WS
142 6684683 STOP RING E-5
143 6684684 STARTER PAWL SPRING
144 6684685 STARTER PAWL
145 6699691 CAMPLATE ASS'Y
171 6690005 AIR CLEANER ASS'Y
172 6690139 AIR CLEANER CAP
173 6690347 CLEANER ELEMENT
175 6690801 COLLAR
191 6684879 PUMP BODY COMP.
192 6684687 PRIMING PUMP COMP.
194 6684689 PRIMING BODY
195 6690830 METERING DIAPHRAGM COMP.
196 6684691 DIAPHRAGM GASKET
197 6684693 PUMP DIAPHRAGM
198 6691457 PUMP GASKET
199 6691844 MAIN JET #38
200 6684695 O-RING
201 6684696 STOP RING
202 6684697 SWIVEL
203 6684698 THROTTLE SET SCREW
205 6684700 INLET SCREEN
222 6685152 TAPPING SCREW D4.5X14
223 6684973 HEX.HOLE BOLT M5X30/WS
267 6695547 BALL BEARING 608 ZZ C3
272 6684971 S.WASHER 8
277 6684639 BOLT WASHER 6
281 6685074 TAPPING SCREW D5X16
282 6689501 HOLDER, PIPE BLK
322 6685075 NUT M5 (BLACK)
331 6685076 MACHINE SCREW M5X30
332 6684965 NUT M5
333 6685275 TAPPING SCREW D5X14
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Tanaka websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Tanaka brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Tanaka TBC-225CS
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Tanaka TBC-225CS

Diagram Tanaka TBC-225CS

Download (793.61KB)

You might also like

HiKOKI Power Tools Italia S.p.a. SKU: 6692244
Collar 5.8 for Brushcutter Hitachi CG47EJ-L Original part Hitachi-HIKOKI, Fuel Tank Collar 5.8 for Brushcutters CG47EJ-L - CG47EY-T - CG40EF-L - CG47EF(L) - CG22EJ. Parts for the following...
Last items in stock €1.08
HiKOKI Power Tools Italia S.p.a. SKU: 6686118
Piston Ring for Hedge Trimmer Tanaka THT 210 Original parts Hitachi Koky Tanaka, Piston Ring for Hedge Trimmer THT 210 - THT 210 B - THT 210 S Parts for the following products: -  Hedge...
Last items in stock €9.05
HiKOKI Power Tools Italia S.p.a. SKU: 6685076
Screw 5x30 for Hedge Trimmer Tanaka THT 210 Original parts Hitachi Koky Tanaka, Machine Screw M5x30 for Hedge Trimmer THT 210 - Brushcutters TBC-262 - TBC-225CS - CG22EJ Parts for the following products: -  Hedge Trimmer Tanaka THT...
on 7/10 Business Days Approx €1.17
Comments (0)
