HiKOKI Power Tools Italia S.p.a.

Tanaka Spare Parts for Engine Hdge Cutter THT 210 S

SKU: Tanaka THT210S
€1.11
VAT included

Tanaka Spare Parts for Engine Hdge Trimmer THT 210 S

Original spare parts Hitachi-HIKOKI - Tanaka recommended for you, at the best prices, fast delivery and lowest prices, for to make maintenance for Engine Hedge Trimmer THT 210 S.
Tanaka Spare Parts for Engine Hdge Cutter THT 210 S
  • Tanaka Spare Parts for Engine Hdge Cutter THT 210 S
  • Tanaka Spare Parts for Engine Hdge Cutter THT 210 S
  • Tanaka Spare Parts for Engine Hdge Cutter THT 210 S
  • Tanaka Spare Parts for Engine Hdge Cutter THT 210 S
  • Tanaka Spare Parts for Engine Hdge Cutter THT 210 S
  • Tanaka Spare Parts for Engine Hdge Cutter THT 210 S
  • Tanaka Spare Parts for Engine Hdge Cutter THT 210 S
  • Tanaka Spare Parts for Engine Hdge Cutter THT 210 S
  • Tanaka Spare Parts for Engine Hdge Cutter THT 210 S
  • Tanaka Spare Parts for Engine Hdge Cutter THT 210 S
HiKOKI Power Tools Italia S.p.a.

Tanaka Spare Parts for Engine Hdge Cutter THT 210 S

SKU: Tanaka THT210S Condition: New
€1.11
VAT included

Tanaka Spare Parts for Engine Hdge Trimmer THT 210 S

Original spare parts Hitachi-HIKOKI - Tanaka recommended for you, at the best prices, fast delivery and lowest prices, for to make maintenance for Engine Hedge Trimmer THT 210 S.
settings 196 spare parts
description 11 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
AVAILABLE

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
149 spare parts

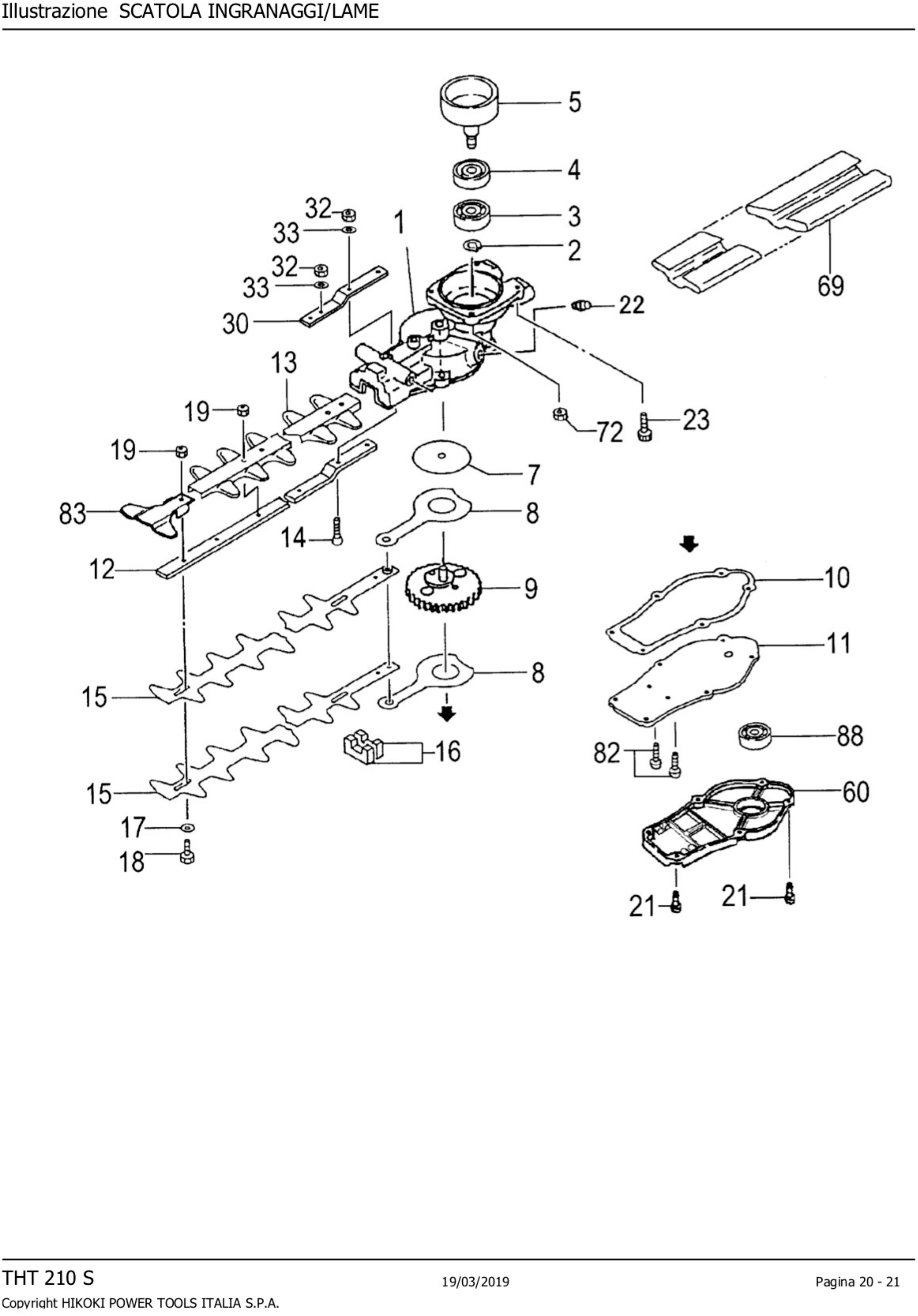

Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 6688684 GEAR CASE COMP. €40.98
2
 Stop Ring C-15 for Hedge Trimmer Tanaka THT 210 THT 210 B 6695285 Stop Ring C-15 for Hedge Trimmer Tanaka THT 210 THT 210 B €0.66
3
 photo_cameraImage coming soon 6697745 BEARING €6.48
4
 Ball Bearing 6002Z for Hedge Trimmer Hitachi CH62EA(ST) 6695538 Ball Bearing 6002Z for Hedge Trimmer Hitachi CH62EA(ST) €14.45
5
 Clutch Drum for Hedge Trimmers Tanaka THT 210-HTD2530PF 6688570 Clutch Drum for Hedge Trimmers Tanaka THT 210-HTD2530PF €44.53
6
 photo_cameraImage coming soon 6687770 STOP BUTTON €15.51
7
 photo_cameraImage coming soon 6686612 PLATE €2.03
8
 Cam Rod for Hedge Trimmer Hitachi CH78EC3(ST) 6686811 Cam Rod for Hedge Trimmer Hitachi CH78EC3(ST) €19.38
9
 photo_cameraImage coming soon 6688625 GEAR 2 COMP. €47.48
10
 Gear Case Cover Gasket for Hedge Trimmer Hitachi CH62EA3 (ST) 6688909 Gear Case Cover Gasket for Hedge Trimmer Hitachi CH62EA3 (ST) €2.13
12
 Cutter Guide (734MM) for Hedge Trimmer Tanaka THT 210 B 6687147 Cutter Guide (734MM) for Hedge Trimmer Tanaka THT 210 B €56.71 Not available for order
14
 photo_cameraImage coming soon 6695073 HEX HOLE FLUSH SCREW 6X16 €1.61
15
 696,5 mm Blade for Hedge Trimmer Tanaka THT 210 6687086 696,5 mm Blade for Hedge Trimmer Tanaka THT 210 €79.43 Not available for order
16
 Clean Blade Felt for Hedge Trimmers Tanaka THT 210-HTD2530PF 6686654 Clean Blade Felt for Hedge Trimmers Tanaka THT 210-HTD2530PF €1.79
17
 photo_cameraImage coming soon 6687187 WASHER 7 BLACK €2.09
22
 Grease Nipple for Hedgetrimmers Hitachi - HIKOKI - Tanaka 6688643 Grease Nipple for Hedgetrimmers Hitachi - HIKOKI - Tanaka €3.48
30
 photo_cameraImage coming soon 6690762 SUPPORT PLATE €8.37
32
 photo_cameraImage coming soon 6695175 LOCK NUT 6 UPSP €1.63
69
 photo_cameraImage coming soon 6687302 BLADE PROTECTION €11.53
72
 photo_cameraImage coming soon 6695475 SPRING NUT 6 €1.67
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

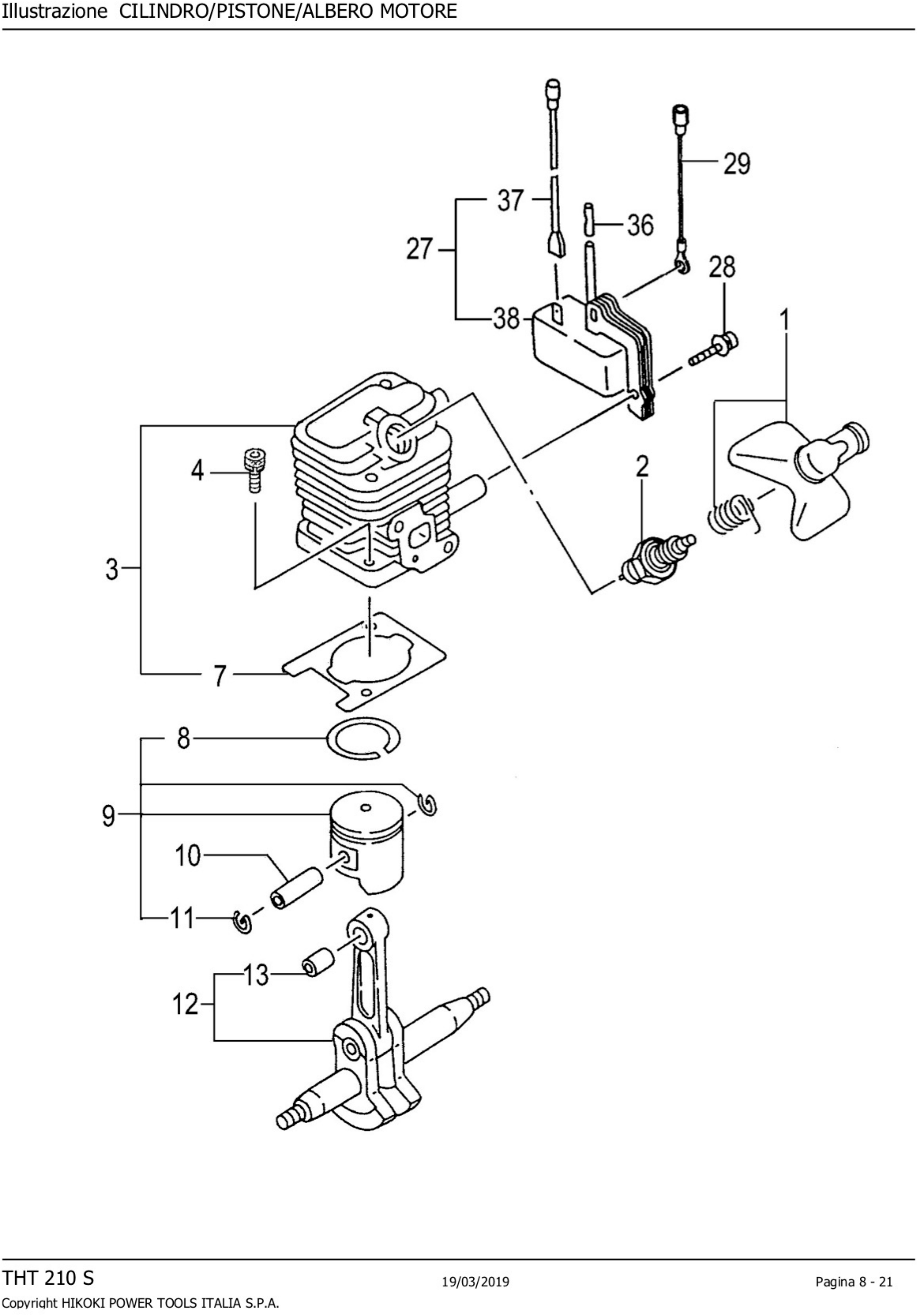

Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 6687476 SPARK PLUG CAP €9.07
2
 photo_cameraImage coming soon 6685086 SPARK PLUG BPMR6A €6.61
3
 photo_cameraImage coming soon 6685480 CYLINDER WITH GASKET €65.49
4
 Bolt M5X18/S for Chainsaws Hitachi CS38EK-CS45EL 6684586 Bolt M5X18/S for Chainsaws Hitachi CS38EK-CS45EL €1.98
7
 photo_cameraImage coming soon 6685744 CYLINDER GASKET €2.09
8
 Piston Ring for Hedge Trimmer Tanaka THT 210 6686118 Piston Ring for Hedge Trimmer Tanaka THT 210 €9.05
9
 photo_cameraImage coming soon 6685892 PISTON WITH RINGS(2) AND RETAINERS(2) €32.86
10
 Piston Pin for Brushcutter Hitachi Tanaka CG22EAS 6696944 Piston Pin for Brushcutter Hitachi Tanaka CG22EAS €7.30
11
 photo_cameraImage coming soon 6686028 PISTON PIN CIRCLIP €1.53
12
 photo_cameraImage coming soon 6686205 CRANK SHAFT COMP. €199.57
13
 photo_cameraImage coming soon 6695589 BEARING €10.82
36
 Insulator Tube for Chainsaw Hitachi CS25EC-SC 6684597 Insulator Tube for Chainsaw Hitachi CS25EC-SC €1.08
Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

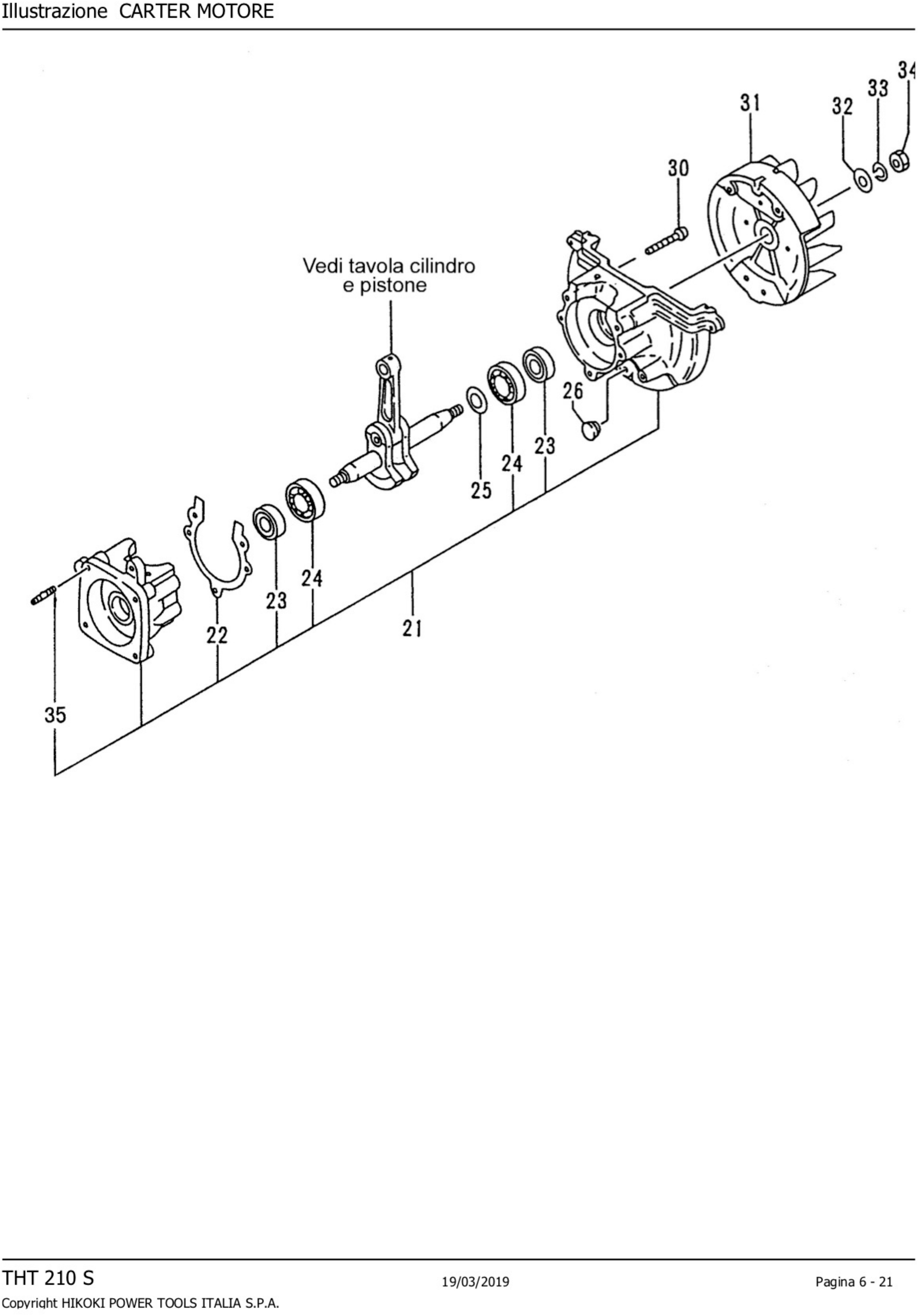

Esploso pagina 2
Pos. Item Price Buy
23
 photo_cameraImage coming soon 6684607 OIL SEAL TB 12227 €3.20
24
 photo_cameraImage coming soon 6684608 BALL BEARING 6001 C3 €6.06
30
 photo_cameraImage coming soon 6684786 HEX. SOCKET HD. BOLT M5X30 S €1.60
31
 photo_cameraImage coming soon 6687389 MAGNETO ROTOR COMP. €46.81
32
 photo_cameraImage coming soon 6684611 BOLT WASHER M8 €1.24
33
 photo_cameraImage coming soon 6684971 WASHER 8 €1.80
35
 photo_cameraImage coming soon 6686771 STUD BOLT 6X22 €1.56
Page 3 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

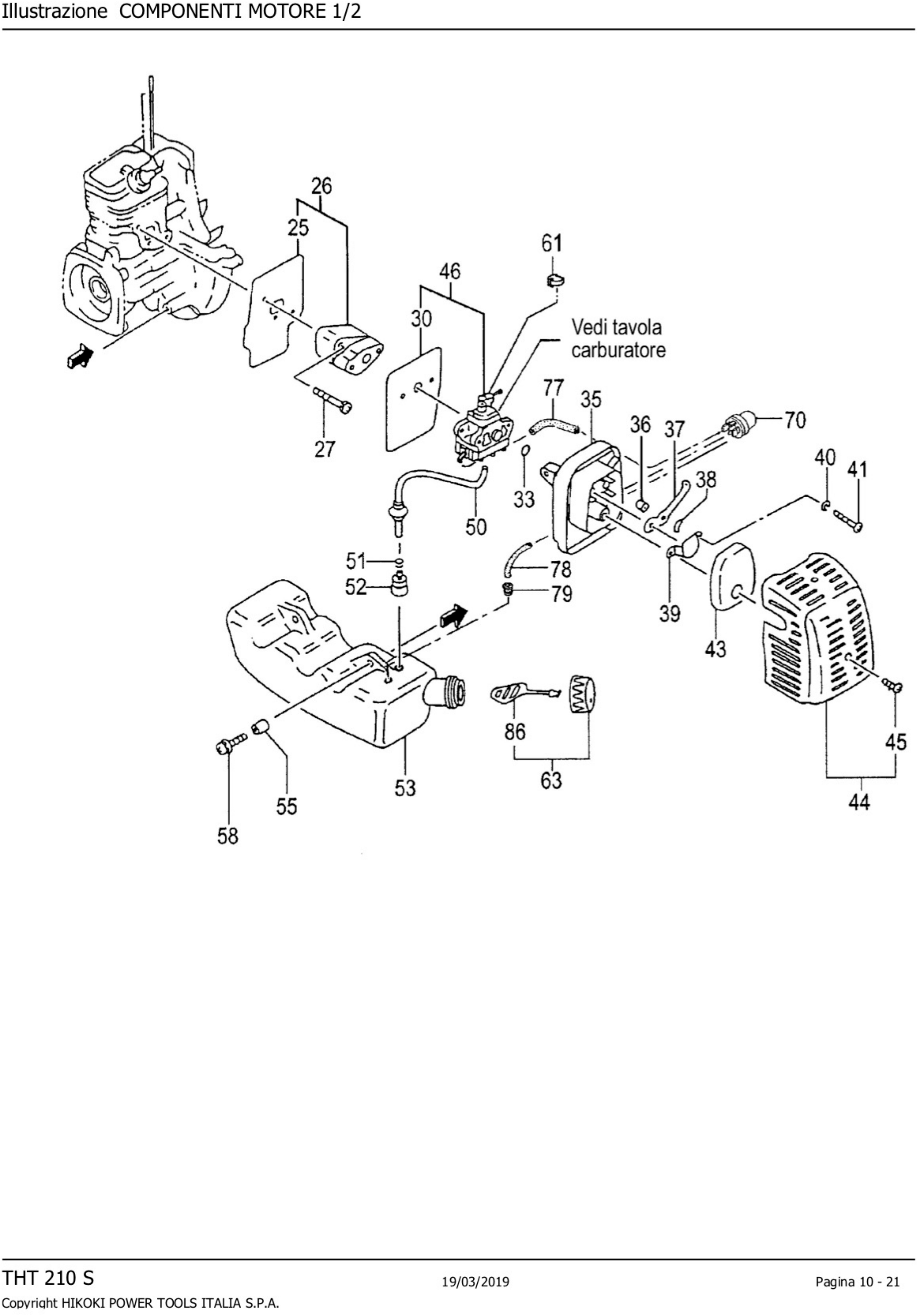

Esploso pagina 3
Pos. Item Price Buy
26
 photo_cameraImage coming soon 6689966 CARB. INSULATOR SET,SPARE €13.24
27
 photo_cameraImage coming soon 6695515 HEX HOLE BOLT 5X25WS €1.67
30
 photo_cameraImage coming soon 6689839 CARBURETOR GASKET €2.39
37
 photo_cameraImage coming soon 6691272 CHOKE LEVER €3.08
38
 photo_cameraImage coming soon 6684658 WAVE WASHER 8 €2.45
39
 Blow Over Check Board for Brushcutter Hitachi CG40EAS 6690843 Blow Over Check Board for Brushcutter Hitachi CG40EAS €3.48
40
 Washer D. 5 for Chainsaw Hitachi CS45EL-CS38EK 6684662 Washer D. 5 for Chainsaw Hitachi CS45EL-CS38EK €1.28
43
 photo_cameraImage coming soon 6690364 CLEANER SPONGE €1.61
44
 photo_cameraImage coming soon 6690415 AIR FILTER COVER €10.82
46
 photo_cameraImage coming soon 6690482 CARBURETOR WITH GASKET €112.88
50
 Shield Tube for Chainsaw Hitachi Tanaka TCS-2801S 6685247 Shield Tube for Chainsaw Hitachi Tanaka TCS-2801S €5.38
51
 Hose Clip 6.3 D. for Brushcutters Chainsaws Hitachi Hikoki Tanaka 6684619 Hose Clip 6.3 D. for Brushcutters Chainsaws Hitachi Hikoki Tanaka €1.25
52
 photo_cameraImage coming soon 6684620 PUMP FILTER BODY COMP. €21.52
55
 Collar 5.8 for Brushcutter Hitachi CG47EJ-L 6692244 Collar 5.8 for Brushcutter Hitachi CG47EJ-L €1.08
58
 Hex Hole Bolt M5x18PS for Hedge Trimmer Tanaka THT 210 6695505 Hex Hole Bolt M5x18PS for Hedge Trimmer Tanaka THT 210 €2.16
61
 photo_cameraImage coming soon 6691337 SWIVEL CAP €1.78
63
 Tank Cap Ass'y (Orange) for Hedge Trimmer Tanaka THT 210 6691716 Tank Cap Ass'y (Orange) for Hedge Trimmer Tanaka THT 210 €12.64
70
 Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka 6685139 Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka €13.15
78
 Fuel Hose for Brushcutters Hitachi CG47EF (L)-CG47EJ-L-CG47EY-T 6685267 Fuel Hose for Brushcutters Hitachi CG47EF (L)-CG47EJ-L-CG47EY-T €3.31
86
 photo_cameraImage coming soon 6684625 TANK CAP CHAIN €1.78
87
 photo_cameraImage coming soon 6691272 CHOKE LEVER €3.08
88
 photo_cameraImage coming soon 6690482 CARBURETOR WITH GASKET €112.88
Page 4 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

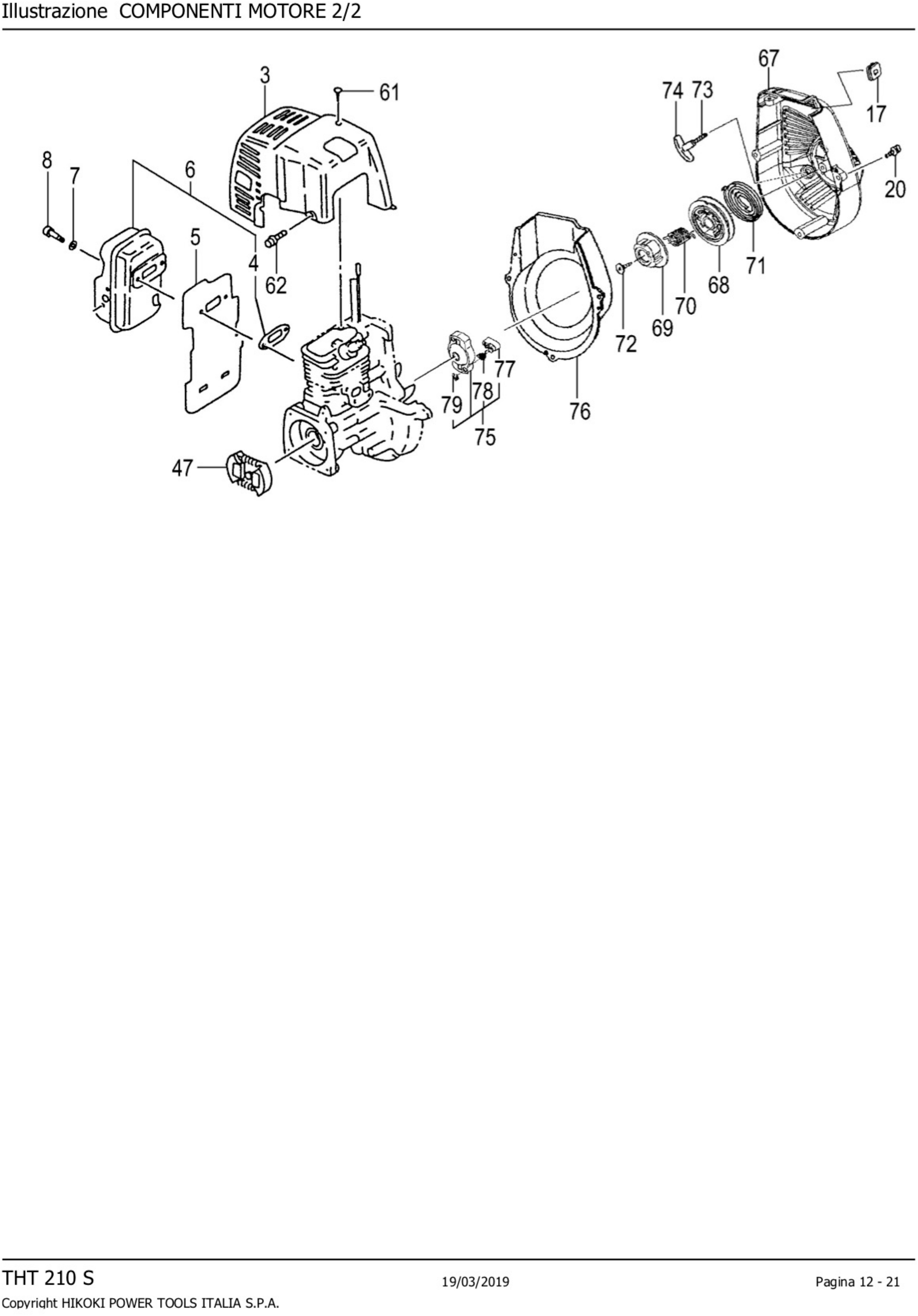

Esploso pagina 4
Pos. Item Price Buy
4
 photo_cameraImage coming soon 6692744 MUFFLER GASKET €3.28
5
 photo_cameraImage coming soon 6687252 HEAT SHIELD €3.30
6
 photo_cameraImage coming soon 6692477 MUFFLER ASS'Y €51.25
7
 photo_cameraImage coming soon 6684661 WASHER 5 €1.27
8
 Hex Socket Hd Bolt M5X50 for Hedge Trimmer Tanaka THT 210 6685114 Hex Socket Hd Bolt M5X50 for Hedge Trimmer Tanaka THT 210 €1.66
17
 photo_cameraImage coming soon 6688050 GROMMET €1.56
20
 photo_cameraImage coming soon 6695502 HEX.HOLE BOLT 4X18PS €1.28
62
 photo_cameraImage coming soon 6695441 4X12PS SCREW €1.80
67
 Fan Case Comp. for Hedge Trimmer Hitachi CH62EA(ST) 6687014 Fan Case Comp. for Hedge Trimmer Hitachi CH62EA(ST) €37.10 Not available for order
68
 photo_cameraImage coming soon 6693072 STARTER ROPE REEL €9.95
69
 Cam Plate for Hedge Trimmer Hitachi CH62EA(ST) 6684678 Cam Plate for Hedge Trimmer Hitachi CH62EA(ST) €6.81
70
 Damper Spring for Brushcutters Hitachi CG22EAS-CG24EASP-CG27EASP 6684677 Damper Spring for Brushcutters Hitachi CG22EAS-CG24EASP-CG27EASP €7.83
71
 photo_cameraImage coming soon 6684675 RECOIL SPRING €12.16
72
 Set Screw for Hedge Trimmer Hitachi CH62EA(ST) 6684679 Set Screw for Hedge Trimmer Hitachi CH62EA(ST) €6.81
73
 photo_cameraImage coming soon 6693168 ROPE €3.26
74
 photo_cameraImage coming soon 6693237 STARTER HANDLE €5.27
75
 Starter Pulley for Bruschcutters Hitachi CG22EAS-CG24EASP-CG27-33EJ 6684681 Starter Pulley for Bruschcutters Hitachi CG22EAS-CG24EASP-CG27-33EJ €23.26
76
 photo_cameraImage coming soon 6687209 DEFLECTOR €10.07
77
 photo_cameraImage coming soon 6693320 STARTER PAWL €4.93
78
 photo_cameraImage coming soon 6684684 STARTER PAWL SPRING €3.48
79
 photo_cameraImage coming soon 6684683 STOP RING E5 €1.22
Page 5 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

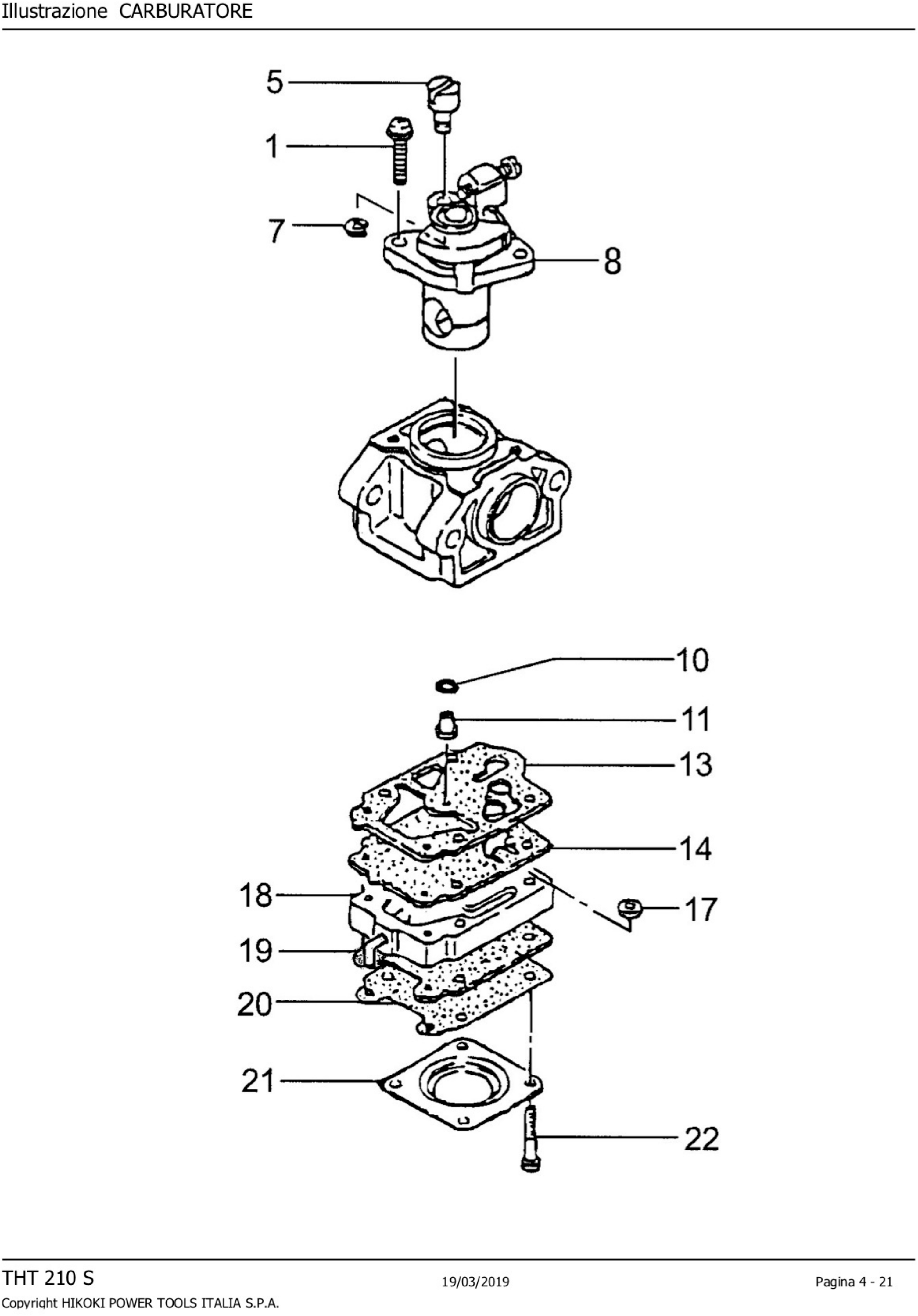

Esploso pagina 5
Pos. Item Price Buy
5
 photo_cameraImage coming soon 6684697 SWIVEL €4.96
7
 photo_cameraImage coming soon 6684696 STOP RING €1.76
8
 photo_cameraImage coming soon 6684883 THROTTLE VALVE €38.04
10
 photo_cameraImage coming soon 6684695 ORING €3.16
13
 photo_cameraImage coming soon 6691457 PUMP GASKET €9.57
14
 Pump Diaphragm for Chainsaw Hitachi CS33EB 6684693 Pump Diaphragm for Chainsaw Hitachi CS33EB €9.95
17
 Carburator Inlet Screen for Chainsaws and Bruschcutters Hitachi 6684700 Carburator Inlet Screen for Chainsaws and Bruschcutters Hitachi €3.18
19
 Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51 6685220 Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51 €3.45
20
 Metering Diaphragm Comp. for Chainsaws Hitachi CS25-33-40-45-51 6690827 Metering Diaphragm Comp. for Chainsaws Hitachi CS25-33-40-45-51 €23.70
21
 photo_cameraImage coming soon 6685222 DIAPHRAGM COVER €6.54
22
 photo_cameraImage coming soon 6691312 SET SCREW €2.48
Page 6 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 6
Pos. Item Price Buy
5
 photo_cameraImage coming soon 6684697 SWIVEL €4.96
7
 photo_cameraImage coming soon 6684696 STOP RING €1.76
8
 photo_cameraImage coming soon 6684883 THROTTLE VALVE €38.04
10
 photo_cameraImage coming soon 6684695 ORING €3.16
13
 photo_cameraImage coming soon 6691457 PUMP GASKET €9.57
14
 Pump Diaphragm for Chainsaw Hitachi CS33EB 6684693 Pump Diaphragm for Chainsaw Hitachi CS33EB €9.95
17
 Carburator Inlet Screen for Chainsaws and Bruschcutters Hitachi 6684700 Carburator Inlet Screen for Chainsaws and Bruschcutters Hitachi €3.18
19
 Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51 6685220 Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51 €3.45
20
 Metering Diaphragm Comp. for Chainsaws Hitachi CS25-33-40-45-51 6690827 Metering Diaphragm Comp. for Chainsaws Hitachi CS25-33-40-45-51 €23.70
21
 photo_cameraImage coming soon 6685222 DIAPHRAGM COVER €6.54
22
 photo_cameraImage coming soon 6691312 SET SCREW €2.48
Page 7 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

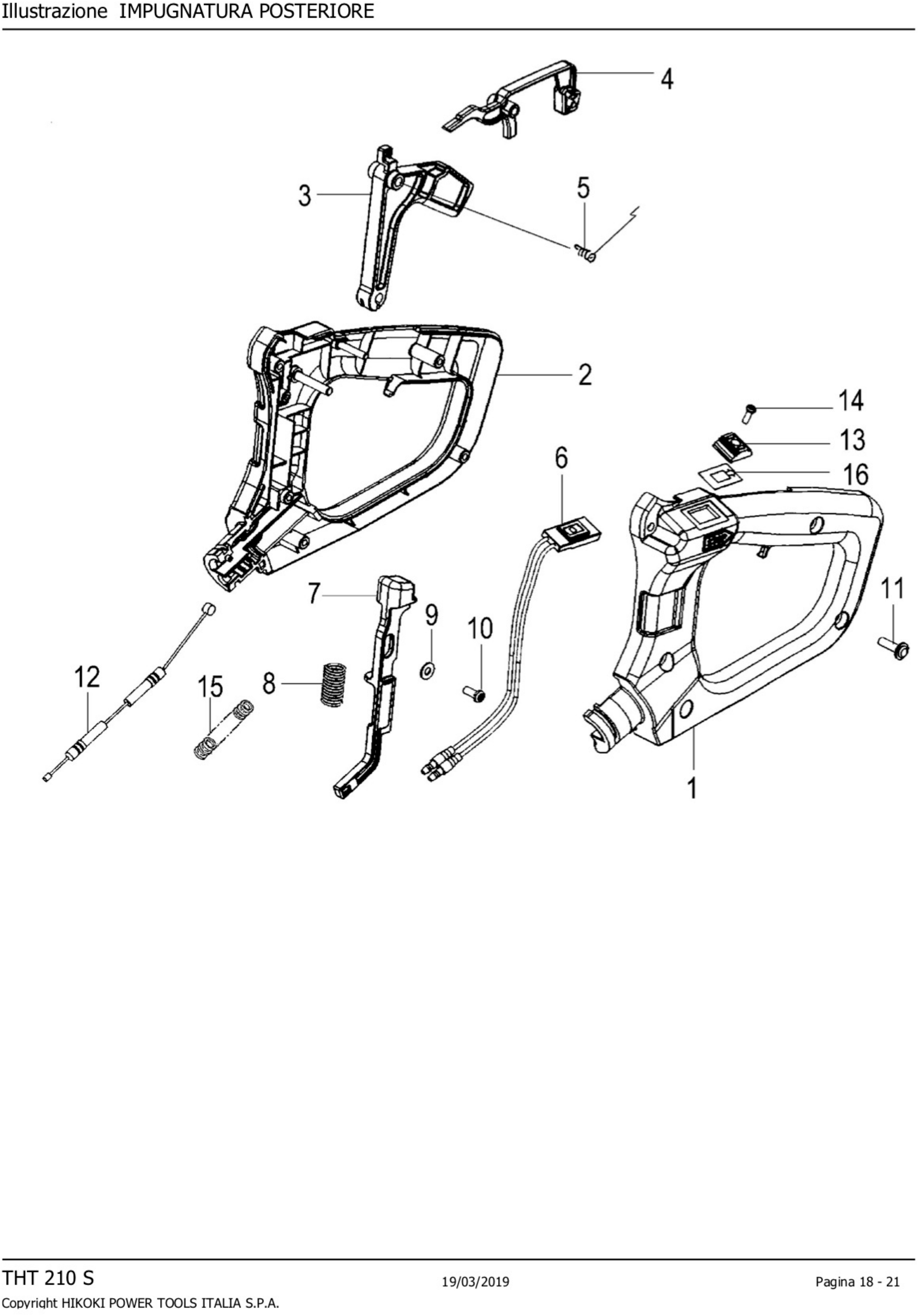

Esploso pagina 7
Pos. Item Price Buy
1
 photo_cameraImage coming soon 6688377 FLAME €11.56
3
 Tanaka TCS-3301S Damper Collar B 6688485 Tanaka TCS-3301S Damper Collar B €3.16
4
 Damper B for Hedge Trimmer Tanaka THT 210 6688412 Damper B for Hedge Trimmer Tanaka THT 210 €2.06
6
 photo_cameraImage coming soon 6684786 HEX. SOCKET HD. BOLT M5X30 S €1.60
8
 Handle Support for Hedge Trimmer Tanaka THT 210 6686111 Handle Support for Hedge Trimmer Tanaka THT 210 €6.19
10
 Spring Washer 5 for Brushcutter Hitachi CG33EJ-SL 6684834 Spring Washer 5 for Brushcutter Hitachi CG33EJ-SL €1.04
11
 photo_cameraImage coming soon 6684918 WASHER M5 €1.98
Page 8 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 8
Pos. Item Price Buy
1
 photo_cameraImage coming soon 6686314 HANDLE B - SINCE C226131 FOR US €9.82
2
 photo_cameraImage coming soon 6686279 HANDLE A - SINCE C226131 FOR US €9.82
3
 photo_cameraImage coming soon 6688230 THROTTLE LEVER €2.71
4
 photo_cameraImage coming soon 6688240 SAFETY LEVER OR €1.86
5
 photo_cameraImage coming soon 6688244 SPRING LEVER ACCELERATOR €2.77
6
 photo_cameraImage coming soon 6687770 STOP BUTTON €15.51
7
 photo_cameraImage coming soon 6688246 LOCK LEVER €2.02
8
 photo_cameraImage coming soon 6688279 SPRING €2.81
9
 Oil Pump Setting Bolt Washer for Chainsaw Tanaka TCS-2800S 6685070 Oil Pump Setting Bolt Washer for Chainsaw Tanaka TCS-2800S €2.08
10
 Guide Plate Screw M4x10 for Chainsaw Hitachi CS25EC-SC 6685161 Guide Plate Screw M4x10 for Chainsaw Hitachi CS25EC-SC €1.15
12
 photo_cameraImage coming soon 6693943 THROTTLE CABLE €7.87
15
 photo_cameraImage coming soon 6687524 PROTECTION TUBE 150L €1.59
16
 photo_cameraImage coming soon 6694588 STOP SWITCH €2.42
60
 photo_cameraImage coming soon 6695987 GEAR CASE B SET €19.84
83
 photo_cameraImage coming soon 6687275 GUARD PLATE €4.77
88
 photo_cameraImage coming soon 6695547 BALL BEARING 608 ZZ C3 €10.07
Page 9 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 9
Pos. Item Price Buy
1
 photo_cameraImage coming soon 6688684 GEAR CASE COMP. €40.98
2
 Stop Ring C-15 for Hedge Trimmer Tanaka THT 210 THT 210 B 6695285 Stop Ring C-15 for Hedge Trimmer Tanaka THT 210 THT 210 B €0.66
3
 photo_cameraImage coming soon 6697745 BEARING €6.48
4
 Ball Bearing 6002Z for Hedge Trimmer Hitachi CH62EA(ST) 6695538 Ball Bearing 6002Z for Hedge Trimmer Hitachi CH62EA(ST) €14.45
5
 Clutch Drum for Hedge Trimmers Tanaka THT 210-HTD2530PF 6688570 Clutch Drum for Hedge Trimmers Tanaka THT 210-HTD2530PF €44.53
7
 photo_cameraImage coming soon 6686612 PLATE €2.03
8
 Cam Rod for Hedge Trimmer Hitachi CH78EC3(ST) 6686811 Cam Rod for Hedge Trimmer Hitachi CH78EC3(ST) €19.38
9
 photo_cameraImage coming soon 6688625 GEAR 2 COMP. €47.48
10
 Gear Case Cover Gasket for Hedge Trimmer Hitachi CH62EA3 (ST) 6688909 Gear Case Cover Gasket for Hedge Trimmer Hitachi CH62EA3 (ST) €2.13
12
 Cutter Guide (734MM) for Hedge Trimmer Tanaka THT 210 B 6687147 Cutter Guide (734MM) for Hedge Trimmer Tanaka THT 210 B €56.71 Not available for order
14
 photo_cameraImage coming soon 6695073 HEX HOLE FLUSH SCREW 6X16 €1.61
15
 696,5 mm Blade for Hedge Trimmer Tanaka THT 210 6687086 696,5 mm Blade for Hedge Trimmer Tanaka THT 210 €79.43 Not available for order
16
 Clean Blade Felt for Hedge Trimmers Tanaka THT 210-HTD2530PF 6686654 Clean Blade Felt for Hedge Trimmers Tanaka THT 210-HTD2530PF €1.79
17
 photo_cameraImage coming soon 6687187 WASHER 7 BLACK €2.09
22
 Grease Nipple for Hedgetrimmers Hitachi - HIKOKI - Tanaka 6688643 Grease Nipple for Hedgetrimmers Hitachi - HIKOKI - Tanaka €3.48
30
 photo_cameraImage coming soon 6690762 SUPPORT PLATE €8.37
32
 photo_cameraImage coming soon 6695175 LOCK NUT 6 UPSP €1.63
60
 photo_cameraImage coming soon 6695987 GEAR CASE B SET €19.84
69
 photo_cameraImage coming soon 6687302 BLADE PROTECTION €11.53
72
 photo_cameraImage coming soon 6695475 SPRING NUT 6 €1.67
83
 photo_cameraImage coming soon 6687275 GUARD PLATE €4.77
88
 photo_cameraImage coming soon 6695547 BALL BEARING 608 ZZ C3 €10.07

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Tanaka Spare Parts for Engine Hdge Cutter THT 210 S

Original spare parts Hitachi-HIKOKI - Tanaka recommended for you, at the best prices, fast delivery and lowest prices, for to make maintenance for Engine Hedge Trimmer THT 210 S.

In the following table, look for the model of the Hedgecutter and the respective parts of the code.
Tanaka THT 210 S

Engine Hdge Cutter THT 210 S - Cylinder/Piston/Crank Shaft Pag.1
# Part Num. Description
1 6687476 SPARK PLUG CAP
2 6685086 SPARK PLUG BPMR6A
3 6685480 CYLINDER SET
4 6684586 CYLINDER BOLT HEX.HOLE BOLT 5x18/S
7 6685744 CYLINDER GASKET
8 6686118 PISTON RING
9 6685892 PISTON SET
10 6696944 PISTON PIN
11 6686028 PISTON PIN CIRCLIP
12 6686205 CRANKSHAFT COMP
13 6695589 NEEDLE BEARING F-810 1.4X8.5
27 6687350 IGNITION COIL COMP.
28 6684599 HEX.HOLE BOLT 4X18WS
29 6688461 CORD
36 6684597 INSULATOR TUBE 50L
37 6687866 CORD 200M
38 6687694 USE 167.21532.80
Crank Case Pag.2
23 6684607 OIL SEAL REPLACES
24 6684608 BEARING
25 6689177 GEAR SHAFT SHIM 0.10
26 6691822 CUSHION RUBBER
30 6684786 HEX.HOLE BOLT 5X30S
31 6687389 USE 155.21523.800
32 6684611 WASHER 8
33 6684971 S WASHER 8
34 6684612 HEX NUT
35 6686771 STUD BOLT 6X22
Engine-1 Pag.3
26 6689966 CARBURETOR INSULATOR SET, SPARE
27 6695515 HEX HOLE BOLT 5X25WS
30 6689839 CARBURETOR GASKET
33 6698966 O RING
35 6690119 CLEANER BODY COMPLETE
36 6690804 COLLAR 7.5
37 6691272 CHOKE VALVE
38 6684658 WASHER
39 6690843 BLOW OVER CHECK BOARD
40 6684662 S.WASHER 5
41 6684660 SCREW
43 6690364 CLEANER SPONGE
44 6690415 CLEANER COVER ASSY
45 6689737 SPECIAL SCREW
46 6690482 CARBURATOR
50 6685247 FUEL PIPE ASS'Y L=130
51 6684619 CLIP
52 6684620 FILTER
53 6691582 FUEL TANK WHT
55 6692244 COLLAR
58 6695505 HEX.HOLE BOLT 5X18PS
61 6691337 SWIVEL CAP
63 6691716 TANK CAP ASSY
70 6685139 PRIMING PUMP COMP
77 6692347 FUEL PIPE
78 6685267 PIPE
79 6697447 RETURN GROMMET
86 6684625 TANK CAP CHAIN
87 6691272 CHOKE VALVE
88 6690482 CARBURATOR
Engine-2 Pag.4
4 6692744 MUFFLER GASKET
5 6687252 HEAT SHIELD
6 6692477 MUFFLER SET
7 6684661 WASHER 5
8 6685114 HEX HOLE BOLT 5X50
17 6688050 GROMMET
20 6695502 HEX HOLE BOLT 4X18PS
47 6688494 CLUTCH ASSY
61 6684636 SCREW
62 6695441 BOLT
67 6687014 FAN CASE COMP. - DISCONTINUED
68 6693072 STARTER PULLEY
69 6684678 CAM PLATE
70 6684677 DUMPER SPRING
71 6684675 RECOIL SPRING
72 6684679 SET SCREW
73 6693168 STARTER ROPE
74 6693237 STARTER HANDLE
75 6684681 STARTER PULLEY ASSY
76 6687209 DEFLECTOR
77 6693320 STARTER PAWL
78 6684684 STARTER PAWL SPRING
79 6684683 STOP RING 5
Carburetor Pag.5
5 6684697 SWIVEL
7 6684696 STOP RING
8 6684883 THROTTLE VALVE COMP
10 6684695 O-RING
11 6691845 MAIN JET
13 6691457 PUMP GASKET
14 6684693 PUMP DIAPHRAGM
17 6684700 INLET SCREEN
18 6691430 PUMP BOBY ASSY
19 6685220 GASKET
20 6690827 METERING DIAPHRAGM COMP
21 6685222 DIAPHRAGM COVER
22 6691312 SET SCREW
Carburetor (AUS) Pag.6
5 6684697 SWIVEL
7 6684696 STOP RING
8 6684883 THROTTLE VALVE COMP
10 6684695 O-RING
11 6691845 MAIN JET
13 6691457 PUMP GASKET
14 6684693 PUMP DIAPHRAGM
17 6684700 INLET SCREEN
18 6691430 PUMP BOBY ASSY
19 6685220 GASKET
20 6690827 METERING DIAPHRAGM COMP
21 6685222 DIAPHRAGM COVER
22 6691312 SET SCREW
Front Handle Pag.7
1 6688377 BODY
2 6688094 USE 210.33160.22 - DISCONTINUED
3 6688485 DAMPER COLLAR B
4 6688412 DAMPER B WAS
5 6689680 WASHER
6 6684786 HEX.HOLE BOLT 5X30S
7 6697075 CLIP
8 6686111 HANDLE SUPPORT COMP.
9 6695054 HEX BOLT
10 6684834 S.WASHER 5
11 6684918 WASHER 5
Rear Handle Pag.8
1 6686314 HANDLE B (RIGHT SIDE)
2 6686279 HANDLE A (LEFT SIDE)
3 6688230 THROTTLE LEVER
4 6688240 SAFETY LEVER OR
5 6688244 SPRING
6 6687770 STOP BUTTON COMP
7 6688246 LOCK LEVER
8 6688279 SPRING
9 6685070 WASHER 4
10 6685161 SCREW 4X10
11 6684636 SCREW
12 6693943 THROTTLE WIRE COMP
13 6697453 BUTTON STOP
14 6684913 SCREW
15 6687524 PROTECTION TUBE 150L
16 6694588 MARK
Gear Case/Blade Pag.9
1 6688684 GEAR CASE COMP
2 6695285 STOP RING C-15 OUTER
3 6697745 BEARING
4 6695538 BALL BEARING #6002Z, 32MM/OD
5 6688570 CLUTCH DRUM COMP
7 6686612 GUIDE PLATE
8 6686811 CAMROD
9 6688625 GEAR 2 COMP
10 6688909 GEAR CASE GASKET
11 6692101 GEAR CASE COVER
12 6687147 CUTTER GUIDE 734MM
13 6687285 PROTECTION PLATE
14 6695073 HEX.HOLE FLUSH SCREW 6X16
15 6687086 CUTTER BLADE 696,5 mm
16 6686654 GREASE SEAL A
17 6687187 WASHER
18 6697449 BOLT
19 6697440 NUT
21 6697445 HEX BOLT 4X12
22 6688643 GREASE NIPPLE COMP.
23 6695495 HEX.HOLE BOLT 6X18/S
30 6690762 SUPPORT PLATE
32 6695175 NUT
33 6695193 WASHER M6
60 6695987 GEAR CASE B
69 6687302 CUTTER COVER
72 6695475 SPRING NUT
82 6697446 HEX BOLT 4X10
83 6687275 GUARD PLATE
88 6695547 USE 999.61608.004

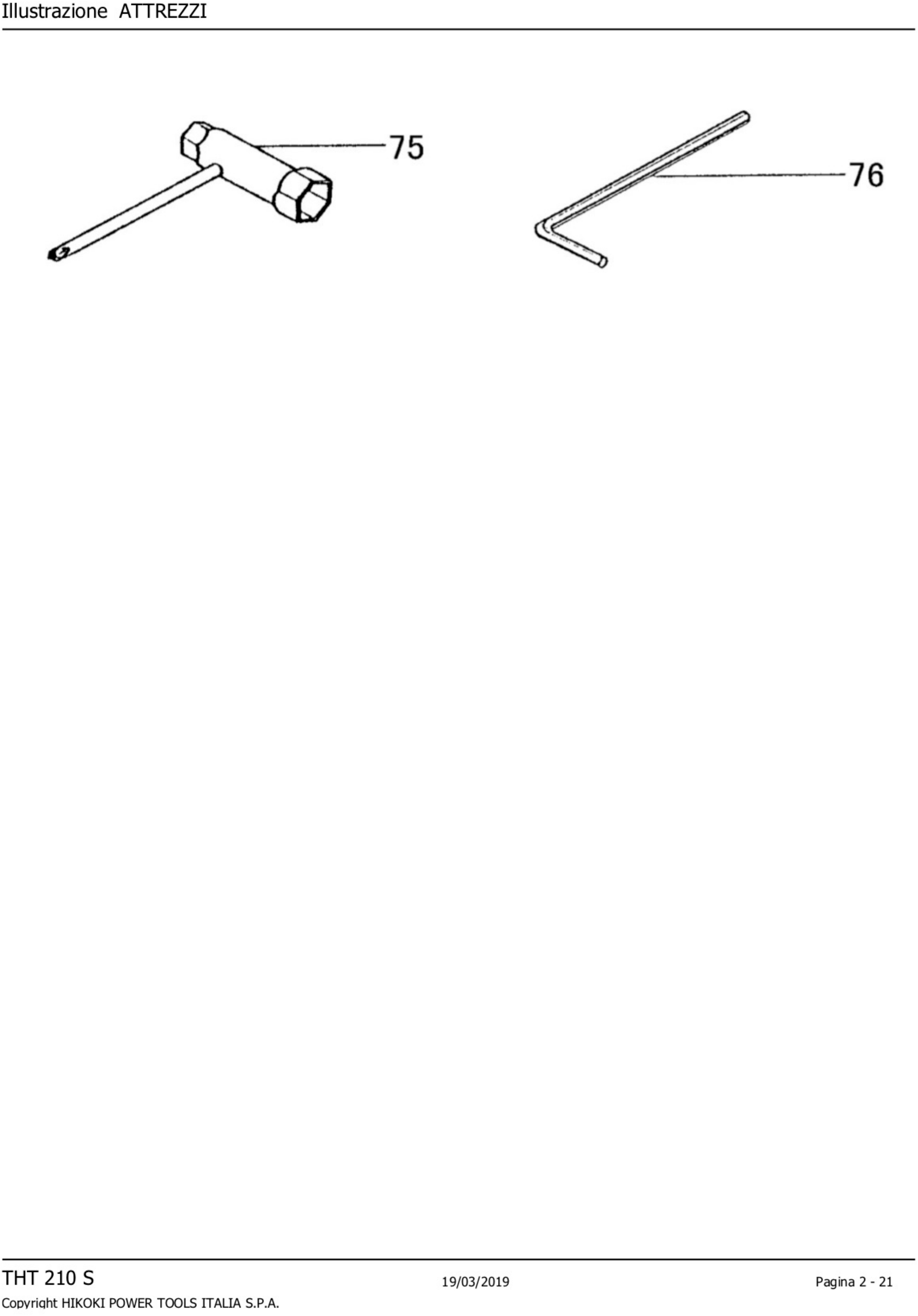

Tools Pag.10
76 6684813 HEX.WRENCH 4
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Tanaka websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Tanaka brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Tanaka THT210S
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Drawing Tanaka THT 210 S

Drawing Tanaka THT 210 S

Download (1.62MB)

You might also like

Clutch Drum for Hedge Trimmers Tanaka THT 210-HTD2530PF
HiKOKI Power Tools Italia S.p.a. SKU: 6688570
Clutch Drum for Hedge Trimmers Tanaka THT 210-HTD2530PF
Clutch Drum for Hedge Trimmers Tanaka THT 210-HTD2530PF Original parts Hitachi Koky Tanaka, Clutch Drum, for Hedge Trimmers THT 210 - HTD2530PF Parts for the following products: -  Hedge Trimmer THT 210 -  Hedge Trimmer THT 210 B -...
Last items in stock €44.53
Details
Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51
HiKOKI Power Tools Italia S.p.a. SKU: 6685220
Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51
Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51 Original parts for Chainsaw Hitachi Koky Tanaka, Diaphragm Packing Metering Gasket for Carburetor Chainsaws, CS25EC-SC-EU - CS33EDT - CS38EK - CS40EA - CS45EL - CS51EAP...
AVAILABLE €3.45
Details
Pump Diaphragm for Chainsaw Hitachi CS33EB
HiKOKI Power Tools Italia S.p.a. SKU: 6684693
Pump Diaphragm for Chainsaw Hitachi CS33EB
Pump Diaphragm for Chainsaw Hitachi CS33EB Original parts Hitachi Koky Tanaka, Pump Diaphragm for Carburetor Chainsaw, CS33EB - CS 33EB - Brushcutters CG22EAS - CG24EKS - CG27EJ-SLNP...
Last items in stock €9.95
Details
Circuit Plate Gasket for Brushcutter Hitachi CG22EAS
HiKOKI Power Tools Italia S.p.a. SKU: 6691234
Circuit Plate Gasket for Brushcutter Hitachi CG22EAS
Circuit Plate Gasket for Brushcutter Hitachi CG22EAS Original parts Hitachi Koky Tanaka, Circuit Plate Gasket for Brushcutters CG22EAS - CG24EASP - CG27EASP Parts for the following products: - Brushcutter Hitachi...
AVAILABLE €6.64
Details
Hex Socket Hd Bolt M5X50 for Hedge Trimmer Tanaka THT 210
HiKOKI Power Tools Italia S.p.a. SKU: 6685114
Hex Socket Hd Bolt M5X50 for Hedge Trimmer Tanaka THT 210
Hex Socket Hd Bolt M5X50 for Hedge Trimmer Tanaka THT 210 Genuine spare part Tanaka, Hex Socket Hd Bolt M5X50 for Hedge Trimmer Tanaka THT 210 - THT-2530 - Brushcutter Tanaka TBC-230S Part for the following items: - Hedge Trimmer...
AVAILABLE €1.66
Details
Piston Pin for Brushcutter Hitachi Tanaka CG22EAS
HiKOKI Power Tools Italia S.p.a. SKU: 6696944
Piston Pin for Brushcutter Hitachi Tanaka CG22EAS
Piston Pin for Brushcutter Hitachi Tanaka CG22EAS Genuine spare part Hitachi Koky Tanaka, Piston Pin for Brushcutters CG22EAB - CG22EAS - Edge Trimmer Hitachi CH22EBP2 Part for the following products: - Pump Hitachi A25EB(N) -...
Last items in stock €7.30
Details
Washer D. 5 for Chainsaw Hitachi CS45EL-CS38EK
HiKOKI Power Tools Italia S.p.a. SKU: 6684662
Washer D. 5 for Chainsaw Hitachi CS45EL-CS38EK
Washer D. 5 for Chainsaw Hitachi CS45EL-CS38EK Original spare Hitachi, Washer D. 5 for Chaisaw Hitachi CS45EL - CS38EK - Tanaka ECV-4501 - ECV-3801 - Brusch Cutter CG24EKS - CG40EK-LP - CG33EJ-LP - CG27EJ-SLNP. Parts for the following...
AVAILABLE €1.28
Details
Insulator Tube for Chainsaw Hitachi CS25EC-SC
HiKOKI Power Tools Italia S.p.a. SKU: 6684597
Insulator Tube for Chainsaw Hitachi CS25EC-SC
Insulator Tube for Chainsaw Hitachi CS25EC-SC Hitachi genuine part, Insulator Tube for Chainsaw Hitachi CS25EC-SC EU Part for the following products: - Chainsaw Hitachi CS25EC-SC EU - Motorpump Hitachi A25EB(N) - Brushcutter Hitachi...
AVAILABLE €1.08
Details
Clamp Body Right for Hedge Trimmer Tanaka THT 210
HiKOKI Power Tools Italia S.p.a. SKU: 6688325
Clamp Body Right for Hedge Trimmer Tanaka THT 210
Clamp Body Right for Hedge Trimmer Tanaka THT 210 Genuine spare parts Tanaka, Clamp Body Right for Hedge Trimmer Tanaka THT 210 - HTD2530PF Part for the following items: -  Hedge Trimmer Tanaka THT 210 -  Hedge Trimmer Tanaka...
Out-of-Stock €19.40
Details
Clamp Body Left for Hedge Trimmer Tanaka THT 210
HiKOKI Power Tools Italia S.p.a. SKU: 6688313
Clamp Body Left for Hedge Trimmer Tanaka THT 210
Clamp Body Left for Hedge Trimmer Tanaka THT 210 Genuine spare parts Tanaka, Clamp Body Left for Hedge Trimmer Tanaka THT 210 - HTD2530PF Part for the following items: -  Hedge Trimmer Tanaka THT 210 -  Hedge Trimmer Tanaka...
Last items in stock €25.65
Details
Damper B for Hedge Trimmer Tanaka THT 210
HiKOKI Power Tools Italia S.p.a. SKU: 6688412
Damper B for Hedge Trimmer Tanaka THT 210
Damper B for Hedge Trimmer Tanaka THT 210 Genuine spare parts Tanaka, Damper B for Hedge Trimmer Tanaka THT 210 - HTD2530PF - Chainsaws Tanaka TCS-3301S - ECS-3350D Part for the following items: - Hedge Trimmer Tanaka THT 210 - Hedge...
AVAILABLE €2.06
Details
Tank Cap Ass'y (Orange) for Hedge Trimmer Tanaka THT 210
HiKOKI Power Tools Italia S.p.a. SKU: 6691716
Tank Cap Ass'y (Orange) for Hedge Trimmer Tanaka THT 210
Tank Cap Ass'y (Orange) for Hedge Trimmer Tanaka THT 210 Genuine spare part Tanaka, Tank Cap Ass'y (Orange) for Hedge Trimmer THT 210 - CH62EA (ST) -  CH66EB (ST) - CH78EC (ST). Part...
Last items in stock €12.64
Details
696,5 mm Blade for Hedge Trimmer Tanaka THT 210
HiKOKI Power Tools Italia S.p.a. SKU: 6687086
696,5 mm Blade for Hedge Trimmer Tanaka THT 210
696,5 mm Blade for Hedge Trimmer Tanaka THT 210 Genuine spare part Tanaka, 696,5 mm Blade for Hedge Trimmers THT 210 - Tanaka THT 210 B - Hitachi CH22EPC2 - CH66EB - CH66EB2 - CH66EB3. Part for the following items: -  Hedge Trimmer...
Available in 7/10 days €79.43
Details
Fuel Tank for Hedge Trimmer Tanaka THT 210 - THT 210 B
HiKOKI Power Tools Italia S.p.a. SKU: 6697631
Fuel Tank for Hedge Trimmer Tanaka THT 210 - THT 210 B
Fuel Tank for Hedge Trimmer Tanaka THT 210 - THT 210 B Genuine replacement part Tanaka, Fuel Tank for Hedge Trimmers THT 210 - THT 210 B - THT 1800 - THT 2100 - THT 2510 - THT 2520...
Last items in stock €20.79
Details
Shield Tube for Chainsaw Hitachi Tanaka TCS-2801S Sale
HiKOKI Power Tools Italia S.p.a. SKU: 6685247
Shield Tube for Chainsaw Hitachi Tanaka TCS-2801S
Shield Tube for Chainsaw Hitachi Tanaka TCS-2801S Original spare part Hitachi Koky Tanaka, Shield Tube for Chainsaws TCS-2800S - TCS-2801S - Hedgetrimmers THT-2530 - THT 210 B. Part for the following products: - Chainsaw Tanaka...
AVAILABLE €5.38
Details
Cam Rod for Hedge Trimmer Hitachi CH78EC3(ST)
HiKOKI Power Tools Italia S.p.a. SKU: 6686811
Cam Rod for Hedge Trimmer Hitachi CH78EC3(ST)
Cam Rod for Hedge Trimmer Hitachi CH78EC3(ST) Original spare part Hitachi Koky Tanaka, Cam Rod for Hedge Trimmer Hitachi Tanaka CH78EC(ST) -  CH78EC3(ST) - CH66EB(ST) - CH66EB2(ST) - CH66EB3(ST)....
on 7/10 Business Days Approx €19.38
Details
Collar 5.8 for Brushcutter Hitachi CG47EJ-L
HiKOKI Power Tools Italia S.p.a. SKU: 6692244
Collar 5.8 for Brushcutter Hitachi CG47EJ-L
Collar 5.8 for Brushcutter Hitachi CG47EJ-L Original part Hitachi-HIKOKI, Fuel Tank Collar 5.8 for Brushcutters CG47EJ-L - CG47EY-T - CG40EF-L - CG47EF(L) - CG22EJ. Parts for the following...
Last items in stock €1.08
Details
Hex Hole Bolt M5x18PS for Hedge Trimmer Tanaka THT 210
HiKOKI Power Tools Italia S.p.a. SKU: 6695505
Hex Hole Bolt M5x18PS for Hedge Trimmer Tanaka THT 210
Hex Hole Bolt M5x18PS for Hedge Trimmer Tanaka THT 210 Original spare part Hitachi-HIKOKI Tanaka, Hex Hole Bolt M5x18PS for Hedge Trimmers THT 210 - THT 210 B - THT 210 S. Parts for the following products: -  Hedge Trimmer Tanaka THT...
AVAILABLE €2.16
Details
Ball Bearing 6002Z for Hedge Trimmer Hitachi CH62EA(ST)
HiKOKI Power Tools Italia S.p.a. SKU: 6695538
Ball Bearing 6002Z for Hedge Trimmer Hitachi CH62EA(ST)
Ball Bearing 6002Z for Hedge Trimmer Hitachi CH62EA(ST) Original spare part Hitachi HiKoki Tanaka, Ball Bearing 6002Z C3 32MM OD for Hedge Trimmers Hitachi CH62EA(ST) - CH62EA2(ST) Part for the following products: -  Hedge Trimmer...
on 7/10 Business Days Approx €14.45
Details
Piston Ring for Hedge Trimmer Tanaka THT 210
HiKOKI Power Tools Italia S.p.a. SKU: 6686118
Piston Ring for Hedge Trimmer Tanaka THT 210
Piston Ring for Hedge Trimmer Tanaka THT 210 Original parts Hitachi Koky Tanaka, Piston Ring for Hedge Trimmer THT 210 - THT 210 B - THT 210 S Parts for the following products: -  Hedge...
Last items in stock €9.05
Details
Handle Support for Hedge Trimmer Tanaka THT 210
HiKOKI Power Tools Italia S.p.a. SKU: 6686111
Handle Support for Hedge Trimmer Tanaka THT 210
Handle Support for Hedge Trimmer Tanaka THT 210 Original parts Hitachi Koky Tanaka, Handle Support Comp. for Hedge Trimmer THT 210 - THT 210 B - THT 210 S Parts for the following products: -  Hedge Trimmer Tanaka THT 210 -  Hedge...
on 7/10 Business Days Approx €6.19
Details
Cam Plate for Hedge Trimmer Hitachi CH62EA(ST)
HiKOKI Power Tools Italia S.p.a. SKU: 6684678
Cam Plate for Hedge Trimmer Hitachi CH62EA(ST)
Cam Plate for Hedge Trimmer Hitachi CH62EA(ST) Original spare part Hitachi HiKoki Tanaka, Cam Plate for Hedge Trimmers Hitachi CH62EA(ST) - CH62EA3(ST). Part for the following products: -  BRUSHCUTTER CG27EJ-SLNP -  BRUSHCUTTER...
Last items in stock €6.81
Details
Fan Case Comp. for Hedge Trimmer Hitachi CH62EA(ST)
HiKOKI Power Tools Italia S.p.a. SKU: 6687014
Fan Case Comp. for Hedge Trimmer Hitachi CH62EA(ST)
Fan Case Comp. for Hedge Trimmer Hitachi CH62EA(ST) Original spare part Hitachi HiKoki Tanaka, Fan Case Comp. for Hedge Trimmers Hitachi CH62EA(ST) - CH62EA3(ST). Part for the following products: -  HEDGE TRIMMER THT 210 S -  HEDGE...
Available in 7/10 days €37.10
Details
Grease Nipple for Hedgetrimmers Hitachi - HIKOKI - Tanaka
HiKOKI Power Tools Italia S.p.a. SKU: 6688643
Grease Nipple for Hedgetrimmers Hitachi - HIKOKI - Tanaka
Grease Nipple for Hedgetrimmers Hitachi - HIKOKI - Tanaka Original spare part Hitachi HIKOKI, Grease Nipple for Hedgetrimmers Hitachi - HIKOKI - Tanaka. Parts for the following products: - HEDGETRIMMER THT-2520 - 2520 B - HEDGETRIMMER...
Last items in stock €3.48
Details
Cutter Guide (734MM) for Hedge Trimmer Tanaka THT 210 B
HiKOKI Power Tools Italia S.p.a. SKU: 6687147
Cutter Guide (734MM) for Hedge Trimmer Tanaka THT 210 B
Cutter Guide (734MM) for Hedge Trimmer Tanaka THT 210 B Genuine replacement part Tanaka, Cutter Guide (734MM) for Hedge Trimmers THT 210 S - THT 210 B. Part for the following items: -  HEDGE TRIMMER...
Available in 7/10 days €56.71
Details
Comments (0)
