HiKOKI Power Tools Italia S.p.a.

Tanaka Spare Parts for Hedge Trimmer TCH 22EAP2

SKU: Tanaka TCH-22EAP2
€1.04
VAT included

Tanaka Spare Parts for Hedge Trimmer TCH 22EAP2

We are Hitachi-HIKOKI Tanaka authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair problem for Edge Trimmer TCH 22EAP2.
Tanaka Spare Parts for Hedge Trimmer TCH 22EAP2
  • Tanaka Spare Parts for Hedge Trimmer TCH 22EAP2
  • Tanaka Spare Parts for Hedge Trimmer TCH 22EAP2
  • Tanaka Spare Parts for Hedge Trimmer TCH 22EAP2
HiKOKI Power Tools Italia S.p.a.

Tanaka Spare Parts for Hedge Trimmer TCH 22EAP2

SKU: Tanaka TCH-22EAP2 Condition: New
€1.04
VAT included

Tanaka Spare Parts for Hedge Trimmer TCH 22EAP2

We are Hitachi-HIKOKI Tanaka authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair problem for Edge Trimmer TCH 22EAP2.
settings 192 spare parts
description 3 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
99 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

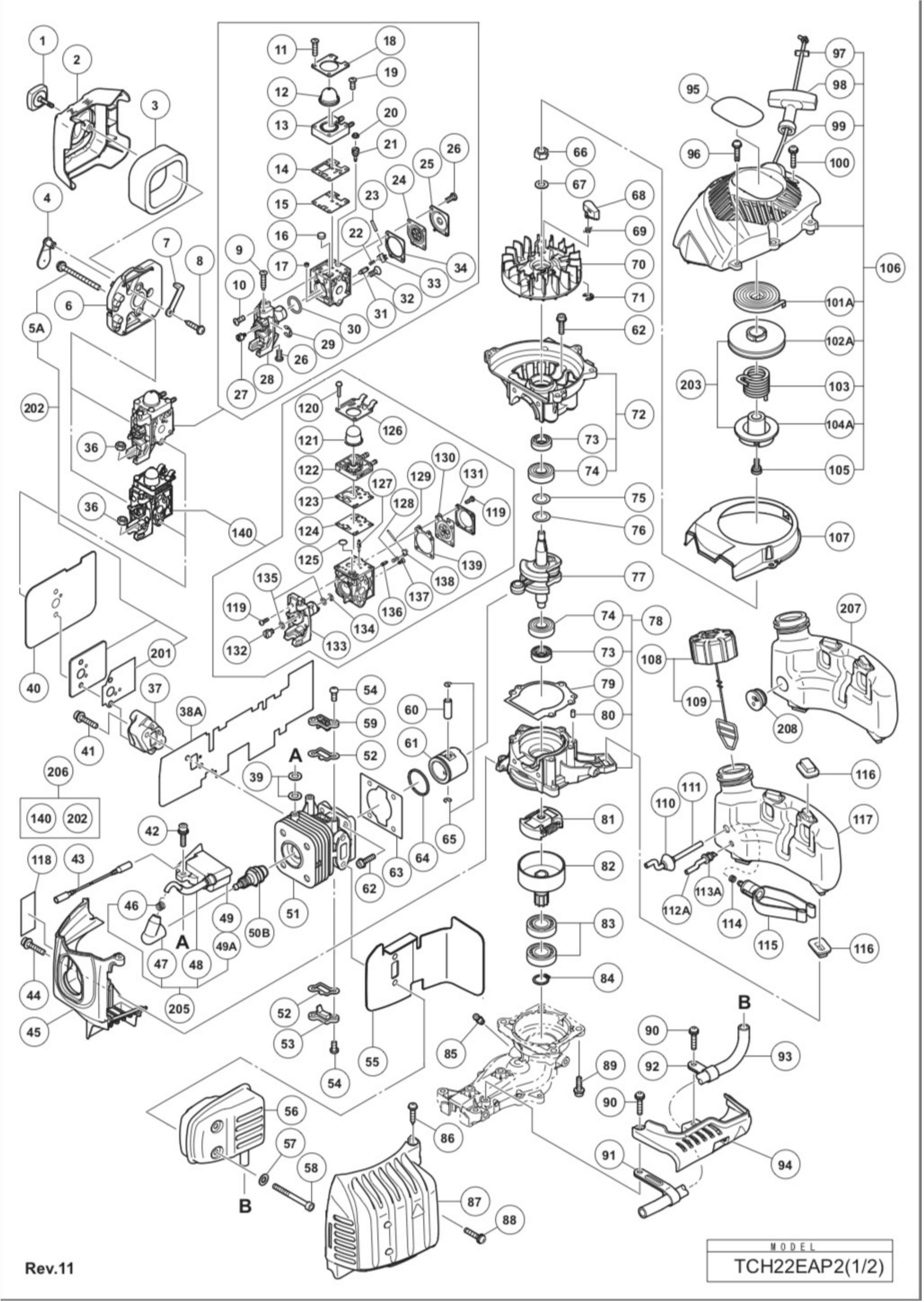

Esploso pagina 1
Pos. Item Price Buy
1
 Air Filter Cover Knob for Brushcutter Hitachi CG33EJ-SL 6698730 Air Filter Cover Knob for Brushcutter Hitachi CG33EJ-SL €5.46
2
 Filter Cover for Hedge Trimmer Hitachi Tanaka CH22EBP2-CH22ECP2 6698609 Filter Cover for Hedge Trimmer Hitachi Tanaka CH22EBP2-CH22ECP2 €4.64
3
 Air Filter for Brushcutter-Trimmer-Auger Hitachi Tanaka 6690365 Air Filter for Brushcutter-Trimmer-Auger Hitachi Tanaka €1.98
4
 photo_cameraImage coming soon 6698608 AIR VALVE €2.10
6
 photo_cameraImage coming soon 6698606 AIR FILTER SUPPORT €4.07
7
 photo_cameraImage coming soon 6698607 AIR LEVER €2.10
13
 photo_cameraImage coming soon 6699097 PUMPING BASE UNTIL YEAR OF PRODUCTION SEPTEMBER 2015 €43.30
14
 photo_cameraImage coming soon 6699096 CARBURETOR GASKET UNTIL YEAR OF PRODUCTION SEPTEMBER 2015 €7.73
17
 photo_cameraImage coming soon 6699103 ROLLER GUIDE UNTIL YEAR OF PRODUCTION SEPTEMBER 2015 €4.11
24
 photo_cameraImage coming soon 6699091 DISC MEMBRANE UNTIL YEAR OF PRODUCTION SEPTEMBER 2015 €15.68
34
 photo_cameraImage coming soon 6699092 CARBURETOR GASKET UNTIL YEAR OF PRODUCTION SEPTEMBER 2015 €7.73
37
 Hitachi CH22EBP2 Carburetor Insulator 6698387 Hitachi CH22EBP2 Carburetor Insulator €6.29
38A
 photo_cameraImage coming soon 6600456 SUCTION GASKET €3.25
39
 photo_cameraImage coming soon 6698700 GLASS WASHER €2.16
40
 photo_cameraImage coming soon 6698816 GASKET CARB. €3.35
41
 photo_cameraImage coming soon 6698844 SEAL LOCK HEX. SOCKET BOLT (W/WASHERS)M5 €2.16
45
 photo_cameraImage coming soon 6698871 CYLINDER COVER €6.87
47
 photo_cameraImage coming soon 6698548 PLUG CAP €3.93
49A
 Ignition Coil for Hedge Trimmer Tanaka TCH-22EAP2 6600890 Ignition Coil for Hedge Trimmer Tanaka TCH-22EAP2 €60.11
50B
 photo_cameraImage coming soon 6699316 SPARK PLUG ASS'Y BMR7A €5.32
51
 Cylinder for Hedge Trimmer Hitachi Tanaka CH22EBP2-CH22ECP2 6698597 Cylinder for Hedge Trimmer Hitachi Tanaka CH22EBP2-CH22ECP2 €65.87
52
 Carburator Cover Packing for Brushcutter Hitachi CG22EAS 6696534 Carburator Cover Packing for Brushcutter Hitachi CG22EAS €2.14
53
 photo_cameraImage coming soon 6696535 INTAKE COVER (A) €2.25
54
 Seal Lock Screw M4x10 for Chainsaw Hitachi CS40EA 6696835 Seal Lock Screw M4x10 for Chainsaw Hitachi CS40EA €2.08
59
 photo_cameraImage coming soon 6696536 INTAKE COVER (B) €2.16
60
 Piston Pin for Brushcutter Hitachi Tanaka CG22EAS 6696944 Piston Pin for Brushcutter Hitachi Tanaka CG22EAS €7.30
61
 Piston for Brush Cutter and Hedge Trimmer Hitachi Tanaka CG-CH 6696531 Piston for Brush Cutter and Hedge Trimmer Hitachi Tanaka CG-CH €15.81
63
 Cylinder Gasket for Brushcutter Hitachi Tanaka CG22EAS 6696530 Cylinder Gasket for Brushcutter Hitachi Tanaka CG22EAS €2.16
64
 Piston Ring for Brush Cutter end Hedge Trimmers Hitachi 6696532 Piston Ring for Brush Cutter end Hedge Trimmers Hitachi €6.50
65
 Circlip for Brushcutter Hitachi CG 24EBS 6684590 Circlip for Brushcutter Hitachi CG 24EBS €1.57
66
 photo_cameraImage coming soon 6696879 FLYWHEEL NUT M7 €2.27
67
 photo_cameraImage coming soon 6696880 BOLT WASHER D7 €2.22
69
 Starter Pawl Spring for Chainsaw Hitachi Tanaka CS33EDT-EB 6685335 Starter Pawl Spring for Chainsaw Hitachi Tanaka CS33EDT-EB €2.65
70
 photo_cameraImage coming soon 6698601 THEY FLY €29.51
71
 photo_cameraImage coming soon 6685336 RETAINING RING D4 €2.48
72
 photo_cameraImage coming soon 6698872 CRANKCASE (B) ASS'Y INCLUDES 73.74 €28.48
73
 photo_cameraImage coming soon 6684607 OIL SEAL TB 12227 €3.20
74
 photo_cameraImage coming soon 6684608 BALL BEARING 6001 C3 €6.06
77
 photo_cameraImage coming soon 6699043 CRANKSHAFT €65.39
79
 photo_cameraImage coming soon 6696539 CRANK CASE PACKING €2.25
81
 Clutch Ass'y for Hedge Trimmers Hitachi CH22EBP2-CH22EC2 6699173 Clutch Ass'y for Hedge Trimmers Hitachi CH22EBP2-CH22EC2 €31.72
82
 Hitachi HIKOKI CH22EC2 Clutch Drum 6699040 Hitachi HIKOKI CH22EC2 Clutch Drum €19.55
83
 photo_cameraImage coming soon 6698740 BEARING 6002-2ZC3 €8.01
84
 Retaining Ring Type C 15 mm for Drills Hitachi D13VG-DV16V 939544 Retaining Ring Type C 15 mm for Drills Hitachi D13VG-DV16V €0.55
85
 Grease Nipple for Hedgetrimmers Hitachi - HIKOKI - Tanaka 6688643 Grease Nipple for Hedgetrimmers Hitachi - HIKOKI - Tanaka €3.48
87
 photo_cameraImage coming soon 6698876 COVER, MUFFLER €28.94
91
 photo_cameraImage coming soon 6699047 FIXING PLATE (A) €1.22
93
 photo_cameraImage coming soon 6699052 DRAIN PIPE €5.00
94
 Exhaust Cover for Hedge Trimmer Tanaka TCH-22EAP2 6699037 Exhaust Cover for Hedge Trimmer Tanaka TCH-22EAP2 €5.35
98
 photo_cameraImage coming soon 6693227 STARTER HANDLE €6.94
99
 photo_cameraImage coming soon 6693168 ROPE €3.26
101A
 photo_cameraImage coming soon 6684675 RECOIL SPRING €12.16
102A
 photo_cameraImage coming soon 6600995 STARTING PULLEY FROM YEAR OF PRODUCTION JANUARY 2015 €4.54
103
 Damper Spring for Chainsaw Hitachi Tanaka CS33EA-CS25EC-SC 6685183 Damper Spring for Chainsaw Hitachi Tanaka CS33EA-CS25EC-SC €7.83
104A
 photo_cameraImage coming soon 6600996 PULLEY ENGAGEMENT FROM YEAR OF PRODUCTION JANUARY 2015 €4.69
105
 Set Screw for Hedge Trimmer Hitachi CH62EA(ST) 6684679 Set Screw for Hedge Trimmer Hitachi CH62EA(ST) €6.81
107
 photo_cameraImage coming soon 6698624 AIR CONVEYOR €1.91
108
 Fuel Tank Cap for Brushcutter Hitachi CG24ECP (SL) 6698402 Fuel Tank Cap for Brushcutter Hitachi CG24ECP (SL) €9.73
111
 Fuel Pipe for Hedge Trimmer Tanaka TCH-22EAP2 6698873 Fuel Pipe for Hedge Trimmer Tanaka TCH-22EAP2 €10.50
112A
 photo_cameraImage coming soon 6601399 FUEL PIPE €3.59
113A
 photo_cameraImage coming soon 6697846 RETURN GROMMET €1.79
114
 photo_cameraImage coming soon 6696949 CAPACITOR CLIP €2.06
115
 photo_cameraImage coming soon 6698874 PESCANTE DOUBLE MIXTURE €21.96
116
 photo_cameraImage coming soon 6698615 RUBBER SUPP. RESERVOIR €4.07
117
 Hitachi CH22EBP2 Fuel Tank 6698613 Hitachi CH22EBP2 Fuel Tank €10.78
123
 photo_cameraImage coming soon 6600879 MEMBRANE GASKET FROM YEAR OF PRODUCTION OCTOBER 2015 €9.58
124
 photo_cameraImage coming soon 6600880 PUMPING MEMBRANE FROM YEAR OF PRODUCTION OCTOBER 2015 €5.77
125
 Carburator Inlet Screen for Chainsaws and Bruschcutters Hitachi 6684700 Carburator Inlet Screen for Chainsaws and Bruschcutters Hitachi €3.18
129
 Hitachi CS25EC-SC Hinge Pin 6685219 Hitachi CS25EC-SC Hinge Pin €2.53
130
 photo_cameraImage coming soon 6600881 DISC MEMBRANE FROM YEAR OF PRODUCTION OCTOBER 2015 €26.18
131
 photo_cameraImage coming soon 6685222 DIAPHRAGM COVER €6.54
132
 photo_cameraImage coming soon 6684697 SWIVEL €4.96
134
 photo_cameraImage coming soon 6684696 STOP RING €1.76
136
 Carburator Needle Valve for Chainsaws Hitachi-HiKoki Tanaka 6685215 Carburator Needle Valve for Chainsaws Hitachi-HiKoki Tanaka €10.76
139
 Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51 6685220 Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51 €3.45
140
 Tanaka TCH-22EAP2 Carburetor Assy 6600875 Tanaka TCH-22EAP2 Carburetor Assy €55.00
201
 photo_cameraImage coming soon 6698405 CARBURETOR PACKING €4.33
202
 photo_cameraImage coming soon 6600891 HEAT GASKET INCLUDES 5A.201 €5.77
203
 photo_cameraImage coming soon 6600997 STARTER PULLEY KIT WITH SPRING -NEW- UNTIL PRODUCTION YEAR DECEMBER 2014. INCLUDES 102A.104A €11.23
205
 photo_cameraImage coming soon 6601364 FULL IGNITION COIL INCLUDES 46-49A €69.33
208
 photo_cameraImage coming soon 6600358 TANK GROMMET FROM YEAR OF PRODUCTION OCTOBER 2016 €2.18
Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

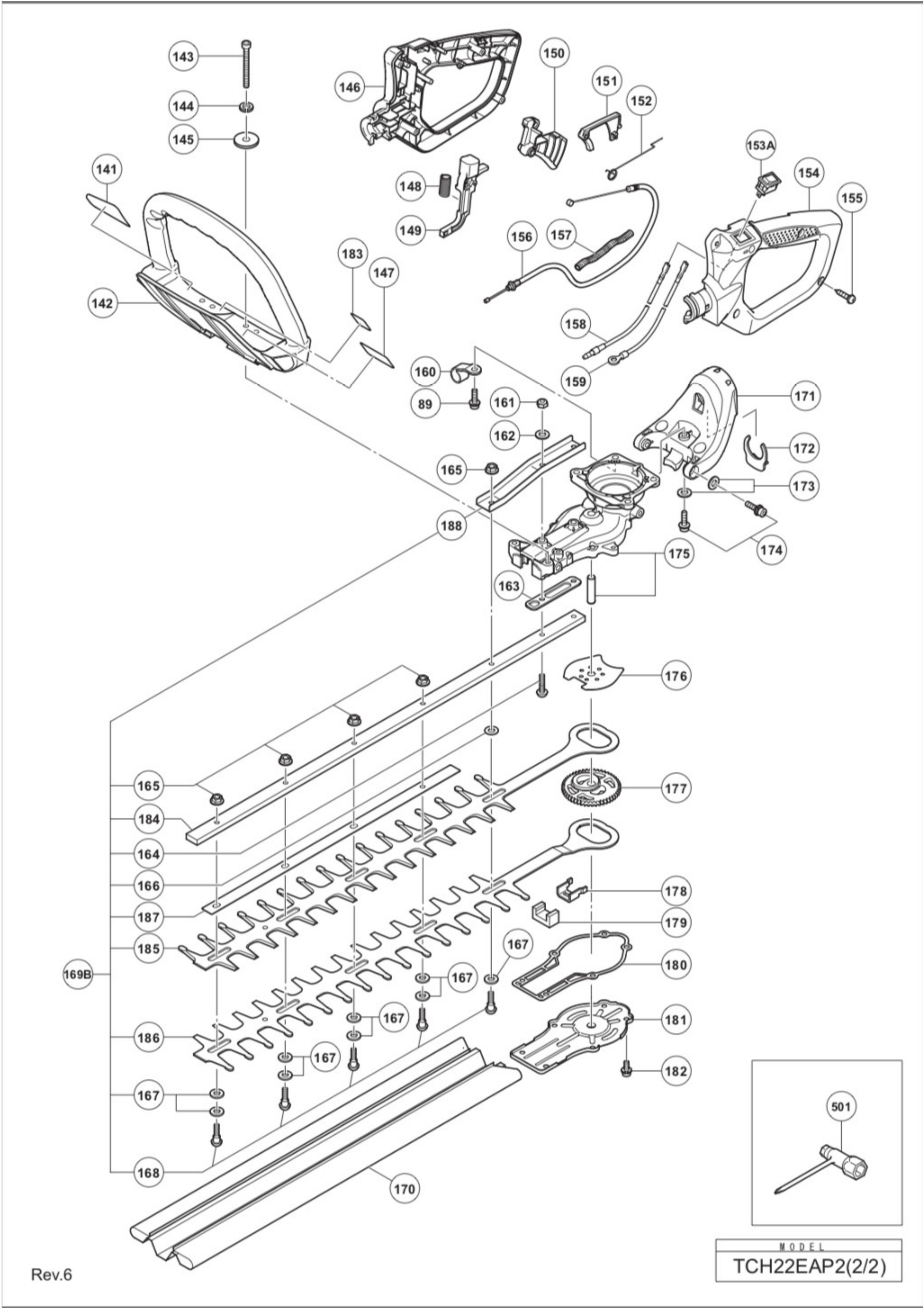

Esploso pagina 2
Pos. Item Price Buy
142
 Front Handle Ass'y for Hedge Trimmer Hitachi CH22EBP2 6699079 Front Handle Ass'y for Hedge Trimmer Hitachi CH22EBP2 €22.49 Not available for order
145
 photo_cameraImage coming soon 6698749 WASHER €2.10
146
 photo_cameraImage coming soon 6698880 HANDLE (A) €19.86
148
 photo_cameraImage coming soon 6696348 SPRING €2.10
151
 photo_cameraImage coming soon 6696344 LOCK LEVER ACC. €1.83
152
 photo_cameraImage coming soon 6696345 SPRING €2.22
153A
 photo_cameraImage coming soon 6601275 STOP SWITCH €2.62
154
 photo_cameraImage coming soon 6699051 HANDLE (B) €6.38
156
 photo_cameraImage coming soon 6698627 CONTROL CABLE €8.01
158
 Stop Switch Cord for Hedge Trimmers Hitachi CH22EBP2-CH22ECP2 6699058 Stop Switch Cord for Hedge Trimmers Hitachi CH22EBP2-CH22ECP2 €1.62
159
 photo_cameraImage coming soon 6699059 STOP CABLE €2.10
165
 photo_cameraImage coming soon 6699108 NUT M5 €3.25
166
 photo_cameraImage coming soon 6699112 WASHER €1.70
167
 photo_cameraImage coming soon 6699111 WASHER M7 €1.70
168
 photo_cameraImage coming soon 6699109 SCREW M5X25 €3.25
172
 photo_cameraImage coming soon 6696359 STOPPED €1.87
173
 photo_cameraImage coming soon 6685407 BOLT WASHER D5 €2.22
180
 photo_cameraImage coming soon 6699042 COVER GASKET €1.59

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Tanaka Spare Parts for Hedge Trimmer TCH 22EAP2

We are Hitachi-HIKOKI Tanaka authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair problem for Edge Trimmer TCH 22EAP2.

In the following table, look for the model of the Edge Trimmer and the respective parts of the code.
Tanaka TCH-22EAP2

Engine Hedge Trimmer Tanaka TCH 22EAP2 Pag.1
# Part Num. Description
1 6698730 COVER FIXING BOLT COMP.
2 6698609 CLEANER COVER
3 6690365 CLEANER SPONGE
4 6698608 CHOKE VALVE
5A 312440 MACHINE SCREW (W/WASHERS) M5X65 (BLACK)
6 6698606 CLEANER BODY
7 6698607 CHOKE HANDLE
8 309470 TAPPING SCREW (W/FLANGE) D4X12 (BLACK)
9 6699087 THROTTLE ADJUST SCREW (TAS)
10 6699088 SET SCREW (B)
11 6699100 SET SCREW (D)
12 6699098 SYRINGE
13 6699097 PRIMER BASE
14 6699096 PUMP GASKET
15 6699095 PUMP DIAPHRAGM
16 6699080 STRAINER
17 6699103 GUIDE PIN ROLLER
18 6699099 SYRINGE RETAINER
19 6699101 SET SCREW (E)
20 6699104 BALL PLUG RETAINER
21 6699105 ADJUSTING SCREW (MAIN MIXTURE)
22 6699083 METERING LEVER SPRING
23 6699082 PIN
24 6699091 METERING DIAPHRAGM
25 6699093 METERING COVER
26 6699094 SET SCREW (C)
27 6699089 POST
28 6699086 ROTOR COVER
29 6699090 RETAINING RING (E-TYPE) FOR D2.5 SHAFT
30 6699102 O-RING
31 6699081 INLET NEEDLE VALVE
32 6699085 SET SCREW (A)
33 6699084 METERING LEVER
34 6699092 METERING GASKET
36 949567 LOCK NUT M6
37 6698387 CARBURETOR INSULATOR
38A 6600456 INTAKE PAKING (A)
39 6698700 GLASS WASHER
40 6698816 CARBURETOR PACKING
41 6698844 SEAL LOCK HEX. SOCKET BOLT (W/WASHERS)M5
42 6698388 HEX. SOCKET HD. BOLT (W/WASHERS) M4X18
43 6699060 CORD
44 6698879 SEAL LOCK HEX. SOCKET HD. BOLT M4X12
45 6698871 CYLINDER COVER
46 6699180 METAL OF PLUG CAP (60) (B)
47 6698548 PLUG CAP
48 6699175 CORD INSULATION TUBE L60
49A 6600890 IGNITION COIL
50B 6699316 SPARK PLUG ASS'Y BMR7A
51 6698597 CYLINDER
52 6696534 COVER PACKING
53 6696535 INTAKE COVER (A)
54 6696835 SEAL LOCK SCREW M4X10
55 6698617 HEAT PROTECTION PANEL
56 6698733 MUFFLER
57 949432 BOLT WASHER M6
58 6696819 HEX. SOCKET HD. BOLT M6X55
59 6696536 INTAKE COVER (B)
60 6696944 PISTON PIN
61 6696531 PISTON
62 6698386 HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X18
63 6696530 CYLINDER PACKING
64 6696532 PISTON RING
65 6684590 CIR CLIP
66 6696879 FLYWHEEL NUT M7
67 6696880 BOLT WASHER D7
68 6698603 STARTER PAWL
69 6685335 STARTER PAWL SPRING
70 6698601 MAGNETO ROTOR
71 6685336 RETAINING RING D4
72 6698872 CRANK CASE (B) ASS'Y
73 6684607 OIL SEAL TB 12227
74 6684608 BALL BEARING 6001 C3
75 6696946 SHIM T0.2
76 6696945 SHIM T0.3
77 6699043 CRANK SHAFT
78 6698729 CRANK CASE (A) ASS'Y
79 6696539 CRANK CASE PACKING
80 6696947 KNOCK PIN 4X12
81 6699173 CLUTCH ASS'Y (B)
82 6699040 CLUTCH DRUM
83 6698740 BALL BEARING 6002ZC3
84 939544 RETAINING RING FOR D15 SHAFT
85 6688643 GREASE NIPPLE COMP.
86 302089 TAPPING SCREW (W/FLANGE) D5X20 (BLACK)
87 6698876 MUFFLER PROTECTOR
88 887021 SCREW (W/WASHERS) M5X16 (BLACK)
89 6695495 HEX. HOLE BOLT 6X18/S
90 6698988 HEX. SOCKET HD. BOLT (W/BUTTON) M5X20
91 6699047 FIXATION PLATE (A)
92 6699048 FIXATION PLATE (B)
93 6699052 TAIL PIPE (A)
94 6699037 EXHAUST COVER
96 6698878 TAPPING SCREW D4.5X16
97 6685189 PLATE
98 6693227 STARTER HANDLE
99 6693168 ROPE
100 6698988 HEX. SOCKET HD. BOLT (W/BUTTON) M5X20
101A 6684675 RECOIL SPRING
102A 6600995 STARTER PULLEY
103 6685183 DAMPER SPRING
104A 6600996 CAM PLATE
105 6684679 SET SCREW
106 6698622 RECOIL STARTER ASS'Y
107 6698624 AIR DEFLECTOR
108 6698402 FUEL TANK CAP ASS'Y
109 6698732 TANK CAP CHAIN
110 6698931 FUEL GROMMET
111 6698873 FUEL PIPE
111 6699183 FUEL PIPE
112A 6601399 FUEL PIPE
113A 6697846 RETURN GROMMET
114 6696949 CLIP
115 6698874 PUMP FILTER
116 6698615 CUSHION RUBBER
117 6698613 TANK
117 6698612 TANK (A)
119 6600883 SCREW (B)
120 6600884 SCREW (C)
121 6600889 PRIMER PUMP
122 6600876 PUMP BODY
123 6600879 PUMP PACKING
124 6600880 PUMP DIAPHRAGM
125 6684700 INLET SCREEN
126 6600877 PUMP COVER
127 6600887 HIGH SPEED NEEDLE
128 6600885 METERING LEVER SPRING
129 6685219 HINGE PIN
130 6600881 METERING DIAPHRAGM
131 6685222 DIAPHRAGM COVER-METERING
132 6684697 SWIVEL
133 6600878 THROTTLE VALVE
134 6684696 STOP RING
135 6600886 WASHER
136 6685215 NEEDLE VALVE
137 6600882 SCREW (A)
138 6600888 METERING LEVER
139 6685220 DIAPHRAGM PACKING-METERING
140 6600875 CARBURETOR ASS'Y WYGA-1
142 6699079 FRONT HANDLE
143 6698885 SEAL LOCK HEX. SOCKET HD. BOLT M5X40
144 6698884 SPRING WASHER M5
145 6698749 BRAKE AXIS WASHER
146 6698880 HANDLE A
148 6696348 SPRING (A)
149 6699055 LOCK LEVER
150 6699053 THROTTLE LEVER
151 6696344 TRIGGER LOCKOUT
152 6696345 THROTTLE LEVER SPRING
153A 6601275 STOP SWITCH
154 6699051 HANDLE B
155 305812 TAPPING SCREW (W/FLANGE) D4X16 (BLACK)
156 6698627 THROTTLE WIRE
157 6698738 PROTECTION TUBE
158 6699058 STOP SWITCH CORD
159 6699059 STOP SWITCH CORD (B)
160 6699049 FIXATION PLATE (B)
161 305491 NYLON NUT M5
162 6684864 SMALL WASHER 5
163 6699045 SPACER
164 6699110 HEX. SOCKET HD. BOLT (W/BUTTON) M5X25
165 6699108 U-NUT M5
166 6699112 WASHER (B)
167 6699111 WASHER M7
168 6699109 SHOULDER BUTTON BOLT M5X25
169B 6600455 BLADE ASS'Y (500MM)
170 6698731 BLADE CASE (A)
171 6699041 HANDLE BRACKET
172 6696359 CLIP
173 6685407 BOLT WASHER D5
174 6699044 SEAL LOCK HEX. SOCKET BOLT (W/WASHERS)M5
175 6699057 GEAR CASE (A)
176 6699035 GUIDE PLATE (C)
177 6699038 GEAR 2 (EA)
178 6699034 GUIDE PLATE (A)
179 6699046 FELT PACKING (A)
180 6699042 GEAR CASE PACKING
181 6699050 GEAR CASE COVER
182 6699176 HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X12
184 6600009 BLADE GUIDE
185 6600010 HEDGE TRIMMER BLADE (A)
186 6600011 HEDGE TRIMMER BLADE (B)
187 6600359 BLADE LINER
188 6600417 SUPPORT PLATE
201 6698405 CARBURETOR PACKING
202 6600891 CARBURETOR HEAT PANEL ASS'Y
203 6600997 STARTER PULLEY ASS'Y
205 6601364 IGNITION COIL ASS'Y
206 6601361 CARBURETOR ASS'Y WYGA-1 (W/HEAT PANEL)
207 6601419 TANK
208 6600358 FUEL GROMMET
STANDARD ACCESSORIES Pag.2
501 6698756 BOX WRENCH 10/19MM
OPTIONAL ACCESSORIES Pag.3
601 971042 GREASE FOR IMPACT WRENCH (100G)
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Tanaka websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Tanaka brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Tanaka TCH-22EAP2
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Tanaka TCH 22EAP2

Diagram Tanaka TCH 22EAP2

Download (542.94KB)

You might also like

Starter Pawl Spring for Chainsaw Hitachi Tanaka CS33EDT-EB
HiKOKI Power Tools Italia S.p.a. SKU: 6685335
Starter Pawl Spring for Chainsaw Hitachi Tanaka CS33EDT-EB
Starter Pawl Spring for Chainsaw Hitachi Tanaka CS33EDT-EB Genuine spare parts Hitachi Tanaka, Starter Pawl Spring for Chainsaws CS30EG(S) - CS33EG(S) - CS33EA - CS33EB - CS33EDP - CS33EDT - CS33EDTP Part for the following products:...
on 7/10 Business Days Approx. €2.65
Details
Damper Spring for Chainsaw Hitachi Tanaka CS33EA-CS25EC-SC
HiKOKI Power Tools Italia S.p.a. SKU: 6685183
Damper Spring for Chainsaw Hitachi Tanaka CS33EA-CS25EC-SC
Damper Spring for Chainsaw Hitachi Tanaka CS33EA-CS25EC-SC Genuine spare parts for Chainsaw Hitachi Koky Tanaka, Damper Spring for Chainsaw CS25EC-SC HEDGETRIMMER CH22EBP2 - HEDGETRIMMER CH22ECP2. Parts for the following...
AVAILABLE €7.83
Details
Piston Ring for Brush Cutter end Hedge Trimmers Hitachi
HiKOKI Power Tools Italia S.p.a. SKU: 6696532
Piston Ring for Brush Cutter end Hedge Trimmers Hitachi
Piston Ring for Brush Cutter end Hedge Trimmers Hitachi Original spare Hitachi Koky Tanaka, Piston Ring for Brush Cutter end Hedge Trimmers Hitachi. Parts for the following products: - Brush Cutter CG22EAS - Hedge Trimmers CH22EBP2 -...
AVAILABLE €6.50
Details
Piston for Brush Cutter and Hedge Trimmer Hitachi Tanaka CG-CH
HiKOKI Power Tools Italia S.p.a. SKU: 6696531
Piston for Brush Cutter and Hedge Trimmer Hitachi Tanaka CG-CH
Piston for Brush Cutter and Hedge Trimmer Hitachi Tanaka CG-CH Original spare part Hitachi Koky Tanaka, Piston for Brush Cutter and Hedge trimmer Hitachi Tanaka CG-CH. Part for the followinf article: - Brush Cutter CG22EAS - Hedge...
Last items in stock €15.81
Details
Air Filter for Brushcutter-Trimmer-Auger Hitachi Tanaka
HiKOKI Power Tools Italia S.p.a. SKU: 6690365
Air Filter for Brushcutter-Trimmer-Auger Hitachi Tanaka
Air Filter for Brushcutter-Trimmer-Auger Hitachi Tanaka Original spare part Hitachi Koky Tanaka, Air Filter for Brushcutter-Trimmer-Auger Hitachi Tanaka. Part for the following items : - Brushcutter CG27EJ-SLNP -...
AVAILABLE €1.98
Details
Air Filter Cover Knob for Brushcutter Hitachi CG33EJ-SL
HiKOKI Power Tools Italia S.p.a. SKU: 6698730
Air Filter Cover Knob for Brushcutter Hitachi CG33EJ-SL
Air Filter Cover Knob for Brushcutter Hitachi CG33EJ-SL Original spare Hitachi Koky Tanaka, Air Filter Knob for Brushcutter CG33EJ-SL and Trimmers CH22EBP2-CH22ECP2 Hitachi. Parts for the following products: - Brushcutter...
AVAILABLE €5.46
Details
Filter Cover for Hedge Trimmer Hitachi Tanaka CH22EBP2-CH22ECP2
HiKOKI Power Tools Italia S.p.a. SKU: 6698609
Filter Cover for Hedge Trimmer Hitachi Tanaka CH22EBP2-CH22ECP2
Filter Cover for Hedge Trimmer Hitachi Tanaka CH22EBP2-CH22ECP2 Original spare Hitachi Koky Tanaka, Cover Filter for Hedge Trimmer Hitachi Tanaka CH22EBP2-CH22ECP2 Parts for the following products: - Hedge Trimmer...
Last items in stock €4.64
Details
Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51
HiKOKI Power Tools Italia S.p.a. SKU: 6685220
Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51
Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51 Original parts for Chainsaw Hitachi Koky Tanaka, Diaphragm Packing Metering Gasket for Carburetor Chainsaws, CS25EC-SC-EU - CS33EDT - CS38EK - CS40EA - CS45EL - CS51EAP...
AVAILABLE €3.45
Details
Carburator Cover Packing for Brushcutter Hitachi CG22EAS
HiKOKI Power Tools Italia S.p.a. SKU: 6696534
Carburator Cover Packing for Brushcutter Hitachi CG22EAS
Carburator Cover Packing for Brushcutter Hitachi CG22EAS Original parts Hitachi Koky Tanaka, Carburator Cover Packing for Brushcutters CG22EAS Parts for the following products: - Brushcutter Hitachi CG22EAS - Hedge Trimmer Hitachi...
Last items in stock €2.14
Details
Cylinder Gasket for Brushcutter Hitachi Tanaka CG22EAS
HiKOKI Power Tools Italia S.p.a. SKU: 6696530
Cylinder Gasket for Brushcutter Hitachi Tanaka CG22EAS
Cylinder Gasket for Brushcutter Hitachi Tanaka CG22EAS Genuine spare part Hitachi Koky Tanaka, Cylinder Gasket for Brushcutters CG22EAB - CG22EAS - Edge Trimmer Hitachi CH22EBP2 Part for the following products: - Brushcutter Hitachi...
AVAILABLE €2.16
Details
Piston Pin for Brushcutter Hitachi Tanaka CG22EAS
HiKOKI Power Tools Italia S.p.a. SKU: 6696944
Piston Pin for Brushcutter Hitachi Tanaka CG22EAS
Piston Pin for Brushcutter Hitachi Tanaka CG22EAS Genuine spare part Hitachi Koky Tanaka, Piston Pin for Brushcutters CG22EAB - CG22EAS - Edge Trimmer Hitachi CH22EBP2 Part for the following products: - Pump Hitachi A25EB(N) -...
Last items in stock €7.30
Details
Cylinder for Hedge Trimmer Hitachi Tanaka CH22EBP2-CH22ECP2
HiKOKI Power Tools Italia S.p.a. SKU: 6698597
Cylinder for Hedge Trimmer Hitachi Tanaka CH22EBP2-CH22ECP2
Cylinder for Hedge Trimmer Hitachi Tanaka CH22EBP2-CH22ECP2 Original spare Hitachi Koky Tanaka, Cylinder for Hedge Trimmer Hitachi Tanaka CH22EC2(62ST) - CH22ECP2(62ST) - CH22EC2(78ST) - CH22ECP2(78ST) Parts...
Last items in stock €65.87
Details
Stop Switch Cord for Hedge Trimmers Hitachi CH22EBP2-CH22ECP2
HiKOKI Power Tools Italia S.p.a. SKU: 6699058
Stop Switch Cord for Hedge Trimmers Hitachi CH22EBP2-CH22ECP2
Stop Switch Cord for Hedge Trimmers Hitachi CH22EBP2-CH22ECP2 Original spare part Hitachi-HIKOKI Tanaka, Stop Switch Cord for Hedge Trimmers CH22EBP2 (62 ST) - CH22EC2 (62 ST) - CH22ECP2 (66 ST) - CH22ECP2 (78 ST). Parts for the...
AVAILABLE €1.62
Details
Switch for Brushcutter Hitachi Tanaka CG24EASP
HiKOKI Power Tools Italia S.p.a. SKU: 6696940
Switch for Brushcutter Hitachi Tanaka CG24EASP
Switch for Brushcutter Hitachi Tanaka CG24EASP Genuine spare part for Hitachi Koky Tanaka, Switch for Brushcutters CG25EUS - CG24EASP - CG24EACP - CG27EASP - CG22EAS. Part for the following products: - Brushcutter Hitachi CG25EUS -...
Last items in stock €9.30
Details
Circlip for Brushcutter Hitachi CG 24EBS
HiKOKI Power Tools Italia S.p.a. SKU: 6684590
Circlip for Brushcutter Hitachi CG 24EBS
Circlip for Brushcutter Hitachi CG 24EBS Original replacement part Hitachi Koky Tanaka, Piston Pin Circlip for Brushcutters, Chainsaws, Hedgecutters Hitachi - Tanaka. Part for the following...
Last items in stock €1.57
Details
Carburator Needle Valve for Chainsaws Hitachi-HiKoki Tanaka
HiKOKI Power Tools Italia S.p.a. SKU: 6685215
Carburator Needle Valve for Chainsaws Hitachi-HiKoki Tanaka
Carburator Needle Valve for Chainsaws Hitachi-HiKoki Tanaka Original part Hitachi-HiKoki Tanaka, Carburator Needle Valve for Chainsaws and Brushcutters Hitachi-HiKoki Tanaka. Part for the following products: - Chainsaw ECS 3301D -...
AVAILABLE €10.76
Details
Clutch Ass'y for Hedge Trimmers Hitachi CH22EBP2-CH22EC2
HiKOKI Power Tools Italia S.p.a. SKU: 6699173
Clutch Ass'y for Hedge Trimmers Hitachi CH22EBP2-CH22EC2
Clutch Ass'y for Hedge Trimmers Hitachi CH22EBP2-CH22EC2 Original spare part Hitachi-HIKOKI Tanaka, Clutch Ass'y for Hedge Trimmers CH22EBP2 (62 ST) - CH22EC2 (62 ST) - CH22ECP2 (66 ST) - CH22ECP2...
Last items in stock €31.72
Details
Front Handle Ass'y for Hedge Trimmer Hitachi CH22EBP2
HiKOKI Power Tools Italia S.p.a. SKU: 6699079
Front Handle Ass'y for Hedge Trimmer Hitachi CH22EBP2
Front Handle Ass'y for Hedge Trimmer Hitachi CH22EBP2 Original spare part Hitachi-HIKOKI Tanaka, Front Handle Assembly for Hedge Trimmers CH22EBP2 (62 ST) - CH24EBP - CH62EA3 - CH78EC3. Parts...
Available in 7/10 days €22.49
Details
Seal Lock Screw M4x10 for Chainsaw Hitachi CS40EA
HiKOKI Power Tools Italia S.p.a. SKU: 6696835
Seal Lock Screw M4x10 for Chainsaw Hitachi CS40EA
Seal Lock Screw M4x10 for Chainsaw Hitachi CS40EA Original spare part Hitachi HiKoki Tanaka, Seal Lock Screw M4x10 for Chainsaw CS40EA - Tanaka TCS-40EA Part for the following products: -  Chainsaw Hitachi CS40EA -  Chainsaw Tanaka...
on 7/10 Business Days Approx €2.08
Details
Fuel Pipe for Hedge Trimmer Tanaka TCH-22EAP2
HiKOKI Power Tools Italia S.p.a. SKU: 6698873
Fuel Pipe for Hedge Trimmer Tanaka TCH-22EAP2
Fuel Pipe for Hedge Trimmer Tanaka TCH-22EAP2 Genuine spare parts Tanaka, Fuel Pipe for Hedge Trimmers TCH-22EAP2 - TCH-22EBP2 - Hitachi CH22ECP2. Part for the following items: - Hedge...
AVAILABLE €10.50
Details
Grease Nipple for Hedgetrimmers Hitachi - HIKOKI - Tanaka
HiKOKI Power Tools Italia S.p.a. SKU: 6688643
Grease Nipple for Hedgetrimmers Hitachi - HIKOKI - Tanaka
Grease Nipple for Hedgetrimmers Hitachi - HIKOKI - Tanaka Original spare part Hitachi HIKOKI, Grease Nipple for Hedgetrimmers Hitachi - HIKOKI - Tanaka. Parts for the following products: - HEDGETRIMMER THT-2520 - 2520 B - HEDGETRIMMER...
Last items in stock €3.48
Details
Ignition Coil for Hedge Trimmer Tanaka TCH-22EAP2
HiKOKI Power Tools Italia S.p.a. SKU: 6600890
Ignition Coil for Hedge Trimmer Tanaka TCH-22EAP2
Ignition Coil for Hedge Trimmer Tanaka TCH-22EAP2 Genuine spare parts Tanaka, Ignition Coil for Hedge Trimmers TCH-22EAP2 - TCH-22EBP2 - Hitachi TCH CH22EBP2 - CH22EC2. Part for the...
Last items in stock €60.11
Details
Exhaust Cover for Hedge Trimmer Tanaka TCH-22EAP2
HiKOKI Power Tools Italia S.p.a. SKU: 6699037
Exhaust Cover for Hedge Trimmer Tanaka TCH-22EAP2
Exhaust Cover for Hedge Trimmer Tanaka TCH-22EAP2 Genuine spare parts Tanaka, Exhaust Cover for Hedge Trimmers TCH-22EAP2 - TCH-22EBP2 - Hitachi TCH CH22EBP2. Part for the following items: - ...
Last items in stock €5.35
Details
Hitachi HIKOKI CH22EC2 Clutch Drum
HiKOKI Power Tools Italia S.p.a. SKU: 6699040
Hitachi HIKOKI CH22EC2 Clutch Drum
Hitachi HIKOKI CH22EC2 Clutch Drum Original spare part Hitachi-HIKOKI Tanaka, Clutch Drum for Hedge Trimmers CH22EC2 - CH22EBP2 - TCH 22EAP2 - TCH 22EBP2. Parts for the following...
Last items in stock €19.55
Details
Hitachi CH22EBP2 Fuel Tank
HiKOKI Power Tools Italia S.p.a. SKU: 6698613
Hitachi CH22EBP2 Fuel Tank
Hitachi CH22EBP2 Fuel Tank Original spare part Hitachi-HIKOKI Tanaka, Fuel Tank for Hedge Trimmers CH22EBP2 (62 ST) - CH22EC2 (62 ST). Parts for the following products: - Hedge Trimmer Hitachi CH22EBP2 (62 ST ) -...
Last items in stock €10.78
Details
Hitachi CH22EBP2 Carburetor Insulator
HiKOKI Power Tools Italia S.p.a. SKU: 6698387
Hitachi CH22EBP2 Carburetor Insulator
Hitachi CH22EBP2 Carburetor Insulator Original spare part Hitachi-HIKOKI Tanaka, Carburetor Insulator for Hedge Trimmers CH22EBP2 (62 ST) - CH22EC2 (62 ST) - CH22ECP2 (66 ST) - CH22ECP2 (78 ST). Parts for the...
Out-of-Stock €6.29
Details
Tanaka TCH-22EAP2 Carburetor Ass'y
HiKOKI Power Tools Italia S.p.a. SKU: 6600875
Tanaka TCH-22EAP2 Carburetor Assy
Tanaka TCH-22EAP2 Carburetor Ass'y WYGA-1 Genuine spare parts Tanaka, Carburetor Ass'y WYGA-1 for Hedge Trimmers TCH-22EAP2 - TCH-22EBP2 - Hitachi CH22ECP2. Part for the following items: - Hedge Trimmer HIKOKI...
Last items in stock €55.00
Details
Comments (0)
