Tanaka Spare Parts for Engine Chain Saw TCS 51EAP

SKU: Tanaka TCS-51EAP Condition: New
€1.04
VAT included

Tanaka Spare Parts for Engine Chain Saw TCS 51EAP

We are Hitachi-HIKOKI-TANAKA authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair problem for Engine Chain Saw TCS 51EAP.
settings 197 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
116 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

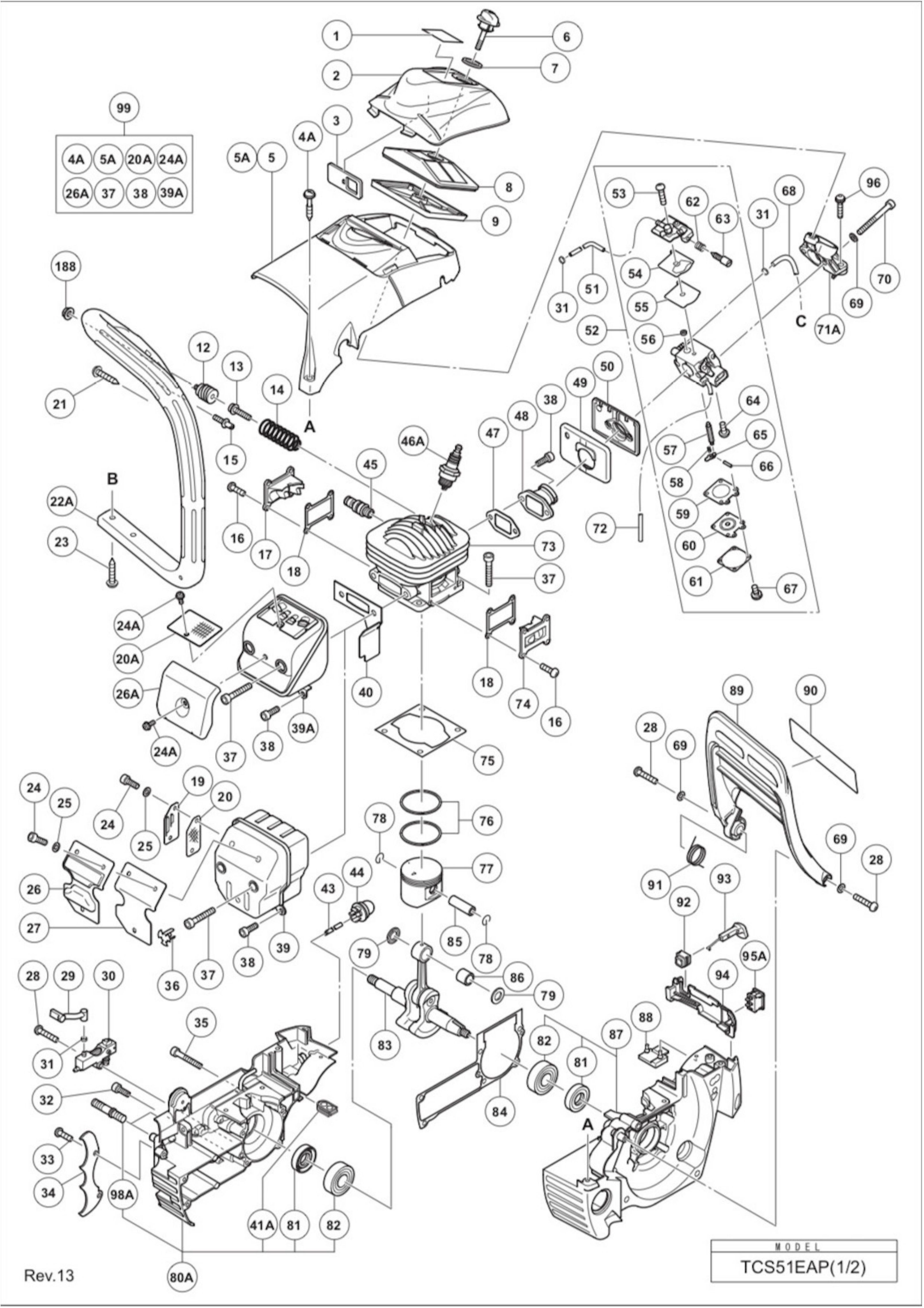

Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 6698919 START LABEL (C51) (EX) €1.75
2
 photo_cameraImage coming soon 6698568 CLEANER COVER (C51) €7.02
3
 photo_cameraImage coming soon 6698569 SHUTTER PLATE €1.75
5
 photo_cameraImage coming soon 6698708 CYLINDER COVER (C51) €23.43
6
 photo_cameraImage coming soon 6698595 CLEANER KNOB (VERMILLION) €1.75
7
 photo_cameraImage coming soon 6698570 KNOB PACKING €1.75
8
 photo_cameraImage coming soon 6698563 CLEANER ELEMENT (B) €7.02
9
 photo_cameraImage coming soon 6698562 CLEANER ELEMENT (A) €7.02
12
 photo_cameraImage coming soon 6698429 SPRING HOLDER €4.02
13
 photo_cameraImage coming soon 881722 HEX. SOCKET HD. BOLT (W/FLANGE) M6X20 €2.64
14
 photo_cameraImage coming soon 6698428 ANTIVIBRATION SPRING €4.87
15
 photo_cameraImage coming soon 6685413 DAMPER SET BOLT €2.52
16
 Seal Lock Screw M4x10 for Chainsaw Hitachi CS40EA 6696835 Seal Lock Screw M4x10 for Chainsaw Hitachi CS40EA €2.08
18
 photo_cameraImage coming soon 6698540 COVER PACKING (C51) €1.75
25
 photo_cameraImage coming soon 323210 BOLT WASHER M4 (BLACK) €1.65
29
 photo_cameraImage coming soon 6698900 OIL PIPE (CS40) €5.47
31
 photo_cameraImage coming soon 6685311 CLIP €2.58
32
 Hex Hole Bolt M5x30S for Chainsaw Hitachi CS33EB 6685412 Hex Hole Bolt M5x30S for Chainsaw Hitachi CS33EB €2.73
39
 photo_cameraImage coming soon 6698573 MUFFLER (C51) €86.92
40
 photo_cameraImage coming soon 6698576 MUFFLER PACKING (C51) €9.69
43
 Fuel Hose for Brushcutters Hitachi CG47EF (L)-CG47EJ-L-CG47EY-T 6685267 Fuel Hose for Brushcutters Hitachi CG47EF (L)-CG47EJ-L-CG47EY-T €3.31
44
 Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka 6685139 Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka €13.15
45
 photo_cameraImage coming soon 6698541 DECOMP. €37.02
47
 photo_cameraImage coming soon 6698549 INTAKE PACKING (C51) €1.75
48
 photo_cameraImage coming soon 6698906 INTAKE (CS51) €20.01
51
 photo_cameraImage coming soon 6698907 FUEL PIPE (FKM) €15.43
52
 photo_cameraImage coming soon 6698705 CARBURETOR ASS'Y €108.01
53
 photo_cameraImage coming soon 6685210 SCREW €2.52
54
 Carburetor Pump Gasket for Chainsaws Hitachi CS25-33-40-45-51 6685212 Carburetor Pump Gasket for Chainsaws Hitachi CS25-33-40-45-51 €3.98
55
 Carburetor Pump Diaphragm for Chainsaws Hitachi CS25-33-40-45-51 6685213 Carburetor Pump Diaphragm for Chainsaws Hitachi CS25-33-40-45-51 €10.63
56
 Carburator Inlet Screen for Chainsaws and Bruschcutters Hitachi 6684700 Carburator Inlet Screen for Chainsaws and Bruschcutters Hitachi €3.18
57
 Carburator Needle Valve for Chainsaws Hitachi-HiKoki Tanaka 6685215 Carburator Needle Valve for Chainsaws Hitachi-HiKoki Tanaka €10.76
58
 photo_cameraImage coming soon 6690873 VALVE SPRING €5.57
59
 Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51 6685220 Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51 €3.45
60
 Metering Diaphragm for Chainsaws Hitachi CS-33-40-51 6684690 Metering Diaphragm for Chainsaws Hitachi CS-33-40-51 €25.81
61
 photo_cameraImage coming soon 6685222 DIAPHRAGM COVER €6.54
62
 photo_cameraImage coming soon 6690766 IDLE ADJUST SPRING €3.87
63
 photo_cameraImage coming soon 6685298 IDLE ADJUST SCREW €3.44
64
 photo_cameraImage coming soon 6685218 HINGE PIN SET SCREW €3.38
65
 Control Lever for Chainsaw Hitachi CS25EC-SC 6685217 Control Lever for Chainsaw Hitachi CS25EC-SC €6.34
66
 Hitachi CS25EC-SC Hinge Pin 6685219 Hitachi CS25EC-SC Hinge Pin €2.53
67
 photo_cameraImage coming soon 6685223 SET SCREW €2.59
68
 photo_cameraImage coming soon 6698908 FUEL PIPE €7.02
71A
 photo_cameraImage coming soon 6698553 CLEANER SUPPORT (C51) €4.02
72
 photo_cameraImage coming soon 6698721 FUEL PIPE €12.72
73
 photo_cameraImage coming soon 6698537 CYLINDER €86.92
75
 photo_cameraImage coming soon 6698542 CYLINDER PACKING (C51) €2.02
76
 photo_cameraImage coming soon 6698534 PISTON RING €14.91
77
 photo_cameraImage coming soon 6698909 PISTON (44) (M) €40.01
78
 photo_cameraImage coming soon 6696854 CIR CLIP €2.02
79
 photo_cameraImage coming soon 6698910 PISTON PIN COLLAR (C51) €4.02
80A
 photo_cameraImage coming soon 6699945 ENGINE CASE (B) ASS'Y €75.37
81
 photo_cameraImage coming soon 6698914 OIL SEAL €5.02
82
 Ball Bearing 6202C3 for Chainsaw Hitachi CS51EAP 6202C3 Ball Bearing 6202C3 for Chainsaw Hitachi CS51EAP €9.30
83
 photo_cameraImage coming soon 6698532 CRANK SHAFT €76.91
84
 photo_cameraImage coming soon 6698535 CRANK CASE PACKING (C51) €3.20
85
 photo_cameraImage coming soon 6696855 PISTON PIN €4.52
86
 photo_cameraImage coming soon 6698911 NEEDLE BEARING (A) €15.01
87
 photo_cameraImage coming soon 6698530 ENGINE CASE (A) ASS'Y €67.17
89
 photo_cameraImage coming soon 6698572 BRAKE HANDLE €10.01
92
 photo_cameraImage coming soon 6685369 CHOKE ROD RUBBER €2.11
94
 photo_cameraImage coming soon 6698565 OPERATION PLATE €2.02
95A
 photo_cameraImage coming soon 6601275 STOP SWITCH €2.62
98A
 photo_cameraImage coming soon 6699029 CHAIN BAR BOLT €1.25
188
 photo_cameraImage coming soon 329934 FLANGE NUT M6 €2.57
Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

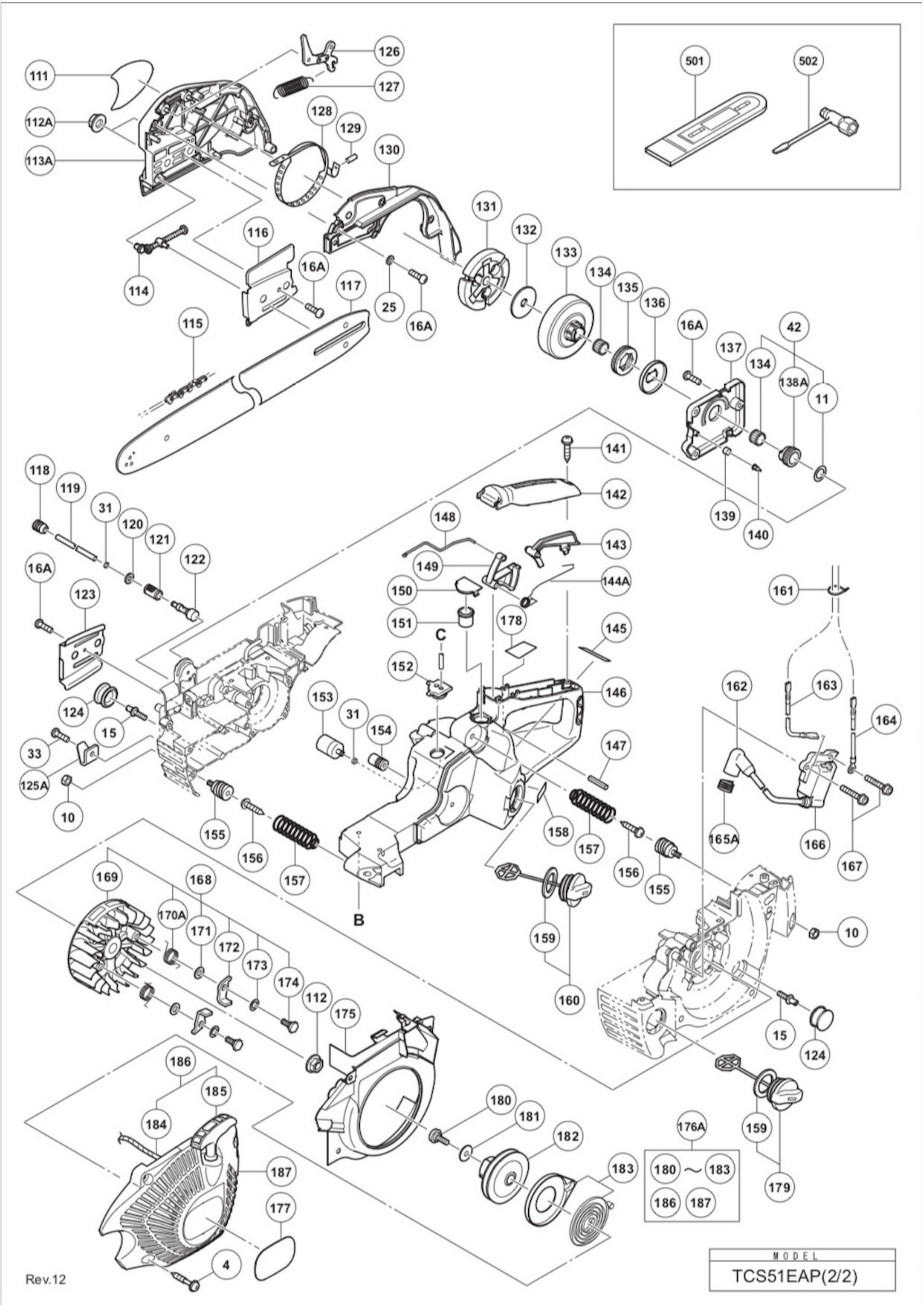

Esploso pagina 2
Pos. Item Price Buy
10
 photo_cameraImage coming soon 6698449 NUT M6 €2.02
42
 photo_cameraImage coming soon 6600928 WORM SET €7.30
112
 Flange Nut M8 for Chainsaw Hitachi CS33EDT 6698581 Flange Nut M8 for Chainsaw Hitachi CS33EDT €2.22
114
 photo_cameraImage coming soon 6698591 CHAIN PULLER BOLT €12.01
118
 photo_cameraImage coming soon 6696868 OIL GROMMET (A) €2.02
119
 photo_cameraImage coming soon 6698719 FUEL PIPE €15.01
120
 photo_cameraImage coming soon 6685407 BOLT WASHER D5 €2.22
121
 photo_cameraImage coming soon 6698455 OIL FILTER €1.75
122
 photo_cameraImage coming soon 6698536 OIL FILTER BODY €3.20
123
 photo_cameraImage coming soon 6698561 GUIDE PLATE (A) €5.02
124
 photo_cameraImage coming soon 6698913 DAMPER (C51) €2.02
126
 photo_cameraImage coming soon 6698587 BRAKE LINK €7.26
129
 Needle Roller mm 3 for Chainsaw Hitachi Tanaka CS40EA 6685391 Needle Roller mm 3 for Chainsaw Hitachi Tanaka CS40EA €2.52
130
 photo_cameraImage coming soon 6698590 BRAKE LINK COVER €5.02
131
 Clutch Ass'y for Chainsaw Hitachi CS51EAP 6698560 Clutch Ass'y for Chainsaw Hitachi CS51EAP €26.33
132
 Clutch Washer (B) for Chainsaw Hitachi CS40EA 6696882 Clutch Washer (B) for Chainsaw Hitachi CS40EA €3.81
133
 Clutch Drum for Chainsaw Hitachi CS51EAP 6698558 Clutch Drum for Chainsaw Hitachi CS51EAP €49.75 Not available for order
134
 Clutch Needle Bearing for Chain Saws Hitachi CS40EA 6696884 Clutch Needle Bearing for Chain Saws Hitachi CS40EA €15.18
135
 photo_cameraImage coming soon 6698557 RIM SPROCKET €8.43
137
 photo_cameraImage coming soon 6698555 OIL PUMP COVER (C51) €4.02
138A
 photo_cameraImage coming soon 6600927 WORM €7.30
139
 Air Vent Sponge for Chainsaw Hitachi CS33EB-CS33EDT-CS40EA 6685371 Air Vent Sponge for Chainsaw Hitachi CS33EB-CS33EDT-CS40EA €3.31
140
 Air Vent Valve for Chainsaw Hitachi CS33EB-CS33EDT-CS40EA 6685370 Air Vent Valve for Chainsaw Hitachi CS33EB-CS33EDT-CS40EA €4.64
142
 photo_cameraImage coming soon 6698805 REAR HANDLE GRIP €2.51
143
 photo_cameraImage coming soon 6685350 TRIGGER LOCKOUT (VERMILION) €2.52
146
 photo_cameraImage coming soon 6698579 REAR HANDLE €37.91
147
 photo_cameraImage coming soon 6685282 SPRING PIN 5X25 €1.32
149
 photo_cameraImage coming soon 6698916 THROTTLE LEVER (VERMILION) €2.27
151
 photo_cameraImage coming soon 6685351 INNER CAP €9.28
152
 photo_cameraImage coming soon 6696167 FUEL GROMMET €2.44
153
 Pump Filter Body for Chainsaws Hitachi CS38EK-CS45EL 6692285 Pump Filter Body for Chainsaws Hitachi CS38EK-CS45EL €13.14
154
 photo_cameraImage coming soon 6696873 FRONT DAMPER €2.02
155
 photo_cameraImage coming soon 6698409 SPRING HOLDER €4.87
156
 photo_cameraImage coming soon 6696872 FLANGED TAPPING SCREW D6 €1.75
157
 photo_cameraImage coming soon 6698408 ANTIVIBRATION SPRING €4.02
159
 Petrol-Oil Tank Cap Packing for Chainsaw Hitachi CS33EDT 6685179 Petrol-Oil Tank Cap Packing for Chainsaw Hitachi CS33EDT €1.98
160
 Petrol Tank Cap for Chainsaws Hitachi CS33EDT-40EA-51EAP 6698854 Petrol Tank Cap for Chainsaws Hitachi CS33EDT-40EA-51EAP €6.50
162
 photo_cameraImage coming soon 6698548 PLUG CAP €3.93
167
 Hex Socket HD Bolt M4x18 for Chainsaw Tanaka TCS-40EA 6696326 Hex Socket HD Bolt M4x18 for Chainsaw Tanaka TCS-40EA €2.40
168
 photo_cameraImage coming soon 6698918 MAGNETO ASS'Y €37.02
169
 photo_cameraImage coming soon 6698543 MAGNETO ROTOR €29.92
172
 photo_cameraImage coming soon 6696877 STARTER PAWL €3.20
173
 photo_cameraImage coming soon 6696434 SHIM €2.07
176A
 photo_cameraImage coming soon 6699421 RECOIL STARTER €30.02
179
 Oil Tank Cap for Chainsaws Hitachi CS33EDT-40EA-51EAP 6698358 Oil Tank Cap for Chainsaws Hitachi CS33EDT-40EA-51EAP €6.50
182
 photo_cameraImage coming soon 6699482 REEL €5.02
187
 photo_cameraImage coming soon 6699488 FAN CASE €24.92
501
 photo_cameraImage coming soon 6685439 CHAIN BAR COVER 35 CM €9.11
501
 photo_cameraImage coming soon 6696909 CHAIN COVER 16" €6.92
501
 photo_cameraImage coming soon 6696910 CHAIN COVER 18" €6.92
501
 photo_cameraImage coming soon 6698577 CHAIN COVER 20" €6.92

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Tanaka Spare Parts for Engine Chain Saw TCS 51EAP

We are Hitachi-HIKOKI-TANAKA authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair problem for Engine Chain Saw TCS 51EAP.

In the following table, look for the model of the Chain Saw and the respective parts of the code.
Tanaka TCS-51EAP

Engine Chain Saw Tanaka TCS 51EAP
# Part Num. Description
1 6698919 START LABEL (C51) (EX)
2 6698568 CLEANER COVER (C51)
3 6698569 SHUTTER PLATE
4A 6699189 COVER SET BOLT (B)
5 6698708 CYLINDER COVER (C51)
5A 6601582 CYLINDER COVER (C51)
6 6698595 CLEANER KNOB (VERMILLION)
7 6698570 KNOB PACKING
8 6698563 CLEANER ELEMENT (B)
9 6698562 CLEANER ELEMENT (A)
10 6698449 NUT M6
11 6696885 WASHER
12 6698429 SPRING HOLDER
13 881722 HEX. SOCKET HD. BOLT (W/FLANGE) M6X20
14 6698428 ANTIVIBRATION SPRING
15 6685413 DAMPER SET BOLT
16 6696835 SEAL LOCK SCREW M4X10
16A 324082 SEAL LOCK SCREW M4X10
17 6698539 SCAVENGING COVER (B)
18 6698540 COVER PACKING (C51)
19 6698903 EXHAUST PIPE (C51)
20 6698575 MUFFLER GAUZE (C51)
20A 6601580 MUFFLER GAUZE (C51) (B)
21 305558 TAPPING SCREW (W/FLANGE) D5X25 (BLACK)
22A 6699026 FRONT HANDLE (B) (C51)
23 302089 TAPPING SCREW (W/FLANGE) D5X20 (BLACK)
24 949812 HEX. SOCKET HD. BOLT M4X10
24A 329983 HEX. SOCKET HD. BOLT (W/FLANGE) M4X10
25 323210 BOLT WASHER M4 (BLACK)
25 323210 BOLT WASHER M4 (BLACK)
26 6698904 MUFFLER PROTECTOR
26A 6601581 MUFFLER PROTECTOR (C51) (B)
27 6698905 MUFFLER PROTECTOR GAUZE
28 949219 MACHINE SCREW M4X16
29 6698900 OIL PIPE (CS40)
30 6698554 OIL PUMP
31 6685311 CLIP
32 6685412 SEAL LOCK HEX. SOCKET HD. BOLT M5
33 6698901 SEAL LOCK SCREW M5X12
34 6685400 SPIKE
35 6698902 SEAL LOCK HEX. SOCKET HD. BOLT M5X45
36 6698706 MUFFLER CAP
37 6698899 SEAL LOCK HEX. SOCKET HD. BOLT M6X20
38 6696836 HEX. SOCKET HD. BOLT M5X12 (PRECOAT)
39 6698573 MUFFLER (C51)
39A 6601579 MUFFLER (C51) (B)
40 6698576 MUFFLER PACKING (C51)
41A 6699944 GROMMET
42 6600928 WORM SET
43 6685267 FUEL PIPE 2.5X4X90
44 6685139 PRIMING PUMP COMP.
45 6698541 DECOMP.
46A 6699320 SPARK PLUG ASS'Y BPMR7A
47 6698549 INTAKE PACKING (C51)
48 6698906 INTAKE (CS51)
49 6698551 CAB. INSULATOR RUBBER
50 6698552 CARBURETOR INSULATOR (C51)
51 6698907 FUEL PIPE (FKM) 3X6X80
52 6698705 CARBURETOR ASS'Y
53 6685210 SCREW
54 6685212 PUMP GASKET
55 6685213 PUMP DIAPHRAGM
56 6684700 INLET SCREEN
57 6685215 NEEDLE VALVE
58 6690873 VALVE SPRING
59 6685220 DIAPHRAGM PACKING-METERING
60 6684690 METERING DIAPHRAGM
61 6685222 DIAPHRAGM COVER-METERING
62 6690766 IDLE ADJUST SPRING
63 6685298 IDLE ADJUST SCREW
64 6685218 HINGE PIN SET SCREW
65 6685217 CONTROL LEVER
66 6685219 HINGE PIN
67 6685223 SET SCREW
68 6698908 FUEL PIPE 3X5X290
68 6698930 FUEL PIPE
69 6685408 WASHER 5
70 6696317 HEX. SOCKET HD. BOLT M5X45
71A 6698553 CLEANER SUPPORT (C51)
72 6698721 FUEL PIPE 2X4X100
73 6698537 CYLINDER
74 6698538 SCAVENGING COVER (A)
75 6698542 CYLINDER PACKING (C51)
76 6698534 PISTON RING
77 6698909 PISTON (44) (M)
78 6696854 CIR CLIP
79 6698910 PISTON PIN COLLAR (C51)
80A 6699945 ENGINE CASE (B) ASS'Y
81 6698914 OIL SEAL
82 6202C3 BALL BEARING 6202C3
83 6698532 CRANK SHAFT
84 6698535 CRANK CASE PACKING (C51)
85 6696855 PISTON PIN
86 6698911 NEEDLE BEARING (A)
87 6698530 ENGINE CASE (A) ASS'Y
88 6698709 REAR DAMPER (C51)
89 6698572 BRAKE HANDLE
91 6698912 BRAKE LEVER SPRING (B)
92 6685369 CHOKE ROD RUBBER
93 6698593 CHOKE BUTTON (VERMILION)
94 6698565 OPERATION PLATE
95A 6601275 STOP SWITCH
96 6698988 HEX. SOCKET HD. BOLT (W/BUTTON) M5X20
98A 6699029 CHAIN BAR BOLT
99 6601583 MUFFLER. COVER ASS'Y (REPAIR)
111 6698936 NAME PLATE
111 6698935 NAME PLATE
112 6698581 FLANGE NUT M8
112A 6699028 FLANGE NUT (B) M8
113A 6698585 SIDE CASE SUB
114 6698591 CHAIN PULLER BOLT
115 6687270 SAW CHAIN 13 INCH
115 6687335 SAW CHAIN 15 INCH
115 6687296 SAW CHAIN 16 INCH
115 6687284 SAW CHAIN 18 INCH
115 6698710 SAW CHAIN 20 INCH 0.325
116 6698592 GUIDE PLATE (B)
117 6600427 CHAIN BAR 18 INCH MICRO-LITE
117 6696913 CHAIN BAR 13 INCH MICRO-LITE
117 6696914 CHAIN BAR 15 INCH
117 6696915 CHAIN BAR 16 INCH
117 6698642 CHAIN BAR 20 INCH 0.325 SP
118 6696868 OIL GROMMET (A)
119 6698719 FUEL PIPE
120 6685407 BOLT WASHER D5
121 6698455 OIL FILTER
122 6698536 OIL FILTER BODY
123 6698561 GUIDE PLATE (A)
124 6698913 DAMPER (C51)
125A 6699027 CHAIN CATCHER
126 6698587 BRAKE LINK
127 6698588 BRAKE SPRING
128 6698589 BRAKE BAND
129 6685391 NEEDLE ROLLER D3
130 6698590 BRAKE LINK COVER
131 6698560 CLUTCH ASS'Y
132 6696882 CLUTCH WASHER (B)
133 6698558 CLUTCH HOUSING
134 6696884 NEEDLE BEARING
135 6698557 RIM SPROCKET
136 6698556 CLUTCH WASHER
137 6698555 OIL PUMP COVER (C51)
138A 6600927 WORM
139 6685371 AIR VENT SPONGE
140 6685370 AIR VENT VALVE (B)
141 305812 TAPPING SCREW (W/FLANGE) D4X16 (BLACK)
142 6698805 REAR HANDLE GRIP
143 6685350 TRIGGER LOCKOUT (VERMILION)
144A 6600341 THROTTLE LEVER SPRING
146 6698579 REAR HANDLE
147 6685282 SPRING PIN 5X25
148 6698564 THROTTLE ROD
149 6698916 THROTTLE LEVER (VERMILION)
150 6698580 AIR VALVE CAP
151 6685351 INNER CAP
152 6696167 FUEL GROMMET
153 6692285 PUMP FILTER BODY
154 6696873 FRONT DAMPER
155 6698409 SPRING HOLDER
156 6696872 FLANGED TAPPING SCREW D6
157 6698408 ANTIVIBRATION SPRING
158 6698921 TANK MARK LABEL (50:1)
159 6685179 TANK CAP PACKING
160 6698854 FUEL TANK CAP ASS'Y (VERMILION)
161 988054 CABLE TIE
162 6698548 PLUG CAP
163 6698545 CORD (A)
164 6698546 CORD (B)
165A 6699180 METAL OF PLUG CAP (60) (B)
166 6698544 IGNITION COIL
167 6696326 HEX. SOCKET HD. BOLT (W/FLANGE) M4X18
168 6698918 MAGNETO ASS'Y
169 6698543 MAGNETO ROTOR
170A 6699405 STARTER PAWL SPRING (B)
171 6696857 WASHER 0.8
172 6696877 STARTER PAWL
173 6696434 SHIM
174 6696878 STEP BOLT
175 6698571 AIR DEFLECTOR
176A 6699421 RECOIL STARTER
177 6698895 TANAKA LABEL
177 6698896 TANAKA LABEL
178 6698923 CAUTION LABEL (L)
179 6698358 FUEL TANK CAP ASS'Y (BLACK)
180 6699477 SET SCREW
181 6699474 WASHER
182 6699482 REEL
183 6699480 SPIRAL SPRING CASE
184 6699470 STARTER ROPE
185 6699466 STARTER KNOB
186 6699472 STARTER HANDLE ASS'Y
187 6699488 FAN CASE
188 329934 FLANGE NUT M6
STANDARD ACCESSORIES
501 6685439 CHAIN COVER 14"
501 6696909 CHAIN COVER 16"
501 6696910 CHAIN COVER 18"
501 6698577 CHAIN COVER 20"
502 6698582 COMBI BOX SPANNER 13X19

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Tanaka websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Tanaka brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Tanaka TCS-51EAP
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Tanaka TCS 51EAP

Diagram Tanaka TCS 51EAP

Download (771.81KB)

You might also like

Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka
HiKOKI Power Tools Italia S.p.a. SKU: 6685139
Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka
Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka Genuine spare Hitachi Koky Tanaka, Priming Pump complete for Brushcutters and Chain Saws Hitachi Tanaka. Parts for the following products: - BRUSHCUTTER CG47EF (L) -...
AVAILABLE €13.15
Details
Carburetor Pump Gasket for Chainsaws Hitachi CS25-33-40-45-51
HiKOKI Power Tools Italia S.p.a. SKU: 6685212
Carburetor Pump Gasket for Chainsaws Hitachi CS25-33-40-45-51
Carburetor Pump Gasket for Chainsaws Hitachi CS25-33-40-45-51 Original parts for Chainsaw Hitachi HiKoky Tanaka, Carburetor Pump Gasket for Chainsaws, CS25EC-SC-EU - CS33EDT - CS38EK - CS40EA - CS45EL - CS51EAP. Parts for the...
AVAILABLE €3.98
Details
Carburetor Pump Diaphragm for Chainsaws Hitachi CS25-33-40-45-51
HiKOKI Power Tools Italia S.p.a. SKU: 6685213
Carburetor Pump Diaphragm for Chainsaws Hitachi CS25-33-40-45-51
Carburetor Pump Diaphragm for Chainsaws Hitachi CS25-33-40-45-51 Original parts for Chainsaw Hitachi Koky Tanaka, Pump Diaphragm for Carburetor Chainsaws, CS25EC-SC-EU - CS33EDT - CS38EK - CS40EA - CS45EL - CS51EAP - BRUSHCUTTERS...
AVAILABLE €10.63
Details
Clutch Needle Bearing for Chain Saws Hitachi CS40EA
HiKOKI Power Tools Italia S.p.a. SKU: 6696884
Clutch Needle Bearing for Chain Saws Hitachi CS40EA
Clutch Needle Bearing for Chain Saws Hitachi CS40EA Hitachi genuine parts, Needle Bearing for clutch of the chain saws for Hitachi Garden Tanaka Model CS40EA. Part for the following products: -  Chainsaw Hitachi...
Last items in stock €15.18
Details
Air Vent Sponge for Chainsaw Hitachi CS33EB-CS33EDT-CS40EA
HiKOKI Power Tools Italia S.p.a. SKU: 6685371
Air Vent Sponge for Chainsaw Hitachi CS33EB-CS33EDT-CS40EA
Air Vent Sponge for Chainsaw Hitachi CS33EB-CS33EDT-CS40EA Original parts for Chainsaw Hitachi Koky Tanaka, Air Vent Sponge for Chain saws CS33EB - CS33EDT - CS40EA - CS51EAP. Parts for the following products: - CHAIN SAW FOR PRUNING...
AVAILABLE €3.31
Details
Air Vent Valve for Chainsaw Hitachi CS33EB-CS33EDT-CS40EA
HiKOKI Power Tools Italia S.p.a. SKU: 6685370
Air Vent Valve for Chainsaw Hitachi CS33EB-CS33EDT-CS40EA
Air Vent Valve for Chainsaw Hitachi CS33EB-CS33EDT-CS40EA Original parts for Chainsaw Hitachi Koky Tanaka, Air Vent Valve for Chain saws CS33EB - CS33EDT - CS40EA - CS51EAP. Parts for the following products: - CHAIN SAW FOR PRUNING...
Last items in stock €4.64
Details
Oil Tank Cap for Chainsaws Hitachi CS33EDT-40EA-51EAP
HiKOKI Power Tools Italia S.p.a. SKU: 6698358
Oil Tank Cap for Chainsaws Hitachi CS33EDT-40EA-51EAP
Oil Tank Cap for Chainsaws Hitachi CS33EDT-40EA-51EAP Original part for Chainsaw Hitachi Koky Tanaka, Oil Tank Cap Ass'y for Chainsaws, CS 33EDT - CS 33EB - CS 40EA - CS 51EAP. Parts for the following products: - Motosega Hitachi...
Last items in stock €6.50
Details
Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51
HiKOKI Power Tools Italia S.p.a. SKU: 6685220
Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51
Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51 Original parts for Chainsaw Hitachi Koky Tanaka, Diaphragm Packing Metering Gasket for Carburetor Chainsaws, CS25EC-SC-EU - CS33EDT - CS38EK - CS40EA - CS45EL - CS51EAP...
AVAILABLE €3.45
Details
Metering Diaphragm for Chainsaws Hitachi CS-33-40-51
HiKOKI Power Tools Italia S.p.a. SKU: 6684690
Metering Diaphragm for Chainsaws Hitachi CS-33-40-51
Metering Diaphragm for Chainsaws Hitachi CS-33-40-51 Original parts for Chainsaw Hitachi Koky Tanaka, Metering Diaphragm for Carburetor Chainsaws,CS33EDT - CS 33EB - CS40EA - TANAKA TCS-40EA - Hitachi CS51EAP -...
Last items in stock €25.81
Details
Fuel Hose for Brushcutters Hitachi CG47EF (L)-CG47EJ-L-CG47EY-T
HiKOKI Power Tools Italia S.p.a. SKU: 6685267
Fuel Hose for Brushcutters Hitachi CG47EF (L)-CG47EJ-L-CG47EY-T
Fuel Hose for Brushcutters Hitachi CG47EF (L)-CG47EJ-L-CG47EY-T Genuine part Hitachi Koky Tanaka, Fuel Hose mm 2.5X4X90 for Brushcutters G47EF (L) - CG47EJ-L - CG47EY-T - Tanaka TBC-600 - Chainsaw HITACHI CS51EAP Parts for the...
AVAILABLE €3.31
Details
Petrol Tank Cap for Chainsaws Hitachi CS33EDT-40EA-51EAP
HiKOKI Power Tools Italia S.p.a. SKU: 6698854
Petrol Tank Cap for Chainsaws Hitachi CS33EDT-40EA-51EAP
Petrol Tank Cap for Chainsaws Hitachi CS33EDT-40EA-51EAP Original part Hitachi Koky Tanaka, Petrol Tank Cap Ass'y for Chainsaws, CS 33EDT - CS 33EB - CS 40EA - CS 51EAP Parts for the following products: - Motosega Hitachi CS33EB -...
AVAILABLE €6.50
Details
Petrol-Oil Tank Cap Packing for Chainsaw Hitachi CS33EDT
HiKOKI Power Tools Italia S.p.a. SKU: 6685179
Petrol-Oil Tank Cap Packing for Chainsaw Hitachi CS33EDT
Petrol-Oil Tank Cap Packing for Chainsaw Hitachi CS33EDT Original part Hitachi Koky Tanaka, Petrol - Oil Tank Cap Packing for Chainsaws, CS 33EDT - CS 33EB - CS 40EA - CS 51EAP Parts for the following products: - Motosega Hitachi...
Last items in stock €1.98
Details
Pump Filter Body for Chainsaws Hitachi CS38EK-CS45EL Sale
HiKOKI Power Tools Italia S.p.a. SKU: 6692285
Pump Filter Body for Chainsaws Hitachi CS38EK-CS45EL
Pump Filter Body for Chainsaws Hitachi CS38EK-CS45EL Genuine part Hitachi Koky Tanaka, Pump Filter Body for Chainsaws CS38EK - CS45EL - Tanaka ECV-3801 - Tanaka ECV-4501. Part for the following products: - Chainsaw Hitachi CS38EK  -...
AVAILABLE €13.14
Details
Needle Roller mm 3 for Chainsaw Hitachi Tanaka CS40EA
HiKOKI Power Tools Italia S.p.a. SKU: 6685391
Needle Roller mm 3 for Chainsaw Hitachi Tanaka CS40EA
Needle Roller mm 3 for Chainsaw Hitachi Tanaka CS40EA Original spare part Hitachi Koky Tanaka, Needle Roller mm 3 for Chainsaws CS33EDT - CS40EA - CS33EB - CS51EAP - Tanaka TCS-40EA - TCS 33ED. Part for the following products: -...
AVAILABLE €2.52
Details
Switch for Brushcutter Hitachi Tanaka CG24EASP
HiKOKI Power Tools Italia S.p.a. SKU: 6696940
Switch for Brushcutter Hitachi Tanaka CG24EASP
Switch for Brushcutter Hitachi Tanaka CG24EASP Genuine spare part for Hitachi Koky Tanaka, Switch for Brushcutters CG25EUS - CG24EASP - CG24EACP - CG27EASP - CG22EAS. Part for the following products: - Brushcutter Hitachi CG25EUS -...
Last items in stock €9.30
Details
Ball Bearing 6202C3 for Chainsaw Hitachi CS51EAP
HiKOKI Power Tools Italia S.p.a. SKU: 6202C3
Ball Bearing 6202C3 for Chainsaw Hitachi CS51EAP
Ball Bearing 6202C3 for Chainsaw Hitachi CS51EAP Original spare part Hitachi Koky Tanaka, Ball Bearing 6202C3 for Chainsaw Hitachi CS51EAP - Brushcutter Hitachi CG40EAS - Brushcutter Maruyama BC4321RS-01. Part for the following...
AVAILABLE €9.30
Details
Flange Nut M8 for Chainsaw Hitachi CS33EDT
HiKOKI Power Tools Italia S.p.a. SKU: 6698581
Flange Nut M8 for Chainsaw Hitachi CS33EDT
Flange Nut M8 for Chainsaw Hitachi CS33EDT Genuine replacement part Hitachi Koky Tanaka, Flange Nut M8 E 401266 for Chainsaws CS33EDT - CS33EDTP - CS51EAP. Part for the following products: - Chainsaw Hitachi CS33EDT - Chainsaw...
AVAILABLE €2.22
Details
Carburator Needle Valve for Chainsaws Hitachi-HiKoki Tanaka
HiKOKI Power Tools Italia S.p.a. SKU: 6685215
Carburator Needle Valve for Chainsaws Hitachi-HiKoki Tanaka
Carburator Needle Valve for Chainsaws Hitachi-HiKoki Tanaka Original part Hitachi-HiKoki Tanaka, Carburator Needle Valve for Chainsaws and Brushcutters Hitachi-HiKoki Tanaka. Part for the following products: - Chainsaw ECS 3301D -...
AVAILABLE €10.76
Details
Clutch Ass'y for Chainsaw Hitachi CS51EAP
HiKOKI Power Tools Italia S.p.a. SKU: 6698560
Clutch Ass'y for Chainsaw Hitachi CS51EAP
Clutch Ass'y for Chainsaw Hitachi CS51EAP Original spare part Hitachi-HIKOKI Tanaka, Clutch Ass'y for Chainsaw Hitachi CS51EAP - Tanaka TCS 51EAP. Part for the following products: - ...
Last items in stock €26.33
Details
Seal Lock Screw M4x10 for Chainsaw Hitachi CS40EA
HiKOKI Power Tools Italia S.p.a. SKU: 6696835
Seal Lock Screw M4x10 for Chainsaw Hitachi CS40EA
Seal Lock Screw M4x10 for Chainsaw Hitachi CS40EA Original spare part Hitachi HiKoki Tanaka, Seal Lock Screw M4x10 for Chainsaw CS40EA - Tanaka TCS-40EA Part for the following products: -  Chainsaw Hitachi CS40EA -  Chainsaw Tanaka...
on 7/10 Business Days Approx €2.08
Details
Hex Socket HD Bolt M4x18 for Chainsaw Tanaka TCS-40EA
HiKOKI Power Tools Italia S.p.a. SKU: 6696326
Hex Socket HD Bolt M4x18 for Chainsaw Tanaka TCS-40EA
Hex Socket HD Bolt (W/Flange) M4x18 for  Chainsaw  Tanaka TCS-40EA Original parts Hitachi Koky Tanaka, Hex Socket HD Bolt (W/Flange) M4x18 for Chainsaws TCS-40EA - TCS 33ED - TCS33EDT. Parts for the following products: -  Chainsaw...
on 7/10 Business Days Approx €2.40
Details
Clutch Washer (B) for Chainsaw Hitachi CS40EA
HiKOKI Power Tools Italia S.p.a. SKU: 6696882
Clutch Washer (B) for Chainsaw Hitachi CS40EA
Clutch Washer (B) for Chainsaw Hitachi CS40EA Original spare part Hitachi HiKoky Tanaka, Clutch Washer (B) for Chainsaw CS40EA Part for the following products: -  Chainsaw Hitachi CS40EA -  Chainsaw HITACHI CS51EAP -  Chainsaw...
AVAILABLE €3.81
Details
Hex Hole Bolt M5x30S for Chainsaw Hitachi CS33EB
HiKOKI Power Tools Italia S.p.a. SKU: 6685412
Hex Hole Bolt M5x30S for Chainsaw Hitachi CS33EB
Hex Hole Bolt M5x30S for Chainsaw Hitachi CS33EB Original spare part Hitachi-HIKOKI Tanaka, Hex Hole HD Bolt M5x30S for Chainsaws CS33EB - CS40EA - CS51EAP. Parts for the...
AVAILABLE €2.73
Details
Clutch Drum for Chainsaw Hitachi CS51EAP
HiKOKI Power Tools Italia S.p.a. SKU: 6698558
Clutch Drum for Chainsaw Hitachi CS51EAP
Clutch Drum for Chainsaw Hitachi CS51EAP Original spare part Hitachi-HIKOKI Tanaka, Clutch Drum for Chainsaw Hitachi CS51EAP - Tanaka TCS 51EAP. Part for the following products: -  Chainsaw...
Available in 7/10 days €49.75
Details
Comments (0)
