Tanaka Spare Parts for Engine Chain Saw TCS 33EB

SKU: Tanaka TCS 33EB
€0.86
VAT included

Tanaka Spare Parts for Engine Chain Saw TCS 33EB

Tanaka Original spare parts at attractive prices never seen on the web, we are a licensed service center with a repair service able to quickly solve the maintenance or repair any issues for Engine Chain Saw TCS 33EB.
Tanaka Spare Parts for Engine Chain Saw TCS 33EB
  • Tanaka Spare Parts for Engine Chain Saw TCS 33EB
  • Tanaka Spare Parts for Engine Chain Saw TCS 33EB
  • Tanaka Spare Parts for Engine Chain Saw TCS 33EB
HiKOKI Power Tools Italia S.p.a.

Tanaka Spare Parts for Engine Chain Saw TCS 33EB

SKU: Tanaka TCS 33EB Condition: New
€0.86
VAT included

Tanaka Spare Parts for Engine Chain Saw TCS 33EB

Tanaka Original spare parts at attractive prices never seen on the web, we are a licensed service center with a repair service able to quickly solve the maintenance or repair any issues for Engine Chain Saw TCS 33EB.
settings 118 spare parts
description 3 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
118 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

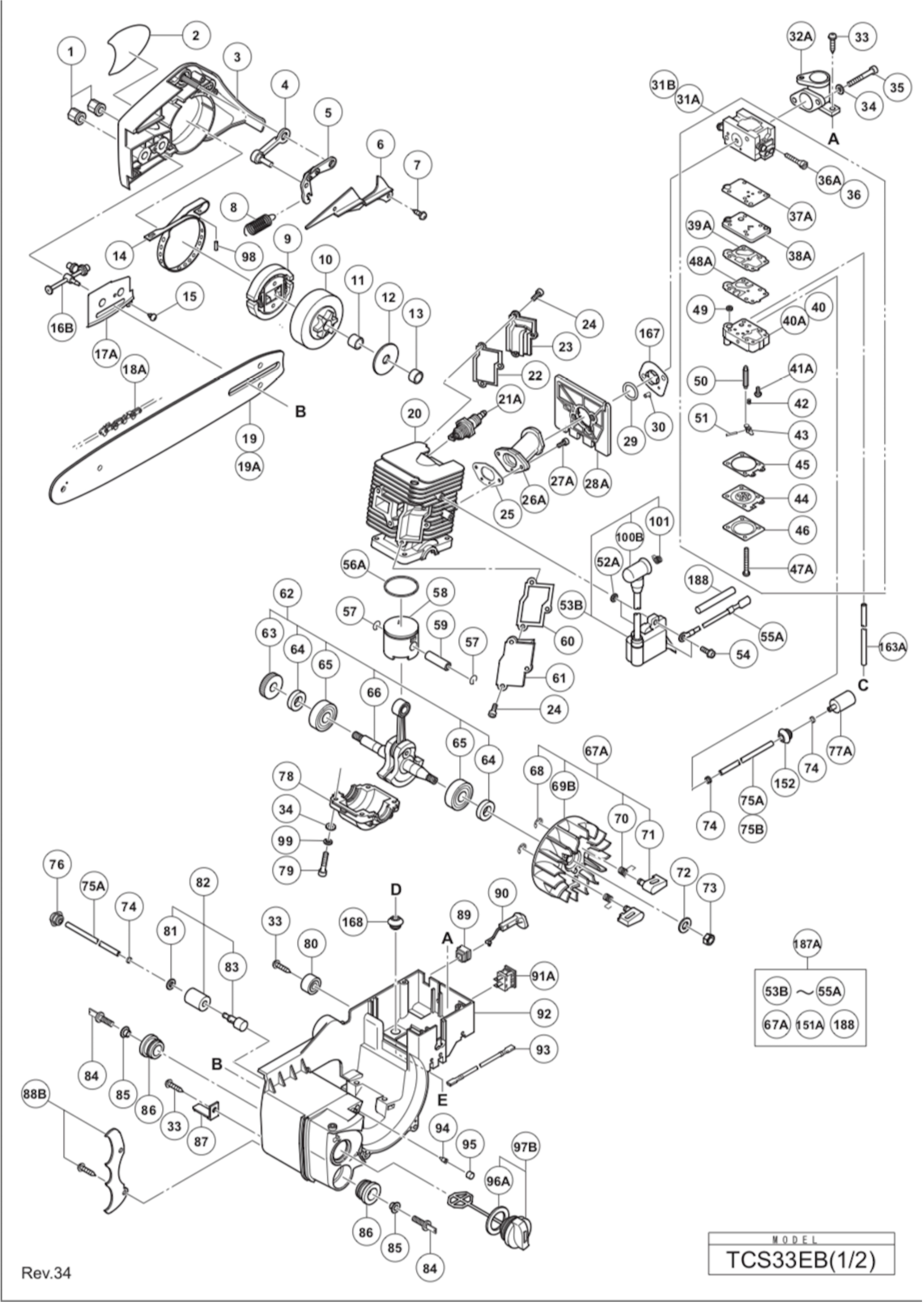

Esploso pagina 1
Pos. Item Price Buy
1
 Bar Chain Nut for Chainsaw Hitachi Tanaka CS33EB-CS40EA 6685416 Bar Chain Nut for Chainsaw Hitachi Tanaka CS33EB-CS40EA €2.38
3
 Side Cover for Chainsaw Hitachi Tanaka CS33EB 6685406 Side Cover for Chainsaw Hitachi Tanaka CS33EB €23.12
4
 photo_cameraImage coming soon 6685387 BRAKE SUPPORT €7.26
5
 photo_cameraImage coming soon 6685388 BRAKE LINK €8.48
6
 photo_cameraImage coming soon 6685392 BRAKE LINK COVER €2.38
8
 Brake Spring for Chainsaws Hitachi CS33EB 6685389 Brake Spring for Chainsaws Hitachi CS33EB €2.38
9
 photo_cameraImage coming soon 6685362 CLUTCH €25.56
10
 Clutch Drum for Chainsaw Hitachi Tanaka CS33EB 6685403 Clutch Drum for Chainsaw Hitachi Tanaka CS33EB €20.68
11
 Clutch Needle Bearing for Chain Saws Hitachi CS33EB-EDT 6685361 Clutch Needle Bearing for Chain Saws Hitachi CS33EB-EDT €10.92
12
 Clutch Washer for Chainsaws Hitachi CS33EDT-CS33EB 6685414 Clutch Washer for Chainsaws Hitachi CS33EDT-CS33EB €2.38
13
 Crank Shaft Collar for Chainsaw Hitachi Tanaka CS33EB 6685360 Crank Shaft Collar for Chainsaw Hitachi Tanaka CS33EB €7.26
14
 Brake Band for Chainsaw Hitachi Tanaka CS33EB 6685390 Brake Band for Chainsaw Hitachi Tanaka CS33EB €10.92
15
 photo_cameraImage coming soon 6685415 TAPPING SCREW D3X8 €2.38
16B
 Tension Adjustment Bolt for Chainsaw Hitachi CS33EB-CS33EDT-CS40EA 6698986 Tension Adjustment Bolt for Chainsaw Hitachi CS33EB-CS33EDT-CS40EA €26.78
17A
 Guide Plate for Chainsaw Hitachi Tanaka CS33EB 6685394 Guide Plate for Chainsaw Hitachi Tanaka CS33EB €9.70
20
 photo_cameraImage coming soon 6685404 CYLINDER (A) €90.22
20
 photo_cameraImage coming soon 6685405 CYLINDER (B) €118.28
21A
 photo_cameraImage coming soon 6699317 SPARK PLUG ASS'Y BPM6A €6.04
21A
 photo_cameraImage coming soon 6699319 SPARK PLUG ASS'Y BPMR6A €12.14
22
 photo_cameraImage coming soon 6685317 COVER PACKING (B) €2.38
25
 Inlet Manifold Gasket for Chainsaw Hitachi Tanaka CS33EB 6685318 Inlet Manifold Gasket for Chainsaw Hitachi Tanaka CS33EB €2.38
26A
 Intake Manifold for Chainsaw Hitachi Tanaka CS33EB 6698897 Intake Manifold for Chainsaw Hitachi Tanaka CS33EB €17.02
28A
 photo_cameraImage coming soon 6698898 CARBURETOR INSULATOR (A) €3.60
29
 photo_cameraImage coming soon 6696316 0-RING €2.38
30
 Pulse Guide for Chainsaw Hitachi Tanaka CS33EB 6685321 Pulse Guide for Chainsaw Hitachi Tanaka CS33EB €2.38
31A
 photo_cameraImage coming soon 6685437 CARBURETOR (C) WLB-3 €110.96
31B
 Hitachi CS33EB Carburator Ass'y (E) WLB-5A 6698683 Hitachi CS33EB Carburator Ass'y (E) WLB-5A €121.94
32A
 Hitachi CS33EB Cleaner Support 6696843 Hitachi CS33EB Cleaner Support €8.48
37A
 Passage Gasket for Chainsaw Hitachi CS33EB 6696319 Passage Gasket for Chainsaw Hitachi CS33EB €20.68
39A
 photo_cameraImage coming soon 6684692 PUMP GASKET €26.78
43
 Control Lever for Chainsaw Hitachi CS25EC-SC 6685217 Control Lever for Chainsaw Hitachi CS25EC-SC €6.04
44
 Metering Diaphragm for Chainsaws Hitachi CS-33-40-51 6684690 Metering Diaphragm for Chainsaws Hitachi CS-33-40-51 €26.78
45
 Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51 6685220 Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51 €3.60
46
 photo_cameraImage coming soon 6685222 DIAPHRAGM COVER €7.26
48A
 Pump Diaphragm for Chainsaw Hitachi CS33EB 6684693 Pump Diaphragm for Chainsaw Hitachi CS33EB €9.70
49
 Carburator Inlet Screen for Chainsaws and Bruschcutters Hitachi 6684700 Carburator Inlet Screen for Chainsaws and Bruschcutters Hitachi €3.60
50
 Carburator Needle Valve for Chainsaws Hitachi-HiKoki Tanaka 6685215 Carburator Needle Valve for Chainsaws Hitachi-HiKoki Tanaka €10.92
51
 Hitachi CS25EC-SC Hinge Pin 6685219 Hitachi CS25EC-SC Hinge Pin €2.38
52A
 photo_cameraImage coming soon 6698700 GLASS WASHER €2.38
53B
 Ignition Coil for Chainsaw Tanaka TCS 33EB 6699989 Ignition Coil for Chainsaw Tanaka TCS 33EB €34.10 Not available for order
54
 Hex Socket HD Bolt M4x18 for Chainsaw Tanaka TCS-40EA 6696326 Hex Socket HD Bolt M4x18 for Chainsaw Tanaka TCS-40EA €2.38
56A
 Piston Ring for Chainsaw Hitachi Tanaka CS33EB 6685331 Piston Ring for Chainsaw Hitachi Tanaka CS33EB €10.92
57
 photo_cameraImage coming soon 6685326 CIRCLIP €2.38
58
 Piston for Chainsaw Hitachi Tanaka CS33EB 6696313 Piston for Chainsaw Hitachi Tanaka CS33EB €23.12
59
 photo_cameraImage coming soon 6685327 PISTON PIN €2.38
60
 photo_cameraImage coming soon 6685316 COVER PACKING (A) €2.38
63
 photo_cameraImage coming soon 6685330 WORM €9.70
64
 photo_cameraImage coming soon 6685329 OIL SEAL €6.04
65
 photo_cameraImage coming soon 6685328 BALL BEARING €8.48
66
 photo_cameraImage coming soon 6685324 CRANK SHAFT €95.10
68
 photo_cameraImage coming soon 6685336 RETAINING RING D4 €2.38
70
 Starter Pawl Spring for Chainsaw Hitachi Tanaka CS33EDT-EB 6685335 Starter Pawl Spring for Chainsaw Hitachi Tanaka CS33EDT-EB €2.38
71
 Starter Pawl for Chainsaw Hitachi Tanaka CS33EDT-EB 6685334 Starter Pawl for Chainsaw Hitachi Tanaka CS33EDT-EB €2.38
72
 photo_cameraImage coming soon 6685410 BOLT WASHER D8 €2.38
73
 Flywheel Nut for Chainsaw Hitachi CS33EB 6685337 Flywheel Nut for Chainsaw Hitachi CS33EB €2.38
74
 photo_cameraImage coming soon 6685311 CLIP €2.38
75A
 photo_cameraImage coming soon 6698715 FUEL PIPE €20.68
76
 Fuel Tank Grommet for Brushcutter Hitachi CG22EAS 6685308 Fuel Tank Grommet for Brushcutter Hitachi CG22EAS €2.38
77A
 photo_cameraImage coming soon 6600351 PUMP FILTER €4.82
78
 photo_cameraImage coming soon 6685339 CRANK CASE €8.48
79
 Hex Hole Bolt M5x30S for Chainsaw Hitachi CS33EB 6685412 Hex Hole Bolt M5x30S for Chainsaw Hitachi CS33EB €2.38
81
 photo_cameraImage coming soon 6685407 BOLT WASHER D5 €2.38
82
 Oil Filter Body Ass’y for Chainsaw Tanaka TCS-2800S 6685249 Oil Filter Body Ass’y for Chainsaw Tanaka TCS-2800S €7.26
83
 Oil Filter Body for Chainsaw Hitachi Tanaka CS33EDT 6685310 Oil Filter Body for Chainsaw Hitachi Tanaka CS33EDT €2.38
84
 photo_cameraImage coming soon 6685413 DAMPER SET BOLT €2.38
85
 photo_cameraImage coming soon 696314 DISTANCE PIECE (B) €3.60
86
 photo_cameraImage coming soon 6696327 DAMPER (A) €9.70
87
 photo_cameraImage coming soon 6685363 CHAIN CATCHER €2.38
88B
 photo_cameraImage coming soon 6696329 SPIKE SET €21.90
89
 photo_cameraImage coming soon 6685369 CHOKE ROD RUBBER €2.38
91A
 photo_cameraImage coming soon 6601275 STOP SWITCH €2.38
92
 Engine Case for Chainsaw Hitachi Tanaka CS33EB 6685307 Engine Case for Chainsaw Hitachi Tanaka CS33EB €54.84
94
 Air Vent Valve for Chainsaw Hitachi CS33EB-CS33EDT-CS40EA 6685370 Air Vent Valve for Chainsaw Hitachi CS33EB-CS33EDT-CS40EA €4.82
95
 Air Vent Sponge for Chainsaw Hitachi CS33EB-CS33EDT-CS40EA 6685371 Air Vent Sponge for Chainsaw Hitachi CS33EB-CS33EDT-CS40EA €3.60
96A
 Petrol-Oil Tank Cap Packing for Chainsaw Hitachi CS33EDT 6685179 Petrol-Oil Tank Cap Packing for Chainsaw Hitachi CS33EDT €2.38 Not available for order
97B
 Oil Tank Cap for Chainsaws Hitachi CS33EDT-40EA-51EAP 6698358 Oil Tank Cap for Chainsaws Hitachi CS33EDT-40EA-51EAP €6.04
97A
 Petrol Tank Cap for Chainsaws Hitachi CS33EDT-40EA-51EAP 6698854 Petrol Tank Cap for Chainsaws Hitachi CS33EDT-40EA-51EAP €6.04
97A
 photo_cameraImage coming soon 6698855 FUEL TANK CAP ASS'Y (GREEN) €7.26
98
 Needle Roller mm 3 for Chainsaw Hitachi Tanaka CS40EA 6685391 Needle Roller mm 3 for Chainsaw Hitachi Tanaka CS40EA €2.38
124A
 Muffler Gasket for Chainsaw Hitachi CS33EB 6699413 Muffler Gasket for Chainsaw Hitachi CS33EB €7.26
126
 Muffler Packing for Chainsaw Hitachi Tanaka CS33EB 6685346 Muffler Packing for Chainsaw Hitachi Tanaka CS33EB €7.26
127
 Cleaner Cover for Chainsaw Hitachi Tanaka CS33EB 6685382 Cleaner Cover for Chainsaw Hitachi Tanaka CS33EB €12.14
128A
 Filter Knob for Chainsaw Hitachi CS 33EB 6696849 Filter Knob for Chainsaw Hitachi CS 33EB €2.38
129A
 photo_cameraImage coming soon 6696846 THROTTLE ROD €2.38
130A
 photo_cameraImage coming soon 6698805 REAR HANDLE GRIP €2.38
131
 photo_cameraImage coming soon 6685350 TRIGGER LOCKOUT (VERMILION) €2.38
133
 photo_cameraImage coming soon 6685282 SPRING PIN 5X25 €1.16
134
 photo_cameraImage coming soon 6685348 THROTTLE LEVER €2.38
135A
 photo_cameraImage coming soon 6685351 INNER CAP €9.70
136
 photo_cameraImage coming soon 6685347 REAR HANDLE €42.64
136A
 photo_cameraImage coming soon 6698685 REAR HANDLE €37.76
137A
 photo_cameraImage coming soon 6698997 FRONT HANDLE €19.46
138
 Cleaner Element for Chainsaw Hitachi CS33EB 6685378 Cleaner Element for Chainsaw Hitachi CS33EB €19.46
139
 photo_cameraImage coming soon 6685381 SHUTTER PLATE €2.38
140
 photo_cameraImage coming soon 6685377 CYLINDER COVER €17.02
140A
 Cylinder Cover for Chainsaw Hitachi Tanaka CS33EB 6698687 Cylinder Cover for Chainsaw Hitachi Tanaka CS33EB €23.12
143
 photo_cameraImage coming soon 6685374 BRAKE LEVER SPRING €2.38
144
 photo_cameraImage coming soon 6685356 NEEDLE ROLLER 2.5X19.8 €2.38
145A
 Oil Pump Case for Chainsaw Hitachi Tanaka CS33EB 6699118 Oil Pump Case for Chainsaw Hitachi Tanaka CS33EB €20.68
146
 Oil Pump Gear Spring for Chainsaw Hitachi Tanaka CS33EA-CS33EDT 6685355 Oil Pump Gear Spring for Chainsaw Hitachi Tanaka CS33EA-CS33EDT €2.38
147
 Oil Pump Gear for Chainsaw Hitachi Tanaka CS33EA-EB-EDT 6685354 Oil Pump Gear for Chainsaw Hitachi Tanaka CS33EA-EB-EDT €12.14
149
 Oil Pump Cover for Chainsaw Hitachi CS33EB 6685359 Oil Pump Cover for Chainsaw Hitachi CS33EB €4.82
150
 Oil Pipe Joint for Chainsaw Hitachi Tanaka CS33EB 6685358 Oil Pipe Joint for Chainsaw Hitachi Tanaka CS33EB €2.38
151A
 photo_cameraImage coming soon 6600345 AIR DEFLECTOR €1.16
160B
 Recoil Starter for Chainsaws Hitachi CS33EB 6696847 Recoil Starter for Chainsaws Hitachi CS33EB €47.52
164A
 photo_cameraImage coming soon 6697846 RETURN GROMMET €2.38
166
 Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka 6685139 Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka €13.36
167
 photo_cameraImage coming soon 6698847 INTAKE SPACER €21.90
168
 Fuel Tank Grommet for Brushcutter Hitachi CG22EAS 6685308 Fuel Tank Grommet for Brushcutter Hitachi CG22EAS €2.38
177
 Cam Plate for Chainsaw Hitachi Tanaka CS33EDT 6699478 Cam Plate for Chainsaw Hitachi Tanaka CS33EDT €21.90
178
 Damper Spring for Chainsaw Hitachi Tanaka CS 33EB 6699479 Damper Spring for Chainsaw Hitachi Tanaka CS 33EB €8.48
183
 photo_cameraImage coming soon 6699473 STARTER HANDLE ASS'Y €6.04
184
 Fan Case for Chainsaw Hitachi CS 33EB 6699486 Fan Case for Chainsaw Hitachi CS 33EB €20.68
184A
 photo_cameraImage coming soon 6699494 FAN CASE €18.24
186
 Muffler Set for Chainsaw Tanaka TCS 33EB 6699407 Muffler Set for Chainsaw Tanaka TCS 33EB €31.66
186
 photo_cameraImage coming soon 6699408 MUFFLER SET (REPAIR) €20.68
Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

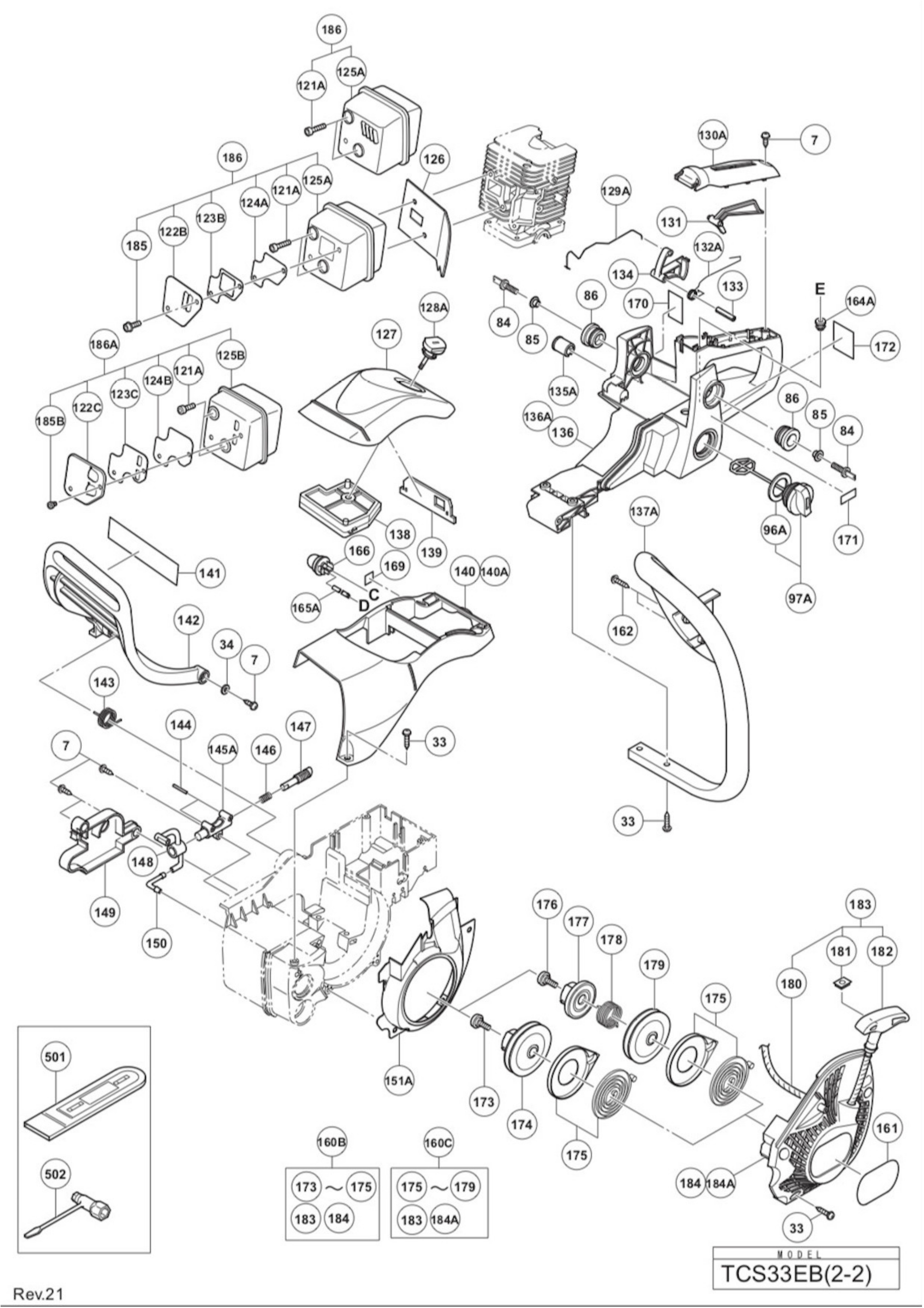

Esploso pagina 2
Pos. Item Price Buy
97A
 Petrol Tank Cap for Chainsaws Hitachi CS33EDT-40EA-51EAP 6698854 Petrol Tank Cap for Chainsaws Hitachi CS33EDT-40EA-51EAP €6.04
97A
 photo_cameraImage coming soon 6698855 FUEL TANK CAP ASS'Y (GREEN) €7.26
124A
 Muffler Gasket for Chainsaw Hitachi CS33EB 6699413 Muffler Gasket for Chainsaw Hitachi CS33EB €7.26
126
 Muffler Packing for Chainsaw Hitachi Tanaka CS33EB 6685346 Muffler Packing for Chainsaw Hitachi Tanaka CS33EB €7.26
127
 Cleaner Cover for Chainsaw Hitachi Tanaka CS33EB 6685382 Cleaner Cover for Chainsaw Hitachi Tanaka CS33EB €12.14
128A
 Filter Knob for Chainsaw Hitachi CS 33EB 6696849 Filter Knob for Chainsaw Hitachi CS 33EB €2.38
129A
 photo_cameraImage coming soon 6696846 THROTTLE ROD €2.38
130A
 photo_cameraImage coming soon 6698805 REAR HANDLE GRIP €2.38
131
 photo_cameraImage coming soon 6685350 TRIGGER LOCKOUT (VERMILION) €2.38
133
 photo_cameraImage coming soon 6685282 SPRING PIN 5X25 €1.16
134
 photo_cameraImage coming soon 6685348 THROTTLE LEVER €2.38
135A
 photo_cameraImage coming soon 6685351 INNER CAP €9.70
136
 photo_cameraImage coming soon 6685347 REAR HANDLE €42.64
136A
 photo_cameraImage coming soon 6698685 REAR HANDLE €37.76
137A
 photo_cameraImage coming soon 6698997 FRONT HANDLE €19.46
138
 Cleaner Element for Chainsaw Hitachi CS33EB 6685378 Cleaner Element for Chainsaw Hitachi CS33EB €19.46
139
 photo_cameraImage coming soon 6685381 SHUTTER PLATE €2.38
140
 photo_cameraImage coming soon 6685377 CYLINDER COVER €17.02
140A
 Cylinder Cover for Chainsaw Hitachi Tanaka CS33EB 6698687 Cylinder Cover for Chainsaw Hitachi Tanaka CS33EB €23.12
143
 photo_cameraImage coming soon 6685374 BRAKE LEVER SPRING €2.38
144
 photo_cameraImage coming soon 6685356 NEEDLE ROLLER 2.5X19.8 €2.38
145A
 Oil Pump Case for Chainsaw Hitachi Tanaka CS33EB 6699118 Oil Pump Case for Chainsaw Hitachi Tanaka CS33EB €20.68
146
 Oil Pump Gear Spring for Chainsaw Hitachi Tanaka CS33EA-CS33EDT 6685355 Oil Pump Gear Spring for Chainsaw Hitachi Tanaka CS33EA-CS33EDT €2.38
147
 Oil Pump Gear for Chainsaw Hitachi Tanaka CS33EA-EB-EDT 6685354 Oil Pump Gear for Chainsaw Hitachi Tanaka CS33EA-EB-EDT €12.14
149
 Oil Pump Cover for Chainsaw Hitachi CS33EB 6685359 Oil Pump Cover for Chainsaw Hitachi CS33EB €4.82
150
 Oil Pipe Joint for Chainsaw Hitachi Tanaka CS33EB 6685358 Oil Pipe Joint for Chainsaw Hitachi Tanaka CS33EB €2.38
160B
 Recoil Starter for Chainsaws Hitachi CS33EB 6696847 Recoil Starter for Chainsaws Hitachi CS33EB €47.52
164A
 photo_cameraImage coming soon 6697846 RETURN GROMMET €2.38
166
 Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka 6685139 Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka €13.36
177
 Cam Plate for Chainsaw Hitachi Tanaka CS33EDT 6699478 Cam Plate for Chainsaw Hitachi Tanaka CS33EDT €21.90
178
 Damper Spring for Chainsaw Hitachi Tanaka CS 33EB 6699479 Damper Spring for Chainsaw Hitachi Tanaka CS 33EB €8.48
183
 photo_cameraImage coming soon 6699473 STARTER HANDLE ASS'Y €6.04
184
 Fan Case for Chainsaw Hitachi CS 33EB 6699486 Fan Case for Chainsaw Hitachi CS 33EB €20.68
184A
 photo_cameraImage coming soon 6699494 FAN CASE €18.24
186
 Muffler Set for Chainsaw Tanaka TCS 33EB 6699407 Muffler Set for Chainsaw Tanaka TCS 33EB €31.66
186
 photo_cameraImage coming soon 6699408 MUFFLER SET (REPAIR) €20.68
501
 photo_cameraImage coming soon 6685401 CHAIN COVER 12" €7.26
501
 photo_cameraImage coming soon 6685439 CHAIN BAR COVER 35 CM €9.70
501
 photo_cameraImage coming soon 6685440 CHAIN COVER 16" €9.70
Page 3 local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
602
 photo_cameraImage coming soon 6696329 SPIKE SET €21.90

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Tanaka Spare Parts for Engine Chain Saw TCS 33EB

Tanaka Original spare parts at attractive prices never seen on the web, we are a licensed service center with a repair service able to quickly solve the maintenance or repair any issues for Engine Chain Saw TCS 33EB.

In the following table, look for the model of the Chain Saw and the respective parts of the code.
Tanaka TCS 33EB

Engine Chain Saw Tanaka TCS 33EB Pag.1
# Part Num. Description
1 6685416 CHAIN BAR CLAMP NUT
2 6696331 NAME PLATE
2 6696332 NAME PLATE
3 6685406 SIDE COVER SUB
4 6685387 BRAKE SUPPORT
5 6685388 BRAKE LINK
6 6685392 BRAKE LINK COVER
7 305812 TAPPING SCREW (W/FLANGE) D4X16 (BLACK)
8 6685389 BRAKE SPRING
9 6685362 CLUTCH
10 6685403 CLUTCH HOUSING
11 6685361 NEEDLE BEARING (D)
12 6685414 CLUTCH WASHER
13 6685360 CRANK SHAFT COLLAR
14 6685390 BRAKE BAND
15 6685415 TAPPING SCREW D3X8
16B 6698986 CHAIN PULLER
17A 6685394 GUIDE PLATE
18A 6697852 SAW CHAIN (3/8X12") 91PX-45XJ
18A 6697854 SAW CHAIN (3/8X14") 91PX-52XJ
18A 6697889 SAW CHAIN (3/8X16") 91PX-57XJ
19 6685259 BAR 12 INCH
19 6685261 BAR 14 INCH
19 6685395 BAR 16 INCH
19A 6696993 CHAIN BAR 12 INCH 3/8 SPROCKET PRC
19A 6696994 CHAIN BAR 14 INCH 3/8 SPROCKET PRC
20 6685405 CYLINDER (B)
20 6685404 CYLINDER (A)
21A 6699319 SPARK PLUG ASS'Y BPMR6A
21A 6699317 SPARK PLUG ASS'Y BPM6A
22 6685317 COVER PACKING (B)
23 6685315 SCAVENGING COVER (B)
24 6696315 SEAL LOCK HEX. SOCKET HD. BOLT M4X8
25 6685318 INTAKE PACKING
26A 6698897 INTAKE (A)
27A 6696860 SEAL LOCK HEX. SOCKET HD. BOLT M4X10
28A 6698898 CARBURETOR INSULATOR (A)
29 6696316 O-RING
30 6685321 PULSE GUIDE
31A 6685437 CARBURETOR (C) WLB-3
31B 6698683 CARBURETOR ASS'Y (E) WLB-5A
32A 6696843 CLEANER SUPPORT
33 302089 TAPPING SCREW (W/FLANGE) D5X20 (BLACK)
34 6685408 WASHER 5
34 6685408 WASHER 5
35 6696317 HEX. SOCKET HD. BOLT M5X45
36 6699731 IDLE ADJUSTING SCREW
36A 6696318 IDLE ADJUSTING SCREW
37A 6696319 PASSAGE GASKET
38A 6696320 PASSAGE PLATE
39A 6684692 PUMP GASKET
40 6699645 PUMP BODY
40A 6696322 PUMP BODY
41A 6691305 HINGE PIN SET SCREW
42 6696323 METERING LEVER SPRING
43 6685217 CONTROL LEVER
44 6684690 METERING DIAPHRAGM
45 6685220 DIAPHRAGM PACKING-METERING
46 6685222 DIAPHRAGM COVER-METERING
47A 6684699 SET SCREW
48A 6684693 PUMP DIAPHRAGM
49 6684700 INLET SCREEN
50 6685215 NEEDLE VALVE
51 6685219 HINGE PIN
52A 6698700 GLASS WASHER
53B 6699989 IGNITION COIL
54 6696326 HEX. SOCKET HD. BOLT (W/FLANGE) M4X18
55A 6699991 CORD
56A 6685331 PISTON RING (XR1-1856)
57 6685326 CIRCLIP
58 6685325 PISTON
58 6696313 PISTON
59 6685327 PISTON PIN
60 6685316 COVER PACKING (A)
61 6685314 SCAVENGING COVER (A)
62 6685396 CRANK WORM ASS'Y
63 6685330 WORM
64 6685329 OIL SEAL
65 6685328 BALL BEARING
66 6685324 CRANK SHAFT
67A 6699993 MAGNETO SUB ASS'Y
68 6685336 RETAINING RING D4
69B 6699990 MAGNETO ROTOR
70 6685335 STARTER PAWL SPRING
71 6685334 STARTER PAWL
72 6685410 BOLT WASHER D8
73 6685337 FLYWHEEL NUT
74 6685311 CLIP
75A 6698715 FUEL PIPE
75B 6698998 FUEL PIPE
76 6685308 FUEL GROMMET (A)
77A 6600351 PUMP FILTER
78 6685339 CRANK CASE
79 6685412 SEAL LOCK HEX. SOCKET HD. BOLT M5
80 6685313 DAMPER (B)
81 6685407 BOLT WASHER D5
82 6685249 OIL FILTER BODY ASS'Y
83 6685310 OIL FILTER BODY
84 6685413 DAMPER SET BOLT
85 696314 DISTANCE PIECE (B)
86 6696327 DAMPER (A)
87 6685363 CHAIN CATCHER
88B 6696329 SPIKE SET
89 6685369 CHOKE ROD RUBBER
90 6685368 CHOKE BUTTON
91A 6601275 STOP SWITCH
92 6685307 ENGINE CASE
93 6685365 CORD (A)
94 6685370 AIR VENT VALVE (B)
95 6685371 AIR VENT SPONGE
96A 6685179 TANK CAP PACKING
97A 6698854 FUEL TANK CAP ASS'Y (VERMILION)
97A 6698855 FUEL TANK CAP ASS'Y (GREEN)
97B 6698358 FUEL TANK CAP ASS'Y (BLACK)
98 6685391 NEEDLE ROLLER D3
99 949454 SPRING WASHER M5 (10 PCS.)
100B 6601421 PLUG CAP
101 6699186 PLUG CAP METAL
121A 6699415 SEAL LOCK HEX. SOCKET HD. BOLT M5X16
122B 6699412 EXHAUST PIPE (B)
122C 6601472 EXHAUST PIPE (C)
123B 6699414 GAUZE FIXING PLATE (B)
123C 6601473 GAUZE FIXING PLATE (C)
124A 6699413 MUFFLER GAUZE (B)
124B 6601474 MUFFLER GAUZE (C)
125A 6699411 MUFFLER (B)
125B 6601471 MUFFLER (C)
126 6685346 MUFFLER PACKING
127 6685382 CLEANER COVER
128A 6696849 CLEANER KNOB
129A 6696846 THROTTLE ROD
130A 6698805 REAR HANDLE GRIP
131 6685350 TRIGGER LOCKOUT (VERMILION)
132A 6600341 THROTTLE LEVER SPRING
133 6685282 SPRING PIN 5X25
134 6685348 THROTTLE LEVER
135A 6685351 INNER CAP
136 6685347 REAR HANDLE
136A 6698685 REAR HANDLE
137A 6698997 FRONT HANDLE
138 6685378 CLEANER ELEMENT
139 6685381 SHUTTER PLATE
140 6685376 CYLINDER COVER
140 6685377 CYLINDER COVER
140A 6698687 CYLINDER COVER
140A 6699001 CYLINDER COVER
141 6696335 CAUTION LABEL (D)
141 6696336 CAUTION LABEL (E)
142 6685373 BRAKE HANDLE
143 6685374 BRAKE LEVER SPRING
144 6685356 NEEDLE ROLLER 2.5X19.8
145A 6699118 PUMP CASE
146 6685355 PUMP GEAR SPRING
147 6685354 PUMP GEAR
148 6685357 OIL PIPE
149 6685359 PUMP COVER
150 6685358 PIPE JOINT
151A 6600345 AIR DEFLECTOR
152 6698931 FUEL GROMMET
160B 6696847 RECOIL STARTER
160C 6698684 RECOIL STARTER (C)
161 6696339 TANAKA LABEL
161 6696340 TANAKA LABEL
162 305558 TAPPING SCREW (W/FLANGE) D5X25 (BLACK)
163A 6601442 FUEL PIPE
164A 6697846 RETURN GROMMET
165A 6601459 FUEL PIPE
166 6685139 PRIMING PUMP COMP.
167 6698847 INTAKE SPACER
168 6685308 FUEL GROMMET (A)
169 6699000 PRIMER LABEL
170 6698923 CAUTION LABEL (L)
171 6698921 TANK MARK LABEL (50:1)
171 6698922 TANK MARK LABEL (25:1)
172 6698999 START LABEL
173 6699475 SET SCREW
174 6699481 REEL
175 6699480 SPIRAL SPRING CASE
176 6699476 SET SCREW
177 6699478 CAM PLATE - DISCONTINUED
178 6699479 DAMPER SPRING
179 6699485 REEL
180 6699468 STARTER ROPE
180 6699469 STARTER ROPE
181 6699465 ROPE STOPPER
182 6699467 STARTER KNOB
183 6699471 STARTER HANDLE ASS'Y
183 6699473 STARTER HANDLE ASS'Y
184 6699486 FAN CASE
184A 6699494 FAN CASE
185 329983 HEX. SOCKET HD. BOLT (W/FLANGE) M4X10
185B 370899 HEX.SOCKET BOLT M4X6
186 6699407 MUFFLER SET (REPAIR) TO YEAR 2013
186 6699408 MUFFLER SET (REPAIR)
186A 6601475 EXHAUST (C) ASS'Y
187A 6600344 IGNITION COIL + FLYWHEEL SET
188 6600343 CORD INSULATION TUBE
STANDARD ACCESSORIES Pag.2
501 6685401 CHAIN COVER 12"
501 6685439 CHAIN COVER 14"
501 6685440 CHAIN COVER 16"
502 6685402 COMBI BOX SPANNER 10/19MM
OPTIONAL ACCESSORIES Pag.3
601 6696995 CHAIN BAR 16 INCH 3/8 SPROCKET PRC
601A 6696993 CHAIN BAR 12 INCH 3/8 SPROCKET PRC
601A 6696994 CHAIN BAR 14 INCH 3/8 SPROCKET PRC
602 6696329 SPIKE SET
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Tanaka websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Tanaka brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Tanaka TCS 33EB
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Tanaka TCS 33EB

Diagram Tanaka TCS 33EB

Download (1.17MB)

You might also like

Starter Pawl for Chainsaw Hitachi Tanaka CS33EDT-EB
HiKOKI Power Tools Italia S.p.a. SKU: 6685334
Starter Pawl for Chainsaw Hitachi Tanaka CS33EDT-EB
Starter Pawl for Chainsaw Hitachi Tanaka CS33EDT-EB Genuine spare parts Hitachi Tanaka, Starter Pawl for Chainsaws CS30EG(S) - CS33EG(S) - CS33EA - CS33EB - CS33EDP - CS33EDT - CS33EDTP Part...
Last items in stock €2.38
Details
Clutch Needle Bearing for Chain Saws Hitachi CS33EB-EDT
HiKOKI Power Tools Italia S.p.a. SKU: 6685361
Clutch Needle Bearing for Chain Saws Hitachi CS33EB-EDT
Clutch Needle Bearing for Chain Saws Hitachi CS33EB-EDT Hitachi-HIKOKI Tanaka genuine part, Clutch Needle Bearing for pruning  Hitachi Garden Tanaka Chainsaws CS33EB - CS33EDT. Part for the following products: - Chainsaw CS33EDT -...
AVAILABLE €10.92
Details
Intake Manifold for Chainsaw Hitachi Tanaka CS33EB
HiKOKI Power Tools Italia S.p.a. SKU: 6698897
Intake Manifold for Chainsaw Hitachi Tanaka CS33EB
Intake Manifold for Chainsaw Hitachi Tanaka CS33EB Original spare part Hitachi Koky Tanaka, Carburator Intake Manifold for Pruning Chainsaw CS33EB. Part for the following products: -  Chainsaw Hitachi CS33EB...
Last items in stock €17.02
Details
Piston for Chainsaw Hitachi Tanaka CS33EB
HiKOKI Power Tools Italia S.p.a. SKU: 6696313
Piston for Chainsaw Hitachi Tanaka CS33EB
Piston for Chainsaw Hitachi Tanaka CS33EB Original spare part Hitachi Koky Tanaka, Piston for Chainsaw Hitachi Tanaka CS33EB. Part for the followinf products: -  Chainsaw HITACHI CS33EB -  Chainsaw TANAKA TCS33EB - Code: 6696313
on 7/10 Business Days Approx €23.12
Details
Piston Ring for Chainsaw Hitachi Tanaka CS33EB
HiKOKI Power Tools Italia S.p.a. SKU: 6685331
Piston Ring for Chainsaw Hitachi Tanaka CS33EB
Piston Ring for Chainsaw Hitachi Tanaka CS33EB Original spare part for Chainsaw Hitachi Koky Tanaka, Piston Ring for Pruning Chainsaw CS33EB. Parts for the following products: - PRUNING CHAINSAW CS33EDT - CHAINSAW CS 33EB -...
AVAILABLE €10.92
Details
Oil Pipe Joint for Chainsaw Hitachi Tanaka CS33EB Sale
HiKOKI Power Tools Italia S.p.a. SKU: 6685358
Oil Pipe Joint for Chainsaw Hitachi Tanaka CS33EB
Oil Pipe Joint for Chainsaw Hitachi Tanaka CS33EB Original spare parts for Chainsaw Hitachi Koky Tanaka, 90° oil cooling chain pump pipe Joint for chainsaw CS33EB - CS33EDT. - Tanaka Code: 6685358
AVAILABLE €2.38
Details
Air Vent Sponge for Chainsaw Hitachi CS33EB-CS33EDT-CS40EA
HiKOKI Power Tools Italia S.p.a. SKU: 6685371
Air Vent Sponge for Chainsaw Hitachi CS33EB-CS33EDT-CS40EA
Air Vent Sponge for Chainsaw Hitachi CS33EB-CS33EDT-CS40EA Original parts for Chainsaw Hitachi Koky Tanaka, Air Vent Sponge for Chain saws CS33EB - CS33EDT - CS40EA - CS51EAP. Parts for the following products: - CHAIN SAW FOR PRUNING...
AVAILABLE €3.60
Details
Air Vent Valve for Chainsaw Hitachi CS33EB-CS33EDT-CS40EA
HiKOKI Power Tools Italia S.p.a. SKU: 6685370
Air Vent Valve for Chainsaw Hitachi CS33EB-CS33EDT-CS40EA
Air Vent Valve for Chainsaw Hitachi CS33EB-CS33EDT-CS40EA Original parts for Chainsaw Hitachi Koky Tanaka, Air Vent Valve for Chain saws CS33EB - CS33EDT - CS40EA - CS51EAP. Parts for the following products: - CHAIN SAW FOR PRUNING...
Last items in stock €4.82
Details
Oil Tank Cap for Chainsaws Hitachi CS33EDT-40EA-51EAP
HiKOKI Power Tools Italia S.p.a. SKU: 6698358
Oil Tank Cap for Chainsaws Hitachi CS33EDT-40EA-51EAP
Oil Tank Cap for Chainsaws Hitachi CS33EDT-40EA-51EAP Original part for Chainsaw Hitachi Koky Tanaka, Oil Tank Cap Ass'y for Chainsaws, CS 33EDT - CS 33EB - CS 40EA - CS 51EAP. Parts for the following products: - Motosega Hitachi...
Last items in stock €6.04
Details
Cylinder Cover for Chainsaw Hitachi Tanaka CS33EB
HiKOKI Power Tools Italia S.p.a. SKU: 6698687
Cylinder Cover for Chainsaw Hitachi Tanaka CS33EB
Cylinder Cover for Chainsaw Hitachi Tanaka CS33EB Original spare part for Chainsaw Hitachi Koky Tanaka, Cylinder Cover for Chainsaw CS33EB. Part for the following article: - Chainsaw Hitachi CS33EB - Code: 6698687
AVAILABLE €23.12
Details
Oil Filter Body Ass’y for Chainsaw Tanaka TCS-2800S
HiKOKI Power Tools Italia S.p.a. SKU: 6685249
Oil Filter Body Ass’y for Chainsaw Tanaka TCS-2800S
Oil Filter Body Ass’y for Chainsaw Tanaka TCS-2800S Genuine spare parts Tanaka, Oil Filter Body Ass’y for Chainsaws TCS-2800S - TCS-2801S - TCS-3301S - Hitachi CS25EC-SC - EU...
on 7/10 Business Days Approx €7.26
Details
Recoil Starter for Chainsaws Hitachi CS33EB
HiKOKI Power Tools Italia S.p.a. SKU: 6696847
Recoil Starter for Chainsaws Hitachi CS33EB
Recoil Starter for Chainsaws Hitachi CS33EB Hitachi genuine parts, Recoil Starter for Chainsaws Hitachi CS33EB. Parts for the following products: -  Chainsaw Hitachi CS33EB -  Chainsaw Tanaka TCS 33EB -...
Last items in stock €47.52
Details
Switch for Brushcutter Hitachi Tanaka CG24EASP
HiKOKI Power Tools Italia S.p.a. SKU: 6696940
Switch for Brushcutter Hitachi Tanaka CG24EASP
Switch for Brushcutter Hitachi Tanaka CG24EASP Genuine spare part for Hitachi Koky Tanaka, Switch for Brushcutters CG25EUS - CG24EASP - CG24EACP - CG27EASP - CG22EAS. Part for the following products: - Brushcutter Hitachi CG25EUS -...
AVAILABLE €9.70
Details
Pulse Guide for Chainsaw Hitachi Tanaka CS33EB
HiKOKI Power Tools Italia S.p.a. SKU: 6685321
Pulse Guide for Chainsaw Hitachi Tanaka CS33EB
Pulse Guide for Chainsaw Hitachi Tanaka CS33EB Original replacement part Hitachi Koky Tanaka, Pulse Guide for Chainsaws CS33EB - Tanaka TCS 33EB. Part for the following products: - ...
AVAILABLE €2.38
Details
Carburator Needle Valve for Chainsaws Hitachi-HiKoki Tanaka
HiKOKI Power Tools Italia S.p.a. SKU: 6685215
Carburator Needle Valve for Chainsaws Hitachi-HiKoki Tanaka
Carburator Needle Valve for Chainsaws Hitachi-HiKoki Tanaka Original part Hitachi-HiKoki Tanaka, Carburator Needle Valve for Chainsaws and Brushcutters Hitachi-HiKoki Tanaka. Part for the following products: - Chainsaw ECS 3301D -...
AVAILABLE €10.92
Details
Engine Case for Chainsaw Hitachi Tanaka CS33EB
HiKOKI Power Tools Italia S.p.a. SKU: 6685307
Engine Case for Chainsaw Hitachi Tanaka CS33EB
Engine Case for Chainsaw Hitachi Tanaka CS33EB Original spare part Hitachi-HIKOKI Tanaka, Engine Case for Chainsaw CS33EB - Tanaka TCS 33EB. Part for the following products: -  Chainsaw Hitachi CS33EB...
Last items in stock €54.84
Details
Cleaner Element for Chainsaw Hitachi CS33EB
HiKOKI Power Tools Italia S.p.a. SKU: 6685378
Cleaner Element for Chainsaw Hitachi CS33EB
Cleaner Element for Chainsaw Hitachi CS33EB Original replacement part Hitachi HiKoki Tanaka, Cleaner Element for Chainsaws CS33EB - Tanaka TCS33EB Part for the following products: -  Chainsaw Hitachi...
Usually Ships in: 7/10 Business Days Approx. €19.46
Details
Passage Gasket for Chainsaw Hitachi CS33EB Sale
HiKOKI Power Tools Italia S.p.a. SKU: 6696319
Passage Gasket for Chainsaw Hitachi CS33EB
Passage Gasket for Chainsaw Hitachi CS33EB Original spare part Hitachi-HIKOKI Tanaka, Passage Gasket for Chainsaw CS33EB - Tanaka TCS 33EB. Part for the following products: -  Chainsaw Hitachi CS33EB -  Chainsaw Tanaka TCS 33EB  -...
on 7/10 Business Days Approx €20.68
Details
Hex Socket HD Bolt M4x18 for Chainsaw Tanaka TCS-40EA
HiKOKI Power Tools Italia S.p.a. SKU: 6696326
Hex Socket HD Bolt M4x18 for Chainsaw Tanaka TCS-40EA
Hex Socket HD Bolt (W/Flange) M4x18 for  Chainsaw  Tanaka TCS-40EA Original parts Hitachi Koky Tanaka, Hex Socket HD Bolt (W/Flange) M4x18 for Chainsaws TCS-40EA - TCS 33ED - TCS33EDT. Parts for the following products: -  Chainsaw...
on 7/10 Business Days Approx €2.38
Details
Muffler Set for Chainsaw Tanaka TCS 33EB
HiKOKI Power Tools Italia S.p.a. SKU: 6699407
Muffler Set for Chainsaw Tanaka TCS 33EB
Muffler Set for Chainsaw Tanaka TCS 33EB Original spare part Hitachi-HIKOKI Tanaka, Muffler Set for Chainsaws CS33EB - Tanaka TCS 33EB. Part for the following products: -  Chainsaw Hitachi CS33EB -  Chainsaw Tanaka TCS 33EB  - Code:...
Last items in stock €31.66
Details
Ignition Coil for Chainsaw Tanaka TCS 33EB
HiKOKI Power Tools Italia S.p.a. SKU: 6699989
Ignition Coil for Chainsaw Tanaka TCS 33EB
Ignition Coil for Chainsaw Tanaka TCS 33EB Original spare part Hitachi-HIKOKI Tanaka, Ignition Coil for Chainsaw Tanaka TCS 33EB. Part for the following products: -  Chainsaw Tanaka TCS 33EB ...
Out-of-Stock €34.10
Details
Hex Hole Bolt M5x30S for Chainsaw Hitachi CS33EB
HiKOKI Power Tools Italia S.p.a. SKU: 6685412
Hex Hole Bolt M5x30S for Chainsaw Hitachi CS33EB
Hex Hole Bolt M5x30S for Chainsaw Hitachi CS33EB Original spare part Hitachi-HIKOKI Tanaka, Hex Hole HD Bolt M5x30S for Chainsaws CS33EB - CS40EA - CS51EAP. Parts for the...
AVAILABLE €2.38
Details
Hitachi CS33EB Motor Assembly
HiKOKI Power Tools Italia S.p.a. SKU: CS33EB-ENGINE
Hitachi CS33EB Motor Assembly
Hitachi CS33EB Motor Assembly Original spare part Hitachi-HIKOKI Tanaka, Motor Assembly for Chainsaw CS33EB - Tanaka TCS 33EB. Part for the following products: -  Chainsaw Hitachi CS33EB -  Chainsaw...
Last items in stock €280.54
Details
Hitachi CS33EB Cleaner Support
HiKOKI Power Tools Italia S.p.a. SKU: 6696843
Hitachi CS33EB Cleaner Support
Hitachi CS33EB Cleaner Support Original replacement part Hitachi HIKOKI Tanaka, Cleaner Support for Chainsaws CS33EB - Tanaka TCS 33EB. Part for the following products: -  Chainsaw Hitachi...
Last items in stock €8.48
Details
Hitachi CS33EB Carburator Ass'y (E) WLB-5A
HiKOKI Power Tools Italia S.p.a. SKU: 6698683
Hitachi CS33EB Carburator Ass'y (E) WLB-5A
Hitachi CS33EB Carburator Ass'y (E) WLB-5A Original spare part Hitachi Koky Tanaka, Carburator Ass'y (E) WLB-5A for Pruning Chainsaw CS33EB. Part for the following products: -  Chainsaw Hitachi...
Last items in stock €121.94
Details
Comments (0)
