Tanaka genuine spare parts or replacement parts for to repair Engine Brushcutter TANAKA TCG 27EASP.

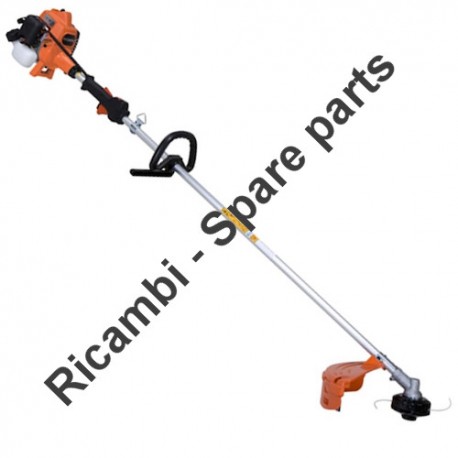

Fix Your Tanaka Engine Brushcutter TCG 27EASP. All Spares are Available at best and Cheapest and Discounted Prices. Our spare parts are original and come with a full Guarantee.
Tanaka genuine spare parts or replacement parts for to repair Engine Brushcutter TANAKA TCG 27EASP.
Fix Your Tanaka Engine Brushcutter TCG 27EASP. All Spares are Available at best and Cheapest and Discounted Prices. Our spare parts are original and come with a full Guarantee.

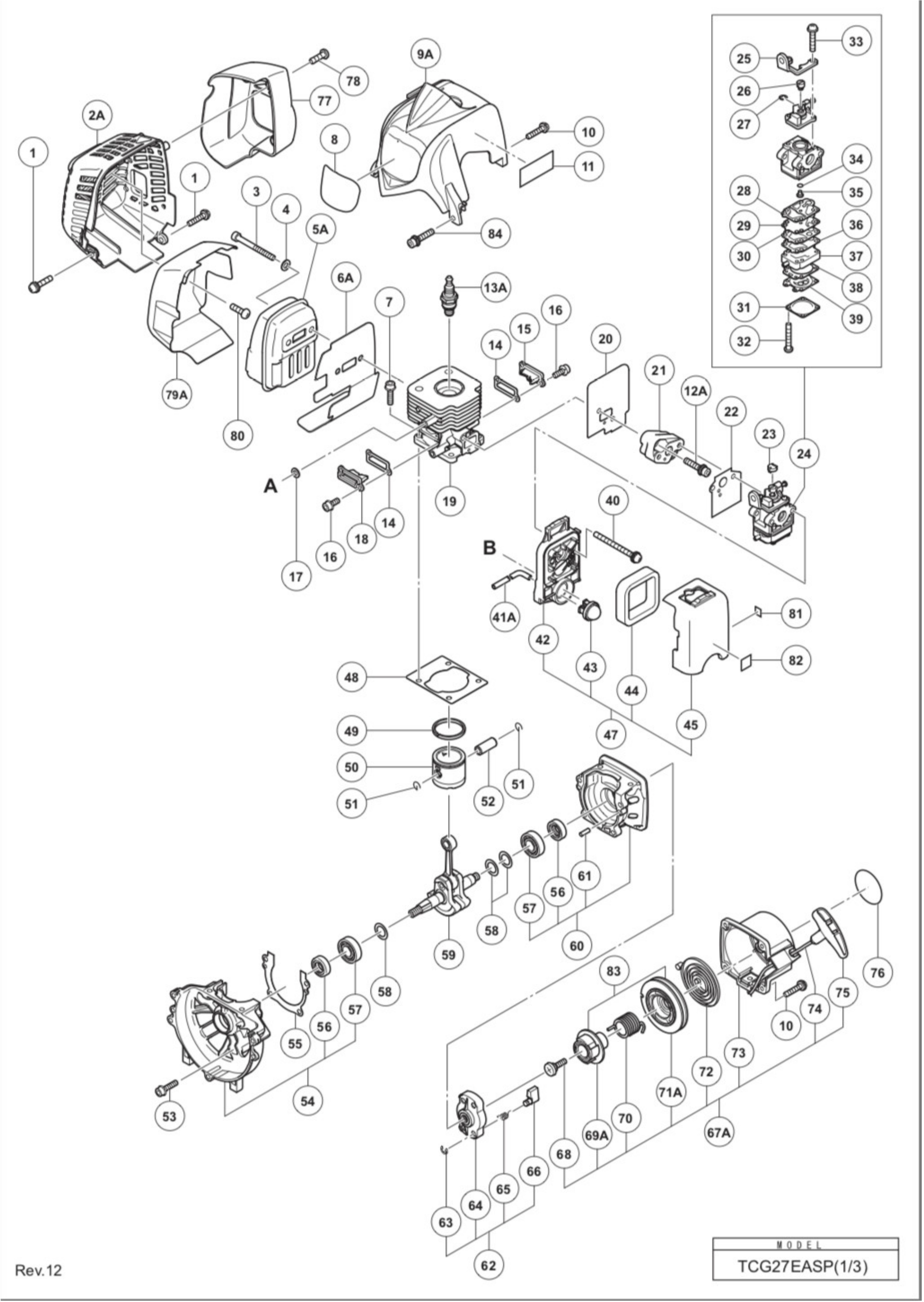

| Pos. | Item | Price | Buy | |
|---|---|---|---|---|
|
1
|
photo_cameraImage coming soon | 887021 SCREW (W/WASHERS) M5X16 (BLACK) | €0.00 | Not available for order |
|
2A
|
photo_cameraImage coming soon | 6600336 MUFFLER COVER | €12.14 | |
|
3
|
photo_cameraImage coming soon | 6698384 HEX. SOCKET HD. BOLT M6X65 | €2.38 | |
|
4
|
photo_cameraImage coming soon | 949432 BOLT WASHER M6 (10 PCS.) | €0.00 | Not available for order |
|
5A
|
photo_cameraImage coming soon | 6600004 MUFFLER (B) | €57.28 | |
|
6A
|
photo_cameraImage coming soon | 6600324 HEAT PROTECTION PANEL | €3.60 | |
|
7
|
photo_cameraImage coming soon | 6696958 HEX. SOCKET BOLT M5X20 | €3.60 | |
|
8
|
photo_cameraImage coming soon | 6696339 TANAKA LABEL | €0.00 | Not available for order |
|
8
|
photo_cameraImage coming soon | 6696340 TANAKA LABEL | €0.00 | Not available for order |
|
9A
|
photo_cameraImage coming soon | 6697921 CYLINDER COVER | €0.00 | Not available for order |
|
10
|
photo_cameraImage coming soon | 307606 MACHINE SCREW (W/WASHERS) M4X20 (BLACK) | €0.00 | Not available for order |
|
12A
|
photo_cameraImage coming soon | 6698844 SEAL LOCK HEX. SOCKET BOLT (W/WASHERS)M5 | €2.38 | |
|
13A
|
photo_cameraImage coming soon | 6699316 SPARK PLUG ASS'Y BMR7A | €4.82 | |
|
13A
|
photo_cameraImage coming soon | 6699322 SPARK PLUG ASS'Y CJ6 | €0.00 | Not available for order |
|
14
|
photo_cameraImage coming soon | 6698365 COVER PACKING | €2.38 | |
|
15
|
photo_cameraImage coming soon | 6698484 SCAVENGING COVER (A) | €4.82 | |
|
16
|
photo_cameraImage coming soon | 6698385 HEX. SOCKET HD. BOLT M4X12 | €2.38 | |
|
17
|
photo_cameraImage coming soon | 6684600 WASHER T1.6 | €0.00 | Not available for order |
|
18
|
photo_cameraImage coming soon | 6698485 SCAVENGING COVER (B) | €4.82 | |
|
19
|
|
6698480 Cylinder for Brushcutter Hitachi CG27EASP | €103.64 | |
|
20
|
photo_cameraImage coming soon | 6698473 INTAKE PACKING | €2.38 | |
|
21
|
|
6698387 Hitachi CH22EBP2 Carburetor Insulator | €6.04 | |
|
22
|
|
6698405 CARBURETOR PACKING | €4.82 | |
|
23
|
photo_cameraImage coming soon | 6684628 SWIVEL CAP | €2.38 | |
|
24
|
photo_cameraImage coming soon | 6698489 CARBURETOR ASS'Y WYC-29 | €128.04 | |
|
25
|
photo_cameraImage coming soon | 6699287 CABLE ADJUST STAY | €0.00 | Not available for order |
|
26
|
photo_cameraImage coming soon | 6696830 SWIVEL | €8.48 | |
|
27
|
photo_cameraImage coming soon | 6684696 STOP RING | €1.16 | |
|
28
|
photo_cameraImage coming soon | 6684692 PUMP GASKET | €26.78 | |
|
29
|
|
6684693 Pump Diaphragm for Chainsaw Hitachi CS33EB | €9.70 | |
|
30
|
photo_cameraImage coming soon | 6691242 PUMP PLATE | €6.04 | |
|
31
|
photo_cameraImage coming soon | 6685222 DIAPHRAGM COVER | €7.26 | |
|
32
|
photo_cameraImage coming soon | 6691312 SET SCREW | €2.38 | |
|
33
|
photo_cameraImage coming soon | 6696829 SET SCREW M3X12 | €0.00 | Not available for order |
|
34
|
photo_cameraImage coming soon | 6684695 ORING | €3.60 | |
|
36
|
|
6691234 Circuit Plate Gasket for Brushcutter Hitachi CG22EAS | €7.26 | |
|
37
|
photo_cameraImage coming soon | 6696828 PUMP BODY COMP. | €25.56 | |
|
38
|
|
6685220 Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51 | €3.60 | |
|
39
|
|
6684690 Metering Diaphragm for Chainsaws Hitachi CS-33-40-51 | €26.78 | |
|
40
|
photo_cameraImage coming soon | 307224 MACHINE SCREW (W/WASHERS) M5X60 (BLACK) | €0.00 | Not available for order |
|
41A
|
photo_cameraImage coming soon | 6698720 FUEL PIPE | €7.26 | |
|
43
|
|
6685139 Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka | €13.36 | |
|
44
|
|
6690347 CLEANER ELEMENT | €6.04 | |
|
47
|
photo_cameraImage coming soon | 6696549 AIR CLEANER ASS'Y | €15.80 | |
|
48
|
|
6698366 Cylinder Gasket for Brushcutter CG27EASP | €2.38 | |
|
49
|
|
6686121 Piston Ring for Brushcutter Hitachi CG27EASP | €7.26 | |
|
50
|
|
6698483 Piston for Brushcutter Hitachi CG27EASP | €20.68 | |
|
51
|
|
6684590 Circlip for Brushcutter Hitachi CG 24EBS | €1.16 | |
|
52
|
|
6684591 Piston Pin for Brushcutter Hitachi CG27EASP | €3.60 | |
|
53
|
photo_cameraImage coming soon | 6698386 HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X18 | €0.00 | Not available for order |
|
54
|
photo_cameraImage coming soon | 6698370 CRANK CASE (B) ASS'Y | €35.32 | |
|
55
|
|
6698371 Hitachi CG27EASP Crankcase Packing | €2.38 | |
|
56
|
photo_cameraImage coming soon | 6684607 OIL SEAL TB 12227 | €3.60 | |
|
57
|
photo_cameraImage coming soon | 6695535 BALL BEARING 6001 C3 | €6.04 | |
|
58
|
photo_cameraImage coming soon | 6698490 SHIM T0.5 | €0.00 | Not available for order |
|
59
|
photo_cameraImage coming soon | 6698488 CRANK SHAFT COMP. | €123.16 | |
|
60
|
photo_cameraImage coming soon | 6698369 CRANK CASE (A) ASS'Y | €29.22 | |
|
61
|
photo_cameraImage coming soon | 6696947 KNOCK PIN 4X12 | €0.00 | Not available for order |
|
62
|
|
6684681 Starter Pulley for Bruschcutters Hitachi CG22EAS-CG24EASP-CG27-33EJ | €24.34 | |
|
63
|
photo_cameraImage coming soon | 6685101 D4E RETAINING RING | €1.16 | |
|
65
|
photo_cameraImage coming soon | 6684684 STARTER PAWL SPRING | €3.60 | |
|
66
|
photo_cameraImage coming soon | 6684685 STARTER PAWL | €6.04 | |
|
67A
|
|
6699995 Recoil Starter for Brushcutter Hitachi Tanaka CG22EAS/24-27EASP | €34.10 | Not available for order |
|
68
|
|
6684679 Set Screw for Hedge Trimmer Hitachi CH62EA(ST) | €7.26 | |
|
69A
|
photo_cameraImage coming soon | 6699996 CAM PLATE FOR (S) TYPE SINCE 9.2013 FOR AUS | €6.04 | |
|
70
|
|
6684677 Damper Spring for Brushcutters Hitachi CG22EAS-CG24EASP-CG27EASP | €14.58 | Not available for order |
|
71A
|
photo_cameraImage coming soon | 6699997 STARTER ROPE REEL | €6.04 | |
|
72
|
|
6684675 RECOIL SPRING | €12.14 | |
|
73
|
photo_cameraImage coming soon | 6684673 RECOIL STARTER BODY COMP. | €18.24 | |
|
74
|
photo_cameraImage coming soon | 6684674 STARTER ROPE 3.5X860 | €4.82 | |
|
75
|
photo_cameraImage coming soon | 6684680 STARTER HANDLE | €0.00 | Not available for order |
|
77
|
photo_cameraImage coming soon | 6600335 MUFFLER REAR COVER | €17.02 | |
|
78
|
photo_cameraImage coming soon | 6600332 TAPPING SCREW D4 | €0.00 | Not available for order |
|
79A
|
photo_cameraImage coming soon | 6600422 MUFFLER HEAT COVER | €9.70 | |
|
80
|
photo_cameraImage coming soon | 6600325 TAPPING SCREW D4X10 | €0.00 | Not available for order |
|
81
|
photo_cameraImage coming soon | 6600327 MARK PLATE (T) | €0.00 | Not available for order |
|
82
|
photo_cameraImage coming soon | 6699000 PRIMER LABEL | €0.00 | Not available for order |
|
83
|
photo_cameraImage coming soon | 6699691 CAMPLATE ASS'Y | €12.14 | |
|
84
|
photo_cameraImage coming soon | 6698950 SEAL LOCK HEX. SOCKET HD. BOLT M5X30 | €0.00 | Not available for order |
|

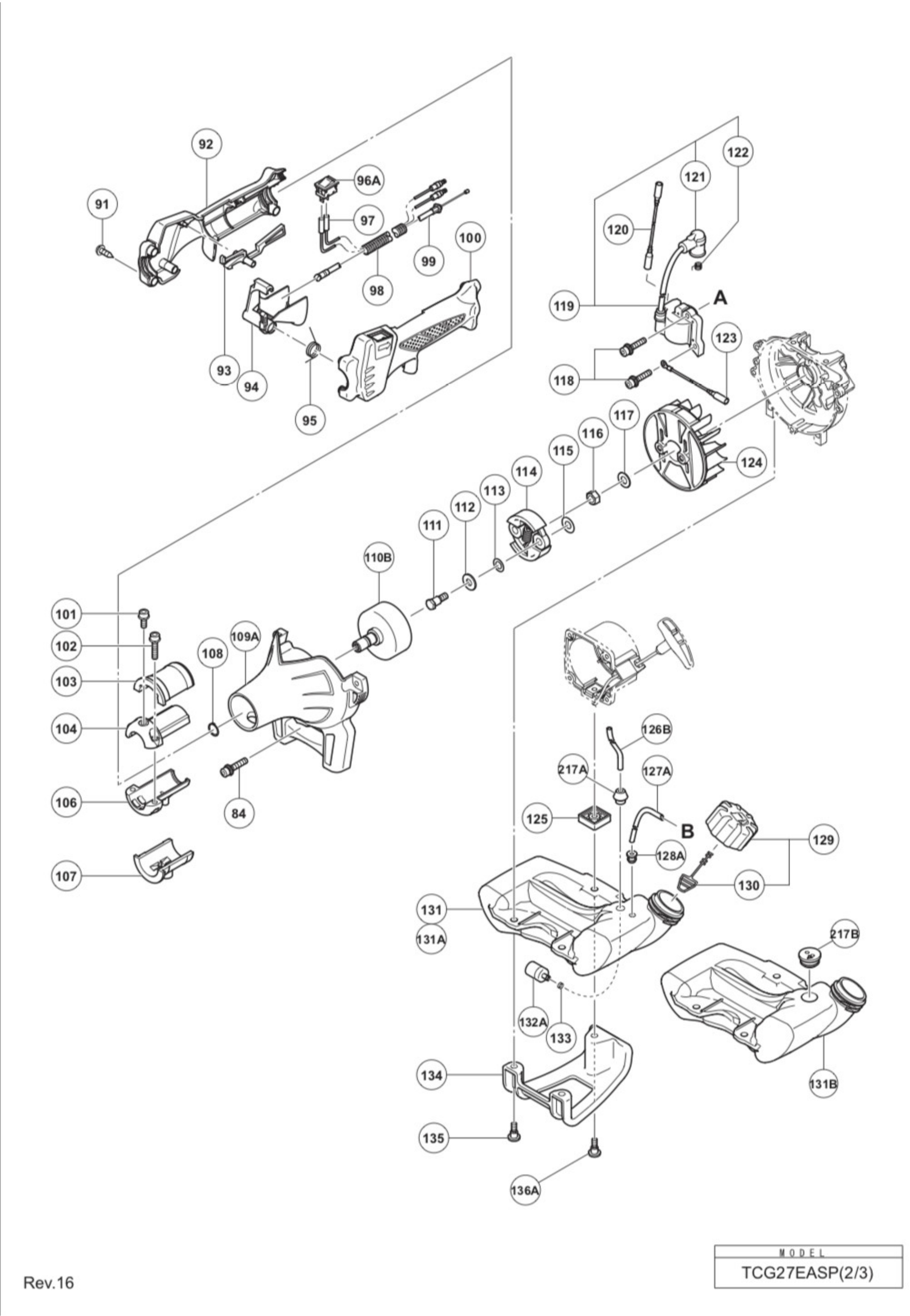

91
|
photo_cameraImage coming soon | 305812 SCREW WITH FLANGE D4X16 BLACK | €0.00 | Not available for order |
|
92
|
photo_cameraImage coming soon | 6696487 HANDLE (B) | €9.70 | |
|
92
|
photo_cameraImage coming soon | 6696942 HANDLE (B) | €6.04 | |
|
93
|
|
6696490 LOCK LEVER | €2.38 | |
|
94
|
|
6696488 Throttle Lever for Brushcutters Hitachi CG22/27 | €4.82 | |
|
95
|
photo_cameraImage coming soon | 6696489 SPRING (A) | €2.38 | |
|
96A
|
photo_cameraImage coming soon | 6601275 STOP SWITCH | €2.38 | |
|
97
|
photo_cameraImage coming soon | 6696491 STOP SWITCH CORD | €4.82 | |
|
97
|
photo_cameraImage coming soon | 6696592 STOP SWITCH CORD | €0.00 | Not available for order |
|
98
|
photo_cameraImage coming soon | 6696594 PROTECTION TUBE | €0.00 | Not available for order |
|
98
|
photo_cameraImage coming soon | 6696967 PROTECTION TUBE | €2.38 | |
|
99
|
photo_cameraImage coming soon | 6696560 THROTTLE WIRE COMP. | €9.70 | |
|
99
|
photo_cameraImage coming soon | 6696593 THROTTLE WIRE COMP. | €10.92 | |
|
100
|
photo_cameraImage coming soon | 6696486 HANDLE (A) | €9.70 | |
|
100
|
photo_cameraImage coming soon | 6696941 HANDLE (A) | €6.04 | |
|
101
|
photo_cameraImage coming soon | 6684667 HEX.HOLE BOLT M5X12/S | €2.38 | |
|
102
|
photo_cameraImage coming soon | 6695492 HEX. HOLE BOLT 5X22/S | €1.16 | |
|
103
|
|
6696963 Anti Vibe Rubber (A) for Brushcutter Hitachi CG22EAB | €4.82 | |
|
104
|
photo_cameraImage coming soon | 6698643 PIPE HOLDER (A) | €4.82 | |
|
106
|
photo_cameraImage coming soon | 6698644 PIPE HOLDER (B) | €4.82 | |
|
107
|
photo_cameraImage coming soon | 6696964 ANTI VIBE RUBBER (B) | €6.04 | |
|
108
|
|
939542 Retaining Ring 12 mm for Hitachi Power Tools | €3.60 | |
|
109A
|
photo_cameraImage coming soon | 6697922 FAN CASE | €0.00 | Not available for order |
|
110B
|
photo_cameraImage coming soon | 6699400 CLUTCH SHAFT | €19.46 | |
|
111
|
photo_cameraImage coming soon | 6696469 STEP BOLT | €2.38 | |
|
112
|
photo_cameraImage coming soon | 6684648 BENT WASHER 8 | €2.38 | |
|
113
|
photo_cameraImage coming soon | 6696546 CLUTCH PLATE (A) | €2.38 | |
|
114
|
photo_cameraImage coming soon | 6696948 CLUTCH | €26.78 | |
|
115
|
photo_cameraImage coming soon | 6696547 CLUTCH WASHER (B) | €2.38 | |
|
116
|
|
6685337 Flywheel Nut for Chainsaw Hitachi CS33EB | €2.38 | |
|
117
|
photo_cameraImage coming soon | 323212 BOLT WASHER M8 (BLACK) | €0.00 | Not available for order |
|
118
|
photo_cameraImage coming soon | 6698388 HEX. SOCKET HD. BOLT (W/WASHERS) M4X18 | €0.00 | Not available for order |
|
119
|
photo_cameraImage coming soon | 6698492 IGNITION COIL ASS'Y | €60.94 | |
|
120
|
photo_cameraImage coming soon | 6698495 CORD | €0.00 | Not available for order |
|
123
|
|
6696545 Coil Rarth Cord (Yellow) for Brushcutter Hitachi CG22EAS | €2.38 | |
|
124
|
photo_cameraImage coming soon | 6698396 MAGNETO ROTOR COMP. | €24.34 | |
|
125
|
photo_cameraImage coming soon | 6698496 SPACER | €2.38 | |
|
126B
|
photo_cameraImage coming soon | 6601525 FUEL PIPE | €0.00 | Not available for order |
|
127A
|
photo_cameraImage coming soon | 6699014 FUEL PIPE L70 | €2.38 | |
|
128A
|
|
6697846 RETURN GROMMET | €2.38 | |
|
129
|
|
6698402 Fuel Tank Cap for Brushcutter Hitachi CG24ECP (SL) | €9.70 | |
|
131A
|
|
6600317 Fuel Tank for Brushcutters Hitachi CG24EASP-CG27EASP | €17.02 | |
|
131B
|
photo_cameraImage coming soon | 6600354 TANK (C) | €14.58 | |
|
131A
|
photo_cameraImage coming soon | 6699719 TANK | €34.10 | |
|
132A
|
photo_cameraImage coming soon | 6600351 PUMP FILTER | €4.82 | |
|
133
|
photo_cameraImage coming soon | 6696949 CAPACITOR CLIP | €2.38 | Not available for order |
|
134
|
photo_cameraImage coming soon | 6694787 STAND | €0.00 | Not available for order |
|
135
|
photo_cameraImage coming soon | 6696557 FLANGE BOLT | €2.38 | |
|
136A
|
photo_cameraImage coming soon | 6698991 BOLT (W/FLANGE) L27.8 | €2.38 | |
|
151
|
photo_cameraImage coming soon | 323837 TAPPING SCREW (W/FLANGE) D4X30 | €0.00 | Not available for order |
|

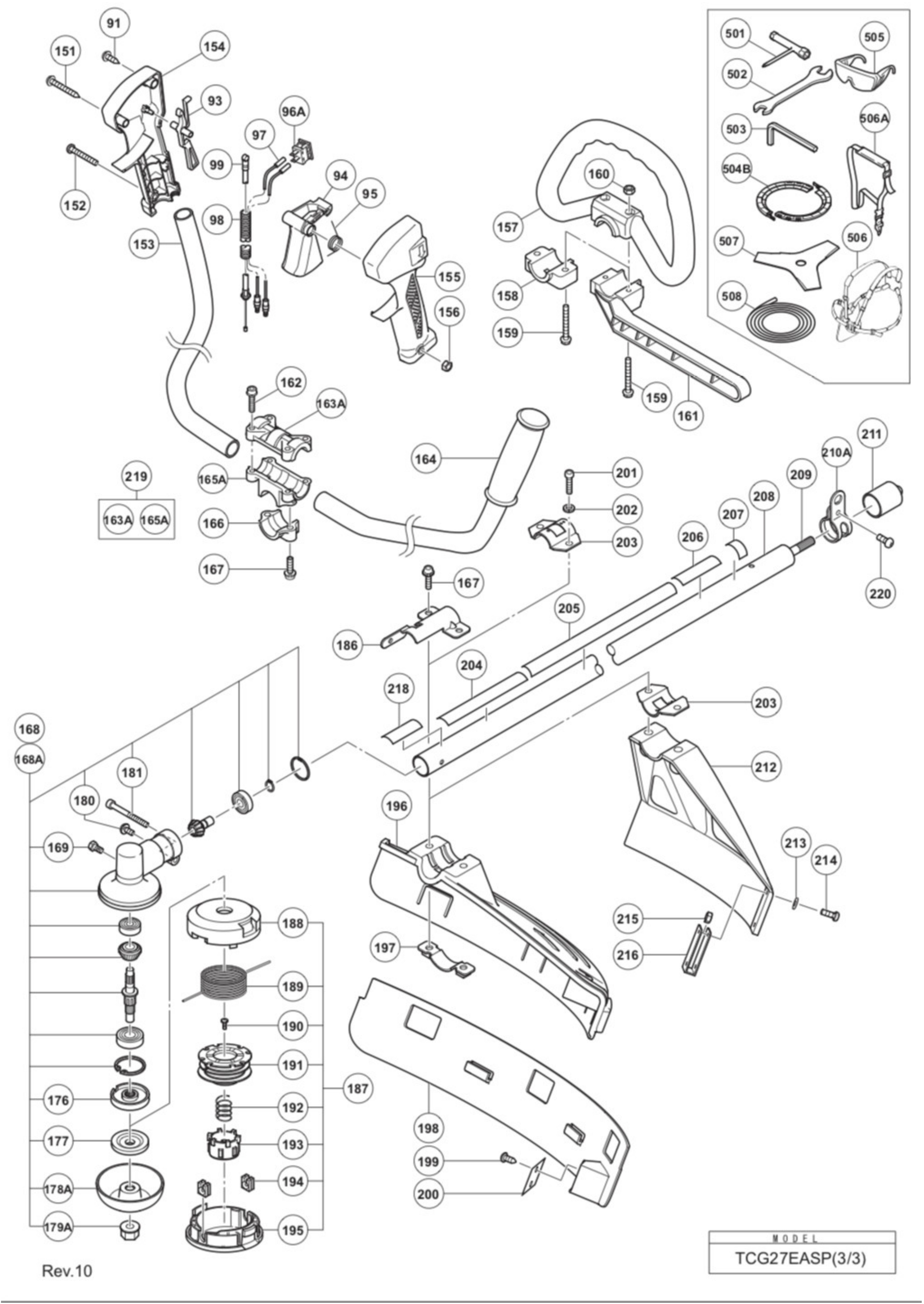

152
|
photo_cameraImage coming soon | 323041 MACHINE SCREW M5X30 (BLACK) | €0.00 | Not available for order |
|
153
|
photo_cameraImage coming soon | 6698637 HANDLE RIGHT | €0.00 | Not available for order |
|
154
|
photo_cameraImage coming soon | 6696590 HANDLE (B) | €0.00 | Not available for order |
|
155
|
photo_cameraImage coming soon | 6696588 HANDLE (A) | €0.00 | Not available for order |
|
156
|
photo_cameraImage coming soon | 302012 NUT M5 (BLACK) | €0.00 | Not available for order |
|
157
|
photo_cameraImage coming soon | 6696975 LOOP HANDLE | €7.26 | |
|
158
|
photo_cameraImage coming soon | 6696972 HANDLE HOLDER (A) | €1.16 | |
|
159
|
photo_cameraImage coming soon | 6696974 BOLT (BLACK) M6 | €2.38 | |
|
160
|
photo_cameraImage coming soon | 949556 NUT M6 | €0.00 | Not available for order |
|
161
|
photo_cameraImage coming soon | 6696973 BARRIER | €4.82 | |
|
162
|
photo_cameraImage coming soon | 6684709 HEX. HOLE BOLT M5X25/S | €0.00 | Not available for order |
|
163A
|
photo_cameraImage coming soon | 6600500 HANDLE HOLDER (A) | €6.04 | |
|
164
|
photo_cameraImage coming soon | 6698638 HANDLE (LEFT) | €0.00 | Not available for order |
|
165A
|
photo_cameraImage coming soon | 6600501 HANDLE HOLDER (B) | €10.92 | |
|
166
|
photo_cameraImage coming soon | 6696578 HANDLE HOLDER (C) | €0.00 | Not available for order |
|
167
|
photo_cameraImage coming soon | 6684714 HEX. HOLE BUTTON SCREW 6X25S | €2.38 | |
|
168
|
photo_cameraImage coming soon | 6696976 GEAR CASE ASS'Y 3BB (B) SET | €0.00 | Not available for order |
|
168A
|
|
6699402 Hitachi CG22EAS Gear Case | €90.22 | |
|
169
|
photo_cameraImage coming soon | 6696974 BOLT (BLACK) M6 | €2.38 | |
|
176
|
photo_cameraImage coming soon | 6696977 CUTTER HOLDER (A) | €30.44 | |
|
177
|
photo_cameraImage coming soon | 6698659 CUTTER HOLDER (B) | €26.78 | |
|
178A
|
photo_cameraImage coming soon | 6699188 NUT COVER | €17.02 | |
|
179A
|
photo_cameraImage coming soon | 335759 U-NUT (LEFT HAND) M10 | €0.00 | Not available for order |
|
180
|
photo_cameraImage coming soon | 6695414 SCREW 5X12/W.S | €0.00 | Not available for order |
|
181
|
photo_cameraImage coming soon | 949664 HEX. SOCKET HD. BOLT M5X30 | €0.00 | Not available for order |
|
186
|
photo_cameraImage coming soon | 6696494 COVER BRACKET | €3.60 | |
|
187
|
photo_cameraImage coming soon | 6696454 NYLON HEAD ASS'Y | €18.24 | |
|
187
|
photo_cameraImage coming soon | 6698639 NYLON HEAD ASS'Y | €0.00 | Not available for order |
|
188
|
photo_cameraImage coming soon | 6698794 COVER | €26.78 | |
|
188
|
photo_cameraImage coming soon | 6698937 COVER | €0.00 | Not available for order |
|
190
|
photo_cameraImage coming soon | 6698795 SET SCREW | €0.00 | Not available for order |
|
191
|
photo_cameraImage coming soon | 6698796 REEL | €10.92 | |
|
191
|
photo_cameraImage coming soon | 6698939 REEL | €0.00 | Not available for order |
|
192
|
photo_cameraImage coming soon | 6698797 RETURN SPRING | €0.00 | Not available for order |
|
192
|
photo_cameraImage coming soon | 6698941 RETURN SPRING | €0.00 | Not available for order |
|
193
|
|
6698798 Button for Brushcutter Hitachi CG22EAS | €10.92 | |
|
193
|
photo_cameraImage coming soon | 6698940 BUTTON | €0.00 | Not available for order |
|
194
|
photo_cameraImage coming soon | 6698799 CORD GUIDE | €9.70 | |
|
194
|
photo_cameraImage coming soon | 6698942 CORD GUIDE | €6.04 | |
|
195
|
photo_cameraImage coming soon | 6698800 CASE | €18.24 | |
|
195
|
photo_cameraImage coming soon | 6698938 CASE | €0.00 | Not available for order |
|
196
|
photo_cameraImage coming soon | 6696980 COVER | €24.34 | |
|
197
|
photo_cameraImage coming soon | 6696951 GUARD HOLDER | €3.60 | |
|
198
|
photo_cameraImage coming soon | 6696950 COVER GUARD | €17.02 | |
|
199
|
photo_cameraImage coming soon | 6684751 TAPPING SCREW 4X14 | €2.38 | |
|
200
|
photo_cameraImage coming soon | 6684750 KNIFE | €3.60 | |
|
201
|
photo_cameraImage coming soon | 6685064 HEX. SOCKET HD. BOLT (W/BUTTON) M6X20 | €2.38 | |
|
202
|
photo_cameraImage coming soon | 949455 SPRING WASHER M6 (10 PCS.) | €0.00 | Not available for order |
|
203
|
photo_cameraImage coming soon | 6696978 COVER BRACKET | €0.00 | Not available for order |
|
205
|
photo_cameraImage coming soon | 6684959 CAUTION MARK | €3.60 | |
|
205
|
photo_cameraImage coming soon | 6685056 CAUTION MARK | €0.00 | Not available for order |
|
206
|
photo_cameraImage coming soon | 6684852 LEVEL MARK | €0.00 | Not available for order |
|
207
|
photo_cameraImage coming soon | 6684851 LEVEL MARK | €0.00 | Not available for order |
|
208
|
photo_cameraImage coming soon | 6696558 MAIN PIPE COMP. | €43.86 | |
|
209
|
photo_cameraImage coming soon | 6698514 DRIVE SHAFT | €35.32 | |
|
210A
|
photo_cameraImage coming soon | 6600504 HANGER | €2.38 | |
|
211
|
photo_cameraImage coming soon | 6698515 CAP (A) | €0.00 | Not available for order |
|
212
|
photo_cameraImage coming soon | 6696981 GUARD | €0.00 | Not available for order |
|
213
|
photo_cameraImage coming soon | 949554 NUT M4 (10 PCS.) | €0.00 | Not available for order |
|
214
|
photo_cameraImage coming soon | 323210 BOLT WASHER M4 (BLACK) | €1.16 | |
|
215
|
photo_cameraImage coming soon | 6685068 MACHINE SCREW (W/SP. WASHER) M4X12 | €2.38 | |
|
216
|
photo_cameraImage coming soon | 6696584 KNIFE | €0.00 | Not available for order |
|
217B
|
|
6600358 TANK GROMMET FROM YEAR OF PRODUCTION OCTOBER 2016 | €2.38 | |
|
217A
|
photo_cameraImage coming soon | 6698931 FUEL GROMMET | €0.00 | Not available for order |
|
218
|
photo_cameraImage coming soon | 6600328 CAUTION LABEL (HEDGE) | €0.00 | Not available for order |
|
219
|
photo_cameraImage coming soon | 6600499 HANDLE HOLDER (A).(B) SET | €0.00 | Not available for order |
|
220
|
photo_cameraImage coming soon | 949236 MACHINE SCREW M5X10 | €0.00 | Not available for order |
| Pos. | Item | Price | Buy | |
|---|---|---|---|---|
|
501
|
photo_cameraImage coming soon | 6684764 BOX WRENCH (HEX. SOCKET 17/19) | €0.00 | Not available for order |
|
502
|
photo_cameraImage coming soon | 6696596 WRENCH 8X10 | €0.00 | Not available for order |
|
503
|
photo_cameraImage coming soon | 944458 HEX. BAR WRENCH 4MM | €0.00 | Not available for order |
|
504B
|
photo_cameraImage coming soon | 6684768 CUTTER COVER | €0.00 | Not available for order |
|
505
|
photo_cameraImage coming soon | 875769 SAFETY GLASSES | €0.00 | Not available for order |
|
506A
|
photo_cameraImage coming soon | 6601420 SHOULDER BELT SINGLE | €0.00 | Not available for order |
|
506
|
photo_cameraImage coming soon | 6696184 SHOULDER BELT ASS'Y W | €0.00 | Not available for order |
|
507
|
photo_cameraImage coming soon | 6698711 BLADE 3TX255XT1.8 | €0.00 | Not available for order |
|
508
|
photo_cameraImage coming soon | 6698640 MEGA TWIST CORD | €0.00 | Not available for order |
| Pos. | Item | Price | Buy | |
|---|---|---|---|---|
|
601
|
photo_cameraImage coming soon | 6600036 REPAIR KIT (D-3) | €0.00 | Not available for order |
|
601
|
photo_cameraImage coming soon | 6600038 REPAIR KIT (E) | €0.00 | Not available for order |
Shipping and delivery information will be available shortly.
Fix Your Tanaka Engine Brushcutter TCG 27EASP. All Spares are Available at best and Cheapest and Discounted Prices. Our spare parts are original and come with a full Guarantee.
In the following table, look for the model of the Brush Cutter and the respective parts of the code.
| Engine Brush Cutter TANAKA TCG 27EASP Pag.1 | ||
| # | Part Num. | Description |
| 1 | 887021 | SCREW (W/WASHERS) M5X16 (BLACK) |
| 2A | 6600336 | MUFFLER COVER |
| 3 | 6698384 | HEX. SOCKET HD. BOLT M6X65 |
| 4 | 949432 | BOLT WASHER M6 |
| 5A | 6600004 | MUFFLER (B) |
| 6A | 6600324 | HEAT PROTECTION PANEL |
| 7 | 6696958 | HEX. SOCKET BOLT M5X20 |
| 8 | 6696339 | TANAKA LABEL |
| 8 | 6696340 | TANAKA LABEL |
| 9A | 6697921 | CYLINDER COVER |
| 10 | 307606 | MACHINE SCREW (W/WASHERS) M4X20 (BLACK) |
| 11 | CAUTION LABEL | |
| 12A | 6698844 | SEAL LOCK HEX. SOCKET BOLT (W/WASHERS)M5 |
| 13A | 6699316 | SPARK PLUG ASS'Y BMR7A |
| 13A | 6699322 | SPARK PLUG ASS'Y CJ6 |
| 14 | 6698365 | COVER PACKING |
| 15 | 6698484 | SCAVENGING COVER (A) |
| 16 | 6698385 | HEX. SOCKET HD. BOLT M4X12 |
| 17 | 6684600 | WASHER T1.6 |
| 18 | 6698485 | SCAVENGING COVER (B) |
| 19 | 6698480 | CYLINDER |
| 20 | 6698473 | INTAKE PACKING |
| 21 | 6698387 | CARBURETOR INSULATOR |
| 22 | 6698405 | CARBURETOR PACKING |
| 23 | 6684628 | SWIVEL CAP |
| 24 | 6698489 | CARBURETOR ASS'Y WYC-29 |
| 25 | 6699287 | CABLE ADJUST STAY |
| 26 | 6696830 | SWIVEL |
| 27 | 6684696 | STOP RING |
| 28 | 6684692 | PUMP GASKET |
| 29 | 6684693 | PUMP DIAPHRAGM |
| 30 | 6691242 | PUMP PLATE |
| 31 | 6685222 | DIAPHRAGM COVER-METERING |
| 32 | 6691312 | SET SCREW |
| 33 | 6696829 | SET SCREW M3X12 |
| 34 | 6684695 | O-RING |
| 35 | JET | |
| 36 | 6691234 | CIRCUIT PLATE |
| 37 | 6696828 | PUMP BODY COMP. |
| 38 | 6685220 | DIAPHRAGM PACKING-METERING |
| 39 | 6684690 | METERING DIAPHRAGM |
| 40 | 307224 | MACHINE SCREW (W/WASHERS) M5X60 (BLACK) |
| 41A | 6698720 | FUEL PIPE |
| 42 | AIR CLEANER HOUSING | |
| 43 | 6685139 | PRIMING PUMP COMP. |
| 44 | 6690347 | CLEANER ELEMENT |
| 45 | CLEANER COVER | |
| 47 | 6696549 | AIR CLEANER ASS'Y |
| 48 | 6698366 | CYLINDER PACKING |
| 49 | 6686121 | PISTON RING |
| 50 | 6698483 | PISTON |
| 51 | 6684590 | CIR CLIP |
| 52 | 6684591 | PISTON PIN |
| 53 | 6698386 | HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X18 |
| 54 | 6698370 | CRANK CASE (B) ASS'Y |
| 55 | 6698371 | CRANK CASE PACKING |
| 56 | 6684607 | OIL SEAL TB 12227 |
| 57 | 6695535 | BALL BEARING 6001 C3 |
| 58 | 6698490 | SHIM T0.5 |
| 59 | 6698488 | CRANK SHAFT COMP. |
| 60 | 6698369 | CRANK CASE (A) ASS'Y |
| 61 | 6696947 | KNOCK PIN 4X12 |
| 62 | 6684681 | STARTER PULLEY ASS'Y |
| 63 | 6685101 | D4E RETAINING RING |
| 64 | STARTER PULLEY | |
| 65 | 6684684 | STARTER PAWL SPRING |
| 66 | 6684685 | STARTER PAWL |
| 67A | 6699995 | RECOIL STARTER BODY ASS'Y |
| 68 | 6684679 | SET SCREW |
| 69A | 6699996 | CAM PLATE |
| 70 | 6684677 | DAMPER SPRING |
| 71A | 6699997 | STARTER ROPE REEL |
| 72 | 6684675 | RECOIL SPRING |
| 73 | 6684673 | RECOIL STARTER BODY COMP. |
| 74 | 6684674 | STARTER ROPE 3.5X860 |
| 75 | 6684680 | STARTER HANDLE |
| 76 | NAME PLATE | |
| 77 | 6600335 | MUFFLER REAR COVER |
| 78 | 6600332 | TAPPING SCREW D4 |
| 79A | 6600422 | MUFFLER HEAT COVER |
| 80 | 6600325 | TAPPING SCREW D4X10 |
| 81 | 6600327 | MARK PLATE (T) |
| 82 | 6699000 | PRIMER LABEL |
| 83 | 6699691 | CAMPLATE ASS'Y |
| 84 | 6698950 | SEAL LOCK HEX. SOCKET HD. BOLT M5X30 |
| 91 | 305812 | TAPPING SCREW (W/FLANGE) D4X16 (BLACK) |
| 91 | 305812 | TAPPING SCREW (W/FLANGE) D4X16 (BLACK) |
| 92 | 6696487 | HANDLE (B) |
| 92 | 6696942 | HANDLE (B) |
| 93 | 6696490 | LOCK LEVER |
| 94 | 6696488 | LEVER |
| 95 | 6696489 | SPRING (A) |
| 96A | 6601275 | STOP SWITCH |
| 97 | 6696491 | STOP SWITCH CORD |
| 97 | 6696592 | STOP SWITCH CORD |
| 98 | 6696967 | PROTECTION TUBE |
| 98 | 6696594 | PROTECTION TUBE |
| 99 | 6696560 | THROTTLE WIRE COMP. |
| 99 | 6696593 | THROTTLE WIRE COMP. |
| 100 | 6696486 | HANDLE (A) |
| 100 | 6696941 | HANDLE (A) |
| 101 | 6684667 | HEX.HOLE BOLT M5X12/S |
| 102 | 6695492 | HEX. HOLE BOLT 5X22/S |
| 103 | 6696963 | ANTI VIBE RUBBER (A) |
| 104 | 6698643 | PIPE HOLDER (A) |
| 106 | 6698644 | PIPE HOLDER (B) |
| 107 | 6696964 | ANTI VIBE RUBBER (B) |
| 108 | 939542 | RETAINING RING FOR D12 SHAFT |
| 109A | 6697922 | FAN CASE |
| 110B | 6699400 | CLUTCH SHAFT |
| 111 | 6696469 | STEP BOLT |
| 112 | 6684648 | BENT WASHER 8 |
| 113 | 6696546 | CLUTCH PLATE (A) |
| 114 | 6696948 | CLUTCH |
| 115 | 6696547 | CLUTCH WASHER (B) |
| 116 | 6685337 | FLYWHEEL NUT |
| 117 | 323212 | BOLT WASHER M8 (BLACK) |
| 118 | 6698388 | HEX. SOCKET HD. BOLT (W/WASHERS) M4X18 |
| 119 | 6698492 | IGNITION COIL ASS'Y |
| 120 | 6698495 | CORD |
| 121 | PLUG CAP | |
| 122 | METAL FITTING OF PLUG CAP | |
| 123 | 6696545 | EARTH CORD |
| 124 | 6698396 | MAGNETO ROTOR COMP. |
| 125 | 6698496 | SPACER |
| 126B | 6601525 | FUEL PIPE |
| 127A | 6699014 | FUEL PIPE L70 |
| 128A | 6697846 | RETURN GROMMET |
| 129 | 6698402 | FUEL TANK CAP ASS'Y |
| 130 | TANK CAP CHAIN | |
| 131A | 6600317 | TANK (B) |
| 131A | 6699719 | TANK |
| 131B | 6600354 | TANK (C) |
| 132A | 6600351 | PUMP FILTER |
| 133 | 6696949 | CLIP |
| 134 | 6694787 | STAND |
| 135 | 6696557 | FLANGE BOLT |
| 136A | 6698991 | BOLT (W/FLANGE) L27.8 |
| 151 | 323837 | TAPPING SCREW (W/FLANGE) D4X30 |
| 152 | 323041 | MACHINE SCREW M5X30 (BLACK) |
| 153 | 6698637 | HANDLE RIGHT |
| 154 | 6696590 | HANDLE (B) |
| 155 | 6696588 | HANDLE (A) |
| 156 | 302012 | NUT M5 (BLACK) |
| 157 | 6696975 | LOOP HANDLE |
| 158 | 6696972 | HANDLE HOLDER (A) |
| 159 | 6696974 | BOLT (BLACK) M6 |
| 160 | 949556 | NUT M6 (10 PCS.) |
| 161 | 6696973 | BARRIER |
| 162 | 6684709 | HEX. HOLE BOLT M5X25/S |
| 163A | 6600500 | HANDLE HOLDER (A) |
| 164 | 6698638 | HANDLE (LEFT) |
| 165A | 6600501 | HANDLE HOLDER (B) |
| 166 | 6696578 | HANDLE HOLDER (C) |
| 167 | 6684714 | HEX. HOLE BUTTON BOLT M6X25 |
| 167 | 6684714 | HEX. HOLE BUTTON BOLT M6X25 |
| 168 | 6696976 | GEAR CASE ASS'Y 3BB (B) |
| 168A | 6699402 | GEAR CASE ASS'Y 3BB (A) |
| 169 | 6696974 | BOLT (BLACK) M6 |
| 176 | 6696977 | CUTTER HOLDER (A) |
| 177 | 6698659 | CUTTER HOLDER (B) |
| 178A | 6699188 | NUT COVER |
| 179A | 335759 | U-NUT (LEFT HAND) M10 |
| 180 | 6695414 | SCREW 5X12/W.S |
| 181 | 949664 | HEX. SOCKET HD. BOLT M5X30 |
| 186 | 6696494 | COVER BRACKET |
| 187 | 6696454 | NYLON HEAD ASS'Y |
| 187 | 6698639 | NYLON HEAD ASS'Y |
| 188 | 6698794 | COVER |
| 188 | 6698937 | COVER |
| 189 | NYLON CORD | |
| 190 | 6698795 | SET SCREW |
| 191 | 6698796 | REEL |
| 191 | 6698939 | REEL |
| 192 | 6698797 | RETURN SPRING |
| 192 | 6698941 | RETURN SPRING |
| 193 | 6698798 | BUTTON |
| 193 | 6698940 | BUTTON |
| 194 | 6698799 | CORD GUIDE |
| 194 | 6698942 | CORD GUIDE |
| 195 | 6698800 | CASE |
| 195 | 6698938 | CASE |
| 196 | 6696980 | GUARD |
| 197 | 6696951 | GUARD HOLDER |
| 198 | 6696950 | COVER GUARD |
| 199 | 6684751 | TAPPING SCREW 4X14 |
| 200 | 6684750 | KNIFE |
| 201 | 6685064 | HEX. SOCKET HD. BOLT (W/BUTTON) M6X20 |
| 202 | 949455 | SPRING WASHER M6 |
| 203 | 6696978 | COVER BRACKET |
| 205 | 6684959 | CAUTION MARK |
| 205 | 6685056 | CAUTION MARK |
| 206 | 6684852 | LEVEL MARK |
| 207 | 6684851 | LEVEL MARK |
| 208 | 6696558 | MAIN PIPE COMP. |
| 209 | 6698514 | DRIVE SHAFT |
| 210A | 6600504 | HANGER |
| 211 | 6698515 | CAP (A) |
| 212 | 6696981 | GUARD |
| 213 | 949554 | NUT M4 |
| 214 | 323210 | BOLT WASHER M4 (BLACK) |
| 215 | 6685068 | MACHINE SCREW (W/SP. WASHER) M4X12 |
| 216 | 6696584 | KNIFE |
| 217A | 6698931 | FUEL GROMMET |
| 217B | 6600358 | FUEL GROMMET |
| 218 | 6600328 | CAUTION LABEL (HEDGE) |
| 219 | 6600499 | HANDLE HOLDER (A).(B) SET |
| 219 | 6600499 | |
| 220 | 949236 | MACHINE SCREW M5X10 |
| STANDARD ACCESSORIES Pag.2 | ||
| 501 | 6684764 | BOX WRENCH (HEX. SOCKET 17/19) |
| 502 | 6696596 | WRENCH 8X10 |
| 503 | 944458 | HEX. BAR WRENCH 4MM |
| 504B | 6684768 | CUTTER COVER |
| 505 | 875769 | PROTECTIVE GLASSES |
| 506 | 6696184 | SHOULDER BELT ASS'Y W |
| 506A | 6601420 | SHOULDER BELT SINGLE |
| 507 | 6698711 | BLADE 3TX255XT1.8 |
| 508 | 6698640 | MEGA TWIST CORD |
| OPTIONAL ACCESSORIES Pag.3 | ||
| 601 | 6600036 | REPAIR KIT (D-3) |
| 601 | 6600038 | REPAIR KIT (E) |
Italiano
