Tanaka Spare Parts for Engine Brush Cutter TCG 27EBS

SKU: Tanaka TCG 27EBS
€5.15
VAT included

Tanaka Spare Parts for Engine Brush Cutter TCG 27EBS

Tanaka genuine spare parts or replacement parts for to repair Engine Brush Cutter TANAKA TCG 27EBS.
Tanaka Spare Parts for Engine Brush Cutter TCG 24EBSP
  • Tanaka Spare Parts for Engine Brush Cutter TCG 24EBSP
  • Tanaka Spare Parts for Engine Brush Cutter TCG 24EBSP
  • Tanaka Spare Parts for Engine Brush Cutter TCG 24EBSP
  • Tanaka Spare Parts for Engine Brush Cutter TCG 24EBSP
HiKOKI Power Tools Italia S.p.a.

Tanaka Spare Parts for Engine Brush Cutter TCG 27EBS

SKU: Tanaka TCG 27EBS Condition: New
€5.15
VAT included

Tanaka Spare Parts for Engine Brush Cutter TCG 27EBS

Tanaka genuine spare parts or replacement parts for to repair Engine Brush Cutter TANAKA TCG 27EBS.
settings 195 spare parts
description 3 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
118 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

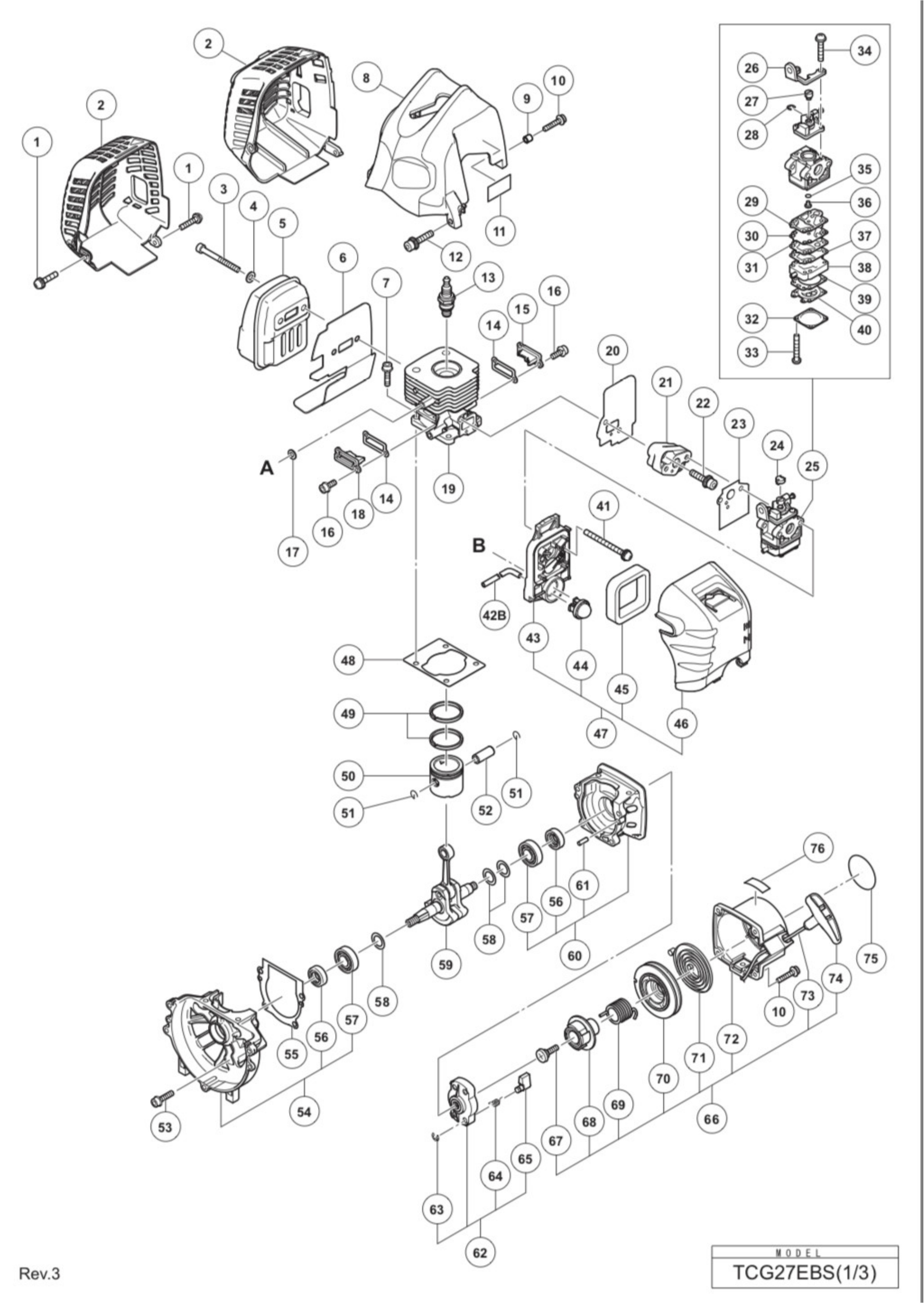

Esploso pagina 1
Pos. Item Price Buy
2
 photo_cameraImage coming soon 6600322 MUFFLER COVER €13.14
2
 photo_cameraImage coming soon 6698493 MUFFLER COVER €7.59
3
 photo_cameraImage coming soon 6698384 HEX. SOCKET HD. BOLT M6X65 €2.24
6
 photo_cameraImage coming soon 6600324 HEAT PROTECTION PANEL €3.22
7
 photo_cameraImage coming soon 6696958 HEX. SOCKET BOLT M5X20 €3.86
10
 Hex Socket HD Bolt M4x18 for Chainsaw Tanaka TCS-40EA 6696326 Hex Socket HD Bolt M4x18 for Chainsaw Tanaka TCS-40EA €2.40
13
 photo_cameraImage coming soon 6699316 SPARK PLUG ASS'Y BMR7A €5.32
14
 photo_cameraImage coming soon 6698365 COVER PACKING €2.57
15
 photo_cameraImage coming soon 6698484 SCAVENGING COVER (A) €5.16
16
 photo_cameraImage coming soon 6698385 HEX. SOCKET HD. BOLT M4X12 €2.24
17
 photo_cameraImage coming soon 6698700 GLASS WASHER €2.16
18
 photo_cameraImage coming soon 6698485 SCAVENGING COVER (B) €5.16
19
 Cylinder for Brushcutter Hitachi CG27EASP 6698480 Cylinder for Brushcutter Hitachi CG27EASP €99.59
20
 Intake Packing for Brushcutter Hitachi CG24EAP2 6699437 Intake Packing for Brushcutter Hitachi CG24EAP2 €2.16
21
 Hitachi CH22EBP2 Carburetor Insulator 6698387 Hitachi CH22EBP2 Carburetor Insulator €6.29
22
 photo_cameraImage coming soon 6698844 SEAL LOCK HEX. SOCKET BOLT (W/WASHERS)M5 €2.16
23
 photo_cameraImage coming soon 6698405 CARBURETOR PACKING €4.33
24
 photo_cameraImage coming soon 6691337 SWIVEL CAP €1.78
25
 photo_cameraImage coming soon 6600326 CARBURETOR ASS'Y WYC-37 €58.41
27
 photo_cameraImage coming soon 6696830 SWIVEL €7.91
28
 photo_cameraImage coming soon 6684696 STOP RING €1.76
29
 photo_cameraImage coming soon 6684692 PUMP GASKET €26.45
30
 Pump Diaphragm for Chainsaw Hitachi CS33EB 6684693 Pump Diaphragm for Chainsaw Hitachi CS33EB €9.95
31
 photo_cameraImage coming soon 6691242 PUMP PLATE €5.81
32
 photo_cameraImage coming soon 6685222 DIAPHRAGM COVER €6.54
33
 photo_cameraImage coming soon 6691312 SET SCREW €2.48
35
 photo_cameraImage coming soon 6684695 ORING €3.16
37
 Circuit Plate Gasket for Brushcutter Hitachi CG22EAS 6691234 Circuit Plate Gasket for Brushcutter Hitachi CG22EAS €6.64
38
 photo_cameraImage coming soon 6696828 PUMP BODY COMP. €24.52
39
 Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51 6685220 Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51 €3.45
40
 Metering Diaphragm for Chainsaws Hitachi CS-33-40-51 6684690 Metering Diaphragm for Chainsaws Hitachi CS-33-40-51 €25.81
42B
 photo_cameraImage coming soon 6601444 FUEL PIPE €4.95
43
 Air Filter Housing for Brushcutter Hitachi Tanaka CG22EAB 6696832 Air Filter Housing for Brushcutter Hitachi Tanaka CG22EAB €22.46
44
 Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka 6685139 Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka €13.15
45
 photo_cameraImage coming soon 6690347 CLEANER ELEMENT €5.39
46
 photo_cameraImage coming soon 6699185 CLEANER COVER €13.79
47
 photo_cameraImage coming soon 6699132 AIR CLEANER (A) ASS'Y €16.56
48
 Cylinder Gasket for Brushcutter CG27EASP 6698366 Cylinder Gasket for Brushcutter CG27EASP €2.52
49
 Piston Ring for Brushcutter Hitachi CG27EASP 6686121 Piston Ring for Brushcutter Hitachi CG27EASP €7.30
50
 photo_cameraImage coming soon 6699432 PISTON €14.40
51
 Circlip for Brushcutter Hitachi CG 24EBS 6684590 Circlip for Brushcutter Hitachi CG 24EBS €1.57
52
 Piston Pin for Brushcutter Hitachi CG27EASP 6684591 Piston Pin for Brushcutter Hitachi CG27EASP €4.14
54
 photo_cameraImage coming soon 6698370 CRANK CASE (B) ASS'Y €34.85
55
 Hitachi CG27EASP Crankcase Packing 6698371 Hitachi CG27EASP Crankcase Packing €2.11
56
 photo_cameraImage coming soon 6684607 OIL SEAL TB 12227 €3.20
57
 photo_cameraImage coming soon 6684608 BALL BEARING 6001 C3 €6.06
59
 photo_cameraImage coming soon 6699438 CRANK SHAFT €49.51
60
 photo_cameraImage coming soon 6698369 CRANK CASE (A) ASS'Y €28.39
62
 Starter Pulley for Bruschcutters Hitachi CG22EAS-CG24EASP-CG27-33EJ 6684681 Starter Pulley for Bruschcutters Hitachi CG22EAS-CG24EASP-CG27-33EJ €23.26
63
 photo_cameraImage coming soon 6685101 D4E RETAINING RING €1.25
64
 photo_cameraImage coming soon 6684684 STARTER PAWL SPRING €3.48
65
 photo_cameraImage coming soon 6684685 STARTER PAWL €6.11
66
 Recoil Starter for Brushcutter Hitachi Tanaka CG22EAS/24-27EASP 6699995 Recoil Starter for Brushcutter Hitachi Tanaka CG22EAS/24-27EASP €33.10
67
 Set Screw for Hedge Trimmer Hitachi CH62EA(ST) 6684679 Set Screw for Hedge Trimmer Hitachi CH62EA(ST) €6.81
68
 photo_cameraImage coming soon 6699996 CAM PLATE FOR (S) TYPE SINCE 9.2013 FOR AUS €5.81
69
 Damper Spring for Brushcutters Hitachi CG22EAS-CG24EASP-CG27EASP 6684677 Damper Spring for Brushcutters Hitachi CG22EAS-CG24EASP-CG27EASP €7.83
70
 photo_cameraImage coming soon 6699997 STARTER ROPE REEL €6.45
71
 photo_cameraImage coming soon 6684675 RECOIL SPRING €12.16
72
 photo_cameraImage coming soon 6684673 RECOIL STARTER BODY COMP. €17.27
73
 photo_cameraImage coming soon 6684674 STARTER ROPE 3.5X860 €5.16
Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

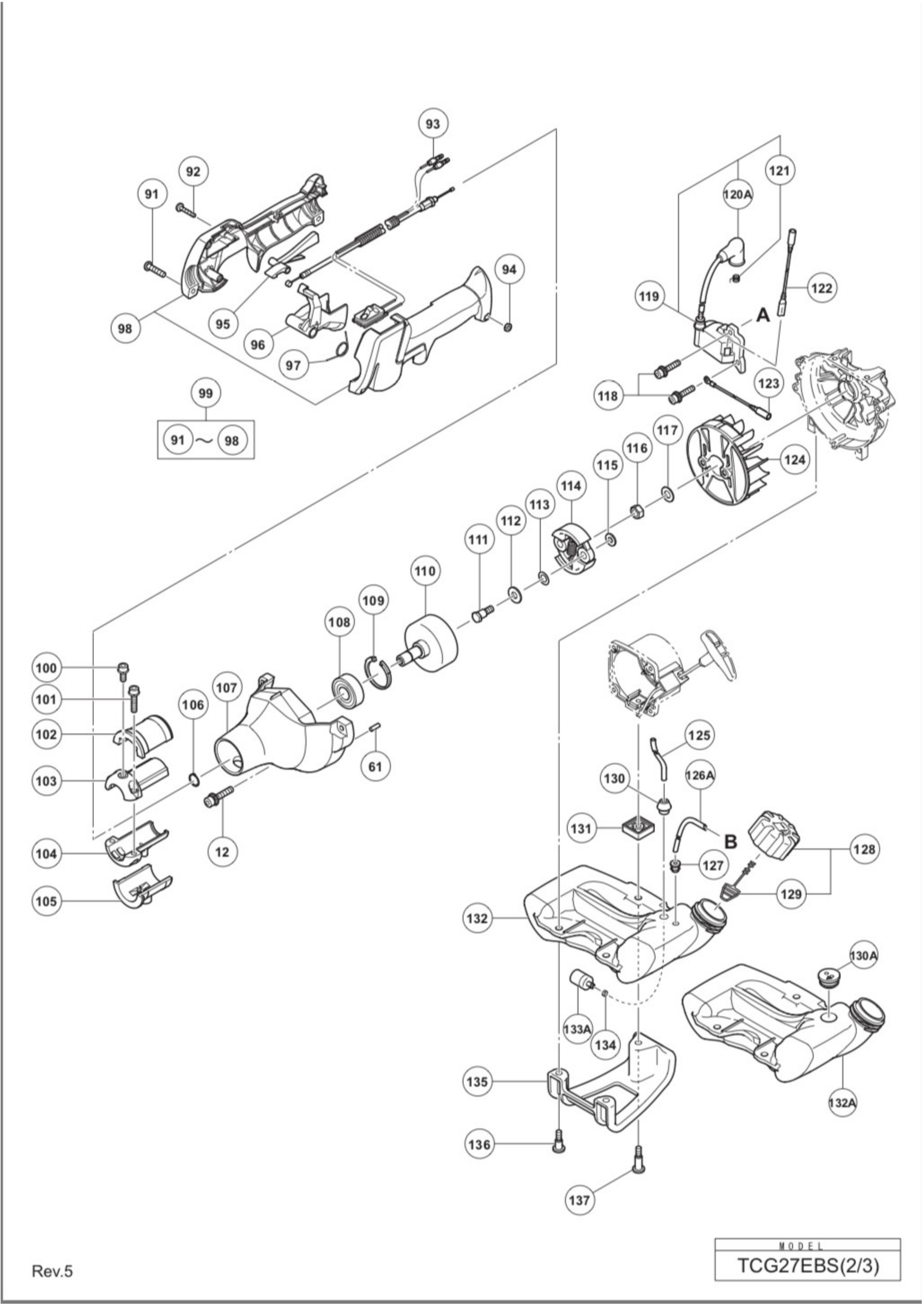

Esploso pagina 2
Pos. Item Price Buy
93
 photo_cameraImage coming soon 6699197 SWITCH WIRE SET €15.07
95
 photo_cameraImage coming soon 6699192 STOP LEVER €3.19
96
 photo_cameraImage coming soon 6699191 LONG LEVER €4.57
99
 photo_cameraImage coming soon 6699133 THROTTLE LEVER (A) ASS'Y €39.39
101
 photo_cameraImage coming soon 6695492 HEX. HOLE BOLT 5X22/S €1.23
102
 Anti Vibe Rubber (A) for Brushcutter Hitachi CG22EAB 6696963 Anti Vibe Rubber (A) for Brushcutter Hitachi CG22EAB €4.44
103
 photo_cameraImage coming soon 6698643 PIPE HOLDER (A) €5.16
104
 photo_cameraImage coming soon 6698644 PIPE HOLDER (B) €5.16
105
 photo_cameraImage coming soon 6696964 ANTI VIBE RUBBER (B) €5.81
106
 Retaining Ring 12 mm for Hitachi Power Tools 939542 Retaining Ring 12 mm for Hitachi Power Tools €3.13
108
 photo_cameraImage coming soon 6699435 BALL BEARING 6301ZZC3 €4.72
109
 photo_cameraImage coming soon 322813 RETAINING RING 37MM €1.99
110
 photo_cameraImage coming soon 6699434 CLUTCH SHAFT €13.01
111
 photo_cameraImage coming soon 6696469 STEP BOLT €1.93
112
 photo_cameraImage coming soon 6684648 BENT WASHER 8 €1.98
113
 photo_cameraImage coming soon 6696546 CLUTCH PLATE (A) €2.58
114
 photo_cameraImage coming soon 6699130 CLUTCH €41.54
116
 Flywheel Nut for Chainsaw Hitachi CS33EB 6685337 Flywheel Nut for Chainsaw Hitachi CS33EB €2.49
119
 Hitachi CG27EBSP Ignition Coil Ass'y 6699436 Hitachi CG27EBSP Ignition Coil Ass'y €16.19
122
 Coil Cord (BLACK) for Brushcutter Hitachi CG22EAS 6696544 Coil Cord (BLACK) for Brushcutter Hitachi CG22EAS €2.65
123
 Coil Rarth Cord (Yellow) for Brushcutter Hitachi CG22EAS 6696545 Coil Rarth Cord (Yellow) for Brushcutter Hitachi CG22EAS €2.65
124
 photo_cameraImage coming soon 6698396 MAGNETO ROTOR COMP. €23.69
125
 photo_cameraImage coming soon 6698716 FUEL PIPE €5.16
126A
 photo_cameraImage coming soon 6699014 FUEL PIPE L70 €2.87
127
 photo_cameraImage coming soon 6697846 RETURN GROMMET €1.79
128
 Fuel Tank Cap for Brushcutter Hitachi CG24ECP (SL) 6698402 Fuel Tank Cap for Brushcutter Hitachi CG24ECP (SL) €9.73
130A
 photo_cameraImage coming soon 6600358 TANK GROMMET FROM YEAR OF PRODUCTION OCTOBER 2016 €2.18
131
 photo_cameraImage coming soon 6699558 SPACER €1.67
132
 Fuel Tank for Brushcutters Hitachi CG24EASP-CG27EASP 6600317 Fuel Tank for Brushcutters Hitachi CG24EASP-CG27EASP €16.39
132A
 photo_cameraImage coming soon 6600354 TANK (C) €14.48
133A
 photo_cameraImage coming soon 6600351 PUMP FILTER €5.32
134
 photo_cameraImage coming soon 6696949 CAPACITOR CLIP €2.06
136
 photo_cameraImage coming soon 6696557 FLANGE BOLT €1.93
137
 photo_cameraImage coming soon 6698991 BOLT (W/FLANGE) L27.8 €2.24
Page 3 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

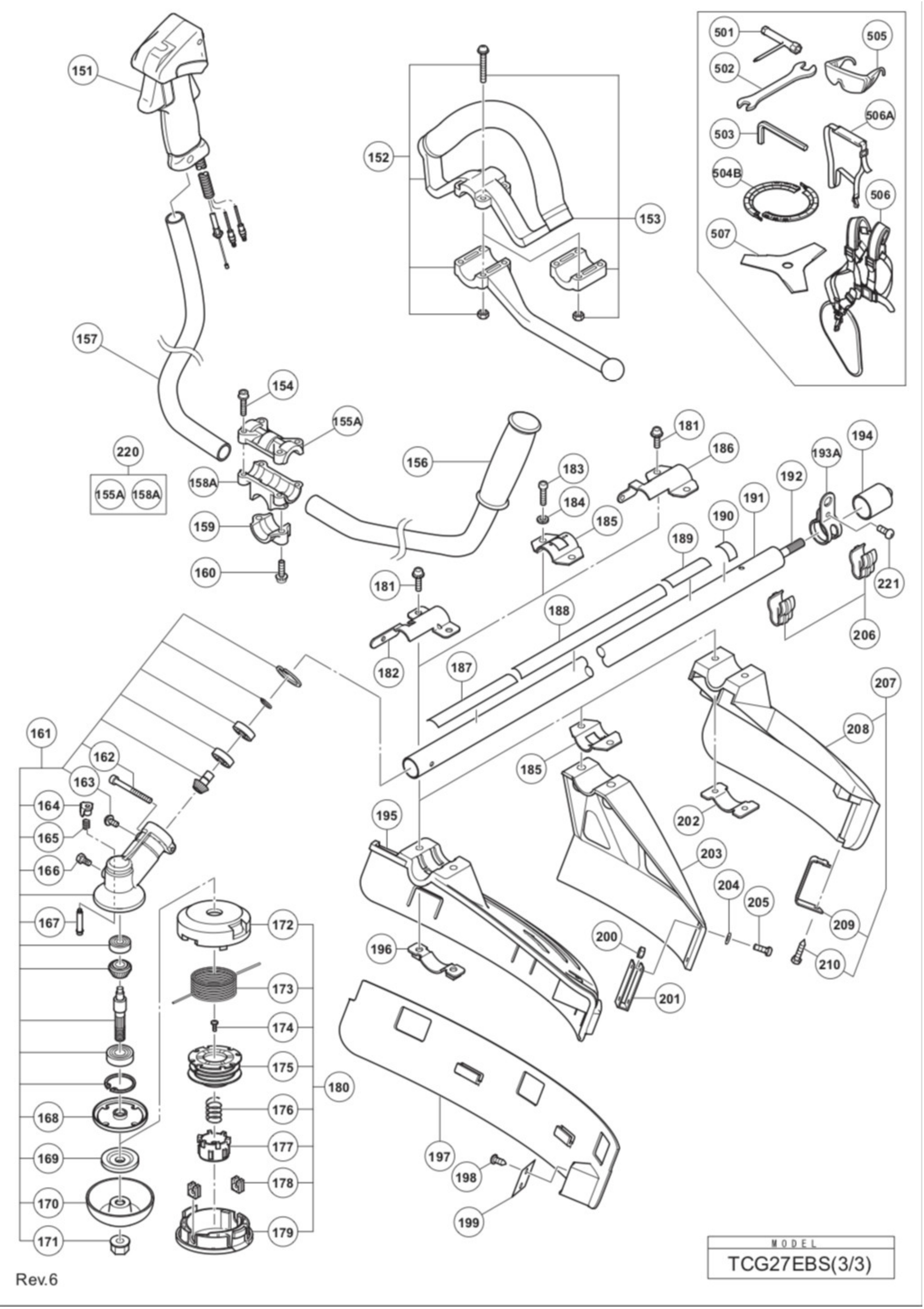

Esploso pagina 3
Pos. Item Price Buy
152
 photo_cameraImage coming soon 6699448 LOOP HANDLE (W/BARRIER) €20.06
155A
 photo_cameraImage coming soon 6600500 HANDLE HOLDER (A) €6.10
158A
 photo_cameraImage coming soon 6600501 HANDLE HOLDER (B) €10.36
160
 photo_cameraImage coming soon 6684714 HEX. HOLE BUTTON SCREW 6X25S €1.98
161
 photo_cameraImage coming soon 6699439 GEAR CASE ASS'Y (4BB) €91.39
164
 photo_cameraImage coming soon 6600005 CAP €4.72
169
 photo_cameraImage coming soon 6698659 CUTTER HOLDER (B) €25.68
170
 photo_cameraImage coming soon 6699188 NUT COVER €16.77
178
 photo_cameraImage coming soon 6698942 CORD GUIDE €6.47
182
 photo_cameraImage coming soon 6699442 COVER BRACKET €2.81
183
 photo_cameraImage coming soon 6685064 HEX. SOCKET HD. BOLT (W/BUTTON) M6X20 €1.93
188
 photo_cameraImage coming soon 6684959 CAUTION MARK €3.38
191
 photo_cameraImage coming soon 6699445 MAIN PIPE €45.69
192
 photo_cameraImage coming soon 6698514 DRIVE SHAFT €34.85
193A
 photo_cameraImage coming soon 6600504 HANGER €2.46
195
 photo_cameraImage coming soon 6696980 COVER €23.23
196
 photo_cameraImage coming soon 6696951 GUARD HOLDER €3.08
197
 photo_cameraImage coming soon 6696950 COVER GUARD €16.78
198
 photo_cameraImage coming soon 6684751 TAPPING SCREW 4X14 €1.98
199
 photo_cameraImage coming soon 6684750 KNIFE €3.98
204
 photo_cameraImage coming soon 323210 BOLT WASHER M4 (BLACK) €1.65
205
 photo_cameraImage coming soon 6685068 MACHINE SCREW (W/SP. WASHER) M4X12 €1.93
210
 photo_cameraImage coming soon 6684753 TAPPING SCREW 5X20 €1.93
506
 photo_cameraImage coming soon 6695796 SHOULDER HARNESS D3X €20.06

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Tanaka Spare Parts for Engine Brush Cutter TCG 27EBS

Tanaka genuine spare parts or replacement parts for to repair Engine Brush Cutter TANAKA TCG 27EBS.

In the following table, look for the model of the Brush Cutter and the respective parts of the code.
Tanaka TCG 27EBS

Engine Brush Cutter TANAKA  TCG 27EBS Pag.1
# Part Num. Description
1 887021 SCREW (W/WASHERS) M5X16 (BLACK)
2 6698493 MUFFLER COVER
2 6600322 MUFFLER COVER
3 6696819 HEX. SOCKET HD. BOLT M6X55
3 6698384 HEX. SOCKET HD. BOLT M6X65
4 949432 BOLT WASHER M6
5 6698477 MUFFLER
5 6600461 MUFFLER (B)
6 6600324 HEAT PROTECTION PANEL
7 6696958 HEX. SOCKET BOLT M5X20
8 6699431 CYLINDER COVER
9 6600008 COLLAR (B)
10 6696326 HEX. SOCKET HD. BOLT (W/FLANGE) M4X18
11 RCM+EAC MARK
12 6698950 SEAL LOCK HEX. SOCKET HD. BOLT M5X30
13 6699322 SPARK PLUG ASS'Y CJ6
13 6699316 SPARK PLUG ASS'Y BMR7A
14 6698365 COVER PACKING
15 6698484 SCAVENGING COVER (A)
16 6698385 HEX. SOCKET HD. BOLT M4X12
17 6698700 GLASS WASHER
18 6698485 SCAVENGING COVER (B)
19 6698480 CYLINDER
20 6699437 INTAKE PACKING
21 6698387 CARBURETOR INSULATOR
22 6698844 SEAL LOCK HEX. SOCKET BOLT (W/WASHERS)M5
23 6698405 CARBURETOR PACKING
24 6691337 SWIVEL CAP
25 6600326 CARBURETOR ASS'Y WYC-37
26 6699287 CABLE ADJUST STAY
27 6696830 SWIVEL
28 6684696 STOP RING
29 6684692 PUMP GASKET
30 6684693 PUMP DIAPHRAGM
31 6691242 PUMP PLATE
32 6685222 DIAPHRAGM COVER-METERING
33 6691312 SET SCREW
34 6696829 SET SCREW M3X12
35 6684695 O-RING
36 MAIN JET
37 6691234 CIRCUIT PLATE
38 6696828 PUMP BODY COMP.
39 6685220 DIAPHRAGM PACKING-METERING
40 6684690 METERING DIAPHRAGM
41 307224 MACHINE SCREW (W/WASHERS) M5X60 (BLACK)
42B 6601444 FUEL PIPE
43 6696832 AIR CLEANER HOUSING
44 6685139 PRIMING PUMP COMP.
45 6690347 CLEANER ELEMENT
46 6699185 CLEANER COVER
47 6699132 AIR CLEANER (A) ASS'Y
48 6698366 CYLINDER PACKING
49 6686121 PISTON RING
50 6699432 PISTON
51 6684590 CIR CLIP
52 6684591 PISTON PIN
53 6698386 HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X18
54 6698370 CRANK CASE (B) ASS'Y
55 6698371 CRANK CASE PACKING
56 6684607 OIL SEAL TB 12227
57 6684608 BALL BEARING 6001 C3
58 6698490 SHIM T0.5
59 6699438 CRANK SHAFT
60 6698369 CRANK CASE (A) ASS'Y
61 6696947 KNOCK PIN 4X12
62 6684681 STARTER PULLEY ASS'Y
63 6685101 D4E RETAINING RING
64 6684684 STARTER PAWL SPRING
65 6684685 STARTER PAWL
66 6699995 RECOIL STARTER BODY ASS'Y
67 6684679 SET SCREW
68 6699996 CAM PLATE
69 6684677 DAMPER SPRING
70 6699997 STARTER ROPE REEL
71 6684675 RECOIL SPRING
72 6684673 RECOIL STARTER BODY COMP.
73 6684674 STARTER ROPE 3.5X860
74 6684680 STARTER HANDLE
75 NAME PLATE
76 6698922 TANK MARK LABEL (25:1)
76 6698921 TANK MARK LABEL (50:1)
91 6699195 MACHINE SCREW M5X20 (BLACK)
92 6699194 P TITE SCREW D4X20 (BLACK)
93 6699197 SWITCH WIRE SET
94 6699196 NUT M5
95 6699192 STOP LEVER
96 6699191 LONG LEVER
97 6699193 RETURN SPRING
98 6699190 STAY SET
99 6699133 THROTTLE LEVER (A) ASS'Y
100 6699176 HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X12
101 6695492 HEX. HOLE BOLT 5X22/S
102 6696963 ANTI VIBE RUBBER (A)
103 6698643 PIPE HOLDER (A)
104 6698644 PIPE HOLDER (B)
105 6696964 ANTI VIBE RUBBER (B)
106 939542 RETAINING RING FOR D12 SHAFT
107 6699433 FAN CASE (A)
108 6699435 BALL BEARING 6301ZZC3
109 322813 RETAINING RING 37MM
110 6699434 CLUTCH SHAFT
111 6696469 STEP BOLT
112 6684648 BENT WASHER 8
113 6696546 CLUTCH PLATE (A)
114 6699130 CLUTCH
115 6699131 CLUTCH WASHER (B)
116 6685337 FLYWHEEL NUT
117 323212 BOLT WASHER M8 (BLACK)
118 6698388 HEX. SOCKET HD. BOLT (W/WASHERS) M4X18
119 6699436 IGNITION COIL ASS'Y
120A 6601421 PLUG CAP
121 6699933 METAL FITTING OF PLUG CAP
122 6696544 CORD
123 6696545 EARTH CORD
124 6698396 MAGNETO ROTOR COMP.
125 6698716 FUEL PIPE
126A 6699014 FUEL PIPE L70
127 6697846 RETURN GROMMET
128 6698402 FUEL TANK CAP ASS'Y
129 6698732 TANK CAP CHAIN
130 6698931 FUEL GROMMET
130A 6600358 FUEL GROMMET
131 6699558 SPACER
132 6600317 TANK (B)
132A 6600354 TANK (C)
133A 6600351 PUMP FILTER
134 6696949 CLIP
135 6694787 STAND
136 6696557 FLANGE BOLT
137 6698991 BOLT (W/FLANGE) L27.8
151 6699446 THROTTLE LEVER (B)
152 6699448 LOOP HANDLE (W/BARRIER)
153 6699449 LOOP HANDLE
154 6684709 HEX. HOLE BOLT M5X25/S
155A 6600500 HANDLE HOLDER (A)
156 6698638 HANDLE (LEFT)
157 6699447 HANDLE (RIGHT)
158A 6600501 HANDLE HOLDER (B)
159 6696578 HANDLE HOLDER (C)
160 6684714 HEX. HOLE BUTTON BOLT M6X25
161 6699439 GEAR CASE ASS'Y (4BB)
162 949664 HEX. SOCKET HD. BOLT M5X30
163 6695414 SCREW 5X12/W.S
164 6600005 CAP
165 6600006 SPRING
166 6684737 BOLT (W/PLUS) M6X8
167 6600007 LOCK PIN
168 6699441 CUTTER HOLDER (A)
169 6698659 CUTTER HOLDER (B)
170 6699188 NUT COVER
171 335759 U-NUT (LEFT HAND) M10
172 6698937 COVER
173 NYLON CORD
174 6698795 SET SCREW
175 6698939 REEL
176 6698941 RETURN SPRING
177 6698940 BUTTON
178 6698942 CORD GUIDE
179 6698938 CASE
180 6698639 NYLON HEAD ASS'Y
181 6684714 HEX. HOLE BUTTON BOLT M6X25
182 6699442 COVER BRACKET
183 6685064 HEX. SOCKET HD. BOLT (W/BUTTON) M6X20
183 6685064
184 949455 SPRING WASHER M6
184 949455
185 6696978 COVER BRACKET
185 6696978
186 6699444 COVER BRACKET
188 6684959 CAUTION MARK
189 6684852 LEVEL MARK
190 6684851 LEVEL MARK
191 6699445 MAIN PIPE
192 6698514 DRIVE SHAFT
193A 6600504 HANGER
194 6698515 CAP (A)
195 6696980 GUARD
196 6696951 GUARD HOLDER
197 6696950 COVER GUARD
198 6684751 TAPPING SCREW 4X14
199 6684750 KNIFE
200 949554 NUT M4
200 949554
201 6696584 KNIFE
201 6696584
202 6698813 COVER HOLDER
203 6696981 GUARD
203 6696981
204 323210 BOLT WASHER M4 (BLACK)
204 323210
205 6685068 MACHINE SCREW (W/SP. WASHER) M4X12
205 6685068
206 6699450 WIRE CLAMP
207 6697880 COVER ASS'Y
208 6690272 GUARD 24 DIA.
209 6693388 KNIFE
210 6684753 TAPPING SCREW 5X20
220 6600499 HANDLE HOLDER (A).(B) SET
221 949236 MACHINE SCREW M5X10
STANDARD ACCESSORIES Pag.2
501 6684764 BOX WRENCH (HEX. SOCKET 17/19)
502 6696596 WRENCH 8X10
503 944458 HEX. BAR WRENCH 4MM
504B 6684768 CUTTER COVER
505 875769 PROTECTIVE GLASSES
506 6695795 SHOULDER STRAP S
506 6695796 SHOULDER HARNESS D3X
506A 6601420 SHOULDER BELT SINGLE
507 6698711 BLADE 3TX255XT1.8
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Tanaka websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Tanaka brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

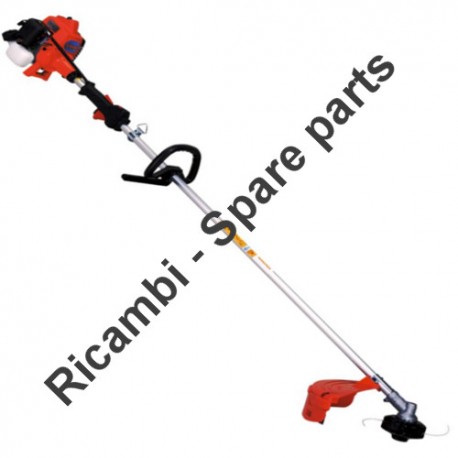

Tanaka TCG 27EBS
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Tanaka TCG 27EBS

Diagram Tanaka TCG 27EBS

Download (596.43KB)

You might also like

Recoil Starter for Brushcutter Hitachi Tanaka CG22EAS/24-27EASP
HiKOKI Power Tools Italia S.p.a. SKU: 6699995
Recoil Starter for Brushcutter Hitachi Tanaka CG22EAS/24-27EASP
Recoil Starter for Brushcutters Hitachi Tanaka CG22EAS/24-27EASP Original spare part Hitachi Koky Tanaka, Recoil Starter for Brushcutters CG22EAS - CG24EASP - CG27EASP. Part for the following items: - Brushcutters CG22EAS -...
Last items in stock €33.10
Details
Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka
HiKOKI Power Tools Italia S.p.a. SKU: 6685139
Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka
Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka Genuine spare Hitachi Koky Tanaka, Priming Pump complete for Brushcutters and Chain Saws Hitachi Tanaka. Parts for the following products: - BRUSHCUTTER CG47EF (L) -...
AVAILABLE €13.15
Details
Starter Pulley for Bruschcutters Hitachi CG22EAS-CG24EASP-CG27-33EJ
HiKOKI Power Tools Italia S.p.a. SKU: 6684681
Starter Pulley for Bruschcutters Hitachi CG22EAS-CG24EASP-CG27-33EJ
Starter Pulley for Bruschcutters Hitachi CG22EAS-CG24EASP-CG27-33EJ Genuine parts for Bruschcutters Hitachi Koky Tanaka, Starter Pulley Assembly for Brushcutters Recoil CG22EAS - CG24EASP - CG27EJ (SLNP) - CG33EJ-SL. For the following...
Last items in stock €23.26
Details
Damper Spring for Brushcutters Hitachi CG22EAS-CG24EASP-CG27EASP
HiKOKI Power Tools Italia S.p.a. SKU: 6684677
Damper Spring for Brushcutters Hitachi CG22EAS-CG24EASP-CG27EASP
Damper Spring for Brushcutters Hitachi CG22EAS-CG24EASP-CG27EASP Genuine spare parts Hitachi Koky Tanaka, Damper Spring for Brushcutters CG22EAS - CG24EASP - CG27EJ (SLNP) - CG27EASP - CG33EJ-SL Parts for the following products:...
Last items in stock €7.83
Details
Cylinder Gasket for Brushcutter CG27EASP
HiKOKI Power Tools Italia S.p.a. SKU: 6698366
Cylinder Gasket for Brushcutter CG27EASP
Cylinder Gasket for Brushcutter CG27EASP Genuine spare part for Brushcutters Hitachi Koky Tanaka, Cylinder Gasket for Brushcutter CG27EASP Blower RB24EAP Hitachi Tanaka. Part for the following article : - Bruschcutter CG27EASP -...
AVAILABLE €2.52
Details
Fuel Tank for Brushcutters Hitachi CG24EASP-CG27EASP
HiKOKI Power Tools Italia S.p.a. SKU: 6600317
Fuel Tank for Brushcutters Hitachi CG24EASP-CG27EASP
Fuel Tank for Brushcutters Hitachi CG24EASP-CG27EASP Genuine part Hitachi Koky Tanaka, Fuel Tank for Brushcutters CG24EASP - CG27EASP - Hedge Trimmer CS 27EPAP - Pruner CS 27EPAP - Blower RB 24EAP. Parts for the following...
Last items in stock €16.39
Details
Coil Cord (BLACK) for Brushcutter Hitachi CG22EAS Sale
HiKOKI Power Tools Italia S.p.a. SKU: 6696544
Coil Cord (BLACK) for Brushcutter Hitachi CG22EAS
Coil Cord (BLACK) for Brushcutter Hitachi CG22EAS Original spare Hitachi Koky Tanaka, Coil Cord (BLACK) for Brushcutter Hitachi CG22EAS - CG24EASP. Parts for the following products: - BRUSHCUTTER HITACHI CG22EAS - BRUSHCUTTER HITACHI...
AVAILABLE €2.65
Details
Coil Rarth Cord (Yellow) for Brushcutter Hitachi CG22EAS Sale
HiKOKI Power Tools Italia S.p.a. SKU: 6696545
Coil Rarth Cord (Yellow) for Brushcutter Hitachi CG22EAS
Coil Rarth Cord (Yellow) for Brushcutter Hitachi CG22EAS Original spare Hitachi Koky Tanaka, Coil Rarth Cord (Yellow) for Brushcutter Hitachi CG22EAS - CG24EASP - CG27EASP. Parts for the following products: -  BRUSHCUTTER HITACHI...
AVAILABLE €2.65
Details
Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51
HiKOKI Power Tools Italia S.p.a. SKU: 6685220
Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51
Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51 Original parts for Chainsaw Hitachi Koky Tanaka, Diaphragm Packing Metering Gasket for Carburetor Chainsaws, CS25EC-SC-EU - CS33EDT - CS38EK - CS40EA - CS45EL - CS51EAP...
AVAILABLE €3.45
Details
Metering Diaphragm for Chainsaws Hitachi CS-33-40-51
HiKOKI Power Tools Italia S.p.a. SKU: 6684690
Metering Diaphragm for Chainsaws Hitachi CS-33-40-51
Metering Diaphragm for Chainsaws Hitachi CS-33-40-51 Original parts for Chainsaw Hitachi Koky Tanaka, Metering Diaphragm for Carburetor Chainsaws,CS33EDT - CS 33EB - CS40EA - TANAKA TCS-40EA - Hitachi CS51EAP -...
Last items in stock €25.81
Details
Pump Diaphragm for Chainsaw Hitachi CS33EB
HiKOKI Power Tools Italia S.p.a. SKU: 6684693
Pump Diaphragm for Chainsaw Hitachi CS33EB
Pump Diaphragm for Chainsaw Hitachi CS33EB Original parts Hitachi Koky Tanaka, Pump Diaphragm for Carburetor Chainsaw, CS33EB - CS 33EB - Brushcutters CG22EAS - CG24EKS - CG27EJ-SLNP...
Last items in stock €9.95
Details
Circuit Plate Gasket for Brushcutter Hitachi CG22EAS
HiKOKI Power Tools Italia S.p.a. SKU: 6691234
Circuit Plate Gasket for Brushcutter Hitachi CG22EAS
Circuit Plate Gasket for Brushcutter Hitachi CG22EAS Original parts Hitachi Koky Tanaka, Circuit Plate Gasket for Brushcutters CG22EAS - CG24EASP - CG27EASP Parts for the following products: - Brushcutter Hitachi...
AVAILABLE €6.64
Details
Piston Ring for Brushcutter Hitachi CG27EASP
HiKOKI Power Tools Italia S.p.a. SKU: 6686121
Piston Ring for Brushcutter Hitachi CG27EASP
Piston Ring for Brushcutter Hitachi CG27EASP Genuine part Hitachi Koky Tanaka, Piston Ring for Brushcutter CG27EASP - CG27EBSP - CG27EJ(SLNP) - Engine Hedge Trimmer CS 27EPAP - Engine...
AVAILABLE €7.30
Details
Piston Pin for Brushcutter Hitachi CG27EASP
HiKOKI Power Tools Italia S.p.a. SKU: 6684591
Piston Pin for Brushcutter Hitachi CG27EASP
Piston Pin for Brushcutter Hitachi CG27EASP Genuine part Hitachi Koky Tanaka, Piston Pin for Brushcutters CG24EASP - CG24EKS - CG25EUS - CG27EASP - CG27EJ(SLNP) Parts for the following products: - Brushcutter Hitachi CG24EASP -...
Last items in stock €4.14
Details
Circlip for Brushcutter Hitachi CG 24EBS
HiKOKI Power Tools Italia S.p.a. SKU: 6684590
Circlip for Brushcutter Hitachi CG 24EBS
Circlip for Brushcutter Hitachi CG 24EBS Original replacement part Hitachi Koky Tanaka, Piston Pin Circlip for Brushcutters, Chainsaws, Hedgecutters Hitachi - Tanaka. Part for the following...
Last items in stock €1.57
Details
Cylinder for Brushcutter Hitachi CG27EASP
HiKOKI Power Tools Italia S.p.a. SKU: 6698480
Cylinder for Brushcutter Hitachi CG27EASP
Cylinder for Brushcutter Hitachi CG27EASP Genuine replacement part Hitachi Koky Tanaka, Cylinder E311579A for Brushcutters CG27EASP - CG27EAP2 - CG27EBDP - CG27EBSP - Tanaka TCG 27EBS - TCG 27EASP. Part for the following products: -...
AVAILABLE €99.59
Details
Anti Vibe Rubber (A) for Brushcutter Hitachi CG22EAB
HiKOKI Power Tools Italia S.p.a. SKU: 6696963
Anti Vibe Rubber (A) for Brushcutter Hitachi CG22EAB
Anti Vibe Rubber (A) for Brushcutter Hitachi CG22EAB Original spare part Hitachi, Anti Vibe Rubber (A) for Brushcutters CG22EAB(LP) - CG22EAP2(SL) - CG22EAS(SLP) -  CG24EAP2(SL) -  CG24EBSP(SL) -  CG27EAP2(SL) Part for the following...
on 7/10 Business Days Approx €4.44
Details
Hex Socket HD Bolt M4x18 for Chainsaw Tanaka TCS-40EA
HiKOKI Power Tools Italia S.p.a. SKU: 6696326
Hex Socket HD Bolt M4x18 for Chainsaw Tanaka TCS-40EA
Hex Socket HD Bolt (W/Flange) M4x18 for  Chainsaw  Tanaka TCS-40EA Original parts Hitachi Koky Tanaka, Hex Socket HD Bolt (W/Flange) M4x18 for Chainsaws TCS-40EA - TCS 33ED - TCS33EDT. Parts for the following products: -  Chainsaw...
on 7/10 Business Days Approx €2.40
Details
Intake Packing for Brushcutter Hitachi CG24EAP2
HiKOKI Power Tools Italia S.p.a. SKU: 6699437
Intake Packing for Brushcutter Hitachi CG24EAP2
Intake Packing for Brushcutter  Hitachi  CG24EAP2 Original spare part Hitachi-HIKOKI Tanaka, Intake Packing for Brushcutters  CG24EAP2 -  CG24EBSP -  CG27EBSP. Parts for the...
AVAILABLE €2.16
Details
Hitachi CG27EBSP Ignition Coil Ass'y
HiKOKI Power Tools Italia S.p.a. SKU: 6699436
Hitachi CG27EBSP Ignition Coil Ass'y
Hitachi CG27EBSP Ignition Coil Ass'y Original spare part Hitachi-HIKOKI Tanaka, Ignition Coil Ass'y for Brushcutter CG27EBSP - "SMART FIT" CG27EBDP (SL). Part for the following products: - Brushcutter CG27EBSP -...
Last items in stock €16.19
Details
Comments (0)
