Tanaka Spare Parts for Engine Brush Cutter TCG 24EBSP

Name: Tanaka Spare Parts for Engine Brush Cutter TCG 24EBSP
Brand: HiKOKI Power Tools Italia S.p.a.
SKU: Tanaka TCG 24EBSP
Availability: InStock

SKU: Tanaka TCG 24EBSP

€55.63

VAT included

Tanaka Spare Parts for Engine Brush Cutter TCG 24EBSP

Tanaka genuine spare parts or replacement parts for to repair Engine Brush Cutter TANAKA TCG 24EBSP.

Fix Your Tanaka Engine Brush Cutter TCG 24EBSP. All Spares are Available at best and Cheapest and Discounted Prices. Our spare parts are original and come with a full Guarantee.

200 spare parts

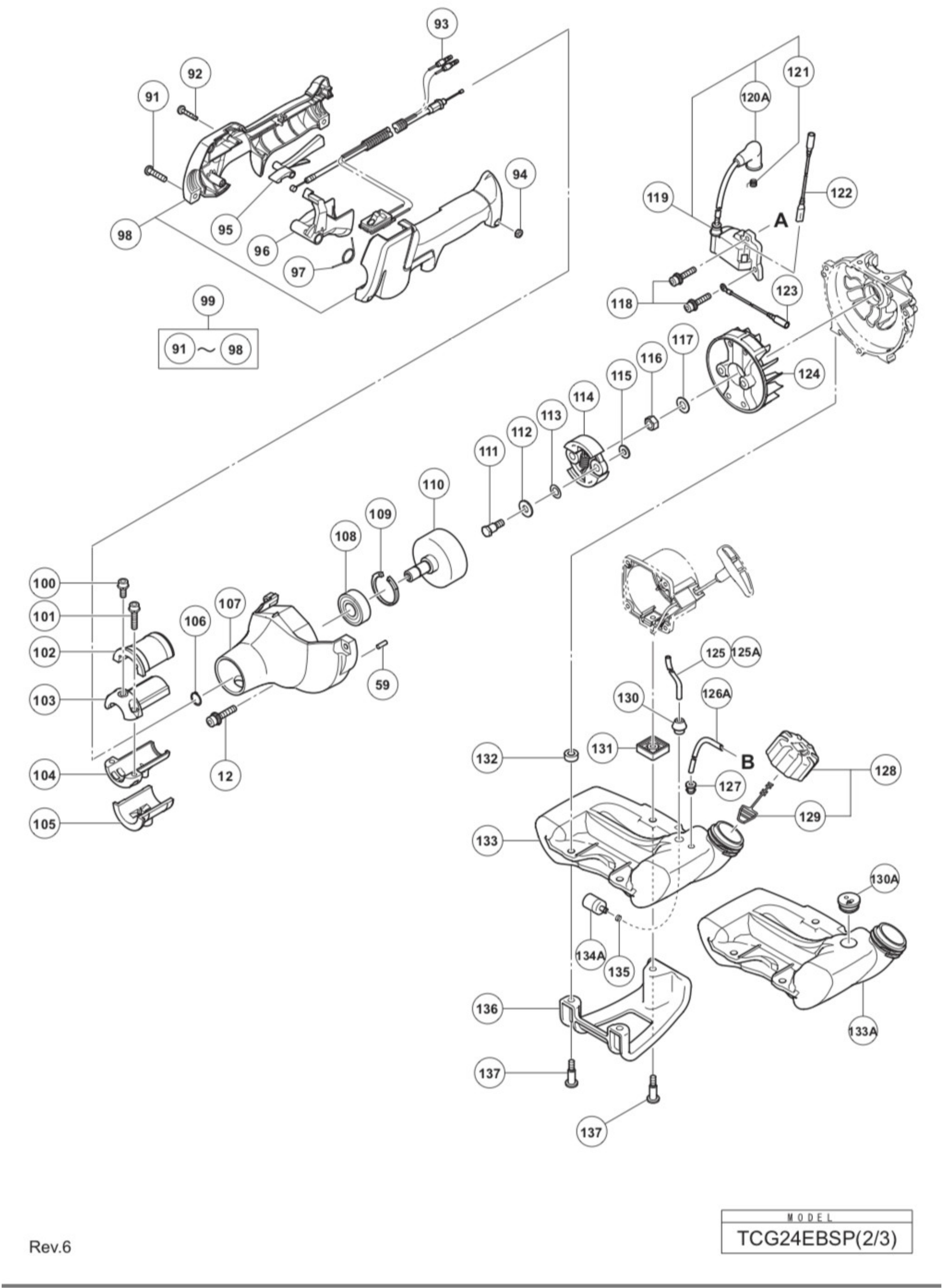

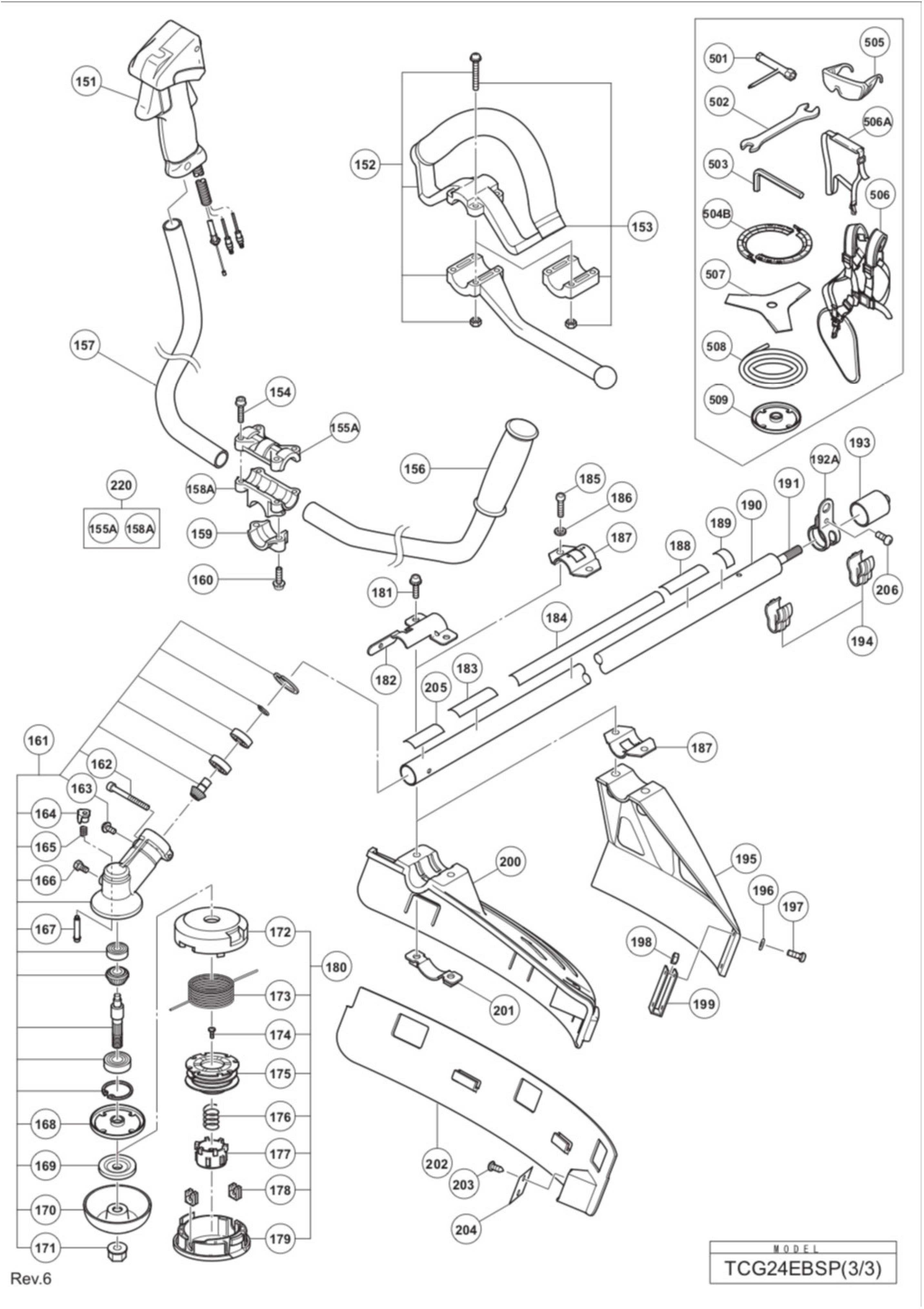

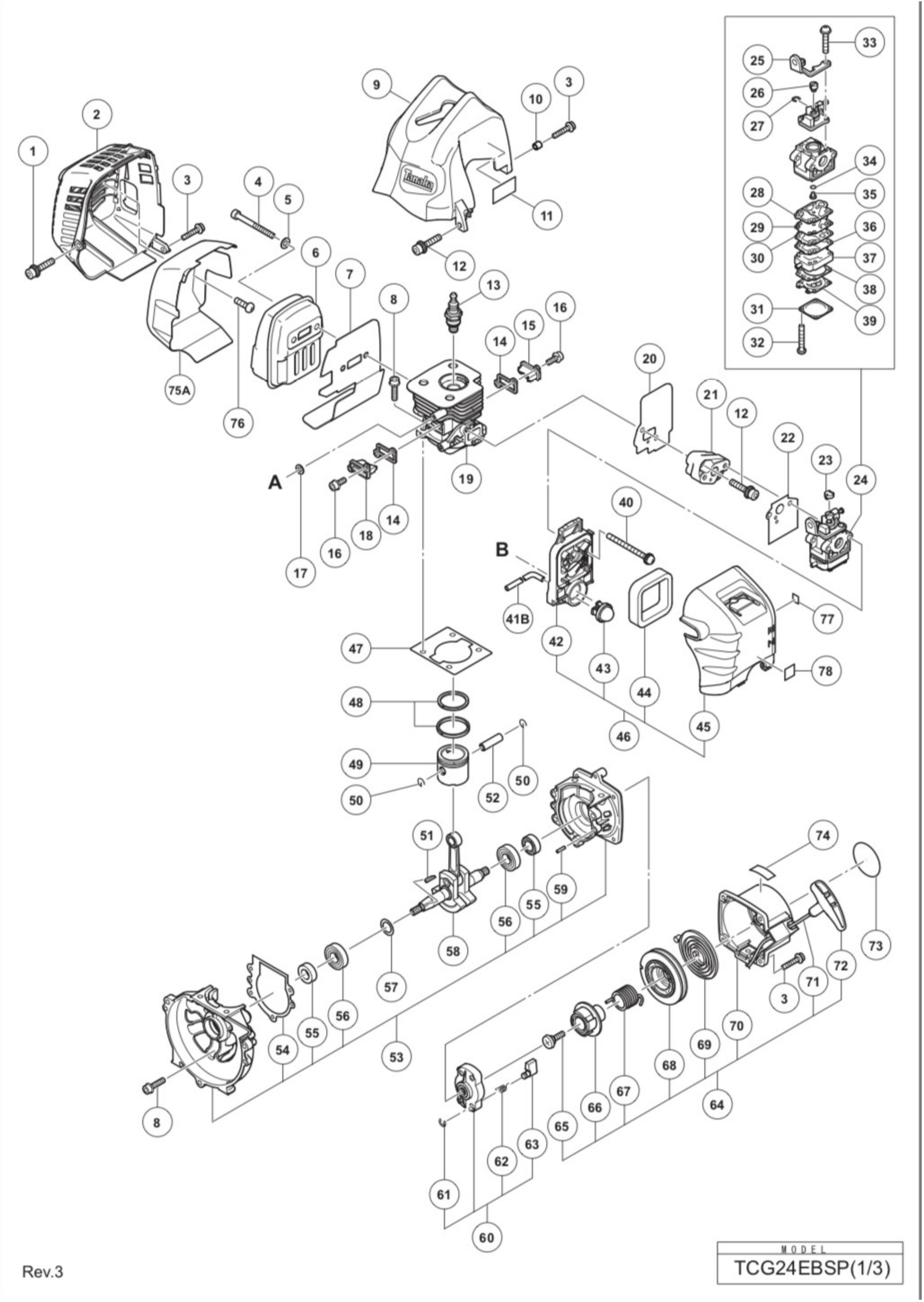

Page 1 View exploded Usually Ships in 10/15 BUSINESS DAYS

Pos.		Item	Price	Buy
1	Image coming soon	6698950 SEAL LOCK HEX. SOCKET HD. BOLT M5X30	€0.00	Not available for order
2	Image coming soon	6600319 MUFFLER COVER	€12.14
3		6696326 Hex Socket HD Bolt M4x18 for Chainsaw Tanaka TCS-40EA	€2.38
4	Image coming soon	6698384 HEX. SOCKET HD. BOLT M6X65	€2.38
5	Image coming soon	949432 BOLT WASHER M6 (10 PCS.)	€0.00	Not available for order
6	Image coming soon	6600004 MUFFLER (B)	€57.28
7	Image coming soon	6600320 HEAT PROTECTION PANEL	€2.38
8	Image coming soon	6698386 HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X18	€0.00	Not available for order
9	Image coming soon	6699455 CYLINDER COVER	€0.00	Not available for order
10	Image coming soon	6600008 COLLAR (B)	€0.00	Not available for order
12	Image coming soon	6698844 SEAL LOCK HEX. SOCKET BOLT (W/WASHERS)M5	€2.38
13	Image coming soon	6699316 SPARK PLUG ASS'Y BMR7A	€4.82
13	Image coming soon	6699322 SPARK PLUG ASS'Y CJ6	€0.00	Not available for order
14	Image coming soon	6698468 COVER PACKING	€2.38
15	Image coming soon	6698469 SCAVENGING COVER (A)	€2.38
16	Image coming soon	6698385 HEX. SOCKET HD. BOLT M4X12	€2.38
17	Image coming soon	6698700 GLASS WASHER	€2.38
18	Image coming soon	6698470 SCAVENGING COVER (B)	€2.38
19	Image coming soon	6698465 CYLINDER	€70.70
20		6699437 Intake Packing for Brushcutter Hitachi CG24EAP2	€2.38
21		6698387 Hitachi CH22EBP2 Carburetor Insulator	€6.04
22		6698405 CARBURETOR PACKING	€4.82
23	Image coming soon	6691337 SWIVEL CAP	€2.38
24	Image coming soon	6600321 CARBURETOR ASS'Y WYC-36	€52.40
25	Image coming soon	6699287 CABLE ADJUST STAY	€0.00	Not available for order
26	Image coming soon	6696830 SWIVEL	€8.48
27	Image coming soon	6684696 STOP RING	€1.16
28	Image coming soon	6684692 PUMP GASKET	€26.78
29		6684693 Pump Diaphragm for Chainsaw Hitachi CS33EB	€9.70
30	Image coming soon	6691242 PUMP PLATE	€6.04
31	Image coming soon	6685222 DIAPHRAGM COVER	€7.26
32	Image coming soon	6691312 SET SCREW	€2.38
33	Image coming soon	6696829 SET SCREW M3X12	€0.00	Not available for order
34	Image coming soon	6684695 ORING	€3.60
36		6691234 Circuit Plate Gasket for Brushcutter Hitachi CG22EAS	€7.26
37	Image coming soon	6696828 PUMP BODY COMP.	€25.56
38		6685220 Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51	€3.60
39		6684690 Metering Diaphragm for Chainsaws Hitachi CS-33-40-51	€26.78
40	Image coming soon	307224 MACHINE SCREW (W/WASHERS) M5X60 (BLACK)	€0.00	Not available for order
41B	Image coming soon	6601443 FUEL PIPE	€0.00	Not available for order
42		6696832 Air Filter Housing for Brushcutter Hitachi Tanaka CG22EAB	€23.12
43		6685139 Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka	€13.36
44		6690347 CLEANER ELEMENT	€6.04
45	Image coming soon	6699185 CLEANER COVER	€14.58
46		6699132 AIR CLEANER (A) ASS'Y	€17.02
47	Image coming soon	6684587 CYLINDER GASKET	€2.38
48		6698404 Piston Ring for Bruschcutter and Blower Hitachi Tanaka	€9.70
49	Image coming soon	6699456 PISTON	€12.14
50		6684590 Circlip for Brushcutter Hitachi CG 24EBS	€1.16
51	Image coming soon	6684899 WOODRUFF KEY 3X13X4.5	€1.16
52		6684591 Piston Pin for Brushcutter Hitachi CG27EASP	€3.60
53	Image coming soon	6684606 CRANK CASE ASS'Y	€0.00	Not available for order
54	Image coming soon	6684609 CRANK CASE GASKET	€2.38
55	Image coming soon	6684607 OIL SEAL TB 12227	€3.60
56	Image coming soon	6684608 BALL BEARING 6001 C3	€6.04
57	Image coming soon	6696945 SHIM T0.3	€0.00	Not available for order
57	Image coming soon	6696946 SHIM T0.2	€0.00	Not available for order
58	Image coming soon	6696533 CRANK SHAFT COMP.	€76.80
59	Image coming soon	6696947 KNOCK PIN 4X12	€0.00	Not available for order
60		6684681 Starter Pulley for Bruschcutters Hitachi CG22EAS-CG24EASP-CG27-33EJ	€24.34
61	Image coming soon	6685101 D4E RETAINING RING	€1.16
62	Image coming soon	6684684 STARTER PAWL SPRING	€3.60
63	Image coming soon	6684685 STARTER PAWL	€6.04
64		6699995 Recoil Starter for Brushcutter Hitachi Tanaka CG22EAS/24-27EASP	€34.10	Not available for order
65		6684679 Set Screw for Hedge Trimmer Hitachi CH62EA(ST)	€7.26
66	Image coming soon	6699996 CAM PLATE FOR (S) TYPE SINCE 9.2013 FOR AUS	€6.04
67		6684677 Damper Spring for Brushcutters Hitachi CG22EAS-CG24EASP-CG27EASP	€14.58	Not available for order
68	Image coming soon	6699997 STARTER ROPE REEL	€6.04
69		6684675 RECOIL SPRING	€12.14
70	Image coming soon	6684673 RECOIL STARTER BODY COMP.	€18.24
71	Image coming soon	6684674 STARTER ROPE 3.5X860	€4.82
72	Image coming soon	6684680 STARTER HANDLE	€0.00	Not available for order
74	Image coming soon	6698921 TANK MARK LABEL (50:1)	€0.00	Not available for order
75A	Image coming soon	6600422 MUFFLER HEAT COVER	€9.70
76	Image coming soon	6600325 TAPPING SCREW D4X10	€0.00	Not available for order
77	Image coming soon	6600327 MARK PLATE (T)	€0.00	Not available for order
78	Image coming soon	6699000 PRIMER LABEL	€0.00	Not available for order
91	Image coming soon	6699195 MACHINE SCREW M5X20 (BLACK)	€0.00	Not available for order
92	Image coming soon	6699194 P TITE SCREW D4X20 (BLACK)	€0.00	Not available for order
93	Image coming soon	6699197 SWITCH WIRE SET	€15.80
94	Image coming soon	6699196 NUT M5	€0.00	Not available for order
95	Image coming soon	6699192 STOP LEVER	€3.60
96	Image coming soon	6699191 LONG LEVER	€4.82
97	Image coming soon	6699193 RETURN SPRING	€0.00	Not available for order
98	Image coming soon	6699190 STAY SET	€0.00	Not available for order
99	Image coming soon	6699133 THROTTLE LEVER (A) ASS'Y	€40.20
100	Image coming soon	6699176 HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X12	€0.00	Not available for order
101	Image coming soon	6695492 HEX. HOLE BOLT 5X22/S	€1.16
102		6696963 Anti Vibe Rubber (A) for Brushcutter Hitachi CG22EAB	€4.82
103	Image coming soon	6698643 PIPE HOLDER (A)	€4.82
104	Image coming soon	6698644 PIPE HOLDER (B)	€4.82
105	Image coming soon	6696964 ANTI VIBE RUBBER (B)	€6.04
106		939542 Retaining Ring 12 mm for Hitachi Power Tools	€3.60
107	Image coming soon	6699457 FAN CASE (A)	€24.34
108	Image coming soon	6699435 BALL BEARING 6301ZZC3	€4.82
109	Image coming soon	322813 RETAINING RING 37MM	€2.38
110	Image coming soon	6699434 CLUTCH SHAFT	€13.36
111	Image coming soon	6696469 STEP BOLT	€2.38
112	Image coming soon	6684648 BENT WASHER 8	€2.38
113	Image coming soon	6696546 CLUTCH PLATE (A)	€2.38
114	Image coming soon	6699130 CLUTCH	€42.64
115	Image coming soon	6699131 CLUTCH WASHER (B)	€0.00	Not available for order
116		6685337 Flywheel Nut for Chainsaw Hitachi CS33EB	€2.38
117	Image coming soon	323212 BOLT WASHER M8 (BLACK)	€0.00	Not available for order
118	Image coming soon	6698388 HEX. SOCKET HD. BOLT (W/WASHERS) M4X18	€0.00	Not available for order
119	Image coming soon	6699458 IGNITION COIL ASS'Y	€43.86
120A	Image coming soon	6601421 PLUG CAP	€0.00	Not available for order
121	Image coming soon	6699933 METAL FITTING OF PLUG CAP	€0.00	Not available for order
122		6696544 Coil Cord (BLACK) for Brushcutter Hitachi CG22EAS	€2.38
123		6696545 Coil Rarth Cord (Yellow) for Brushcutter Hitachi CG22EAS	€2.38
124	Image coming soon	6699289 MAGNETO ROTOR ASS'Y	€32.88
125A	Image coming soon	6601525 FUEL PIPE	€0.00	Not available for order
125		6698716 FUEL PIPE	€4.82
126A	Image coming soon	6699014 FUEL PIPE L70	€2.38
127		6697846 RETURN GROMMET	€2.38
128		6698402 Fuel Tank Cap for Brushcutter Hitachi CG24ECP (SL)	€9.70
129	Image coming soon	6698732 TANK CAP CHAIN	€0.00	Not available for order
130A	Image coming soon	6600358 TANK GROMMET FROM YEAR OF PRODUCTION OCTOBER 2016	€2.38
130	Image coming soon	6698931 FUEL GROMMET	€0.00	Not available for order
131	Image coming soon	6699558 SPACER	€1.16
132	Image coming soon	6699459 SPACER (B)	€0.00	Not available for order
133		6600317 Fuel Tank for Brushcutters Hitachi CG24EASP-CG27EASP	€17.02
133A	Image coming soon	6600354 TANK (C)	€14.58
133	Image coming soon	6699719 TANK	€34.10
134A	Image coming soon	6600351 PUMP FILTER	€4.82
135	Image coming soon	6696949 CAPACITOR CLIP	€2.38
136	Image coming soon	6694787 STAND	€0.00	Not available for order
137	Image coming soon	6698991 BOLT (W/FLANGE) L27.8	€2.38
151	Image coming soon	6699446 THROTTLE LEVER (B)	€0.00	Not available for order
152	Image coming soon	6699448 LOOP HANDLE (W/BARRIER)	€20.68
153	Image coming soon	6699449 LOOP HANDLE	€0.00	Not available for order
154	Image coming soon	6684709 HEX. HOLE BOLT M5X25/S	€0.00	Not available for order
155A	Image coming soon	6600500 HANDLE HOLDER (A)	€6.04
156	Image coming soon	6698638 HANDLE (LEFT)	€0.00	Not available for order
157	Image coming soon	6699447 HANDLE (RIGHT)	€0.00	Not available for order
158A	Image coming soon	6600501 HANDLE HOLDER (B)	€10.92
159	Image coming soon	6696578 HANDLE HOLDER (C)	€0.00	Not available for order
160	Image coming soon	6684714 HEX. HOLE BUTTON SCREW 6X25S	€2.38
161	Image coming soon	6699439 GEAR CASE ASS'Y (4BB)	€95.10
161	Image coming soon	6699440 GEAR CASE ASS'Y (4BB)	€0.00	Not available for order
162	Image coming soon	949664 HEX. SOCKET HD. BOLT M5X30	€0.00	Not available for order
163	Image coming soon	6695414 SCREW 5X12/W.S	€0.00	Not available for order
164	Image coming soon	6600005 CAP	€4.82
165	Image coming soon	6600006 SPRING	€0.00	Not available for order
166	Image coming soon	6684737 BOLT (W/PLUS) M6X8	€0.00	Not available for order
167	Image coming soon	6600007 LOCK PIN	€0.00	Not available for order
168	Image coming soon	6699441 CUTTER HOLDER (A)	€0.00	Not available for order
169	Image coming soon	6698659 CUTTER HOLDER (B)	€26.78
170	Image coming soon	6699188 NUT COVER	€17.02
171	Image coming soon	335759 U-NUT (LEFT HAND) M10	€0.00	Not available for order
172	Image coming soon	6698794 COVER	€26.78
172	Image coming soon	6698937 COVER	€0.00	Not available for order
174	Image coming soon	6698795 SET SCREW	€0.00	Not available for order
175	Image coming soon	6698796 REEL	€10.92
175	Image coming soon	6698939 REEL	€0.00	Not available for order
176	Image coming soon	6698797 RETURN SPRING	€0.00	Not available for order
176	Image coming soon	6698941 RETURN SPRING	€0.00	Not available for order
177		6698798 Button for Brushcutter Hitachi CG22EAS	€10.92
177	Image coming soon	6698940 BUTTON	€0.00	Not available for order
178	Image coming soon	6698799 CORD GUIDE	€9.70
178	Image coming soon	6698942 CORD GUIDE	€6.04
179	Image coming soon	6698800 CASE	€18.24
179	Image coming soon	6698938 CASE	€0.00	Not available for order
180	Image coming soon	6696454 NYLON HEAD ASS'Y	€18.24
180	Image coming soon	6698639 NYLON HEAD ASS'Y	€0.00	Not available for order
182	Image coming soon	6699442 COVER BRACKET	€2.38
184	Image coming soon	6684959 CAUTION MARK	€3.60
184	Image coming soon	6685056 CAUTION MARK	€0.00	Not available for order
185	Image coming soon	6685064 HEX. SOCKET HD. BOLT (W/BUTTON) M6X20	€2.38
186	Image coming soon	949455 SPRING WASHER M6 (10 PCS.)	€0.00	Not available for order
187	Image coming soon	6696978 COVER BRACKET	€0.00	Not available for order
188	Image coming soon	6684852 LEVEL MARK	€0.00	Not available for order
189	Image coming soon	6684851 LEVEL MARK	€0.00	Not available for order
190	Image coming soon	6699445 MAIN PIPE	€47.52
191	Image coming soon	6698514 DRIVE SHAFT	€35.32
192A	Image coming soon	6600504 HANGER	€2.38
193	Image coming soon	6698515 CAP (A)	€0.00	Not available for order
194	Image coming soon	6699450 WIRE CLAMP	€0.00	Not available for order
195	Image coming soon	6696981 GUARD	€0.00	Not available for order
196	Image coming soon	323210 BOLT WASHER M4 (BLACK)	€1.16
197	Image coming soon	6685068 MACHINE SCREW (W/SP. WASHER) M4X12	€2.38
198	Image coming soon	949554 NUT M4 (10 PCS.)	€0.00	Not available for order
199	Image coming soon	6696584 KNIFE	€0.00	Not available for order
200	Image coming soon	6696980 COVER	€24.34
201	Image coming soon	6696951 GUARD HOLDER	€3.60
202	Image coming soon	6696950 COVER GUARD	€17.02
203	Image coming soon	6684751 TAPPING SCREW 4X14	€2.38
204	Image coming soon	6684750 KNIFE	€3.60
205	Image coming soon	6600328 CAUTION LABEL (HEDGE)	€0.00	Not available for order
206	Image coming soon	949236 MACHINE SCREW M5X10	€0.00	Not available for order
220	Image coming soon	6600499 HANDLE HOLDER (A).(B) SET	€0.00	Not available for order

Page 2 View exploded Usually Ships in 10/15 BUSINESS DAYS

Pos.		Item	Price	Buy
	Image coming soon	6699441 CUTTER HOLDER (A)	€0.00	Not available for order
501	Image coming soon	6684764 BOX WRENCH (HEX. SOCKET 17/19)	€0.00	Not available for order
502	Image coming soon	6696596 WRENCH 8X10	€0.00	Not available for order
503	Image coming soon	944458 HEX. BAR WRENCH 4MM	€0.00	Not available for order
504B	Image coming soon	6684768 CUTTER COVER	€0.00	Not available for order
505	Image coming soon	875769 SAFETY GLASSES	€0.00	Not available for order
506A	Image coming soon	6601420 SHOULDER BELT SINGLE	€0.00	Not available for order
506	Image coming soon	6695796 SHOULDER HARNESS D3X	€20.68
507	Image coming soon	6698711 BLADE 3TX255XT1.8	€0.00	Not available for order
508	Image coming soon	6698640 MEGA TWIST CORD	€0.00	Not available for order

Page 3 View exploded Usually Ships in 10/15 BUSINESS DAYS

No spare parts mapped to this page.
Check the other pages for available parts.

Shipping and delivery information will be available shortly.

Tanaka Spare Parts for Engine Brush Cutter TCG 24EBSP

Engine Brush Cutter TANAKA TCG 24EBSP Pag.1
#	Part Num.	Description
1	6698950	SEAL LOCK HEX. SOCKET HD. BOLT M5X30
2	6600319	MUFFLER COVER
3	6696326	HEX. SOCKET HD. BOLT (W/FLANGE) M4X18
4	6698384	HEX. SOCKET HD. BOLT M6X65
5	949432	BOLT WASHER M6
6	6600004	MUFFLER (B)
7	6600320	HEAT PROTECTION PANEL
8	6698386	HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X18
9	6699455	CYLINDER COVER
10	6600008	COLLAR (B)
11		CAUTION LABEL
12	6698844	SEAL LOCK HEX. SOCKET BOLT (W/WASHERS)M5
13	6699316	SPARK PLUG ASS'Y BMR7A
13	6699322	SPARK PLUG ASS'Y CJ6
14	6698468	COVER PACKING
15	6698469	SCAVENGING COVER (A)
16	6698385	HEX. SOCKET HD. BOLT M4X12
17	6698700	GLASS WASHER
18	6698470	SCAVENGING COVER (B)
19	6698465	CYLINDER
20	6699437	INTAKE PACKING
21	6698387	CARBURETOR INSULATOR
22	6698405	CARBURETOR PACKING
23	6691337	SWIVEL CAP
24	6600321	CARBURETOR ASS'Y WYC-36
25	6699287	CABLE ADJUST STAY
26	6696830	SWIVEL
27	6684696	STOP RING
28	6684692	PUMP GASKET
29	6684693	PUMP DIAPHRAGM
30	6691242	PUMP PLATE
31	6685222	DIAPHRAGM COVER-METERING
32	6691312	SET SCREW
33	6696829	SET SCREW M3X12
34	6684695	O-RING
35		MAIN JET
36	6691234	CIRCUIT PLATE
37	6696828	PUMP BODY COMP.
38	6685220	DIAPHRAGM PACKING-METERING
39	6684690	METERING DIAPHRAGM
40	307224	MACHINE SCREW (W/WASHERS) M5X60 (BLACK)
41B	6601443	FUEL PIPE
42	6696832	AIR CLEANER HOUSING
43	6685139	PRIMING PUMP COMP.
44	6690347	CLEANER ELEMENT
45	6699185	CLEANER COVER
46	6699132	AIR CLEANER (A) ASS'Y
47	6684587	CYLINDER GASKET
48	6698404	PISTON RING
49	6699456	PISTON
50	6684590	CIR CLIP
51	6684899	WOODRUFF KEY 3X13X4.5
52	6684591	PISTON PIN
53	6684606	CRANK CASE ASS'Y
54	6684609	CRANK CASE GASKET
55	6684607	OIL SEAL TB 12227
56	6684608	BALL BEARING 6001 C3
57	6696946	SHIM T0.2
57	6696945	SHIM T0.3
58	6696533	CRANK SHAFT COMP.
59	6696947	KNOCK PIN 4X12
60	6684681	STARTER PULLEY ASS'Y
61	6685101	D4E RETAINING RING
62	6684684	STARTER PAWL SPRING
63	6684685	STARTER PAWL
64	6699995	RECOIL STARTER BODY ASS'Y
65	6684679	SET SCREW
66	6699996	CAM PLATE
67	6684677	DAMPER SPRING
68	6699997	STARTER ROPE REEL
69	6684675	RECOIL SPRING
70	6684673	RECOIL STARTER BODY COMP.
71	6684674	STARTER ROPE 3.5X860
72	6684680	STARTER HANDLE
73		NAME PLATE
74	6698921	TANK MARK LABEL (50:1)
75A	6600422	MUFFLER HEAT COVER
76	6600325	TAPPING SCREW D4X10
77	6600327	MARK PLATE (T)
78	6699000	PRIMER LABEL
91	6699195	MACHINE SCREW M5X20 (BLACK)
92	6699194	P TITE SCREW D4X20 (BLACK)
93	6699197	SWITCH WIRE SET
94	6699196	NUT M5
95	6699192	STOP LEVER
96	6699191	LONG LEVER
97	6699193	RETURN SPRING
98	6699190	STAY SET
99	6699133	THROTTLE LEVER (A) ASS'Y
100	6699176	HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X12
101	6695492	HEX. HOLE BOLT 5X22/S
102	6696963	ANTI VIBE RUBBER (A)
103	6698643	PIPE HOLDER (A)
104	6698644	PIPE HOLDER (B)
105	6696964	ANTI VIBE RUBBER (B)
106	939542	RETAINING RING FOR D12 SHAFT
107	6699457	FAN CASE (A)
108	6699435	BALL BEARING 6301ZZC3
109	322813	RETAINING RING 37MM
110	6699434	CLUTCH SHAFT
111	6696469	STEP BOLT
112	6684648	BENT WASHER 8
113	6696546	CLUTCH PLATE (A)
114	6699130	CLUTCH
115	6699131	CLUTCH WASHER (B)
116	6685337	FLYWHEEL NUT
117	323212	BOLT WASHER M8 (BLACK)
118	6698388	HEX. SOCKET HD. BOLT (W/WASHERS) M4X18
119	6699458	IGNITION COIL ASS'Y
120A	6601421	PLUG CAP
121	6699933	METAL FITTING OF PLUG CAP
122	6696544	CORD
123	6696545	EARTH CORD
124	6699289	MAGNETO ROTOR
125	6698716	FUEL PIPE
125A	6601525	FUEL PIPE
126A	6699014	FUEL PIPE L70
127	6697846	RETURN GROMMET
128	6698402	FUEL TANK CAP ASS'Y
129	6698732	TANK CAP CHAIN
130	6698931	FUEL GROMMET
130A	6600358	FUEL GROMMET
131	6699558	SPACER
132	6699459	SPACER (B)
133	6600317	TANK (B)
133	6699719	TANK
133A	6600354	TANK (C)
134A	6600351	PUMP FILTER
135	6696949	CLIP
136	6694787	STAND
137	6698991	BOLT (W/FLANGE) L27.8
151	6699446	THROTTLE LEVER (B)
152	6699448	LOOP HANDLE (W/BARRIER)
153	6699449	LOOP HANDLE
154	6684709	HEX. HOLE BOLT M5X25/S
155A	6600500	HANDLE HOLDER (A)
156	6698638	HANDLE (LEFT)
157	6699447	HANDLE (RIGHT)
158A	6600501	HANDLE HOLDER (B)
159	6696578	HANDLE HOLDER (C)
160	6684714	HEX. HOLE BUTTON BOLT M6X25
161	6699439	GEAR CASE ASS'Y (4BB)
161	6699440	GEAR CASE ASS'Y (4BB)
162	949664	HEX. SOCKET HD. BOLT M5X30
163	6695414	SCREW 5X12/W.S
164	6600005	CAP
165	6600006	SPRING
166	6684737	BOLT (W/PLUS) M6X8
167	6600007	LOCK PIN
168	6699441	CUTTER HOLDER (A)
169	6698659	CUTTER HOLDER (B)
170	6699188	NUT COVER
171	335759	U-NUT (LEFT HAND) M10
172	6698794	COVER
172	6698937	COVER
173		NYLON CORD
174	6698795	SET SCREW
175	6698796	REEL
175	6698939	REEL
176	6698797	RETURN SPRING
176	6698941	RETURN SPRING
177	6698798	BUTTON
177	6698940	BUTTON
178	6698799	CORD GUIDE
178	6698942	CORD GUIDE
179	6698800	CASE
179	6698938	CASE
180	6696454	NYLON HEAD ASS'Y
180	6698639	NYLON HEAD ASS'Y
181	6684714	HEX. HOLE BUTTON BOLT M6X25
182	6699442	COVER BRACKET
184	6684959	CAUTION MARK
184	6685056	CAUTION MARK
185	6685064	HEX. SOCKET HD. BOLT (W/BUTTON) M6X20
186	949455	SPRING WASHER M6
187	6696978	COVER BRACKET
188	6684852	LEVEL MARK
189	6684851	LEVEL MARK
190	6699445	MAIN PIPE
191	6698514	DRIVE SHAFT
192A	6600504	HANGER
193	6698515	CAP (A)
194	6699450	WIRE CLAMP
195	6696981	GUARD
196	323210	BOLT WASHER M4 (BLACK)
197	6685068	MACHINE SCREW (W/SP. WASHER) M4X12
198	949554	NUT M4
199	6696584	KNIFE
200	6696980	GUARD
201	6696951	GUARD HOLDER
202	6696950	COVER GUARD
203	6684751	TAPPING SCREW 4X14
204	6684750	KNIFE
205	6600328	CAUTION LABEL (HEDGE)
206	949236	MACHINE SCREW M5X10
220	6600499	HANDLE HOLDER (A).(B) SET
STANDARD ACCESSORIES Pag.2
501	6684764	BOX WRENCH (HEX. SOCKET 17/19)
502	6696596	WRENCH 8X10
503	944458	HEX. BAR WRENCH 4MM
504B	6684768	CUTTER COVER
505	875769	PROTECTIVE GLASSES
506	6695796	SHOULDER HARNESS D3X
506A	6601420	SHOULDER BELT SINGLE
507	6698711	BLADE 3TX255XT1.8
508	6698640	MEGA TWIST CORD
509	6699441	CUTTER HOLDER (A)

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Tanaka websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Tanaka brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

Reference Tanaka TCG 24EBSP

Available 12 Items

Data sheet

SHIPPING IN: Usually Ships in 10/15 BUSINESS DAYS
Machine Type: Brushcutters
MORE INFO:: [email protected]

Specific References

Condition New

Download

Diagram Tanaka TCG 24EBSP

Download (584.4KB)

HiKOKI Power Tools Italia S.p.a. SKU: 6699995

Recoil Starter for Brushcutter Hitachi Tanaka CG22EAS/24-27EASP

Recoil Starter for Brushcutters Hitachi Tanaka CG22EAS/24-27EASP Original spare part Hitachi Koky Tanaka, Recoil Starter for Brushcutters CG22EAS - CG24EASP - CG27EASP. Part for the following items: - Brushcutters CG22EAS -...

Cart (0)

Subcategories

Subcategories

Subcategories

Power Tools Spare Parts

Garden Spare Parts

Air Compressor Spare Parts

Protezione & Edilizia

Impianti & Utensili

Casa & Giardino

Tanaka Spare Parts for Engine Brush Cutter TCG 24EBSP

Tanaka Spare Parts for Engine Brush Cutter TCG 24EBSP

Tanaka Spare Parts for Engine Brush Cutter TCG 24EBSP

Tanaka Spare Parts for Engine Brush Cutter TCG 24EBSP

Tanaka Spare Parts for Engine Brush Cutter TCG 24EBSP

Data sheet

Specific References

Download

Diagram Tanaka TCG 24EBSP

You might also like
