Tanaka Spare Parts for Chainsaw ECS 3301D

SKU: Tanaka ECS 3301D
€19.67
VAT included

Tanaka Spare Parts for Chainsaw ECS 3301D

Hitachi-HIKOKI Tanaka Authorized Technical Assistance and original spare parts Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Chainsaw ECS 3301D.

Tanaka Spare Parts for Chainsaw ECS 3301D
  • Tanaka Spare Parts for Chainsaw ECS 3301D
  • Tanaka Spare Parts for Chainsaw ECS 3301D
  • Tanaka Spare Parts for Chainsaw ECS 3301D
  • Tanaka Spare Parts for Chainsaw ECS 3301D
  • Tanaka Spare Parts for Chainsaw ECS 3301D
  • Tanaka Spare Parts for Chainsaw ECS 3301D
  • Tanaka Spare Parts for Chainsaw ECS 3301D
  • Tanaka Spare Parts for Chainsaw ECS 3301D
  • Tanaka Spare Parts for Chainsaw ECS 3301D
  • Tanaka Spare Parts for Chainsaw ECS 3301D
  • Tanaka Spare Parts for Chainsaw ECS 3301D
  • Tanaka Spare Parts for Chainsaw ECS 3301D
  • Tanaka Spare Parts for Chainsaw ECS 3301D
HiKOKI Power Tools Italia S.p.a.

Tanaka Spare Parts for Chainsaw ECS 3301D

SKU: Tanaka ECS 3301D Condition: New
€19.67
VAT included

Tanaka Spare Parts for Chainsaw ECS 3301D

Hitachi-HIKOKI Tanaka Authorized Technical Assistance and original spare parts Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Chainsaw ECS 3301D.

settings 150 spare parts
description 12 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
131 spare parts

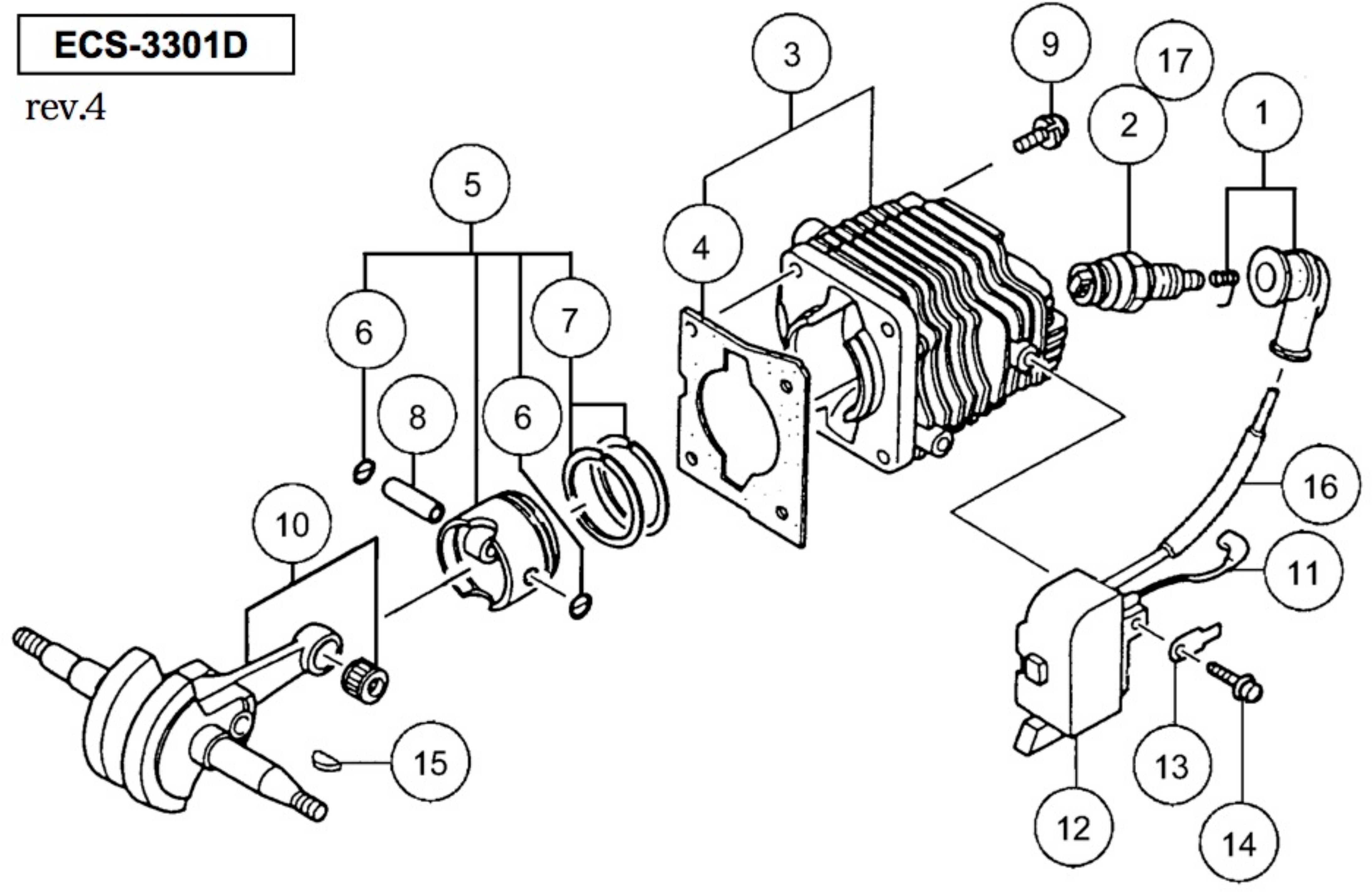

Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 1
Pos. Item Price Buy
*71
 Air Cleaner (Sponge) for Chainsaw Tanaka ECS 3300D 6690355 Air Cleaner (Sponge) for Chainsaw Tanaka ECS 3300D €2.63
1
 photo_cameraImage coming soon 6687468 SPARK PLUG CAP ASS'Y €5.31
3
 Cylinder Set for Chainsaw Tanaka TCS-3301S 6685457 Cylinder Set for Chainsaw Tanaka TCS-3301S €104.57
4
 photo_cameraImage coming soon 6685724 CYLINDER GASKET €1.68
5
 photo_cameraImage coming soon 6685879 PISTON SET €54.66
6
 Hitachi CG33EJ-LP Circlip 6685078 Hitachi CG33EJ-LP Circlip €1.22
7
 Piston Ring for Chainsaw Hitachi Tanaka CS33EB 6685331 Piston Ring for Chainsaw Hitachi Tanaka CS33EB €10.49
8
 Piston Pin for Brushcutters Hitachi CG33EJ-LP-CG33EJ-SL 6686008 Piston Pin for Brushcutters Hitachi CG33EJ-LP-CG33EJ-SL €4.64
9
 Hex Hole Bolt 10.9 M5x16/6 for Chainsaws Hitachi 6684903 Hex Hole Bolt 10.9 M5x16/6 for Chainsaws Hitachi €1.32
12
 Tanaka Chainsaw TCS-3301S Ignition Coil 6687700 Tanaka Chainsaw TCS-3301S Ignition Coil €87.30
14
 photo_cameraImage coming soon 6695407 HIGH TENSION SCREW 4X18WS €1.25
15
 photo_cameraImage coming soon 6684899 WOODRUFF KEY 3X13X4.5 €1.68
Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

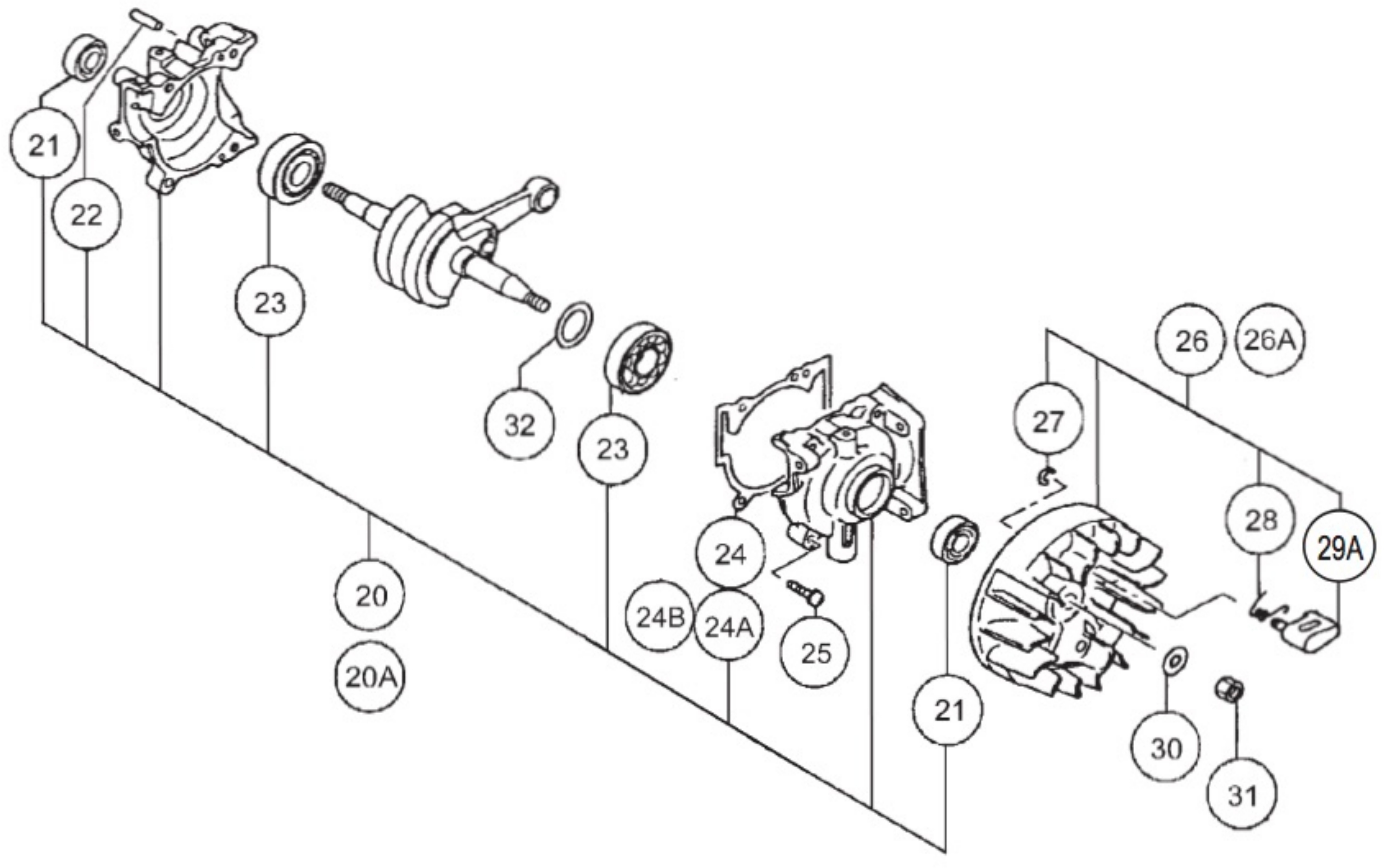

Esploso pagina 2
Pos. Item Price Buy
23
 Ball Bearing 6201 for Chainsaw Hitachi CS30EH 6685096 Ball Bearing 6201 for Chainsaw Hitachi CS30EH €11.47
24
 photo_cameraImage coming soon 6686699 CRANK CASE GASKET €1.27
25
 photo_cameraImage coming soon 6684668 HEX.HOLE BOLT M5X20/S €1.27
26
 photo_cameraImage coming soon 6687394 MAGNETO ROTOR ASS'Y €34.65
27
 photo_cameraImage coming soon 6685101 D4E RETAINING RING €1.25
28
 photo_cameraImage coming soon 6685105 STARTER PAWL SPRING €1.68
29A
 Starter Pawl for Chainsaw Hitachi Tanaka CS33EDT-EB 6685334 Starter Pawl for Chainsaw Hitachi Tanaka CS33EDT-EB €2.65
30
 photo_cameraImage coming soon 6685103 BOLT WASHER M7 €1.25
32
 photo_cameraImage coming soon 6685098 SHIM S T0.2 €1.98
32
 photo_cameraImage coming soon 6685099 SHIM S T0.3 €1.98
32
 photo_cameraImage coming soon 6686475 SHIM 0.4 €2.11

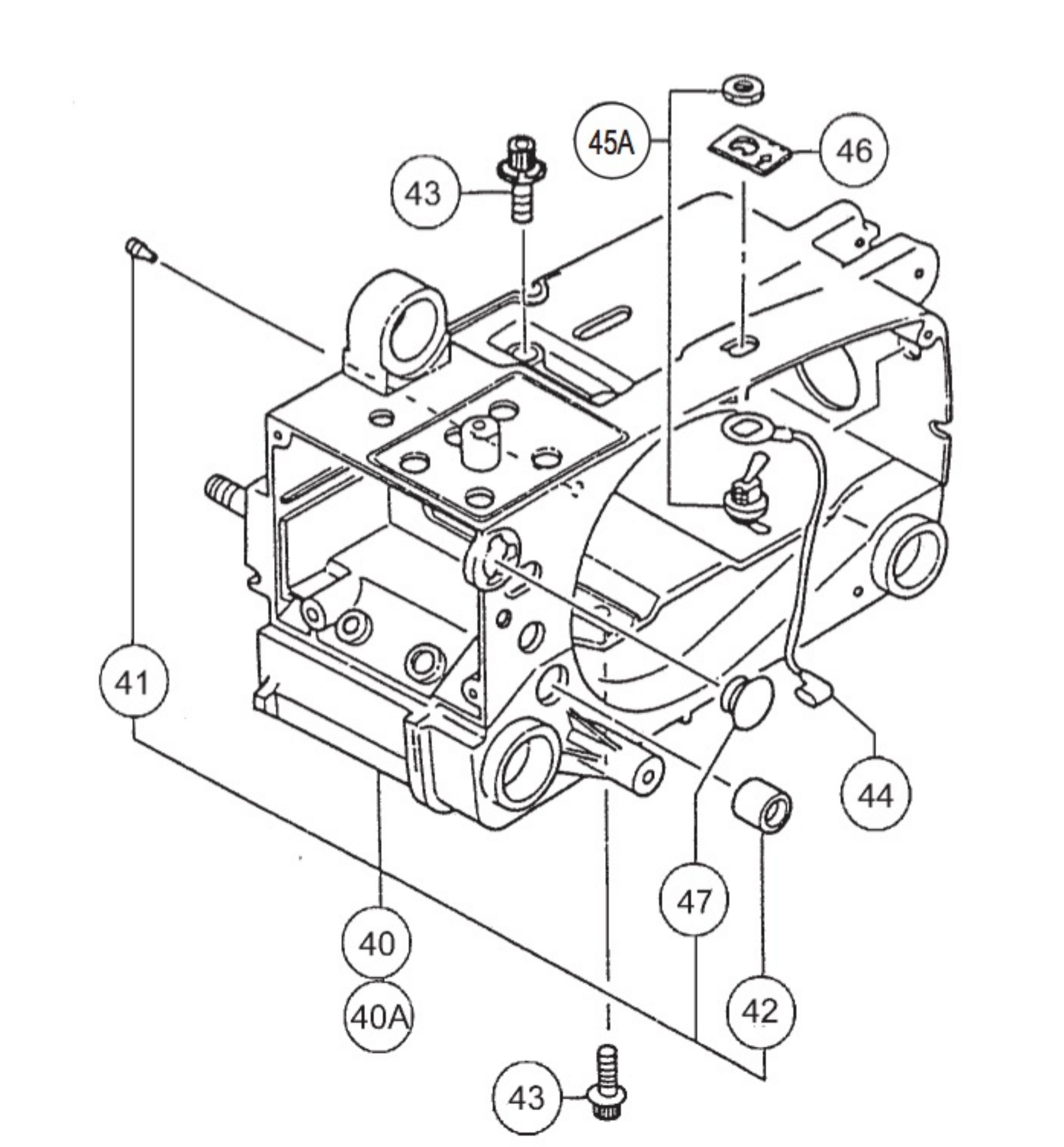

Page 3 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 3
Pos. Item Price Buy
40
 photo_cameraImage coming soon 6691363 ENGINE CASE ASS'Y, VERMILION €77.39
40A
 photo_cameraImage coming soon 6691365 ENGINE CASE ASS'Y, VERMILION €81.92
41
 photo_cameraImage coming soon 6685173 AIR VENT VALVE (B) €5.98
42
 photo_cameraImage coming soon 6697231 AIR VENT VALVE SET €12.17
43
 photo_cameraImage coming soon 6684634 HEX.HOLE BOLT 5X20/PS €1.68
44
 photo_cameraImage coming soon 6697602 EARTH CORD 90M €3.47
45A
 photo_cameraImage coming soon 6601374 STOP SWITCH ASS'Y €19.67
47
 photo_cameraImage coming soon 6686329 GROMMET A €2.51
Page 4 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

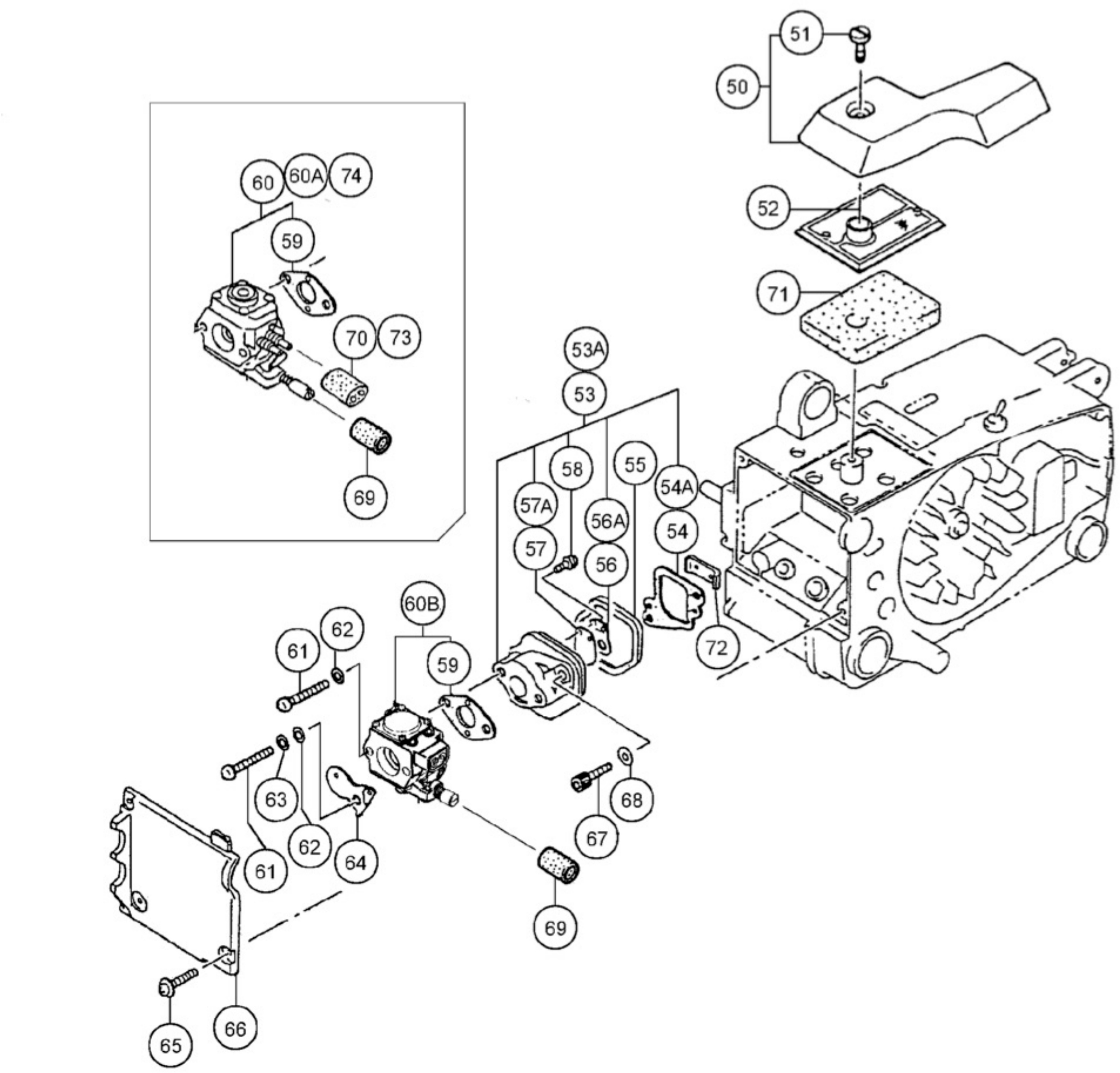

Esploso pagina 4
Pos. Item Price Buy
50
 photo_cameraImage coming soon 6686299 AIRCLEANER COVER A SET, SPARE €7.29
52
 photo_cameraImage coming soon 6690064 AIRCLEANER ELEMENT COMP. €7.90
53
 photo_cameraImage coming soon 6689934 CARBURETOR INSULATOR SET,SPARE C091000 €17.69
53A
 photo_cameraImage coming soon 6689935 INSULATOR SET  C091001 €20.22
54
 Inlet Manifold Gasket for Chainsaw Tanaka TCS-3301S 6689870 Inlet Manifold Gasket for Chainsaw Tanaka TCS-3301S €2.34
54A
 photo_cameraImage coming soon 6689871 INSULATOR GASKET €1.33
55
 photo_cameraImage coming soon 6690001 CARBURETOR INSULATOR RUBBER €2.02
56
 photo_cameraImage coming soon 6689805 REED VALVE HOLDER €1.68
56A
 photo_cameraImage coming soon 6689806 VALVE HOLDER €1.66
57
 photo_cameraImage coming soon 6689802 REED VALVE €4.80
57A
 photo_cameraImage coming soon 6689803 REED VALVE €8.62
60
 photo_cameraImage coming soon 6690665 CARBURETOR SET WT516 €102.08
60B
 Carburator Walbro for Chainsaw Hitachi CS30EG (S) 6690667 Carburator Walbro for Chainsaw Hitachi CS30EG (S) €115.54
61
 photo_cameraImage coming soon 6695350 SCREW 5X45S €1.27
66
 photo_cameraImage coming soon 6687344 AIRCLEANER COVER B €10.83
72
 photo_cameraImage coming soon 6687182 SEAL COVER €2.49
Page 5 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

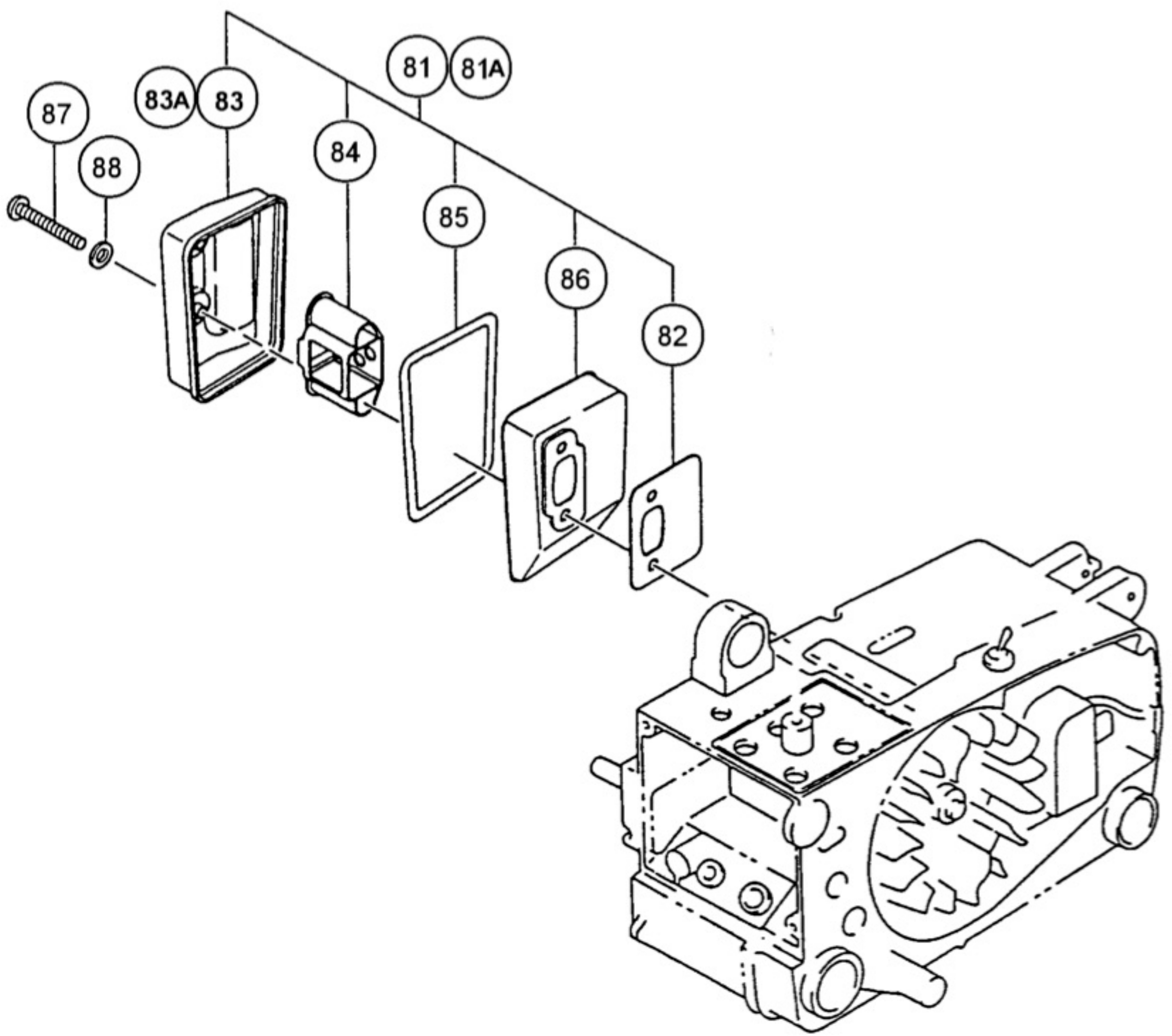

Esploso pagina 5
Pos. Item Price Buy
81A
 photo_cameraImage coming soon 6692447 MUFFLER SET €43.53
82
 Muffler Gasket for Chainsaw Hitachi Tanaka CG33EJ-SL 6692734 Muffler Gasket for Chainsaw Hitachi Tanaka CG33EJ-SL €4.78
83
 photo_cameraImage coming soon 6692626 MUFFLER BODY B COMP. €29.20
85
 photo_cameraImage coming soon 6692833 MUFFLER COUPLING GASKET €1.93
88
 photo_cameraImage coming soon 6684661 WASHER 5 €1.27
Page 6 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

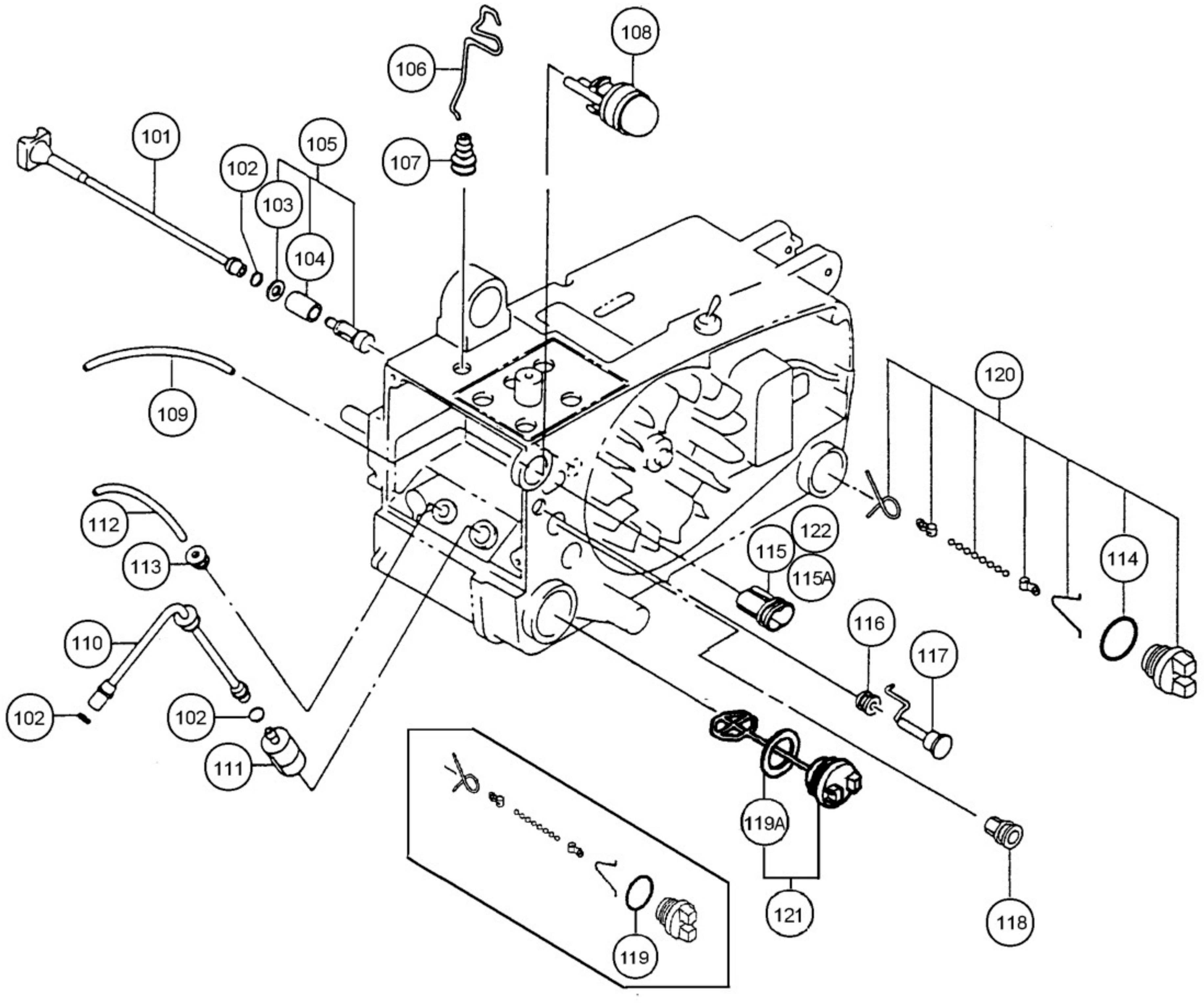

Esploso pagina 6
Pos. Item Price Buy
101
 Oil Pipe (B) for Chainsaw Hitachi Tanaka CS30EG (S) 6691121 Oil Pipe (B) for Chainsaw Hitachi Tanaka CS30EG (S) €10.49
105
 Oil Filter Body Ass’y for Chainsaw Tanaka TCS-2800S 6685249 Oil Filter Body Ass’y for Chainsaw Tanaka TCS-2800S €7.67
106
 photo_cameraImage coming soon 6690974 THROTTLE ROD €7.23
107
 photo_cameraImage coming soon 6690982 THROTTLE GUIDE €1.93
108
 Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka 6685139 Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka €13.15
110
 photo_cameraImage coming soon 6692292 RUBBER PIPE €12.55
113
 photo_cameraImage coming soon 6697846 RETURN GROMMET €1.79
115
 photo_cameraImage coming soon 6687956 ADJUSTER CAP €1.68
115A
 photo_cameraImage coming soon 6687957 ADJUSTER CAP €5.00
117
 photo_cameraImage coming soon 6692513 CHOKE BUTTON COMP. €5.03
120
 photo_cameraImage coming soon 6692159 OIL TANK CAP ASS'Y €9.31
121
 photo_cameraImage coming soon 6692121 TANK CAP ASS'Y €11.18

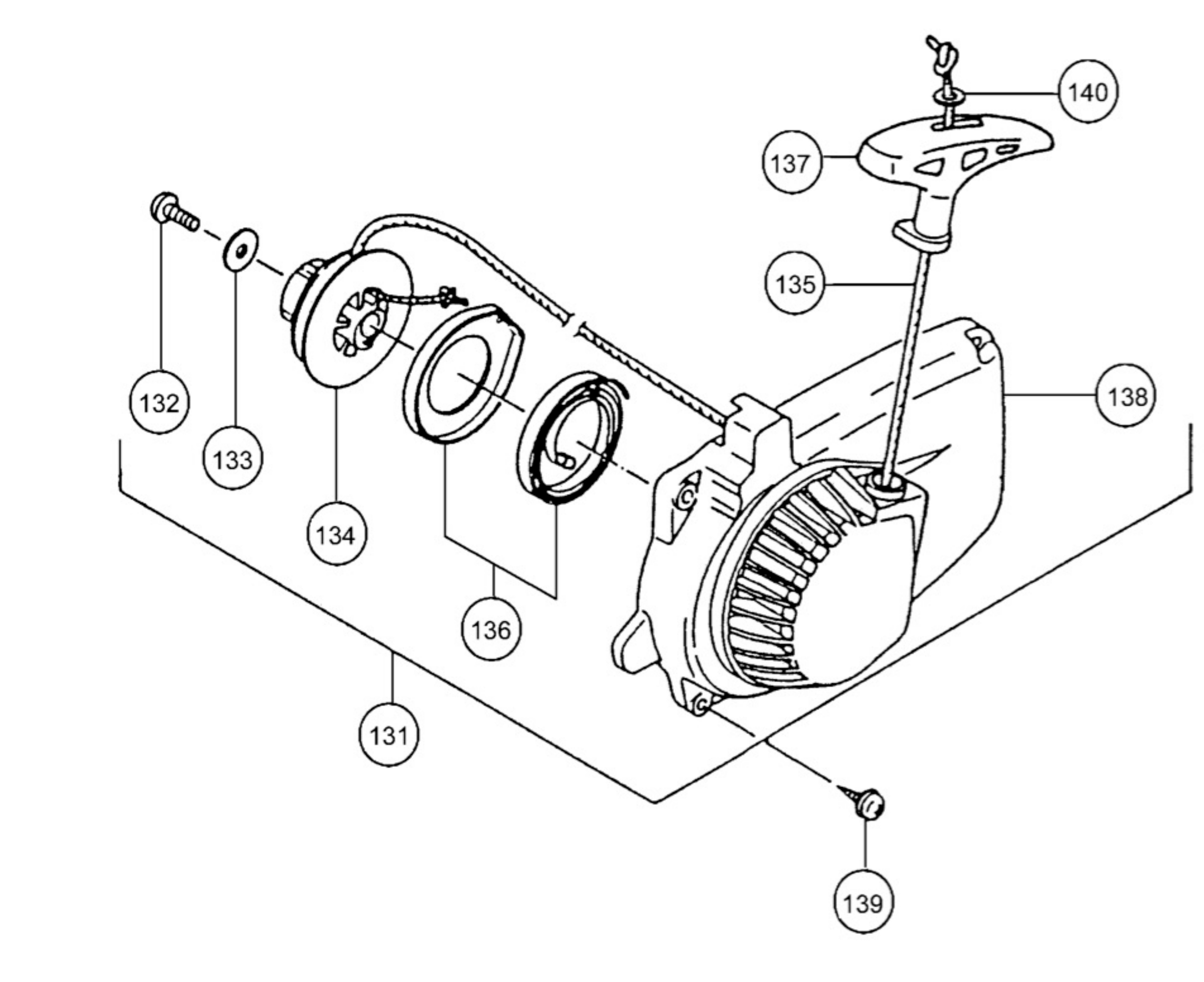

Page 7 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 7
Pos. Item Price Buy
131
 photo_cameraImage coming soon 6692906 RECOIL STARTER ASS'Y €71.37
132
 Chain Catcher Screw M5X14 for Chainsaw Hitachi CS25EC-SC 6685275 Chain Catcher Screw M5X14 for Chainsaw Hitachi CS25EC-SC €1.27
136
 photo_cameraImage coming soon 6693093 RECOIL SPRING CASE ASS'Y €11.52
Page 8 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

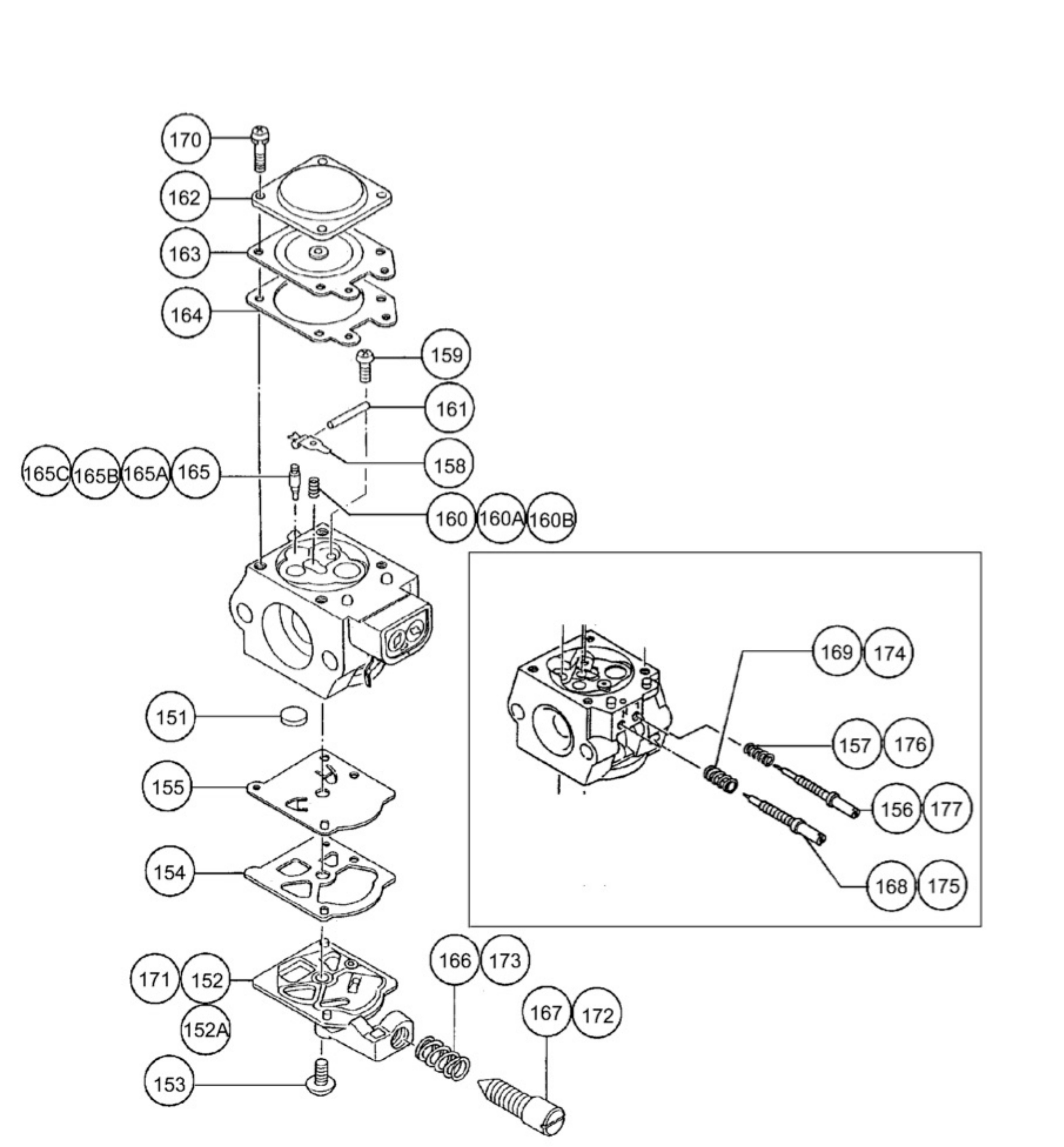

Esploso pagina 8
Pos. Item Price Buy
151
 Carburator Inlet Screen for Chainsaws and Bruschcutters Hitachi 6684700 Carburator Inlet Screen for Chainsaws and Bruschcutters Hitachi €3.18
153
 photo_cameraImage coming soon 6685210 SCREW €2.52
154
 Carburetor Pump Gasket for Chainsaws Hitachi CS25-33-40-45-51 6685212 Carburetor Pump Gasket for Chainsaws Hitachi CS25-33-40-45-51 €3.98
155
 Carburetor Pump Diaphragm for Chainsaws Hitachi CS25-33-40-45-51 6685213 Carburetor Pump Diaphragm for Chainsaws Hitachi CS25-33-40-45-51 €10.63
157
 photo_cameraImage coming soon 6692048 HIGH/LOW ADJUST SPRING €3.35
158
 Control Lever for Chainsaw Hitachi CS25EC-SC 6685217 Control Lever for Chainsaw Hitachi CS25EC-SC €6.34
159
 photo_cameraImage coming soon 6685218 HINGE PIN SET SCREW €3.38
161
 Hitachi CS25EC-SC Hinge Pin 6685219 Hitachi CS25EC-SC Hinge Pin €2.53
163
 Metering Diaphragm Comp. for Chainsaws Hitachi CS25-33-40-45-51 6690827 Metering Diaphragm Comp. for Chainsaws Hitachi CS25-33-40-45-51 €23.70
164
 Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51 6685220 Diaphragm Packing Metering for Chainsaws Hitachi CS25-33-40-45-51 €3.45
165A
 Carburator Needle Valve for Chainsaws Hitachi-HiKoki Tanaka 6685215 Carburator Needle Valve for Chainsaws Hitachi-HiKoki Tanaka €10.76
165
 photo_cameraImage coming soon 6691943 NEEDLE VALVE €10.67
166
 photo_cameraImage coming soon 6685297 IDLE ADJUST SPRING €3.38
167
 photo_cameraImage coming soon 6685298 IDLE ADJUST SCREW €3.44
169
 photo_cameraImage coming soon 6690897 HIGH ADJUSTMENT SPRING €4.75
170
 photo_cameraImage coming soon 6685223 SET SCREW €2.59
Page 9 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

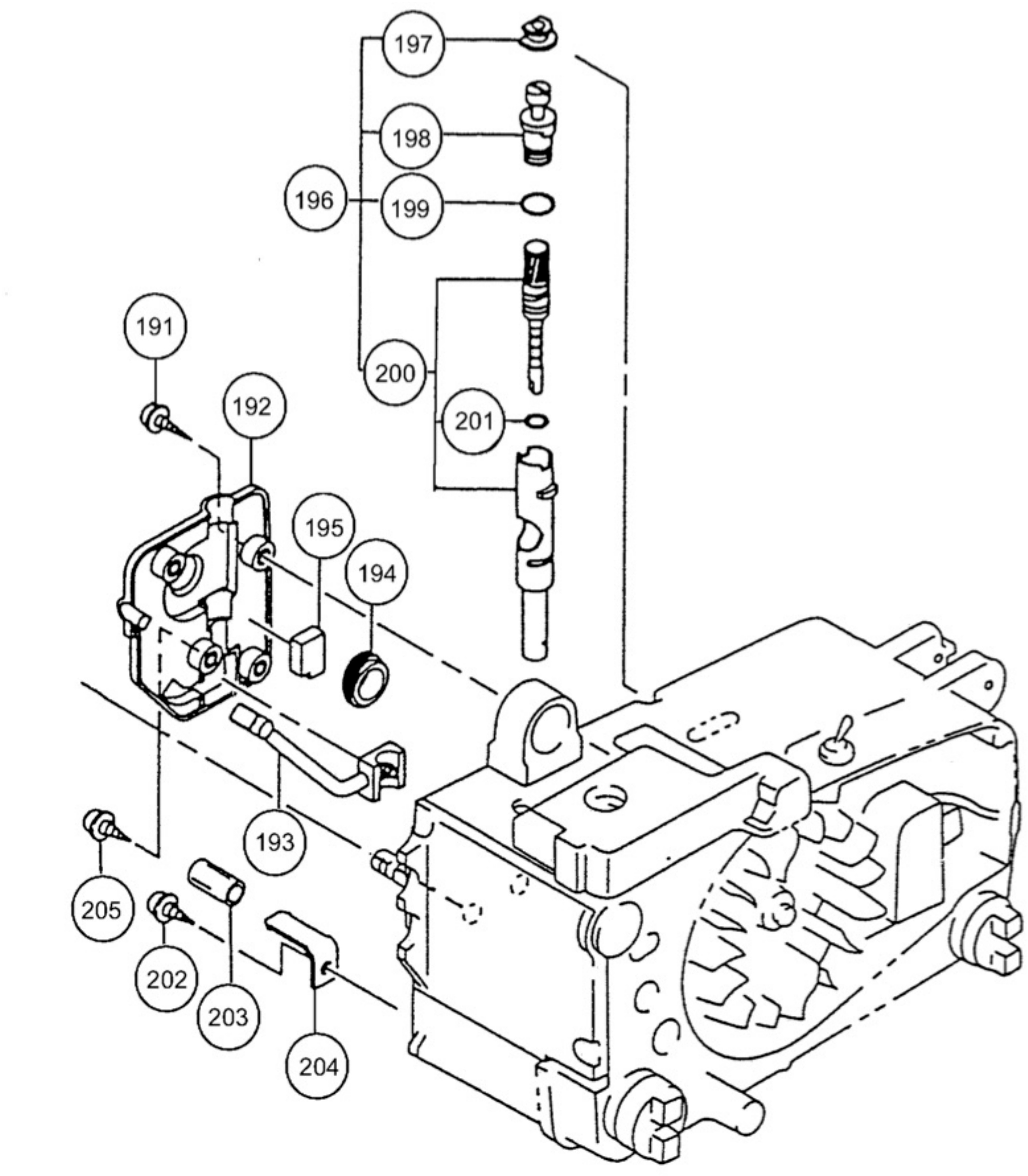

Esploso pagina 9
Pos. Item Price Buy
192
 photo_cameraImage coming soon 6686763 OIL PUMP COVER €5.93
193
 Oil Pipe (A) for Chainsaw Hitachi Tanaka CS30EG (S) 6691223 Oil Pipe (A) for Chainsaw Hitachi Tanaka CS30EG (S) €6.50
194
 Oil Pump Worm Screw for Chainsaw Tanaka TCS-3401S 6686645 Oil Pump Worm Screw for Chainsaw Tanaka TCS-3401S €13.94
196
 Oil Pump for Chainsaw Tanaka TCS-3301S 6687324 Oil Pump for Chainsaw Tanaka TCS-3301S €23.58
198
 Oil Pump Adjuster for Chainsaw Hitachi Tanaka CS30EG (S) 6691070 Oil Pump Adjuster for Chainsaw Hitachi Tanaka CS30EG (S) €3.84
199
 photo_cameraImage coming soon 6697917 O RING €2.23
200
 Oil Pump Case Set for Chainsaw Hitachi Tanaka CS30(EG) 6686681 Oil Pump Case Set for Chainsaw Hitachi Tanaka CS30(EG) €19.80
203
 Chain Catcher Protection Pipe for Chainsaw Hitachi CS25EC-SC 6685154 Chain Catcher Protection Pipe for Chainsaw Hitachi CS25EC-SC €1.32
204
 Chain Catcher for Chainsaw Hitachi CS25EC-SC 6685155 Chain Catcher for Chainsaw Hitachi CS25EC-SC €1.98

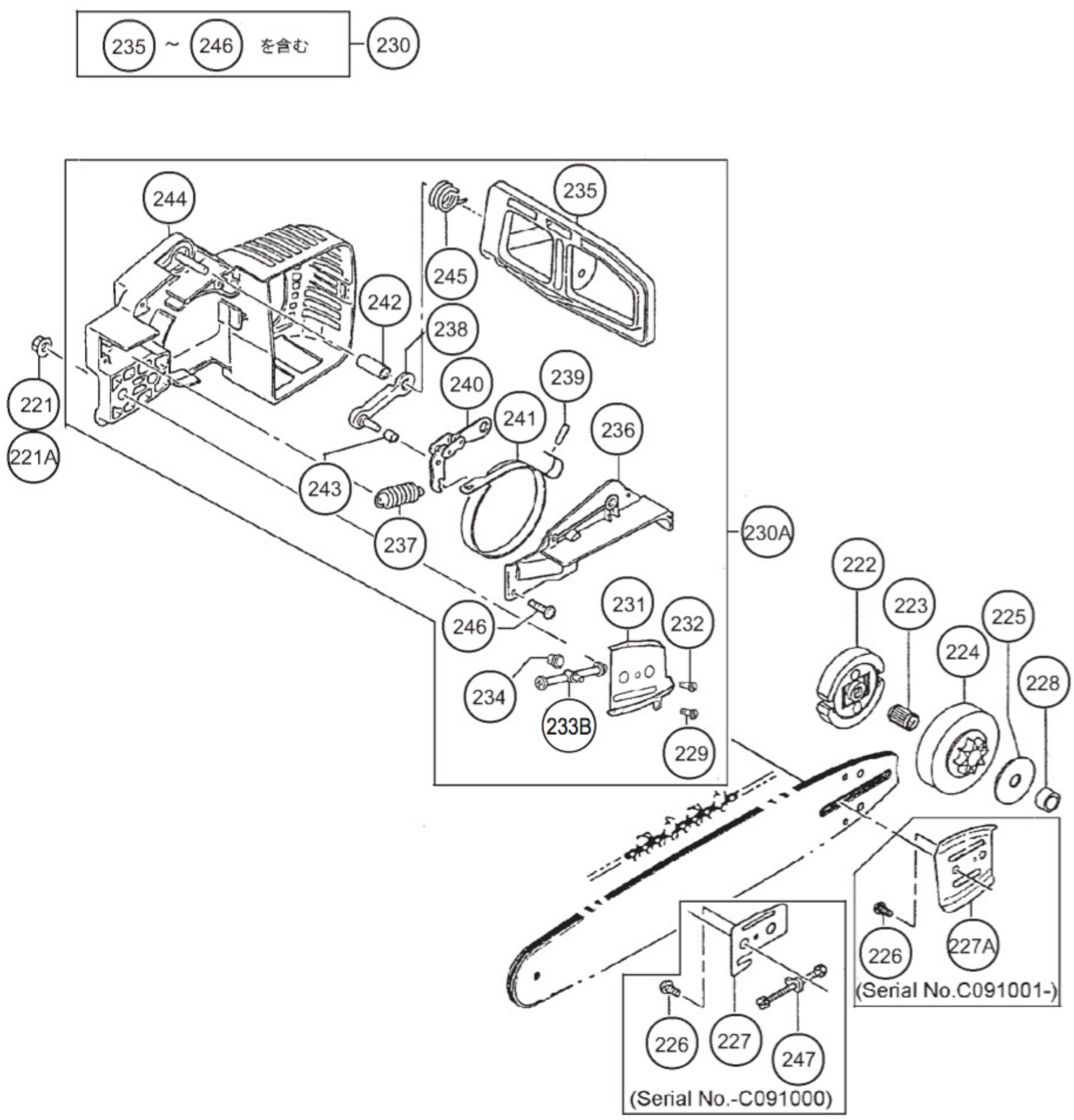

Page 10 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 10
Pos. Item Price Buy
221
 Chain Bar Lock Nut for Chainsaw Hitachi CS25EC-SC 6685166 Chain Bar Lock Nut for Chainsaw Hitachi CS25EC-SC €4.64
221A
 Chain Bar Clamp Nut M8 for Chainsaw Hitachi Tanaka CS30EG (S) 6687105 Chain Bar Clamp Nut M8 for Chainsaw Hitachi Tanaka CS30EG (S) €1.60
222
 Clutch for Chainsaw Hitachi Tanaka CS33EB 6685142 Clutch for Chainsaw Hitachi Tanaka CS33EB €26.45
223
 Clutch Needle Bearing for Chain Saws Hitachi CS25EC-SC 6685143 Clutch Needle Bearing for Chain Saws Hitachi CS25EC-SC €10.49 Not available for order
224
 photo_cameraImage coming soon 6685144 CLUTCH HOUSING COMP. €28.75
225
 Clutch Washer for Chainsaw Tanaka ECS 3300D 6685145 Clutch Washer for Chainsaw Tanaka ECS 3300D €3.42
226
 Guide Plate Screw M4x10 for Chainsaw Hitachi CS25EC-SC 6685161 Guide Plate Screw M4x10 for Chainsaw Hitachi CS25EC-SC €1.15
227
 Tension Adjustment Bolt Plate for Chainsaw Tanaka ECS3351D 6690790 Tension Adjustment Bolt Plate for Chainsaw Tanaka ECS3351D €9.62
228
 photo_cameraImage coming soon 6685146 CRANK SHAFT COLLAR €8.68
231
 Guide Plate for Chainsaw Tanaka TCS-3301S 6690756 Guide Plate for Chainsaw Tanaka TCS-3301S €5.43
232
 Screw mm 2,6x5 for Chainsaw Tanaka ECS 3300D 6695269 Screw mm 2,6x5 for Chainsaw Tanaka ECS 3300D €2.07
233B
 Tension Adjustment Bolt for Chainsaw Hitachi CS33EB-CS33EDT-CS40EA 6698986 Tension Adjustment Bolt for Chainsaw Hitachi CS33EB-CS33EDT-CS40EA €25.92
234
 Gear (A) for Chain Tensioner for Chainsaw Hitachi CS25EC-SC 6685168 Gear (A) for Chain Tensioner for Chainsaw Hitachi CS25EC-SC €5.17
235
 photo_cameraImage coming soon 6697958 BRAKE HANDLE COMP. €15.32
236
 photo_cameraImage coming soon 6689712 BRAKE LINK COVER, BLACK €5.99
238
 Brake Lever Rod for Chainsaw Tanaka TCS-2801S 6685119 Brake Lever Rod for Chainsaw Tanaka TCS-2801S €6.83
239
 Needle Roller 3x9,8 mm for Chainsaw Hitachi CS25EC-SC 6685141 Needle Roller 3x9,8 mm for Chainsaw Hitachi CS25EC-SC €1.93
240
 photo_cameraImage coming soon 6685388 BRAKE LINK €8.33
241
 photo_cameraImage coming soon 6689728 BRAKE BAND €18.20
242
 Cleaner Fixing Collar for Chainsaw Hitachi CS25EC-SC 6690805 Cleaner Fixing Collar for Chainsaw Hitachi CS25EC-SC €3.31
243
 Brake Lever Rod Collar for Chainsaw Hitachi CS25EC-SC 6685120 Brake Lever Rod Collar for Chainsaw Hitachi CS25EC-SC €1.98
245
 Brake Lever Spring for Chainsaw Hitachi CS25EC-SC 6685122 Brake Lever Spring for Chainsaw Hitachi CS25EC-SC €5.31
246
 Screw D. 4x15 for Chainsaw Hitachi CS25EC-SC-CS30EG 6685148 Screw D. 4x15 for Chainsaw Hitachi CS25EC-SC-CS30EG €1.05
247
 Tension Adjustment Bolt for Chainsaw Tanaka ECS3351D 6687071 Tension Adjustment Bolt for Chainsaw Tanaka ECS3351D €9.16
Page 11 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

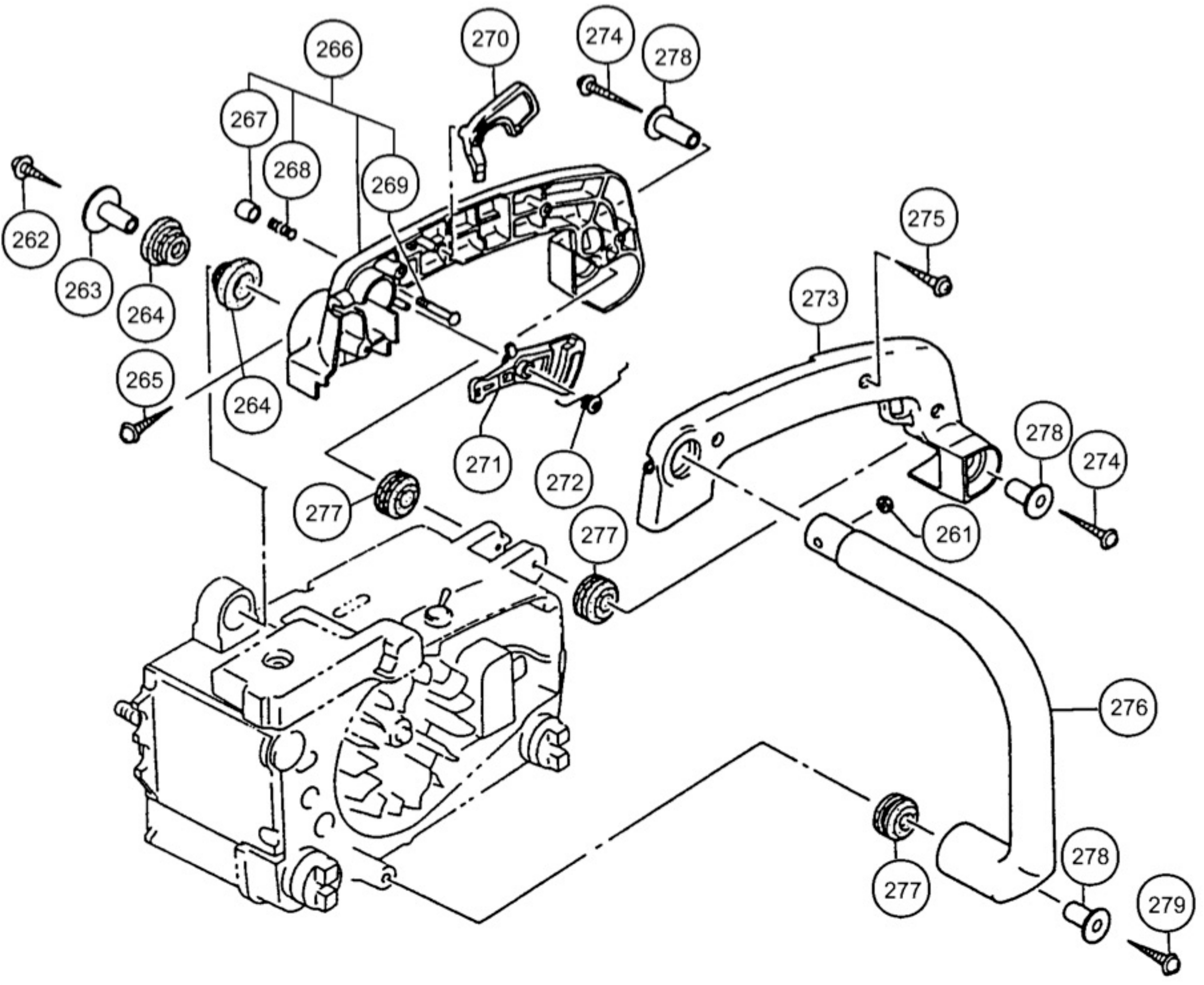

Esploso pagina 11
Pos. Item Price Buy
262
 photo_cameraImage coming soon 6695108 TAPPING SCREW 5X40 €1.98
263
 photo_cameraImage coming soon 6688480 DAMPER COLLAR A €2.31
264
 photo_cameraImage coming soon 6688117 DAMPER A €1.68
266
 photo_cameraImage coming soon 6685645 REAR HANDLE B COMP. €16.44
269
 Handle Push Pin for Hedge Trimmer Tanaka THT 210 6686430 Handle Push Pin for Hedge Trimmer Tanaka THT 210 €1.79
270
 photo_cameraImage coming soon 6688363 SAFETY LEVER €3.98
271
 photo_cameraImage coming soon 6686392 THROTTLE LEVER €3.64
272
 photo_cameraImage coming soon 6686416 THROTTLE LEVER SPRING €3.98
273
 photo_cameraImage coming soon 6685620 REAR HANDLE €18.00
274
 Tanaka TCS-3301S Tapping Screw 5x35 6695107 Tanaka TCS-3301S Tapping Screw 5x35 €1.09
276
 Tanaka TCS-3301S Front Handle 6688083 Tanaka TCS-3301S Front Handle €16.90
277
 Damper B for Hedge Trimmer Tanaka THT 210 6688412 Damper B for Hedge Trimmer Tanaka THT 210 €2.06
278
 Tanaka TCS-3301S Damper Collar B 6688485 Tanaka TCS-3301S Damper Collar B €3.16

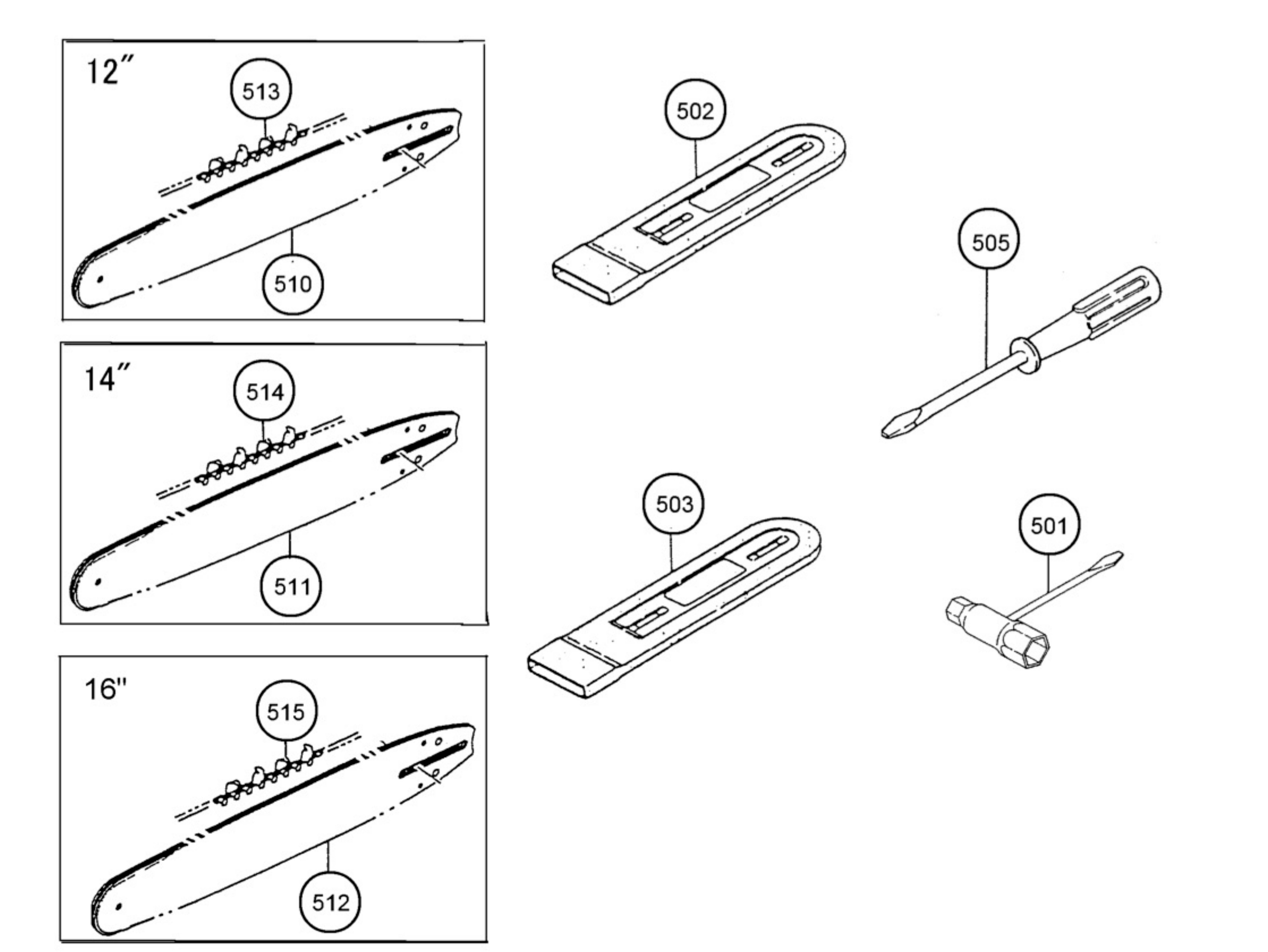

Page 12 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 12
Pos. Item Price Buy
502
 Chain Protection Cover for Chainsaw Tanaka TCS-3301S 6685256 Chain Protection Cover for Chainsaw Tanaka TCS-3301S €12.27
505
 photo_cameraImage coming soon 6686632 4X50 MINUS DRIVER €9.30

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Tanaka Spare Parts for Chainsaw ECS 3301D

Hitachi-HIKOKI Tanaka Authorized Technical Assistance

 and original spare parts Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Chainsaw ECS 3301D.

In the following table, look for the model of the Chainsaw and the respective parts of the code.
Tanaka ECS 3301D

Chainsaw ECS 3301D
# Part Num. Description
1 6687468 SPARK PLUG CAP ASS'Y
3 6685457 CYLINDER SET
4 6685724 CYLINDER GASKET
5 6685879 PISTON SET
6 6685078 CIRCLIP
7 6685331 PISTON RING (XR1-1856)
8 6686008 PISTON PIN
9 6684903 HEX. HOLE BOLT M5X16/S
12 6687700 IGNITION COIL COMP.
14 6695407 HIGH TENSION SCREW 4X18WS
15 6684899 WOODRUFF KEY 3X13X4.5
16 6692900 CORD INSULATOR TUBE
22 6685095 NEEDLE ROLLER 2.5X9.8
23 6685096 BALL BEARING 6201 A2C3
24 6686699 CRANK CASE GASKET
25 6684668 HEX.HOLE BOLT M5X20/S
26 6687394 MAGNETO ROTOR ASS'Y
27 6685101 D4E RETAINING RING
28 6685105 STARTER PAWL SPRING
29A 6685334 STARTER PAWL
30 6685103 BOLT WASHER M7
31 6685104 FLYWHEEL NUT
32 6685098 SHIM S T0.2
32 6685099 SHIM S T0.3
32 6686475 SHIM 0.4
40 6691363 ENGINE CASE ASS'Y, VERMILION
40A 6691365 ENGINE CASE ASS'Y, VERMILION
41 6685173 AIR VENT VALVE (B)
42 6697231 AIR VENT VALVE SET
43 6684634 HEX.HOLE BOLT 5X20/PS
44 6697602 EARTH CORD 90M
45A 6601374 STOP SWITCH ASS'Y
47 6686329 GROMMET A
50 6686299 AIRCLEANER COVER A SET, SPARE
51 6689735 CLEANER COVER BOLT
52 6690064 AIRCLEANER ELEMENT COMP.
53 6689934 CARBURETOR INSULATOR SET,SPARE
53A 6689935 INSULATOR SET
54 6689870 INLET MANIFOLD GASKET
54A 6689871 INSULATOR GASKET
55 6690001 CARBURETOR INSULATOR RUBBER
56 6689805 REED VALVE HOLDER
56A 6689806 VALVE HOLDER
57 6689802 REED VALVE
57A 6689803 REED VALVE
60 6690665 CARBURETOR SET WT516
60B 6690667 CARBURETOR SET,WT-760
61 6695350 SCREW 5X45S
63 6684864 SMALL WASHER 5
66 6687344 AIRCLEANER COVER B
67 6684668 HEX.HOLE BOLT M5X20/S
68 6684864 SMALL WASHER 5
69 6685224 IDLE SPONGE
*70 6687978 SPONGE H/L 10L
*70 6687978 SPONGE H/L 10L
*71 6690355 AIR CLEANER SPONGE
*71 6690355 AIR CLEANER SPONGE
72 6687182 SEAL COVER
73 6687978 SPONGE H/L 10L
81A 6692447 MUFFLER SET
82 6692734 MUFFLER GASKET
83 6692626 MUFFLER BODY B COMP.
85 6692833 MUFFLER COUPLING GASKET
87 6695054 HEX. HOLE BOLT 5X40
88 6684661 WASHER 5
101 6691121 OIL PIPE B
102 6692312 CLIP 7
103 6684661 WASHER 5
104 6690919 OIL FILTER
105 6685249 OIL FILTER BODY ASS'Y
106 6690974 THROTTLE ROD
107 6690982 THROTTLE GUIDE
108 6685139 PRIMING PUMP COMP.
110 6692292 RUBBER PIPE
113 6697846 RETURN GROMMET
115 6687956 ADJUSTER CAP
115A 6687957 ADJUSTER CAP
116 6692590 GROMMET
117 6692513 CHOKE BUTTON COMP.
118 6687976 GROMMET
120 6692159 OIL TANK CAP ASS'Y
121 6692121 TANK CAP ASS'Y
122 6687956 ADJUSTER CAP
131 6692906 RECOIL STARTER ASS'Y
132 6685275 TAPPING SCREW D5X14
133 6689681 BRAKE SHAFT WASHER
134 6693060 STARTER PULLEY
136 6693093 RECOIL SPRING CASE ASS'Y
139 6685191 TAPPING SCREW D4.5X20
151 6684700 INLET SCREEN
153 6685210 SCREW
154 6685212 PUMP GASKET
155 6685213 PUMP DIAPHRAGM
157 6692048 HIGH/LOW ADJUST SPRING
158 6685217 CONTROL LEVER
159 6685218 HINGE PIN SET SCREW
161 6685219 HINGE PIN
163 6690827 METERING DIAPHRAGM COMP.
164 6685220 DIAPHRAGM PACKING-METERING
165 6691943 NEEDLE VALVE
165A 6685215 NEEDLE VALVE
165B 6691943 NEEDLE VALVE
165C 6685215 NEEDLE VALVE
166 6685297 IDLE ADJUST SPRING
167 6685298 IDLE ADJUST SCREW
169 6690897 HIGH ADJUSTMENT SPRING
170 6685223 SET SCREW
172 6685298 IDLE ADJUST SCREW
173 6685297 IDLE ADJUST SPRING
174 6690897 HIGH ADJUSTMENT SPRING
176 6692048 HIGH/LOW ADJUST SPRING
192 6686763 OIL PUMP COVER
193 6691223 OIL PIPE A
194 6686645 SCREW GEAR
195 6691400 AIR VENT SPONGE
196 6687324 OIL PUMP ASS'Y
197 6690956 OIL ADJUST GROMMET
198 6691070 OIL PUMP ADJUSTER
199 6697917 O RING
200 6686681 OIL PUMP CASE SET, SPARE
201 6697917 O RING
202 6685275 TAPPING SCREW D5X14
203 6685154 FUEL PIPE
204 6685155 CHAIN CATCHER
221 6685166 NUT
221A 6687105 CHAIN BAR CLAMP NUT
222 6685142 CLUTCH COMP.
223 6685143 NEEDLE BEARING
224 6685144 CLUTCH HOUSING COMP.
225 6685145 CLUTCH WASHER
226 6685161 TAPPING SCREW D4X10
227 6690790 PLATE
228 6685146 CRANK SHAFT COLLAR
229 6685161 TAPPING SCREW D4X10
231 6690756 GUIDE PLATE B
232 6695269 SCREW 2.6X5
233B 6698986 CHAIN PULLER
234 6685168 GEAR (A)
235 6697958 BRAKE HANDLE COMP.
236 6689712 BRAKE LINK COVER, BLACK
238 6685119 BRAKE SUPPORT PLATE COMP.
239 6685141 NEEDLE ROLLER 3X9.8
240 6685388 BRAKE LINK
241 6689728 BRAKE BAND
242 6690805 CLEANER FIXING COLLAR
243 6685120 COLLAR
245 6685122 BRAKE LEVER SPRING
246 6685148 TAPPING SCREW D4X15
247 6687071 TENSION ADJUSTMENT BOLT ASS'Y
262 6695108 TAPPING SCREW 5X40
263 6688480 DAMPER COLLAR A
264 6688117 DAMPER A
266 6685645 REAR HANDLE B COMP.
267 6692680 PUSH PIN CAP
268 6686447 STOPPER SPRING
269 6686430 PUSH PIN
270 6688363 TRIGGER LOCKOUT VERMILION
271 6686392 THROTTLE LEVER
272 6686416 THROTTLE LEVER SPRING
273 6685620 REAR HANDLE
274 6695107 TAPPING SCREW 5X35
275 6685148 TAPPING SCREW D4X15
276 6688083 FRONT HANDLE
277 6688412 DAMPER B
278 6688485 DAMPER COLLAR B
279 6695107 TAPPING SCREW 5X35
502 6685256 CHAIN COVER 14"
505 6686632 4X50 MINUS DRIVER
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Tanaka websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Tanaka brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Tanaka ECS 3301D
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Tanaka ECS 3301D

Diagram Tanaka ECS 3301D

Download (1.54MB)

You might also like

Tension Adjustment Bolt for Chainsaw Hitachi CS33EB-CS33EDT-CS40EA
HiKOKI Power Tools Italia S.p.a. SKU: 6698986
Tension Adjustment Bolt for Chainsaw Hitachi CS33EB-CS33EDT-CS40EA
Tension Adjustment Bolt for Chainsaw Hitachi CS33EB-CS33EDT-CS40EA Genuine parts Hitachi Koky Tanaka, Tension Adjustment Bolt Ass'y for Chainsaw Bar for Pruning CS33EB - CS33EDT - CS40EA. Part for the following products: - Chainsaw...
Last items in stock €25.92
Details
Clutch Needle Bearing for Chain Saws Hitachi CS25EC-SC
HiKOKI Power Tools Italia S.p.a. SKU: 6685143
Clutch Needle Bearing for Chain Saws Hitachi CS25EC-SC
Clutch Needle Bearing for Chain Saws Hitachi CS25EC-SC Hitachi genuine parts, Needle Bearing for clutch of the chain saws for pruning Hitachi Garden Tanaka Model CS25EC-SC. Part for the following products: - Chainsaw Hitachi CS...
Available in 7/10 days €10.49
Details
Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka
HiKOKI Power Tools Italia S.p.a. SKU: 6685139
Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka
Priming Pump for Chain Saws and Brushcutters Hitachi Tanaka Genuine spare Hitachi Koky Tanaka, Priming Pump complete for Brushcutters and Chain Saws Hitachi Tanaka. Parts for the following products: - BRUSHCUTTER CG47EF (L) -...
AVAILABLE €13.15
Details
Oil Pump for Chainsaw Tanaka TCS-3301S
HiKOKI Power Tools Italia S.p.a. SKU: 6687324
Oil Pump for Chainsaw Tanaka TCS-3301S
Oil Pump for Chainsaw Tanaka TCS-3301S Genuine spare parts Tanaka, Oil Pump Assembly for Chainsaws TCS-3301S - ECS-3350D - ECS 3300D - ECS 3301B - ECS 3301D - Chainsaw Hitachi CS30EG. Part for the...
AVAILABLE €23.58
Details
Clutch for Chainsaw Hitachi Tanaka CS33EB
HiKOKI Power Tools Italia S.p.a. SKU: 6685142
Clutch for Chainsaw Hitachi Tanaka CS33EB
Clutch for Chainsaw Hitachi Tanaka CS33EB Original spare part Hitachi Koky Tanaka, Clutch Ass'y for Chainsaws CS33EB - CS30EG - CS35EG - CS30EH - CS35EH Part for the following products: -...
Last items in stock €26.45
Details
Oil Pump Case Set for Chainsaw Hitachi Tanaka CS30(EG)
HiKOKI Power Tools Italia S.p.a. SKU: 6686681
Oil Pump Case Set for Chainsaw Hitachi Tanaka CS30(EG)
Oil Pump Case Set for Chainsaw Hitachi Tanaka CS30(EG) Original spare part Hitachi Koky Tanaka, Oil Pump Case Set for Chainsaws CS30(EG) - CS35EG(S) - CS30EH(S) - CS35EH(S) - Tanaka TCS-3301S Part...
Last items in stock €19.80
Details
Screw D. 4x15 for Chainsaw Hitachi CS25EC-SC-CS30EG Sale
HiKOKI Power Tools Italia S.p.a. SKU: 6685148
Screw D. 4x15 for Chainsaw Hitachi CS25EC-SC-CS30EG
Screw D. 4x15 for Chainsaw Hitachi CS25EC-SC-CS30EG Original spare part Hitachi, Screw D. 4x15 for Chainsaw Hitachi CS25EC-SC - CS30EG - Tanaka TCS-2801S - Tanaka TCS-3301S - Tanaka TCS-2800S. Part for the following products: -...
AVAILABLE €1.05
Details
Chain Catcher Protection Pipe for Chainsaw Hitachi CS25EC-SC
HiKOKI Power Tools Italia S.p.a. SKU: 6685154
Chain Catcher Protection Pipe for Chainsaw Hitachi CS25EC-SC
Chain Catcher Protection Pipe for Chainsaw Hitachi CS25EC-SC Genuine part Hitachi, Tensioner Protection Pipe for Chainsaw Hitachi CS25EC-SC - CS30EC - CS30EG - CS38EK - CS45EL Ricambio per i seguenti prodotti: - Chainsaw Tanaka...
AVAILABLE €1.32
Details
Chain Catcher for Chainsaw Hitachi CS25EC-SC
HiKOKI Power Tools Italia S.p.a. SKU: 6685155
Chain Catcher for Chainsaw Hitachi CS25EC-SC
Chain Catcher for Chainsaw Hitachi CS25EC-SC Genuine part Hitachi, Chain Catcher for Chainsaw Hitachi CS25EC-SC - CS30EC - CS30EG - CS38EK - CS45EL Ricambio per i seguenti prodotti:...
Last items in stock €1.98
Details
Guide Plate Screw M4x10 for Chainsaw Hitachi CS25EC-SC
HiKOKI Power Tools Italia S.p.a. SKU: 6685161
Guide Plate Screw M4x10 for Chainsaw Hitachi CS25EC-SC
Guide Plate Screw M4x10 for Chainsaw Hitachi CS25EC-SC Genuine part Hitachi, Guide Plate Screw M4x10 for Chainsaw Hitachi CS25EC-SC - CS30EC - CS30EG - CS38EK - CS45EL. Ricambio per i seguenti prodotti: - Chainsaw Tanaka TCS-2800S -...
AVAILABLE €1.15
Details
Chain Catcher Screw M5X14 for Chainsaw Hitachi CS25EC-SC
HiKOKI Power Tools Italia S.p.a. SKU: 6685275
Chain Catcher Screw M5X14 for Chainsaw Hitachi CS25EC-SC
Chain Catcher Screw M5X14 for Chainsaw Hitachi CS25EC-SC Genuine part Hitachi, Guide Plate Screw M4x10 for Chainsaw Hitachi CS25EC-SC - CS30EC - CS30EG - CS38EK - CS45EL. Ricambio per i seguenti prodotti: - Chainsaw Tanaka TCS-2800S -...
AVAILABLE €1.27
Details
Chain Bar Lock Nut for Chainsaw Hitachi CS25EC-SC
HiKOKI Power Tools Italia S.p.a. SKU: 6685166
Chain Bar Lock Nut for Chainsaw Hitachi CS25EC-SC
Chain Bar Lock Nut for Chainsaw Hitachi CS25EC-SC Genuine part Hitachi, Chain Bar Lock Nut for Chainsaw Hitachi CS25EC-SC - CS30EC - CS30EG - Tanaka TCS-2800S - ECS-3350D. Ricambio per i seguenti prodotti: - Chainsaw Hitachi CS25EC-SC...
AVAILABLE €4.64
Details
Hex Hole Bolt 10.9 M5x16/6 for Chainsaws Hitachi
HiKOKI Power Tools Italia S.p.a. SKU: 6684903
Hex Hole Bolt 10.9 M5x16/6 for Chainsaws Hitachi
Hex Hole Bolt 10.9 M5x16/6 for Chainsaws Hitachi Genuine part Hitachi Koky Tanaka, Hex Hole Bolt 10.9 M5x16/6 for Chainsaws CS38EK - CS45EL - Tanaka ECV-3801 - Tanaka ECV-4501. Part for the following products: - Chainsaw Hitachi...
AVAILABLE €1.32
Details
Guide Plate for Chainsaw Tanaka TCS-3301S
HiKOKI Power Tools Italia S.p.a. SKU: 6690756
Guide Plate for Chainsaw Tanaka TCS-3301S
Guide Plate for Chainsaw Tanaka TCS-3301S Genuine spare parts Tanaka, Guide Plate for Chainsaws TCS-3301S - ECS-3350D - ECS 3300D - ECS 3301B - ECS 3301D - Motosega Hitachi...
AVAILABLE €5.43
Details
Screw mm 2,6x5 for Chainsaw Tanaka ECS 3300D Sale
HiKOKI Power Tools Italia S.p.a. SKU: 6695269
Screw mm 2,6x5 for Chainsaw Tanaka ECS 3300D
Screw mm 2,6x5 for Chainsaw Tanaka ECS 3300D Genuine part Hitachi Koky Tanaka, Screw mm 2,6x5 for Chainsaws ECS 3300D - ECS 3301B - ECS 3301D - ECS-3350D. Part for the following products: - Chainsaw Tanaka ECS 3300D - Chainsaw Tanaka...
AVAILABLE €2.07
Details
Gear (A) Chain Tensioner for Chainsaw Tanaka TCS-2801S Sale
HiKOKI Power Tools Italia S.p.a. SKU: 6685168
Gear (A) Chain Tensioner for Chainsaw Tanaka TCS-2801S
Gear (A) Chain Tensioner for Chainsaw Tanaka TCS-2801S Original part Hitachi Koky Tanaka, Gear (A) Chain Tensioner for Chainsaws TCS-2801S - TCS-3301S -  TCS-2800S - Chainsaw Hitachi CS25EC-SC - EU Part for the following products:: -...
AVAILABLE €5.43
Details
Air Cleaner (Sponge) for Chainsaw Tanaka ECS 3300D
HiKOKI Power Tools Italia S.p.a. SKU: 6690355
Air Cleaner (Sponge) for Chainsaw Tanaka ECS 3300D
Air Cleaner (Sponge) for Chainsaw Tanaka ECS 3300D Genuine part Hitachi Koky Tanaka, Air Cleaner (Sponge) for Chainsaws ECS 3300D - ECS 3301B - ECS 3301D - ECS-3350D - TCS-3301S. Part for the following products: - Chainsaw Tanaka ECS...
AVAILABLE €2.63
Details
Needle Roller 3x9,8 mm for Chainsaw Tanaka ECV-3801
HiKOKI Power Tools Italia S.p.a. SKU: 6685141
Needle Roller 3x9,8 mm for Chainsaw Tanaka ECV-3801
Needle Roller 3x9,8 mm for Chainsaw Tanaka ECV-3801 Genuine spare part Tanaka, Needle Roller 3x9,8 mm for Chainsaws TCS-2801S - TCS-3301S - ECV-3801 - ECV-4501 - ECS 3301B - ECS 3301D....
AVAILABLE €1.93
Details
Cylinder Set for Chainsaw Tanaka TCS-3301S
HiKOKI Power Tools Italia S.p.a. SKU: 6685457
Cylinder Set for Chainsaw Tanaka TCS-3301S
Cylinder Set for Chainsaw Tanaka TCS-3301S Genuine spare part Tanaka, Cylinder Set for Chainsaws TCS-3301S - ECS-3350D - ECS 3300D - ECS 3301B - ECS 3301D - Chainsaw Hitachi CS30EG. Part for the following items: - Chainsaw Tanaka...
Last items in stock €104.57
Details
Oil Pump Worm Screw for Chainsaw Tanaka TCS-3401S
HiKOKI Power Tools Italia S.p.a. SKU: 6686645
Oil Pump Worm Screw for Chainsaw Tanaka TCS-3401S
Oil Pump Worm Screw for Chainsaw Tanaka TCS-3401S Genuine spare part Tanaka, Oil Pump Worm Screw for Chainsaw TCS-3401S - Hitachi CS30EH. Part for the following items: -  Motosega Tanaka TCS-3301S -  Motosega Tanaka TCS-3401S -...
on 7/10 Business Days Approx. €13.94
Details
Clutch Washer for Chainsaw Tanaka ECS 3300D
HiKOKI Power Tools Italia S.p.a. SKU: 6685145
Clutch Washer for Chainsaw Tanaka ECS 3300D
Clutch Washer for Chainsaw Tanaka ECS 3300D Genuine part Hitachi Koky Tanaka, Clutch Washer for Chainsaws ECS 3300D - ECS 3301B - ECS 3301D - ECS-3350D. Part for the following products: -...
AVAILABLE €3.42
Details
Brake Lever Rod for Chainsaw Tanaka TCS-2801S
HiKOKI Power Tools Italia S.p.a. SKU: 6685119
Brake Lever Rod for Chainsaw Tanaka TCS-2801S
Brake Lever Rod for Chainsaw Tanaka TCS-2801S Original spare part Hitachi Koky Tanaka, Brake Lever Rod for Chainsaws TCS-2801S - Hitachi CS25EC-SC - CS 30EC - CS30EH. Part for the following products: - Chainsaw Tanaka TCS-2801S -...
AVAILABLE €6.83
Details
Brake Lever Rod Collar for Chainsaw Tanaka TCS-2801S
HiKOKI Power Tools Italia S.p.a. SKU: 6685120
Brake Lever Rod Collar for Chainsaw Tanaka TCS-2801S
Brake Lever Rod Collar for Chainsaw Tanaka TCS-2801S Original spare part Hitachi Koky Tanaka, Brake Lever Rod Collar for Chainsaws TCS-2801S - Hitachi CS25EC-SC - CS 30EC - CS30EH. Part for the following products: - Chainsaw Tanaka...
AVAILABLE €2.08
Details
Brake Lever Spring for Chainsaw Tanaka TCS-2801S
HiKOKI Power Tools Italia S.p.a. SKU: 6685122
Brake Lever Spring for Chainsaw Tanaka TCS-2801S
Brake Lever Spring for Chainsaw Tanaka TCS-2801S Original spare part Hitachi Koky Tanaka, Brake Lever Spring for Chainsaws TCS-2801S - Hitachi CS25EC-SC - CS 30EC - CS30EH. Part for the following products: - Chainsaw Tanaka TCS-2801S...
AVAILABLE €5.57
Details
Chain Protection Cover for Chainsaw Tanaka TCS-3301S
HiKOKI Power Tools Italia S.p.a. SKU: 6685256
Chain Protection Cover for Chainsaw Tanaka TCS-3301S
Chain Protection Cover for Chainsaw Tanaka TCS-3301S Genuine spare parts Tanaka, Chain Protection Cover 14" for Chainsaws TCS-3301S - ECS-3350D - ECS 3300D - ECS 3301D Part for the following items: -  Motosega TCS 2800S -  Motosega...
Last items in stock €12.27
Details
Inlet Manifold Gasket for Chainsaw Tanaka TCS-3301S
HiKOKI Power Tools Italia S.p.a. SKU: 6689870
Inlet Manifold Gasket for Chainsaw Tanaka TCS-3301S
Inlet Manifold Gasket for Chainsaw Tanaka TCS-3301S Genuine spare parts Tanaka, Inlet Manifold Gasket for Chainsaws TCS-3301S - ECS-3350D - ECS 3300D - ECS 3301B - ECS 3301D - Chainsaw Hitachi CS30EG. Part for the following items: -...
Last items in stock €2.34
Details
Tanaka Chainsaw TCS-3301S Ignition Coil
HiKOKI Power Tools Italia S.p.a. SKU: 6687700
Tanaka Chainsaw TCS-3301S Ignition Coil
Tanaka Chainsaw TCS-3301S Ignition Coil Genuine spare parts Tanaka, Ignition Coil for Chainsaws TCS-3301S - ECS-3350D - ECS 3300D - ECS 3301B - ECS 3301D - Chainsaw Hitachi CS30EG. Part for the following items: - ...
Last items in stock €87.30
Details
Tanaka TCS-3301S Front Handle
HiKOKI Power Tools Italia S.p.a. SKU: 6688083
Tanaka TCS-3301S Front Handle
Tanaka TCS-3301S Front Handle Genuine spare parts Tanaka, Front Handle for Chainsaws TCS-3301S - ECS 3300D - ECS 3301B - ECS 3301D - Chainsaw Hitachi CS30EG. Part for the following items: -  Chainsaw Tanaka...
Last items in stock €16.90
Details
Tanaka TCS-3301S Damper Collar B
HiKOKI Power Tools Italia S.p.a. SKU: 6688485
Tanaka TCS-3301S Damper Collar B
Tanaka TCS-3301S Damper Collar B Genuine spare parts Tanaka, Damper Collar B for Chainsaws TCS-3301S - ECS 3300D - ECS 3301B - ECS 3301D - Chainsaw Hitachi CS30EG. Part for the following items: -  Chainsaw...
Last items in stock €3.16
Details
Comments (0)
